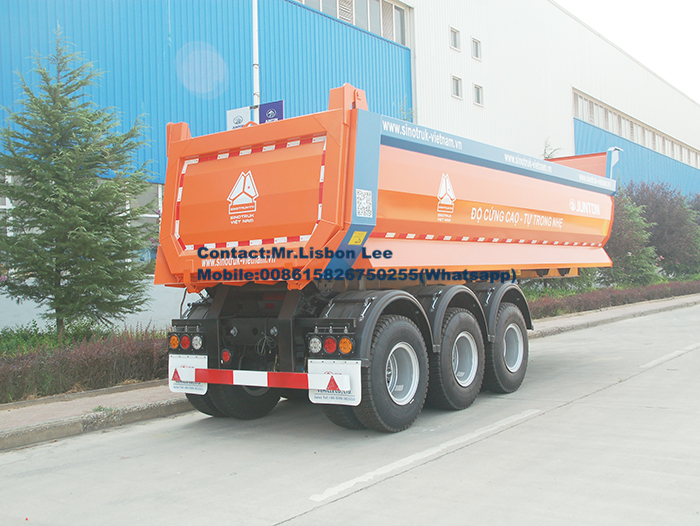

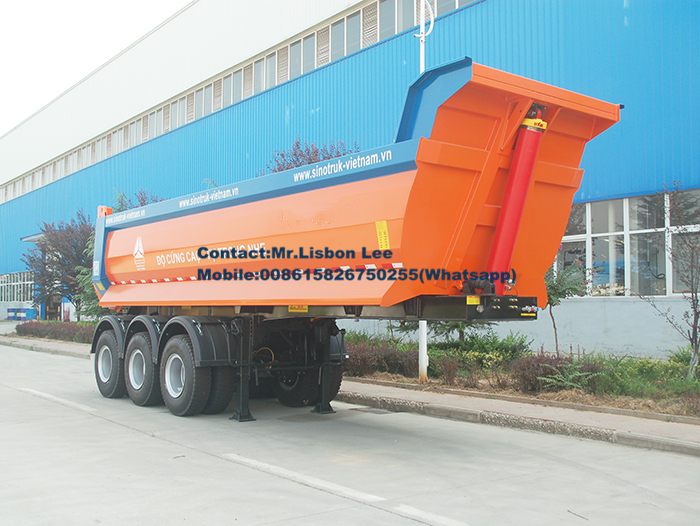

Dump semi-trailer truck

Model

SCS9402ZZX

Curb weight

8000Kg

Rated load

32000Kg

Overall dimension

10400x2500x3650mm

Box dimension

9500x2300x1200mm

Thickness of box

Side 4mm,bottom 6mm

Lifting system

Hydraulic front lifting

Mudguard

Closed type mudguard

Side fence

Made of steel,at both sides

Rear bumper

Made of steel,at rear,width 2500mm

Electric system

24V，LED lights，7-pin connector

Frame

Made of steel, Q345

King pin

90# bolted type

Suspension system

FUWA strengthen leaf spring -10/10/10

Wheel base

5200+1310+1310mm

Rear suspension

1680mm

Track

1840/1840/1840mm

Departure angle

22°

Tire

12R22.5,12pcs

Rim

Steel，9.00*22.5, 12pcs

Axle

13T axle，Drum brake，Three-axles

Brake

Pneumatic brake system

Surface

Shot blast,anti-rust,epoxy lining

Painting

Primer coating+finish coating,stoving varnish

Welded method

MIG/MAG
