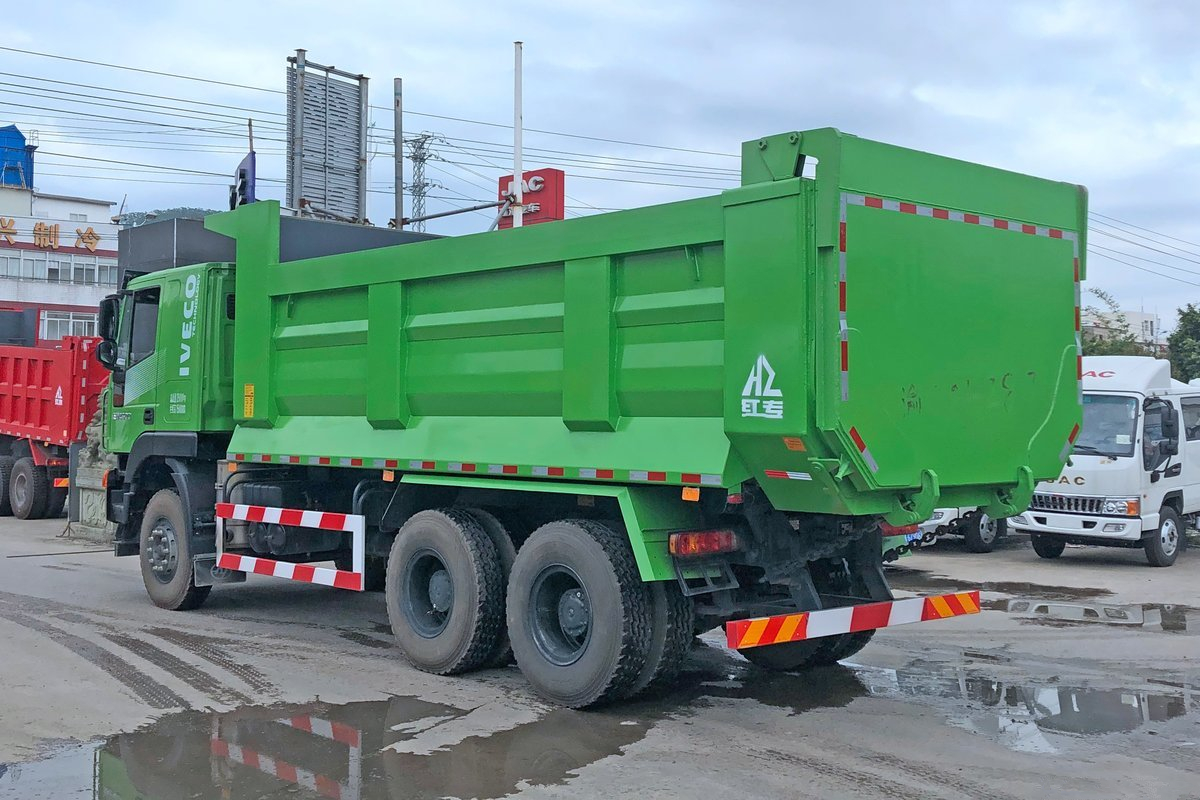

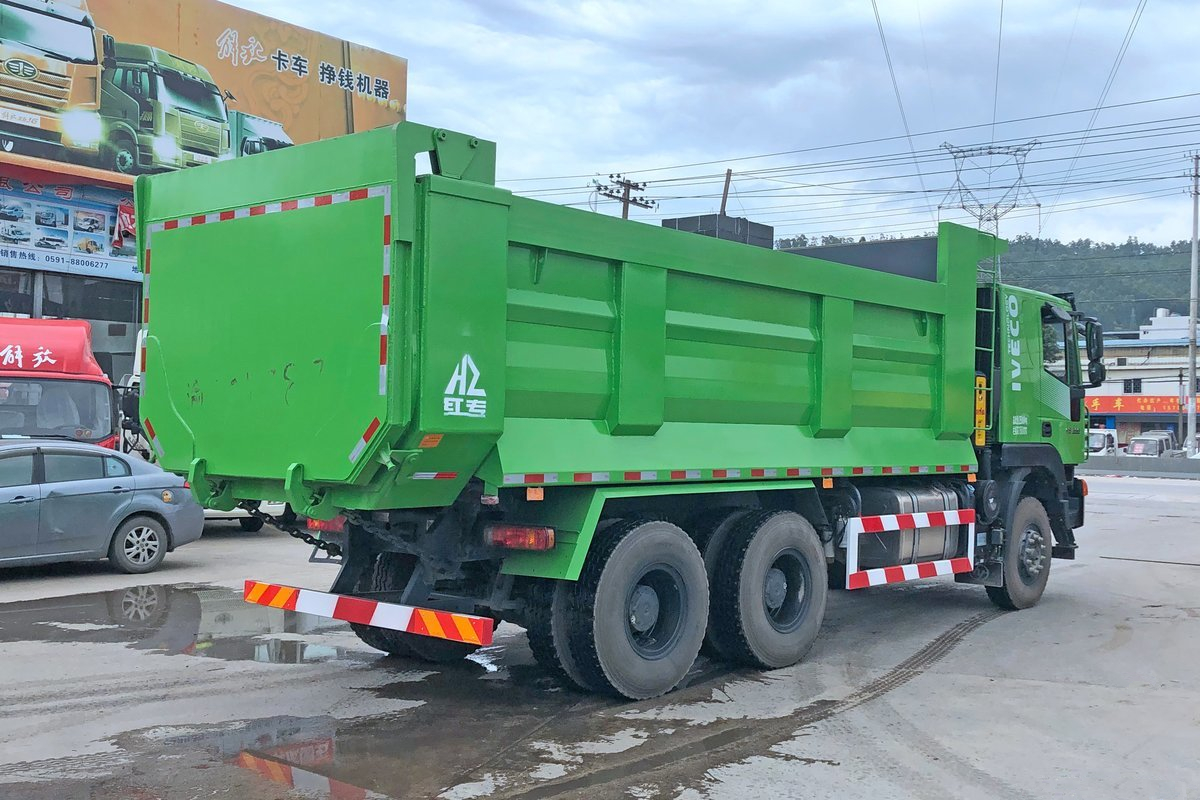

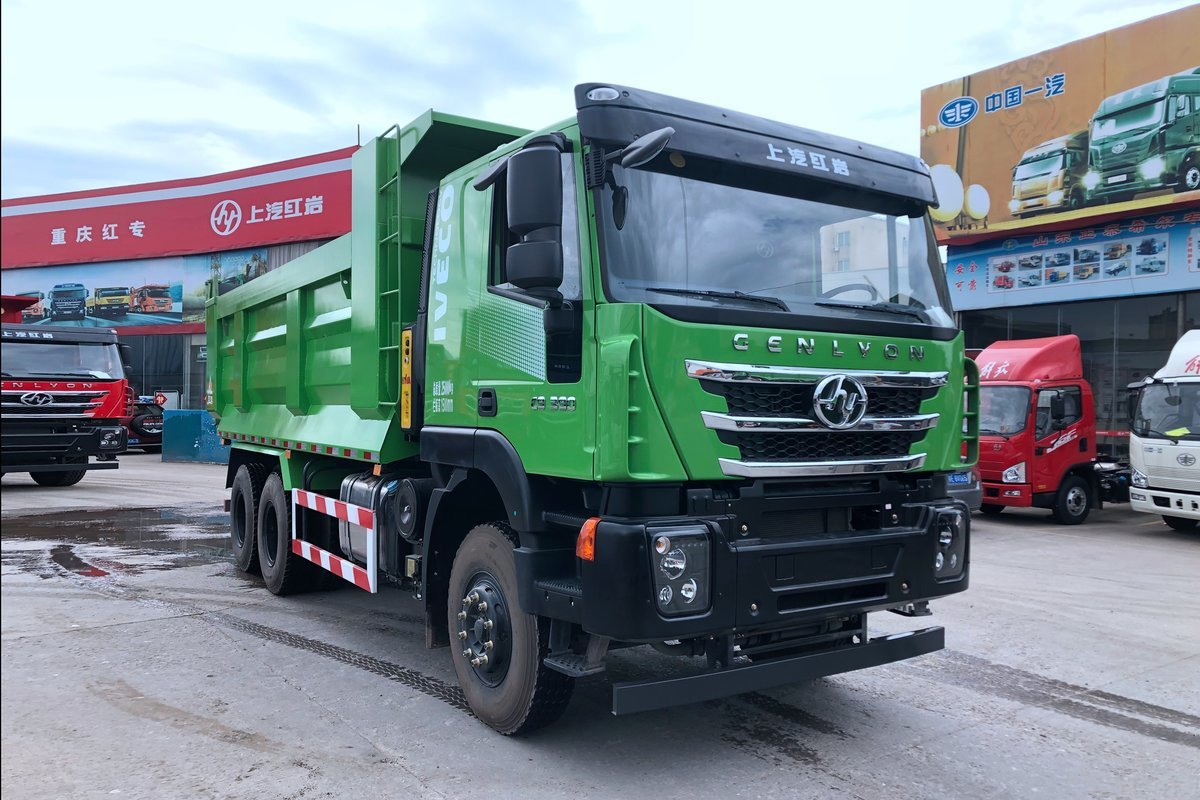

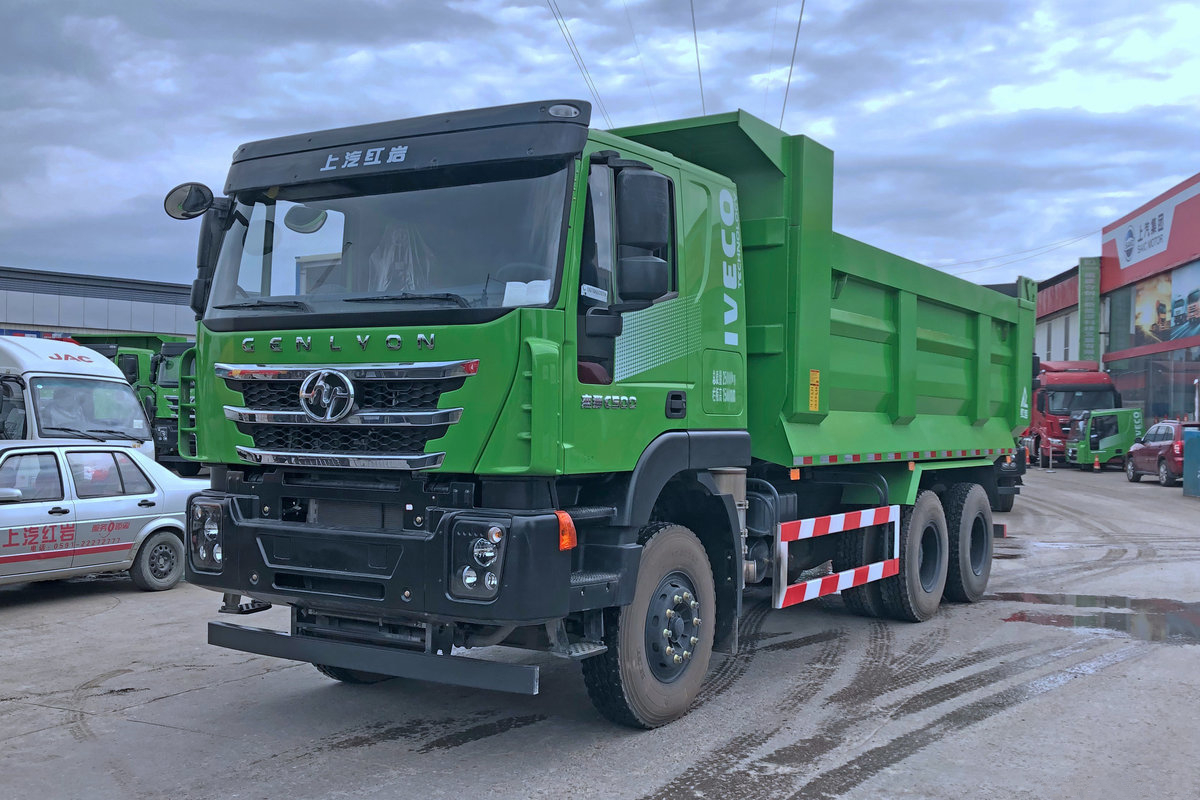

China IVECO Hongyan 6x4 dump truck 340ps with good price for sale

Drive type

6X4

Weight

GVW (kg)

25000

Kerb mass (kg)

11950

Load capacity(kg)

30000

Dimensions

Overall Dimension(L×W×H)

(mm):

7646×2500×3510

Cargo body size(L×W×H)(mm)

5000×2300×1300

Wheel base(mm)

3225+1350

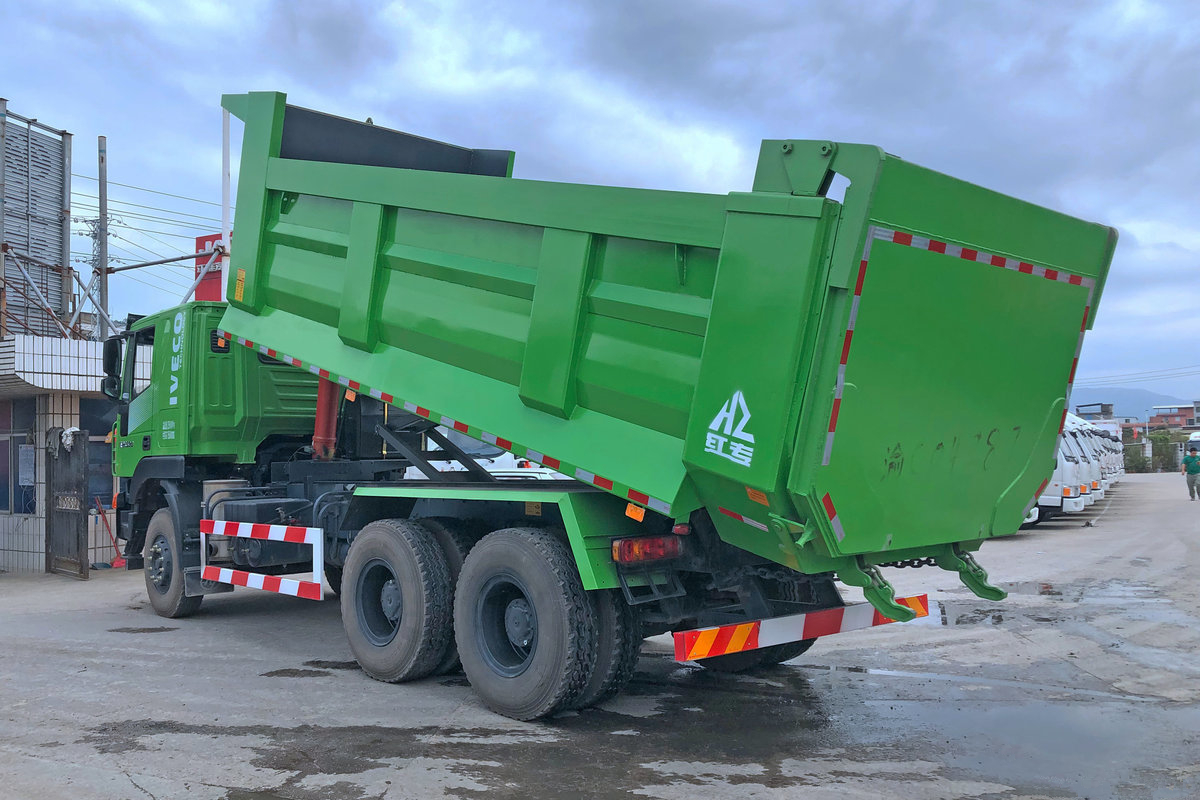

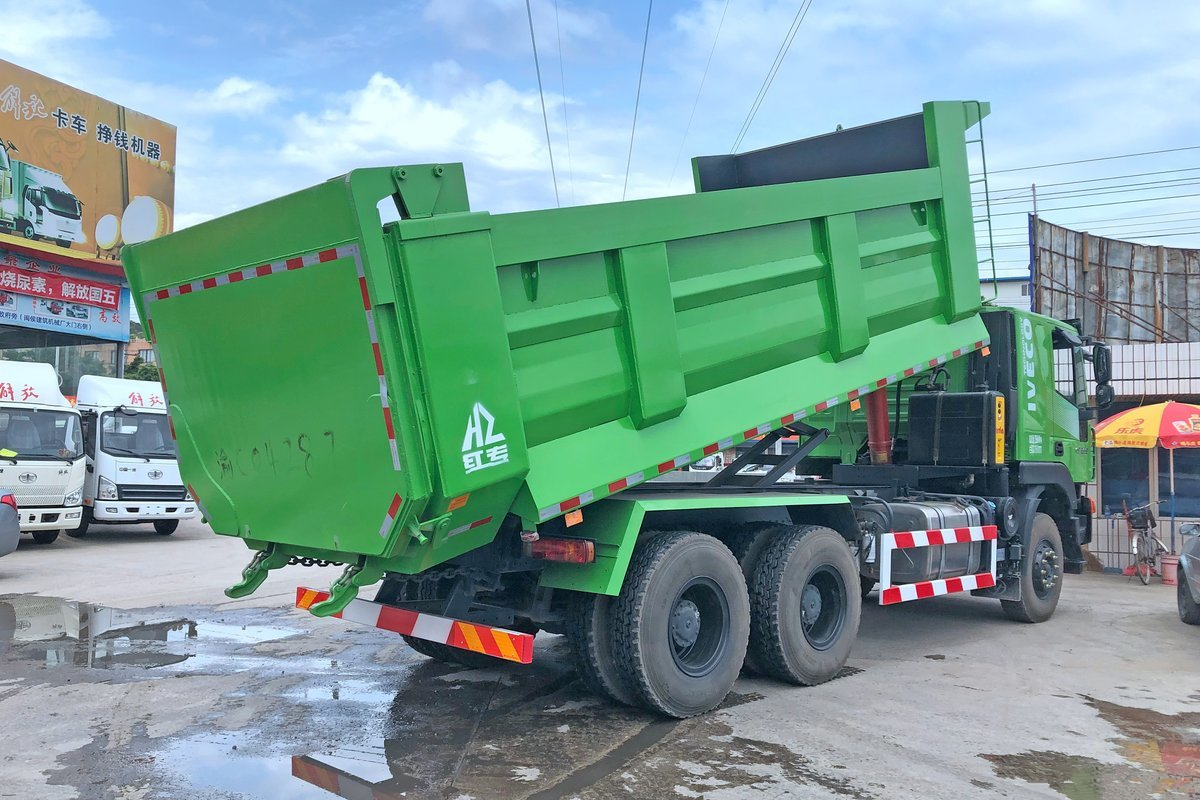

Dump box

Material

Carbon steel Q235

Thickness

Side 6mm,bottom 8mm

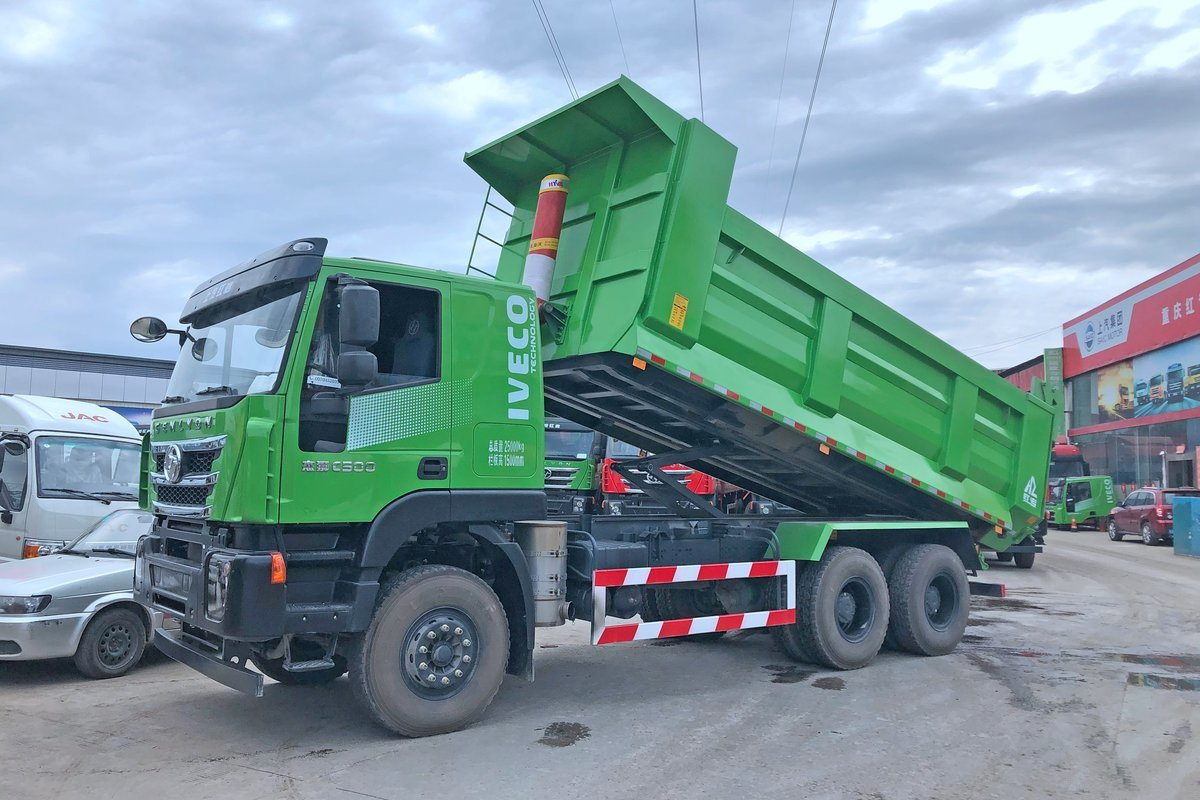

Lifting system

Hydraulic front lifting

Performance

Max.speed (km/h)

80

Approach /

Departure angle (°)

25/19

Engine

Model

C9 340

Power(kw/HP)

250kw/340HP

Max. Torque(Nm/r/min)

1300N.m@1000-1800rpm

Displacement (L)

8.709

Description

6 cylinders,in-line,water cooled,4 strokes,

turbo charged,inter cooled,electrical control,

high pressure,common rail, diesel engine

Emission level

Euro 3

Air filter

Description

Diesel filter

Chassis

Description

Bottle neck, double chassis,section thickness 8+8mm

Transmission

Brand

FAST (Low fault rate, easy gear changing, low fuel )

Model

RT-11509C

Description

Manual,9 forward and 1 reverse gears

Clutch

Type

Single plate,diaphragm spiral spring,pull type

Diameter (mm)

φ430 (17")

Steering

Type

Rotary valve steering,left hand drive

Model

Hydraulic steering with power assistance

Axles

Brand

HY300H

Front axle

7000KG

Rear axle

18000KG(Tandem) Casting axle with hub reduction,inter-wheel differential and differential lock

Ratio

5.73

Brake

Type

2 independent pneumatic circuits, drum/drum

Parking

Mechanical with spring cylinder, at rear

Emergency

Combined with parking brake

Electrics

Voltage

24V

Batteries

2 X 12V, 165Ah

Tyre

Type (Standard)

12.00R20

Quantity

10+1spare

Fuel tank

Tank capacity (L)

350

Material

Alluminum with lockable fuel cap

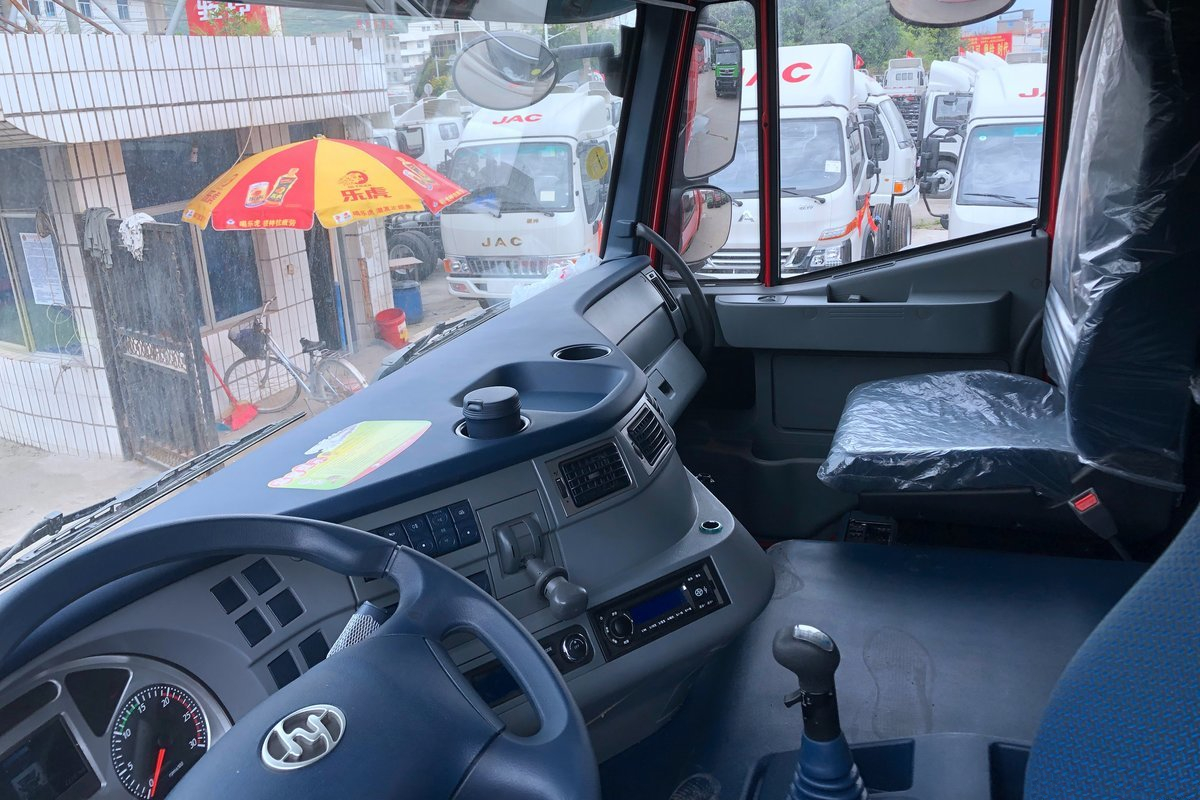

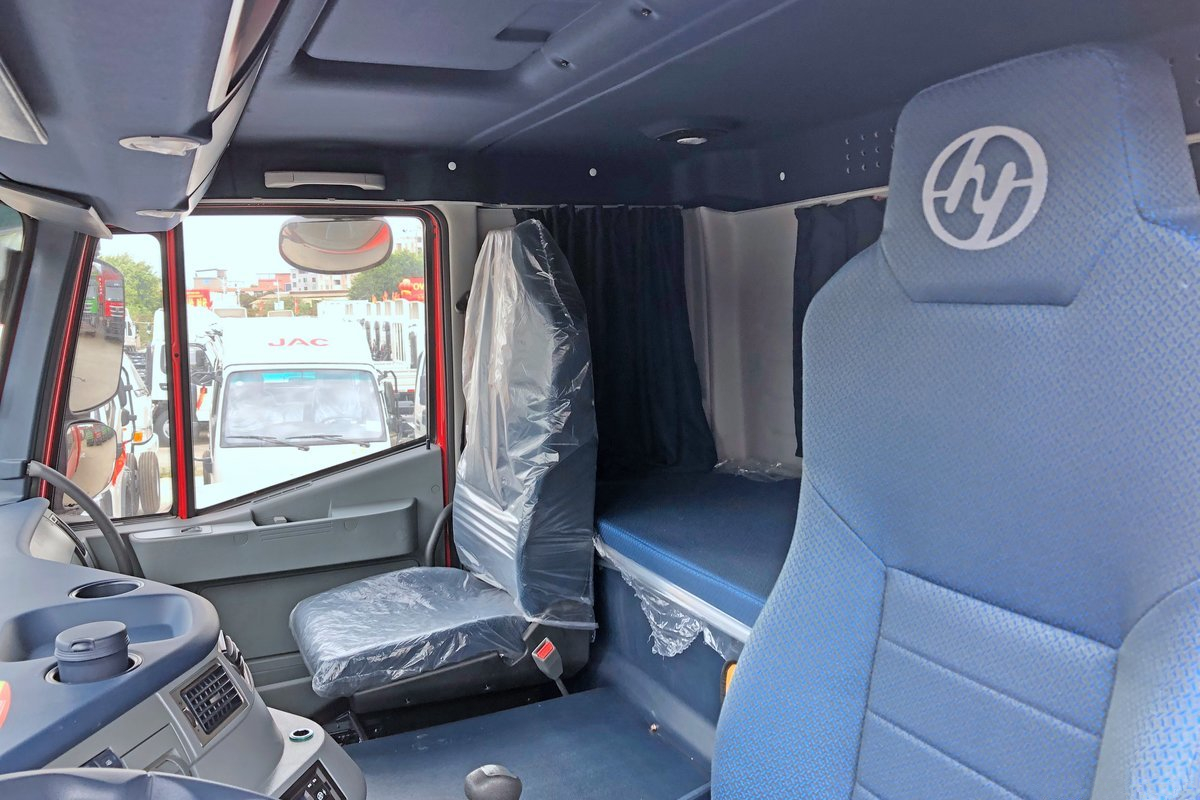

Cabin

Type

Long cab with low roof,made by 0.8-1.5mm thick sheet, overall stamping & precise welding, 80% double face galvanized sheet.High safety,Firm structure,Strong anti-bumping, Lasting anti-erosion

Configuration

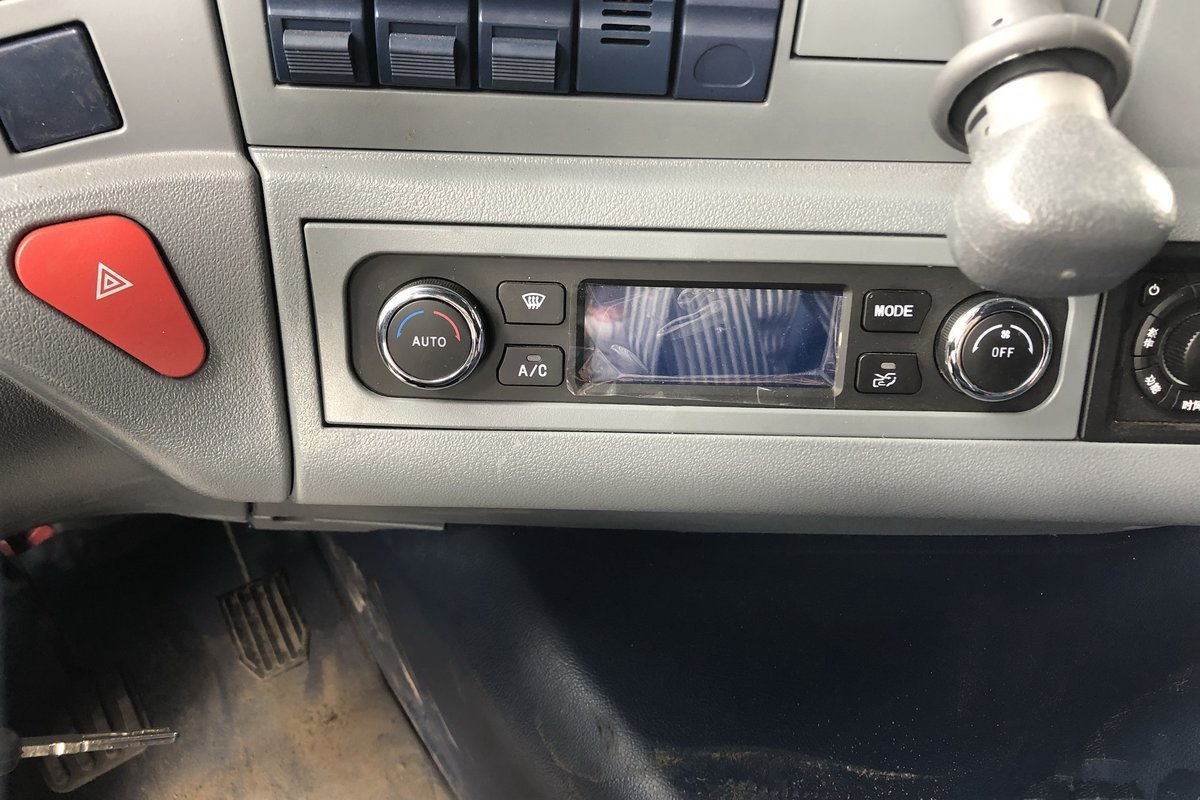

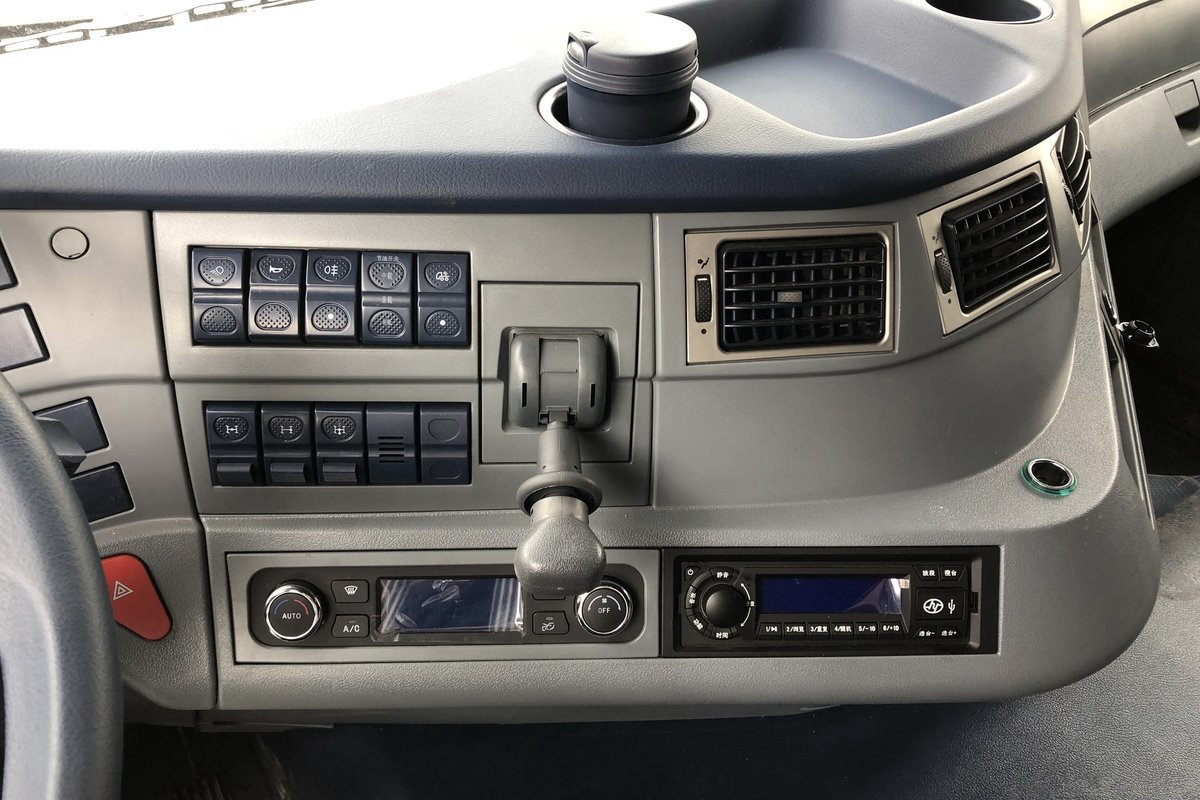

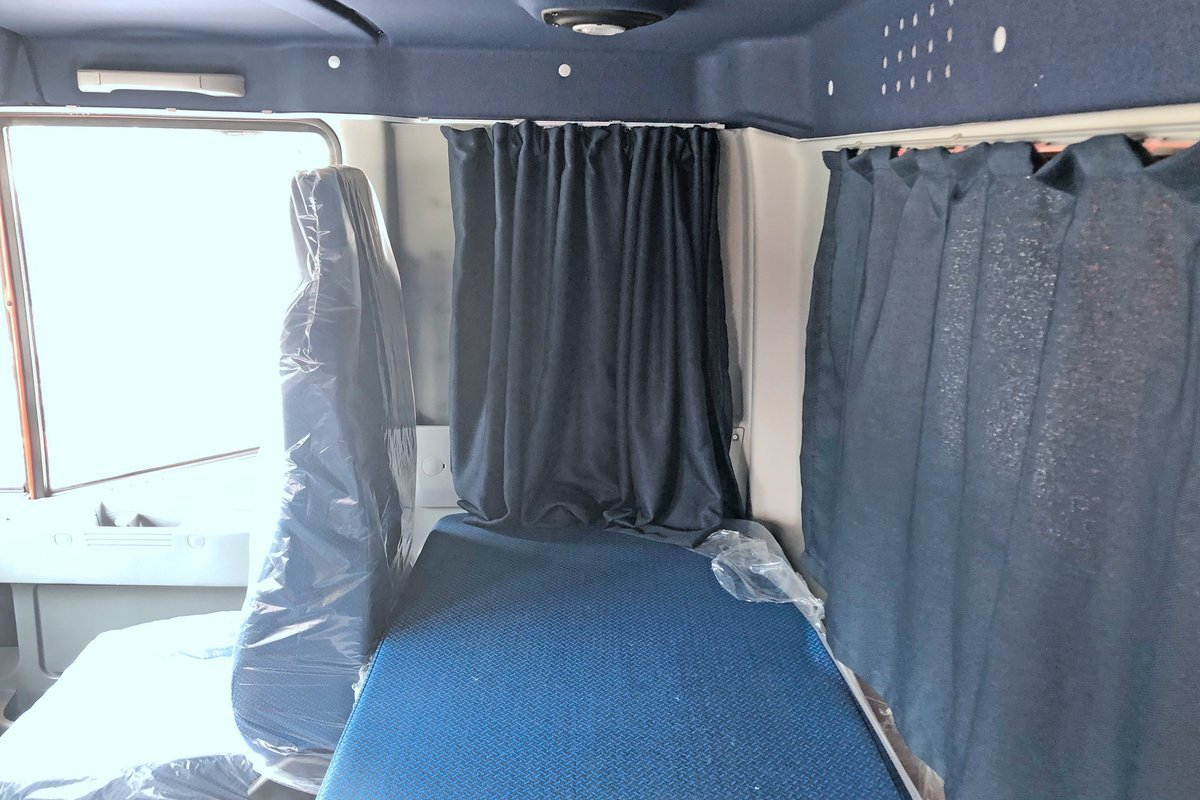

Can-Bus,A/C,manual windows,mechanical suspension cab,mechanical suspension seat with seat belts,one sleeping bed,turnable cab,with USB,MP3 + radio
