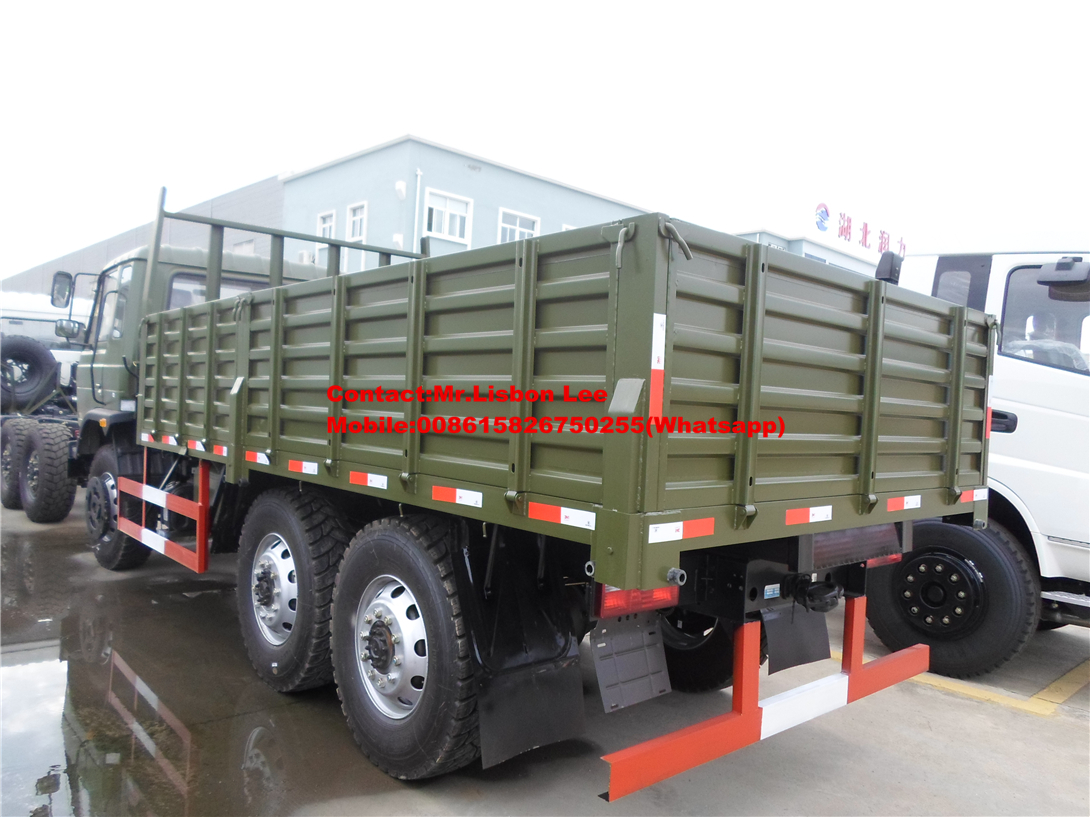

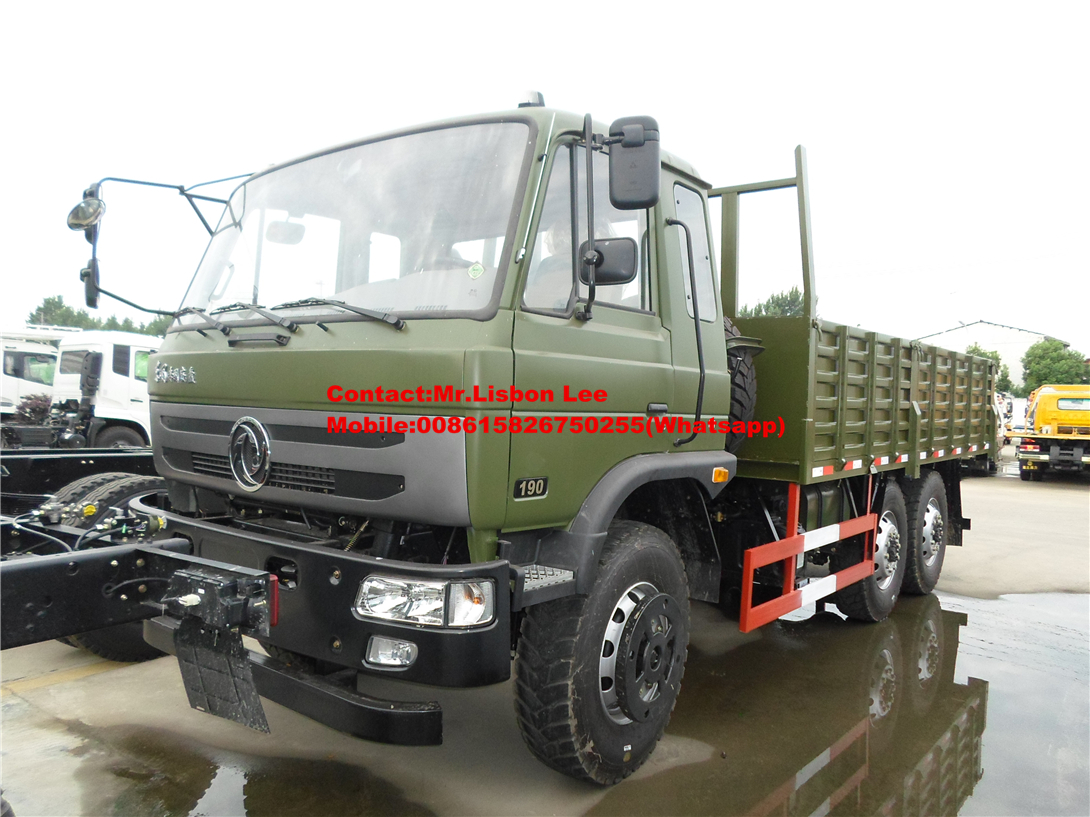

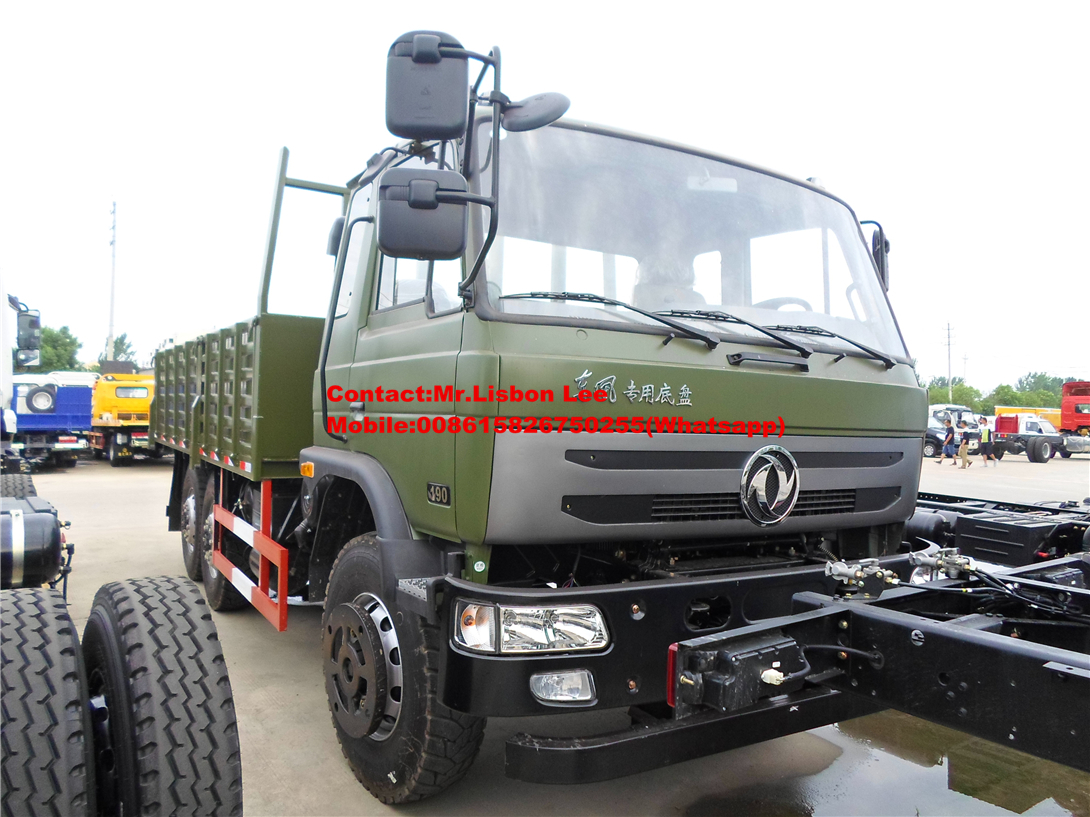

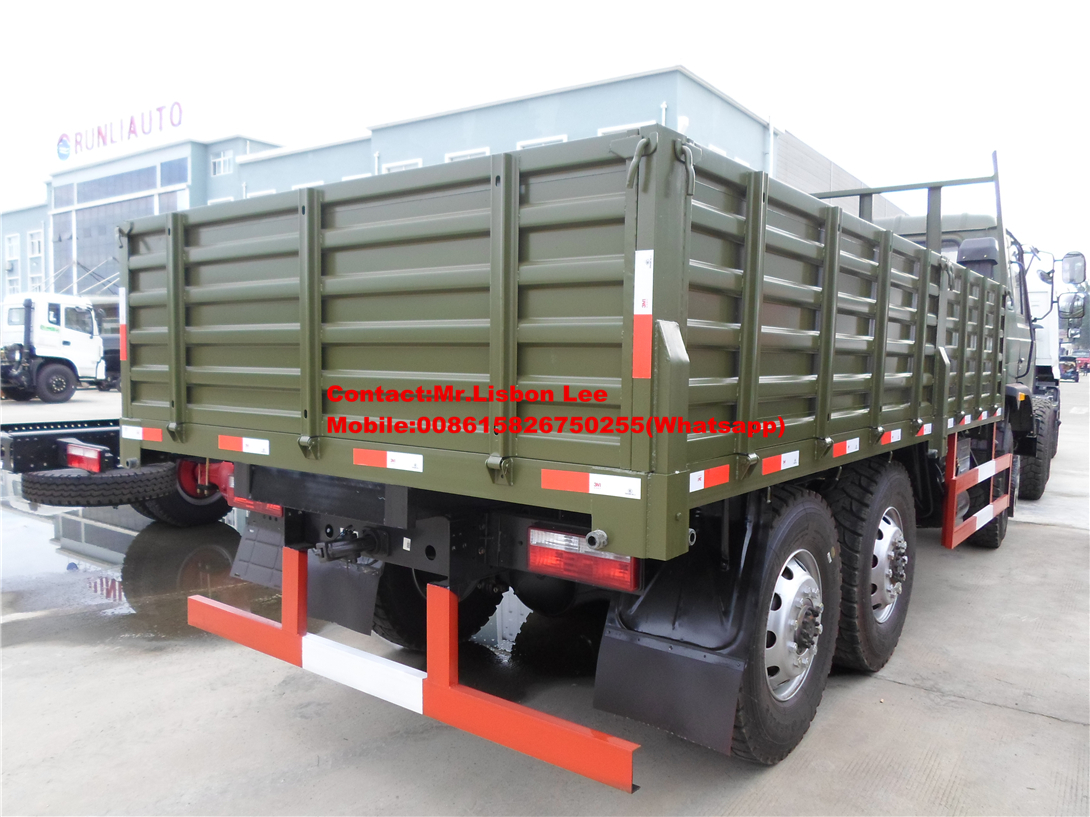

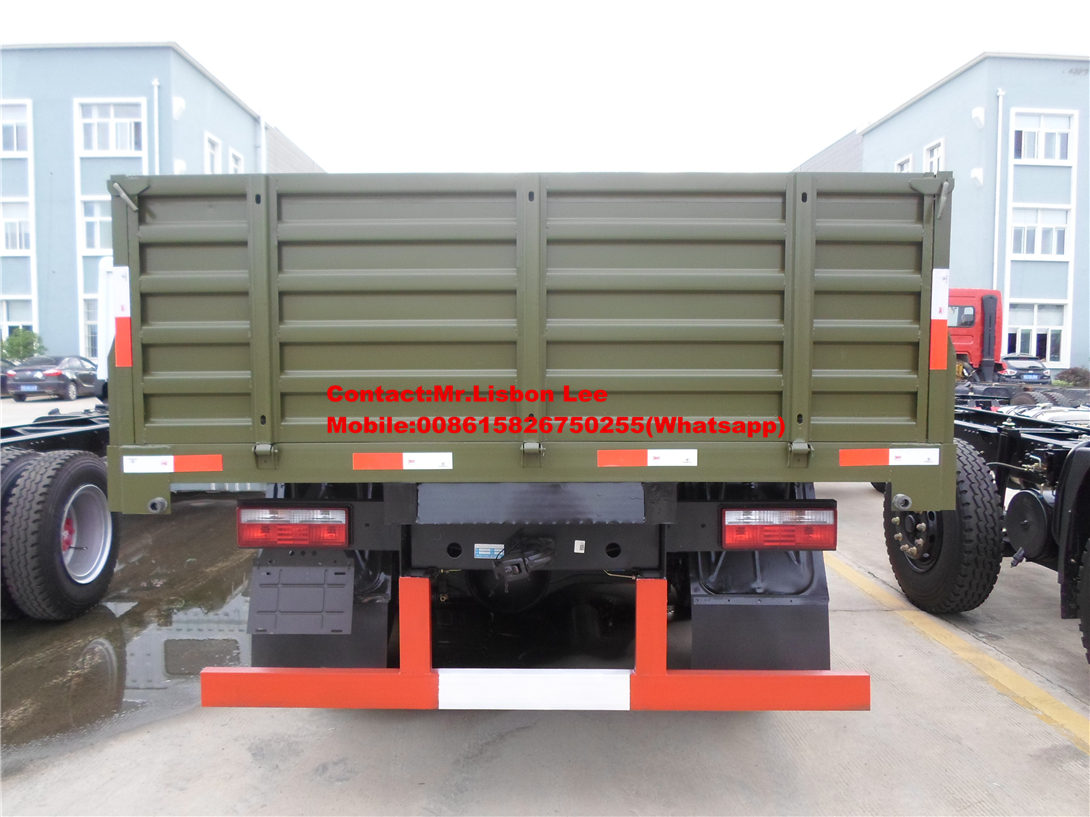

Dongfeng 6X6 off-road cargo truck

Brand

Dongfeng

Drive type

6X6

Product name

Cargo truck

Total mass

16050kg

Curb weight

7955kg

Overall dimension

7760x2500x2925mm

Load capacity

7900kg

Box

dimension

4850x2300x800mm

Wheel base

3500+1250mm

F/R axle load

4020/6015/6015kg

Quantity of leaf spring

10/12

Quantity of wheels

6+1

Tyre type

12.5R20

Approach/

Departure angle

35/30°

F/R suspension

1385/1625mm

Front track

1916mm

Rear track

1876/1876mm

Max.vehicle speed

95km/h

Passengers in cab

3

Chassis model

DFS5160GLJ

Engine

Model

YC6J180-42

Max.power

132kw/180HP

Displacement

6494ml

Emission level

Euro 4

Gearbox

Description

Manual,6 forward gears＆1 reverse gear

Brake

system

Service brake

Double circuit hydraulic brake

Parking brake

Spring-power drum brake

Electric system

Operating voltage

24V negative ground

Starter

24V,5.4KW

Alternator

28V,1.5KW

Battery voltage

2X12V/165Ah

Cabin

Description

One and half rows,with single bunk,2 doors,standard configuration,power steering,

radio,MP3,A/C optional
