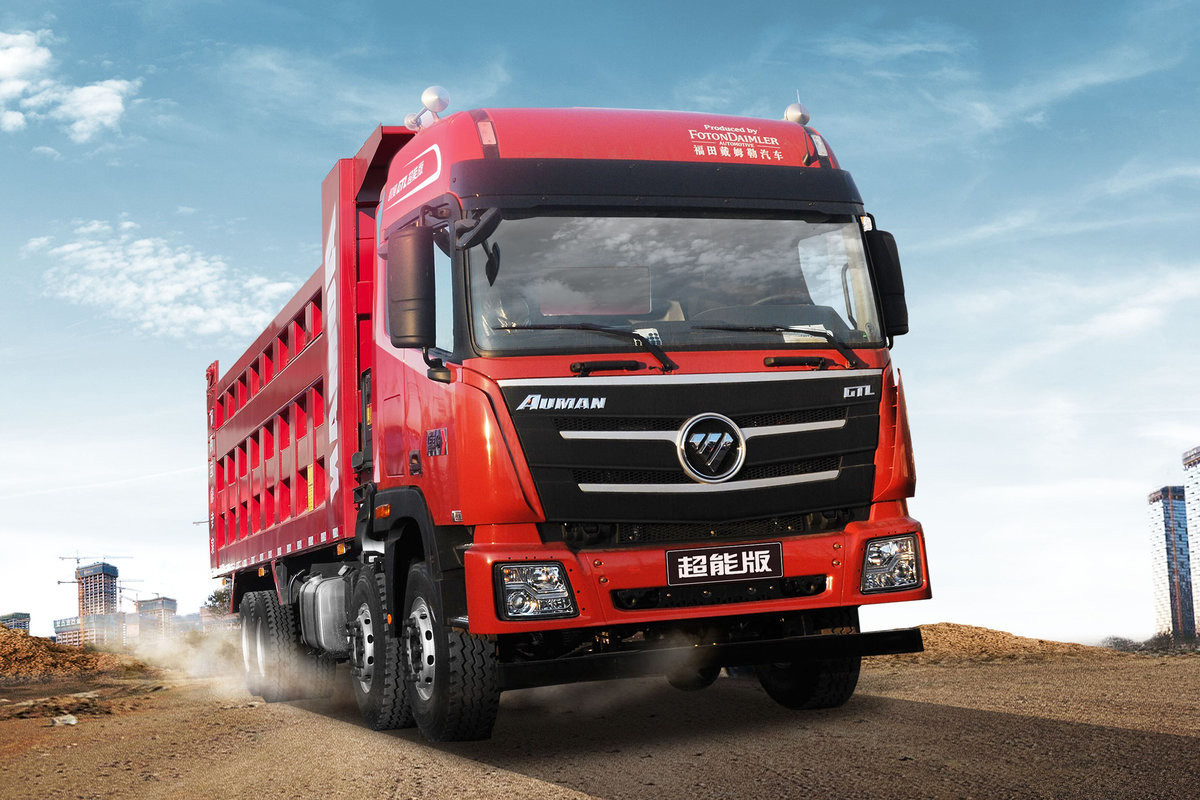

FOTON Auman GTL 8X4 dump truck

Complete vehicle

Model

BJ3319DMPKJ-AC

Drive type

8X4

Wheel base(mm)

1800+4700+1350

Overall dimension(mm)

11460X2495X3580

Curb weight(Kg)

15385

Load capacity(Kg)

40000

Cabin

Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C

Engine

Model

ISGe5-400

Max.output (kw/HP)

294/400

Max.torque (N•m)

2100@1000RPM

Displacement (ml)

11800

Emission standard

Euro V

Description

In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure ,

common rail diesel engine

Gear box

12JSD200T,manual,12 forward ＆2 reverse gears

Driving axle

Load capacity 18000Kg

Front axle

Steering axle,load capacity 6500+6500Kg

Quantity of leaf spring

10/10/12

Inner trimming

Standard configuration

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air operating on rear wheels

ABS

Provided

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Electric window

Provided

Chassis

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification

12.00R20 18PR

Number of tyres

12+1

Max.vehicle speed(km/h)

90

Box dimension(mm)

8600X2300X1500
