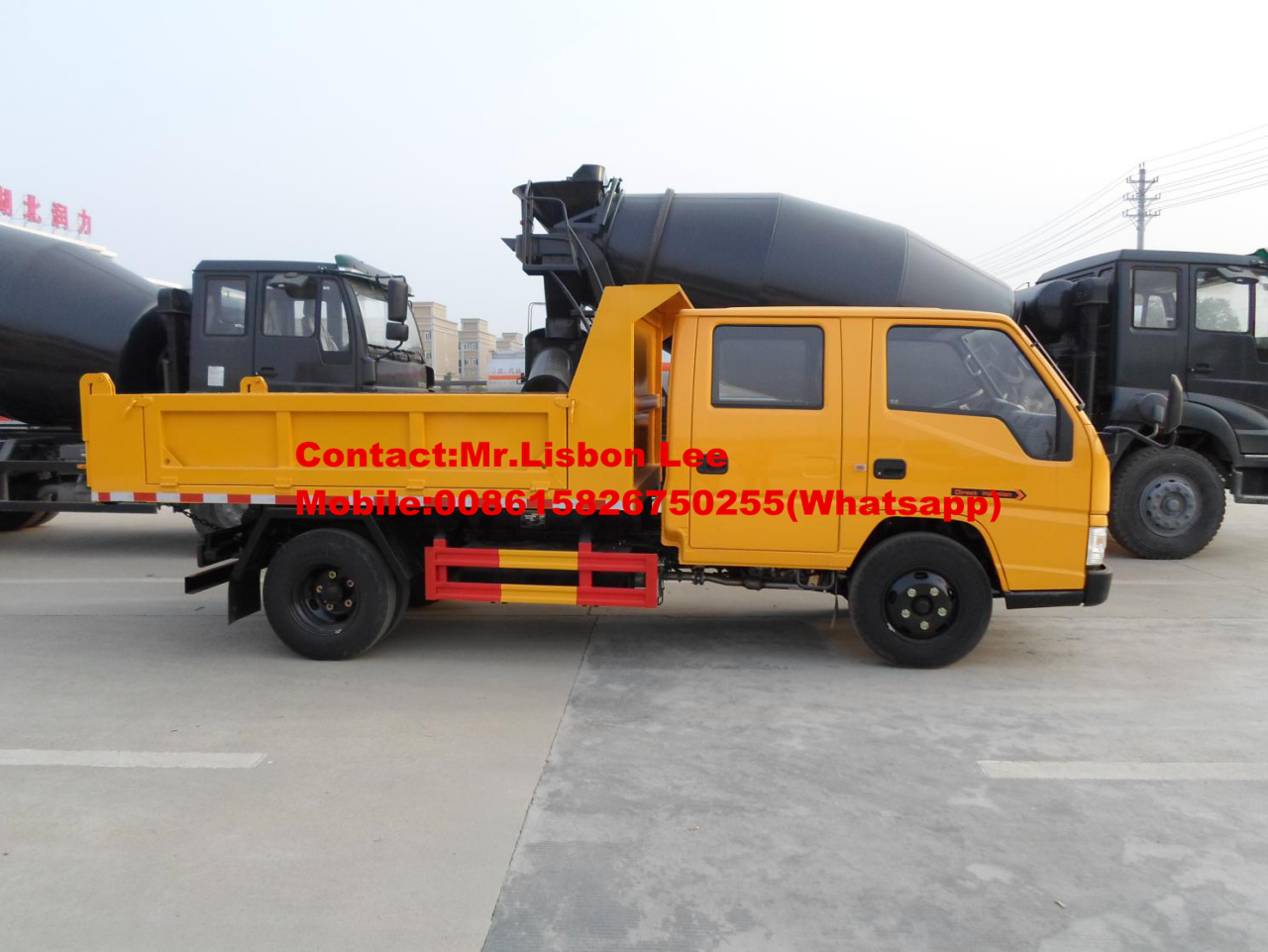

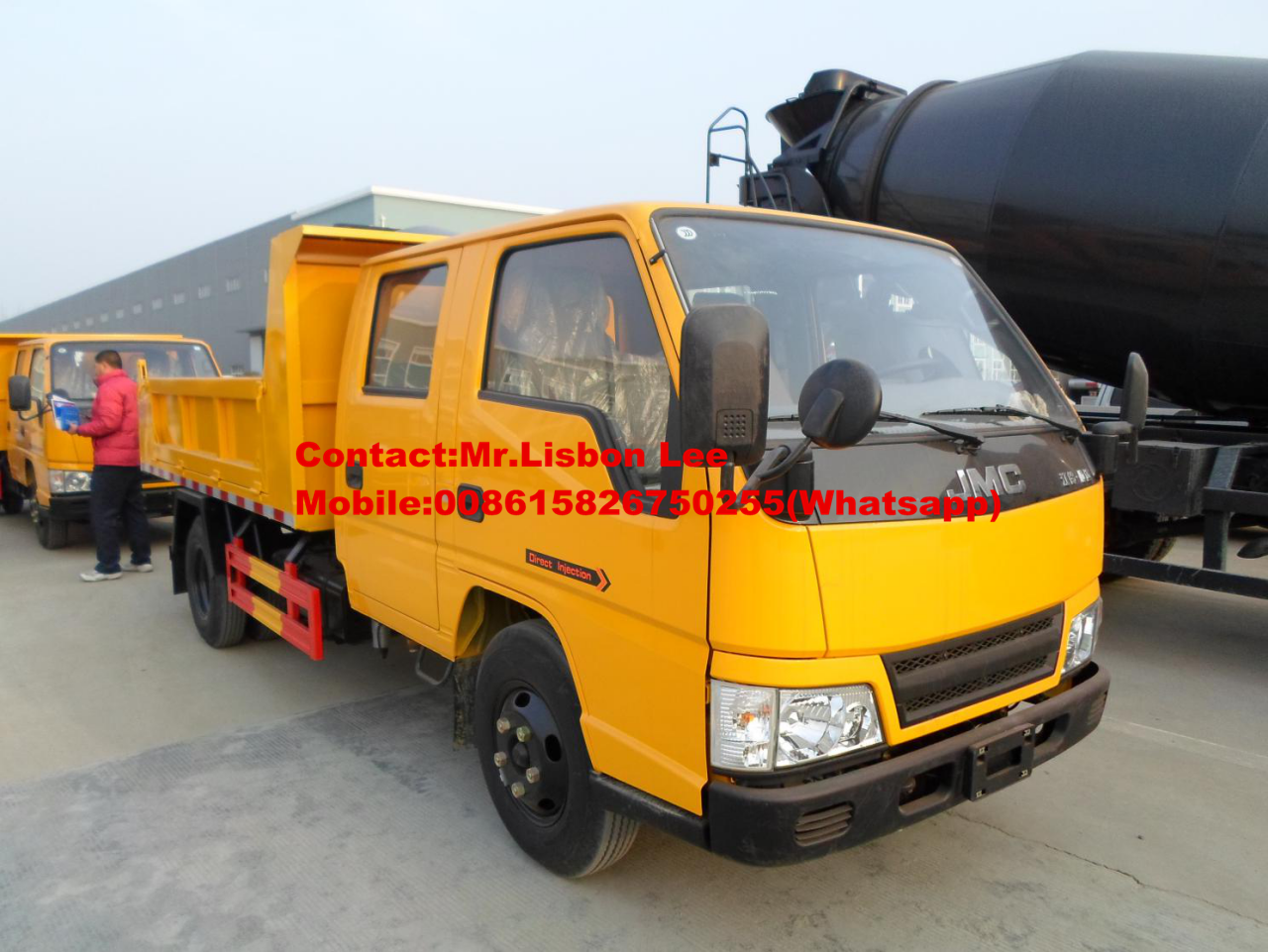

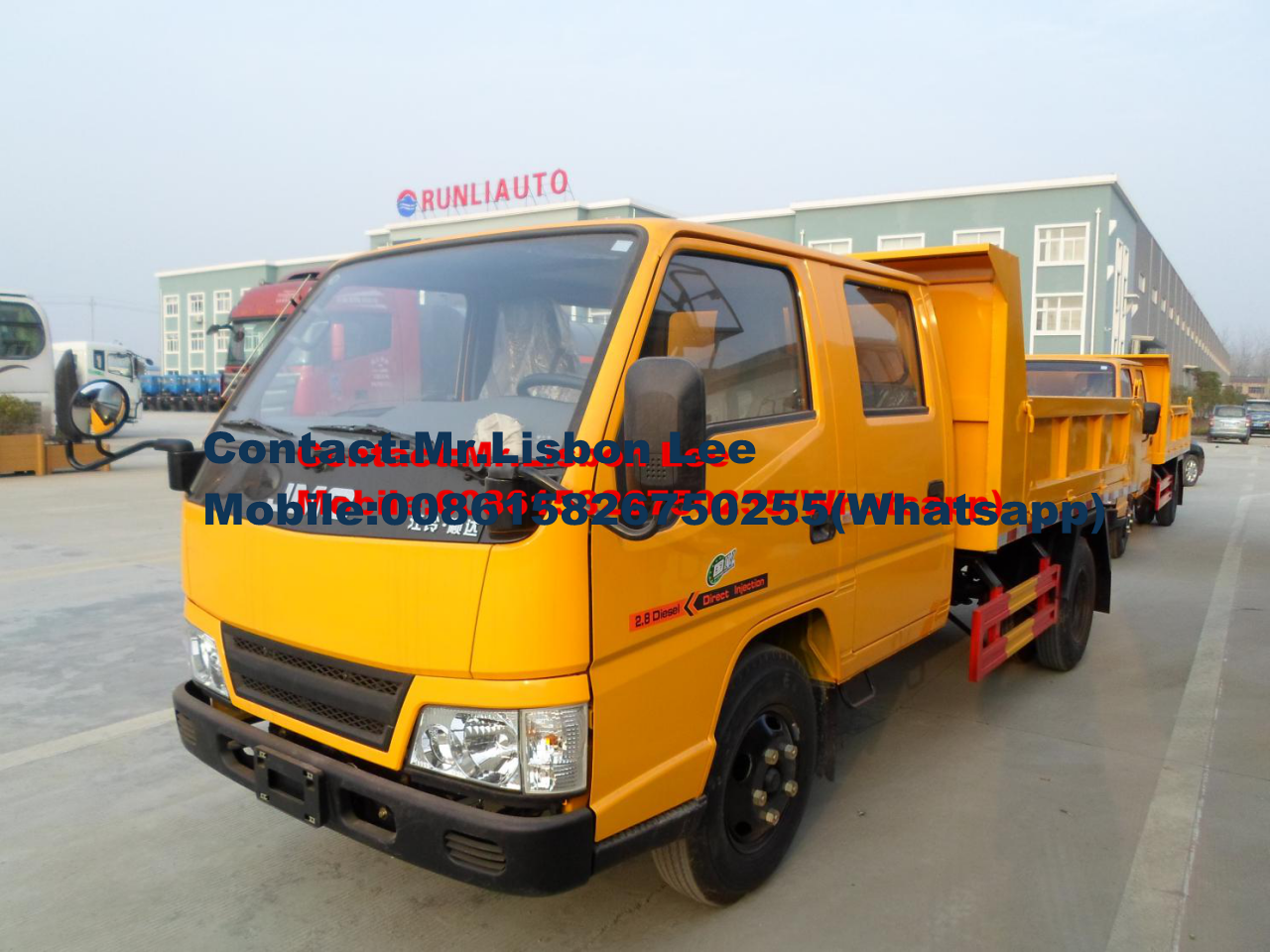

JMC Dump Truck with double rows cabin

Basic information>>

Chassis model:

JX1041TSG25

Drive type:

4X2

Wheel base(mm)

3360

Overall dimension(mm)

5950×1895×2070

Load weight(kg)

3000~5000

Box dimension(mm):

3190×1800×400

Curb weight(kg):

2720

Max.vehicle speed

(km/h)

95

F/R suspension

(mm) :

1065/1525

Approach/departure

Angle(°):

27/15

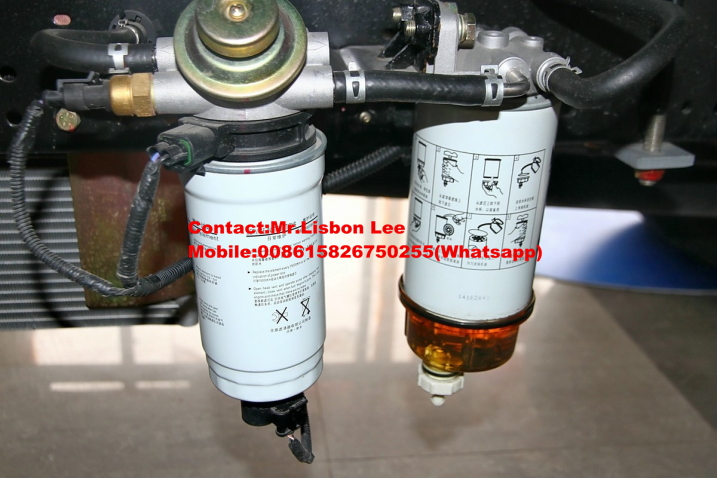

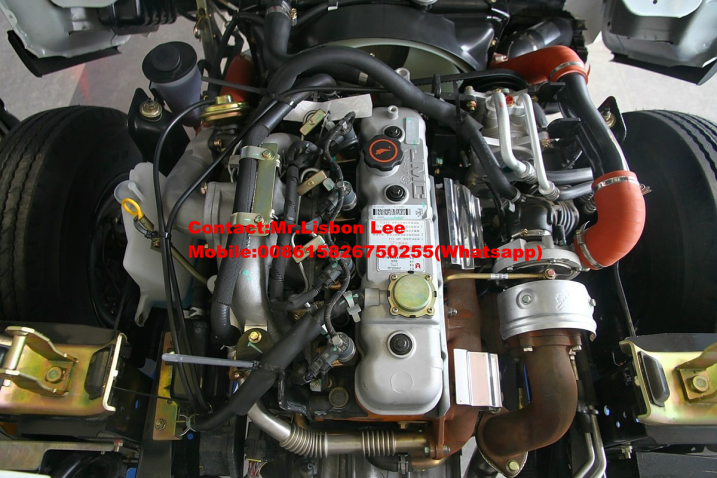

Engine>>

Engine model:

JX493ZLQ5

Emission standard:

Euro V

Displacement:

2771mL

Rated revolution:

3800rpm

Max.Power:

85KW/116HP

Max.torque:

285N.m@1800-2200rpm

Description

In-line,four cylinders,water-cooled,four strokes,turbo charged,inter-cooled,high pressure,common rail,diesel engine

Gearbox>>>>

Description:

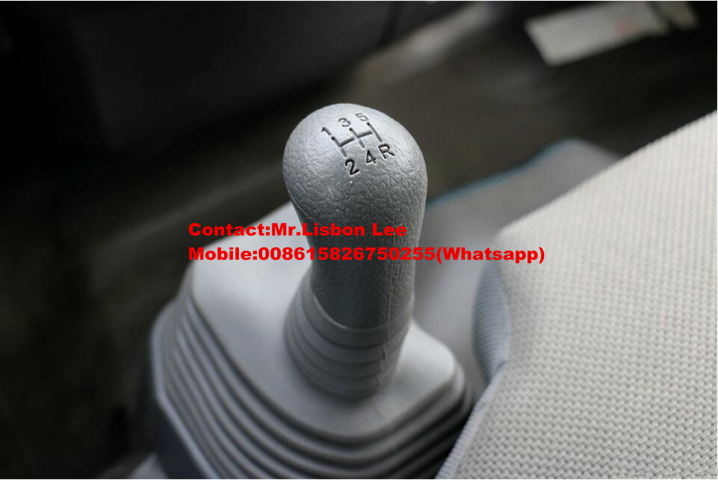

Manual,5 forward gears ＆1 reverse gear

gear

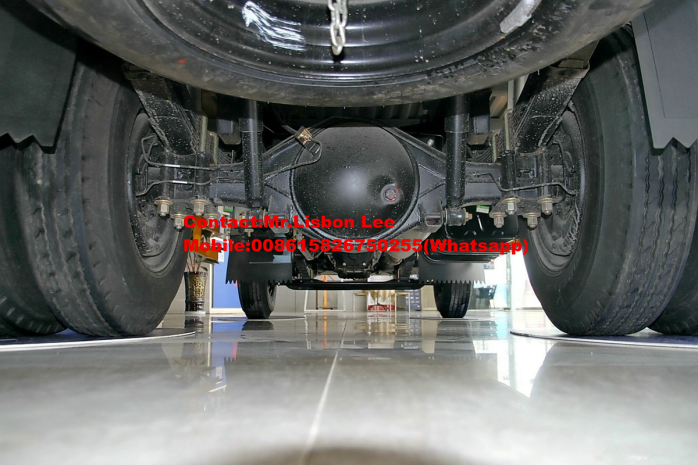

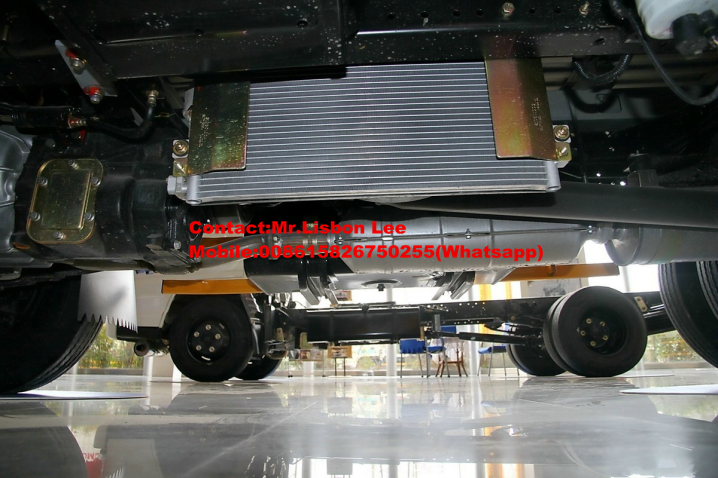

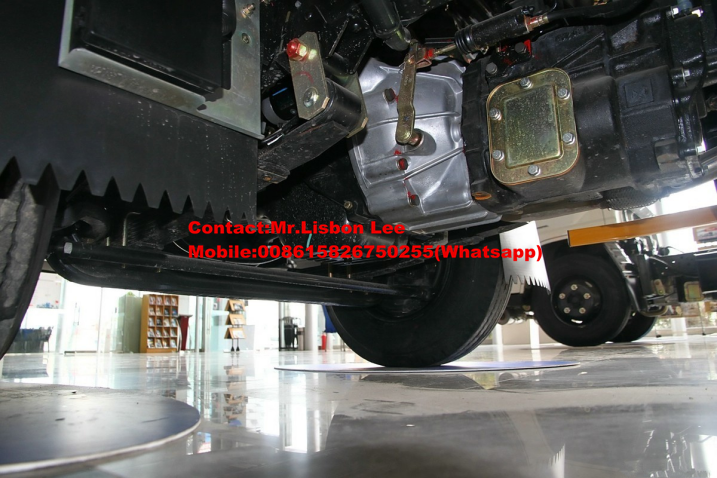

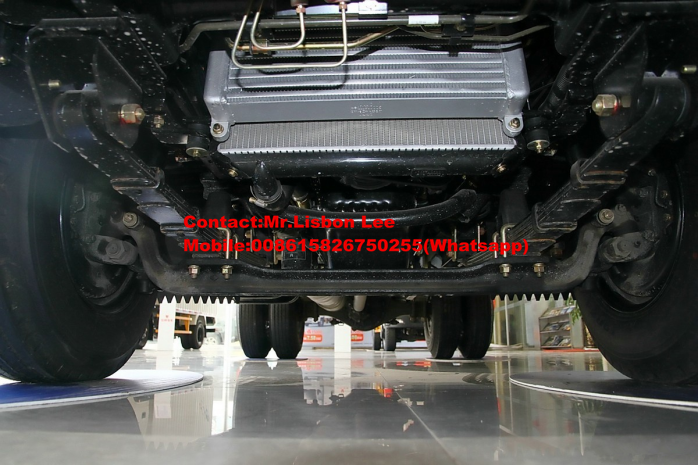

Chassis>>>>

Number of leaf

springs:

7/4+5

Type of tire:

7.00R16LT

Steering system:

LHD,power assisted

Brake system:

Hydraulic brake

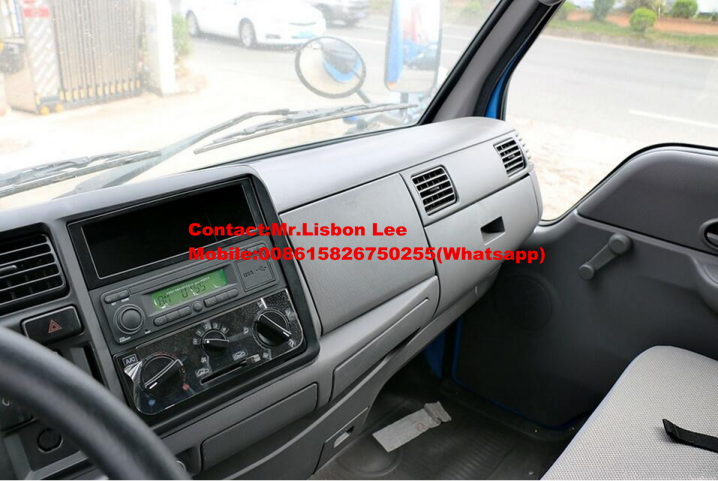

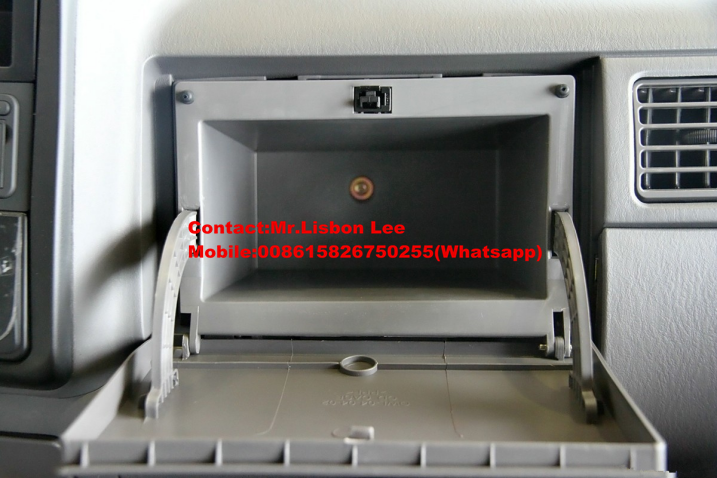

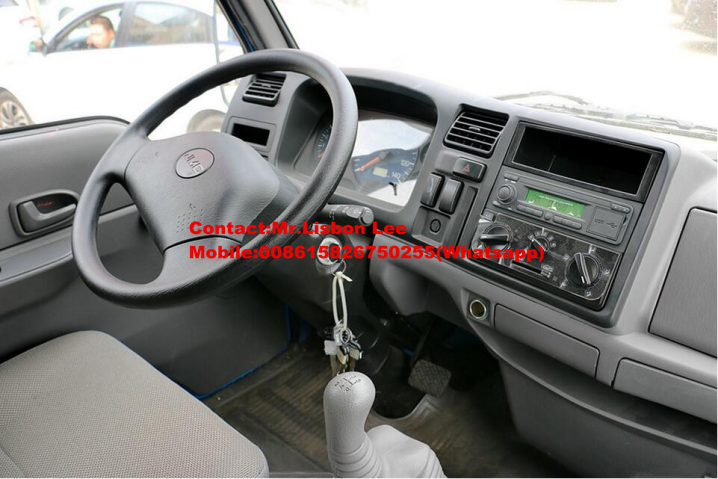

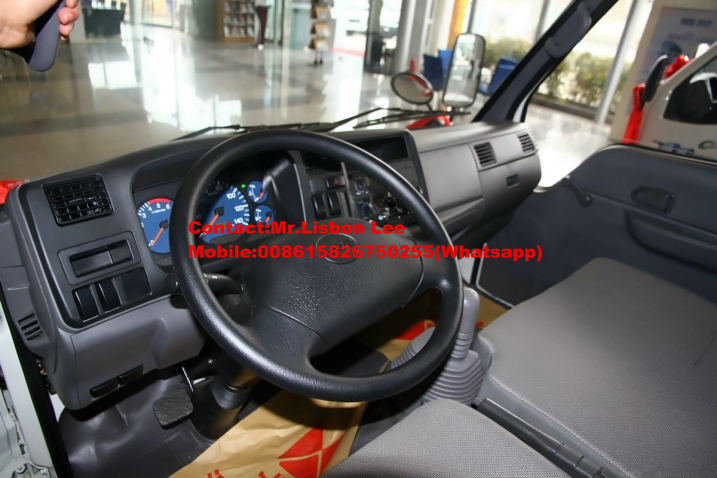

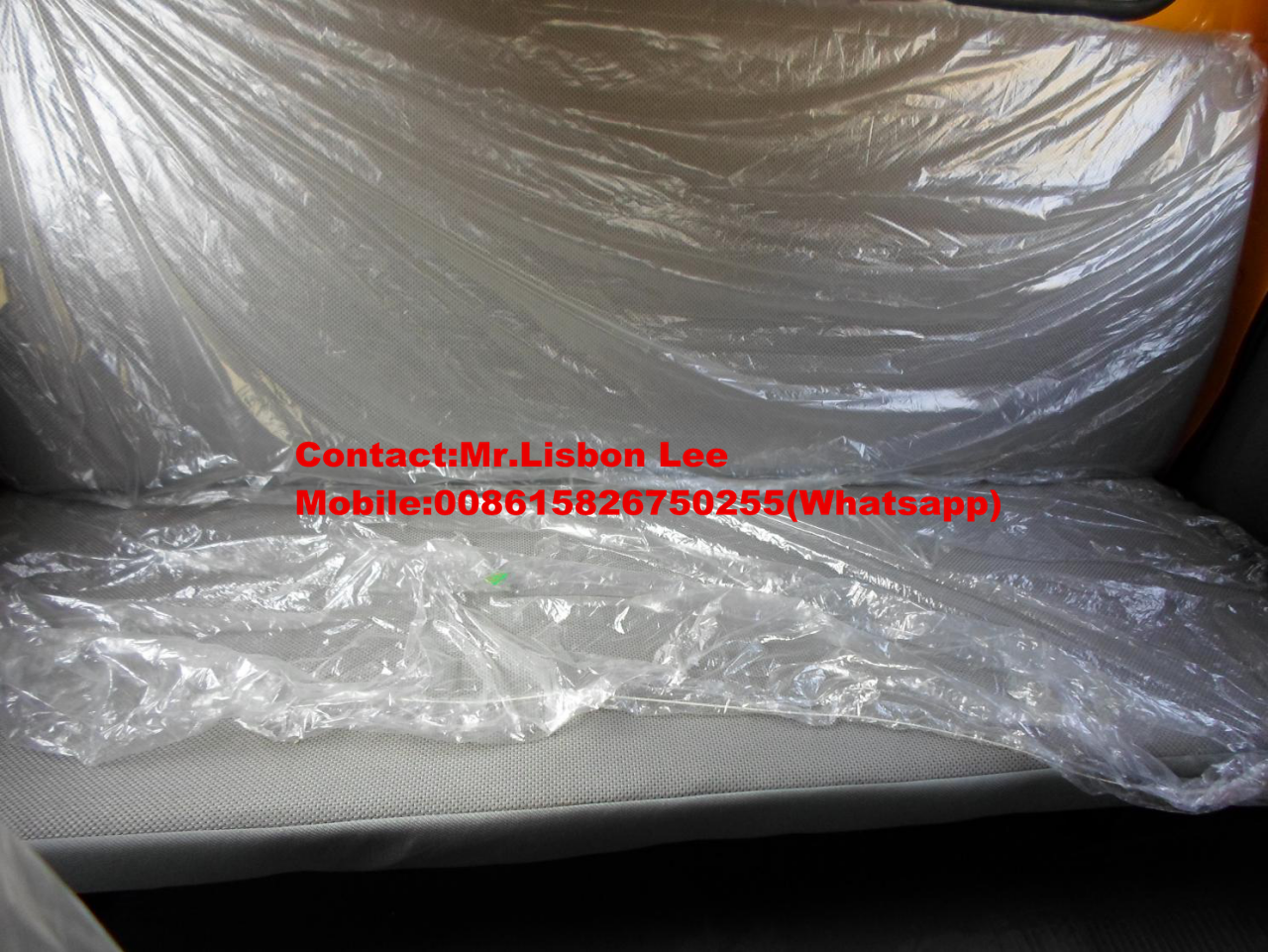

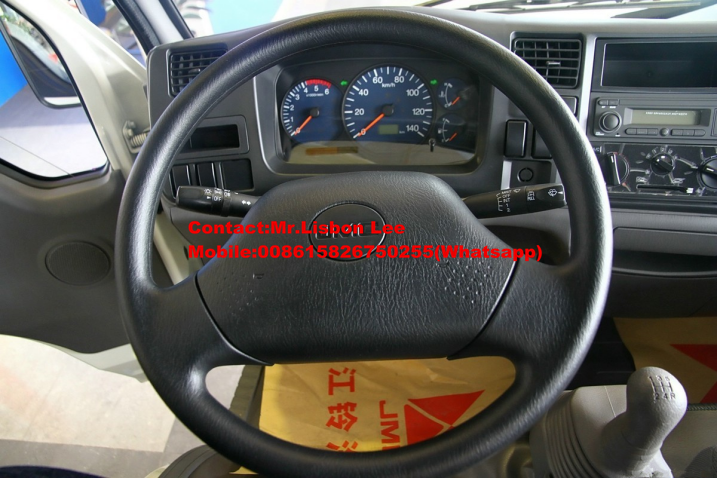

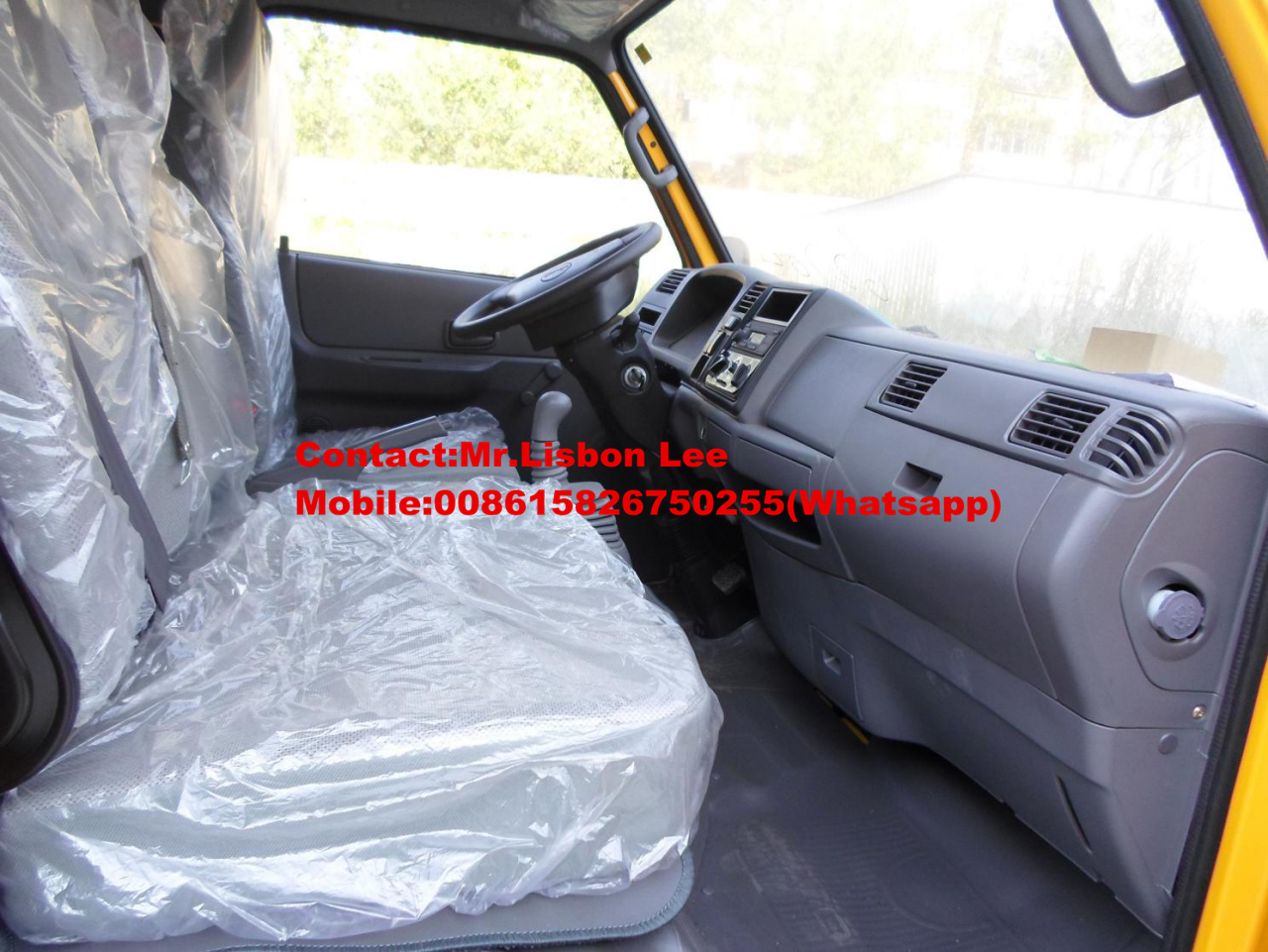

Cabin

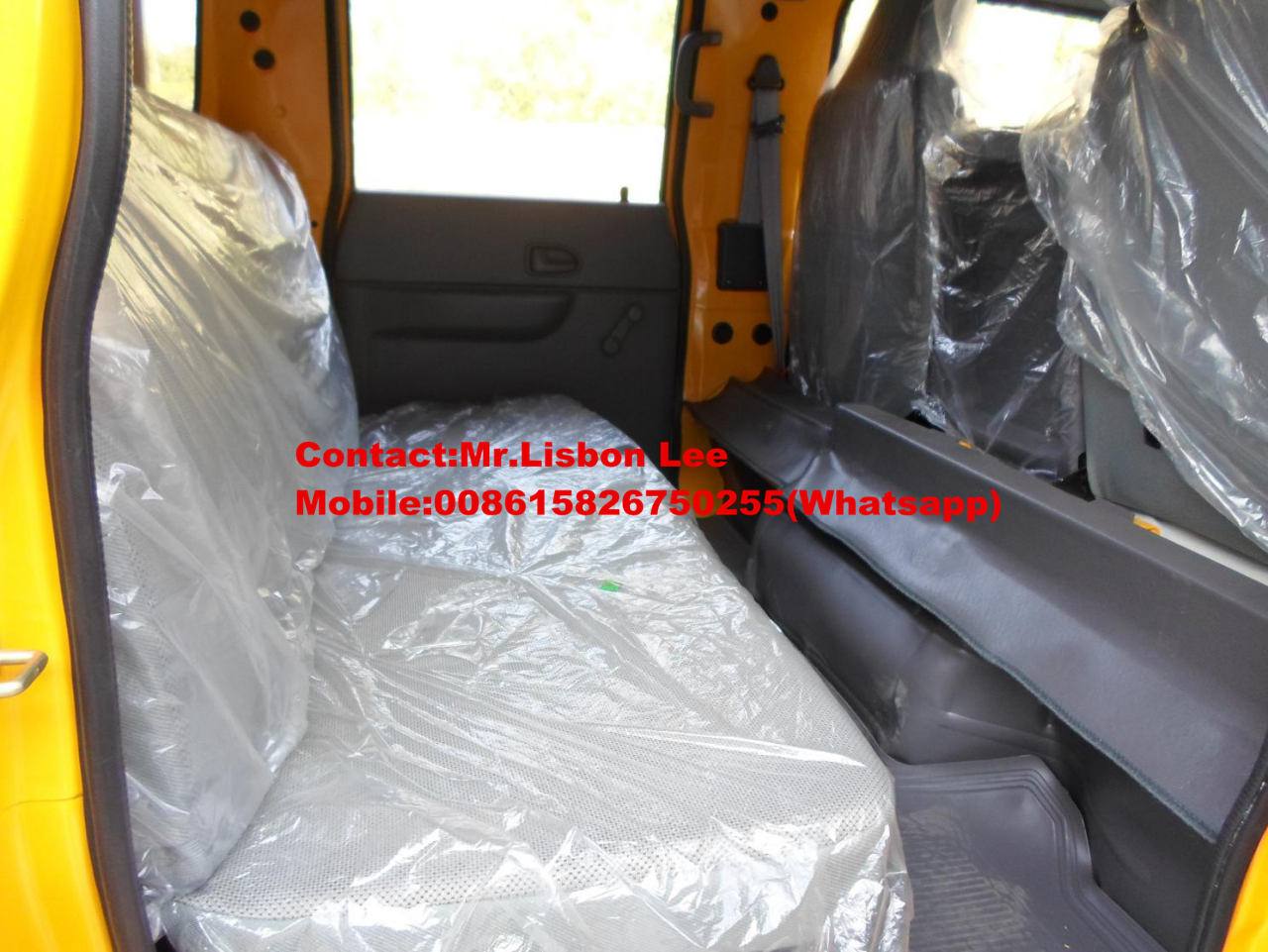

Double rows, four doors,2+3 passengers allowable,standard configuration,turnable,A/C provided,color white,blue,red for option

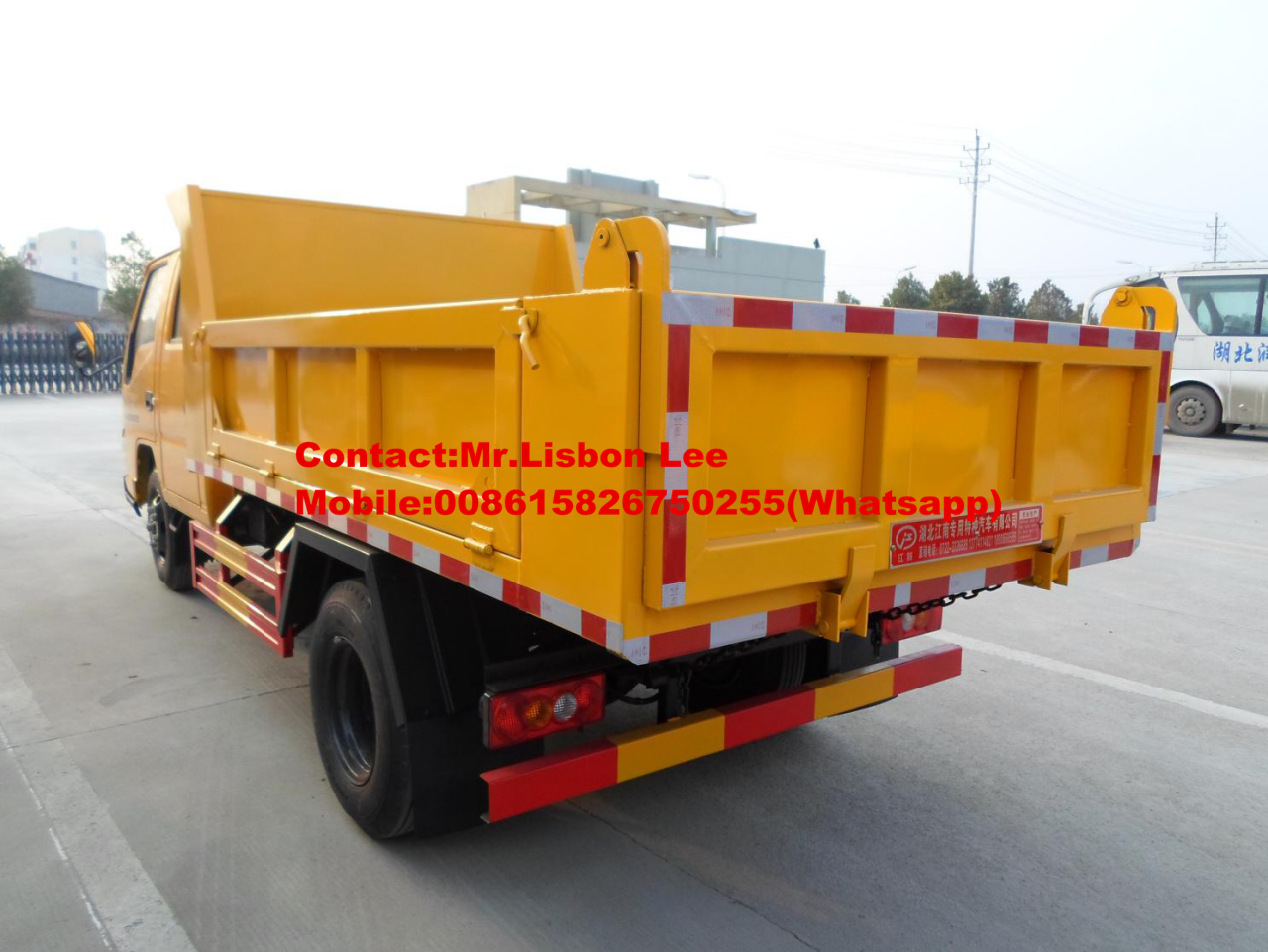

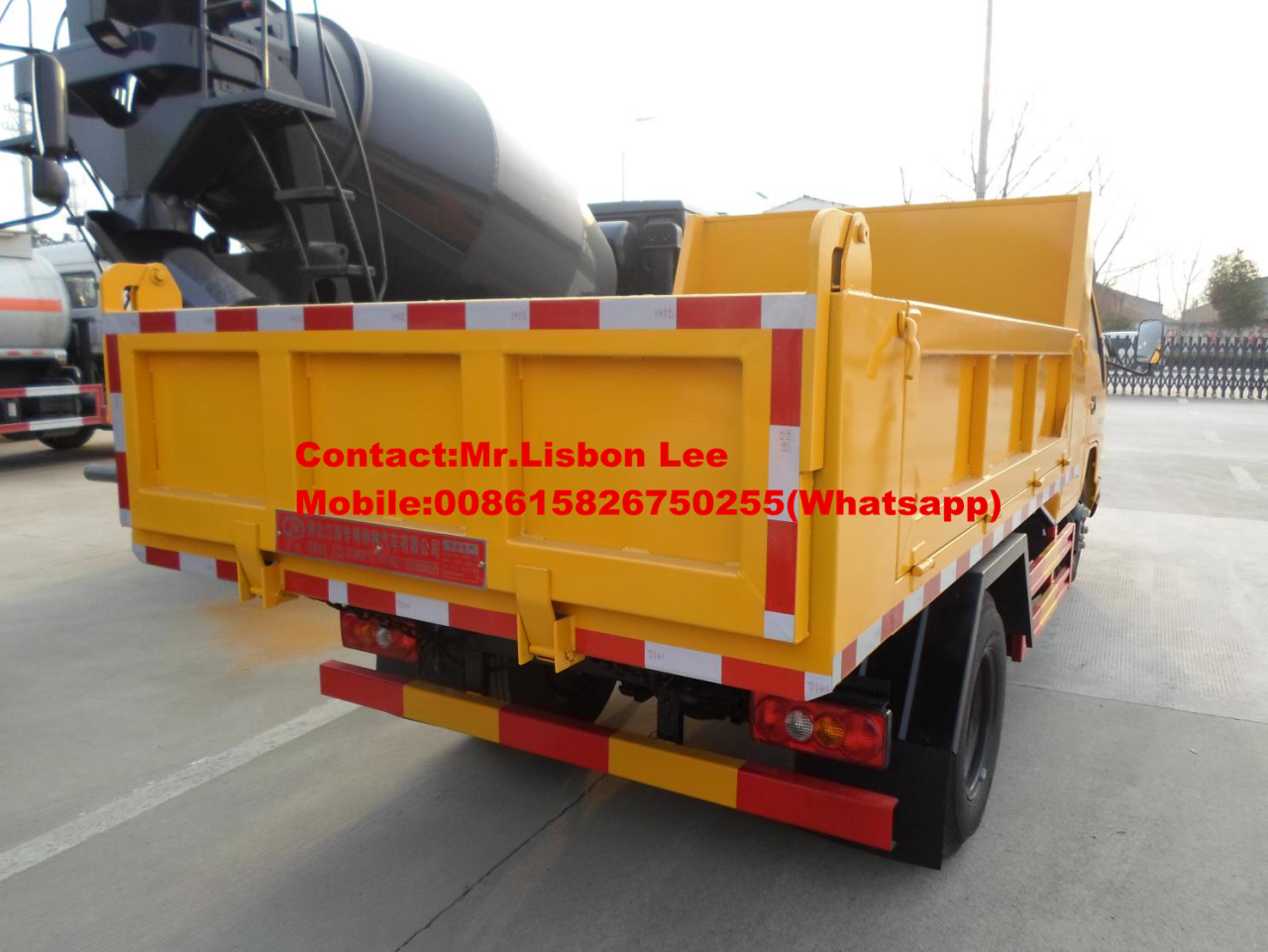

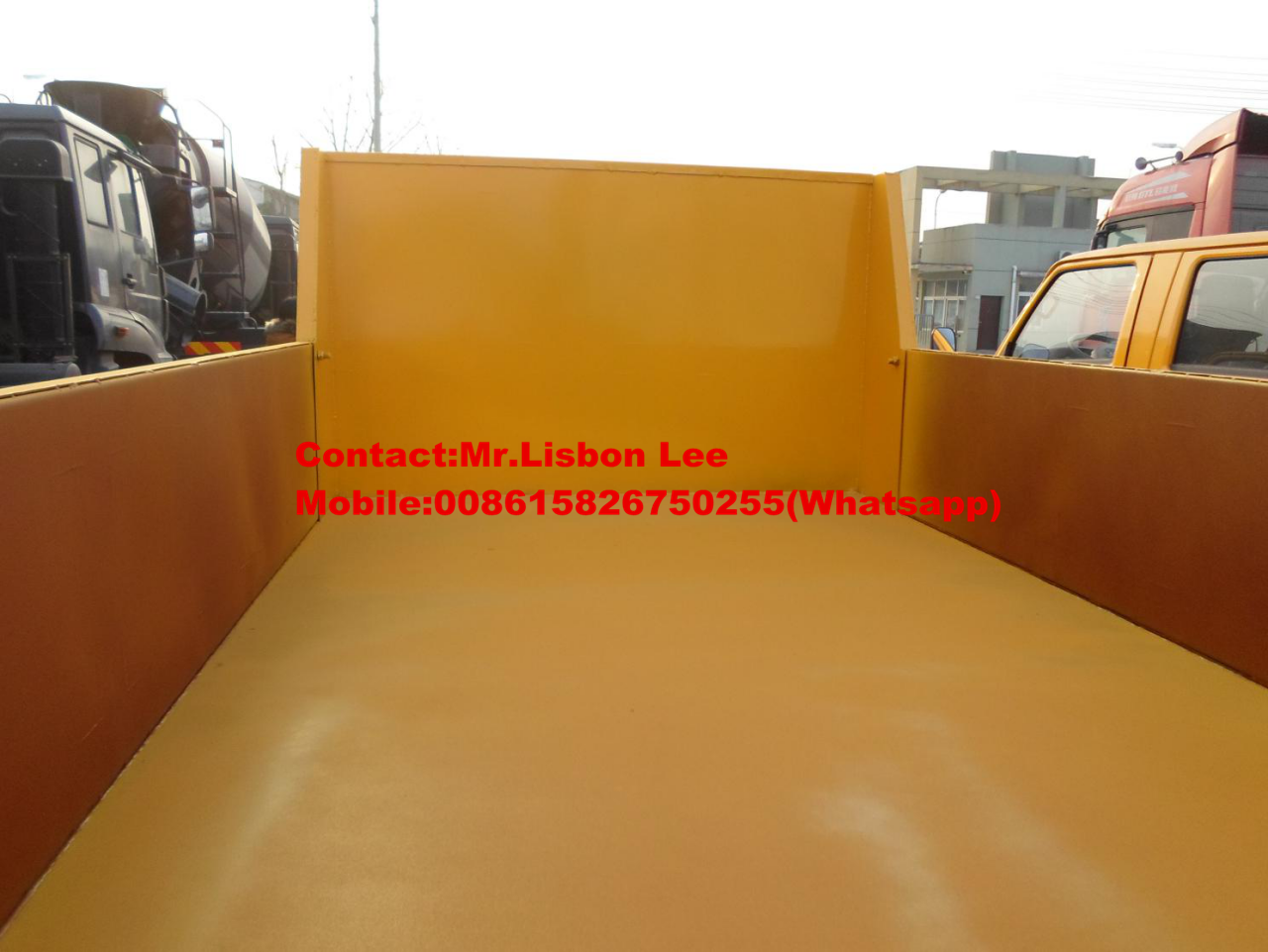

Dump box

Material WISCO carbon steel,hydraulic middle lifting,with rear and side door
