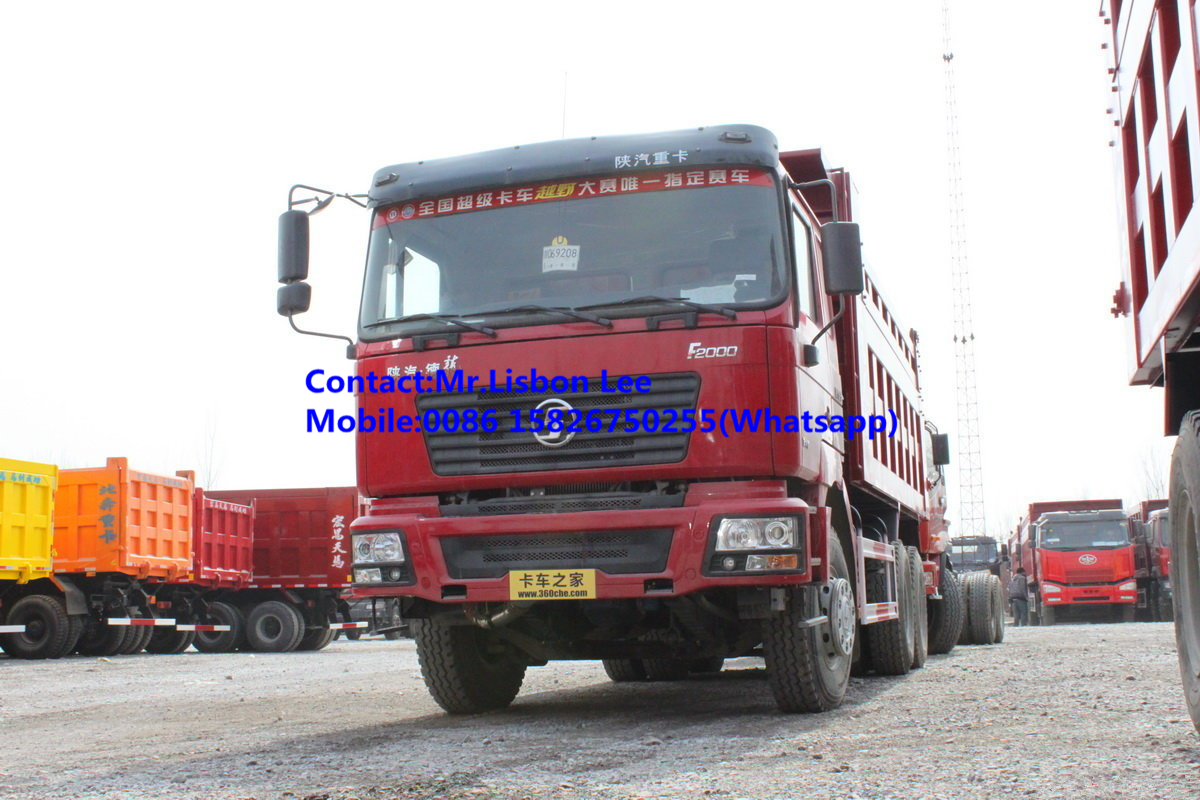

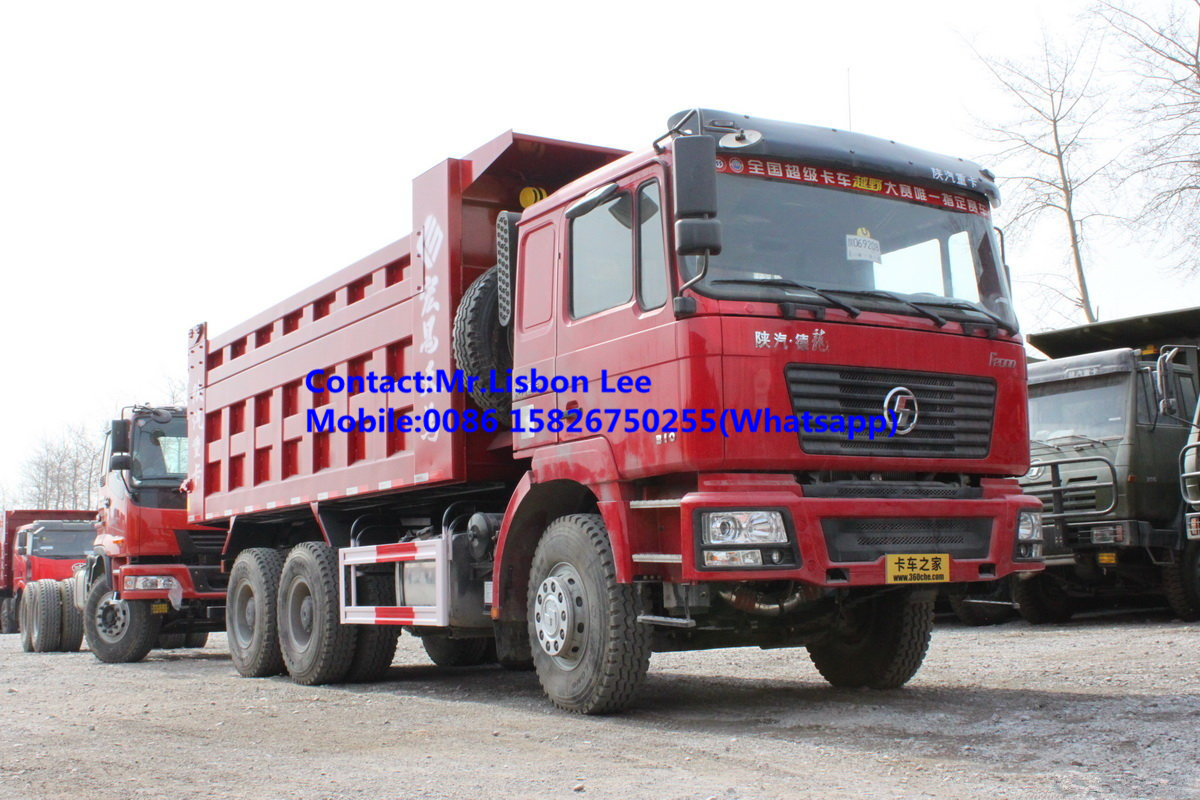

SHACMAN F2000 6x4 dump truck 340HP

Complete vehicle

Chassis Model

SX3255DR384

Drive type

6X4

Wheel base(mm)

3775+1400

Overall dimension(mm)

8329x2490×3450

Box dimension(mm)

5600×2300×1600(20.6CBM)

Curb weight(Kg)

12200

Load capacity(Kg)

20000~30000

Max.vehicle speed(Km/h)

77

Cab

F2000(European standard flat roof,luxury configuration,

one and half rows cabin,

with single sleeper,A/C)

Engine

Model

WP10.340E32(Weichai)

Max.output (kw/HP)

250/340

Max.torque (N•m)

1500@1500rpm

Displacement (ml)

9726

Emission standard

Euro II

Clutch

Ø340

Gear box

FAST,10JSD140, manual,10 forward＆

2 reverse gears

Front axle

MAN 7.5Ton

Driving axle

STR 16Ton double reduction drive axle,

ratio:5.73

Steering gear

Left hand drive,power-assisted

Chassis suspension

Multi leaf spring 10/12

Frame section

850x300 (8+7)mm

Inner trimming

Standard configuration

Hydraulic driver seat

4-point hydraulic suspension cabin

Lumbar support to the driver

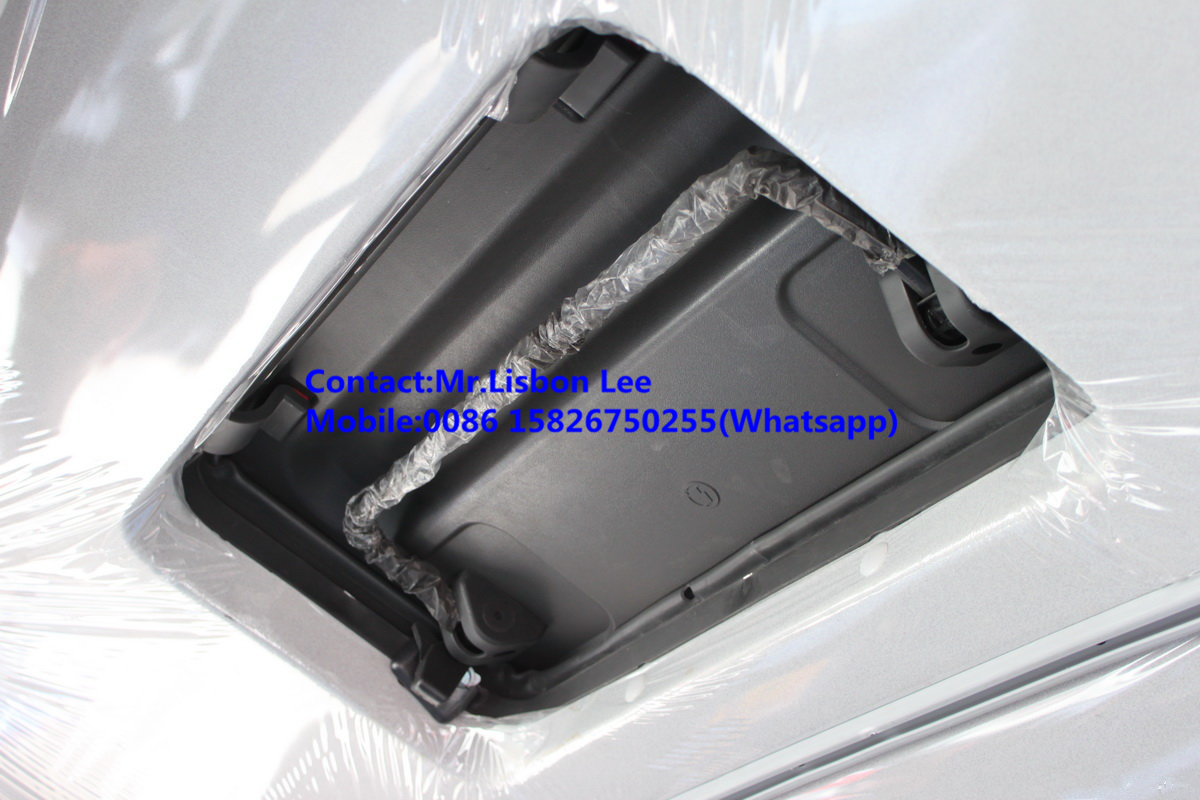

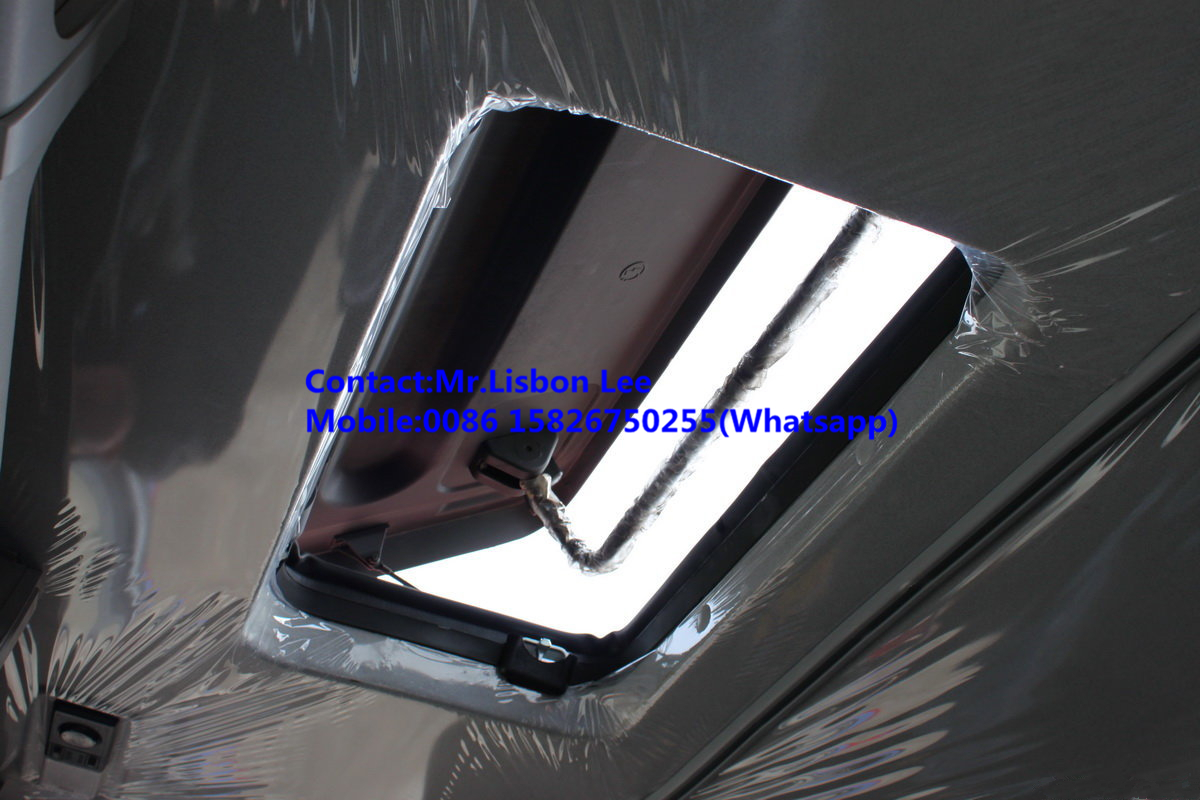

Sun roof

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,tachometer

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

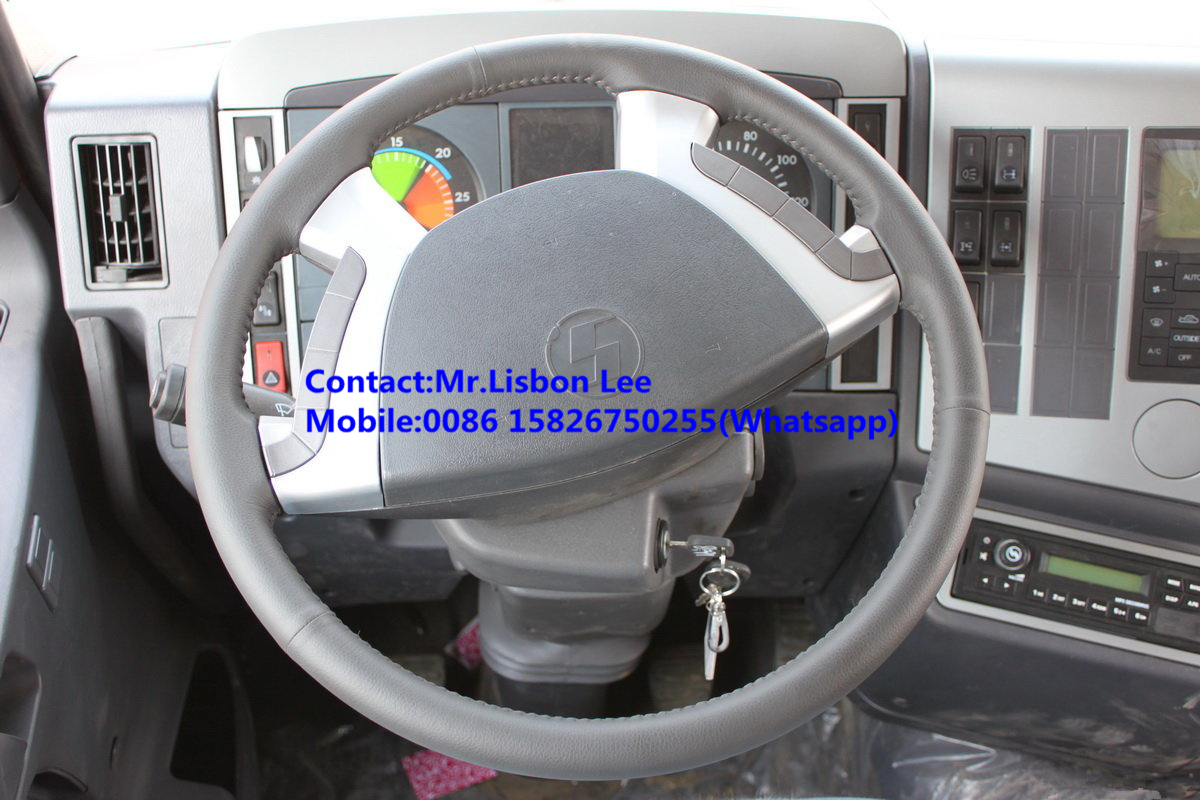

Adjustable steering wheel

Others

Fuel tank

Square-380L

Standard configuration

Big tool box,reinforced rim

Three in one lock (ignition switch,door

and fuel tank)

Type specification

12.00R20

Number of tires

10+1

Thickness of box

Side 6mm, bottom 8mm

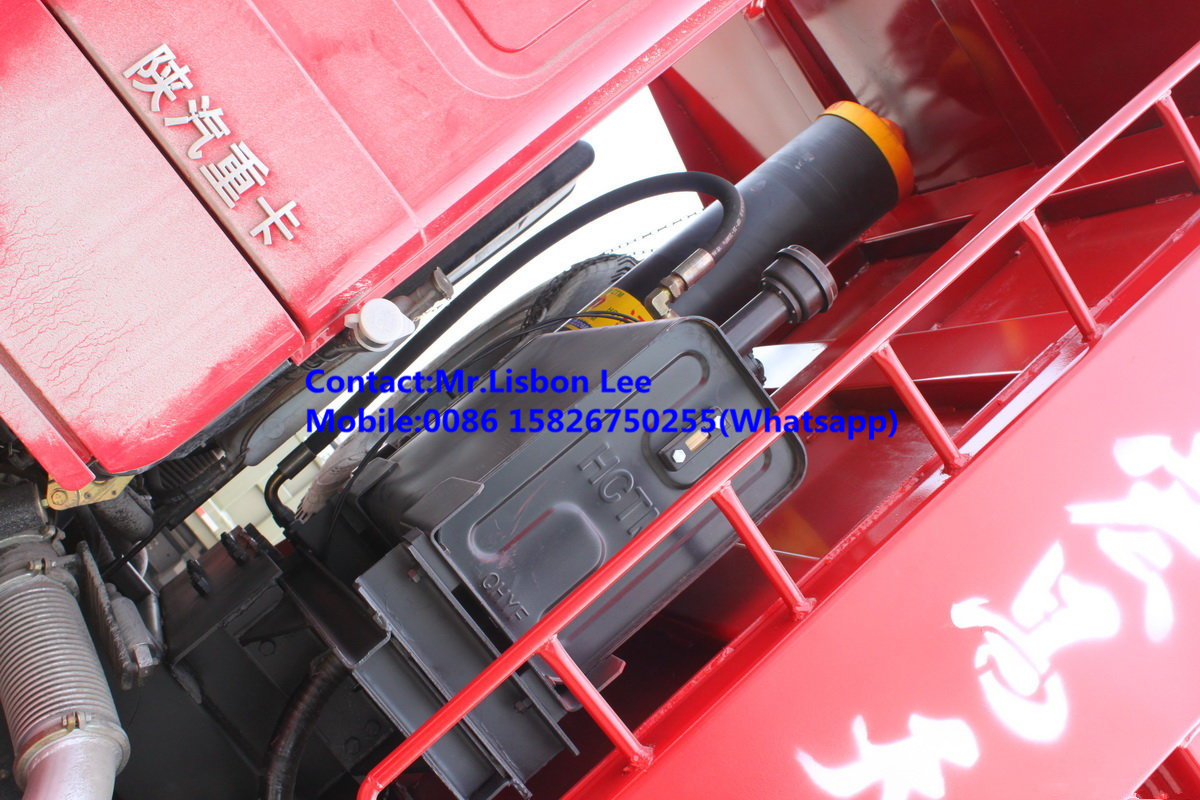

Lifting system

Front hydraulic lifting
