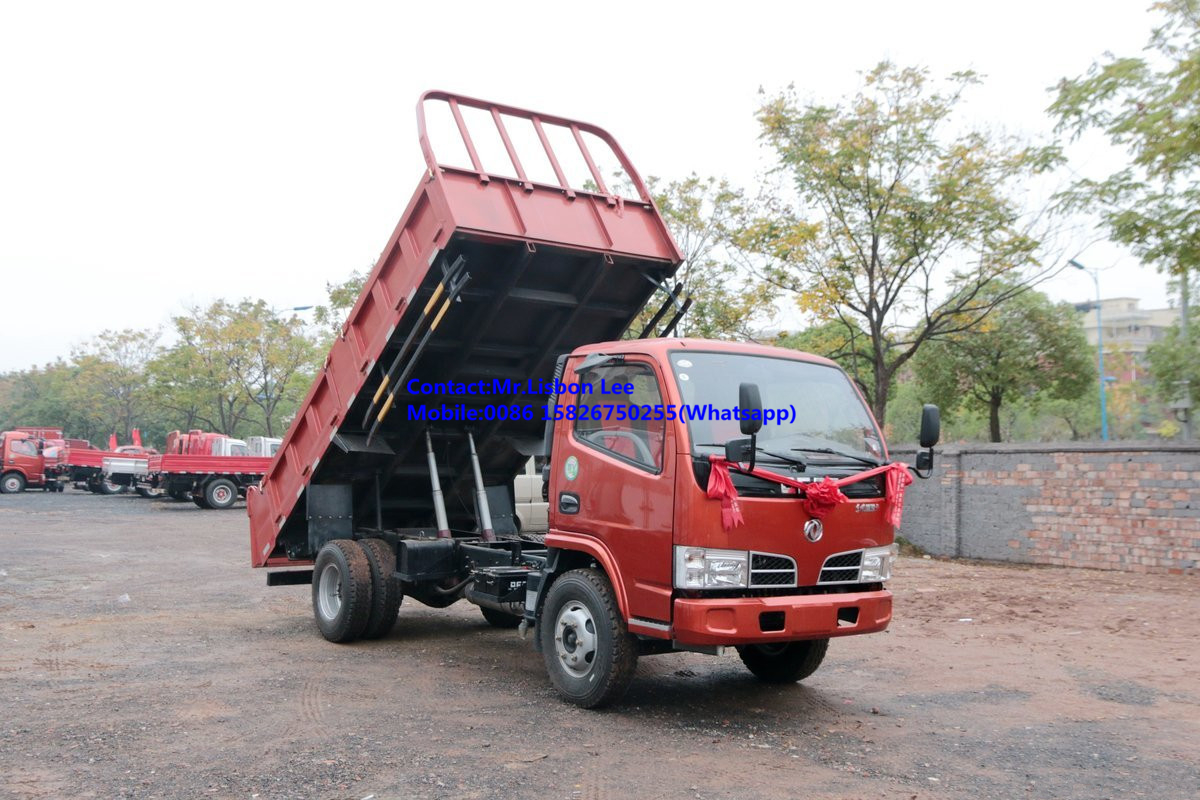

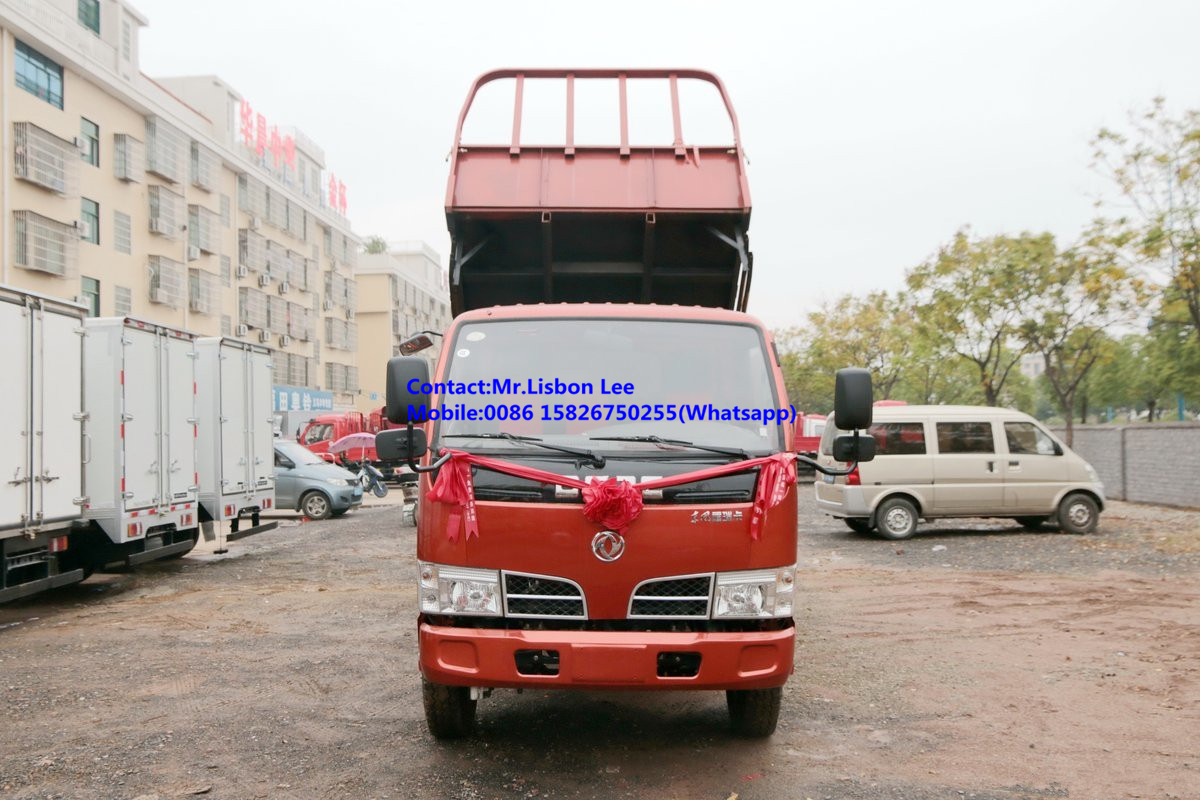

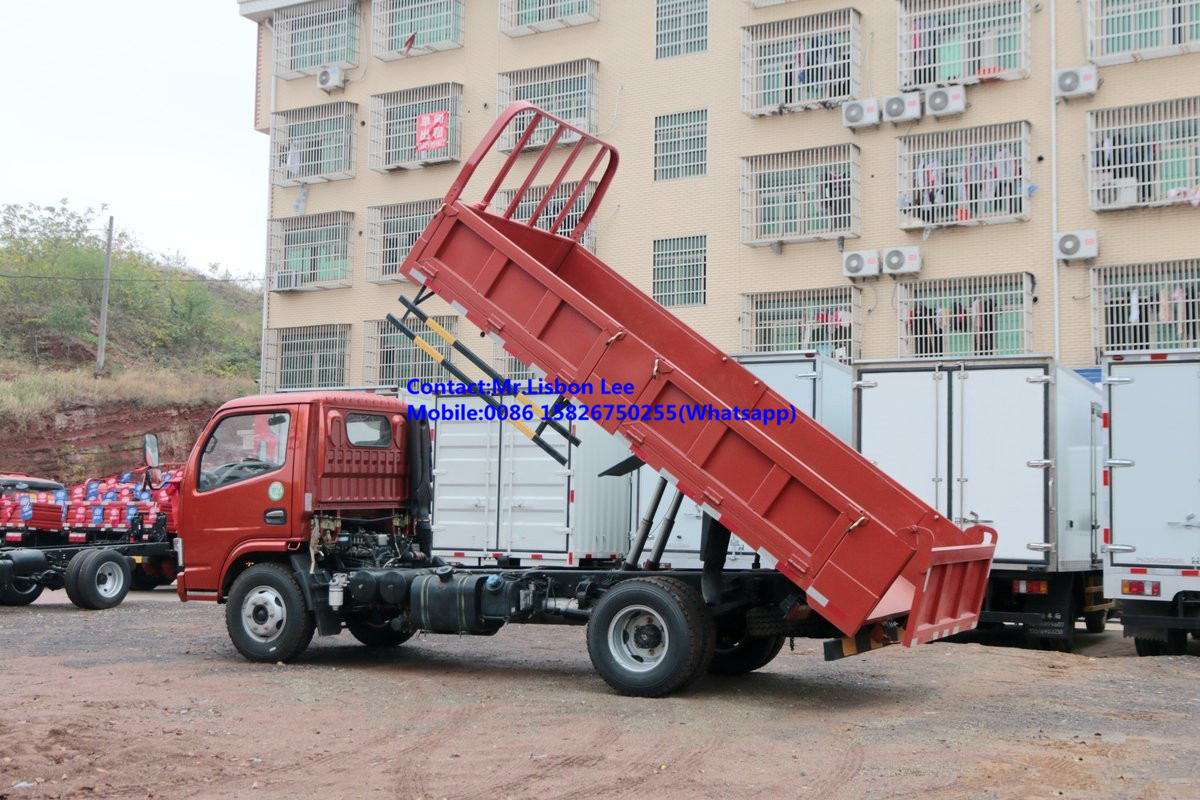

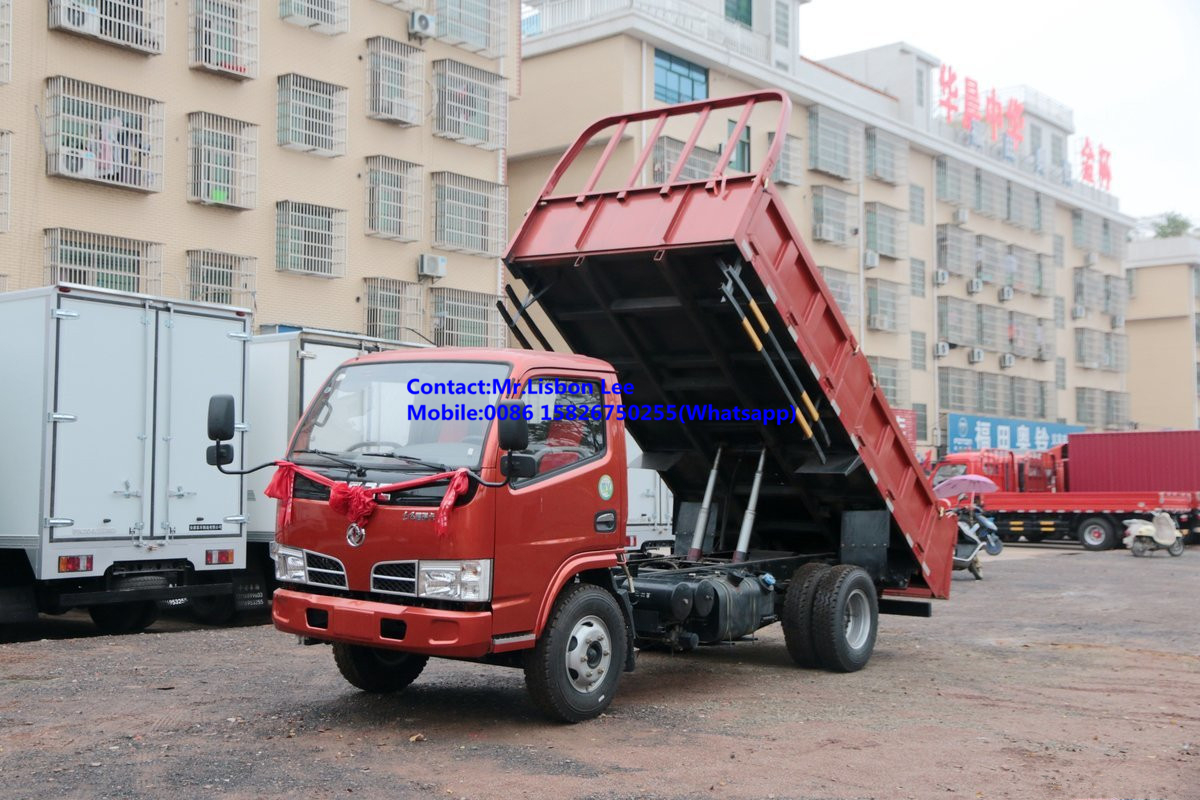

DFAC dump truck 5Tons EQ3080S3GDF

Vehicle name

Dump truck

Chassis model

EQ3080S3GDF

Weight

parameter

Rated load

（kg）

4665

Overall dimension(mm)

5900×2055×2360

Curb weight

（kg）

3485

Box dimension

(mm)

4100×1900×600

Total mass

（kg）

8280

Wheel base

(mm)

3300

Engine

Model

YN27CRE1

Description

of engine

4 cylinders,in line,

8 valves,turbocharged,

water-cooled,

inter-cooled,high pressure,common rail,diesel

Max.output power

（KW/HP）

70/95

Displacement(ml)

2672

Max.torque

(N·m@rpm)

250@

1600-2600

Emission standard

Euro V

Performance

Max. vehicle

speed(km/h)

90

Running angle(°)

Approach angle

23

Drive type

4X2

Departure angle

18

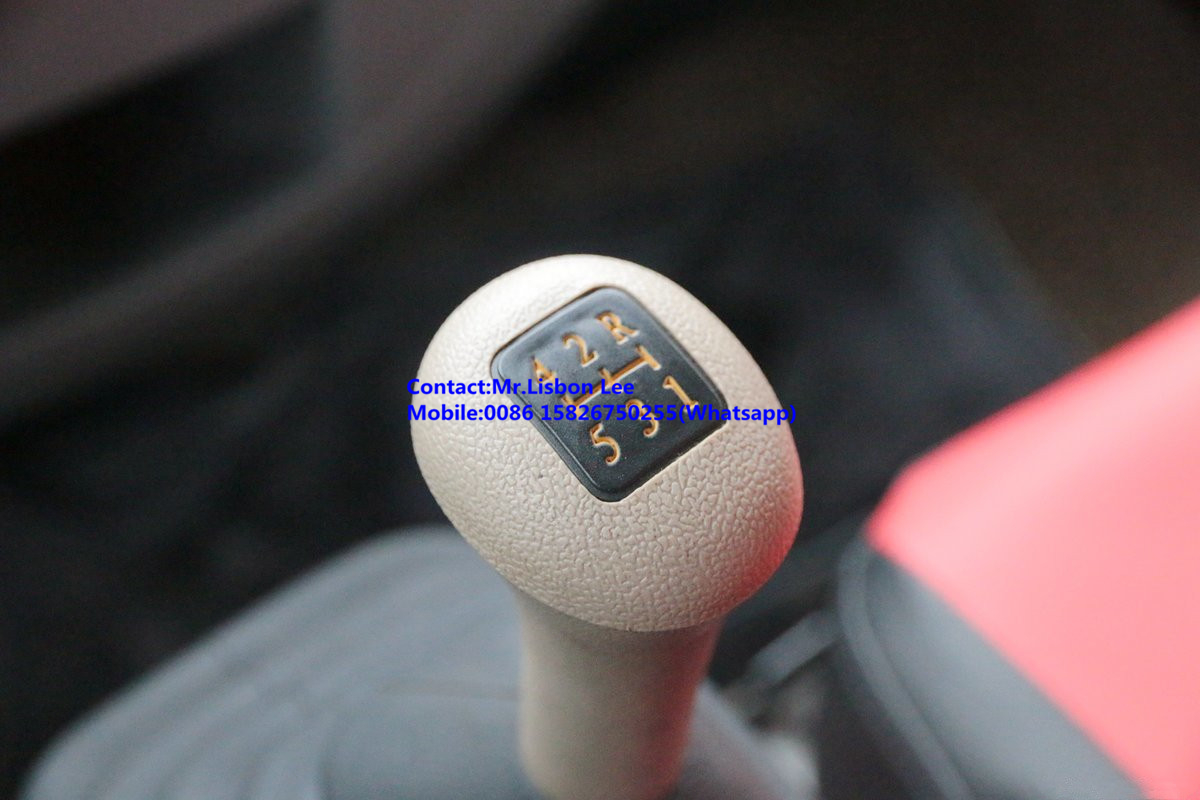

Description

of gearbox

WLY535HF,manual,

5 forward ＆ 1 reverse gears

Steering type

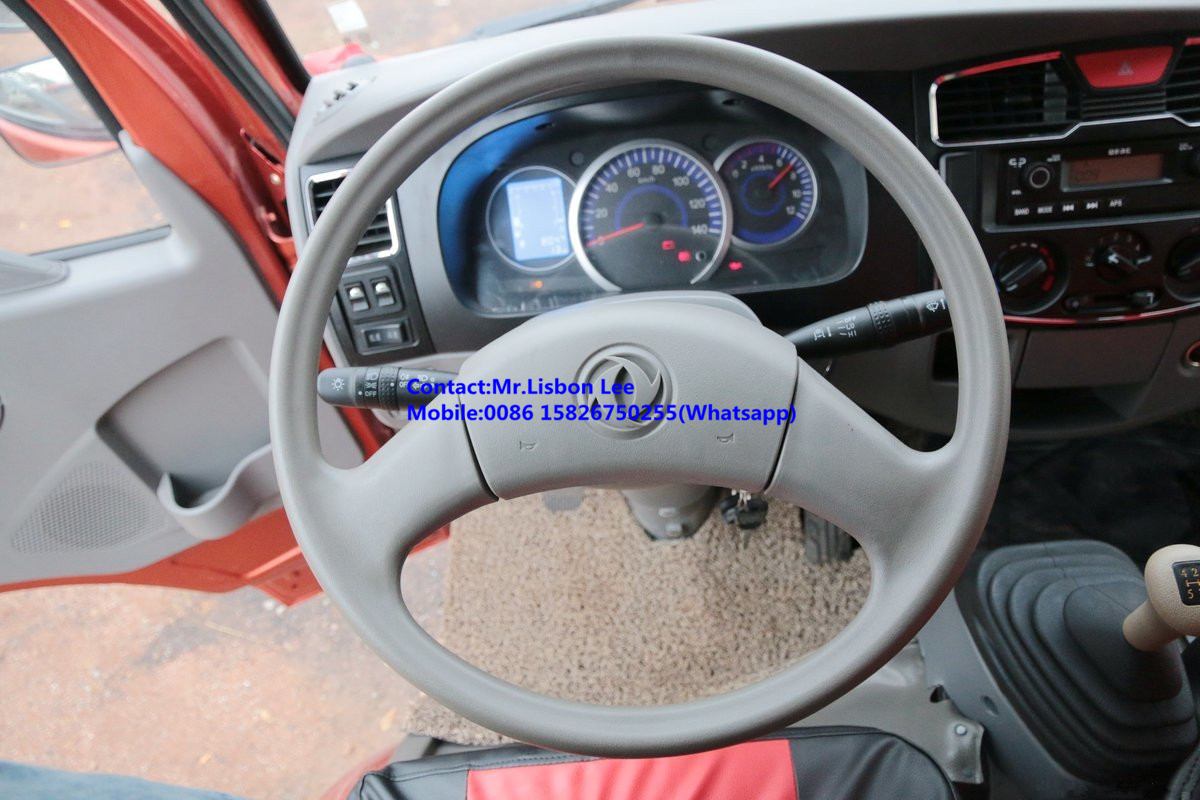

LHD,power steering

Clutch

Diaphragm spring clutch

Brake system

Air brake system,

ABS

Specification

of tyre

7.50R16

Number of tires

6+1

Frame

Stamping riveted structure

Number of

leaf spring

8/10+7

Front axle

load capacity

(Kg)

3300

Rear axle load capacity(Kg)

4980

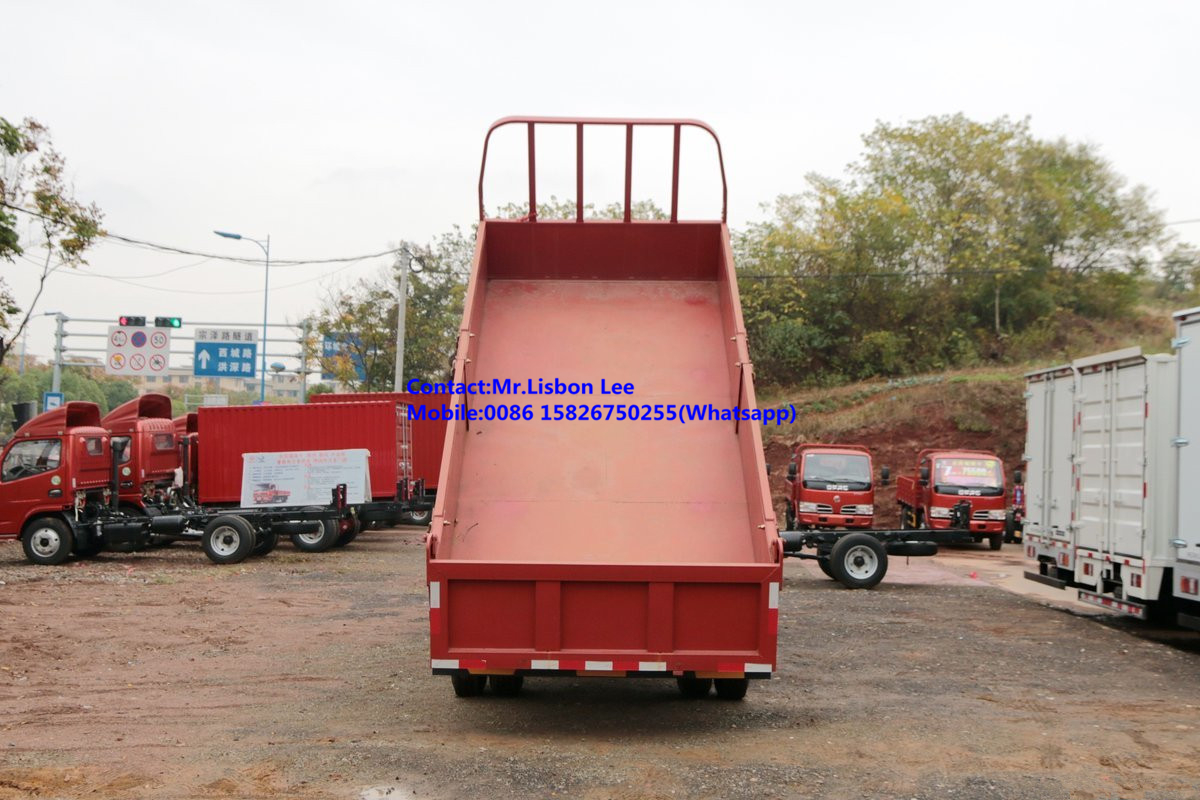

Thickness

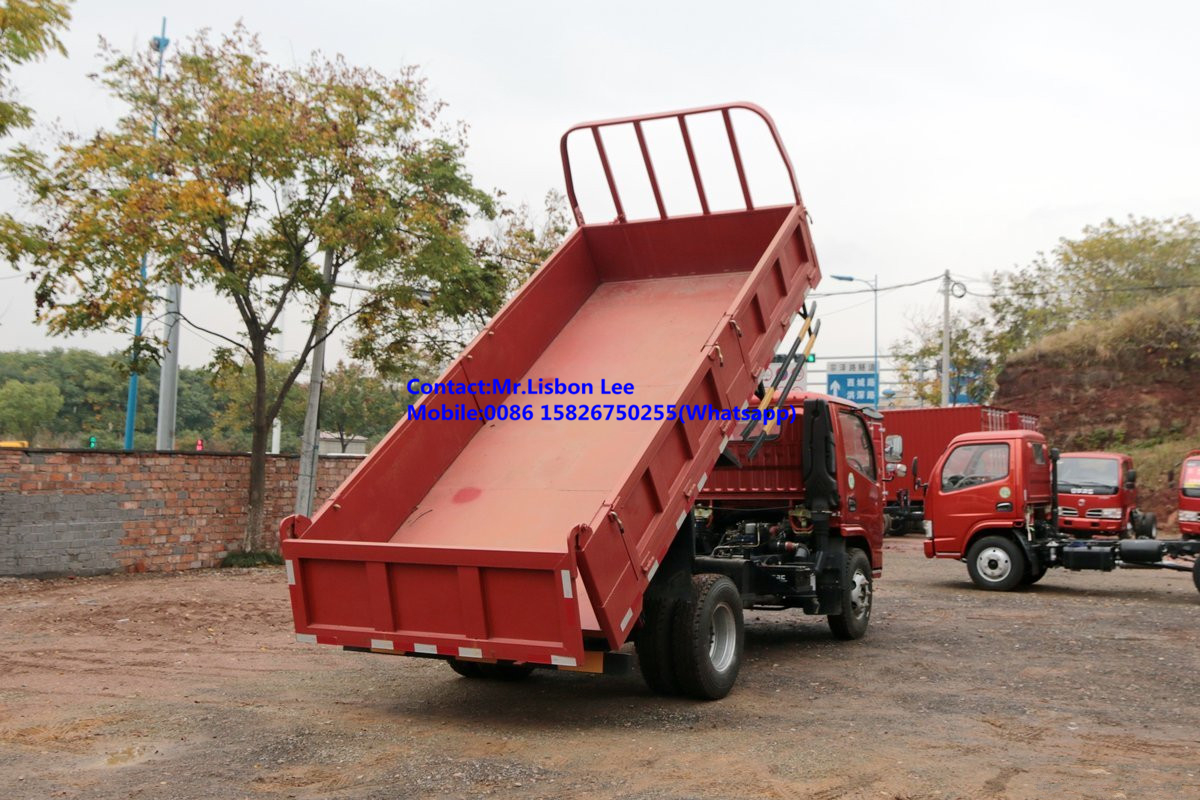

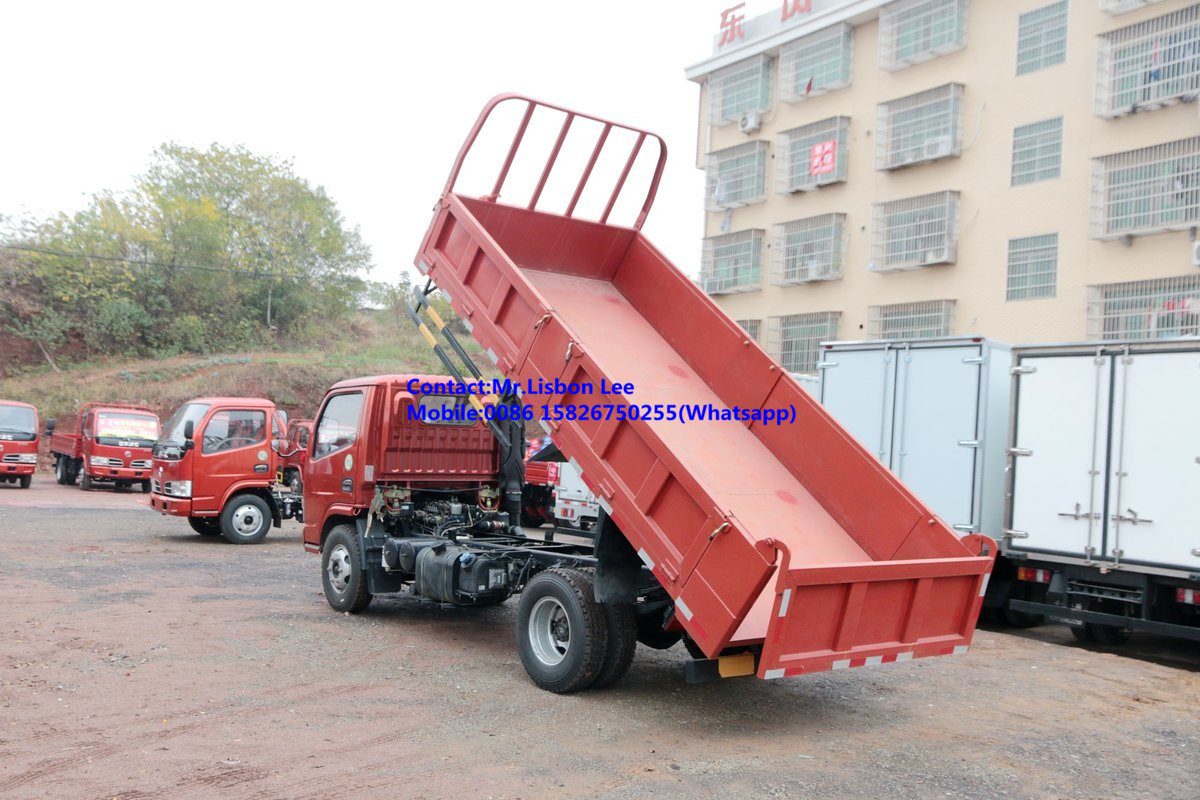

of dump box

Side 3mm,bottom 4mm

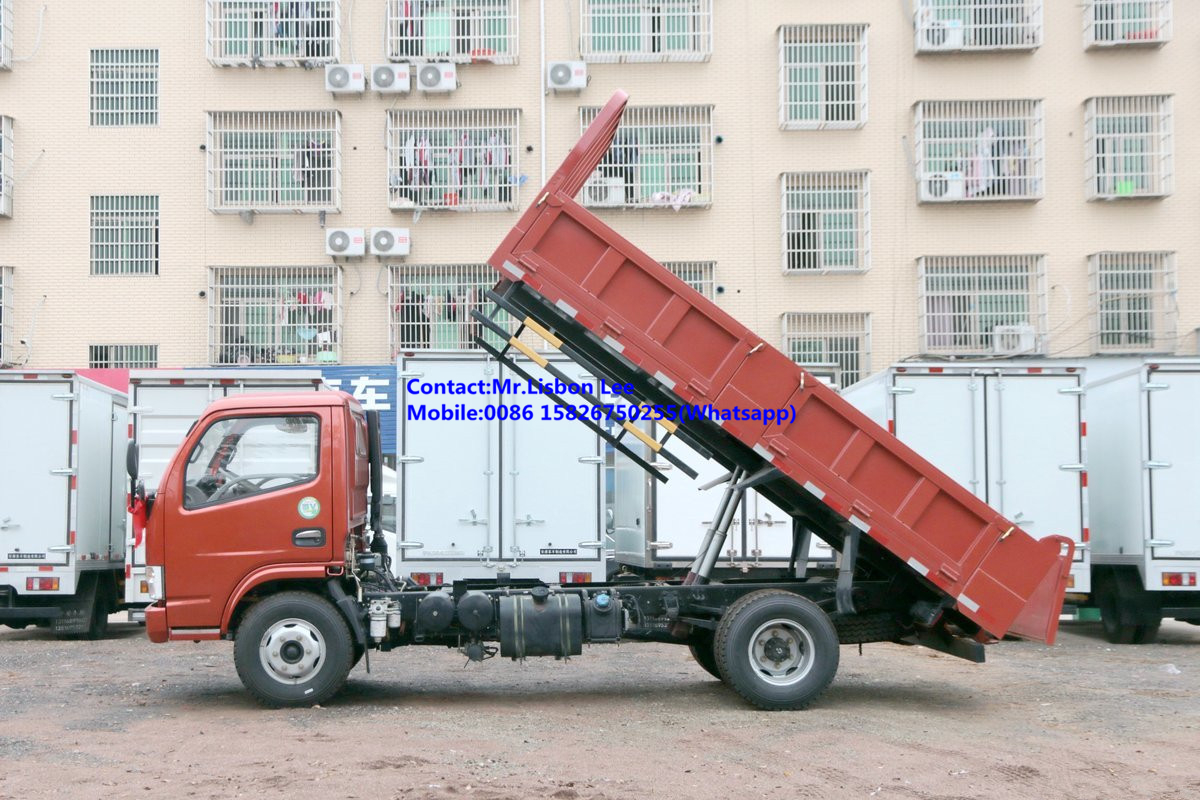

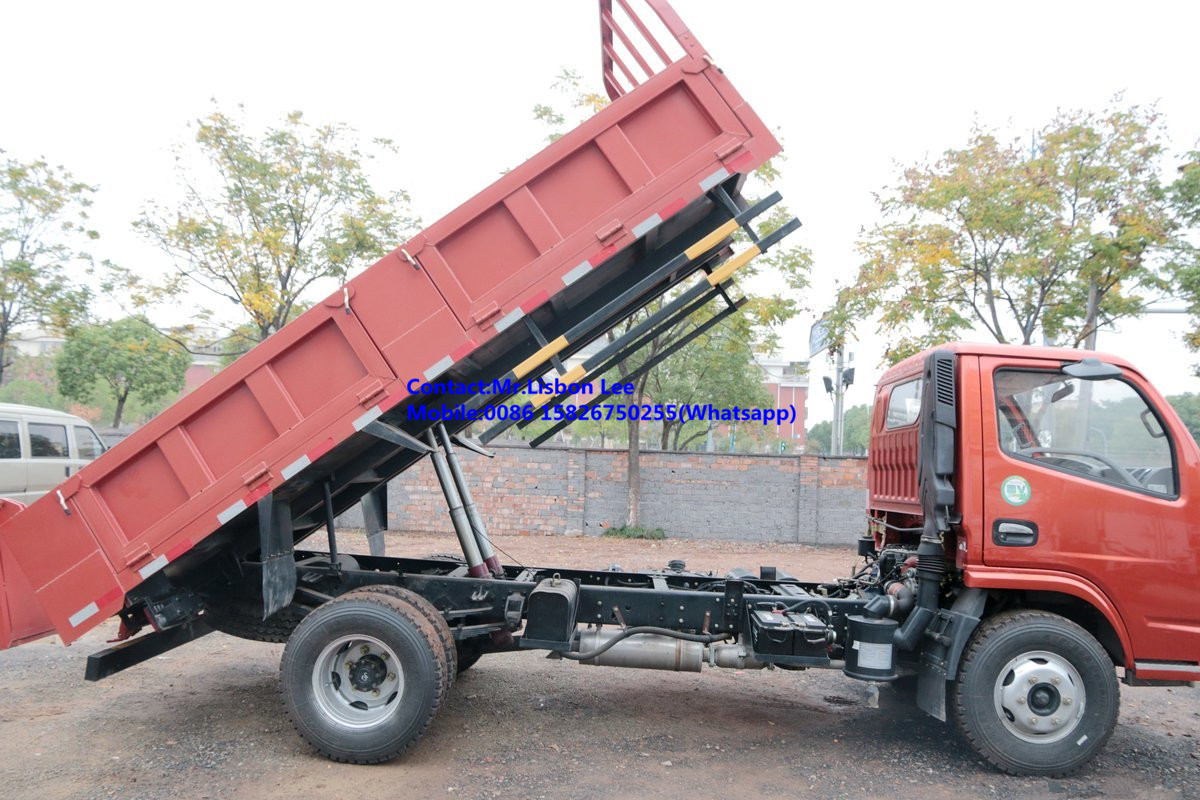

Hydraulic cylinder

Φ90 double

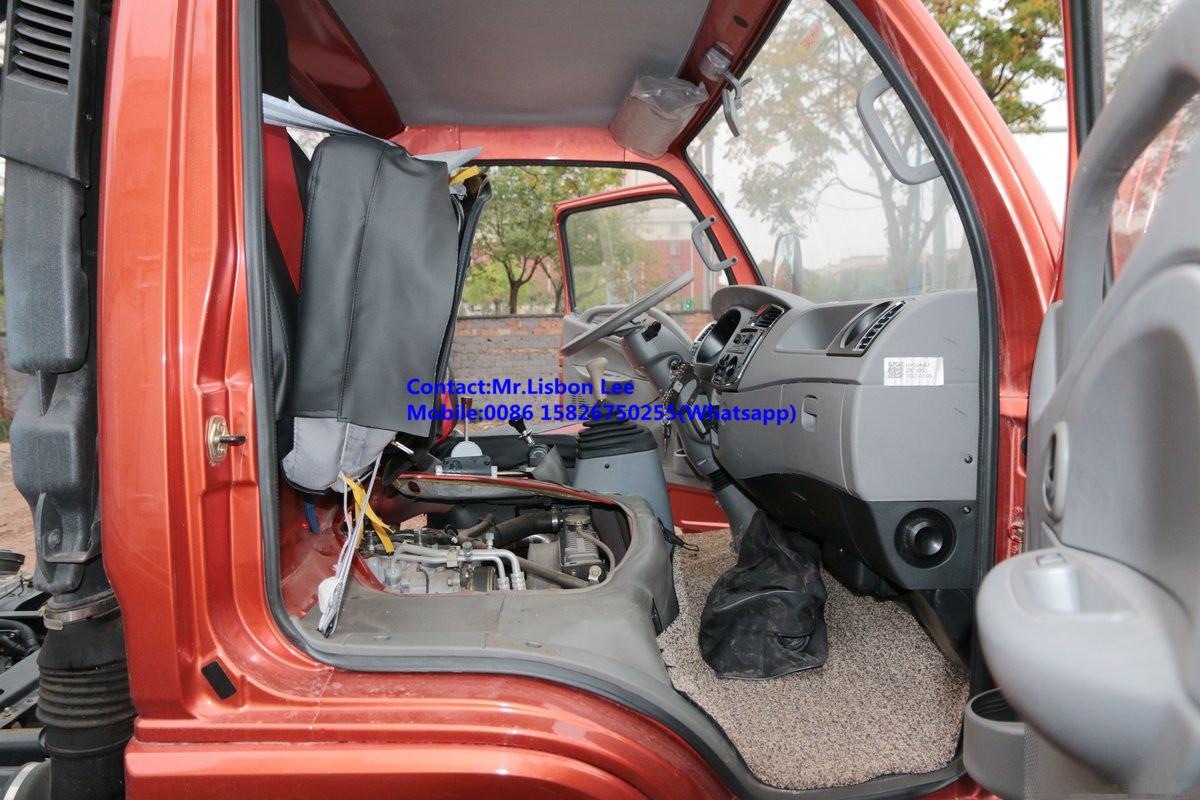

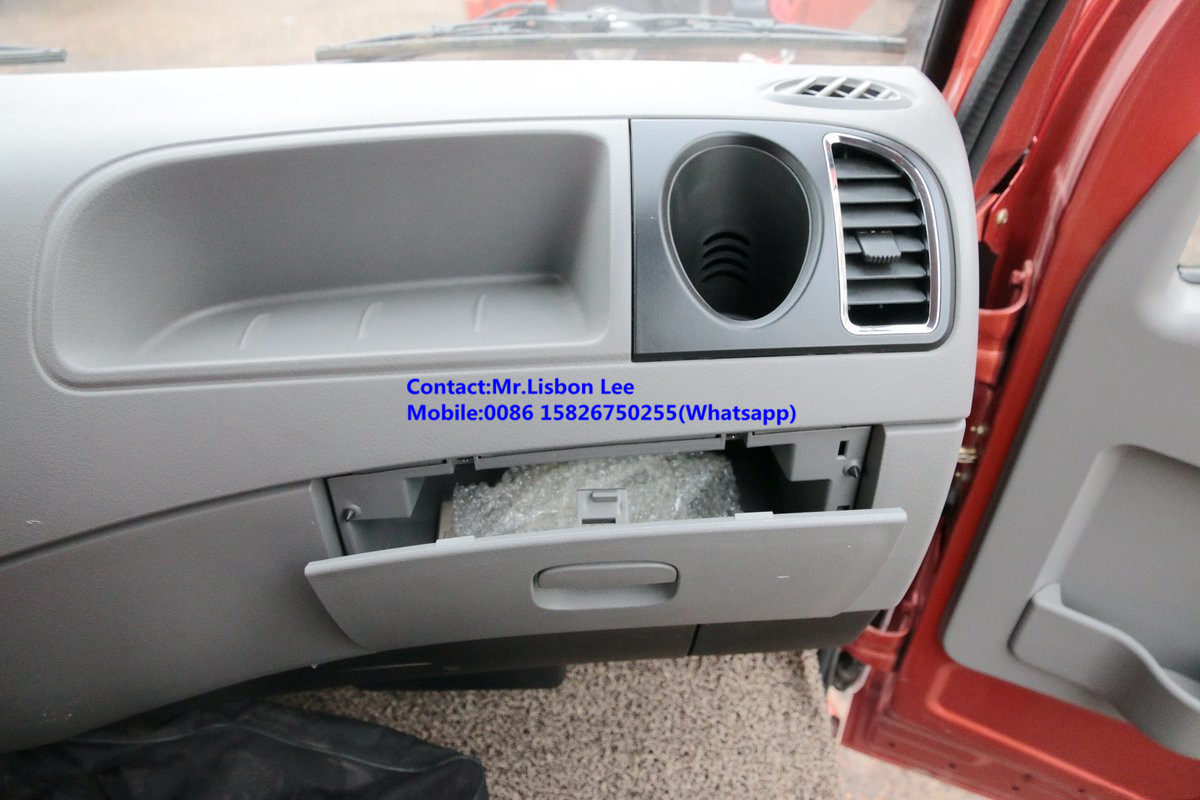

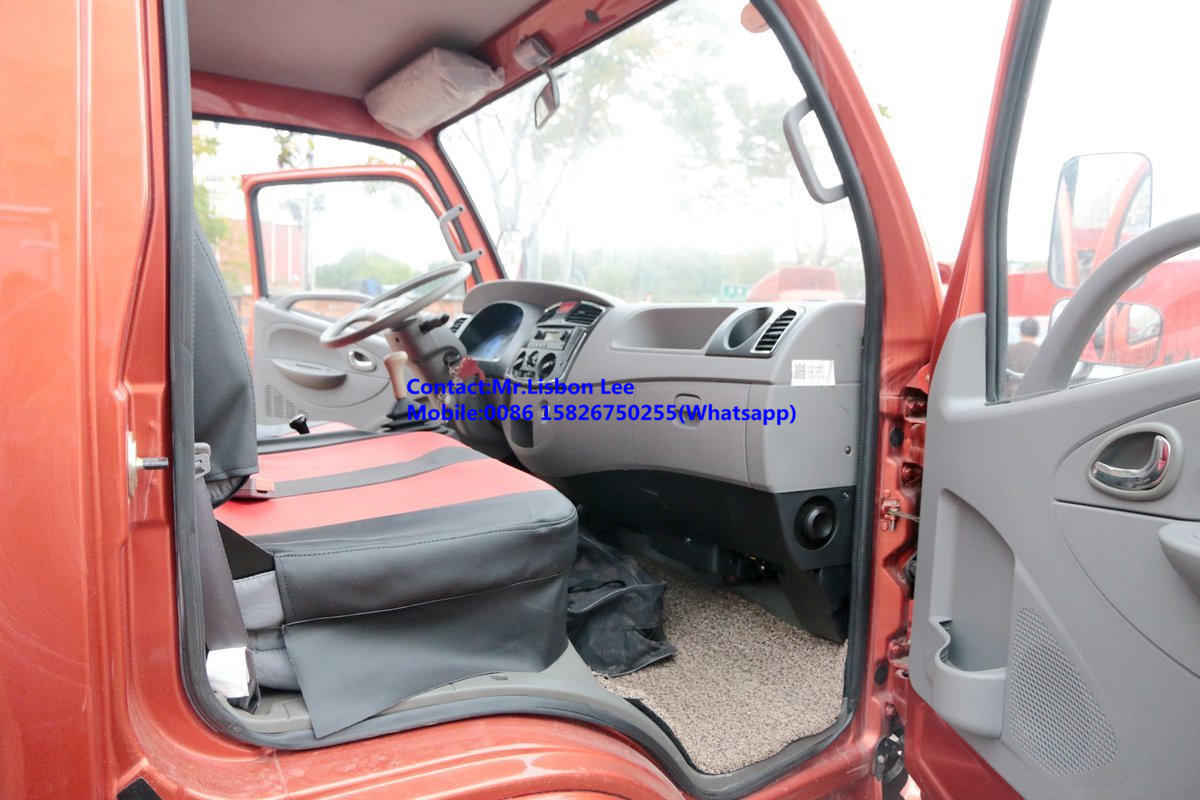

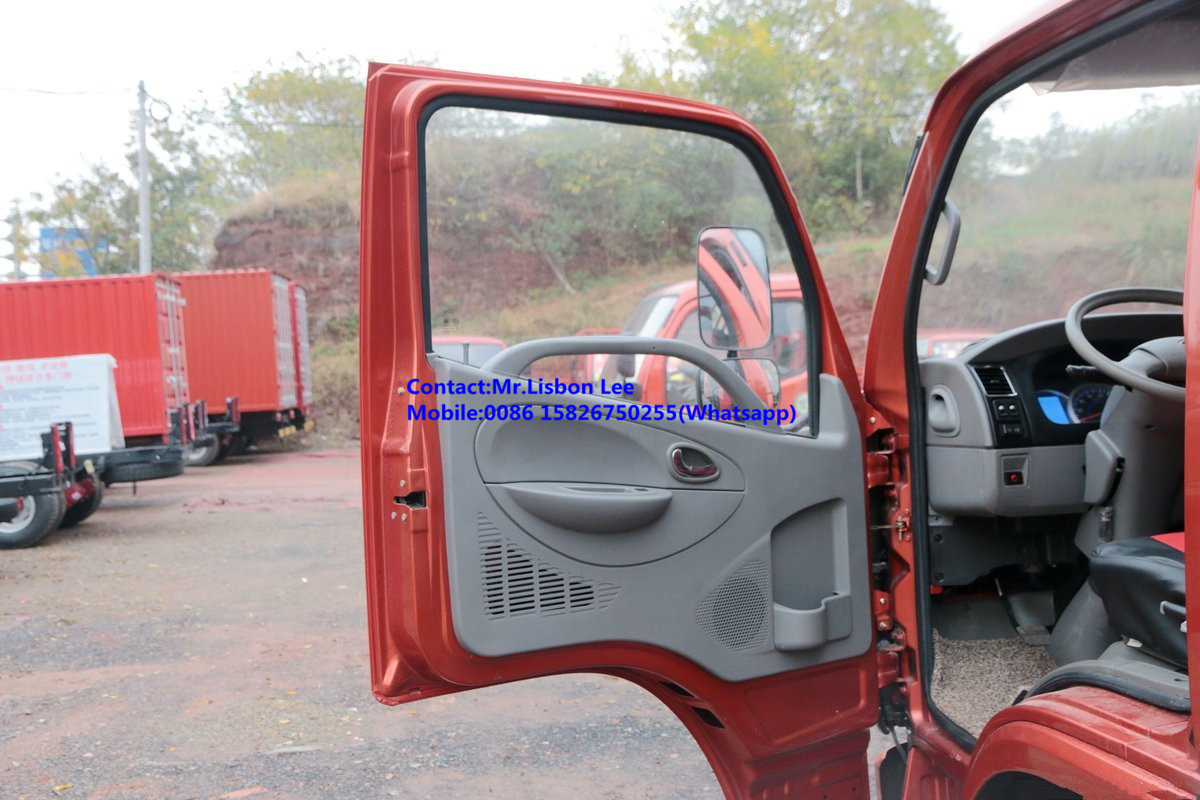

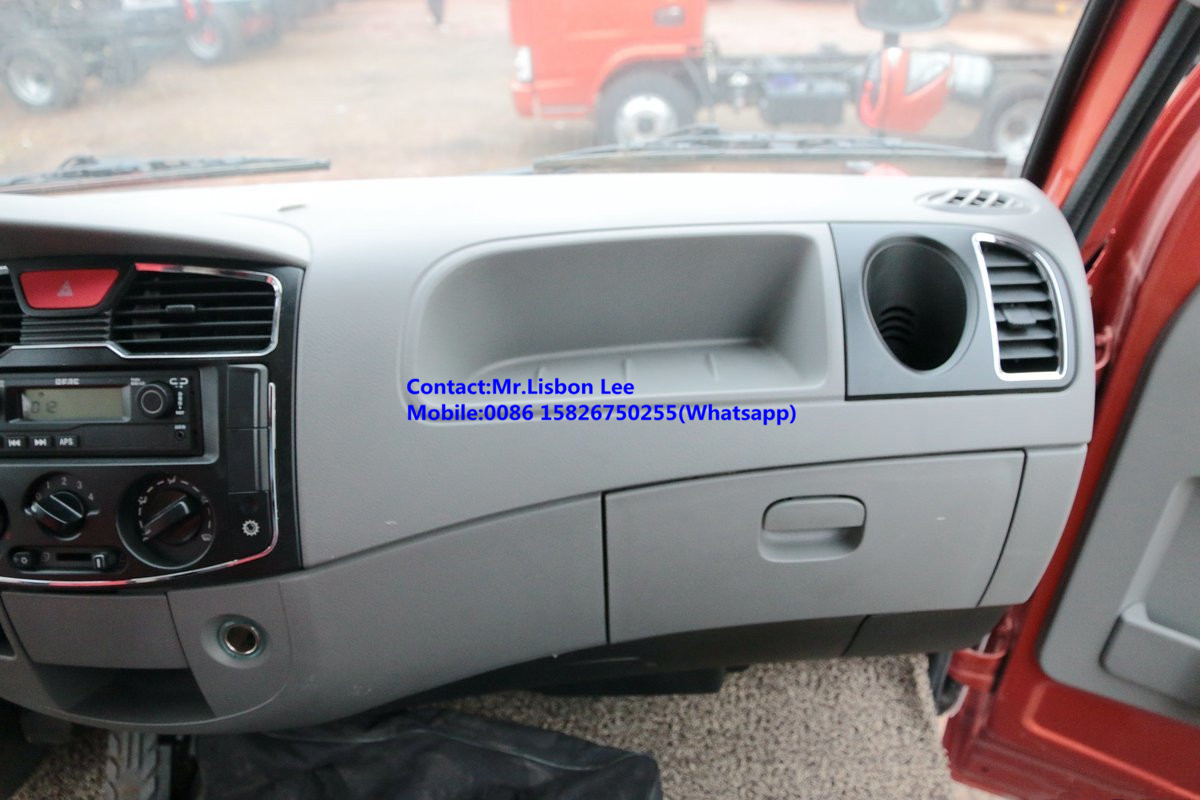

Cabin

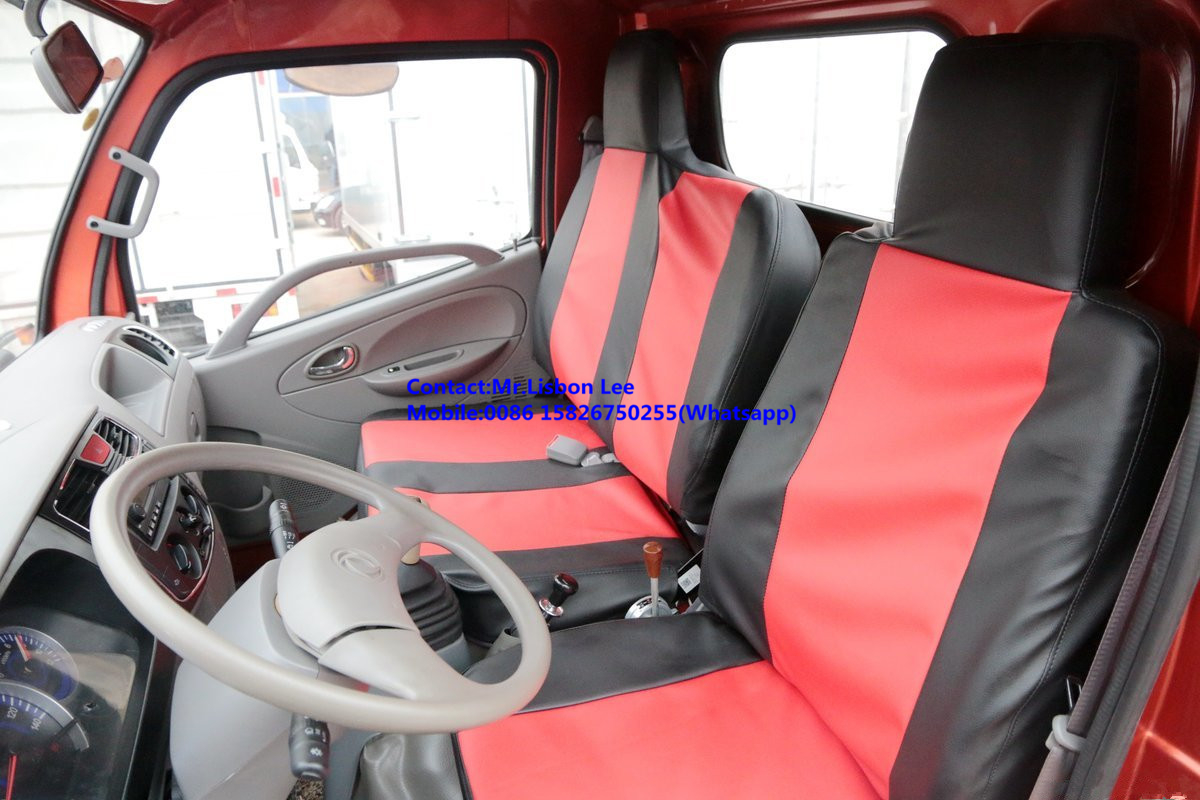

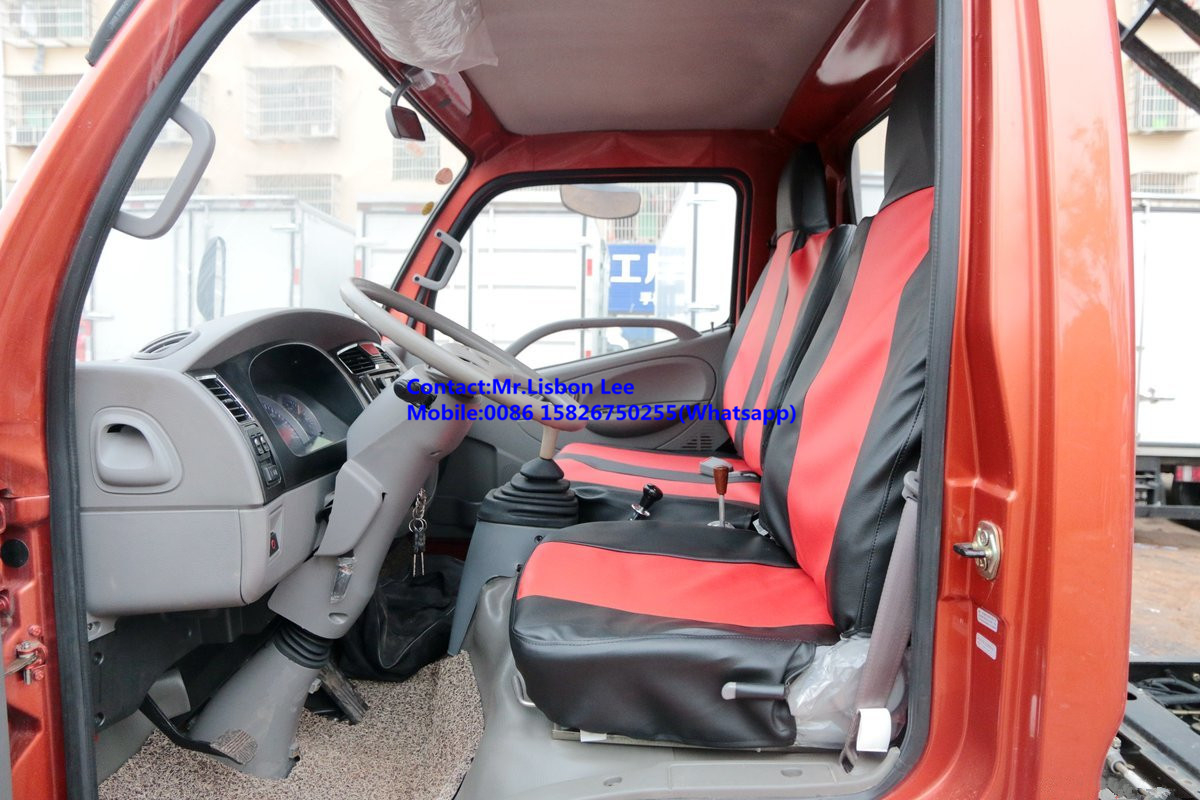

Single row,width 1730mm,standard configuration,

3 passengers allowable,

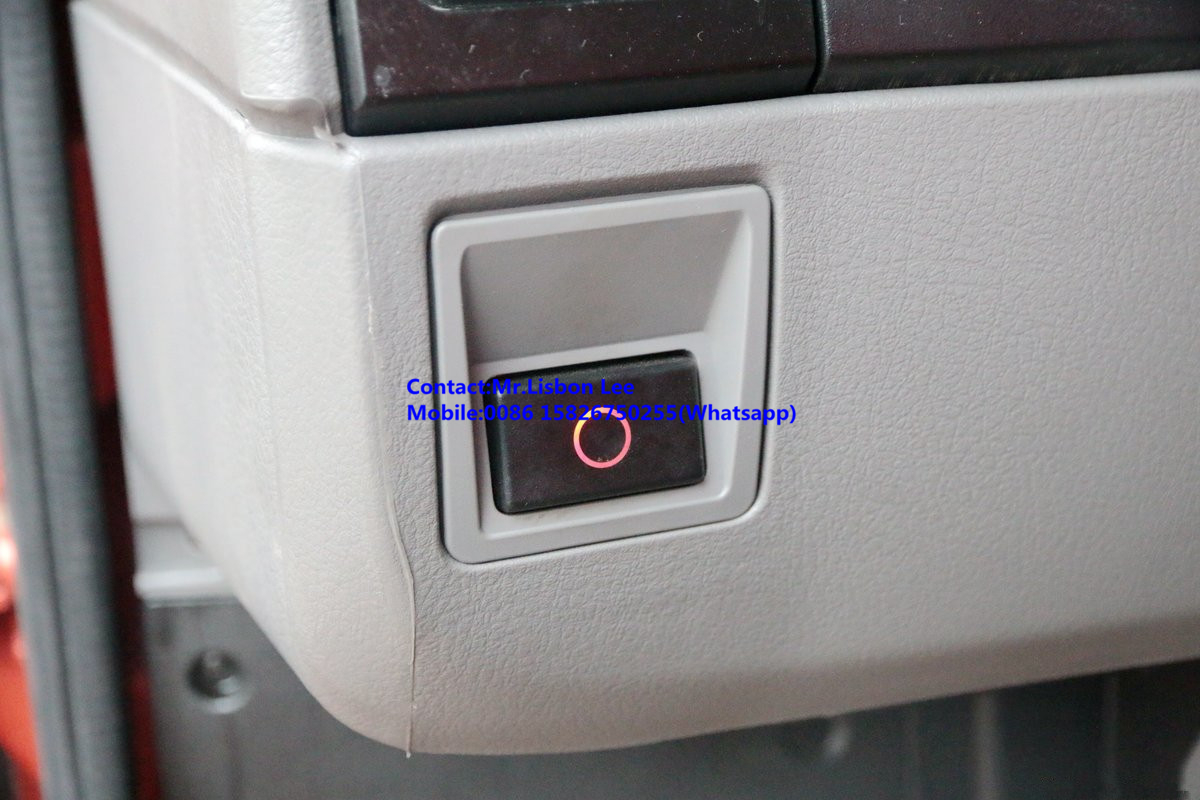

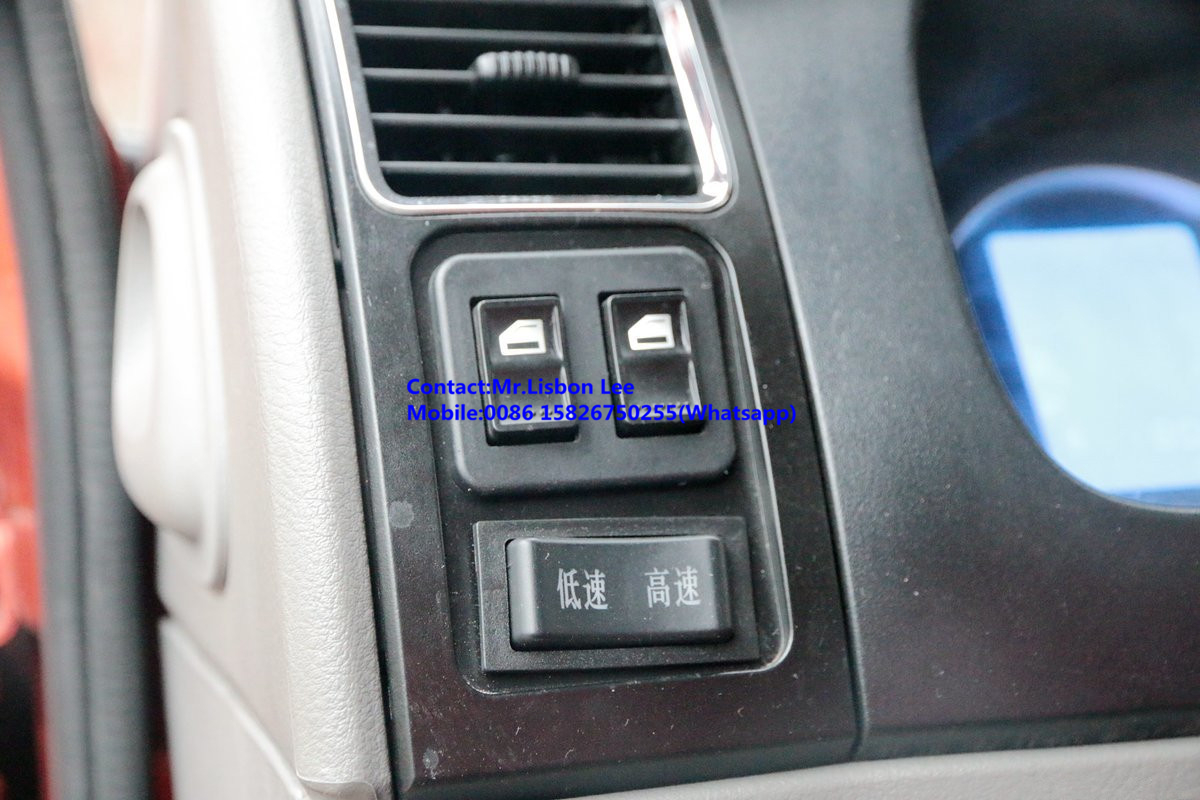

electric window,power interface 24V,

clutch power assisted,

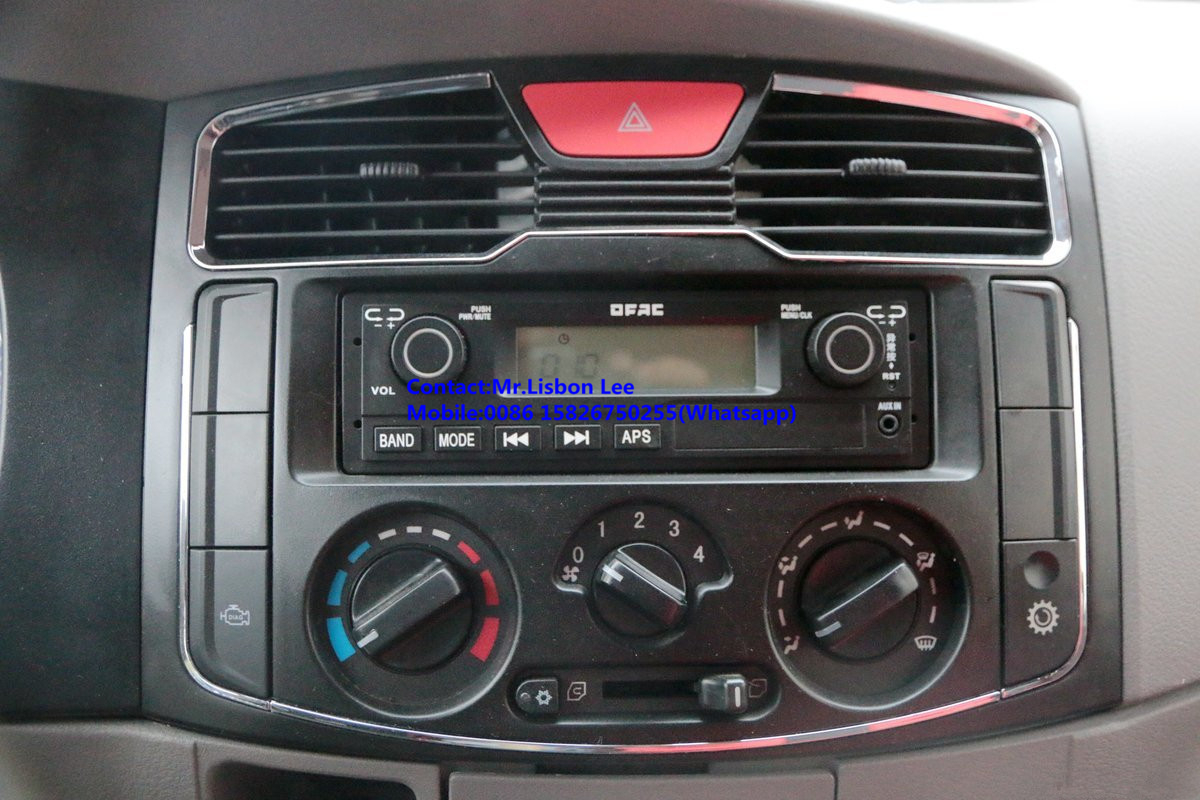

A/C optional(+200USD)
