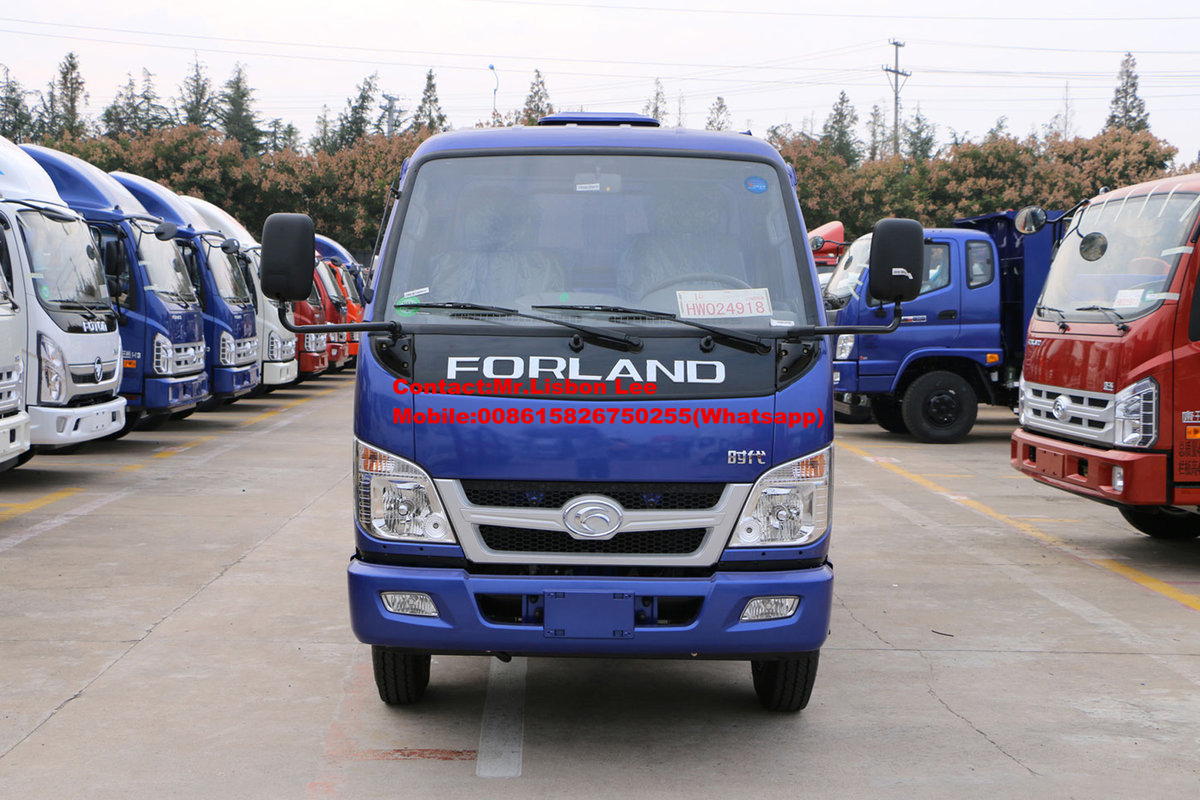

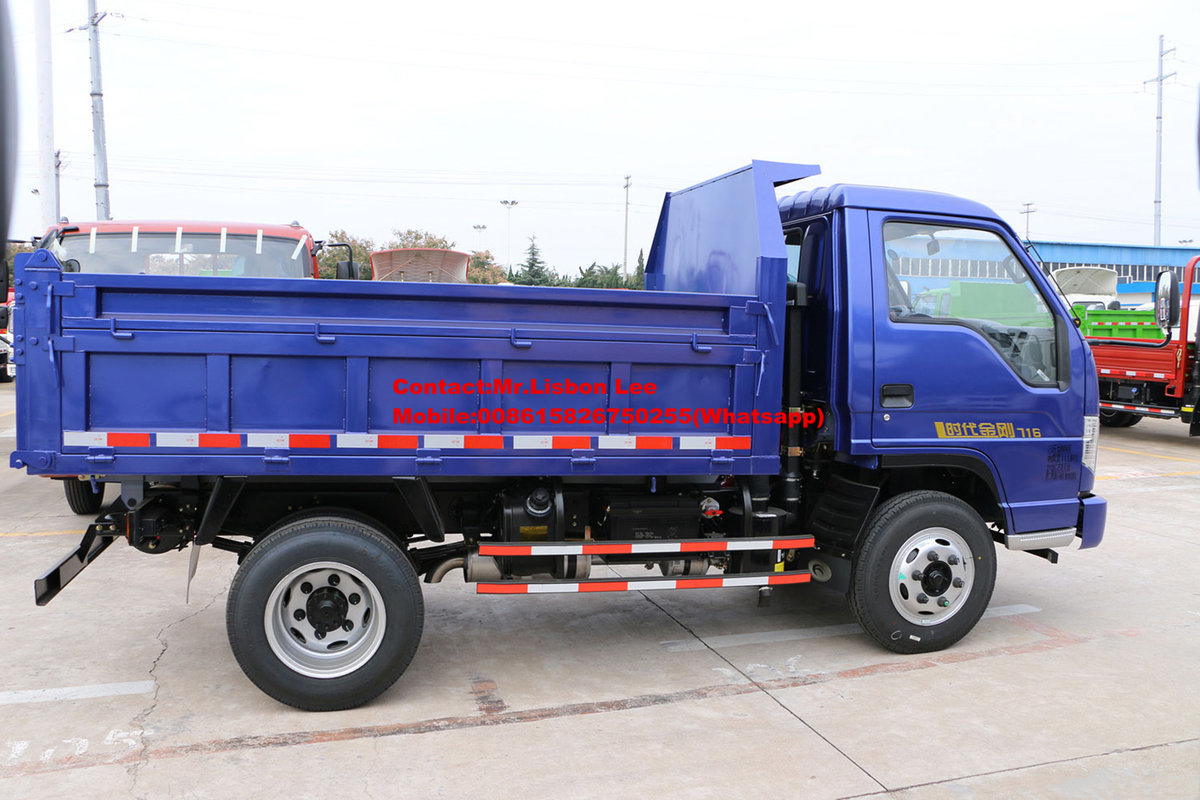

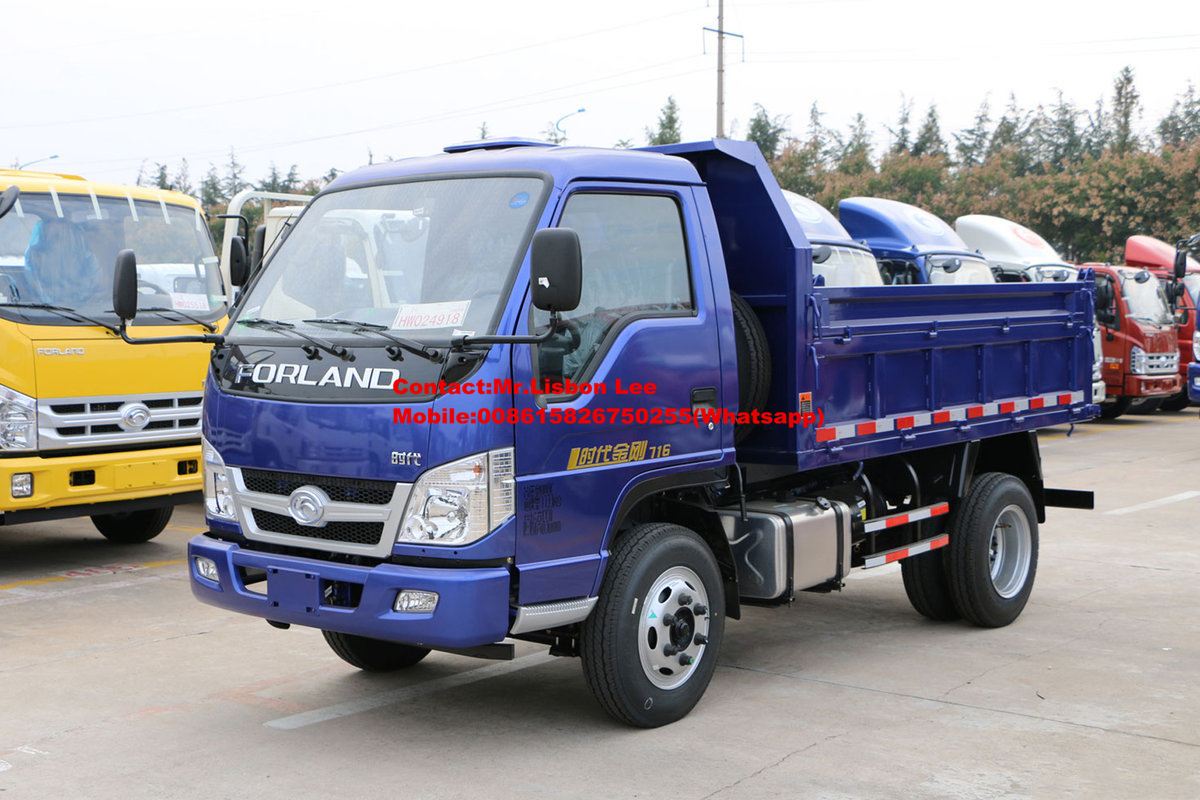

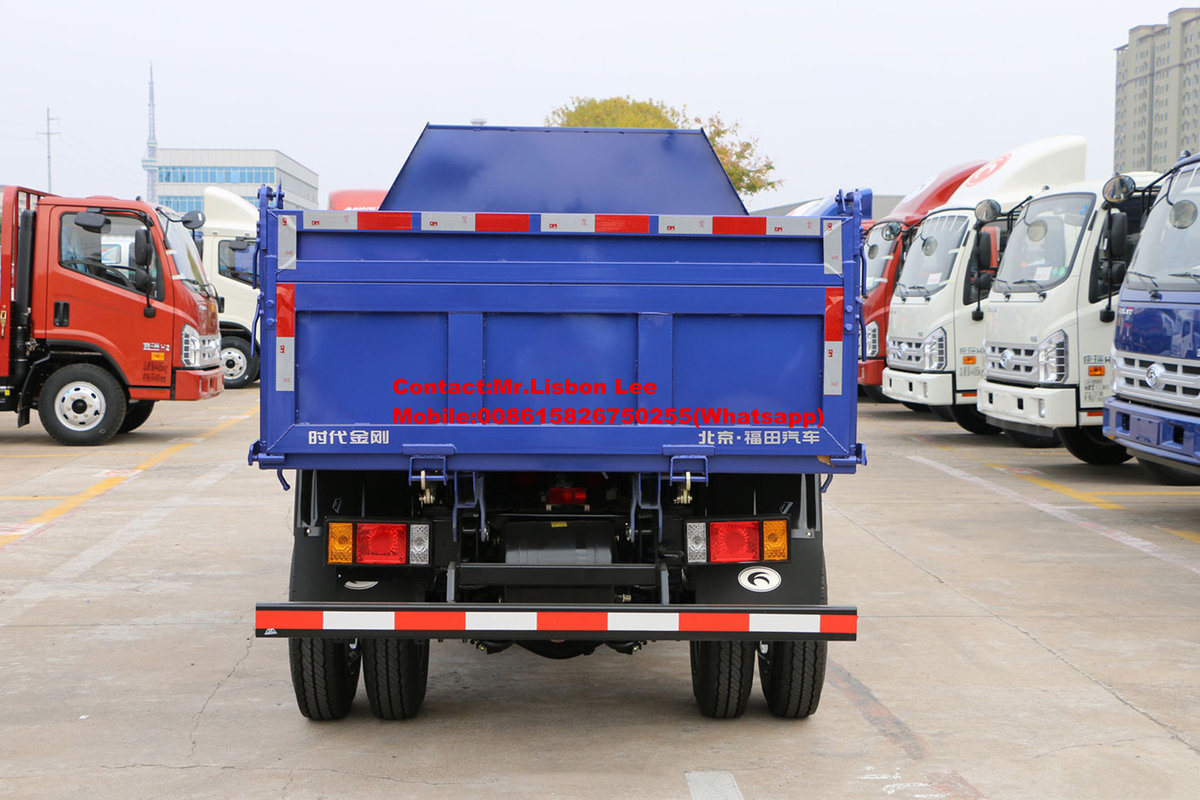

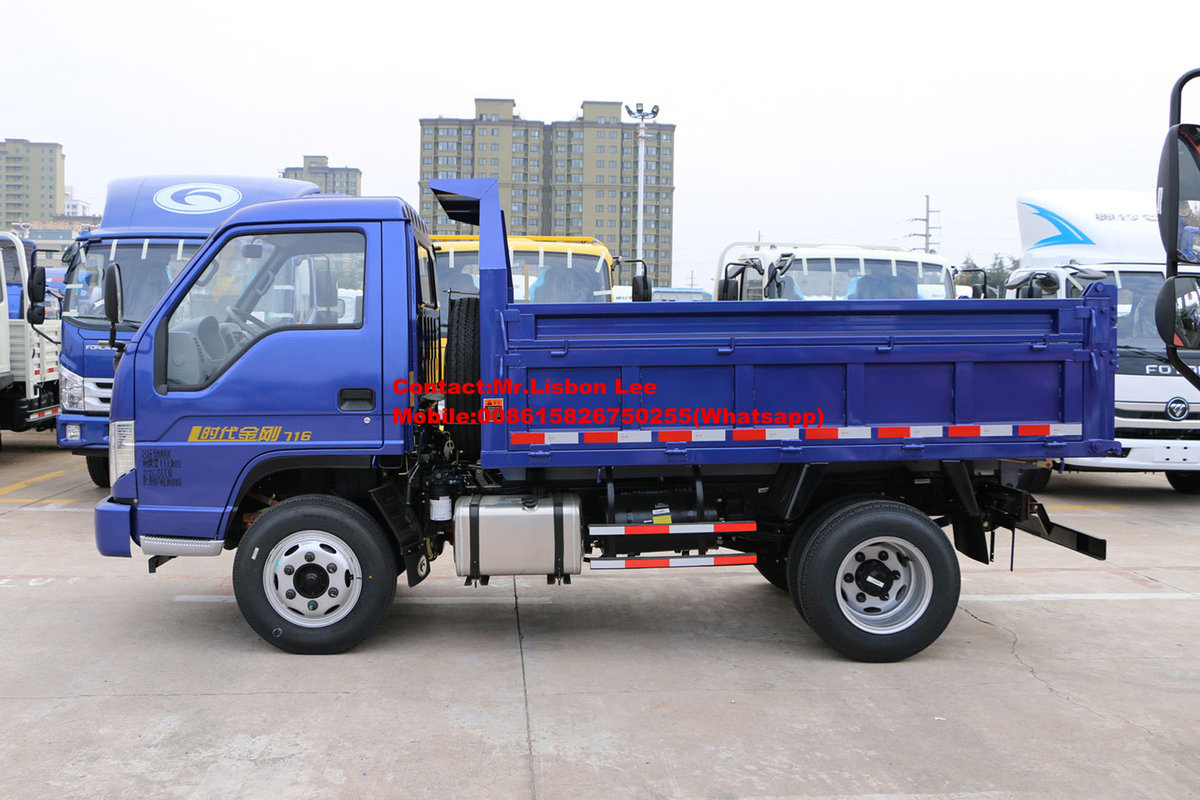

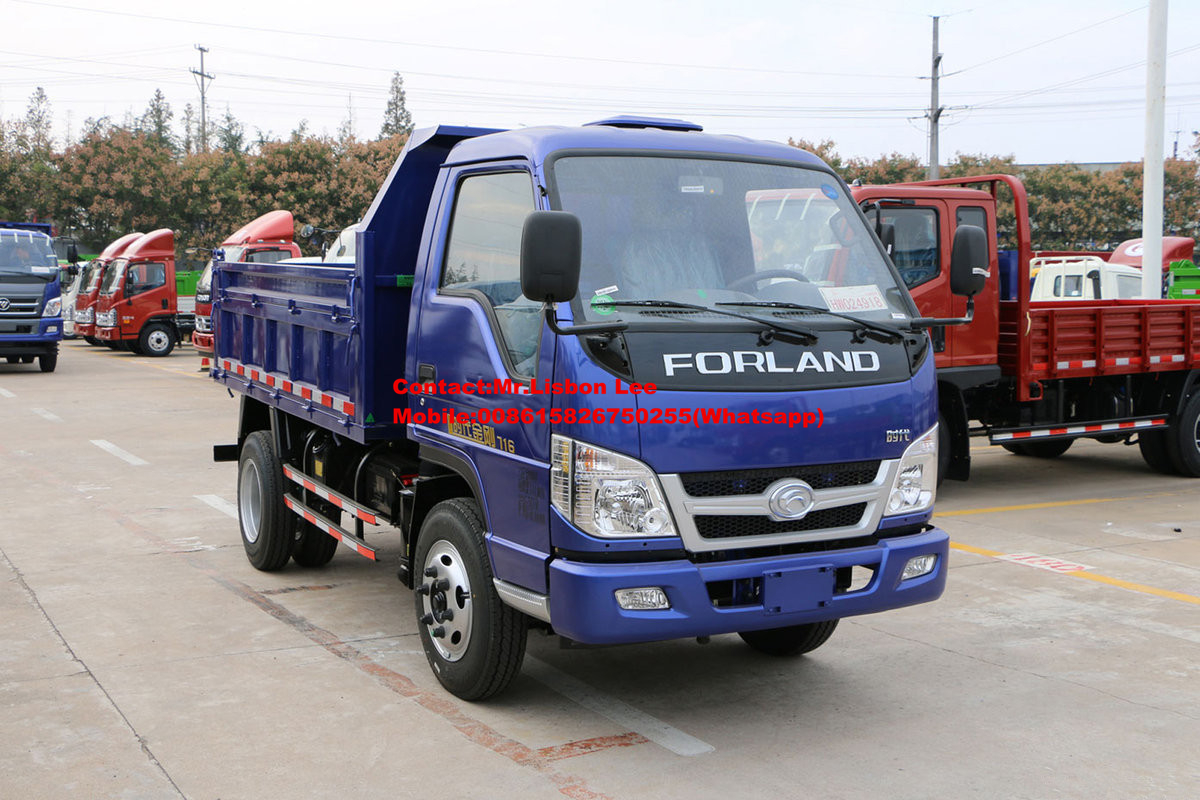

FOTON FORLAND dump truck 3Tons

Vehicle name

Dump truck

Chassis model

BJ3042D9PB3

Weight parameter

Load capacity

（kg）

3000

Overall dimension (mm)

5080×1735×2185

Curb weight

（kg）

2000

Box dimension

(mm)

3200×1610×600

Total mass

（kg）

5150

Wheel base

(mm)

2600

Engine

Model

4A1-68C43

Description of engine

4 cylinders,in line,turbocharged,

water-cooled, inter-cooled,diesel

Max.output power

（KW/HP）

50/68

Displacement(ml)

1809

Performance

Max. vehicle speed

(km/h)

90

Running angle(°)

Approach angle

16

F/R overhang(mm)

1115/1365

Departure angle

18

Emission standard

Euro 2

Drive type

4X2

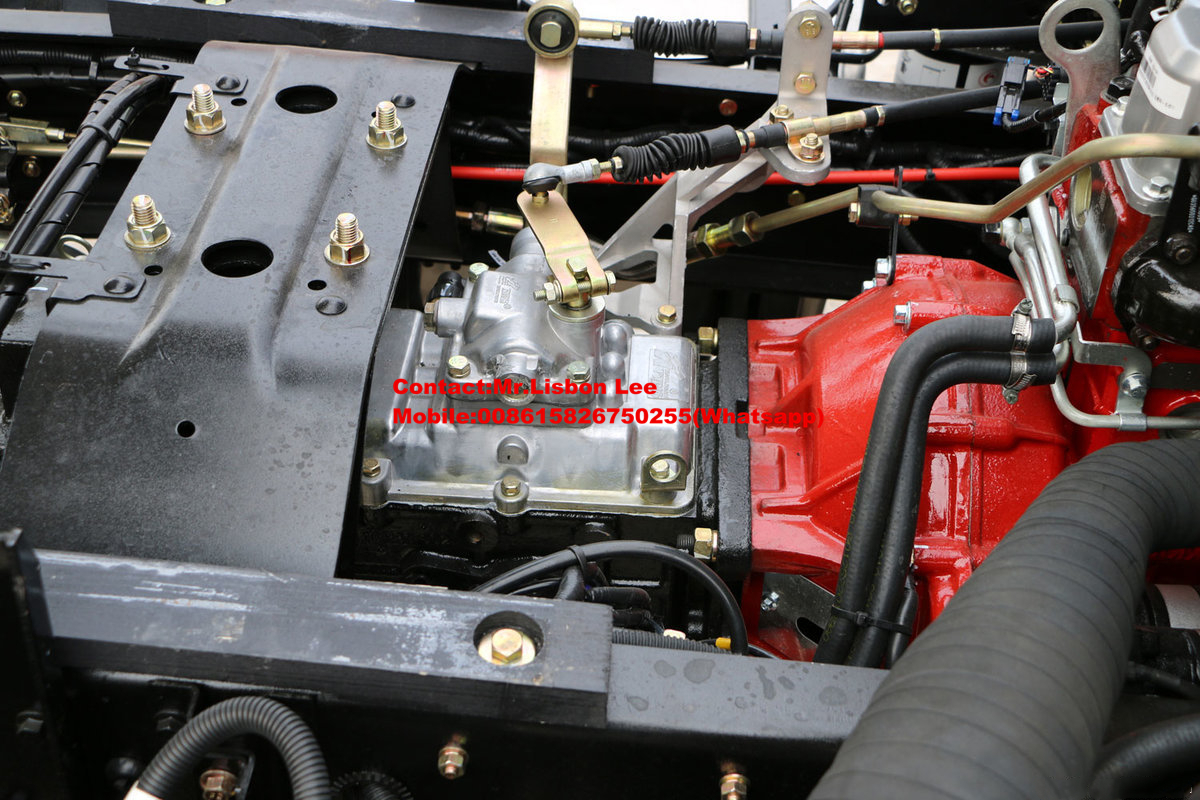

Description of gearbox

Manual, 5-speed gearbox

Steering type

LHD

Clutch

Diaphragm spring clutch

Brake system

Hydraulic brake system

Specification of tyre

6.00-13

Number of tires

6+1

Frame

Stamping riveted structure

Number of leaf spring

7/5+3

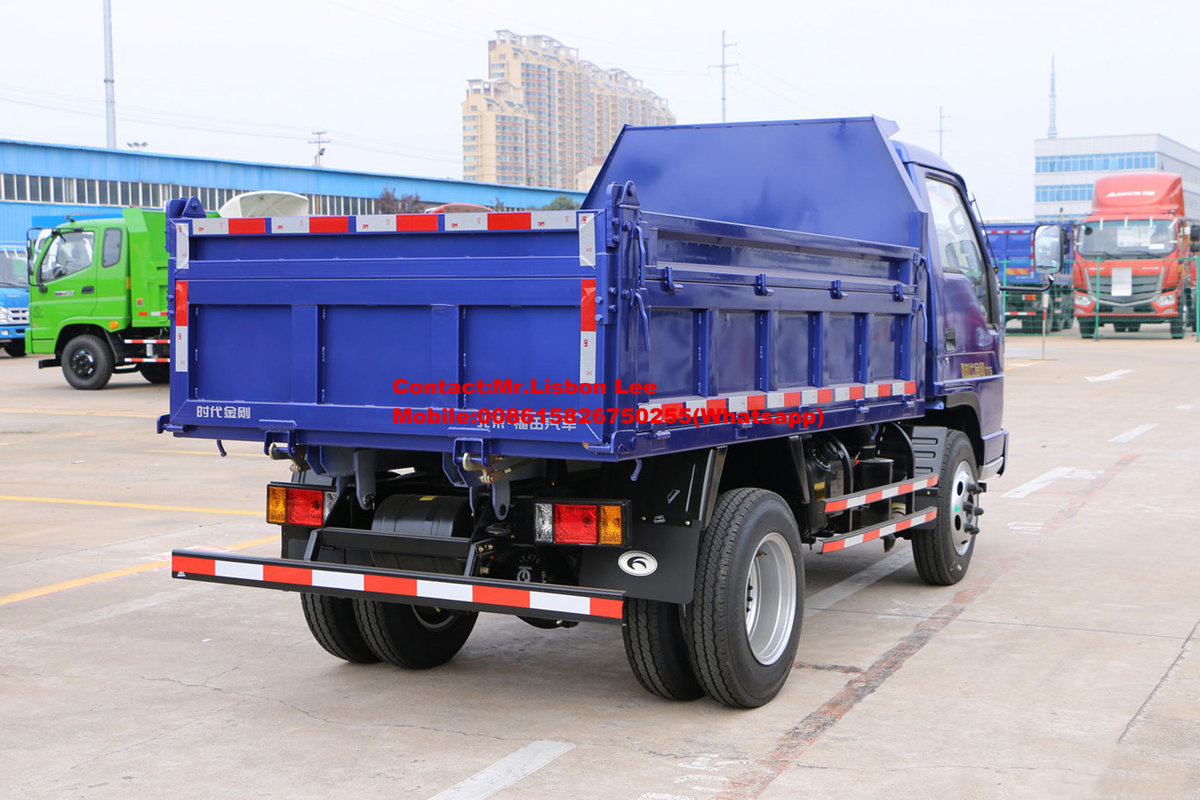

Thickness of dump box

Side 3mm,bottom 4mm

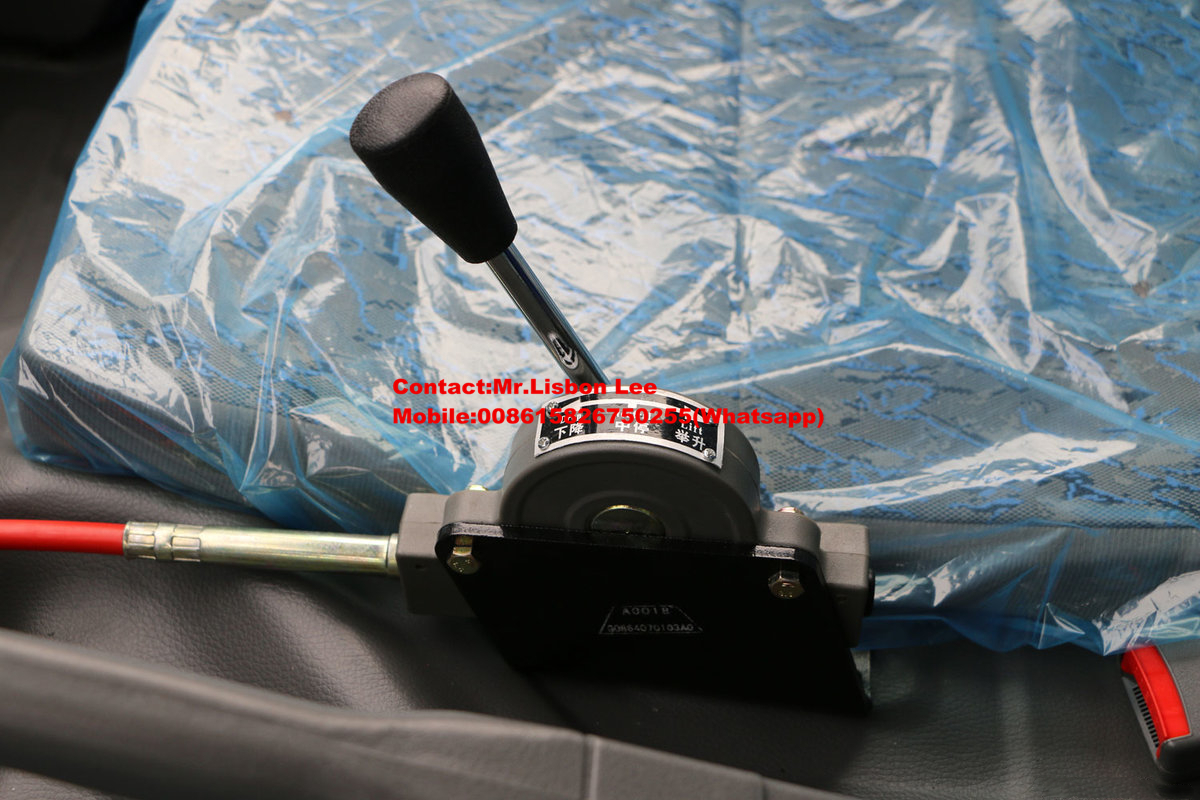

Hoisting system

Hydraulic middle hoisting

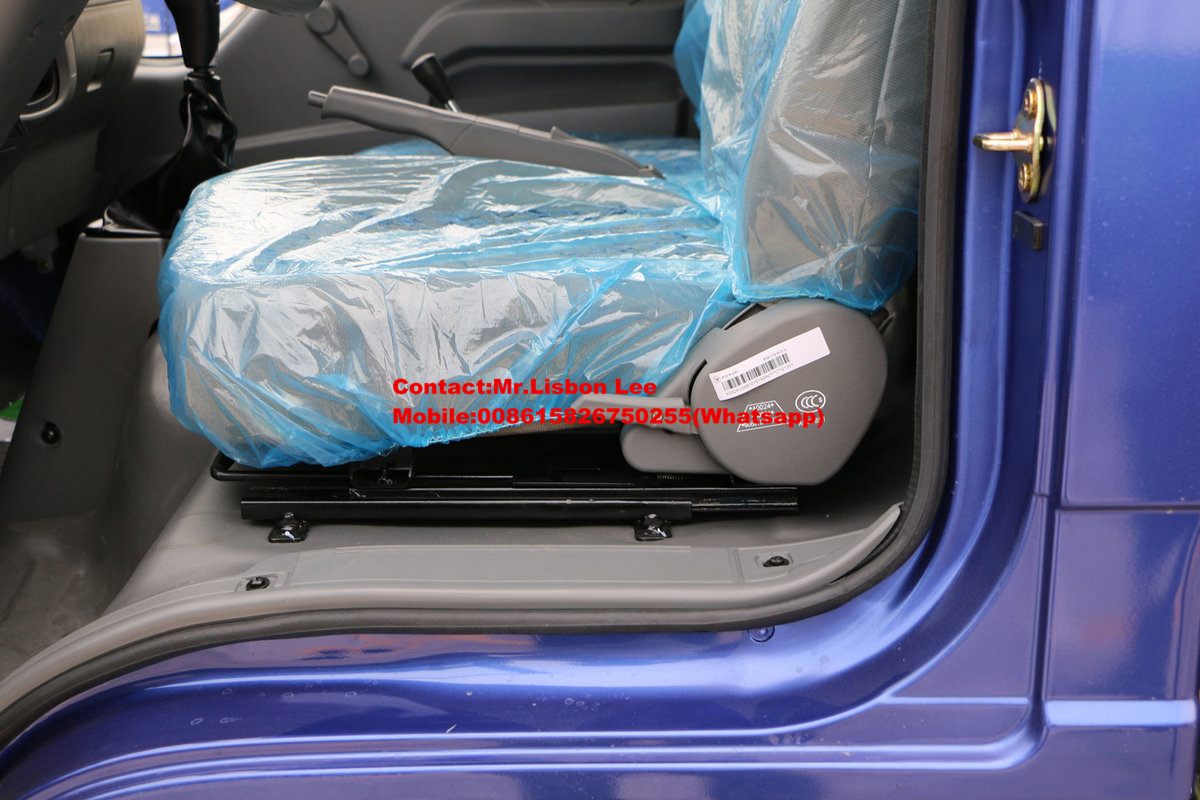

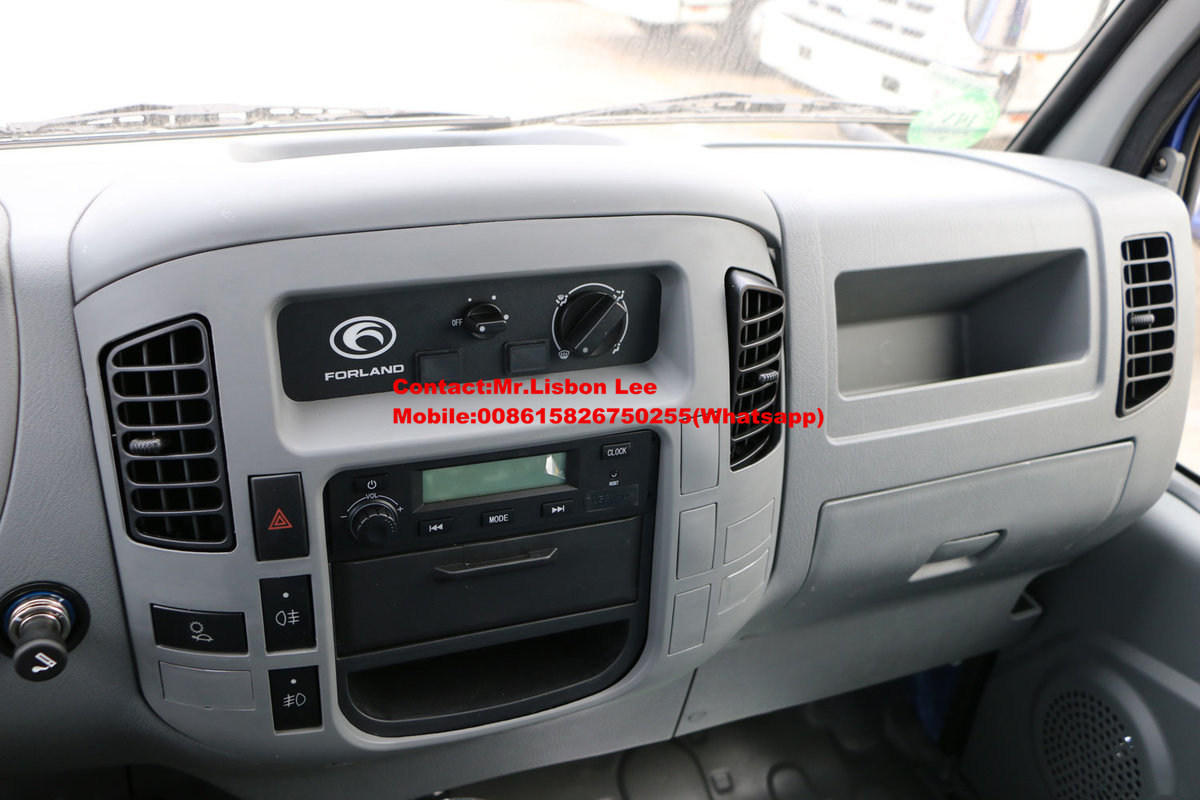

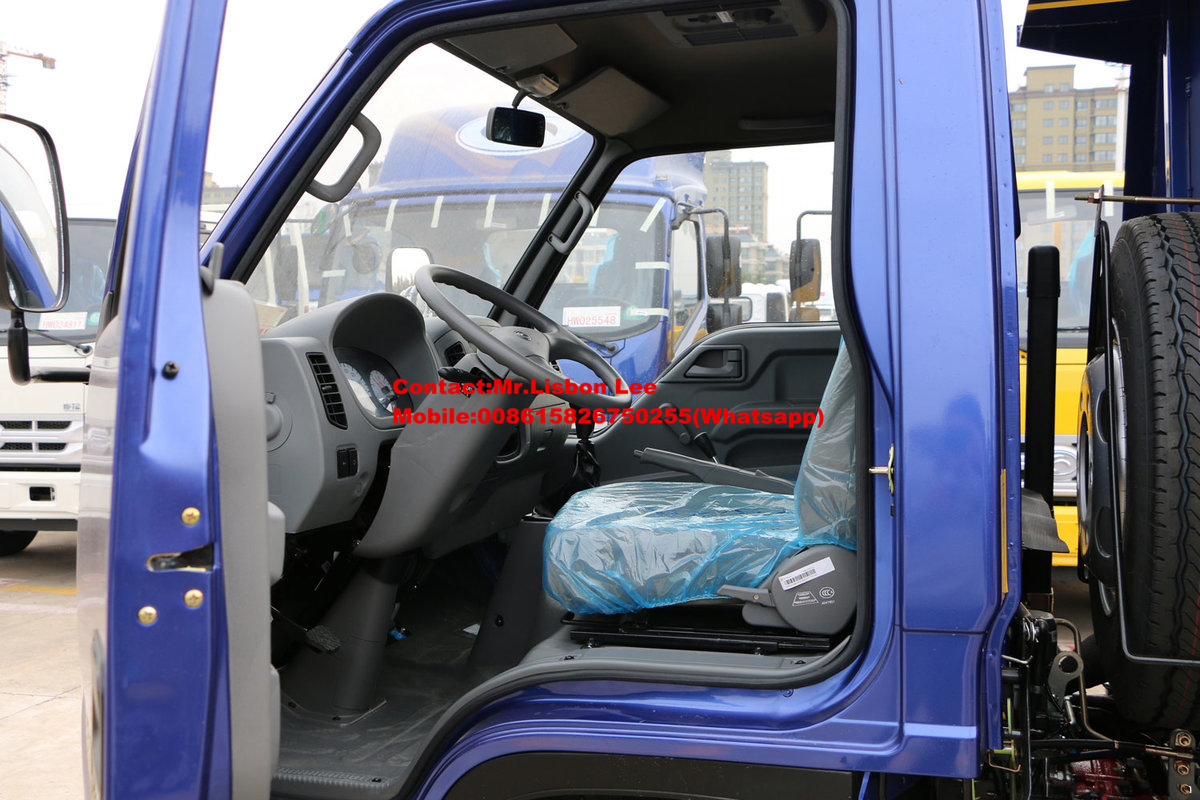

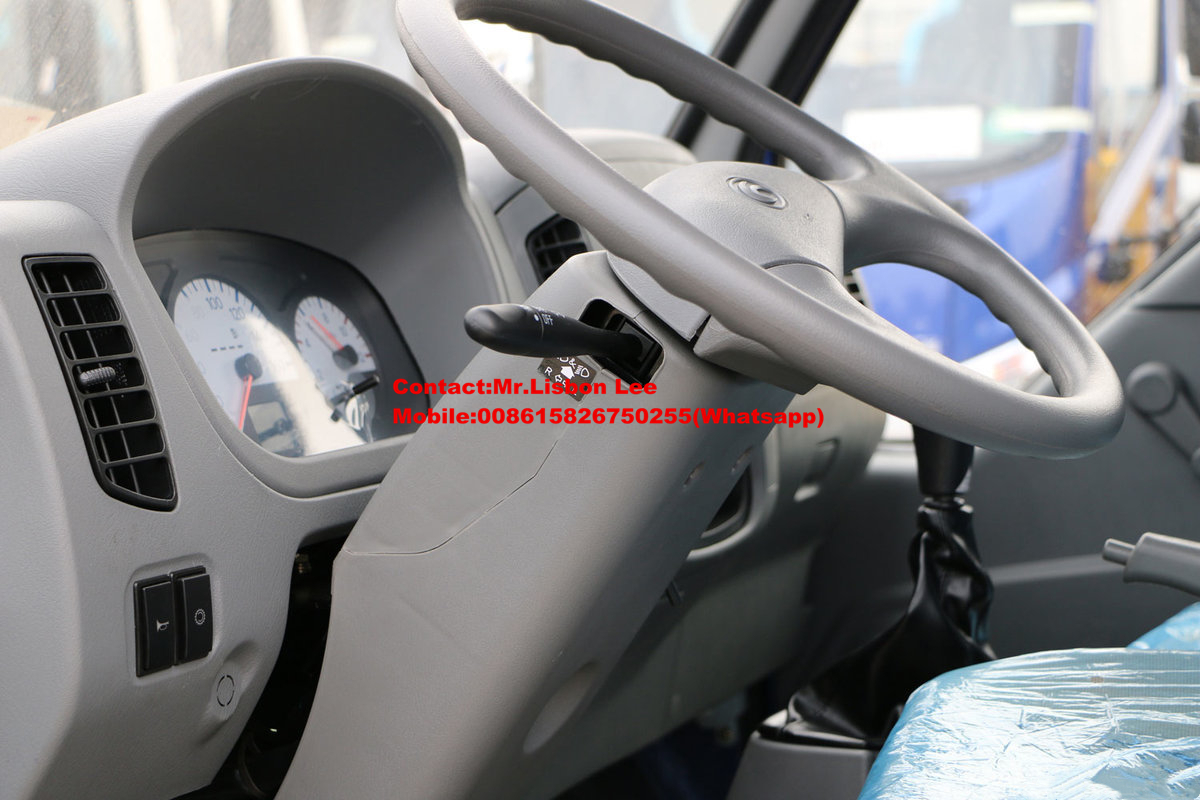

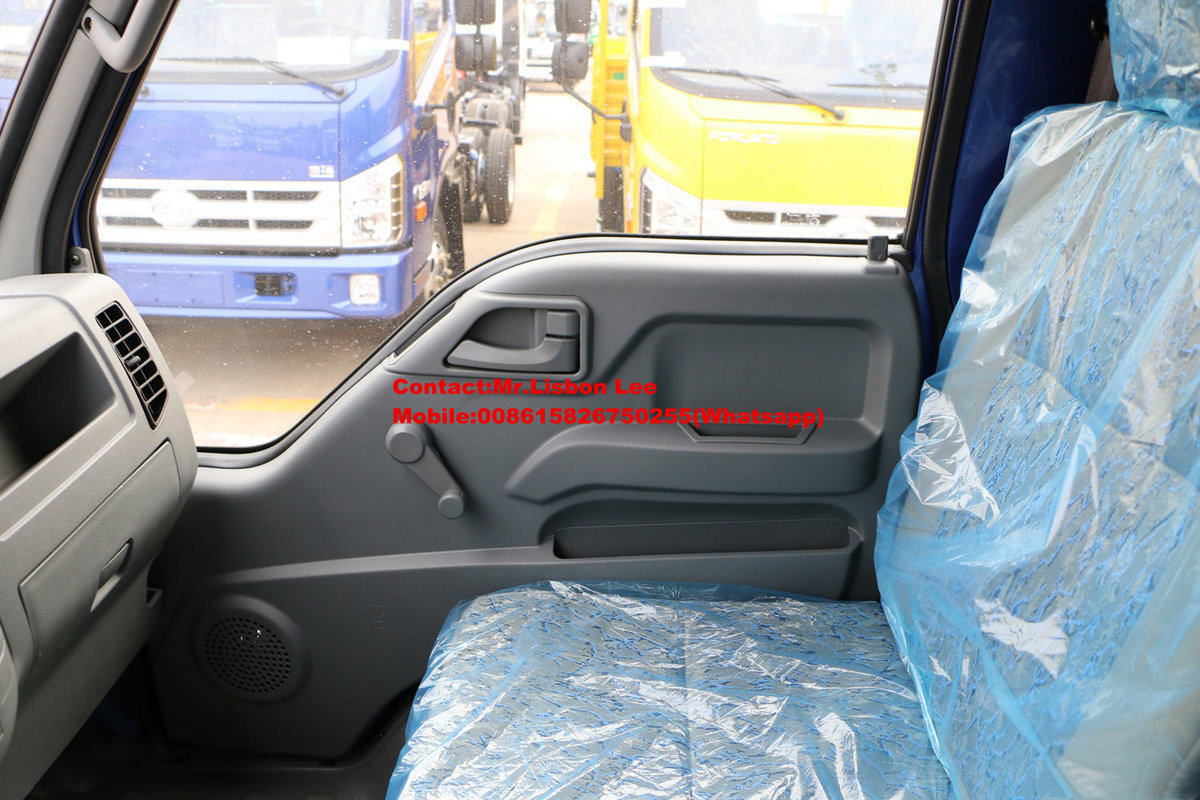

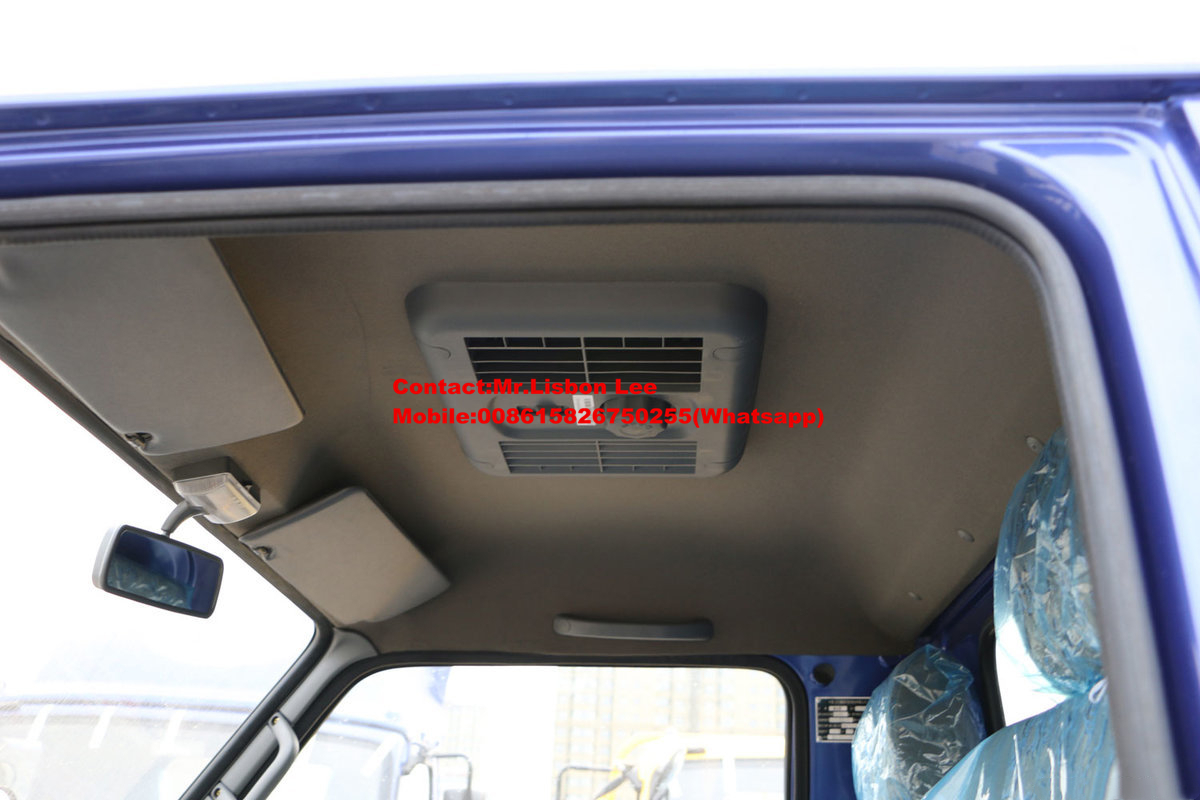

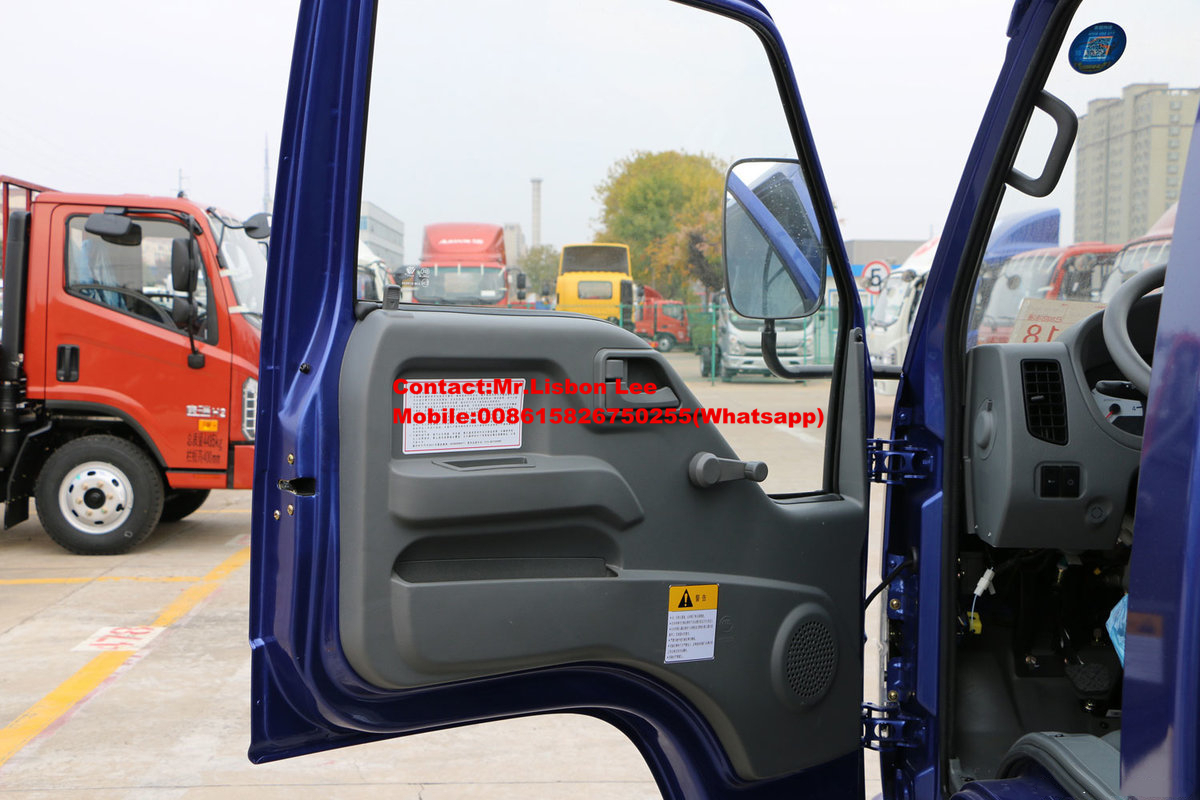

Cab

Single row,standard configuration,with fan heater,3 passengers allowable
