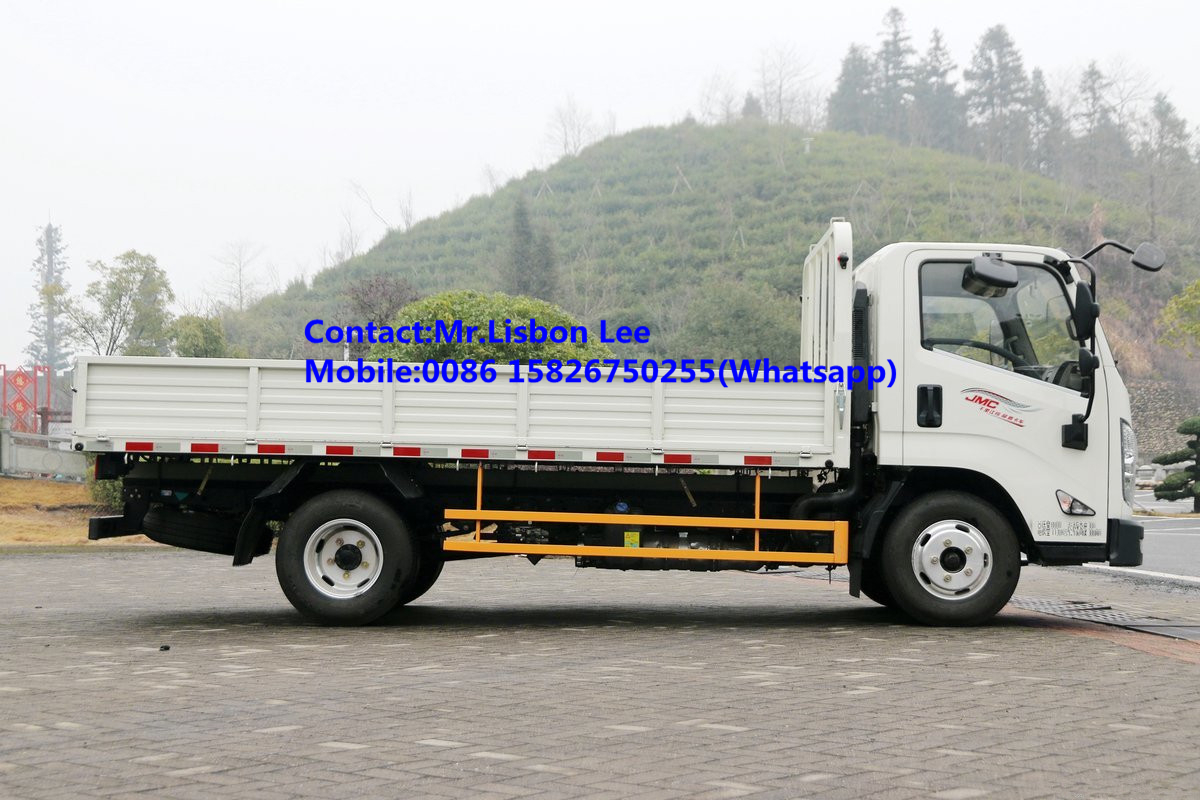

JMC cargo truck with single row cabin 4.4Ton

Product brand

JMC

Cabin / Passenger capacity

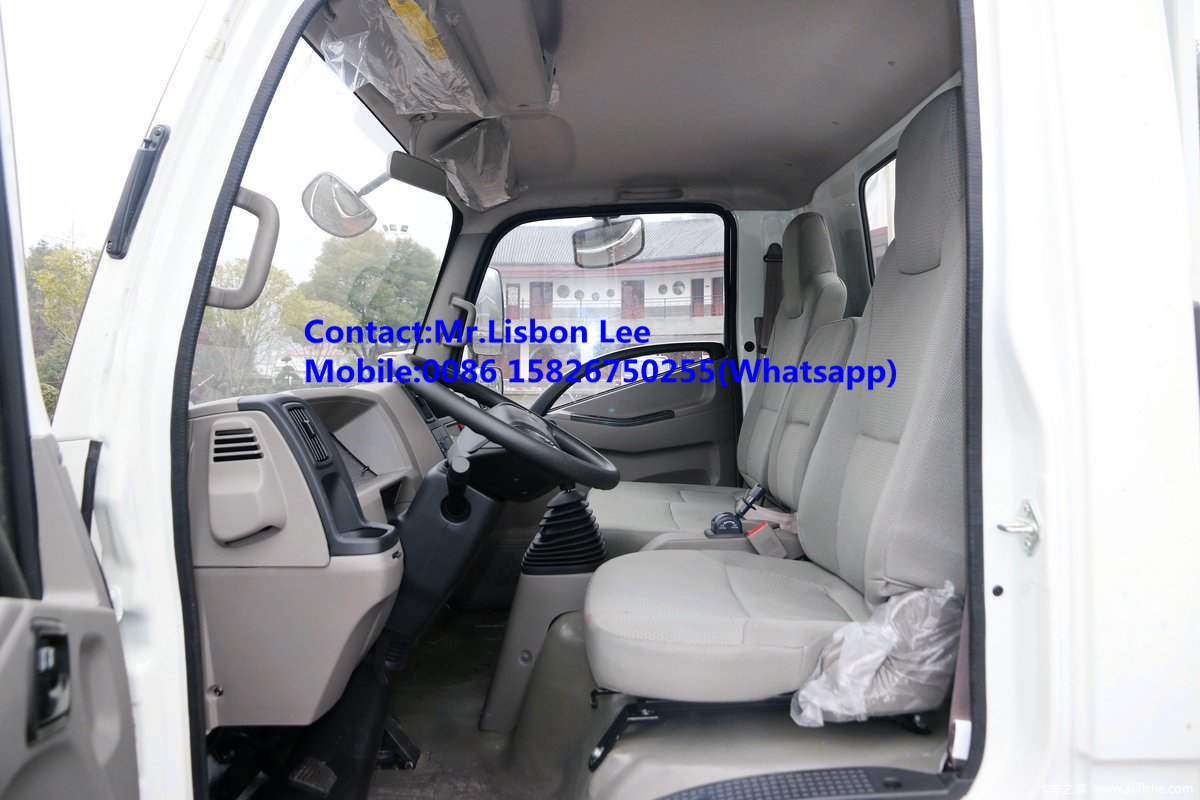

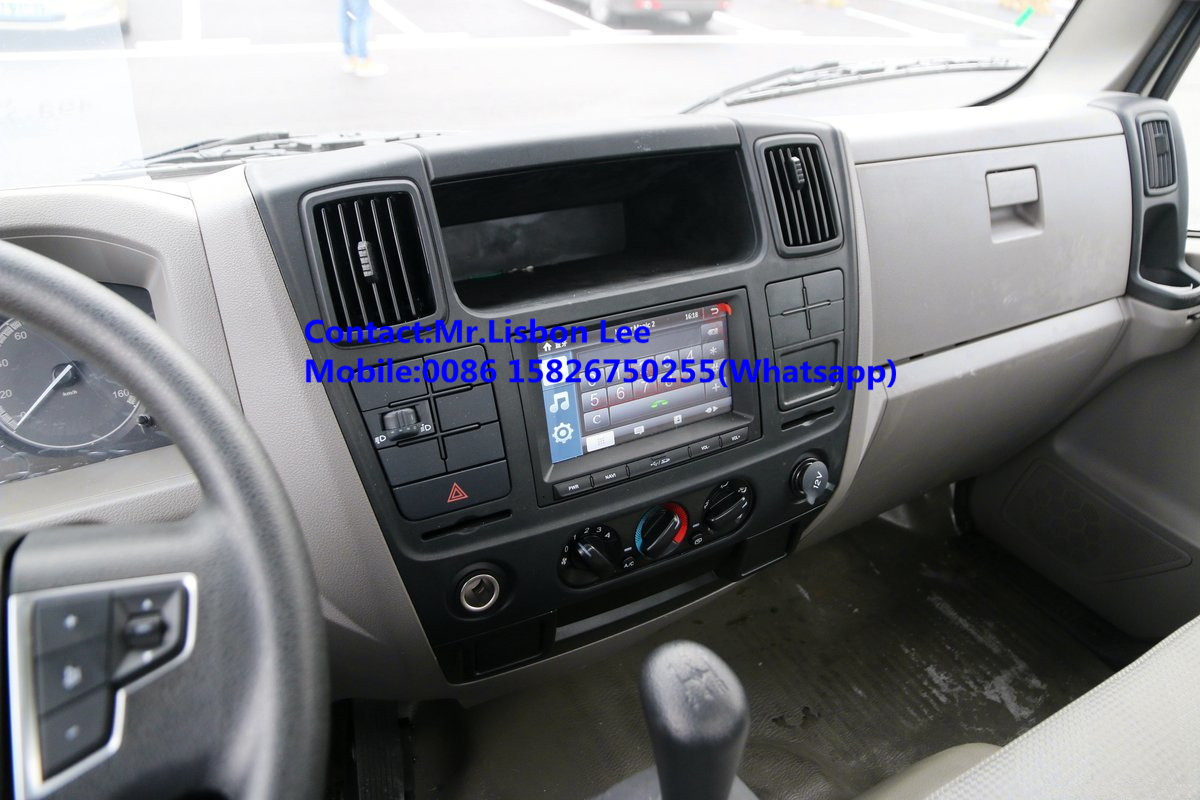

New model N720,single row,luxury configuration,power clutch,2 passengers + 1 driver,front lifting,radio+MP3+USB interface,A/C,remote key

Chassis

Model

JX1077XXYXGB1

Overall dimensions

5990x2050x2445mm (L*W*H)

Curb weight

2900kgs

Design load

4400kgs

Drive type

4x2

F/R suspension

1115/1515 mm

Wheelbase

3360mm

Number of axles

2

Axle-load

2595/4900kgs (one rear driving axle）

Approach/Departure

angle

18/17°

Number of leaf spring

3/8+3

F/R track

1585/1570mm

Tire

( No. & specification)

6+1pcs, 7.00R16

Max speed

110 km/h

Brake system

Hydraulic braking

Steering

Left hand drive with power steering

Transmission

JC528T8,mechanical,5 forward + 1 reverse gears

Engine

Engine model

JX493ZQ4A (Euro 3)

Max.power

68KW(92HP)

Description

In line,water cooled,four strokes,turbo charged,inter cooled,

direct injection,diesel engine (ISUZU technology)

Rated revolution

3600rpm

Max torque

200N.m@2000rpm

Exhaust

2771ml

Cargo box

Dimension

4200x1940x550mm (L*W*H)

Material

Carbon steel

Thickness of front

and rear plate

3 mm

Thickness of side

plate

2 mm

Thickness of bottom

plate

3 mm

Painting

Description

With sand blasting, painted with epoxy paint,finished color

Warranty

Year

1
