ISUZU 4x2 van truck with good price for sale

Product name

Van truck

Chassis model

QL1080A8KAY

Curb weight(Kg)

4320

Load capacity

8Tons

Overall dimension(mm)

7005×2350×3280

Box dimension(mm)

5000x2250x2050

Maximum velocity (Km/h)

110

Chassis dimensions

Wheel base(mm)

3815

F/R track(mm)

1680/1650

Engine

Model

4HK1-TC51

Emission level

Euro 5

Max.output power(kw/HP)

141/190

Max. torque(N•m)

510@1600rpm

Number of cylinders

4

Displacement(ml)

5193

Cylinder bore(mm)

115

Stroke (mm)

125

Description of engine

In-line,turbo-charged,four strokes,

water cooled,turbocharged,high pressure common rail,inter-cooled,

diesel engine

Clutch

Plate’s diameter

Ø350mm

Operating system

Hydraulic control with air booster,

pushing

Gear box

Description

Manual,6 forward ＆1 reverse gears

Brake system

Hydraulic brake system,parking spring brake acting on rear axles,with ABS

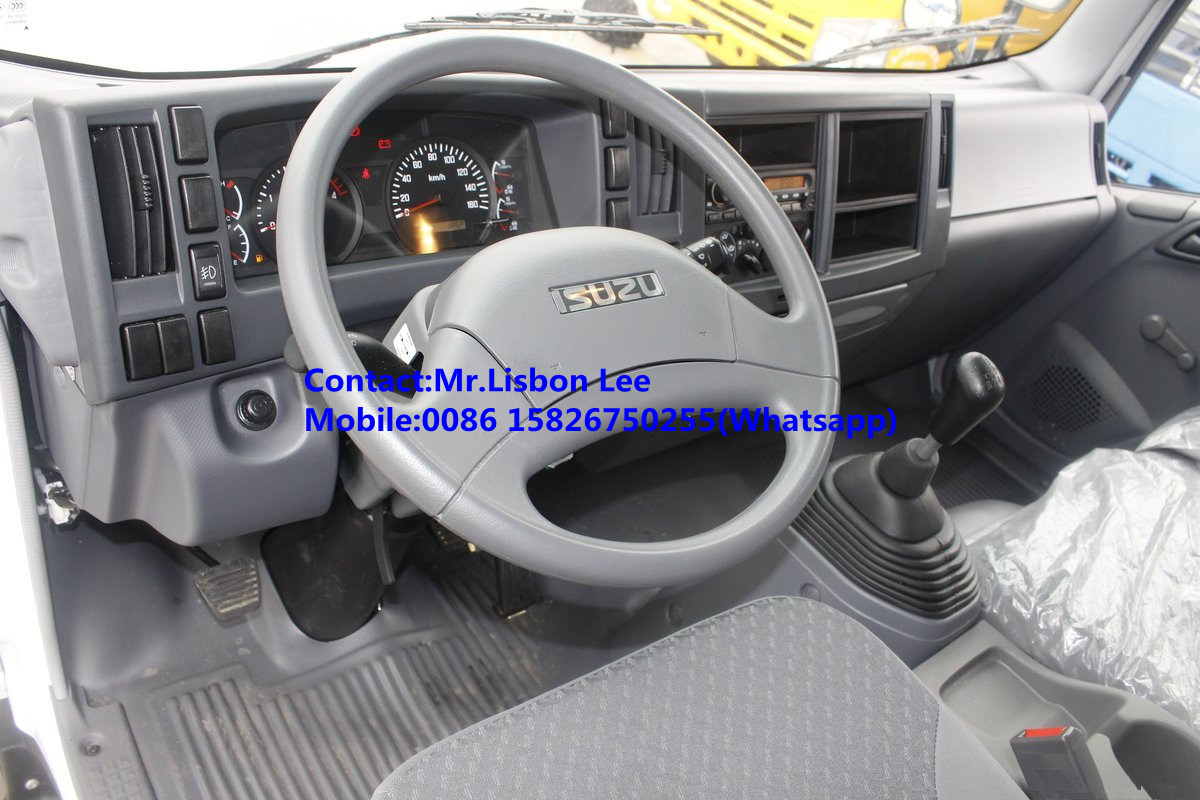

Cab

700P,single row,forward control type,all welded steel cab of tilt type,torsional cab tilting,adjustable mechanical suspension driver seat,A/C

Axle

Front

Elliot type,I beam section,load capacity 4Tons

Rear

Single reduction,load capacity 7Tons

Suspension

Front

8 leaf springs with shock absorber

Rear

10+6 leaf springs

Battery

Voltage(V)

24

Battery capacity(A.h)

100x2

Fuel tank

Type

Steel fuel tank,with lockable cap

Capacity

100L

Tyre

Type

235/75R17.5
