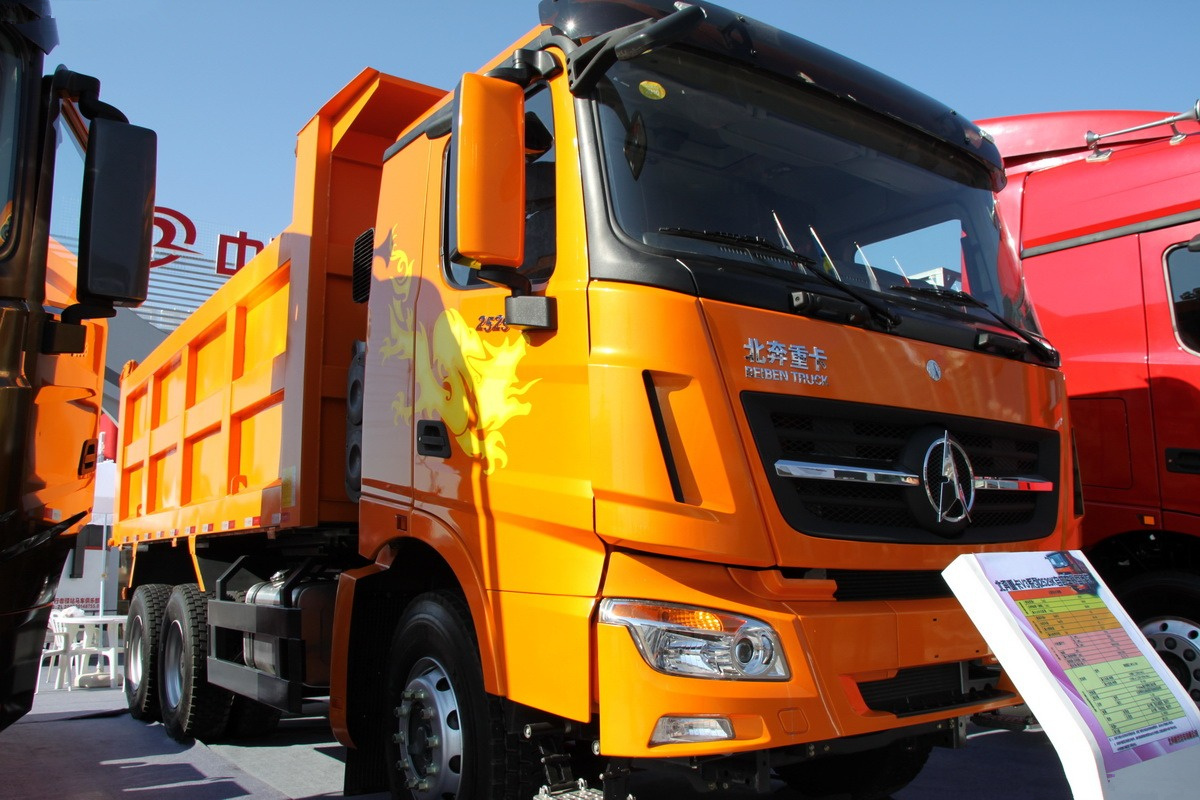

Beiben V3 6x4 dump truck

Complete vehicle

Model

ND1250B38J5

Drive type

6X4

Wheel base(mm)

3800+1450

Overall dimension(mm)

8470X2500X3484

Curb weight(Kg)

12300

Load capacity(Kg)

30000

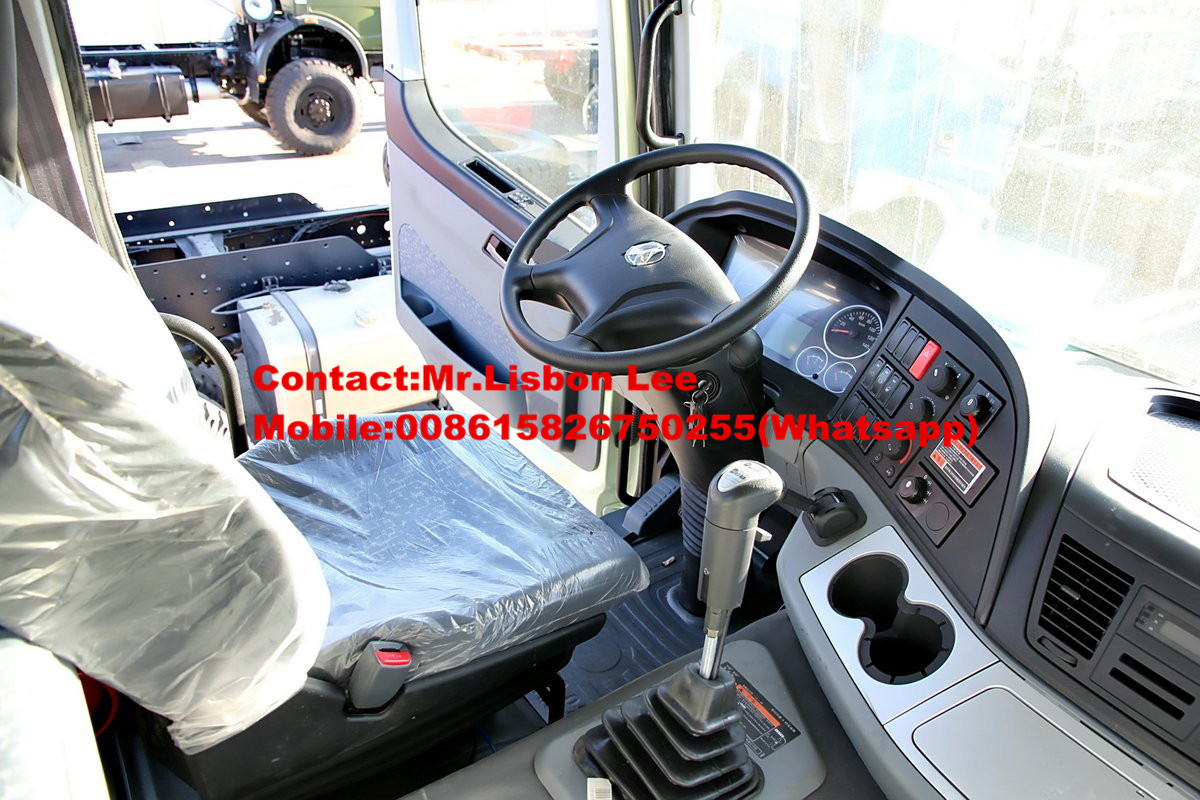

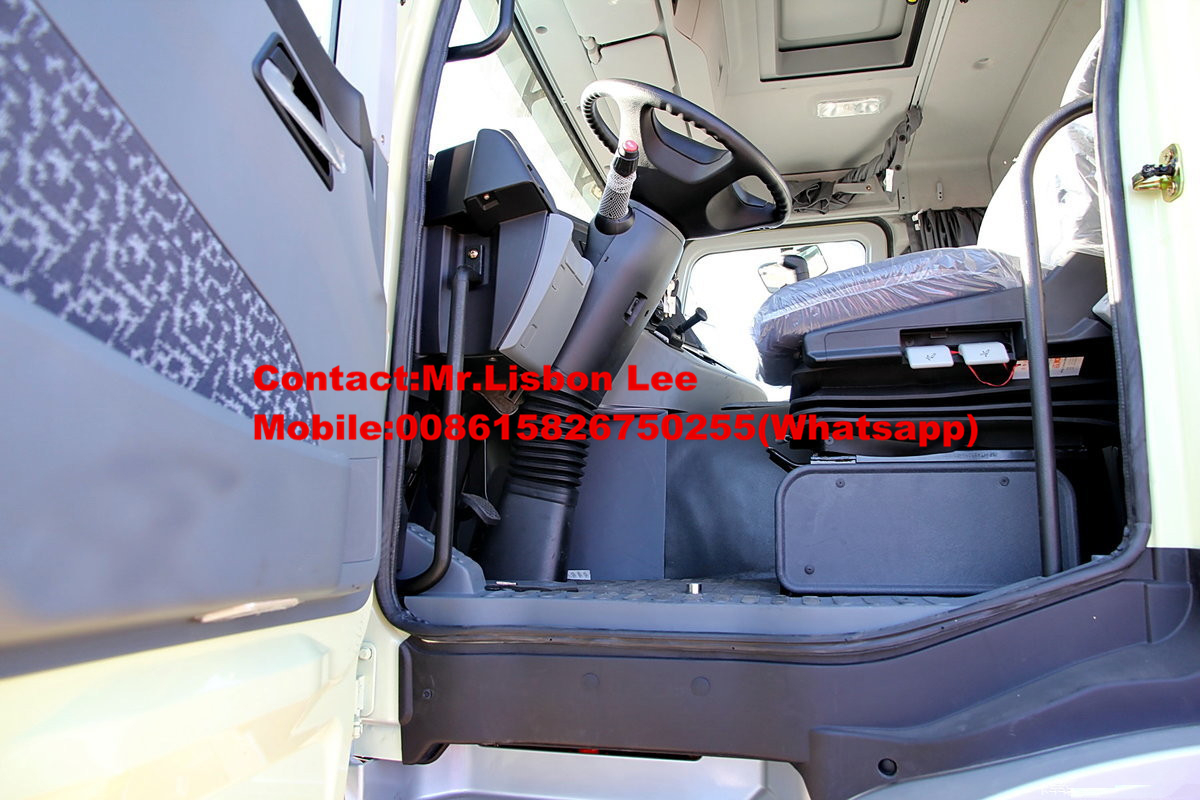

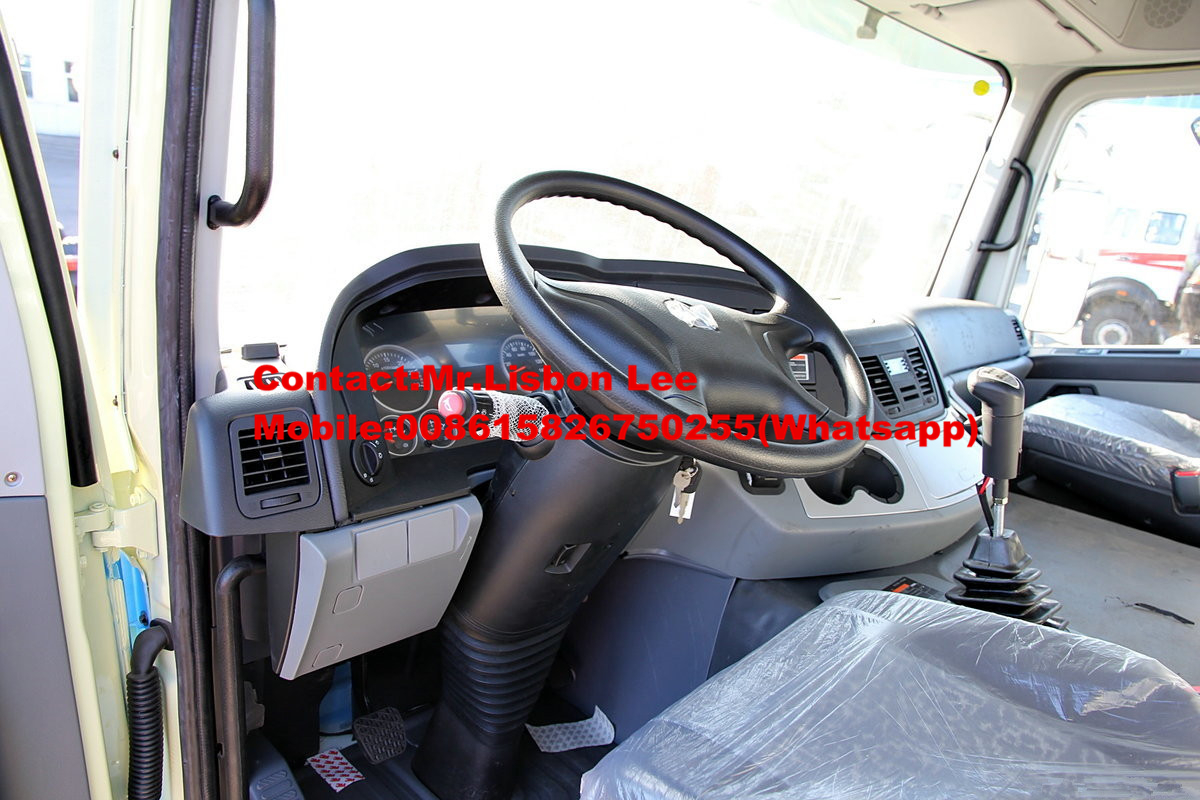

Cabin

Low roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C

Engine

Model

WP10.290

Max.output (kw/HP)

213/290

Max.torque (N•m)

1160@1200~1600rpm

Displacement (ml)

9726

Emission standard

Euro III

Description

In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,diesel engine

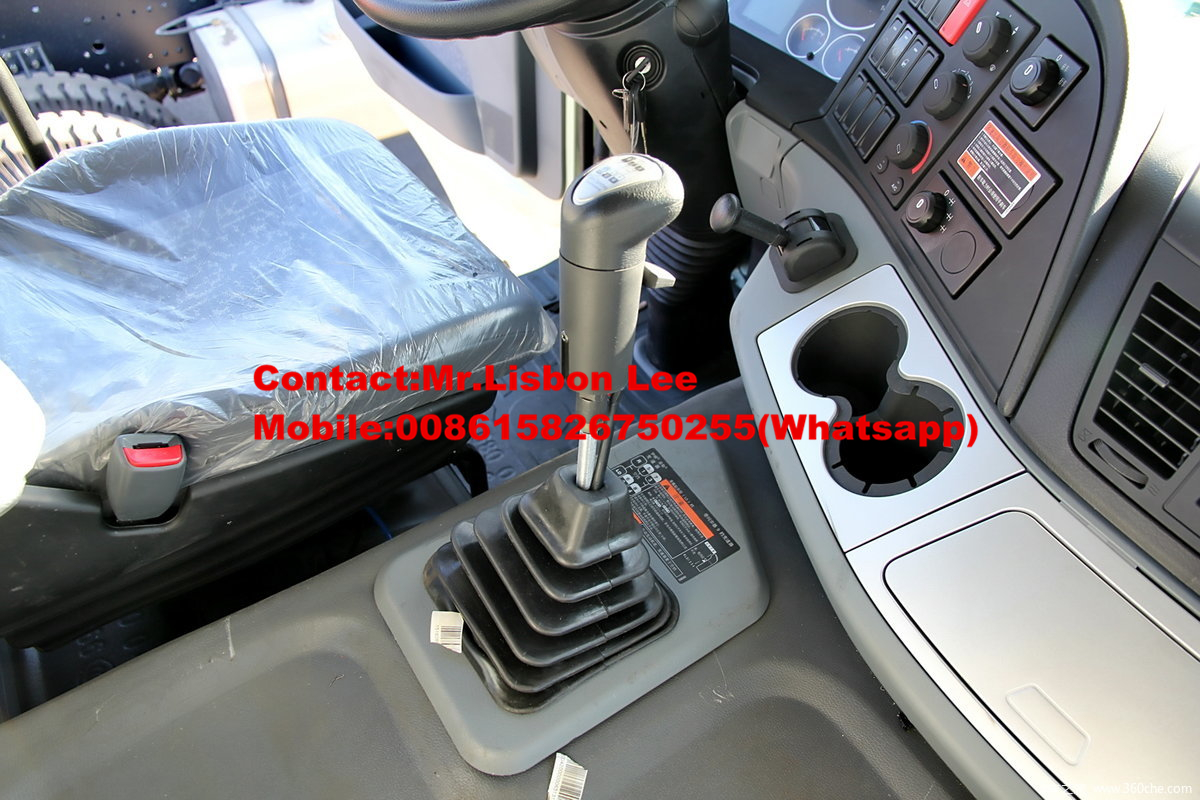

Gear box

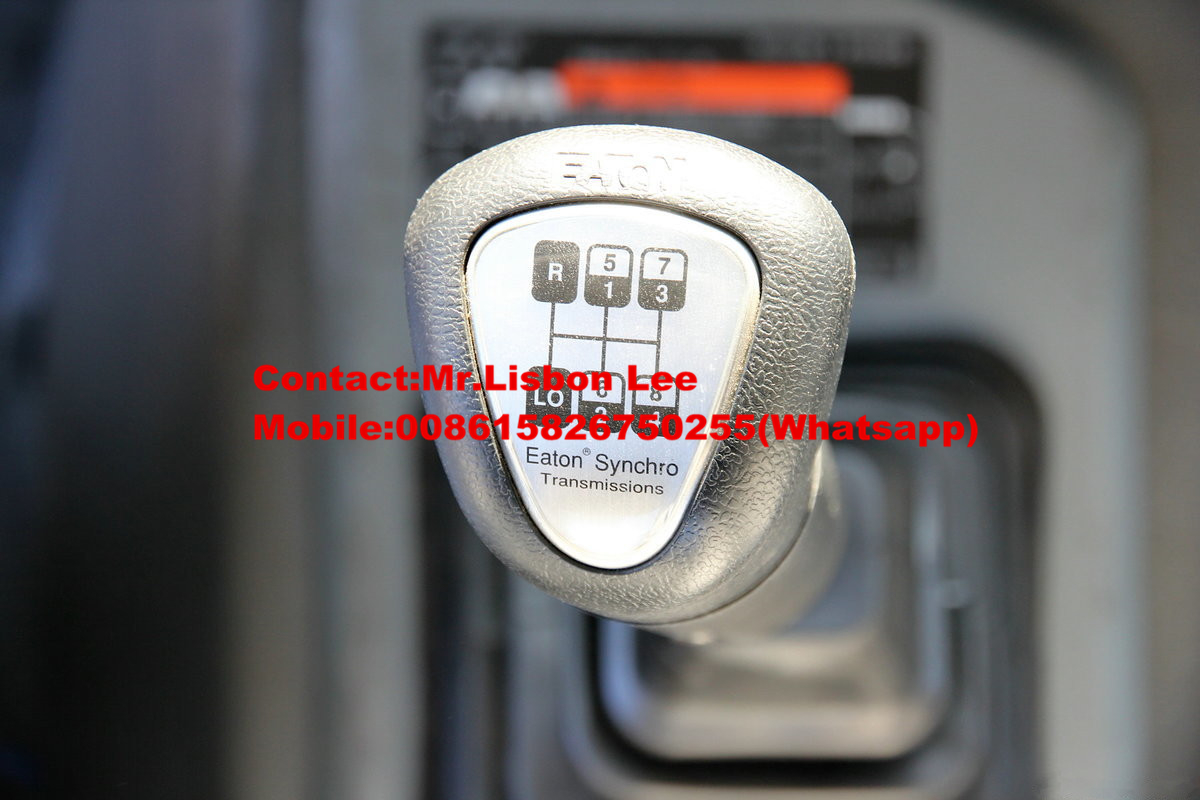

9T-160,manual,9 forward＆1 reverse gears

Driving axle

Twin reduction with big torque ratio 5.263,

load capacity 18000Kg

Front axle

Steering axle,load capacity 7000Kg

Frame

940/865/317x8+8mm

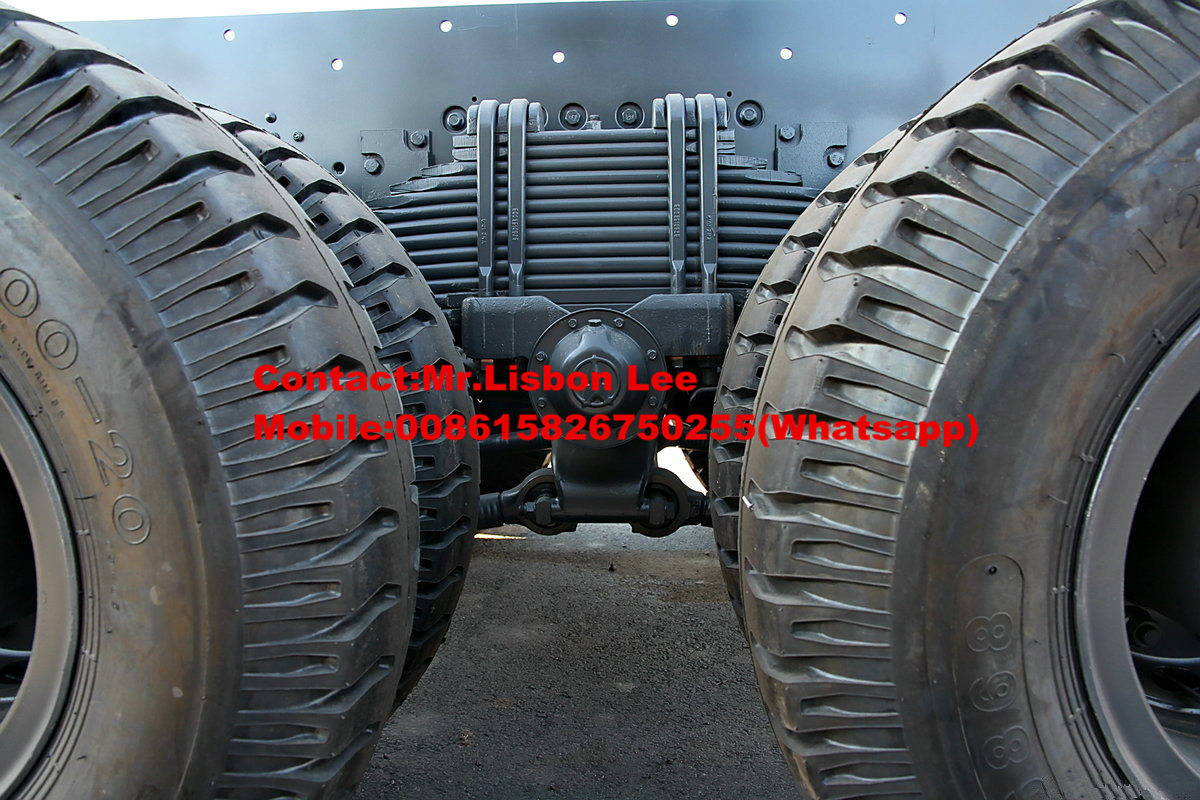

Quantity of leaf spring

10/13

Clutch

Diaphragm clutch,pull-type Ø430

Inner trimming

Standard configuration

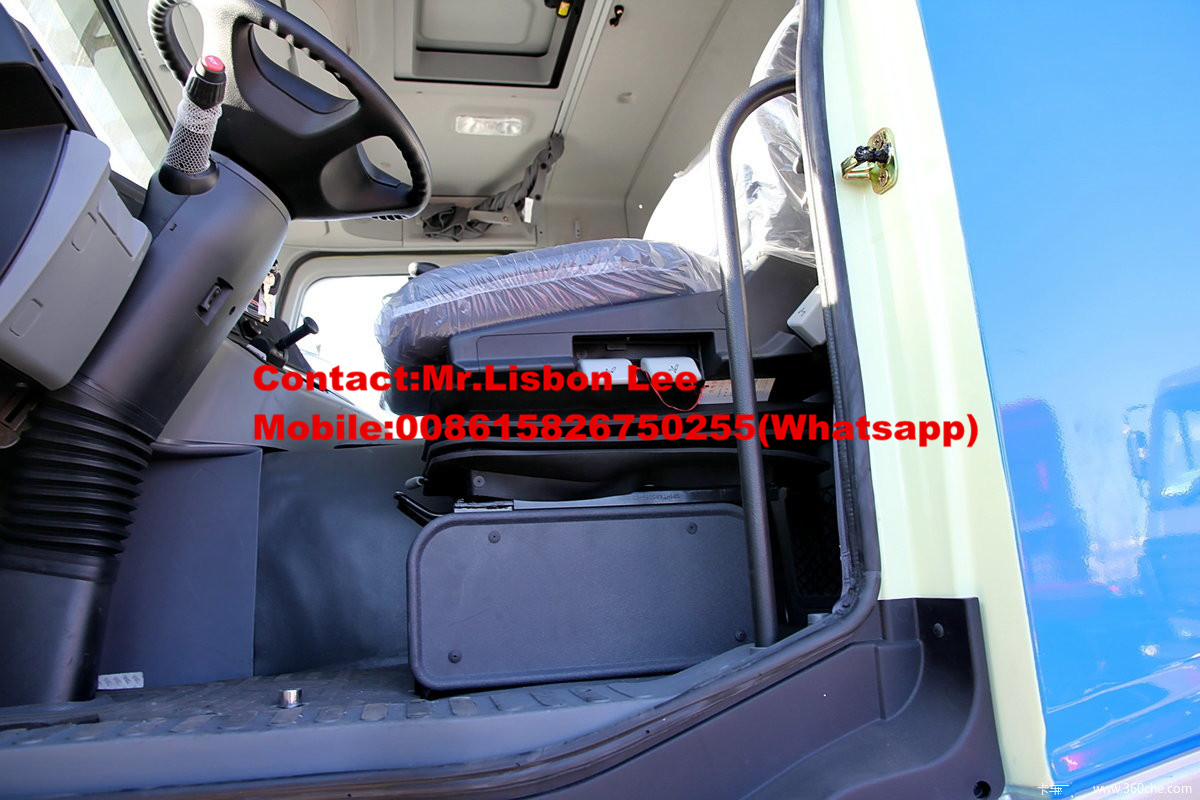

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

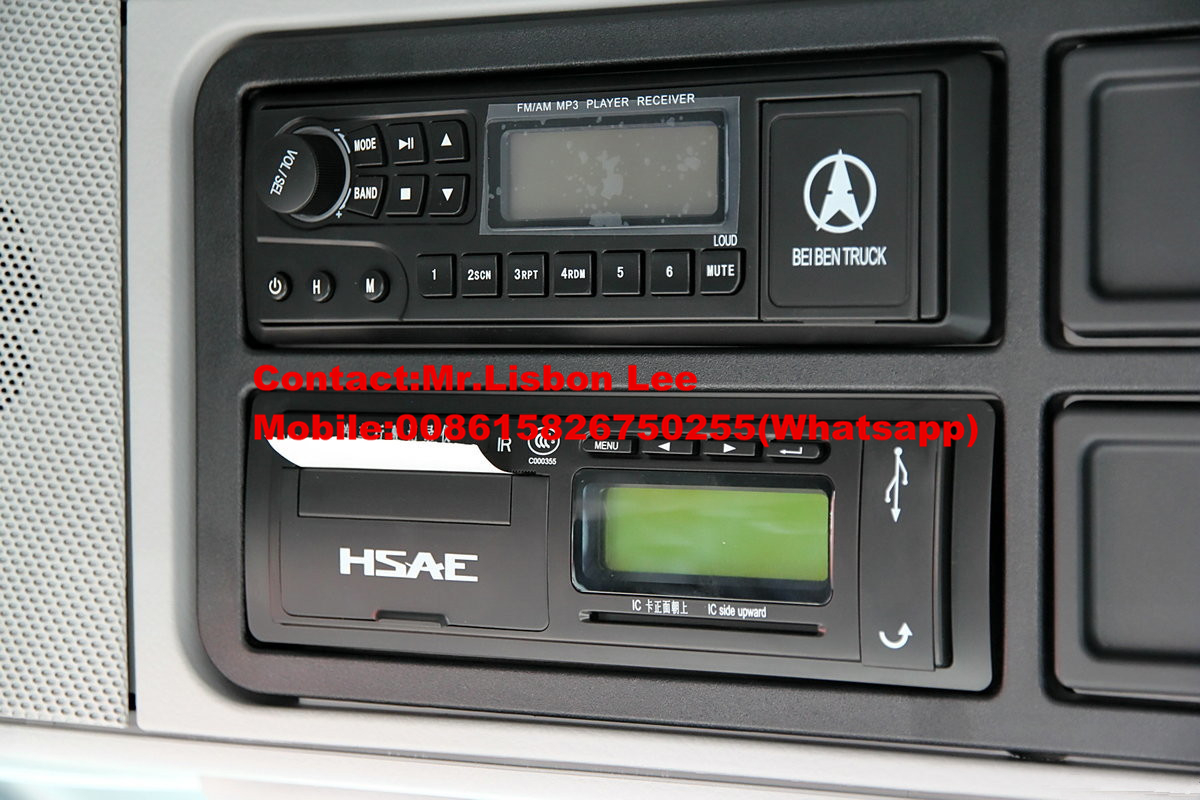

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air operating on rear wheels

ABS

Provided

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Electric window

Provided

Chassis

Fuel tank

300L,aluminum fuel tank

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification

12.00R20

Number of tyres

10+1

Max.vehicle speed(km/h)

80

Grade ability(%)

25

Box dimension(mm)

5600X2300X1150
