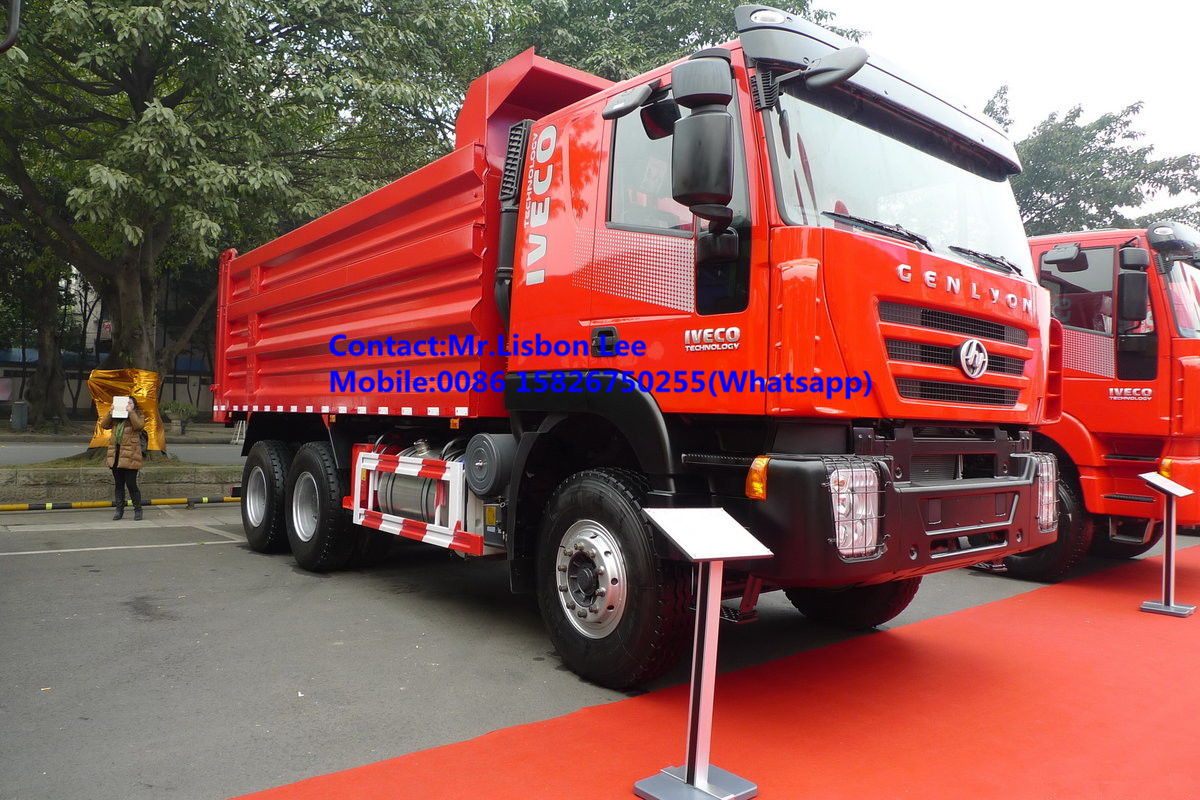

IVECO Genlyon 6X4 dump truck

Complete vehicle

Model

CQ3255HTG33-384

Drive type

6X4

Wheel base(mm)

3800+1400

Overall dimension(mm)

8420X2500X3460

Curb weight(Kg)

12030

Load capacity(Kg)

30000

Cabin

Low roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C

Engine

Model

F2CE3681G*P

Max.output (kw/HP)

257/350

Max.torque (N•m)

1500@1270RPM

Displacement (ml)

8709

Emission standard

Euro IV

Description

In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure,

common rail,diesel engine

Gear box

12JSD180T,manual,12 forward＆2 reverse gears

Driving axle

Twin reduction with big torque ratio 5.73,

load capacity 18000Kg

Front axle

Steering axle,load capacity 7000Kg

Frame

940/865/317x8+8mm

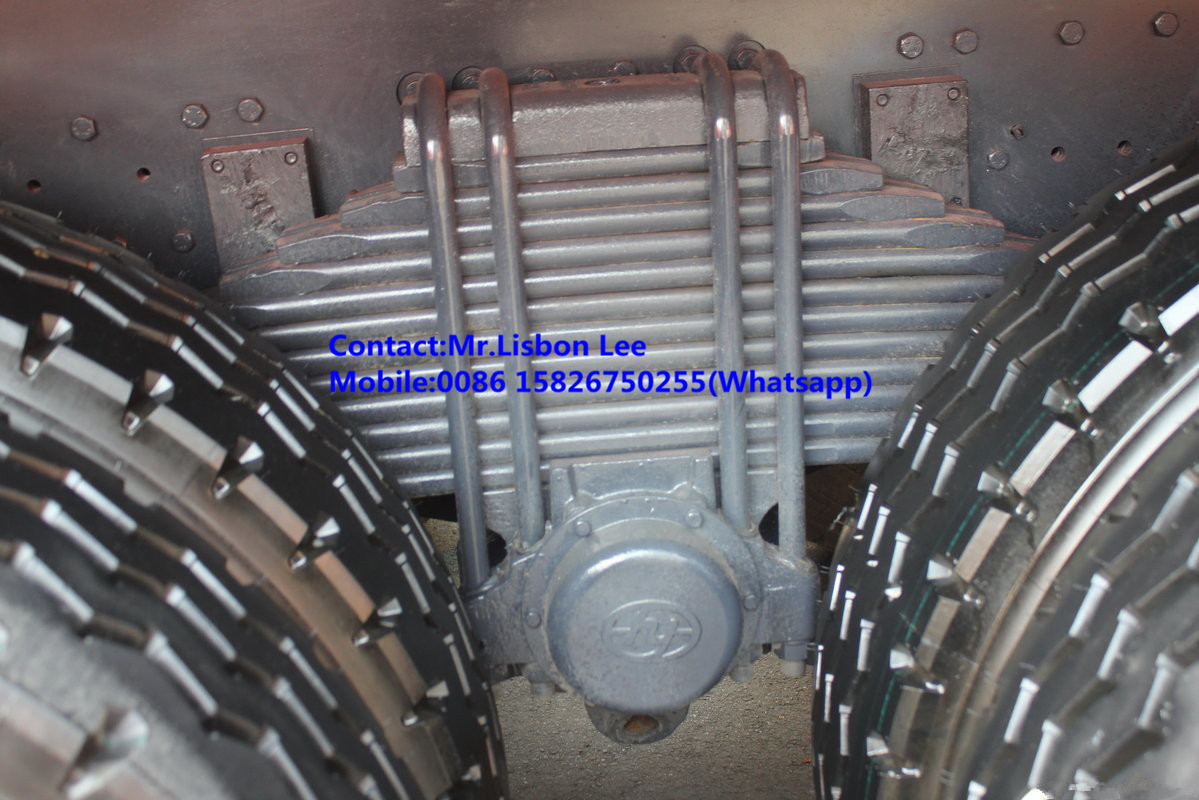

Quantity of leaf spring

10/12

Clutch

Diaphragm clutch,pull-type Ø430

Inner trimming

Standard configuration

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air operating on rear wheels

ABS

Provided

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Electric window

Provided

Chassis

Fuel tank

350L,aluminum fuel tank

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification

12.00R20

Number of tyres

10+1

Max.vehicle speed(km/h)

75

Grade ability(%)

25

Box dimension(mm)

5800X2300X1100+500(21m3)
