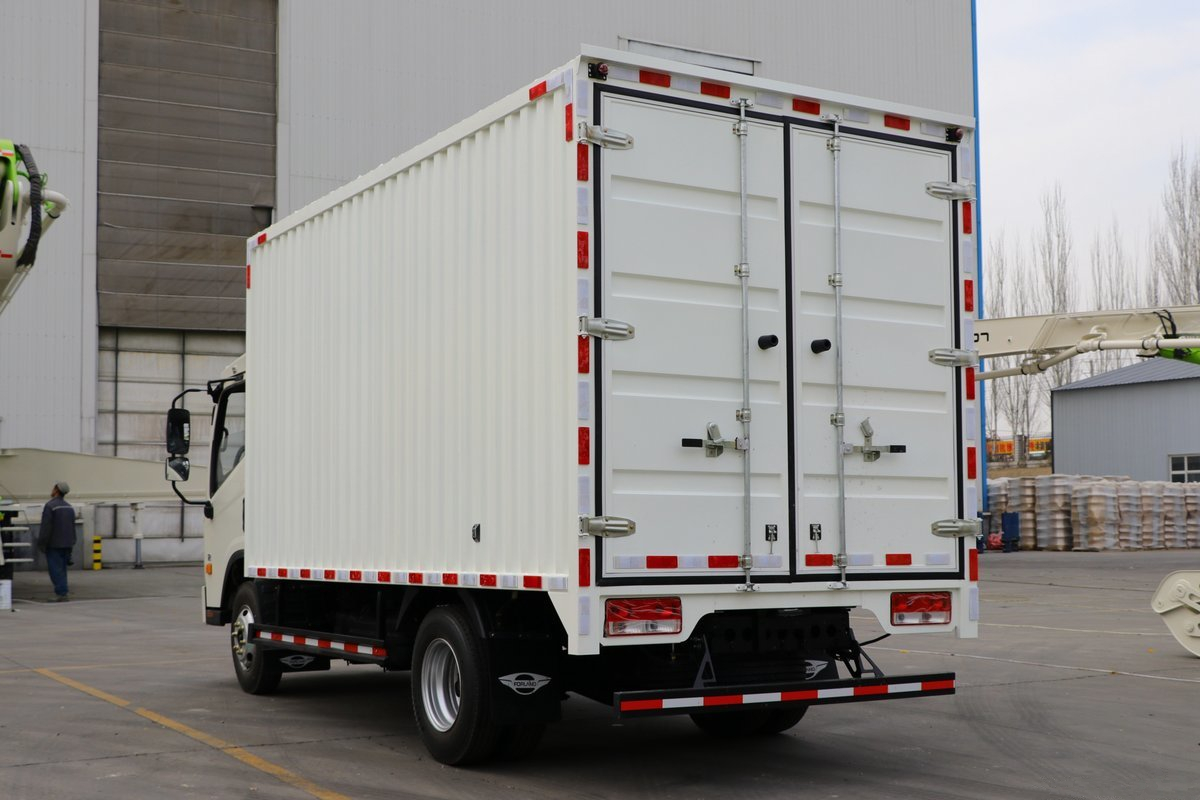

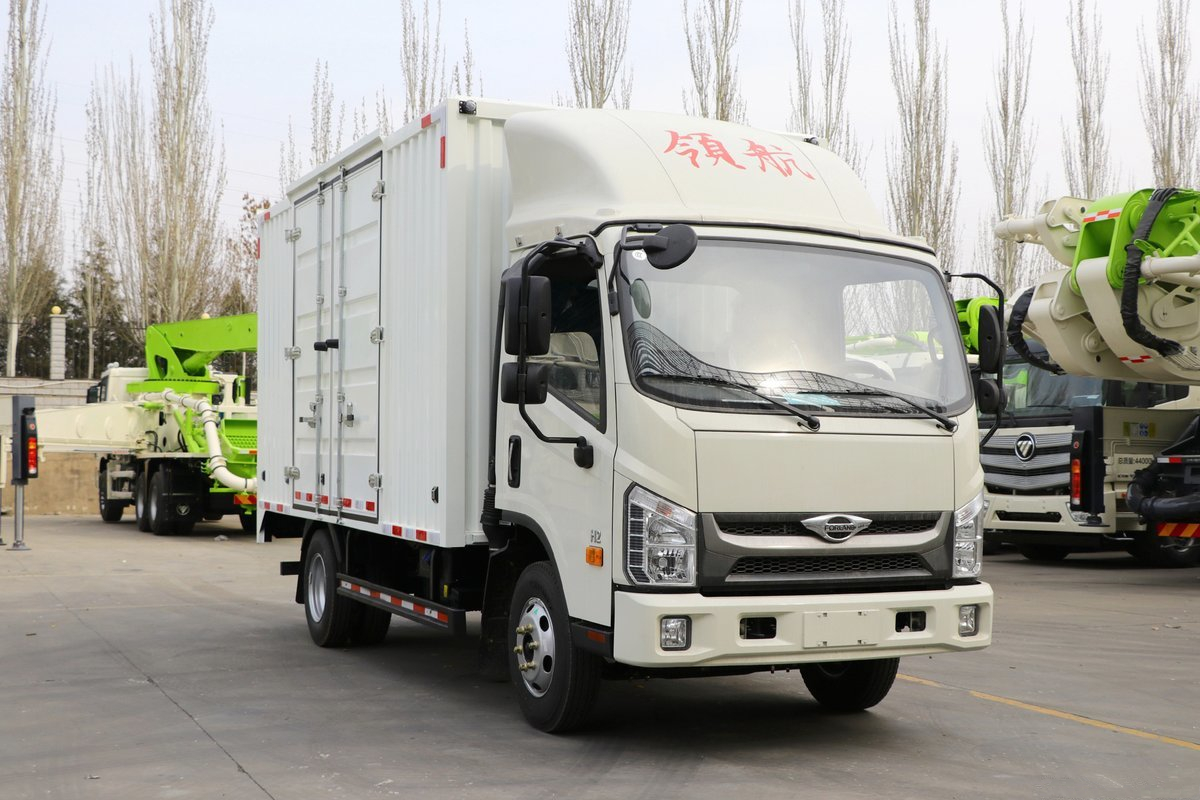

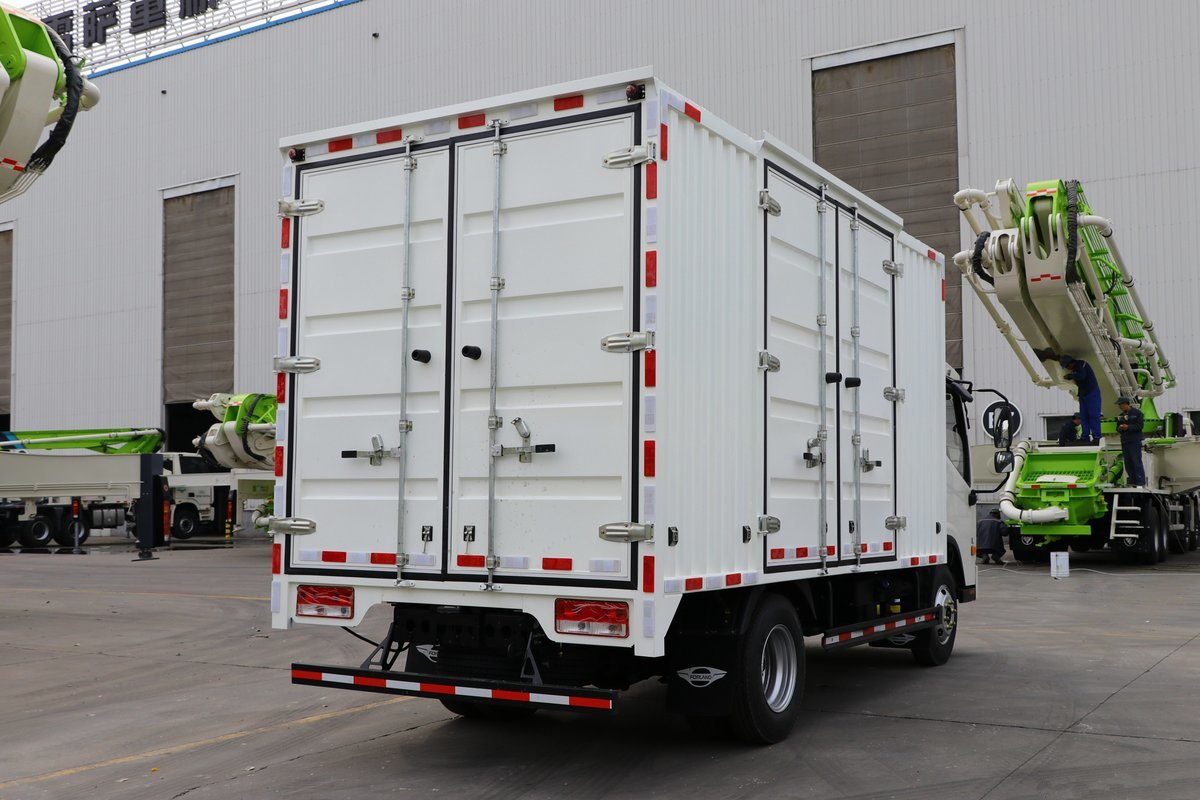

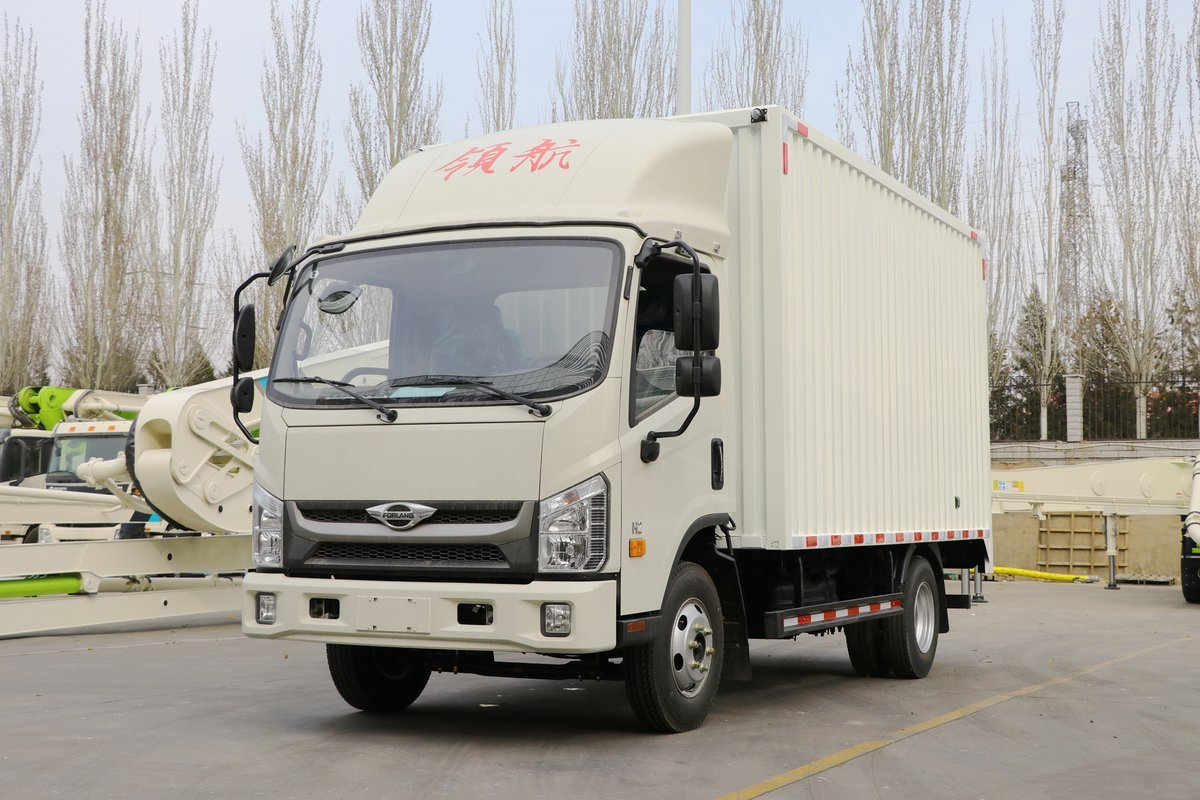

FOTON FORLAND H2 van box truck 3Tons with Euro 2 engine 115HP

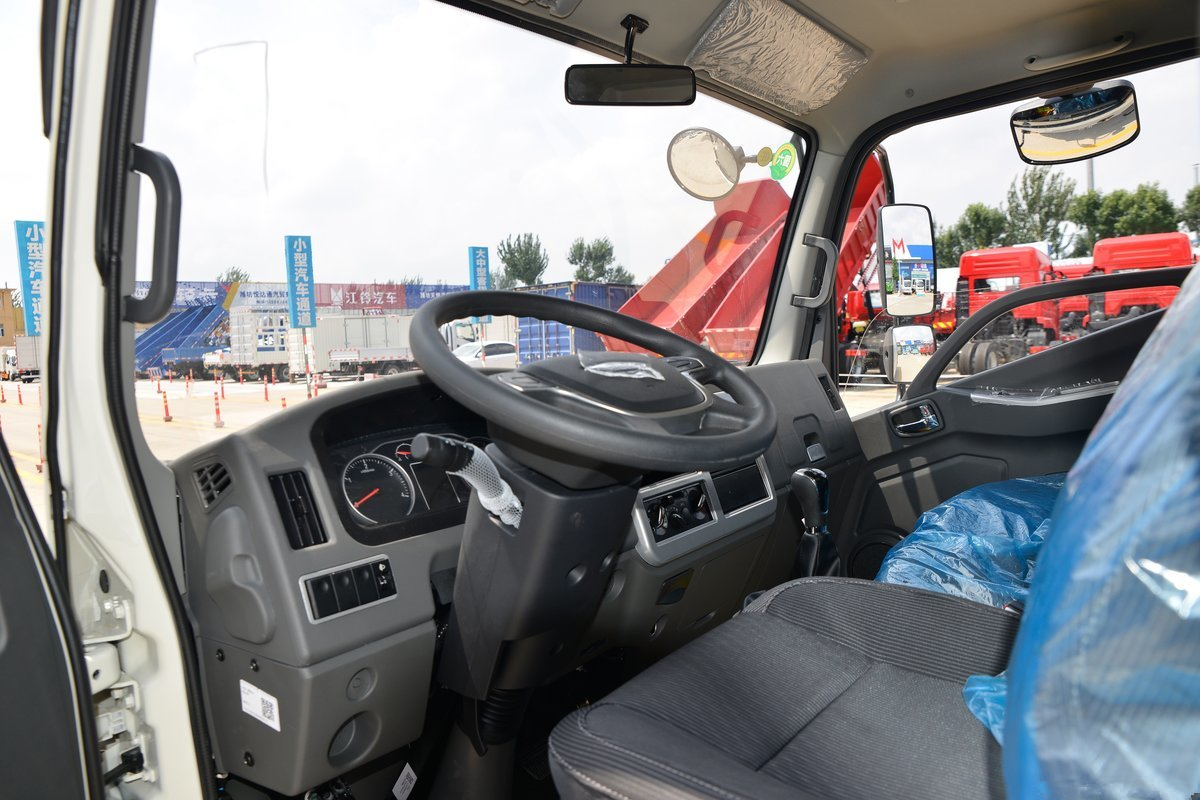

  • H1850 cabin,single row,luxury configuration
  • Engine model 4B2-115C50，115HP,Euro 2

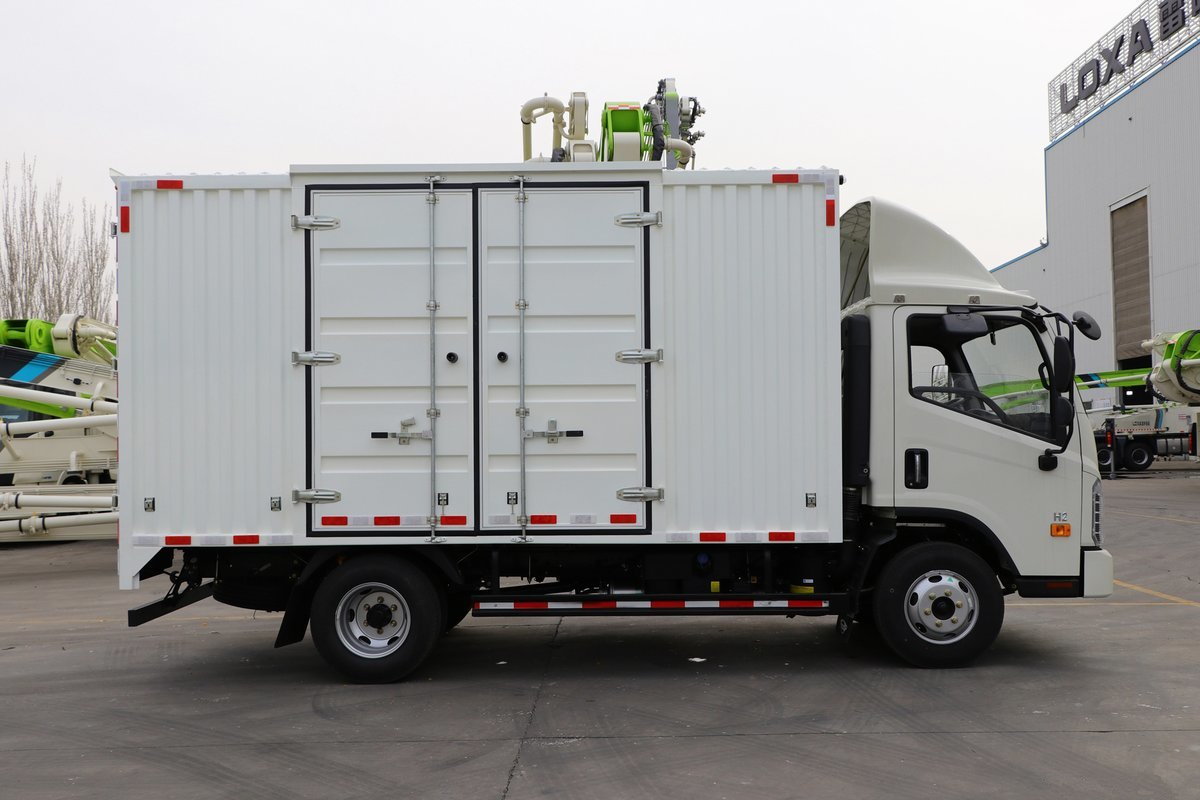

  • Box dimension 4180×2000×1900mm
  • Good price,good quality Mobile:0086 15826750255
  • Product description: FOTON FORLAND H2 van box truck 3Tons with Euro 2 engine 115HP
  • INQUIRY

Vehicle model

BJ1043V9J

Cabin model

Single row,flat head,H1850 cabin

Emission Standard

Euro-Ⅱ

Whole vehicle main dimensions

Overall dimensions (L×W×H(mm)

5995×2120×2940

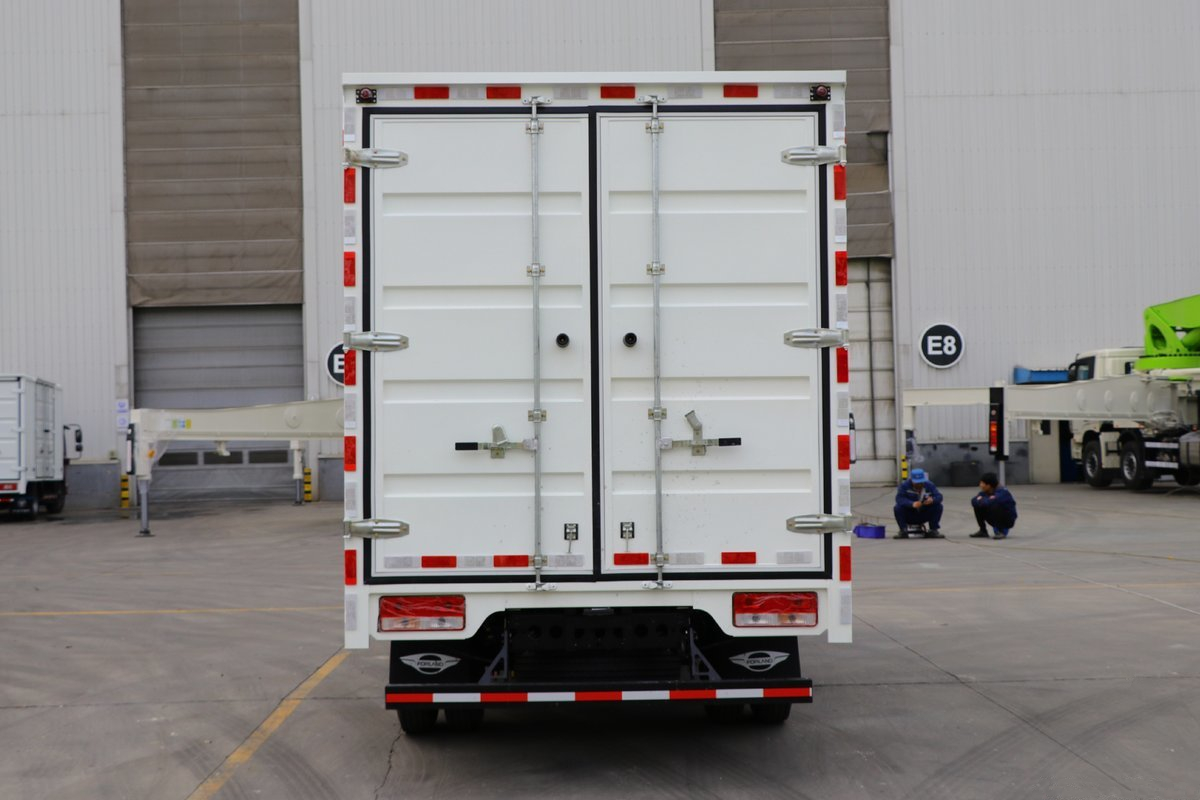

Inner dimensions of the van body(L×W×H)(mm)

4180×2000×1900

Driving type

4×2

Wheel base(mm)

3360

Wheel track  (front/rear)(mm)

1545/1590

Weight data

Curb weight(kg)

2550

Load capacity(kg)

3000

Seating capacity

2

Whole vehicle main performance

Max. speed(no load)(km/h)

95

Max. gradeability(°)

25%

Engine

Model

4B2-115C50

Type

vertical/in-line/four stroke/four cylinder/water cooling/supercharger with intercooler/common rail/DOC+SCR

Displacement(L)

2.545

Rated Power

85kw/115HP

Gearbox

Model

5TS32,manual,5 forward &1 reverse gears

Front axle

Load capacity

2T

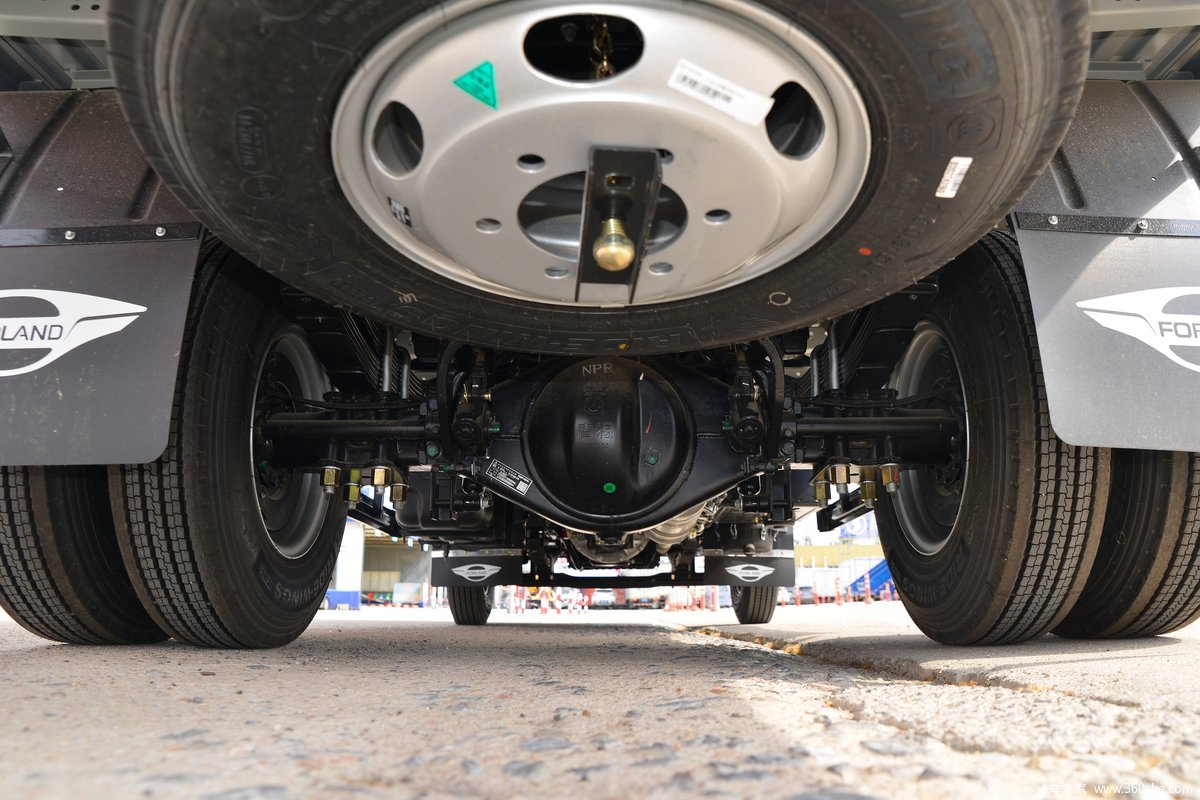

Rear axle

Main reduction ratio

NPR(5T)/4.875

Steering gear

Left hand drive,power steering

Tire type/quantity

7.00R16/6+1

Brake system

Service brake

Pneumatic brake

Parking brake

Central drum type braking

Rate Voltage(V)

24

Capacity of fuel tank(L)

80

Standard configurations

Electronically controlled flameout,

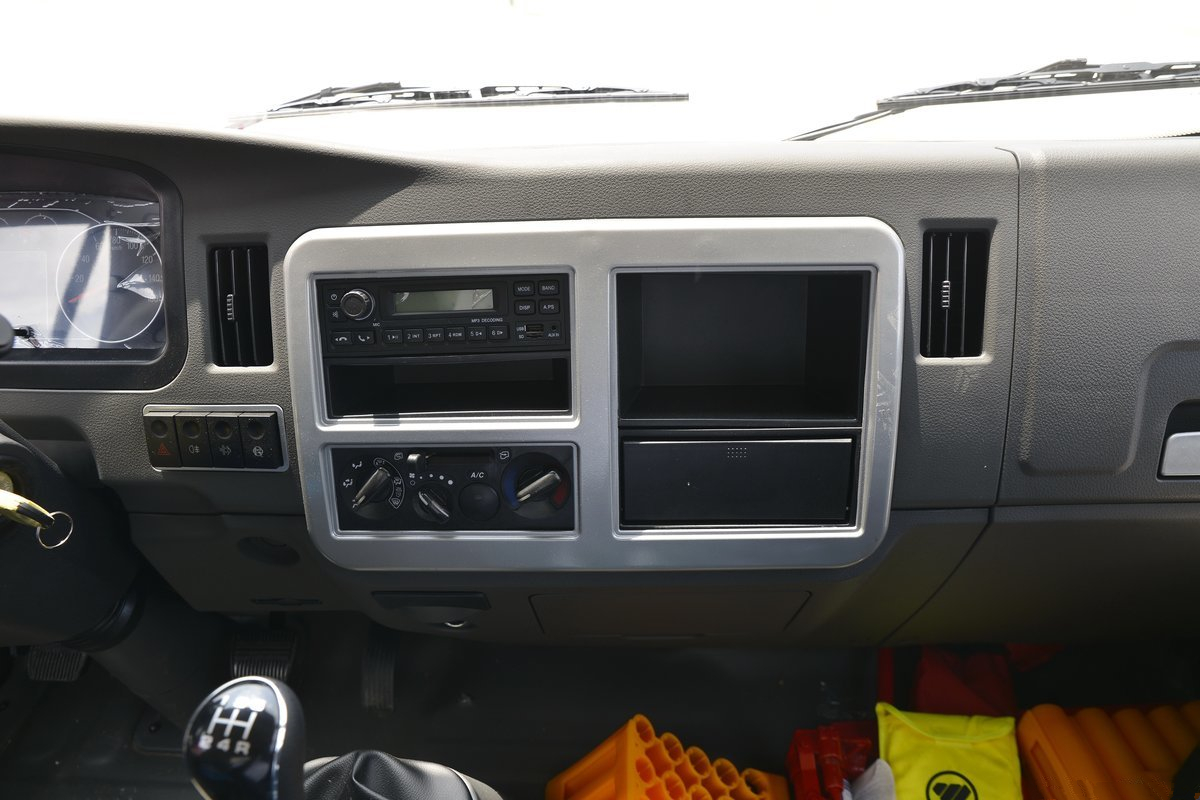

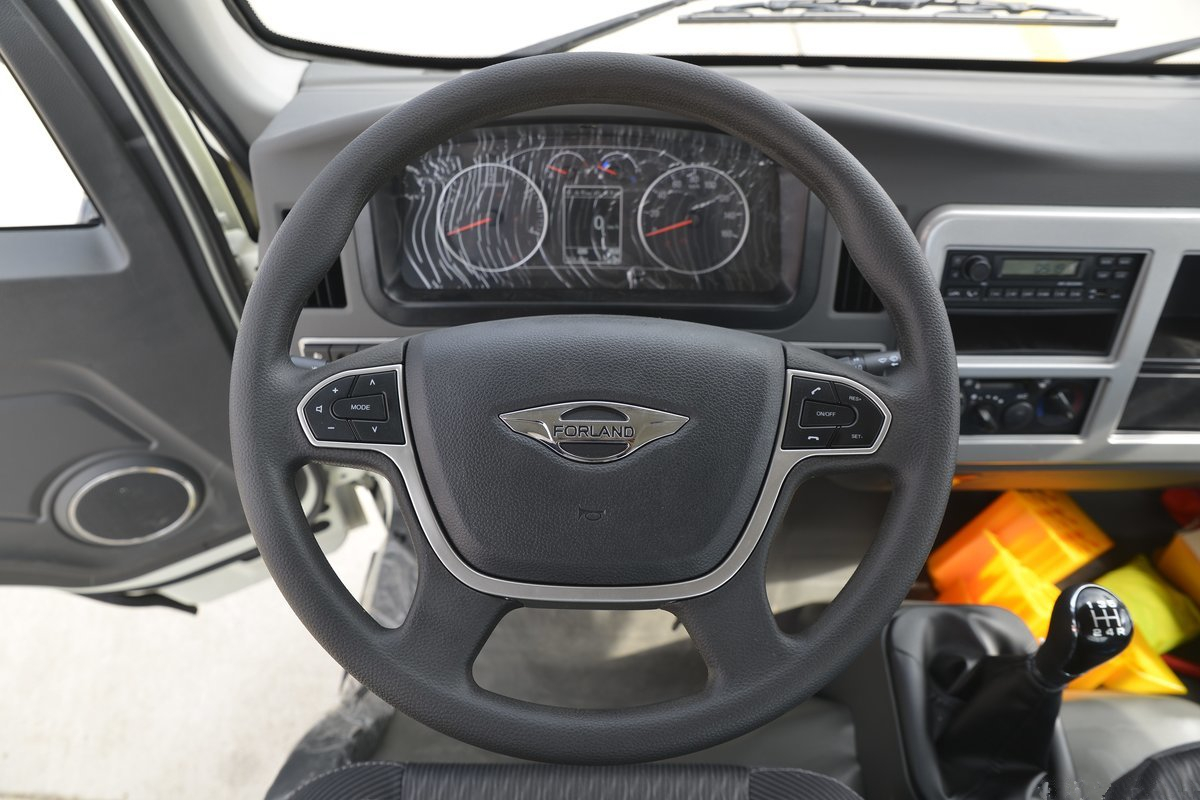

adjustable steering wheel,auxiliary brake,radio,safety belt,ABS,A/C
