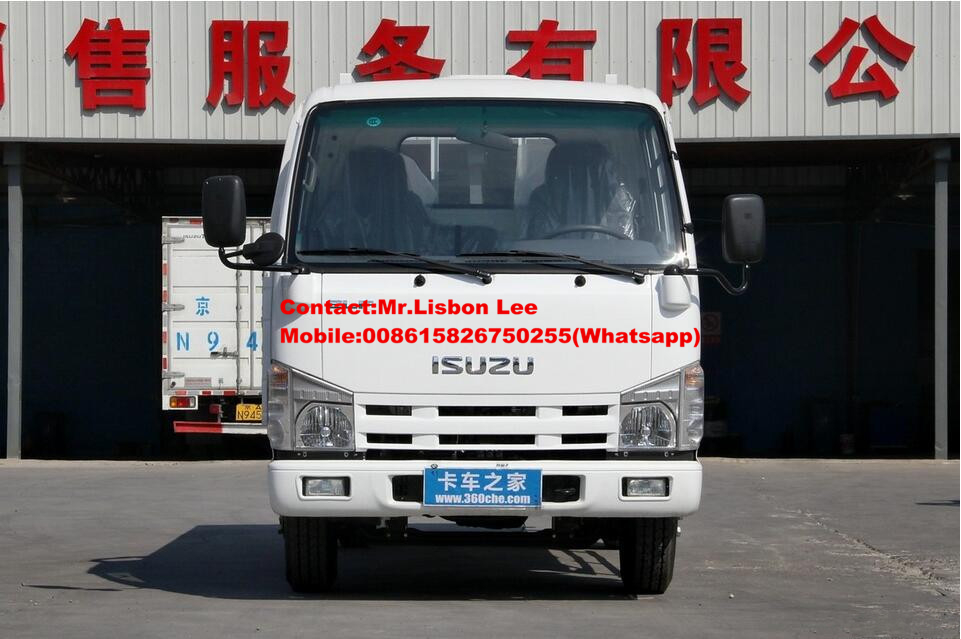

ISUZU cargo truck 4Ton

Chassis model

QL1040A6EAY

Engine

Model

4KH1CN5LS

Description

In-line/4 cylinders/water cooled/turbo charged/inter cooled/diesel engine

Rated power of engine (kw/HP)

72/98

Maximum torque (N.m@rpm)

220@1700

Displacement (ml)

2771

Gearbox

Description

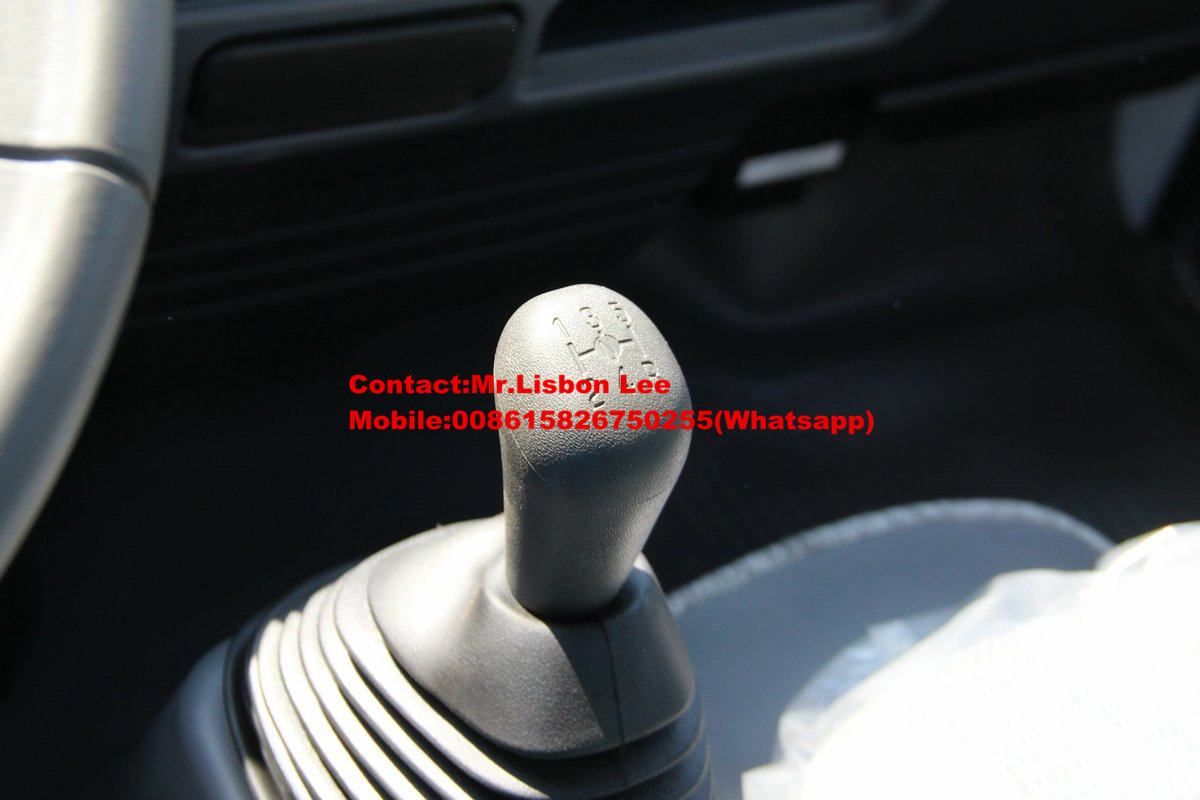

Manual,5 forward gears,1 reverse gear

Front / Rear axle

Front axle load (Kg)

2000

Rear axle load(Kg)

4000

Drive type

4X2

Type of tire

7.00R16

Quantity of tires

6+1

Quantity of leaf spring

6/5

Brake system

Service brake type

Drum type, hydraulic pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

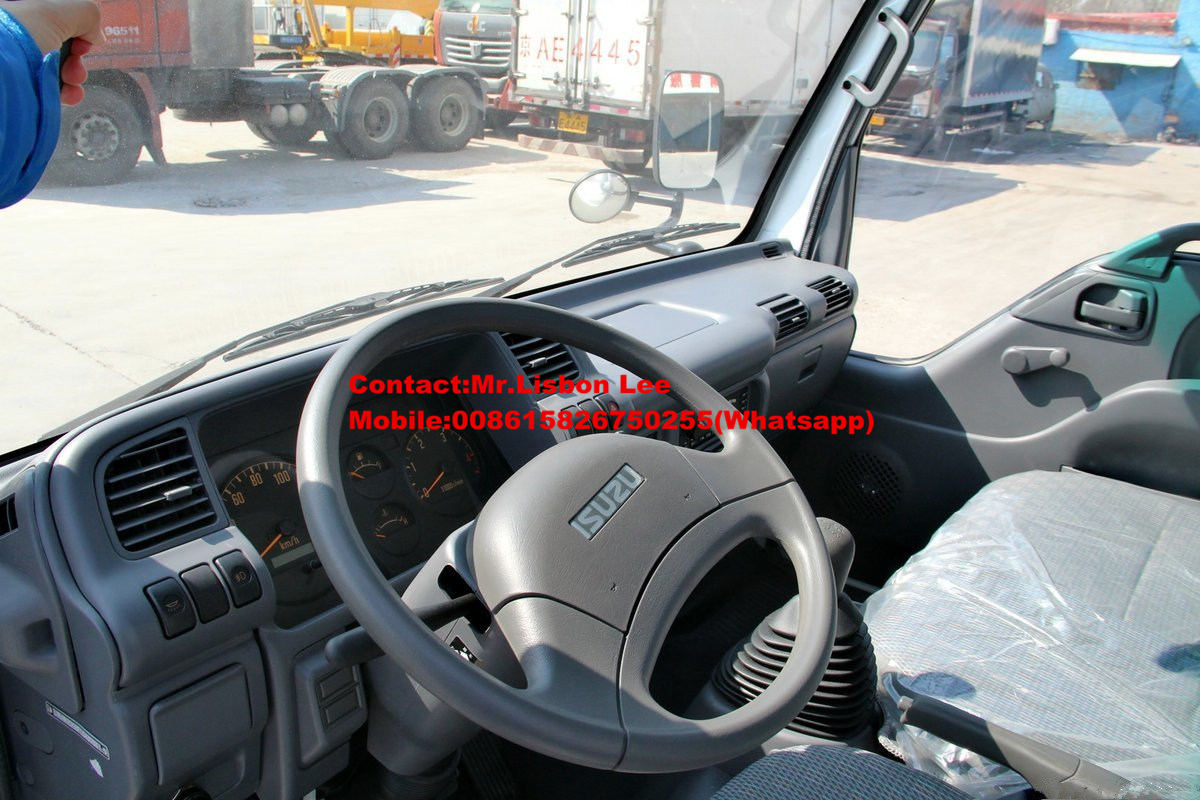

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

2100

Load weight(Kg)

4000

Performance parameter

Maximum speed (km/h)

105

Maximum grade ability (%)

≥25%

Minimum ground clearance (mm)

470

Dimension parameters

Overall dimensions (LxWxH)mm

4800×1695×2160

Internal van dimensions (LxWxH)mm

3100×1600×380

Wheelbase (mm)

2490

Front/rear wheel track (mm)

1385/1395

Front/rear suspension (mm)

1015/1295

Cabin

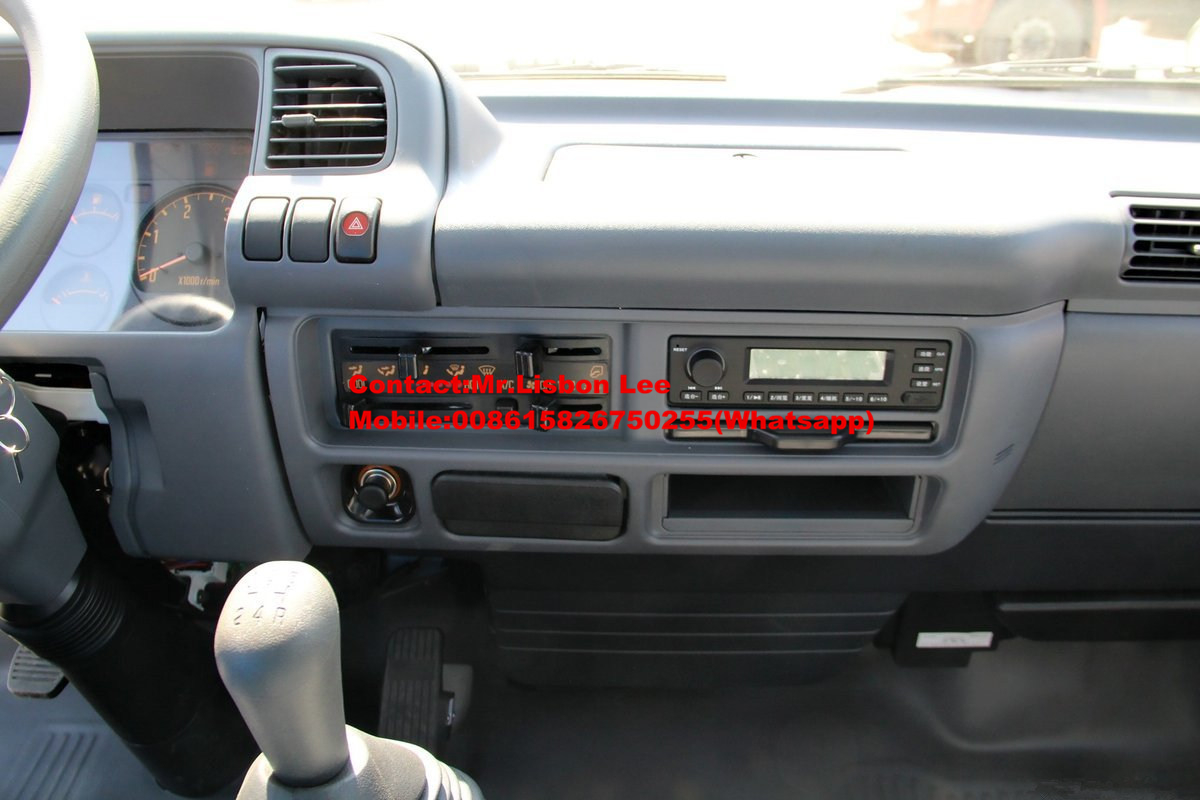

Single row,metallic painting,electronic controlled flame-out, auxiliary brake, adjustable steering wheel,power-assisted clutch,A/C
