ISUZU Cargo Truck 8Ton

Chassis model

QL1100A8MAY

Engine

Model

4HK1-TCG61

Description

In-line/4 cylinders/water cooled/turbo charged/inter cooled/diesel engine

Rated power of engine (kw/HP)

141/190

Maximum torque (N.m@rpm)

510@1600

Displacement (ml)

5193

Emission level

Euro III

Gearbox

Description

Manual,MLD,6 forward gears,1 reverse gear

Front / Rear axle

Front axle load (Kg)

4000

Rear axle load(Kg)

7000

Drive type

4X2

Type of tire

235/75R17.5

Quantity of tires

6+1

Quantity of leaf spring

8/10+6

Brake system

Service brake type

Drum type,pneumatic double loop braking

ABS

Provided

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

4090

Load weight(Kg)

8000

Performance parameter

Maximum speed (km/h)

110

Maximum grade ability (%)

≥25%

Dimension parameters

Overall dimensions (LxWxH)mm

7950×2307×2450

Internal box dimensions (LxWxH)mm

6008×2150×450

Wheelbase (mm)

4475

Front/rear wheel track (mm)

1680/1650

Front/rear suspension (mm)

1110/2365

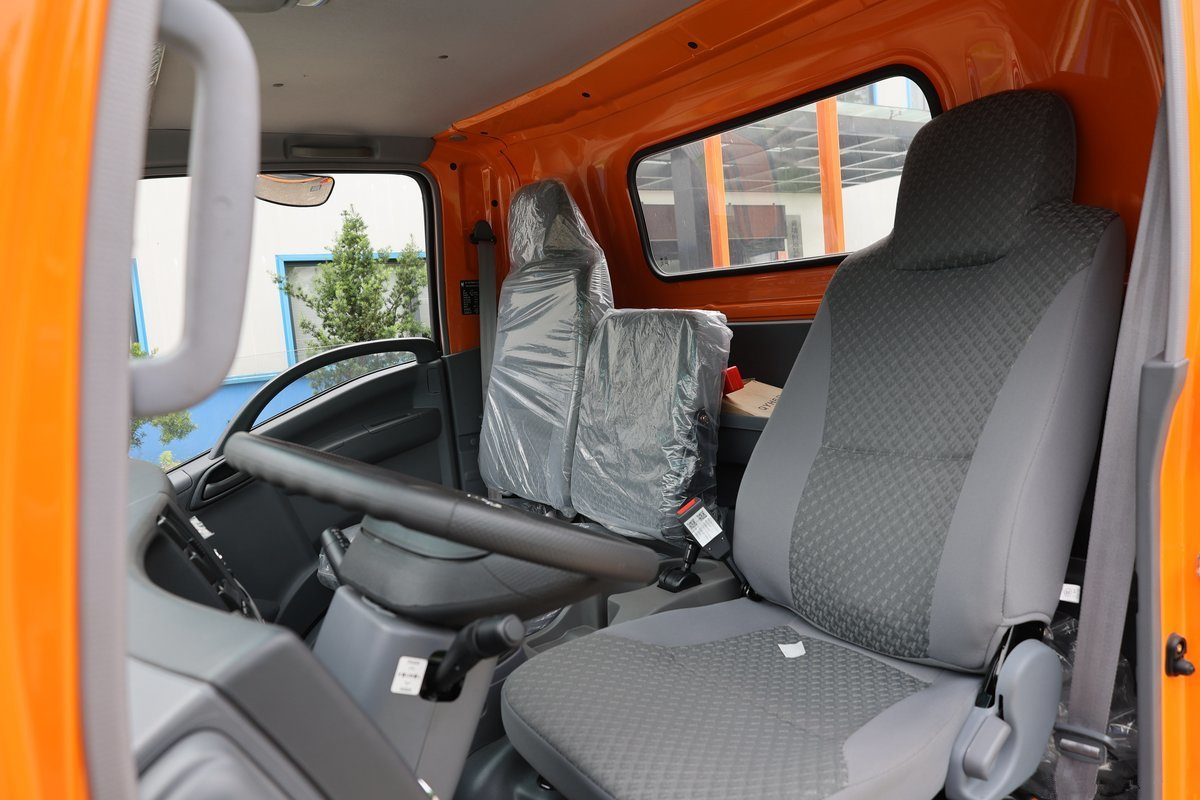

Cabin

700P,single row,luxury type,with power clutch,A/C,

radio,USB interface,safety belt,mechanical tiltable
