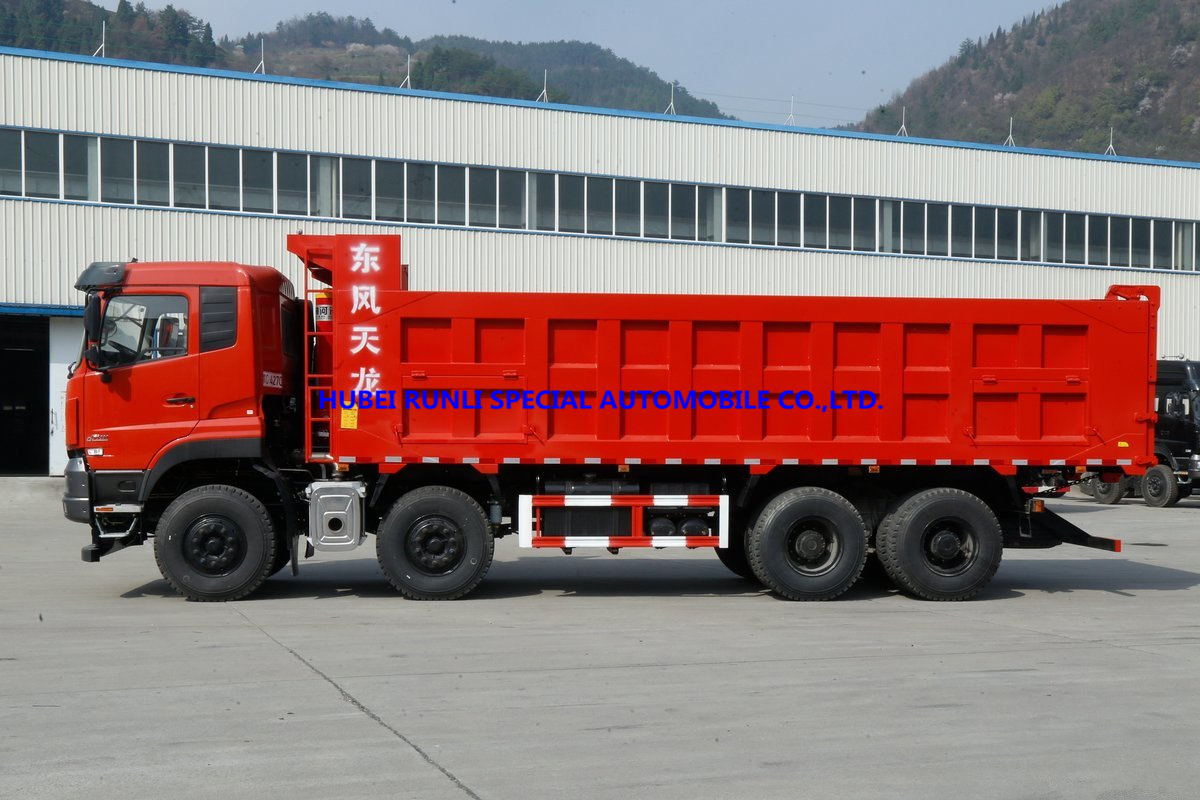

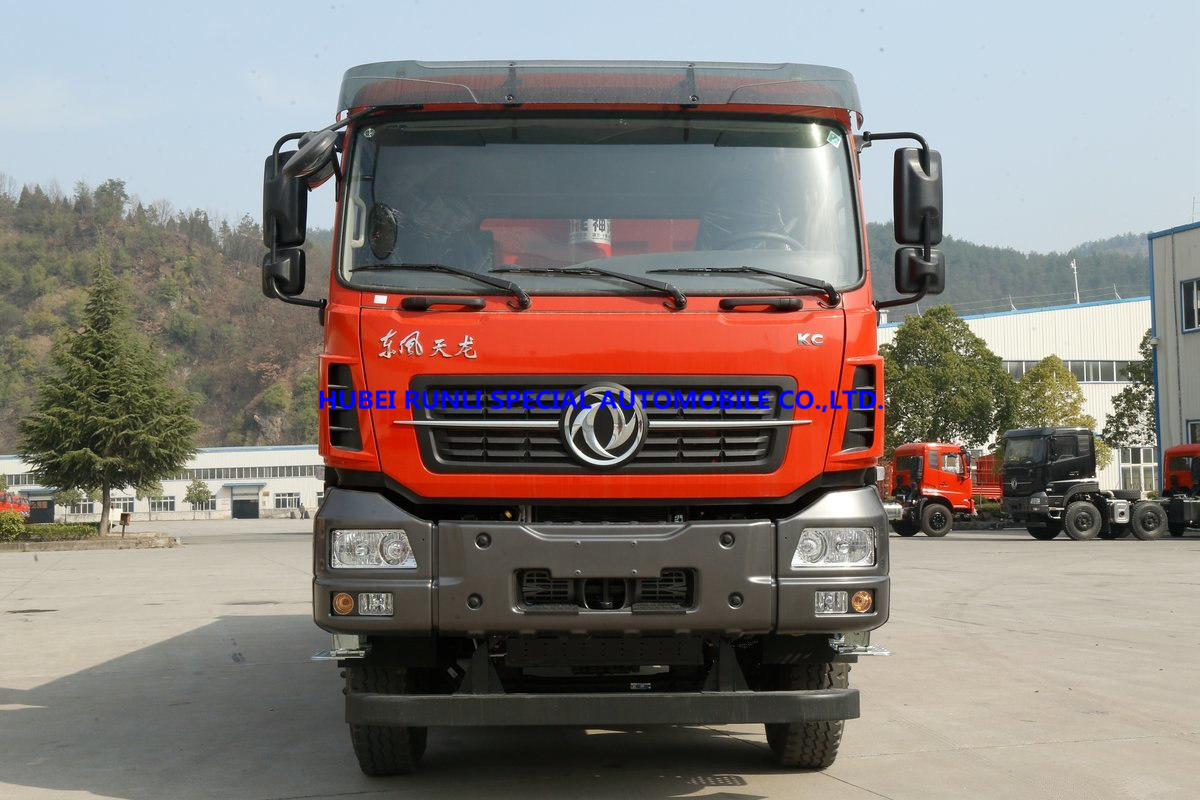

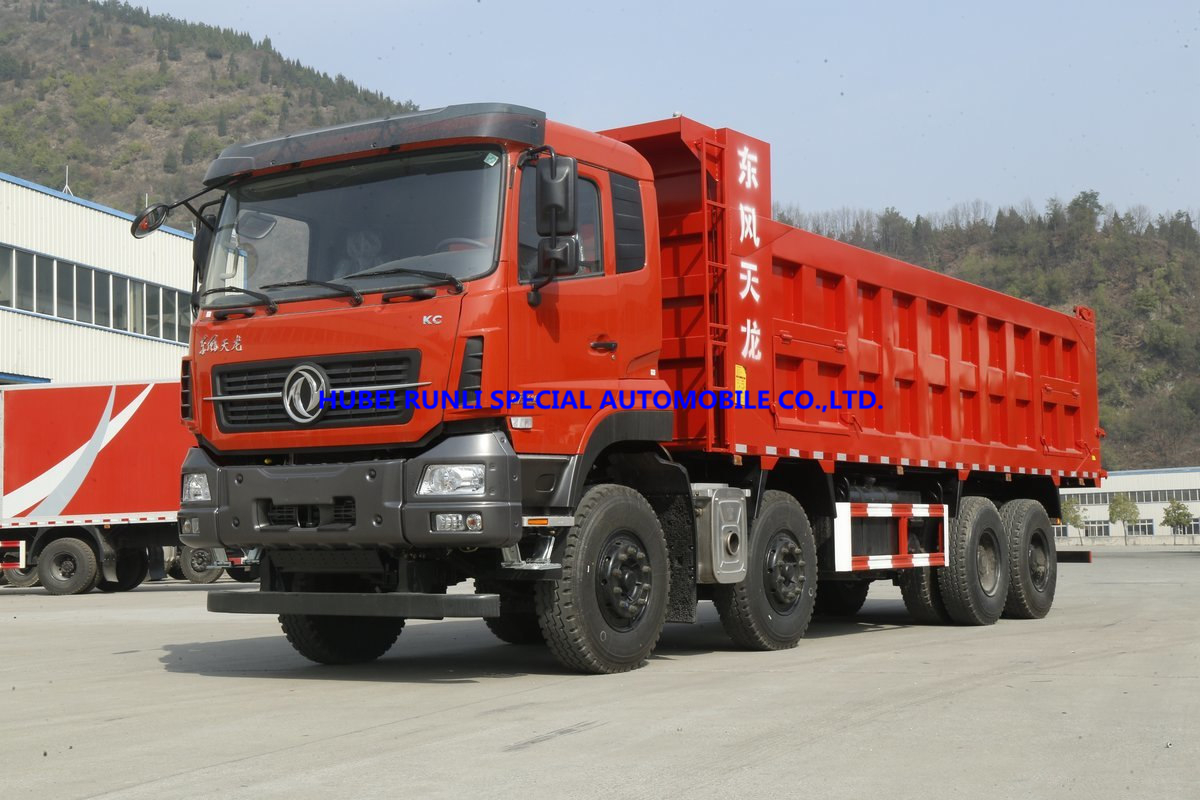

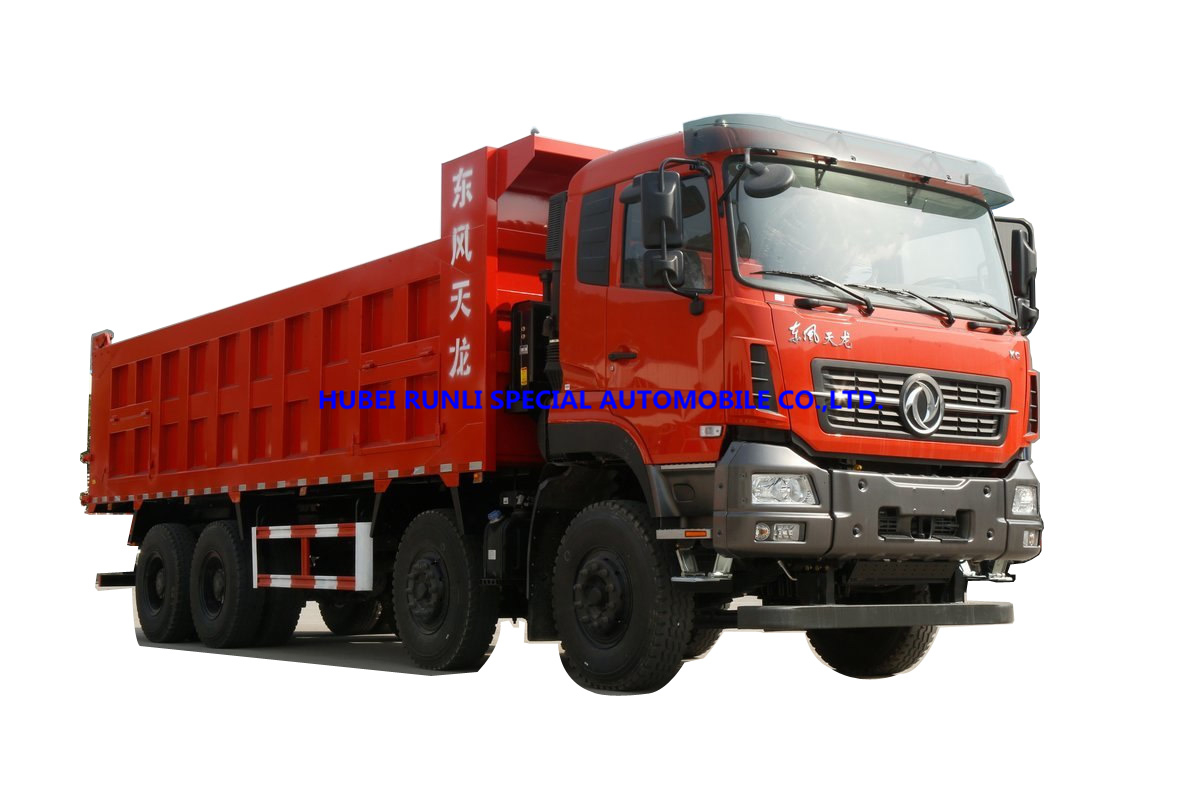

Dongfeng 8X4 Dump Truck 290HP

Product name

Dump truck

Drive type

8X4

Chassis model

EQ3311GLJ

Steering type

Left hand drive with power steering

Curb weight(kg)

11500

Overall dimension(mm)

8720×2500×3460

Box dimension(mm)

6000x2300x1500

Chassis dimensions

Wheel base(mm)

1850+3600+1350

F/R track(mm)

2040/2040,1850/1850

Section height(mm)

300(8+8)

Engine

Model

L290 30 (Cummins brand)

Emission level

Euro 3

Max.output power(kw/HP)

213/290

Max. torque(N•m)

1200@1300rpm

Number of cylinders

6

Displacement(ml)

8900

Description

In-line,turbo-charged,four strokes,

water cooled,inter cooled,direct injection,diesel engine

Clutch

Plate’s diameter

Ø430

Operating system

Hydraulic control with air booster,

pushing

Gear box

Model

FAST,9JS119TA

Number of gears

9 forward ＆1 reverse gears

Brake system

Full air brake system,split pneumatic circuit,parking spring brake acting on rear axles

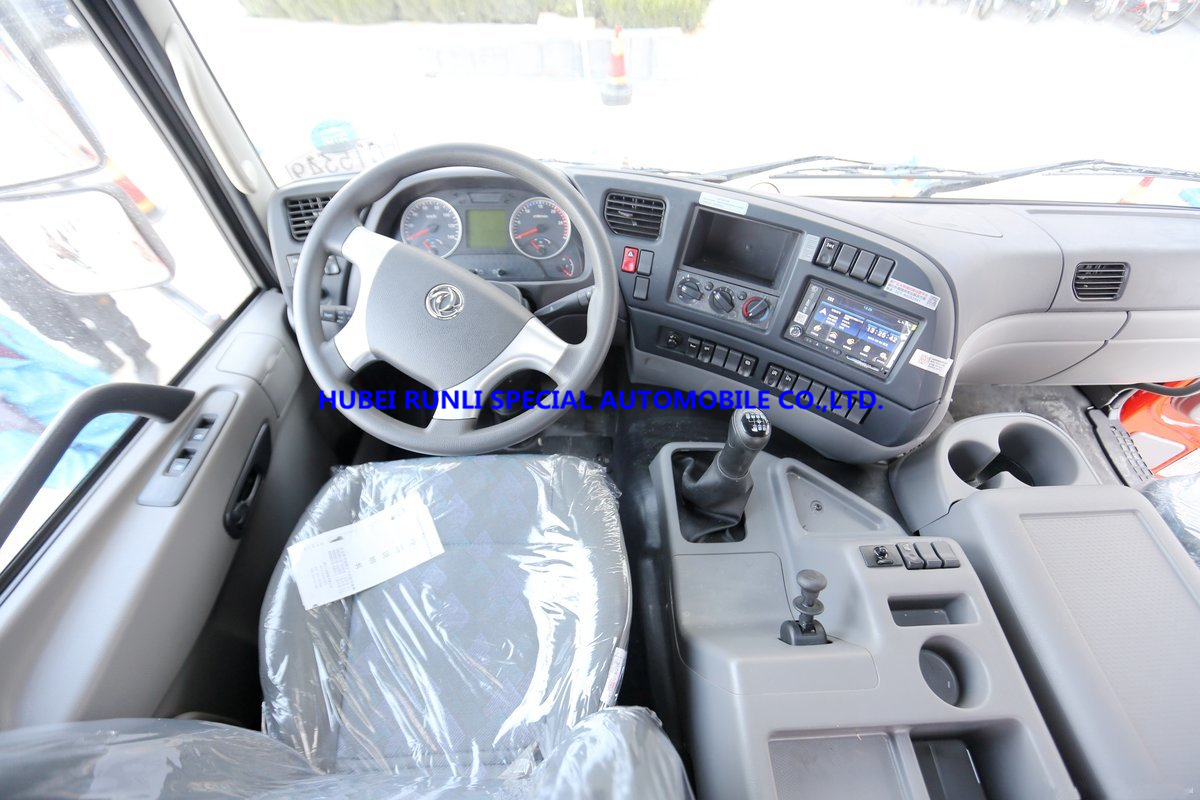

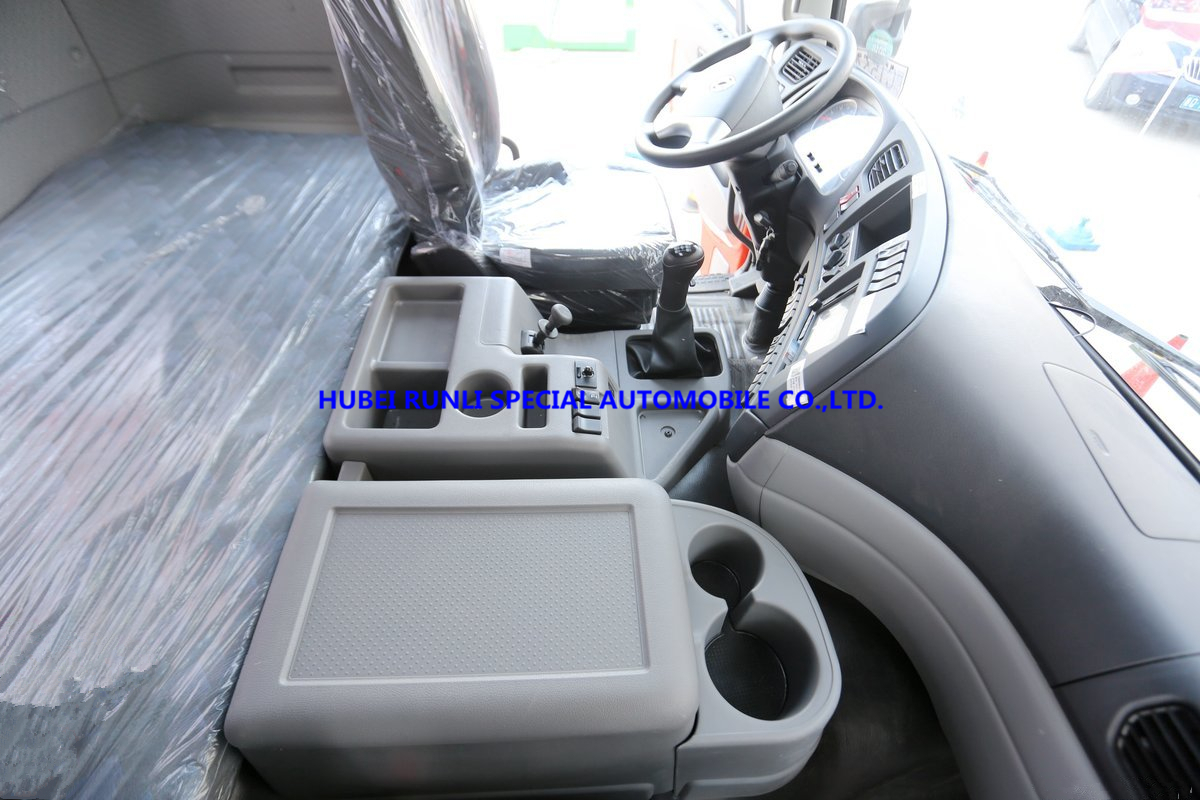

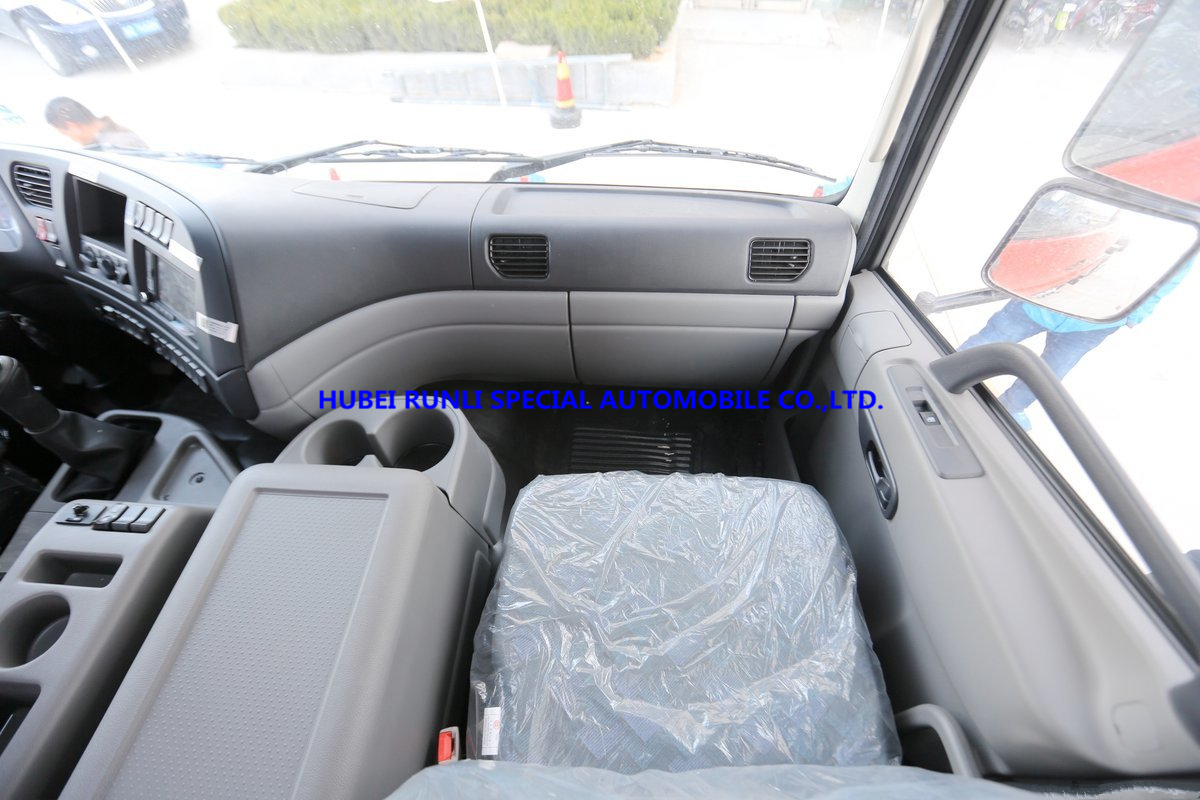

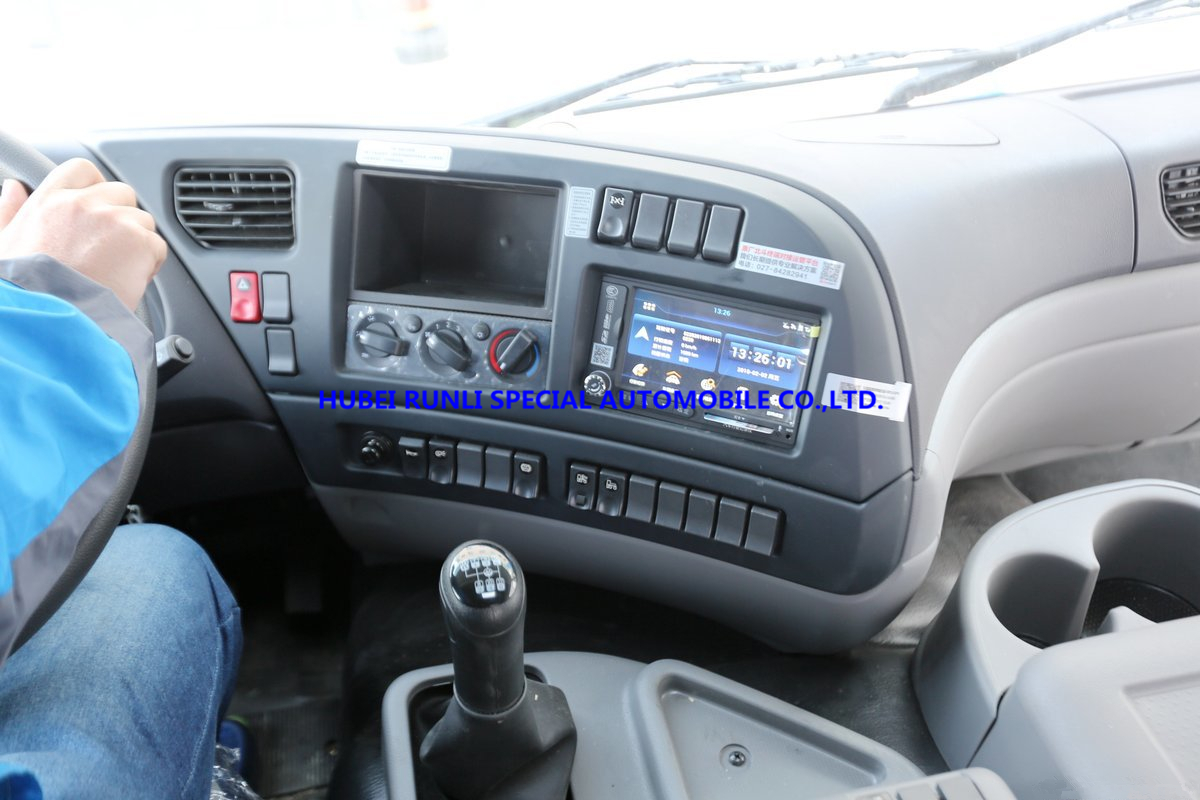

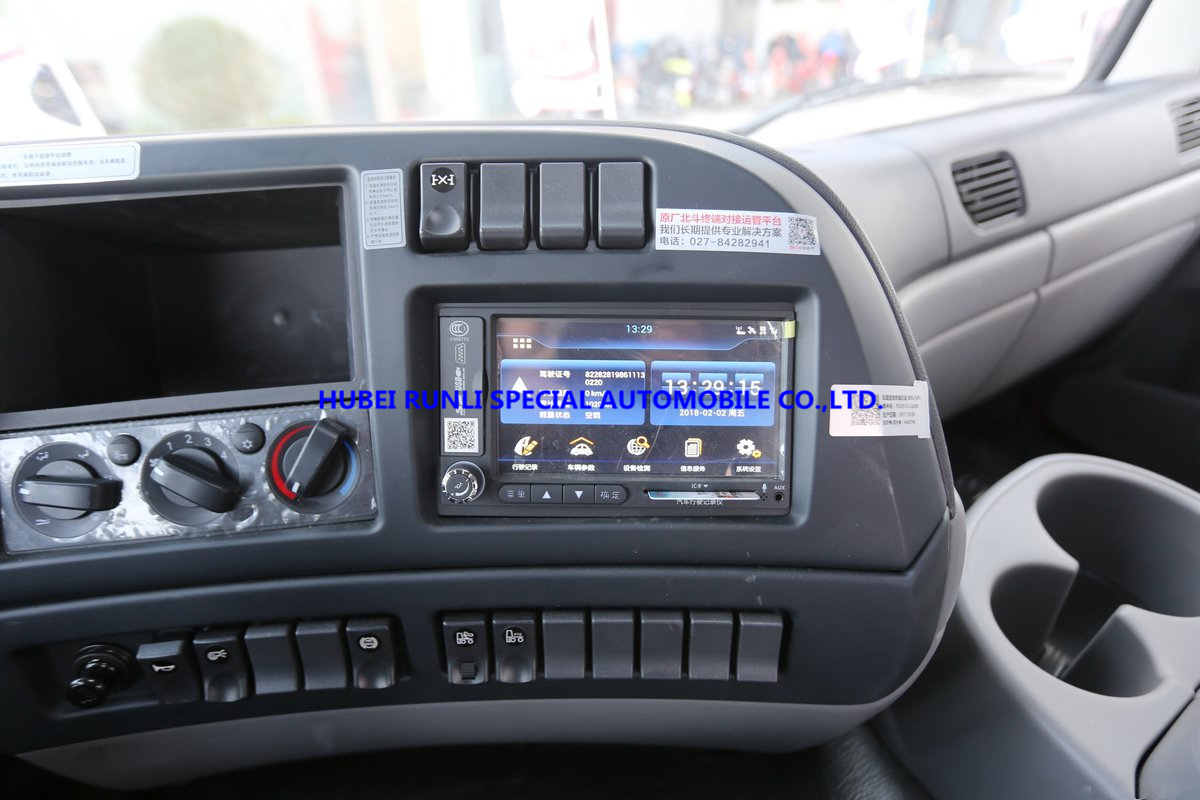

Cab

Flat roof,single sleeper,all welded steel cab of tilt type, mechanical cab tilting,wind shield wiper and washer,rear mechanical cab suspension,adjustable driver’s seat

Axle

Front

Elliot type,I beam section,

6.5Tonsx2

Rear

Single reduction,tandem axle,with wheel lock,13Tonsx2

Suspension

Front

9 leaf springs with shock absorber

Rear

13 leaf springs

Battery

Voltage(V)

24

Battery capacity(A.h)

165x2

Fuel tank

Type

Steel fuel tank,with lockable cap

Capacity

300L

Tyre

Type

11.00R20

Quantity

12+1

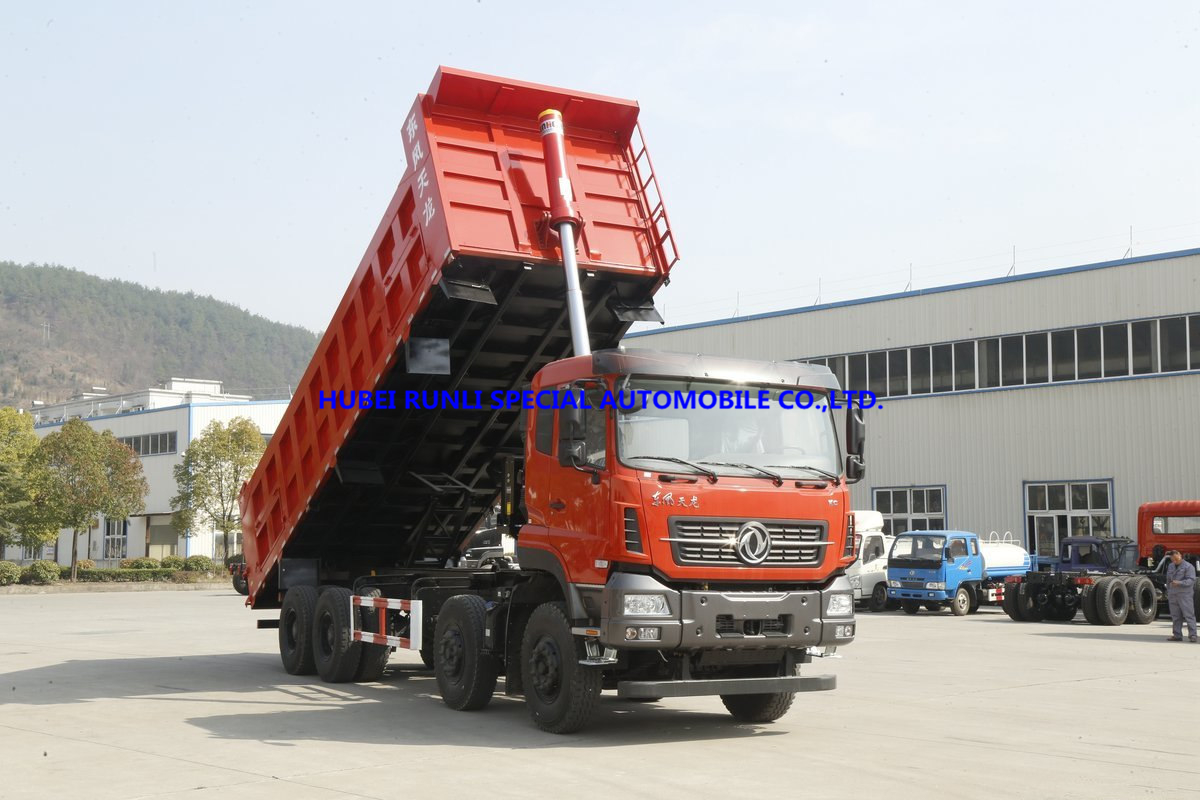

Dump box

Thickness

Side 6mm,bottom 8mm

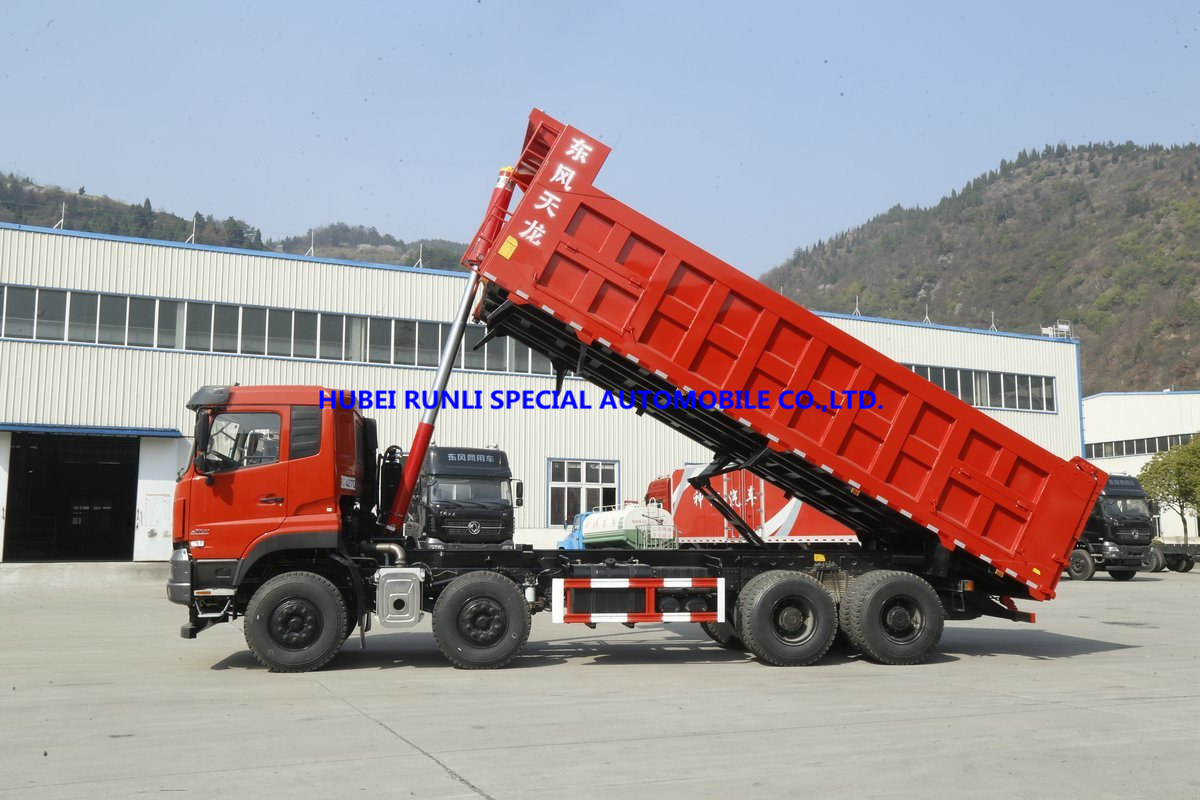

Lifting system

Hydraulic front lifting
