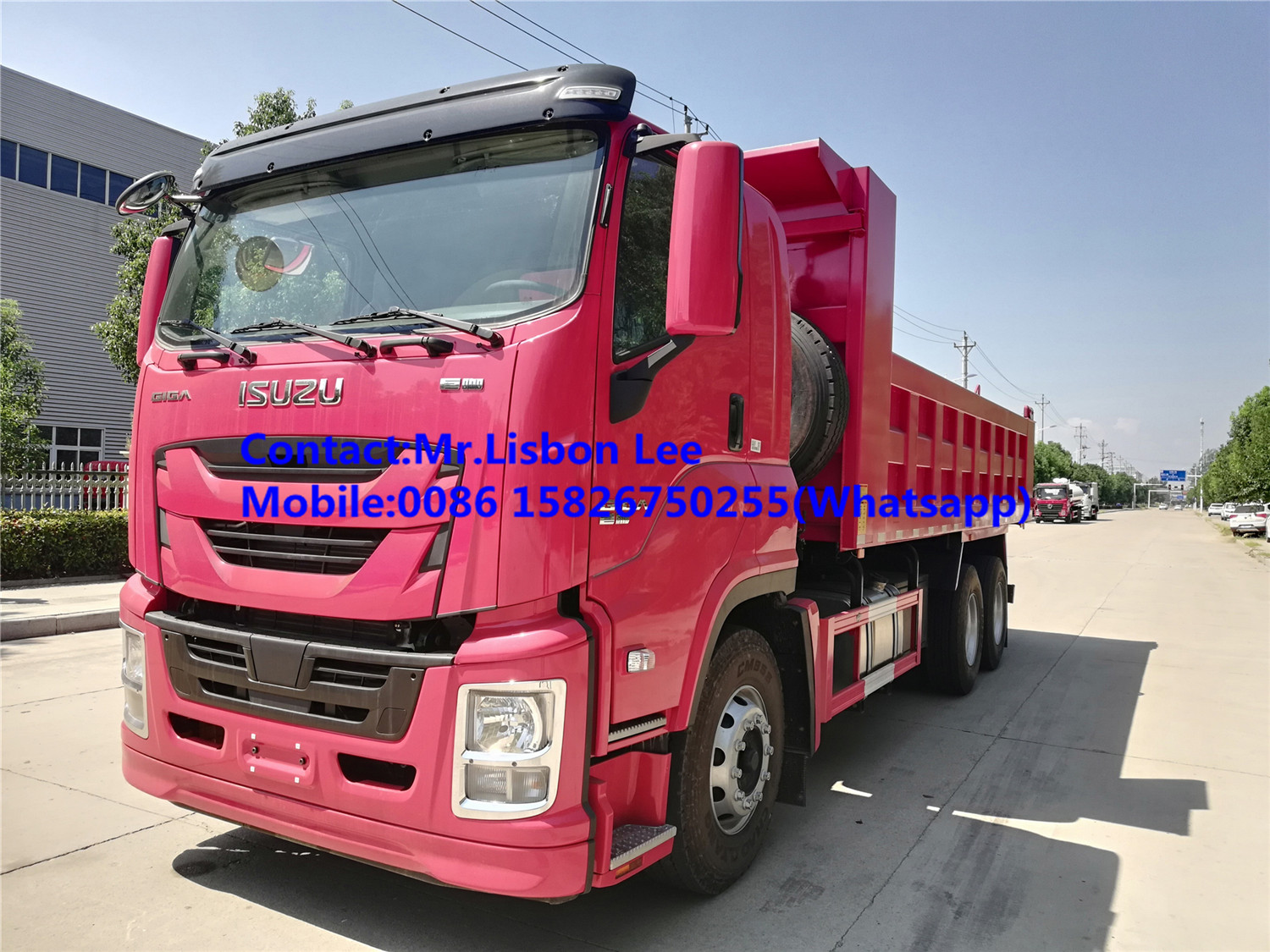

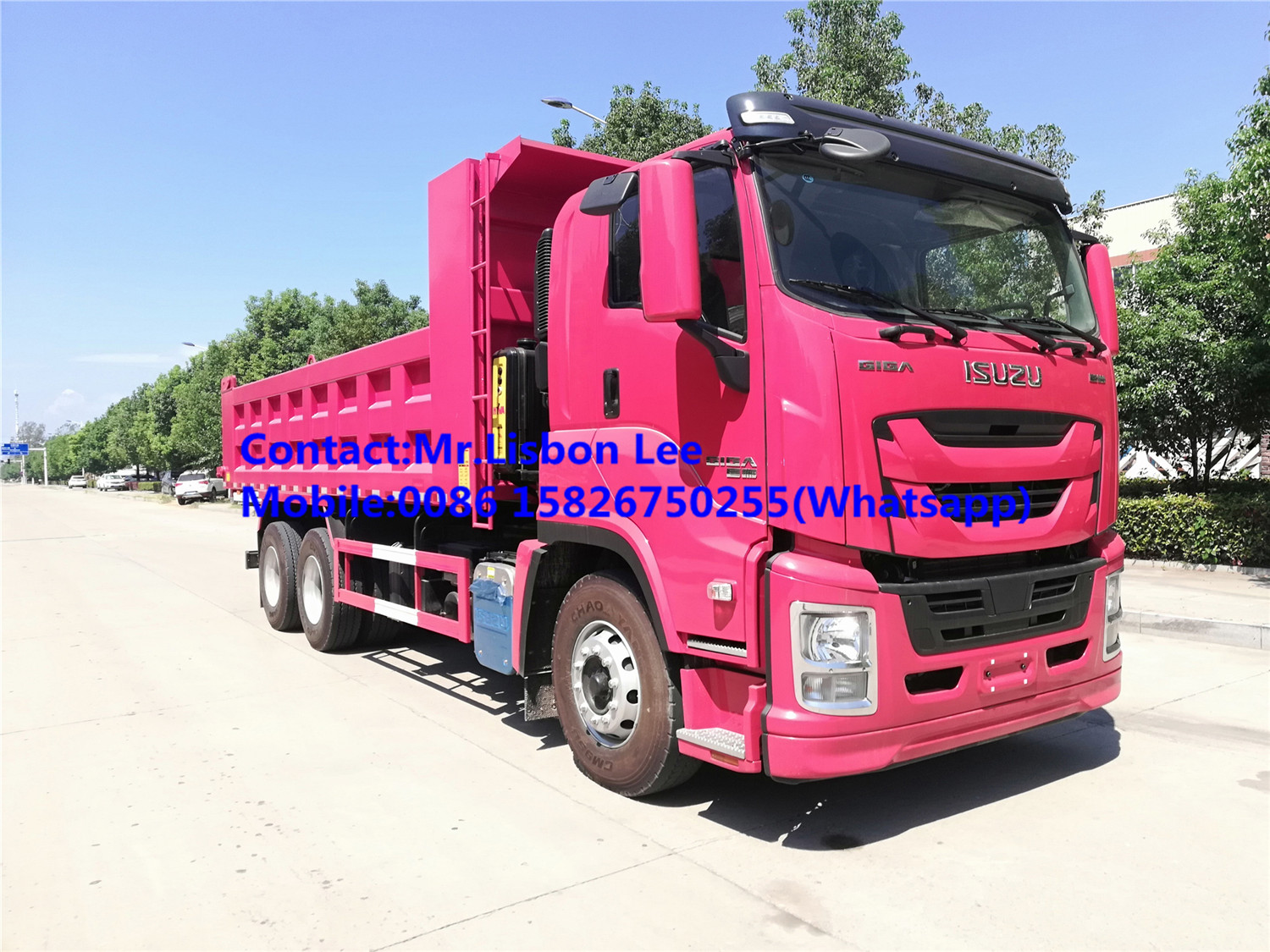

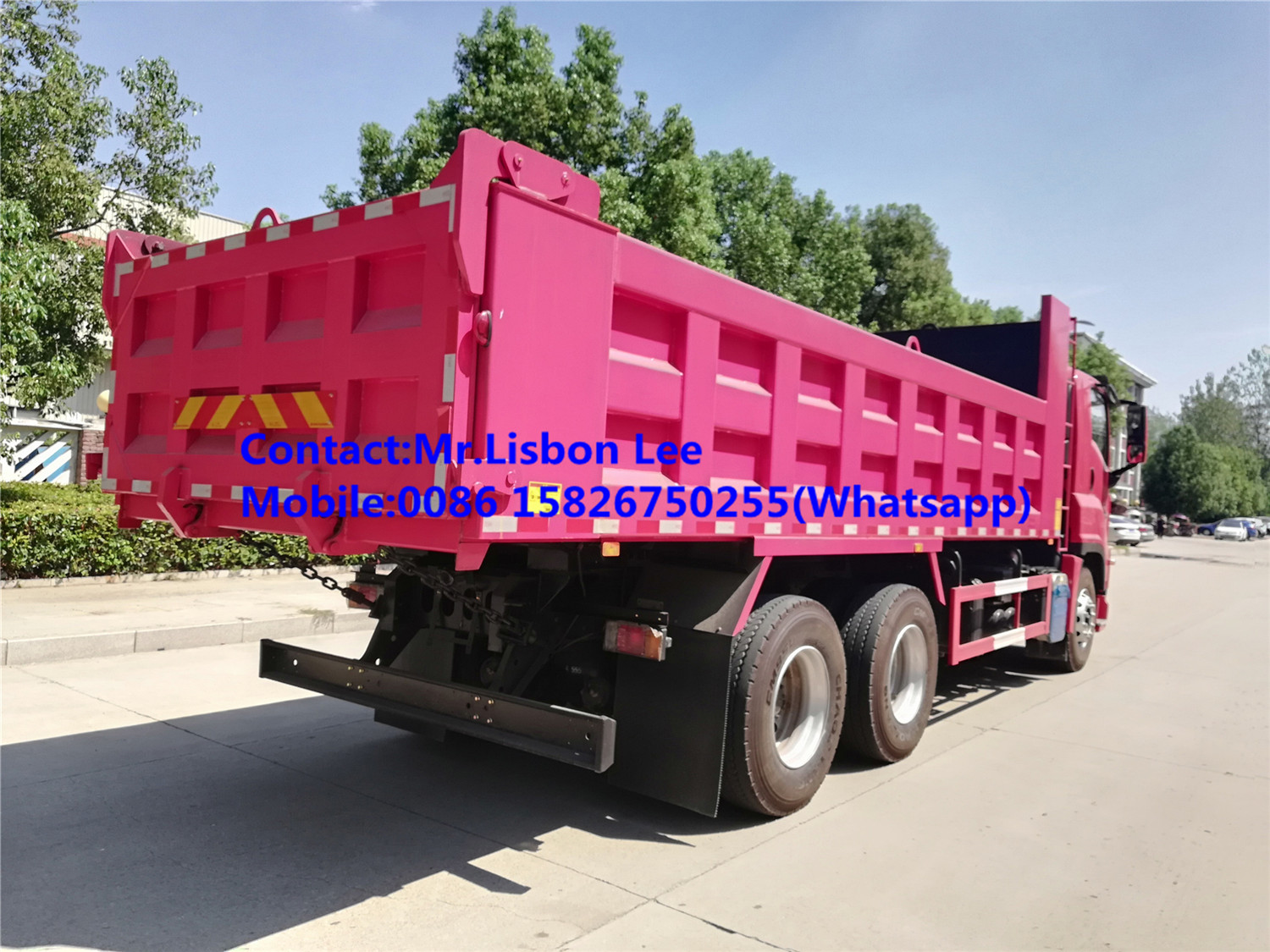

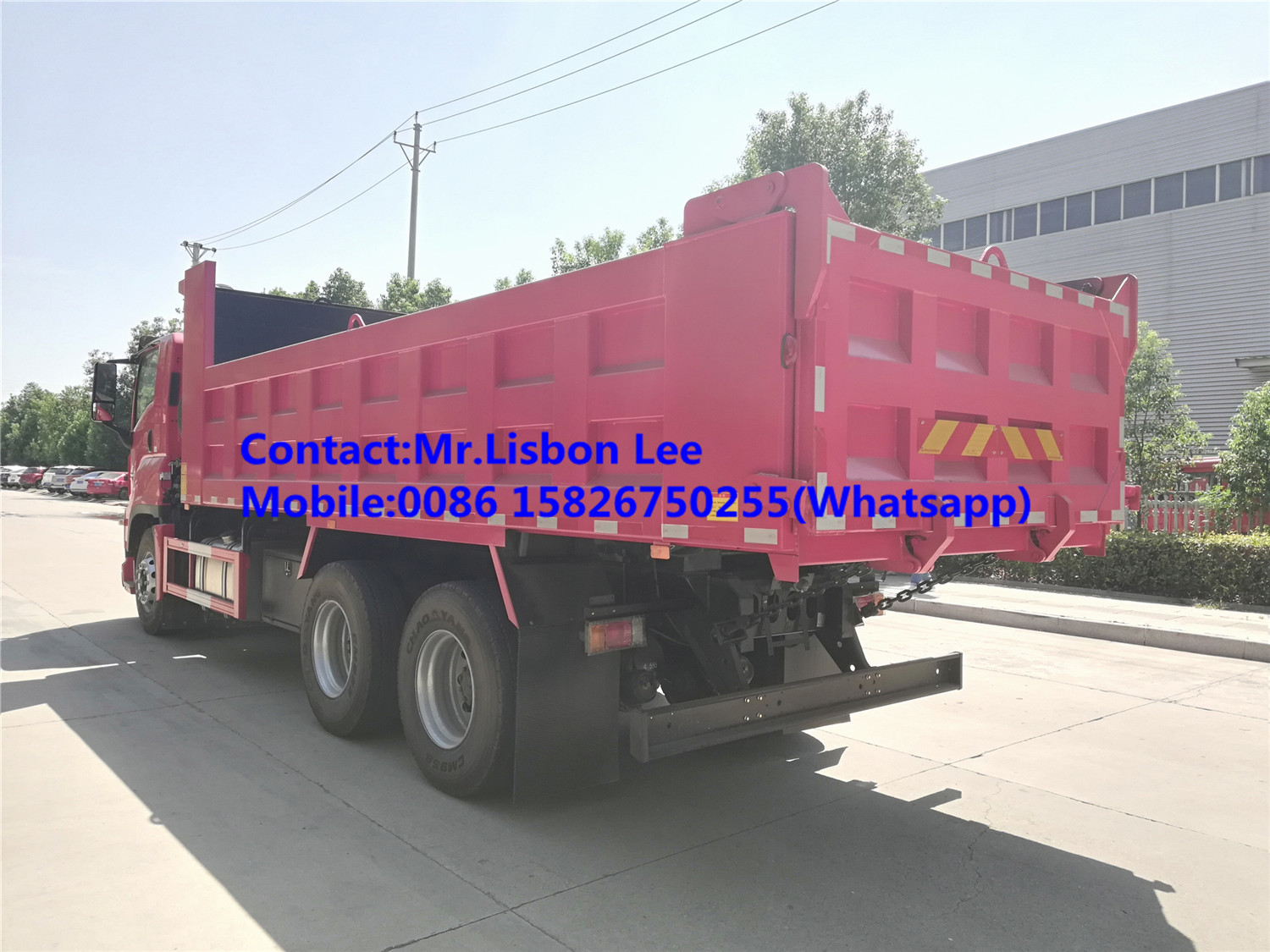

ISUZU 6X4 dump truck 350HP 40Ton

Complete vehicle

Drive type

6X4

Wheel base(mm)

4565+1370

Overall dimension(mm)

9650x2550x3340mm

Box dimension(mm)

6800×2300×1000

Curb weight(Kg)

15320

Payload(Kg)

40000

Cabin

ISUZU GIGA(Flat roof,one and half rows cabin,

single sleeper,luxury configuration,multi-function steering wheel,power steering,central lock,electric window,MP3,A/C provided)

Engine

Model

6UZ1-TCG51

Max.output (kw/HP)

257/350

Max.torque (N•m)

1422

Displacement (ml)

9839

Emission standard

Euro 5

Gear box

FAST,manual,12 forward ＆ 2 reverse gears

Driving axle

Load capacity 26Tons

Front axle

Load capacity 7Tons

Chassis suspension

New stabilizing suspension

Air intake system

Double pipe cyclone air duct+Oil air filter+Common air filter

Inner trimming

Standard configuration

Hydraulic suspension seat

Lumbar support to the driver

Adjustable steering wheel

Sun roof

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Pneumatic brake,ABS provided

Automatic clearance adjustment arm,tachometer

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Others

Standard configuration

Fuel tank capacity 400L

Three in one lock (ignition switch, door and fuel tank)

Big tool box

Type specification

315/80R22.5

Number of tires

10+1

Thickness of box

Side 6mm, bottom 8mm

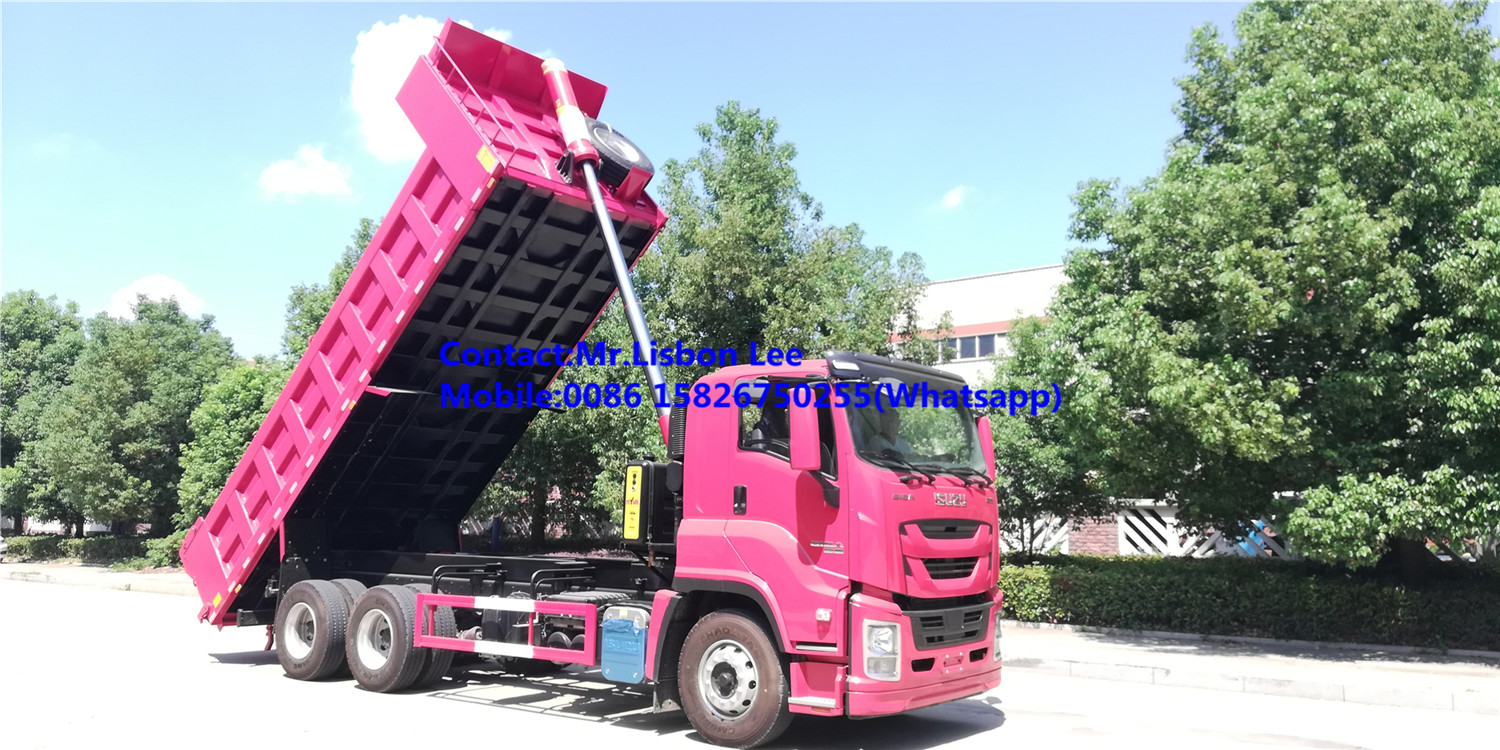

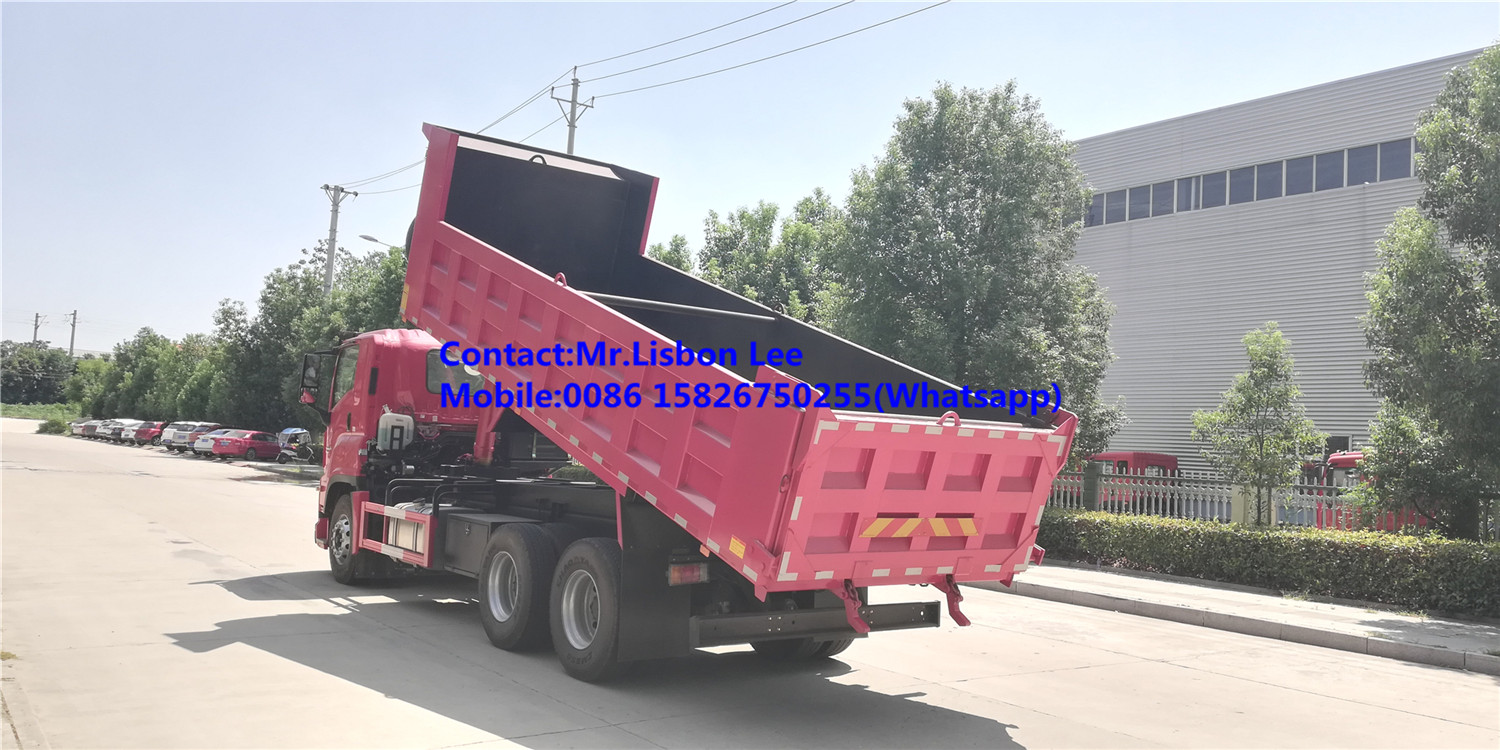

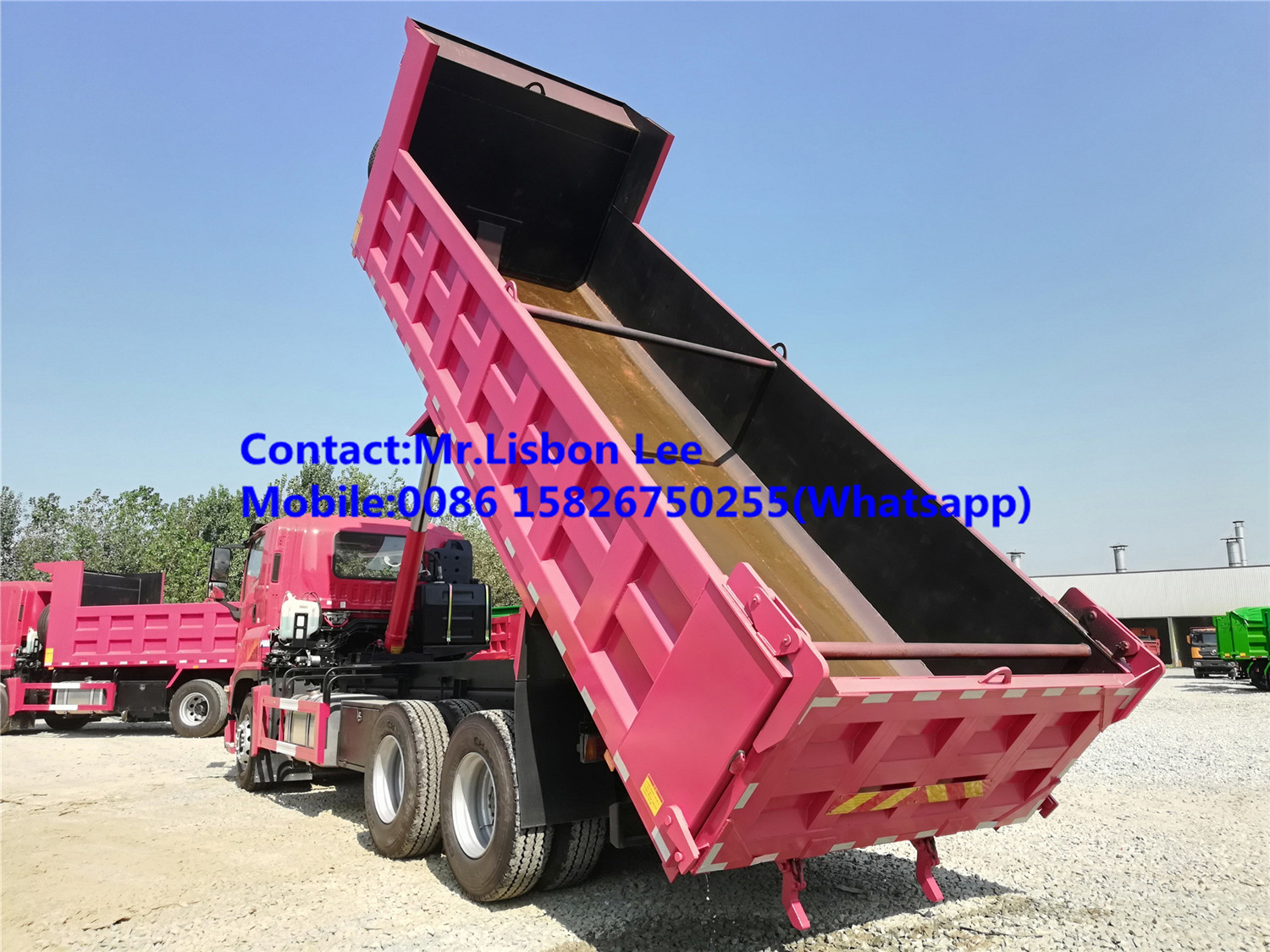

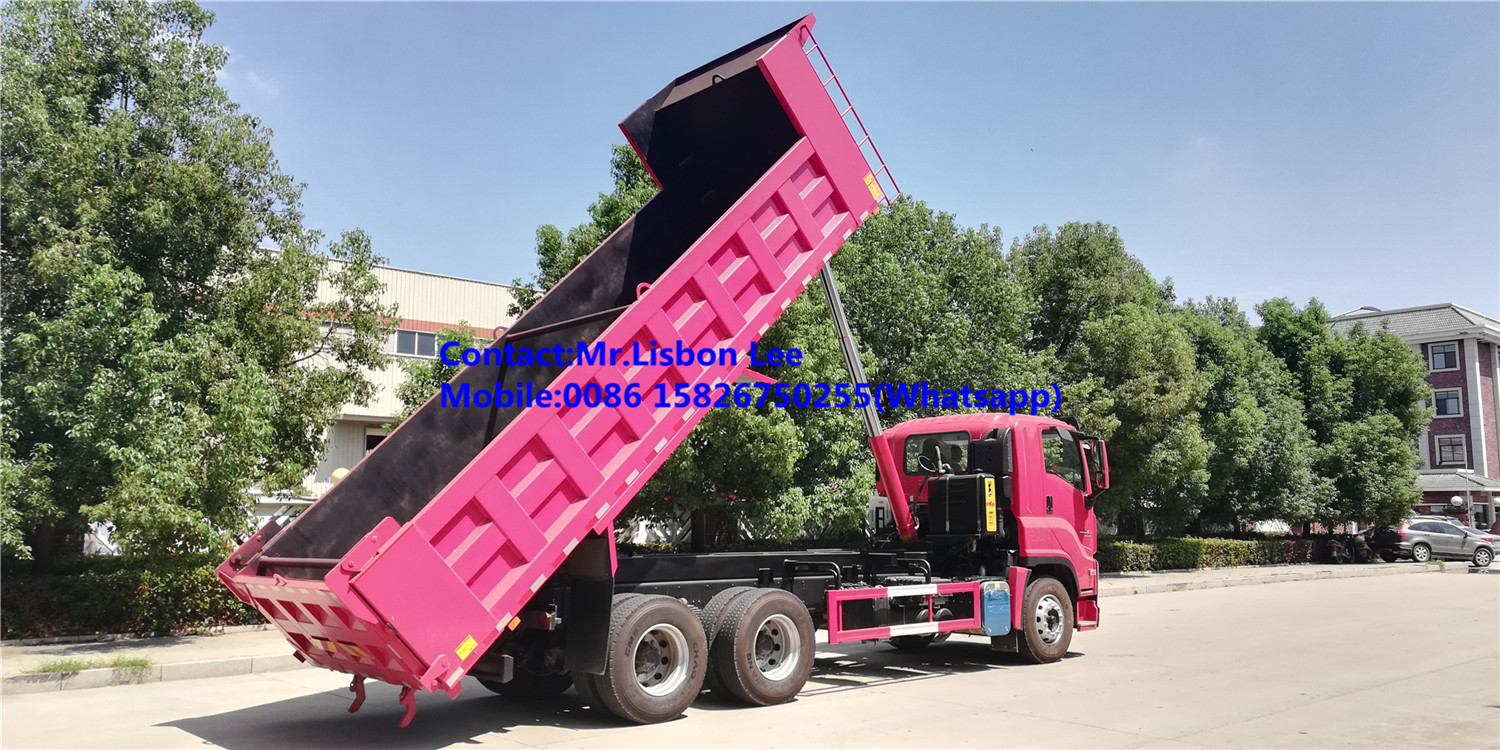

Lifting system

Hyva front hydraulic lifting
