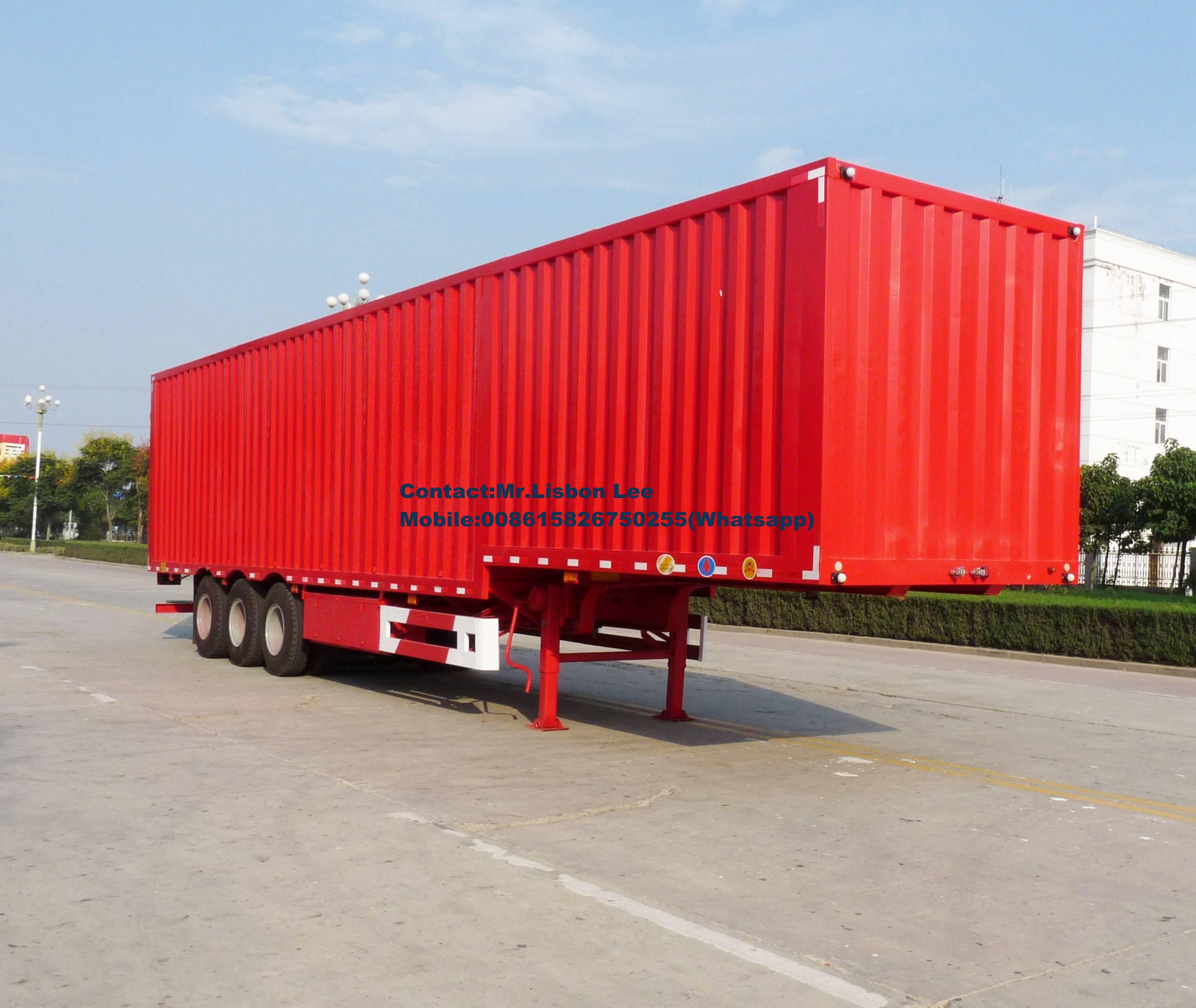

Van semi-trailer truck

Model

SCS9404XXY

G.V.W.

40000Kg

Curb weight

8500Kg

Rated load

31500Kg

Overall dimension

14600x2550x4000mm

Box dimension

14450x2450x2670mm

Mudguard

Closed type mudguard

Side fence

Made of steel，at both sides

Rear bumper

Made of steel,at rear,standard width

Electric system

24V，LED lights，7-pin connector

Frame

Made of steel, Q345

King pin

JOST 90# bolted type

Landing leg

JOST

Suspension system

FUWA strengthen leaf spring -10/10/10

Wheel base

7770+1305+1305mm

Rear suspension

2740mm

Track

1840/1840/1840mm

Departure angle

20°

Tire

Aeolus 12.00R20 13pcs

Rim

Steel，9.00*20，13pcs

Axle

13T FUWA axle，Drum brake，Tri-axle

Brake

WABCO ,Pneumatic brake system

Surface

Shot blast,anti-rust,epoxy lining

Painting

Primer coating+finish coating，stoving varnish

Floor

WISCO carbon steel Q235,thickness 3mm

Welded method

MIG/MAG
