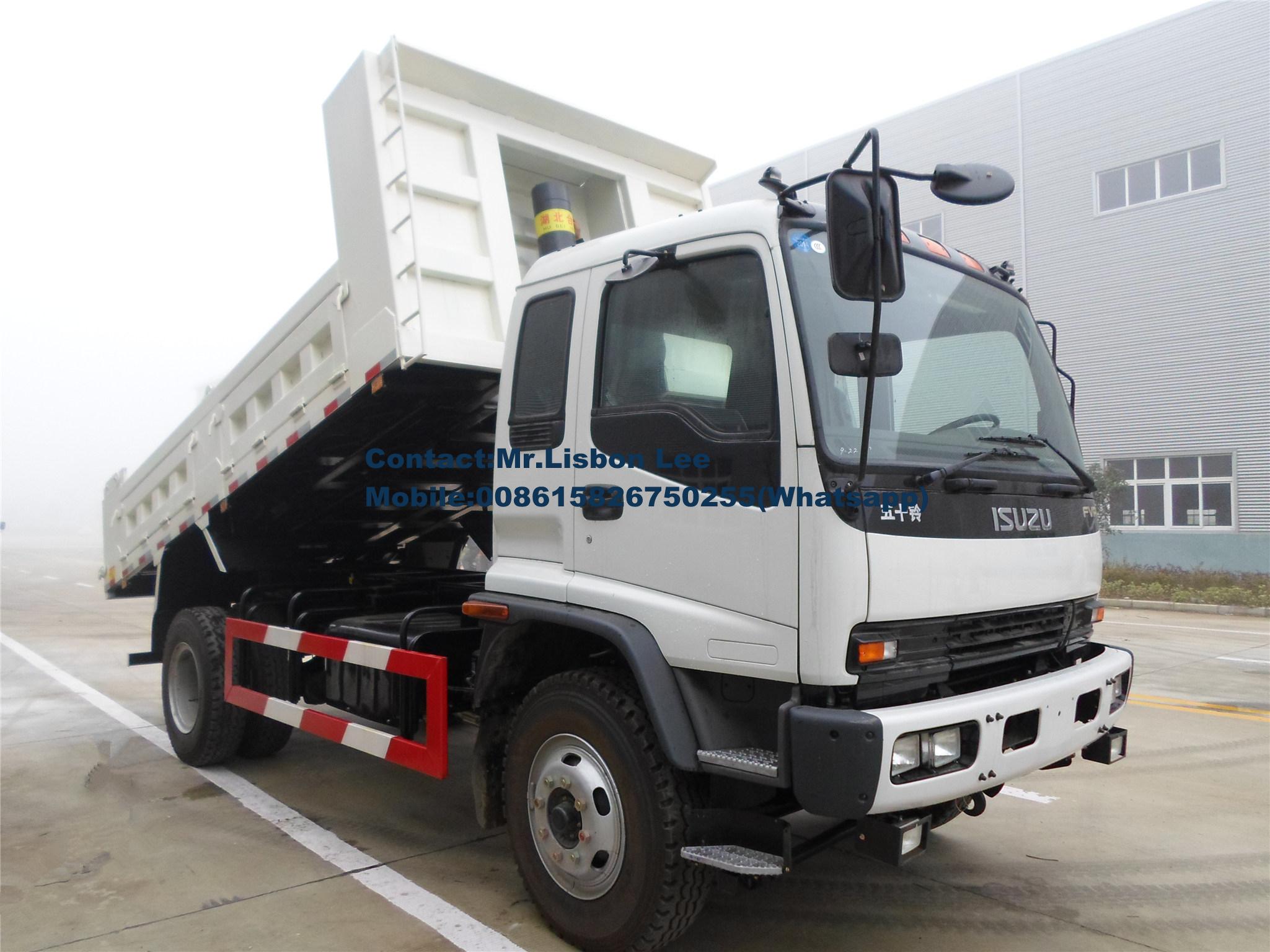

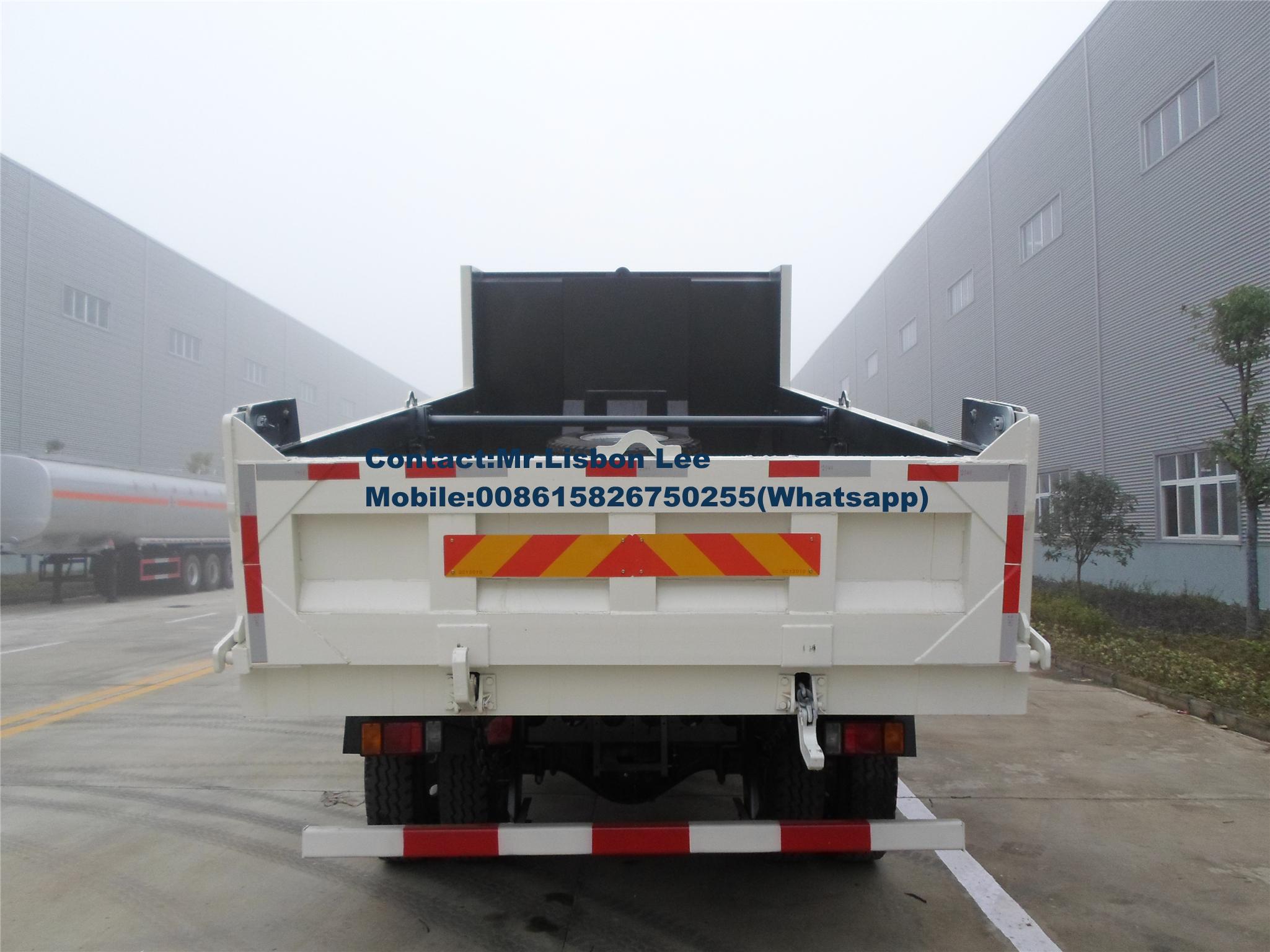

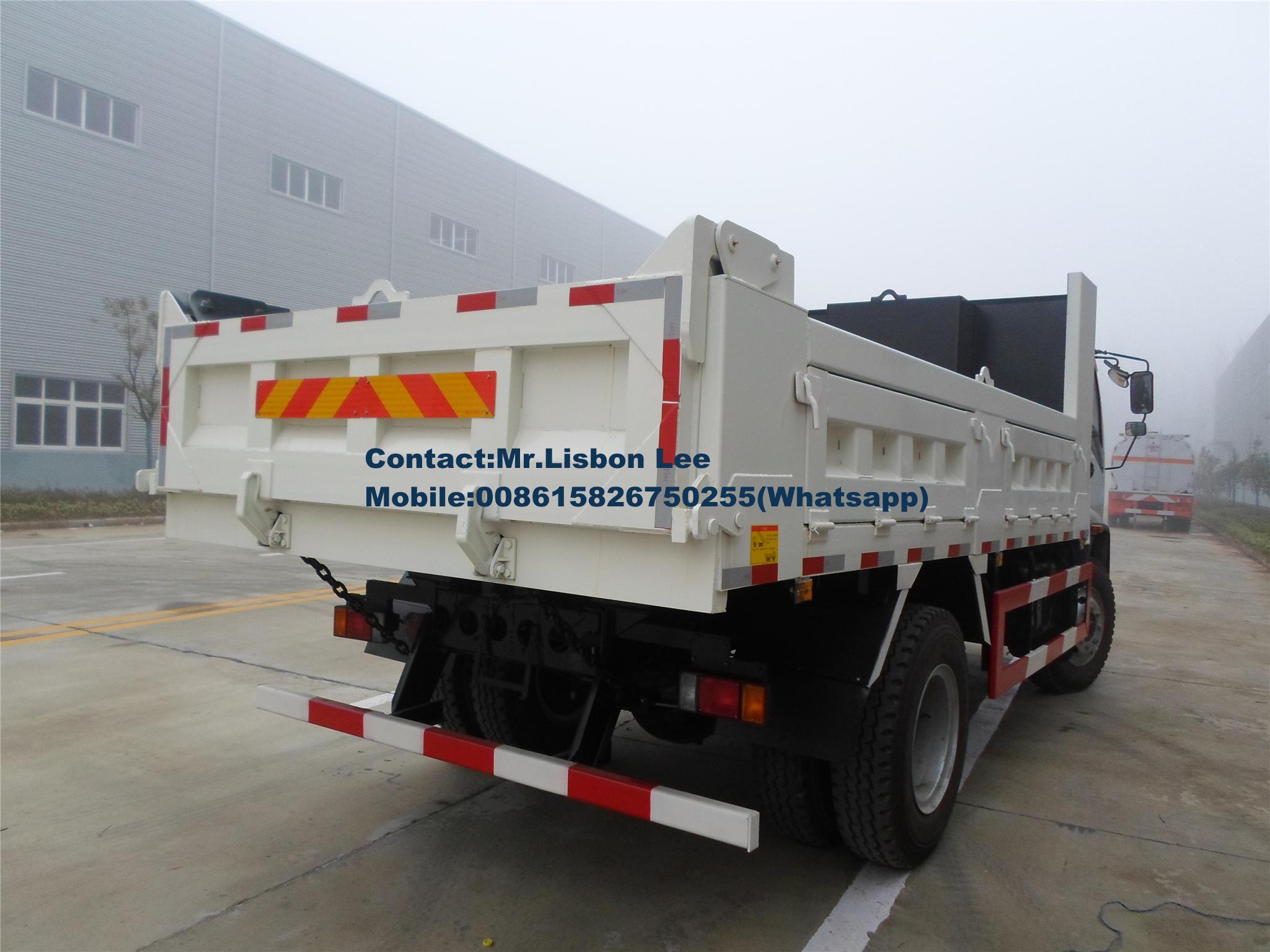

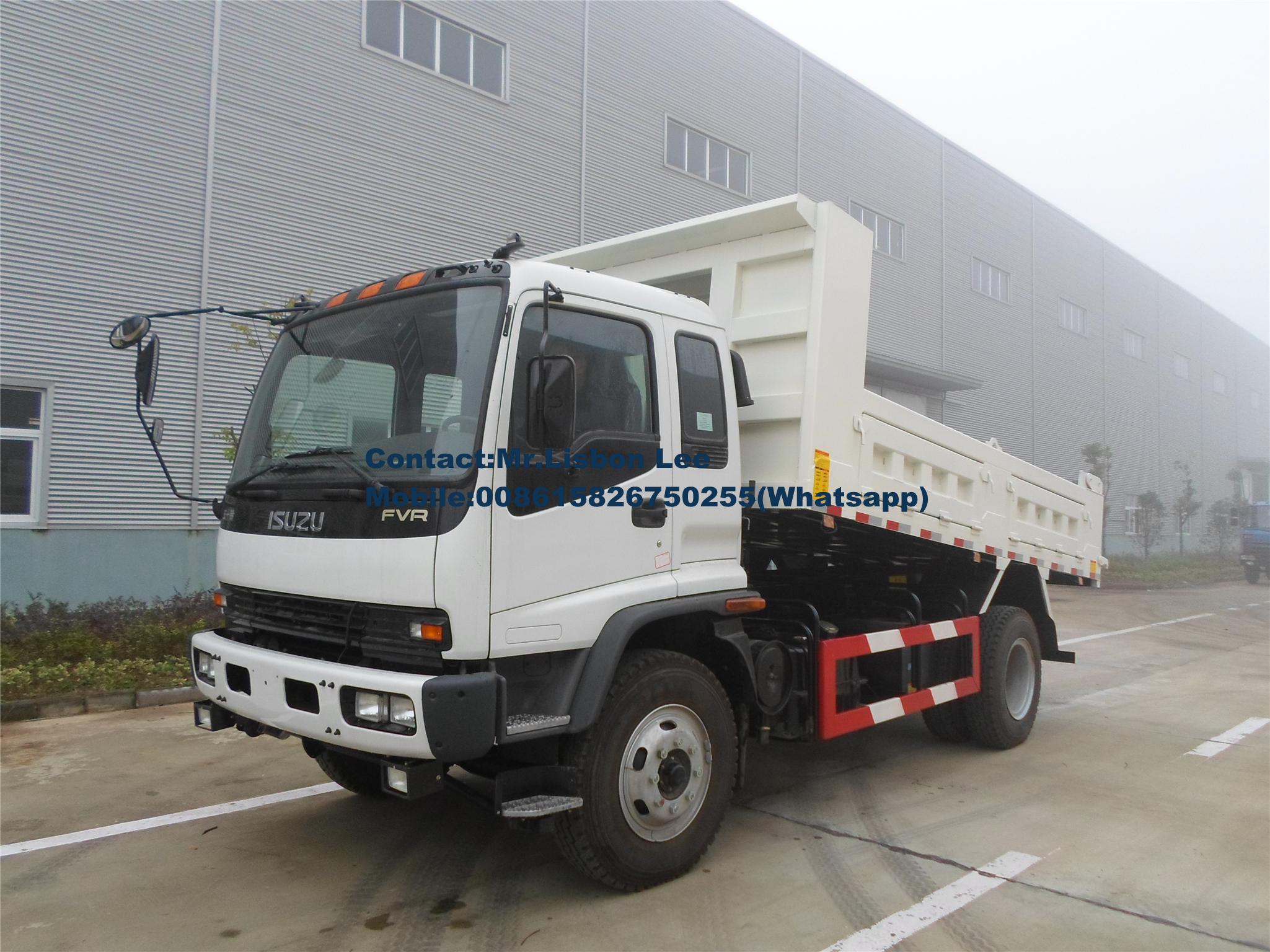

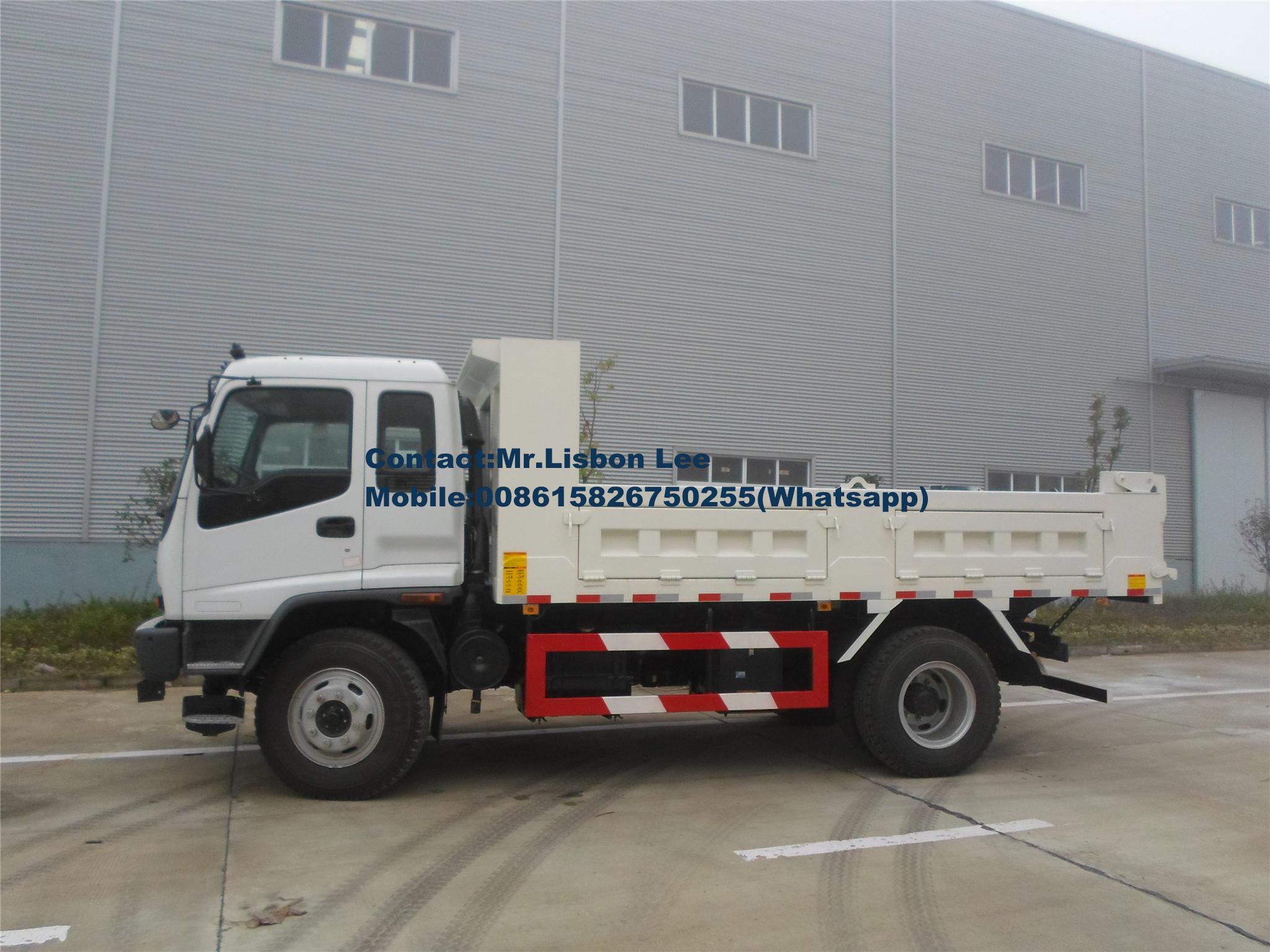

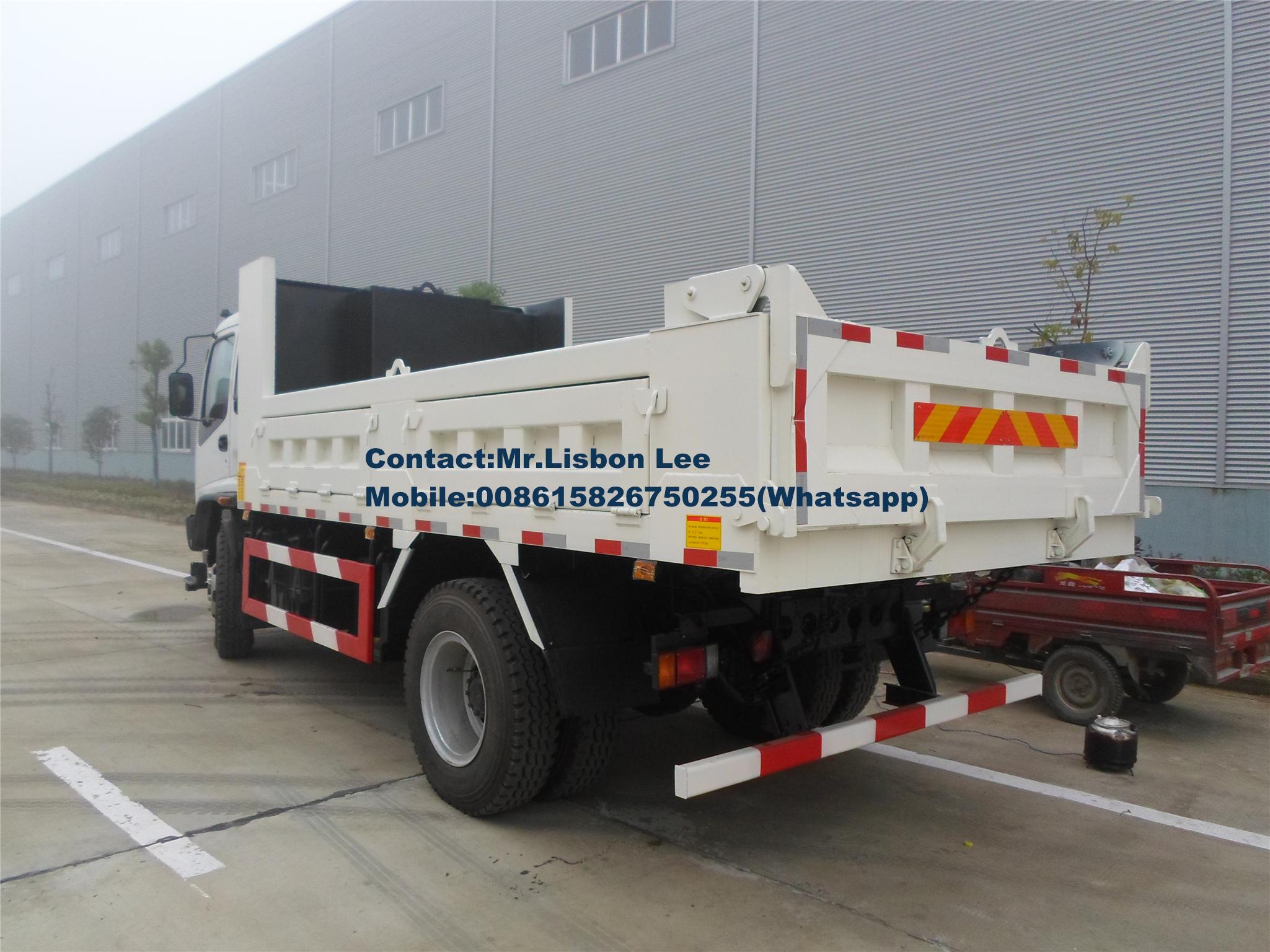

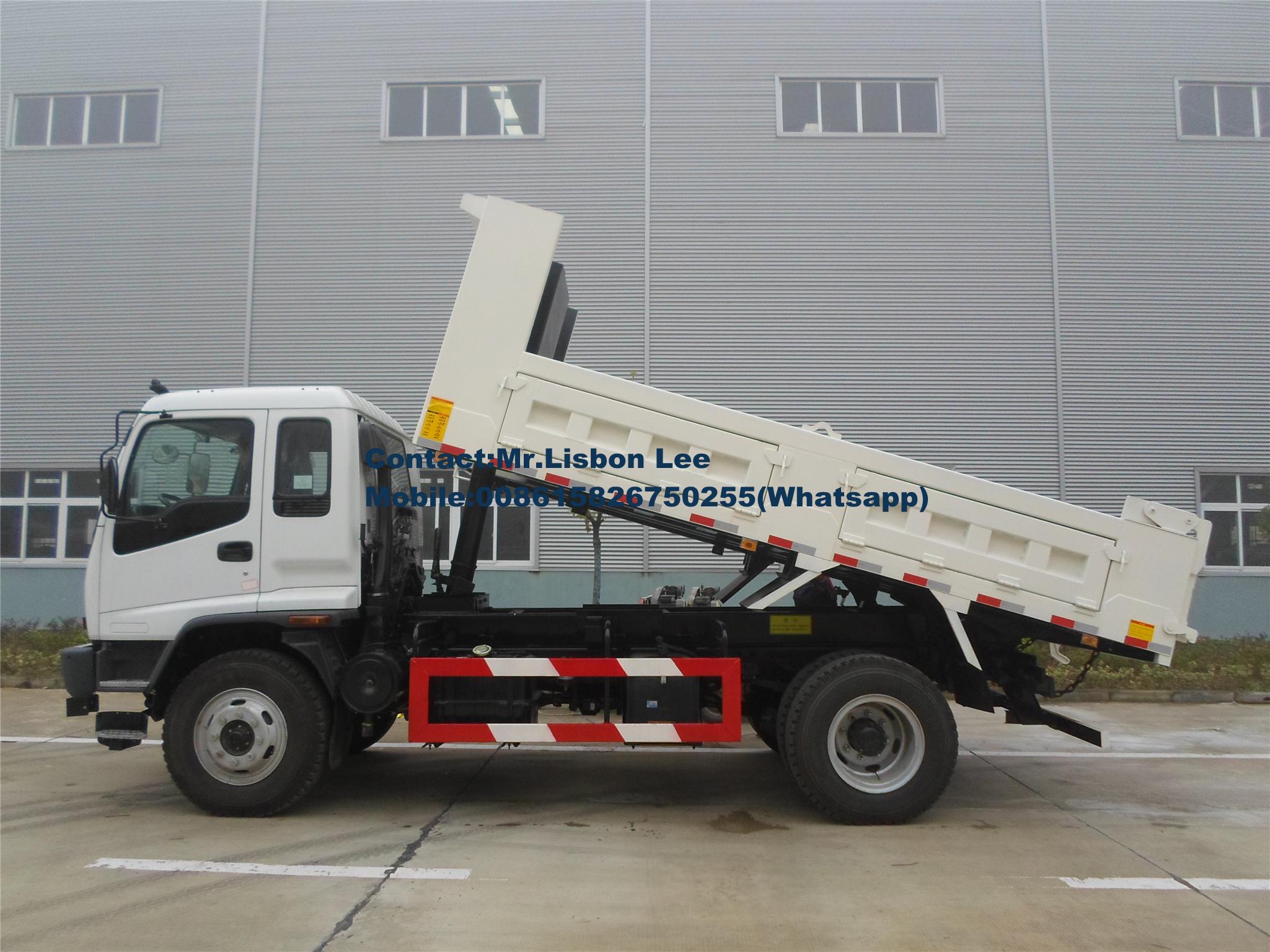

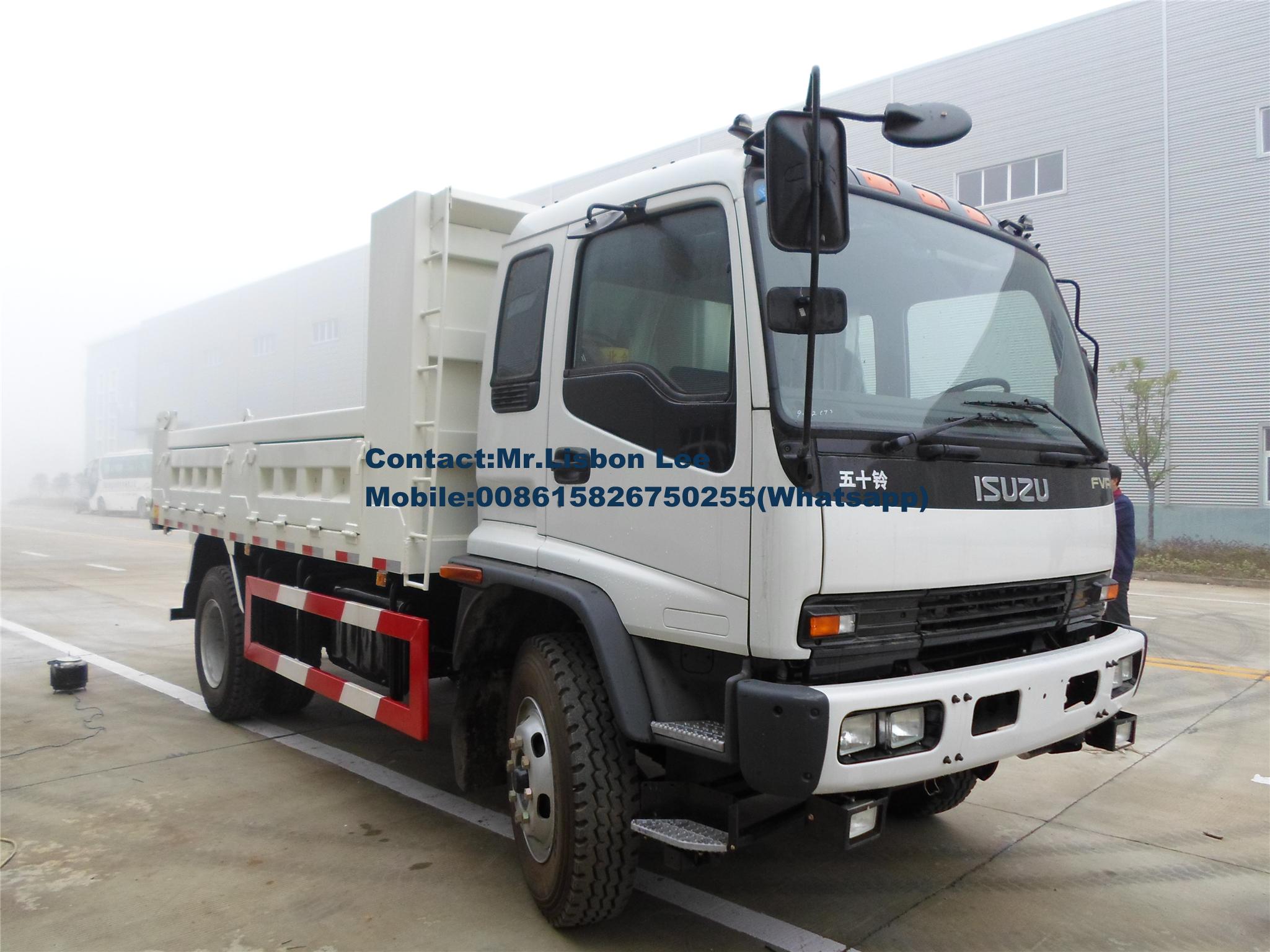

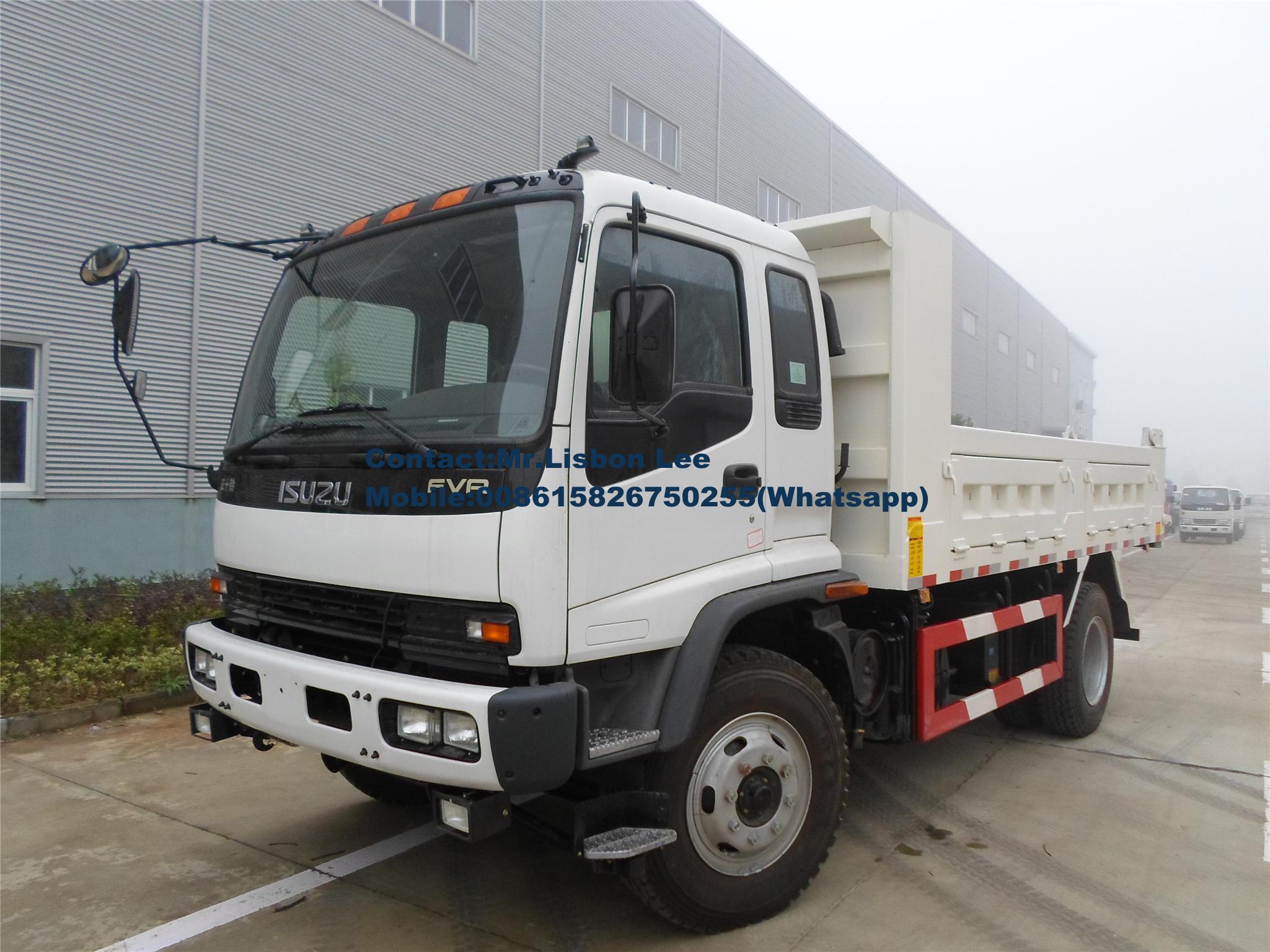

ISUZU Dump Truck 18Ton

Chassis Model

QL1180XMFRY

Main dimension

Overall dimension(mm)

8200×2500×3200

Dimension of dump box(mm)

5000×2300×600

Drive Type

4X2 Left hand drive

Wheel base (mm)

3900

Wheel track(front/rear)(mm)

1960/1855

Weight data

Curb weight(kg)

7150

Rated payload(kg)

10700

Actual max.load capacity (kg)

18000

Engine

Model

6KH1-TCL

Description

6 cylinders, in-line, with water cooling & turbo charged,inter-cooling diesel engine

Displacement(L)

7.790

Power(kw/HP)

177/240

Gearbox

Brand

ISUZU

Model

MSB 6-speed gear box, 1 reverse gear

Axles

Front axle

6.3Tons

Rear axle

13Tons

The others

Cabin

One and half rows,two doors,luxury type,with power steering,air conditioner,radio,USD

Brake

Pneumatic brake system

Wheels and tyre size

6+1/11.00R20

Number of spring plate

9/7+7

Front /rear overhang(mm)

1335/1970

Approach/departure angle(°)

20/12

Max.speed(km/h)

105

Reinforced bumper

Optional (+200 USD)

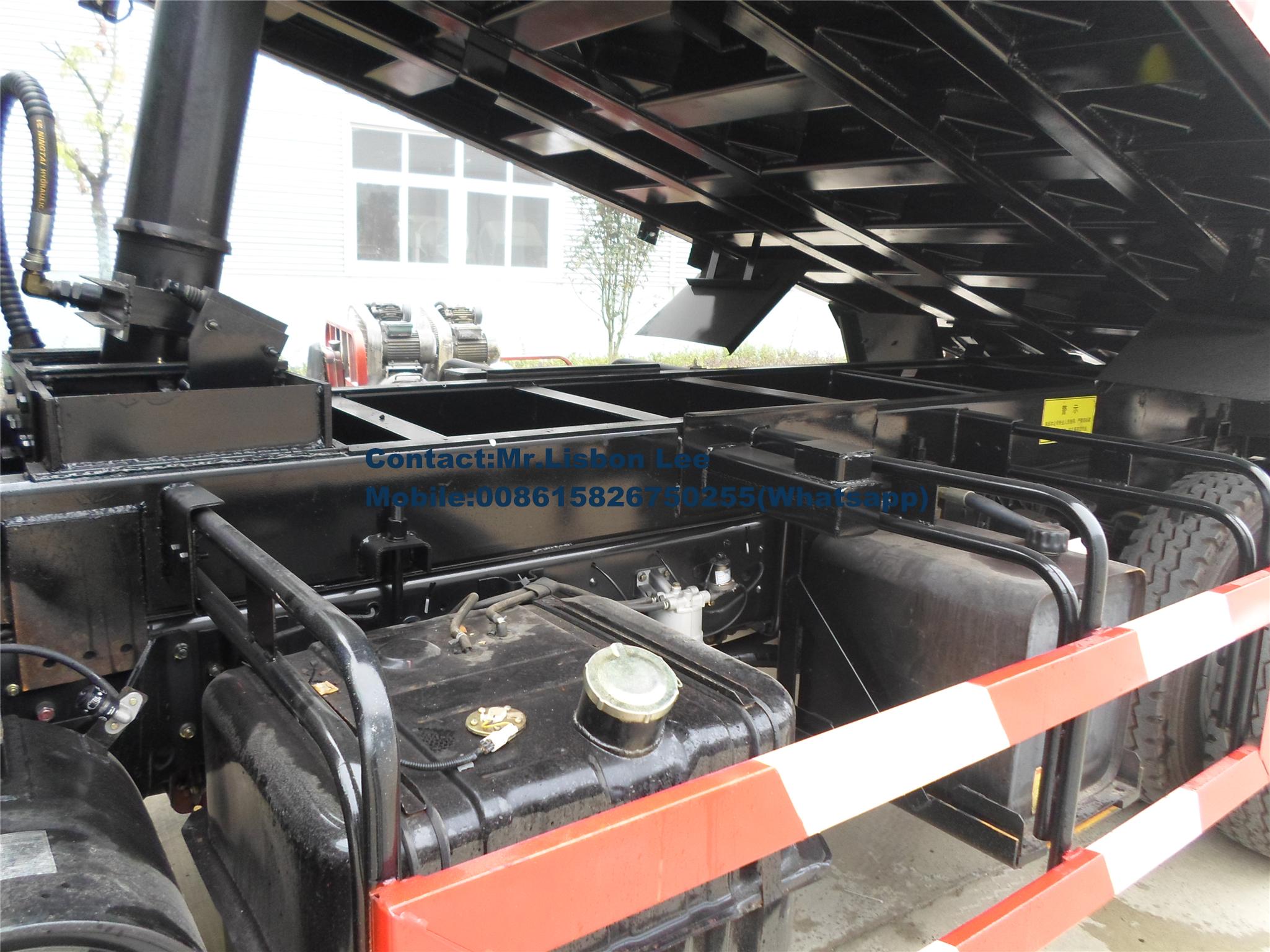

Lift system

Hydraulic middle lifting

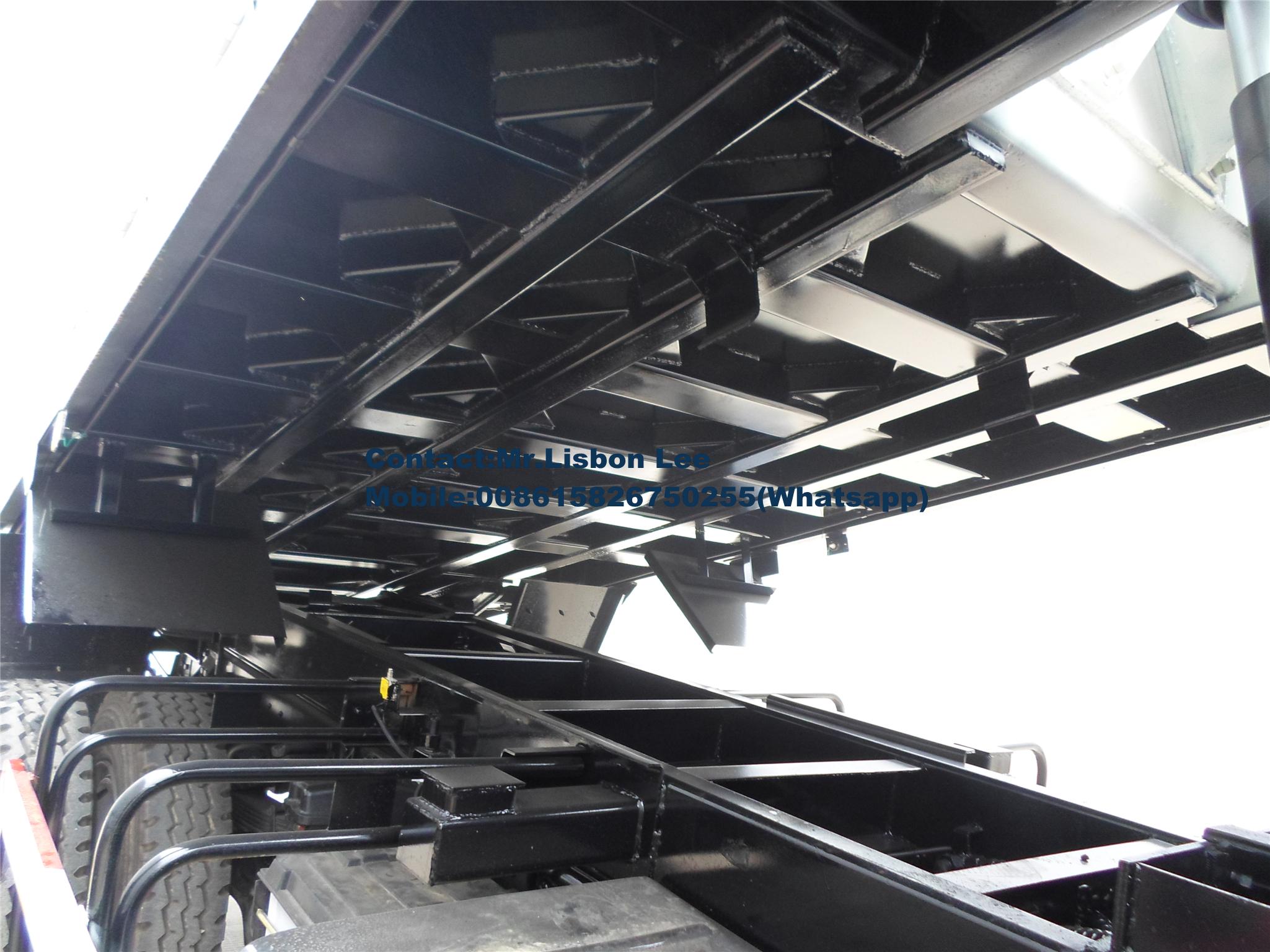

Thickness of box

Side 6mm,bottom 8mm

Material of box

WISCO Carbon Steel Q235
