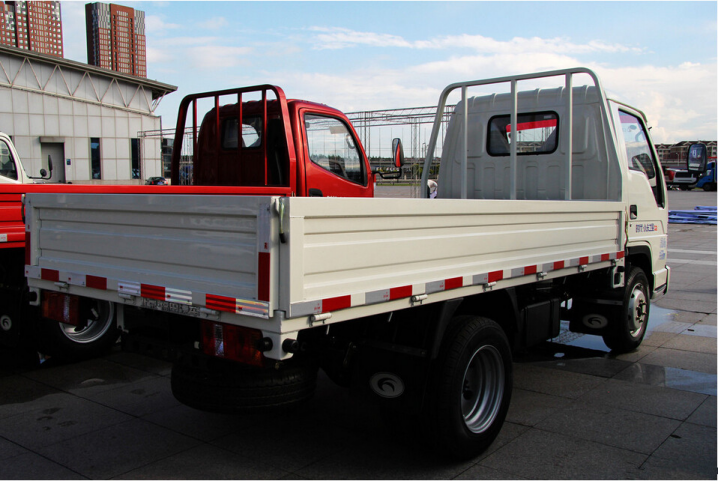

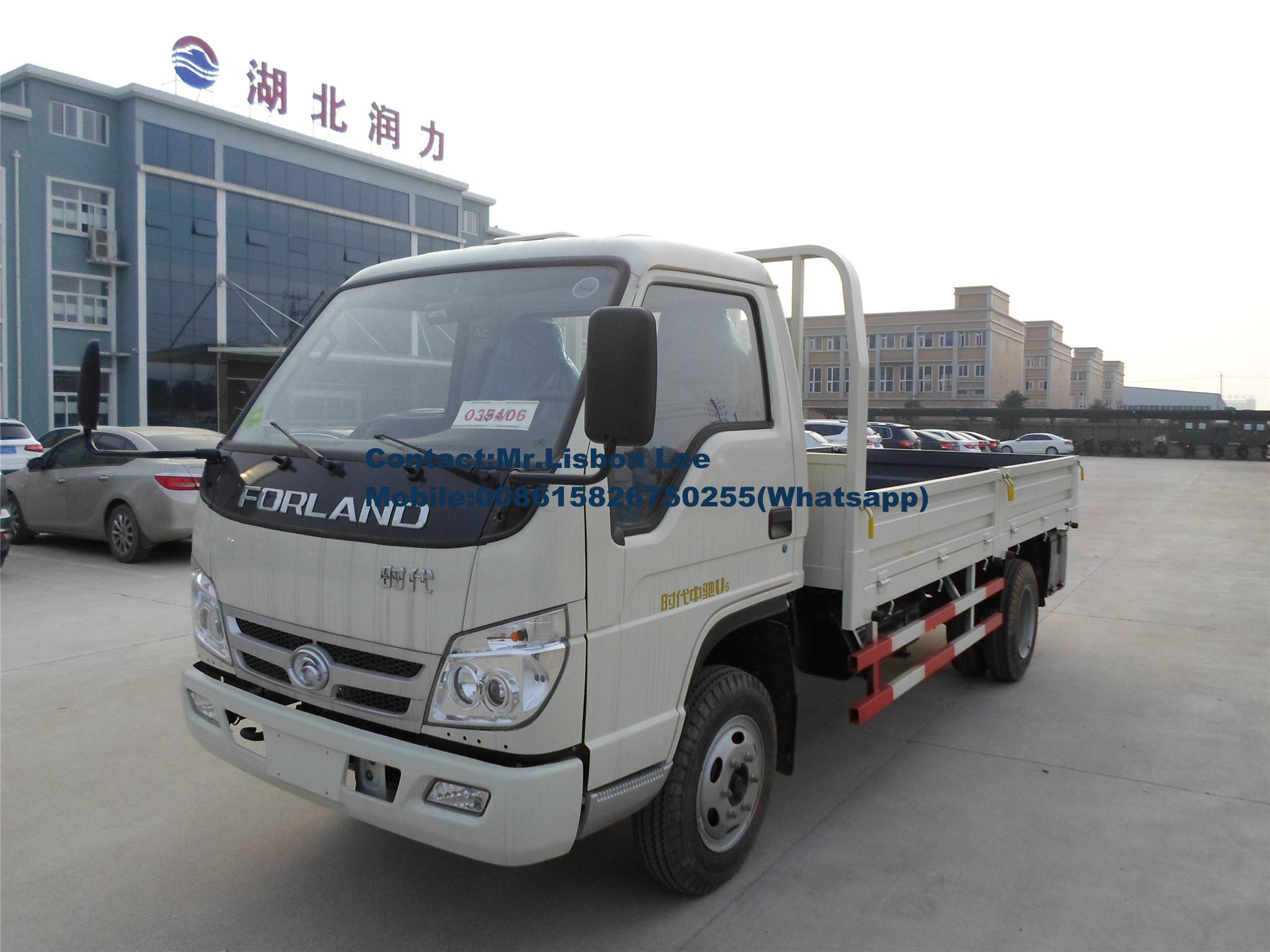

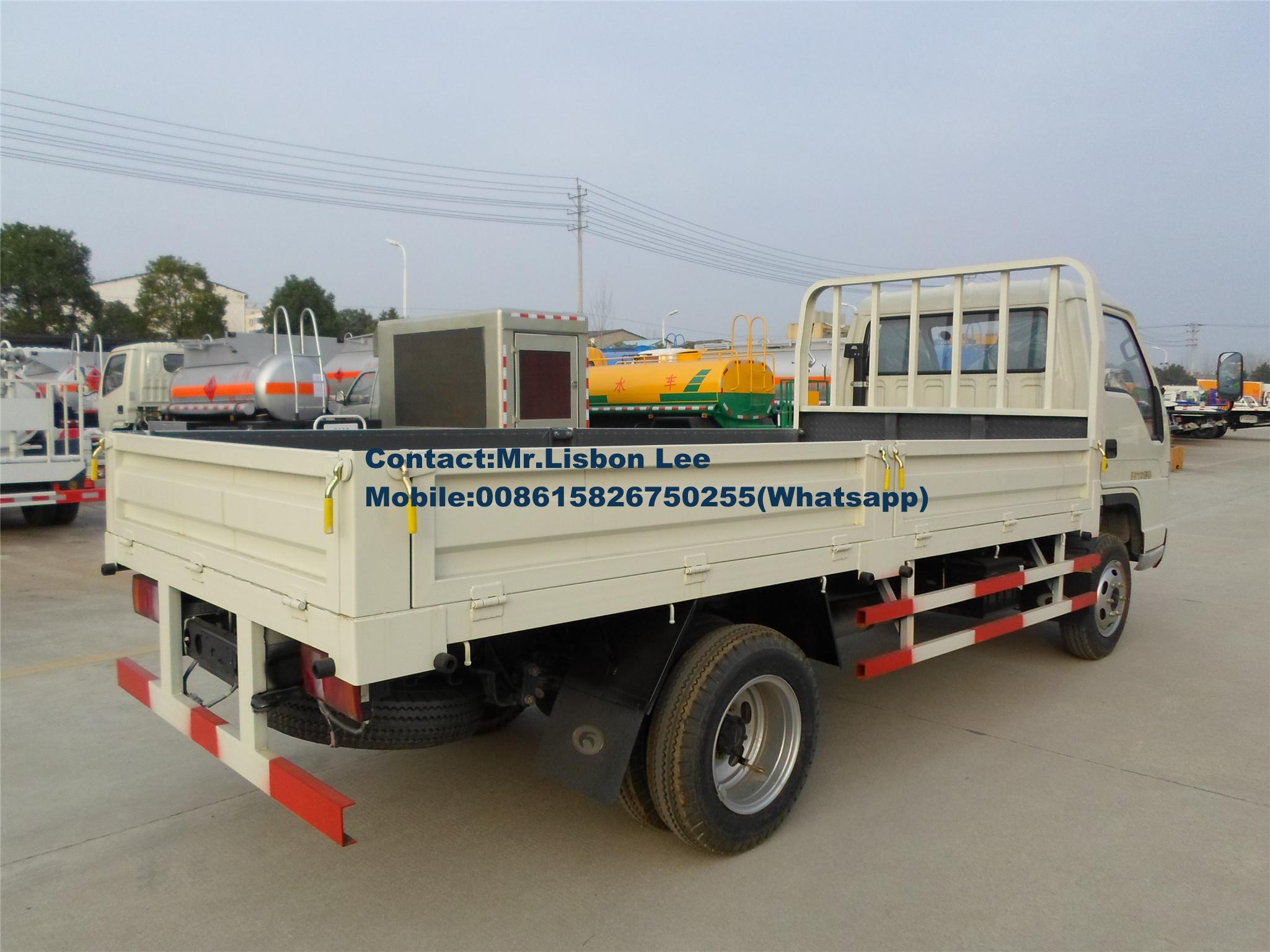

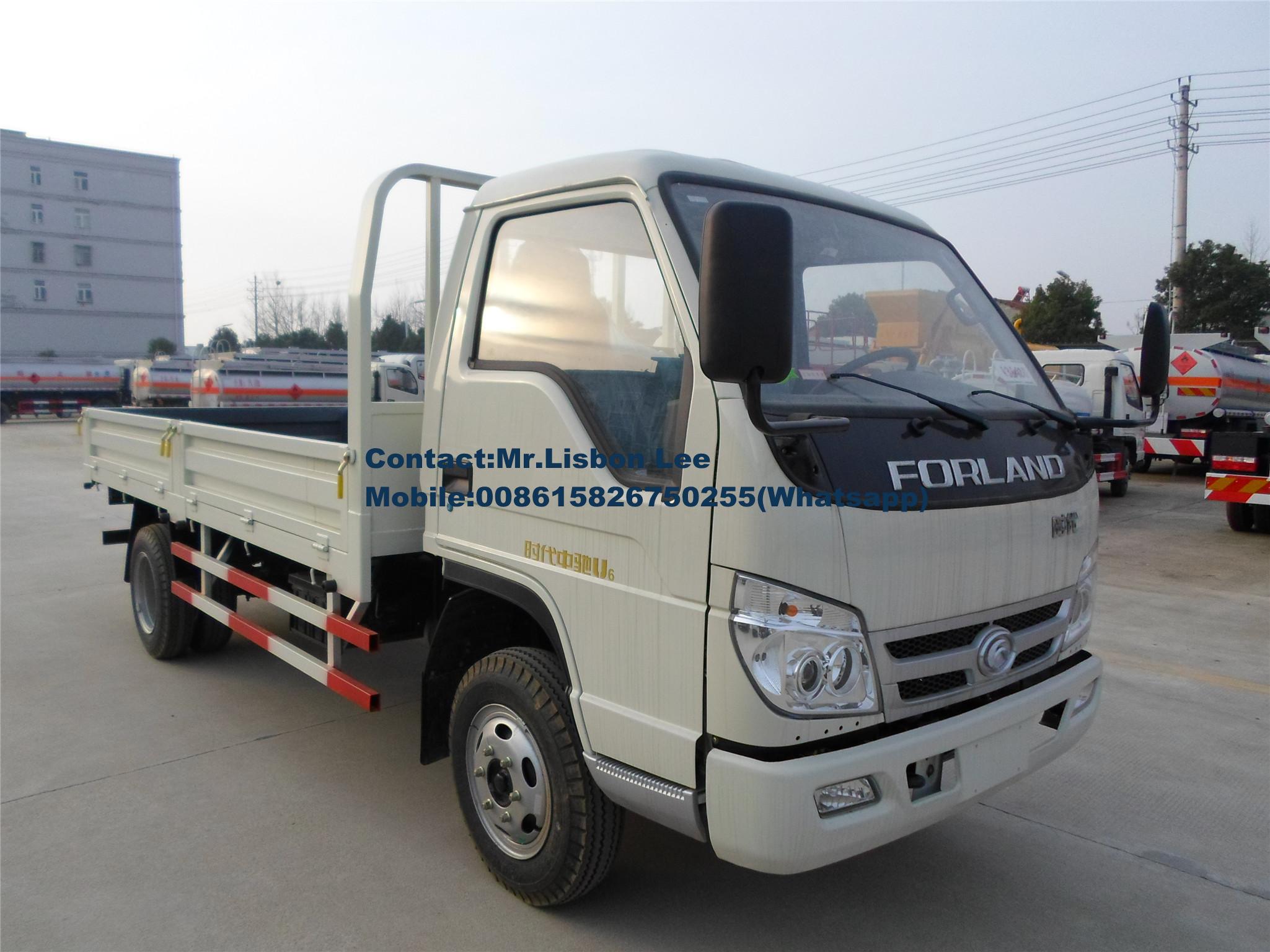

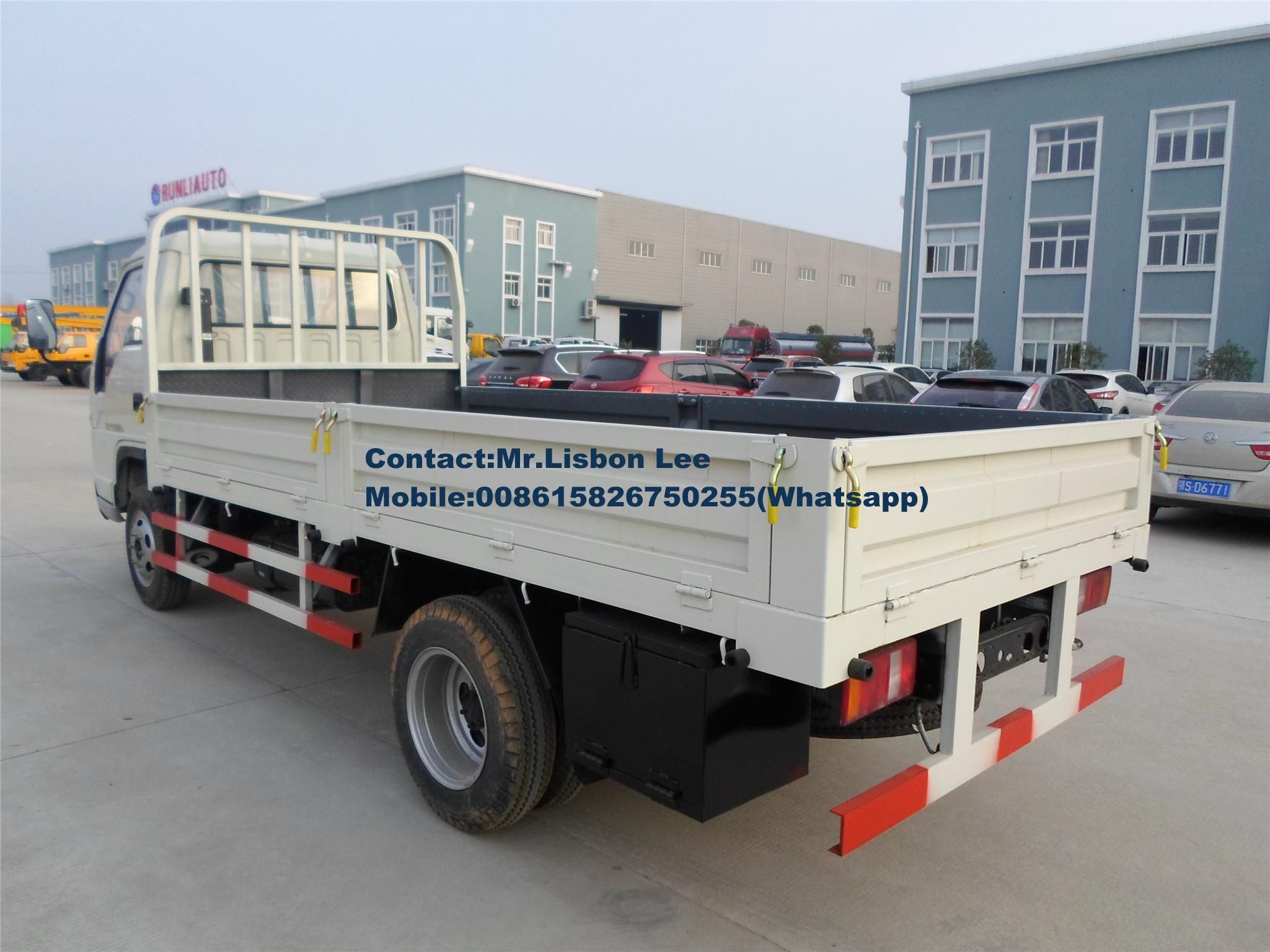

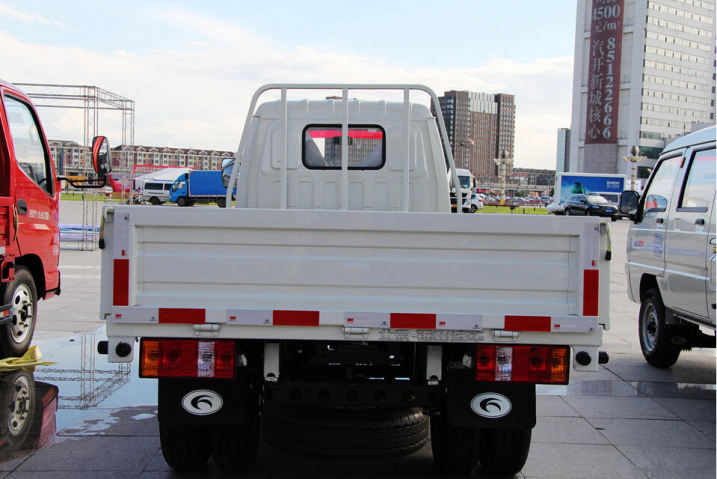

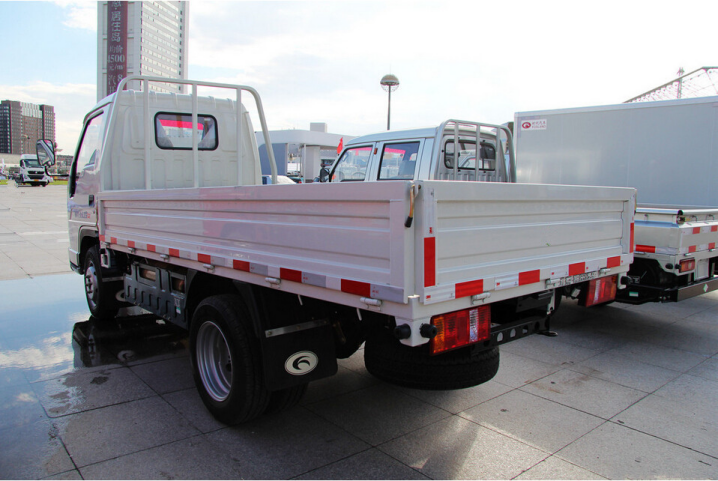

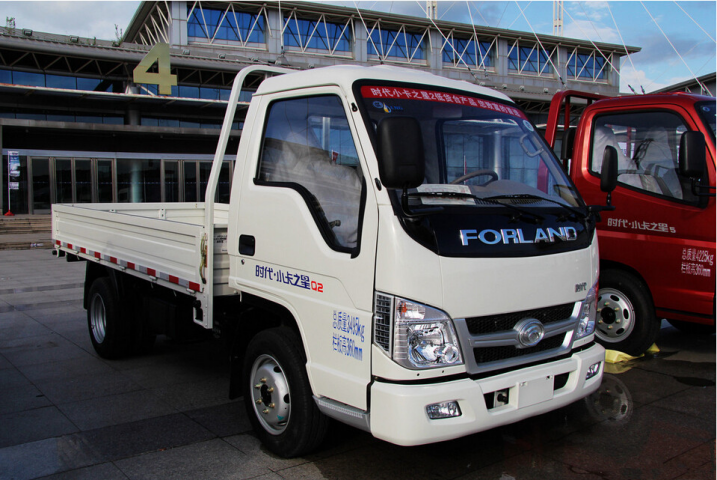

FORLAND cargo truck 5Ton

Chassis model

BJ1073VEJEA-A

Engine

Model

4DW93-95E4

Description

In-line/4 cylinders/water cooled/turbo charged/inter cooled/diesel engine

Rated power of engine (kw/HP)

72/98

Maximum torque (N.m@rpm)

250@1900~2100

Displacement (ml)

2540

Gearbox

Description

Manual,5 forward gears,1 reverse gear

Front / Rear axle

Front axle load (Kg)

2790

Rear axle load(Kg)

4555

Drive type

4X2

Type of tire

6.50-16

Quantity of tires

6+1

Quantity of leaf spring

4/6+7

Brake

system

Service brake type

Drum type, hydraulic pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

2450

Load weight(Kg)

5000

Performance parameter

Maximum speed (km/h)

95

Maximum grade ability (%)

≥25%

Fuel consumption unloaded

(L/100km)

9.8

General fuel consumption

(L/100km)

16.3

Minimum ground clearance

(mm)

450

Dimension parameters

Overall dimensions

(LxWxH)mm

5995×1930×2230

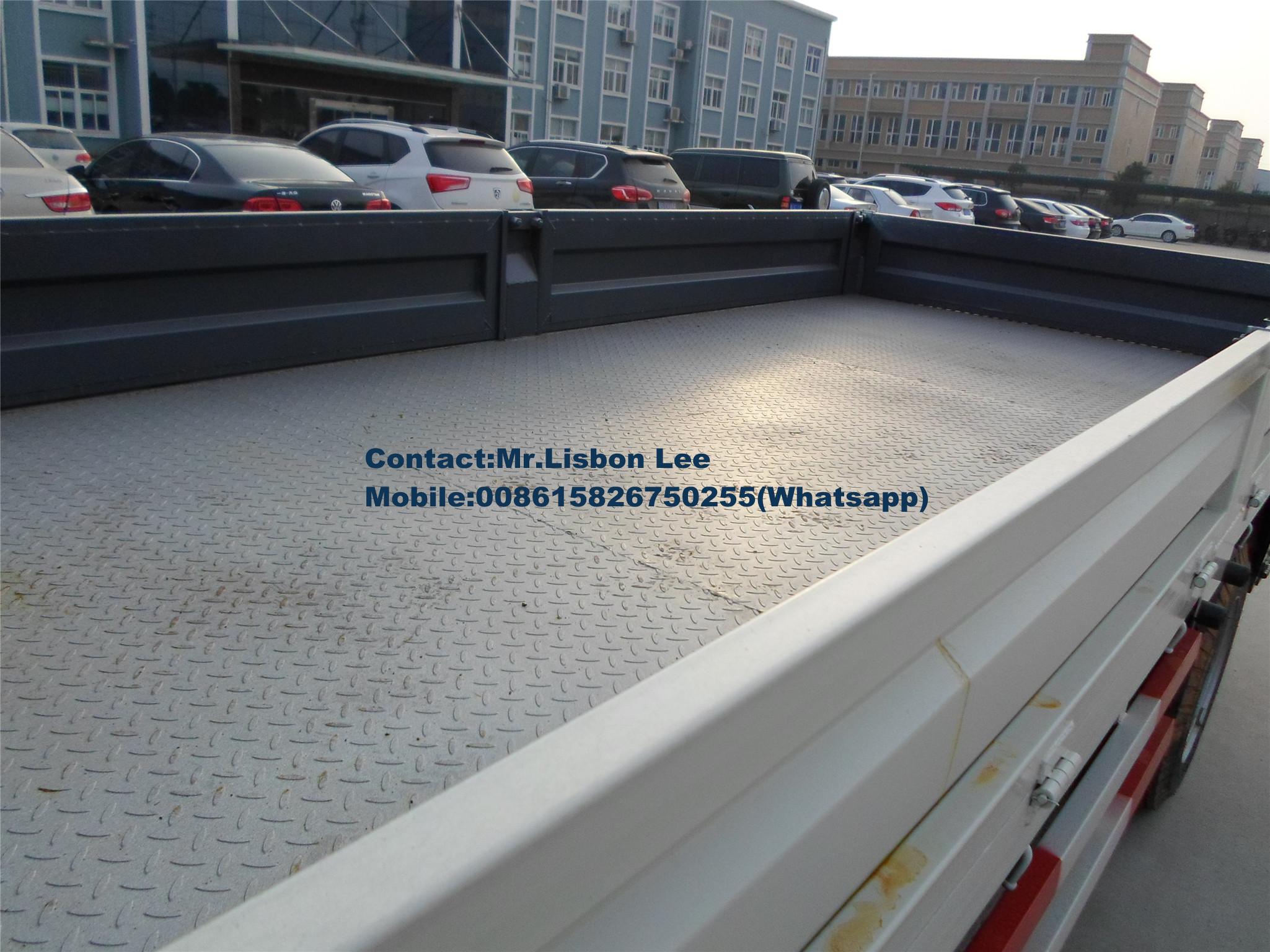

Internal van dimensions

(LxWxH)mm

4230×1810×360

Wheelbase (mm)

3360

Front/rear wheel track (mm)

1415/1485

Front/rear suspension (mm)

1085/1550

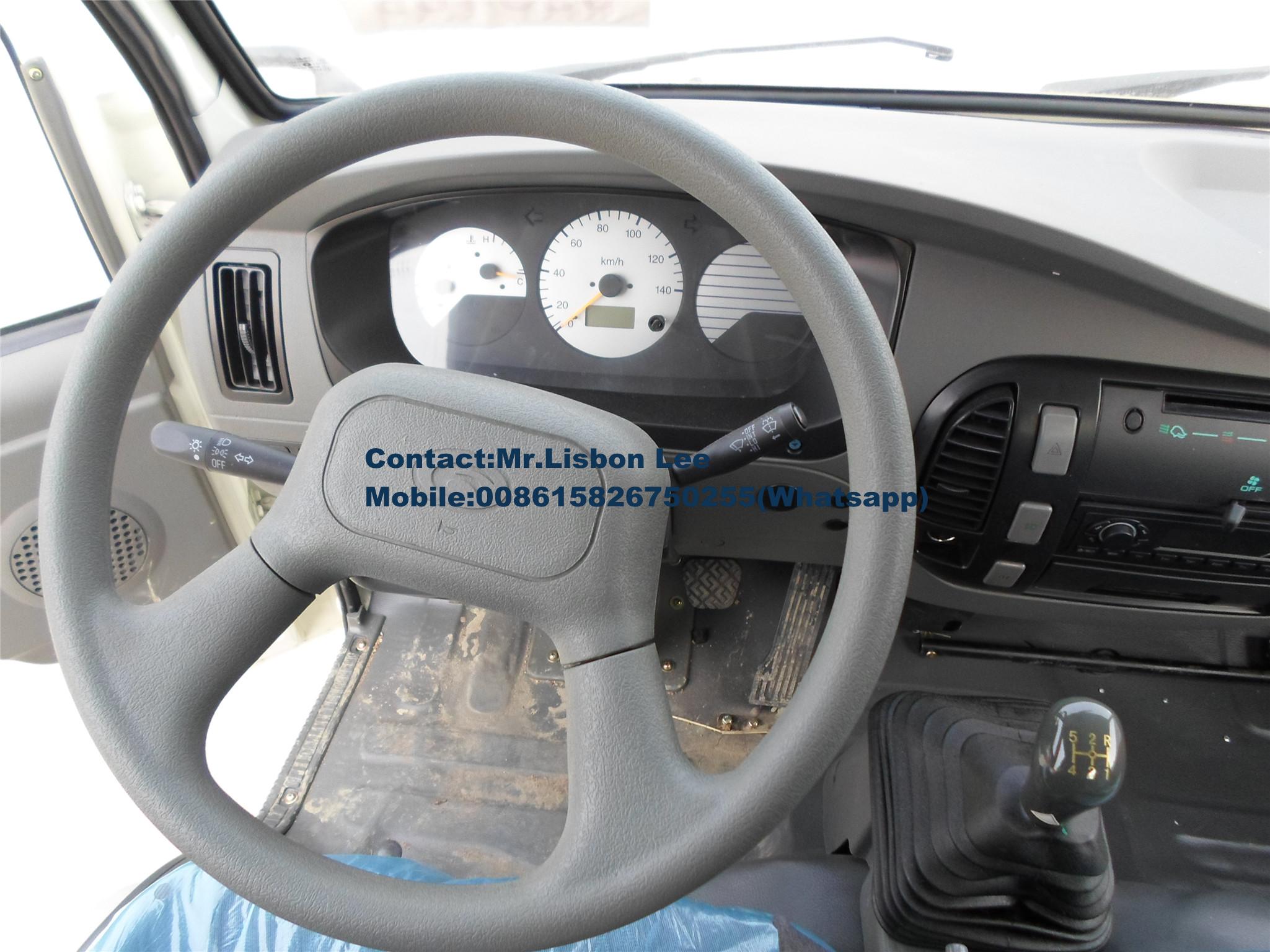

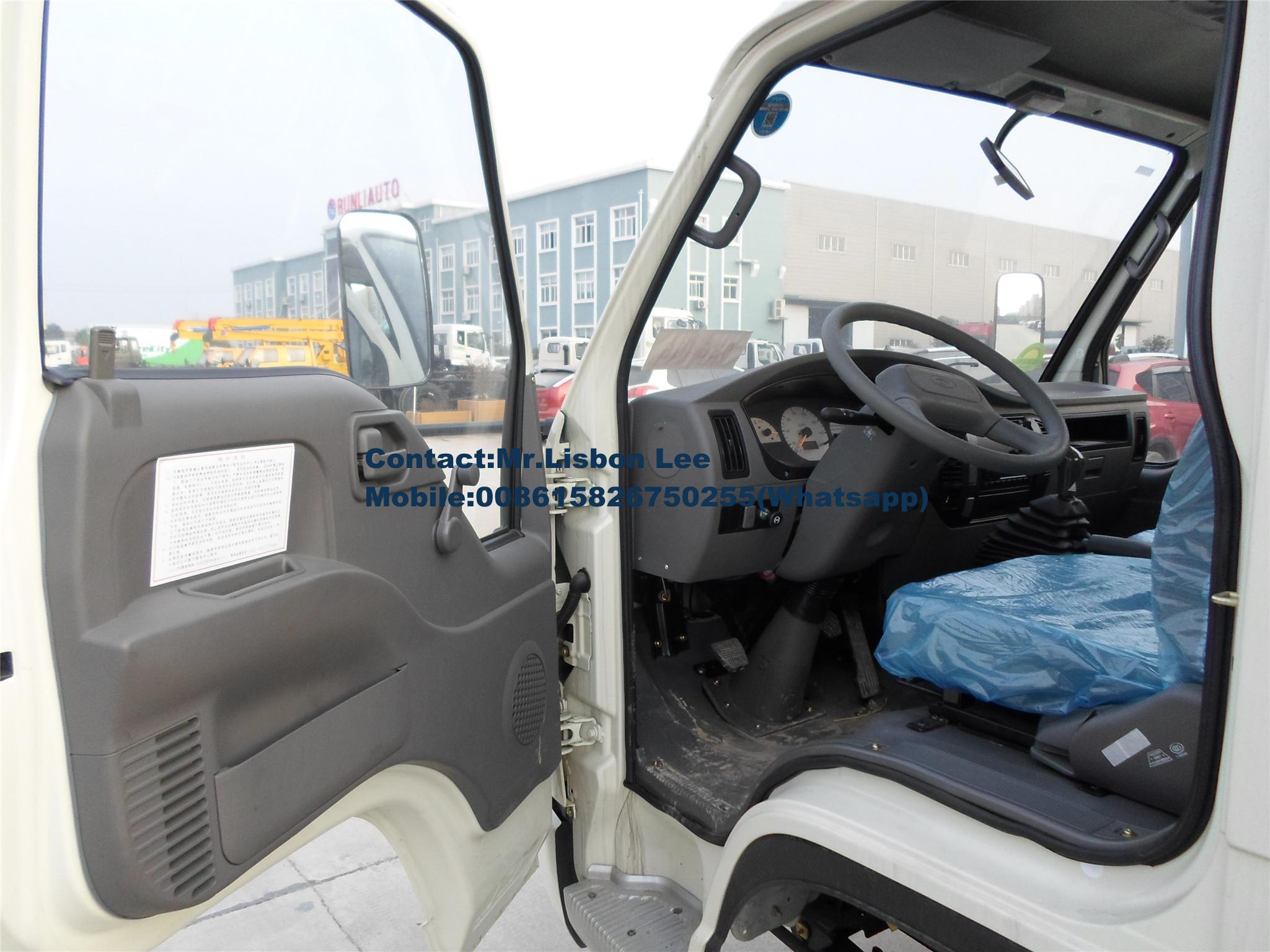

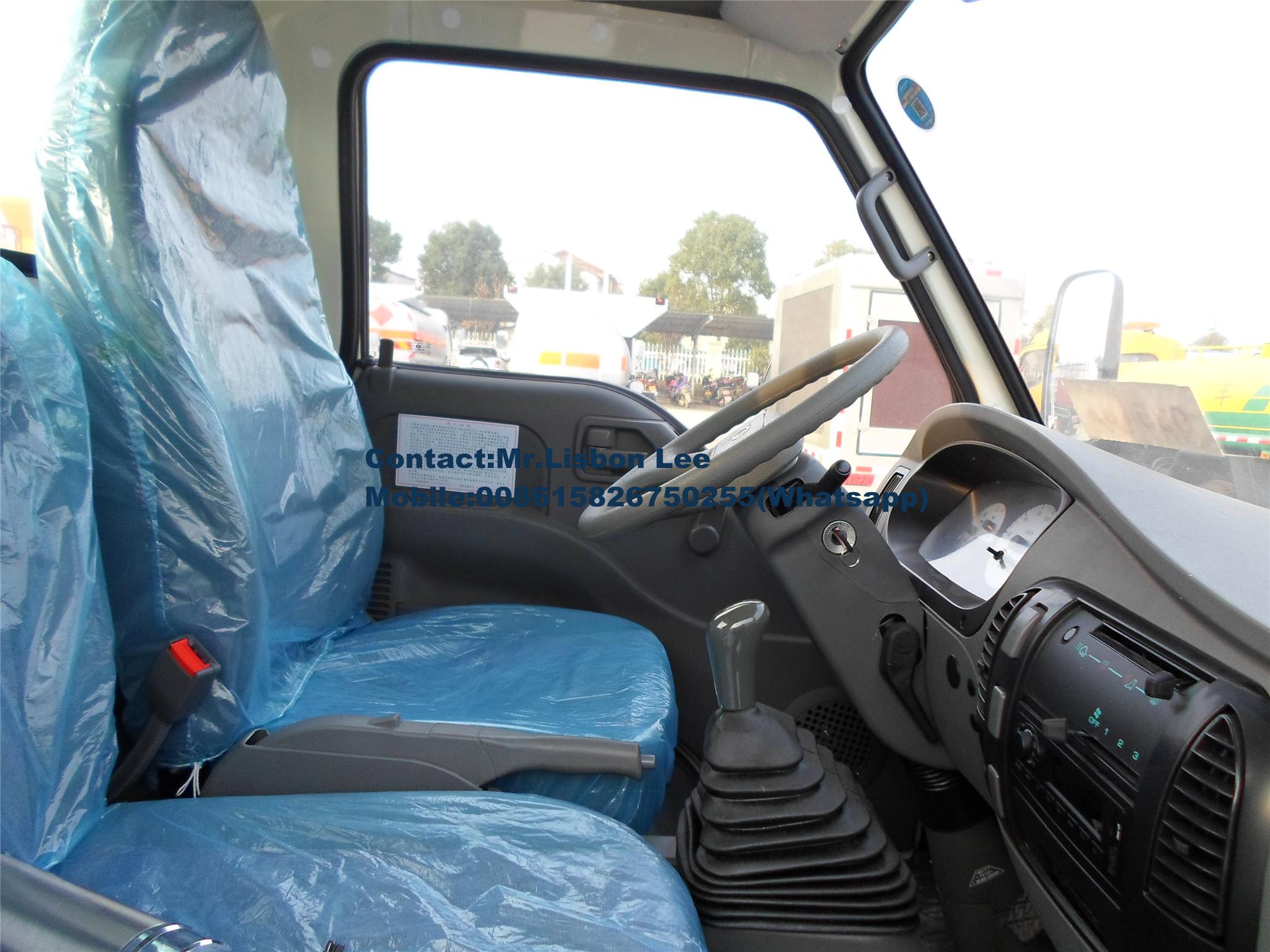

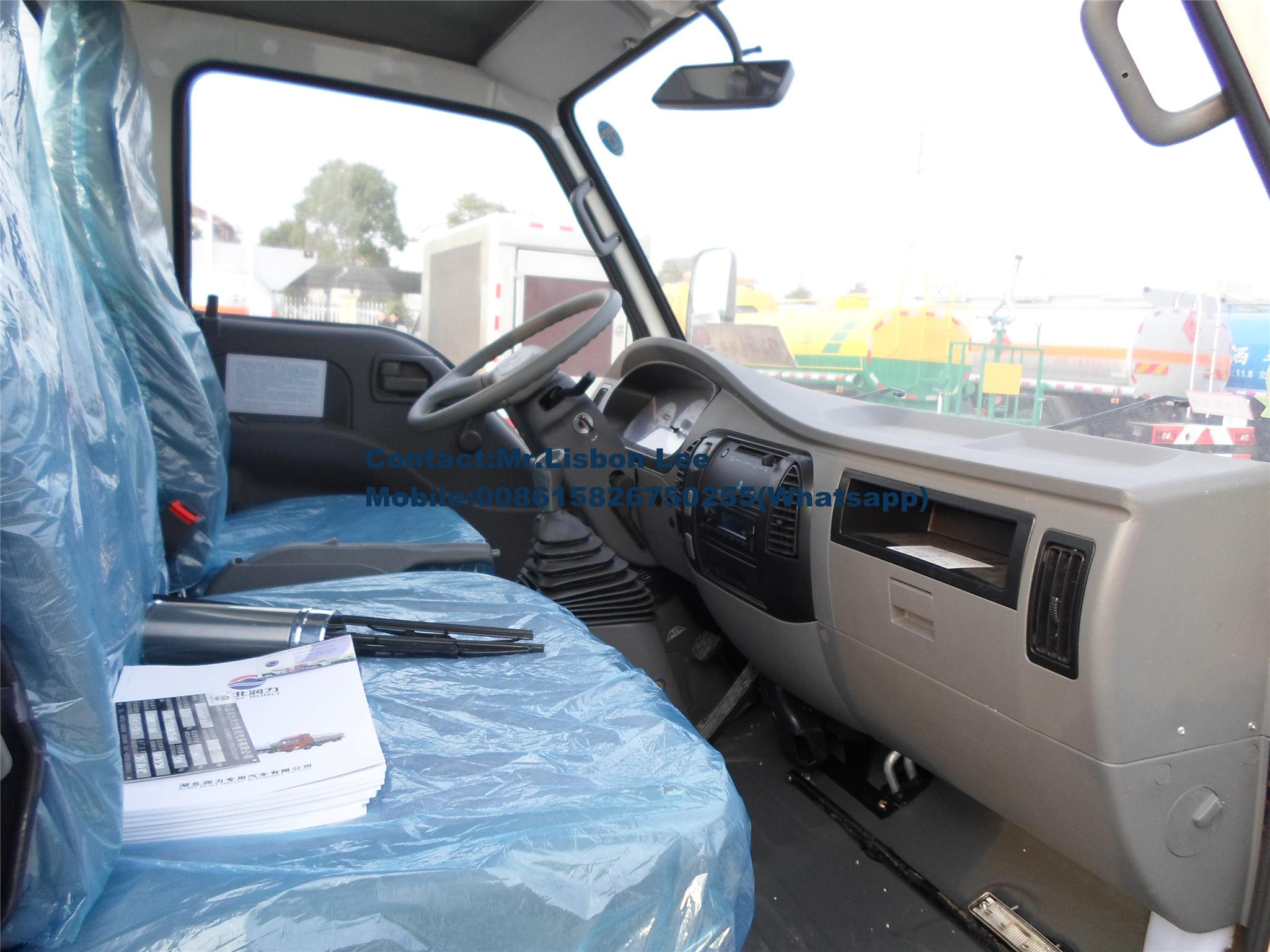

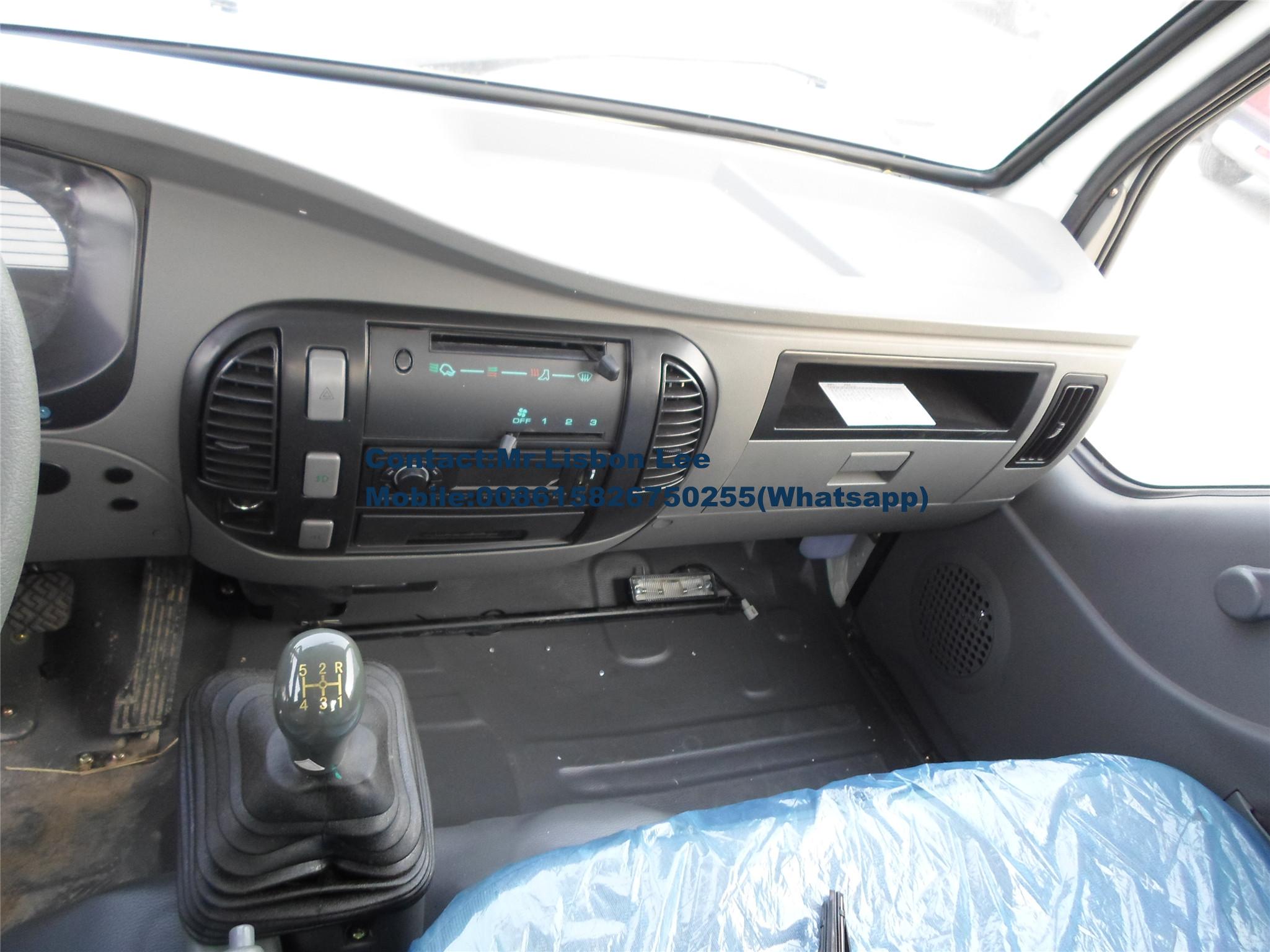

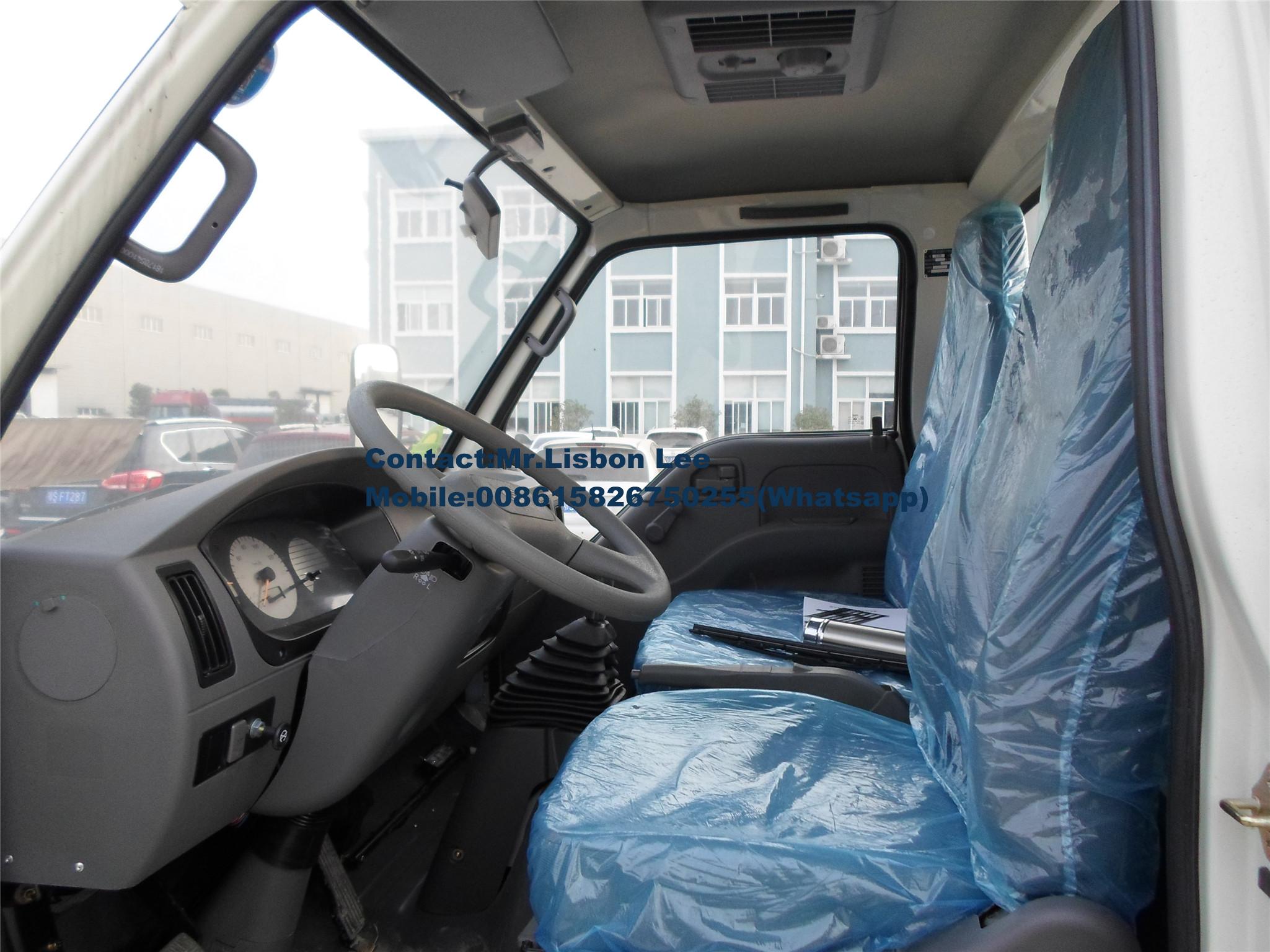

Cabin

Single row,metallic painting,electronic controlled

flame-out, auxiliary brake, adjustable steering wheel,

power-assisted clutch

Rated voltage (V)

12
