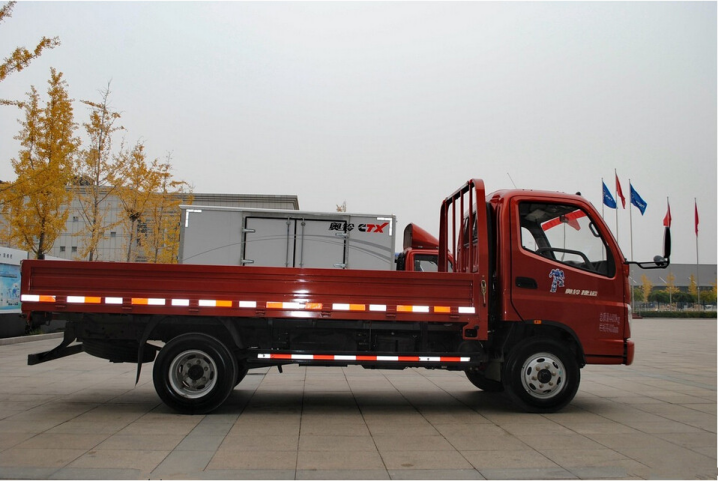

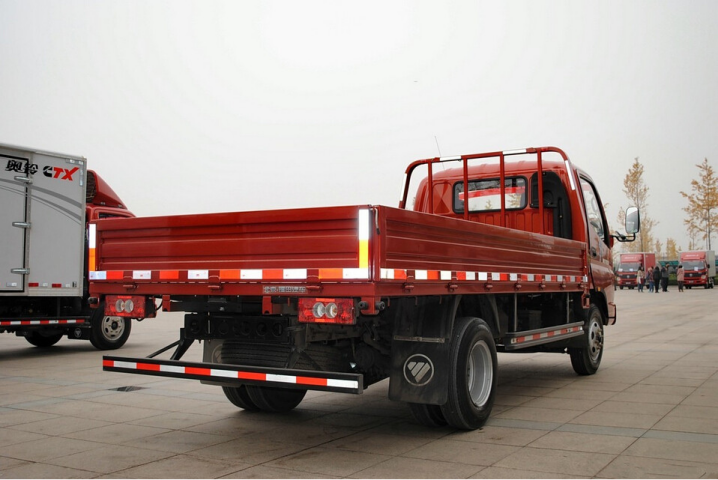

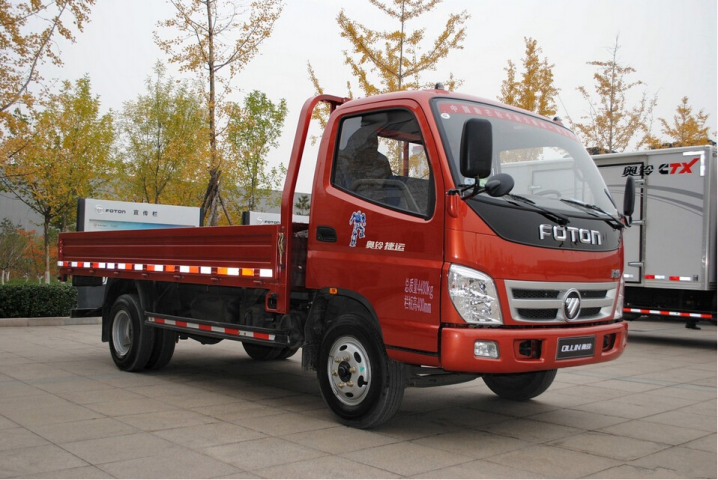

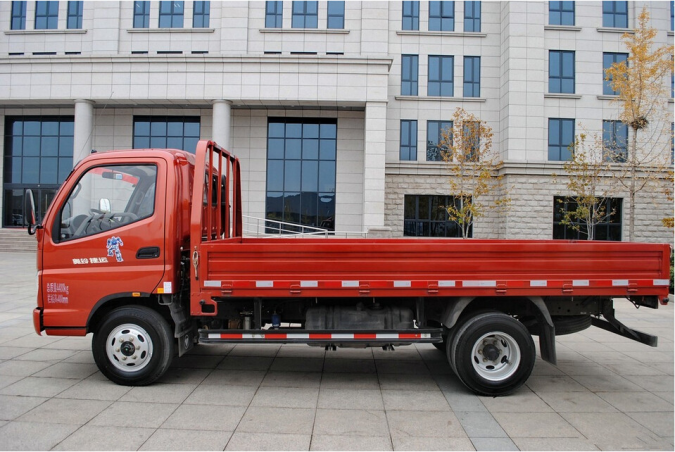

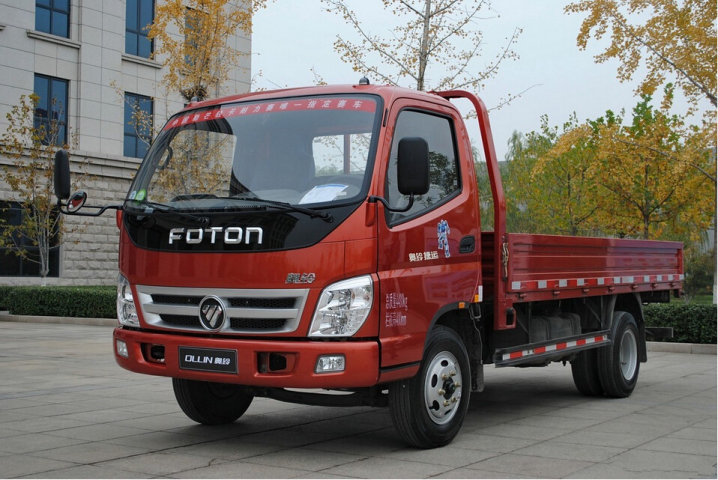

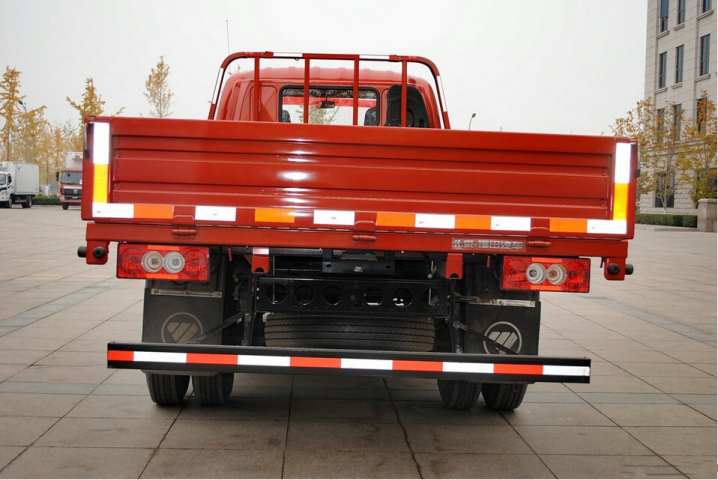

FOTON Cargo Truck 5Ton

Chassis model

BJ1049V9JW6-A

Engine

Model

BJ491EQ2

Description

In-line/4 cylinders/turbo charged/inter cooled/direct injection/diesel

Rated power of engine

(kw/HP)

70/95

Displacement (ml)

2237

Emission standard

Euro 2

Gearbox

Description

Manual,5 forward gears,1 reverse gear

Front / Rear axle

Drive type

4X2

Type of tire

6.50R16

Quantity of tires

6+1

Quantity of leaf spring

9/9+8

Brake system

Service brake type

Drum type, hydraulic pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

LHD,power steering

Weight parameter

Curb weight (Kg)

2340

Load weight(Kg)

5000

Performance parameter

Maximum speed (km/h)

95

Maximum grade ability (%)

≥25

Dimension parameters

Overall dimensions (LxWxH)mm

5995×1900×2260

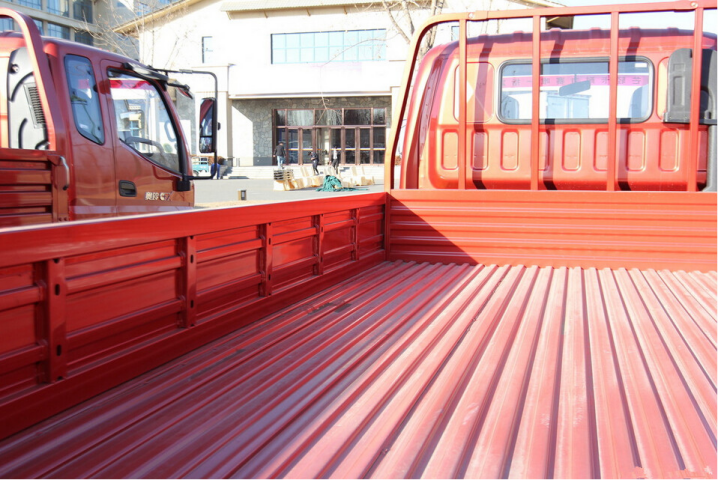

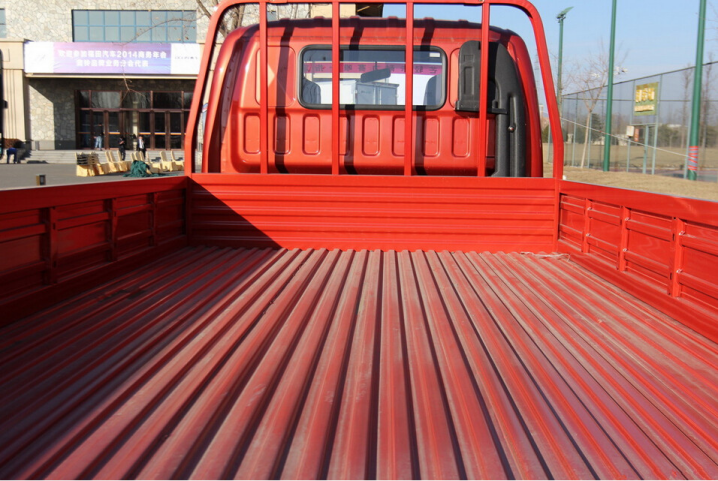

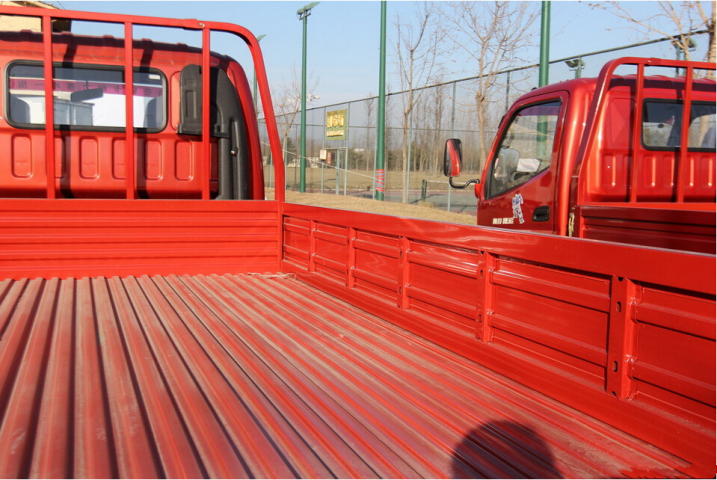

Internal van dimensions (LxWxH)mm

4230×1810×380

Wheelbase (mm)

3360

Front/rear wheel track (mm)

1530/1425

Front/rear suspension (mm)

1085/1550

Cabin

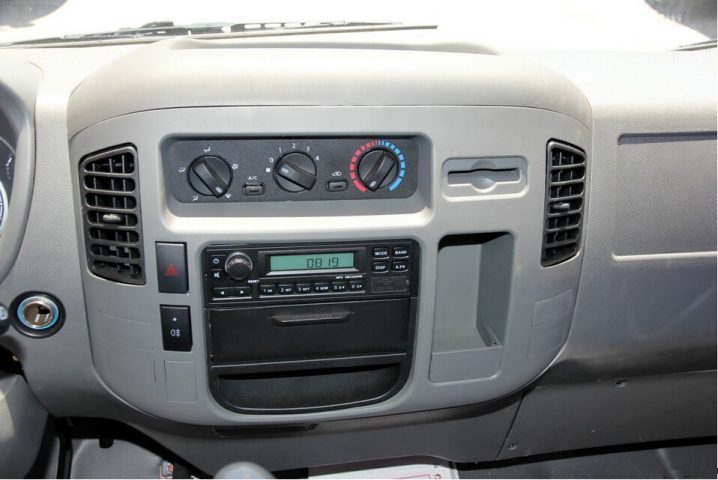

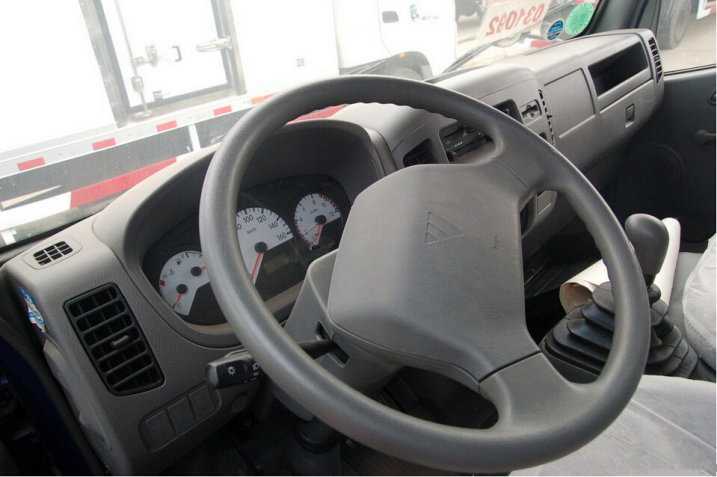

Single row,metallic painting,luxury sedan dashboard,

electronic controlled flame-out, auxiliary brake, adjustable steering wheel,power-assisted clutch
