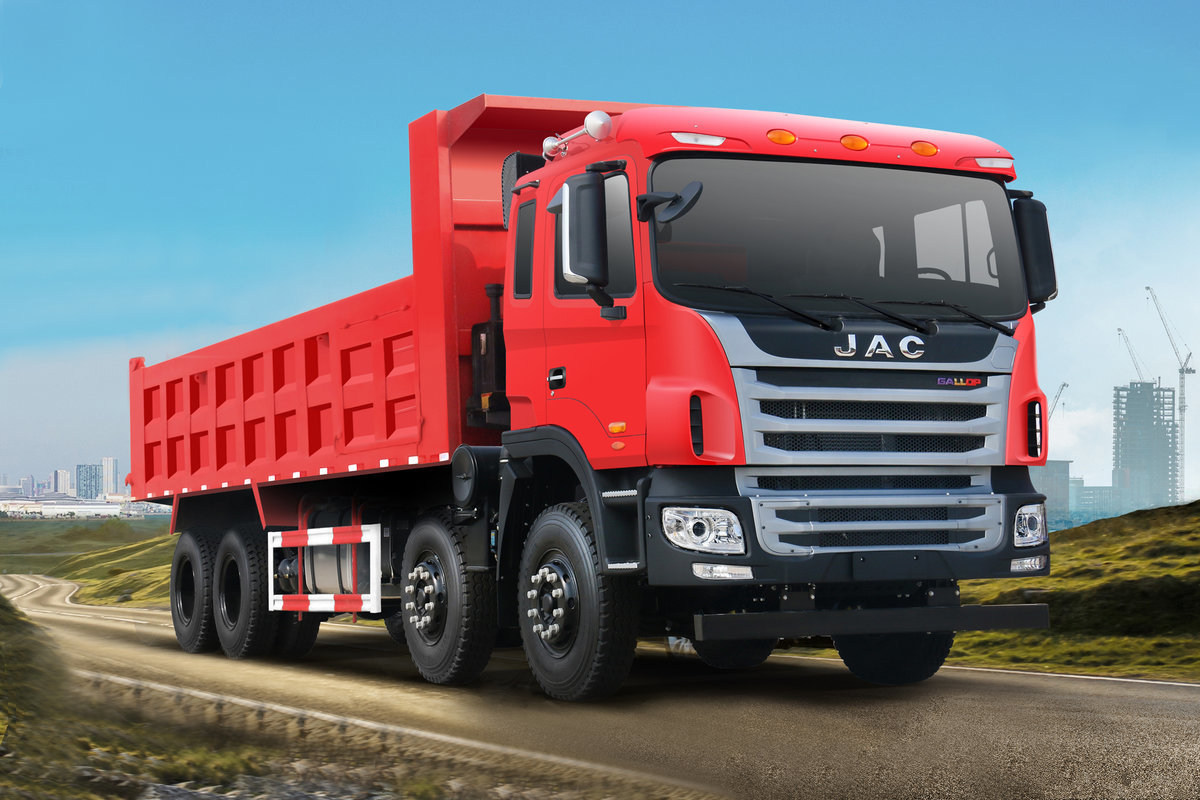

Chassis model |
HFC3311P1K6H41S3V |
|
|
Engine |
||
|
Model |
WP10.350E53 |
|
|
Description |
In-line/6 cylinders/turbo charged/inter cooled/water cooled/diesel engine |
|
|
Rated power of engine (kw/HP) |
257/350 |
|
|
Displacement (ml) |
9726 |
|
|
Emission standard |
Euro V |
|
|
Gearbox |
||
|
Description |
10JSD160+QH50,manual,10 forward gears,2 reverse gears |
|
|
Front / Rear axle |
||
|
Front axle load (Kg) |
6500,6500 |
|
|
Rear axle load(Kg) |
18000 |
|
|
Drive type |
8X4 |
|
|
Type of tire |
12.00R20 16PR |
|
|
Quantity of tires |
12+1 |
|
|
F/R leaf spring |
Non-independent suspension, with auxiliary leaf spring 9/9/12 |
|
|
Brake system |
Service brake type |
Drum type, air pressure double loop braking |
|
Parking brake type |
Energy storage spring rear wheel braking |
|
|
Steering device |
Left hand drive,power steering |
|
|
Weight parameter |
||
|
Curb weight (Kg) |
15500 |
|
|
Load capacity(Kg) |
40000 |
|
|
Performance parameter |
||
|
Maximum speed (km/h) |
85 |
|
|
Maximum grade ability (%) |
≥22% |
|
|
Dimension parameters |
||
|
Overall dimensions (LxWxH)mm |
10805×2550×3500 |
|
|
Internal van dimensions (LxWxH)mm |
8000×2350×1200 |
|
|
Wheelbase (mm) |
1800+4100+1350 |
|
|
Front/rear wheel track (mm) |
2040,2040/1880,1880 |
|
|
Front/rear suspension (mm) |
1495/2060 |
|
|
Rated voltage (V) |
24 |
|
|
Cabin |
One and half rows,metallic painting,luxury dashboard,electronic controlled flame-out,3 passengers allowable,electronic preheating, adjustable steering wheel,power-assisted clutch,power steering,MP3,A/C |
|
