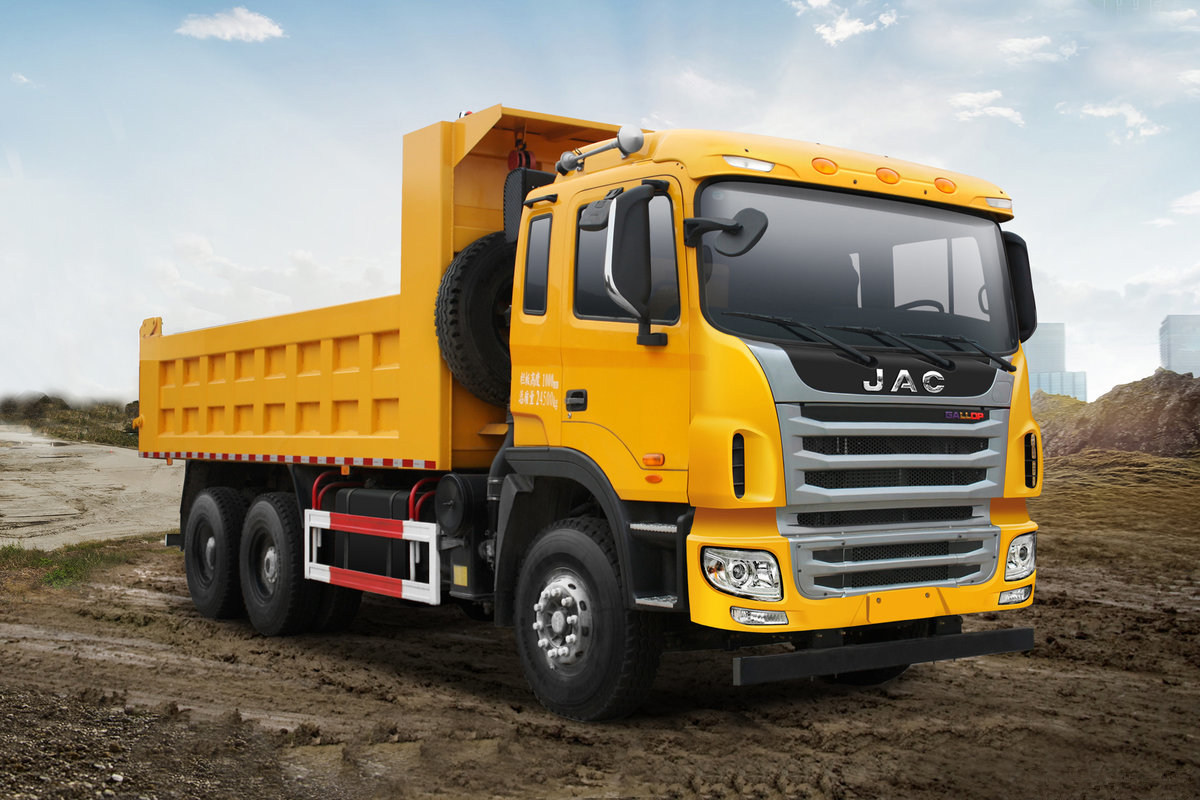

JAC 6X4 Dump Truck

Chassis model

HFC3251P1K5E36S3V

Engine

Model

WP10.350E53

Description

In-line/6 cylinders/turbo charged/inter cooled/water cooled/diesel engine

Rated power of engine (kw/HP)

257/350

Displacement (ml)

9726

Emission standard

Euro V

Gearbox

Description

10JSD160+QH50,manual,10 forward gears,2 reverse gears

Front / Rear axle

Front axle load (Kg)

7000

Rear axle load(Kg)

18000

Drive type

6X4

Type of tire

12.00R20 16PR

Quantity of tires

10+1

F/R leaf spring

Non-independent suspension, with auxiliary leaf spring 10/12

Brake system

Service brake type

Drum type, air pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

12450

Load capacity(Kg)

30000

Performance parameter

Maximum speed (km/h)

85

Maximum grade ability (%)

≥22%

Dimension parameters

Overall dimensions (LxWxH)mm

8035×2500×3500

Internal van dimensions (LxWxH)mm

5200×2300×950

Wheelbase (mm)

3690+1350

Front/rear wheel track (mm)

2040/1860,1860

Front/rear suspension (mm)

1495/1500

Rated voltage (V)

24

Cabin

One and half rows,metallic painting,standard dashboard,electronic controlled flame-out,3 passengers allowable,electronic preheating, adjustable steering wheel,power-assisted clutch,power steering,MP3,A/C
