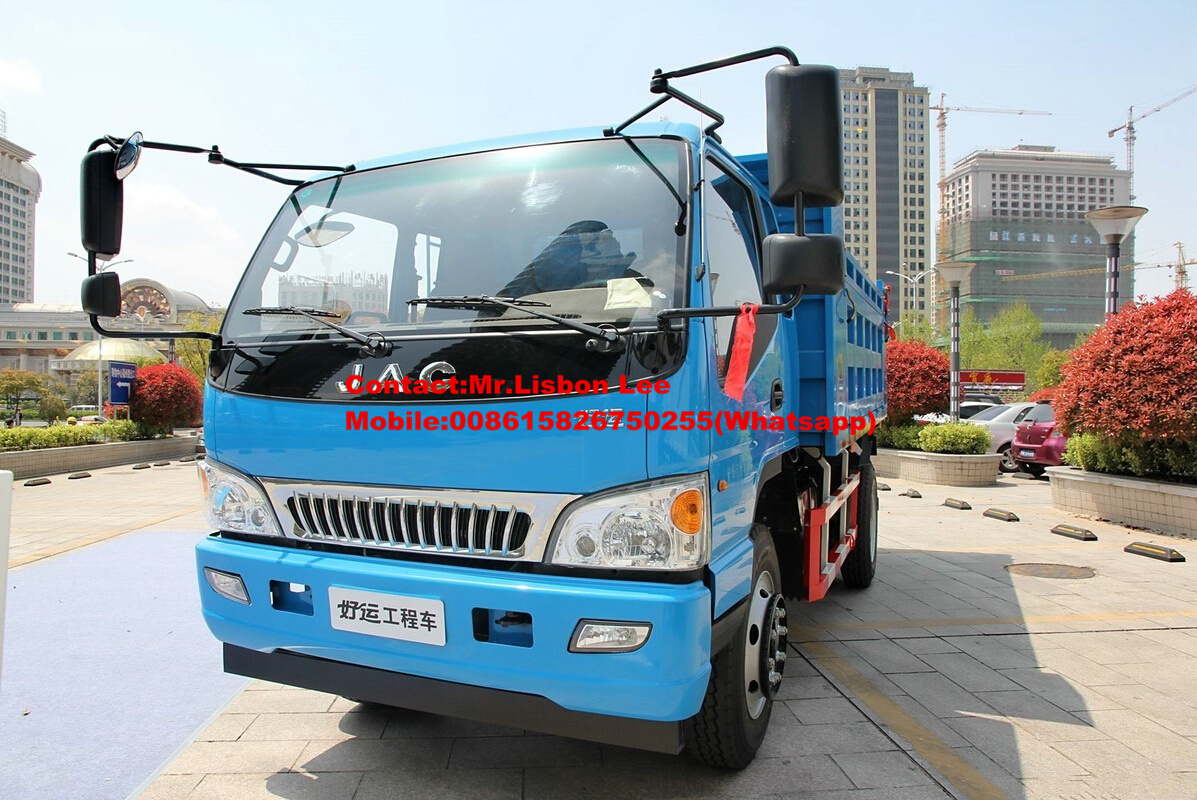

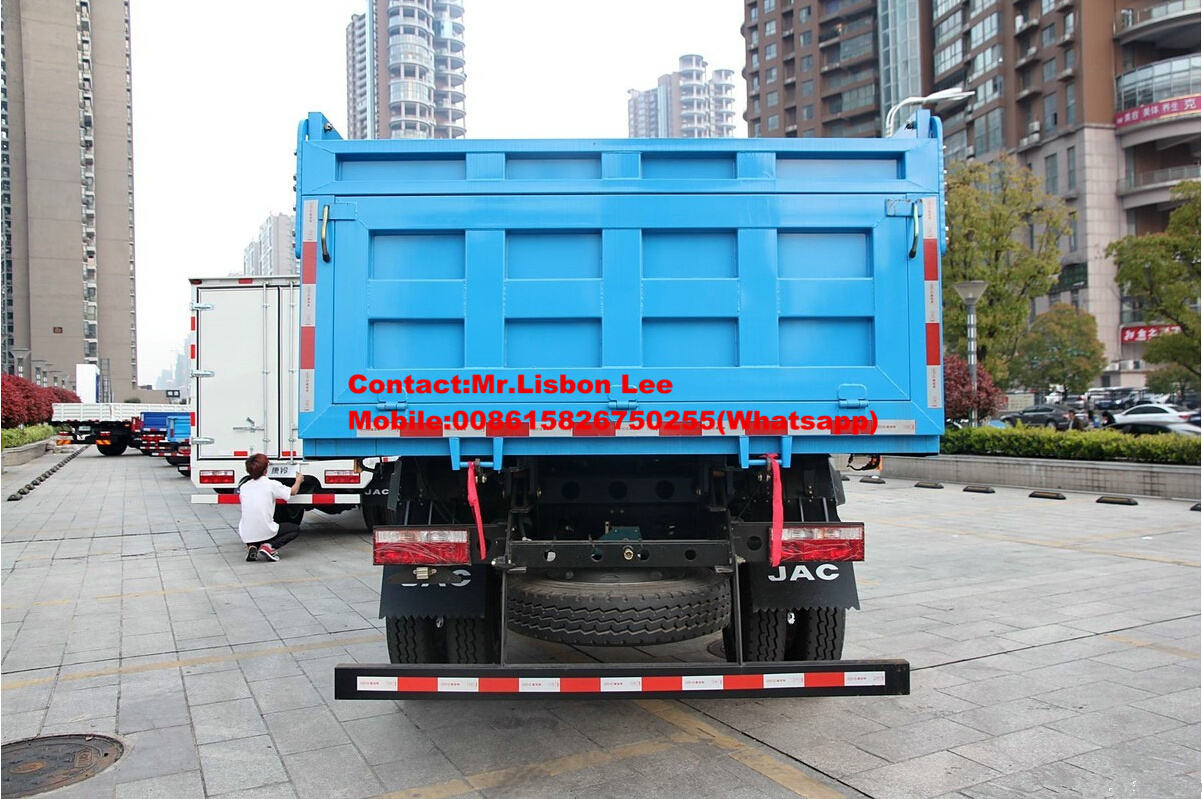

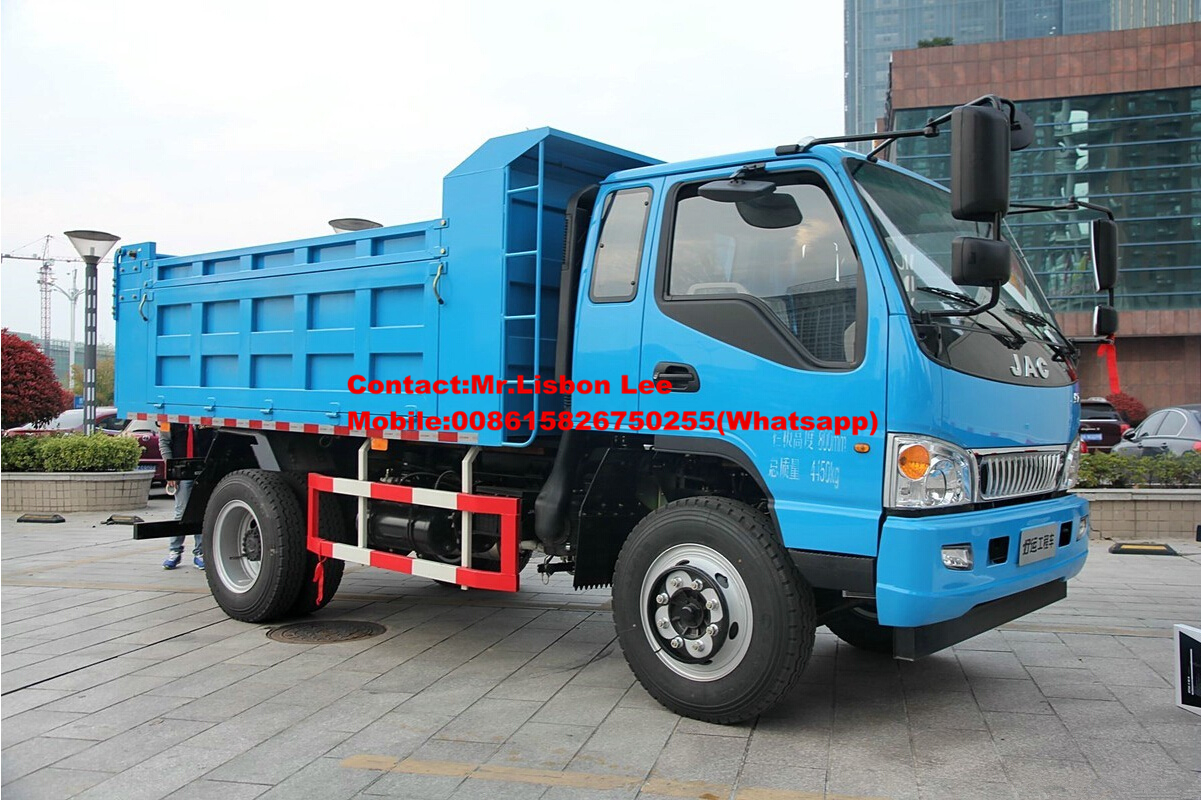

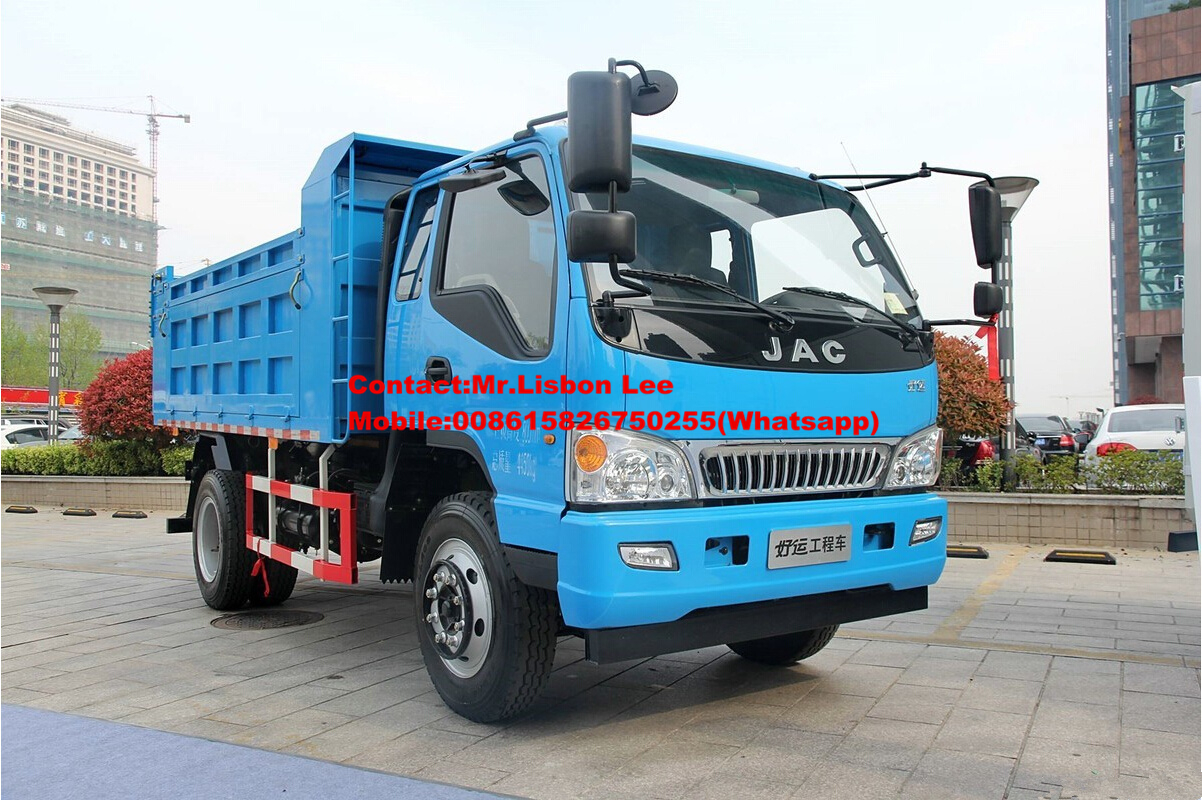

JAC dump truck 8Ton

Chassis brand

JAC

Chassis model

HFC3080P92K1C8V

Engine

Model

YN33CRE1

Description

In-line/4 cylinders/turbo charged/inter cooled/water cooled/high pressure,common-rail,diesel engine

Rated power of engine (kw/HP)

85/116

Maximum torque (N.m@rpm)

315@1600~2400

Displacement (ml)

3298

Emission standard

Euro V

Gearbox

Description

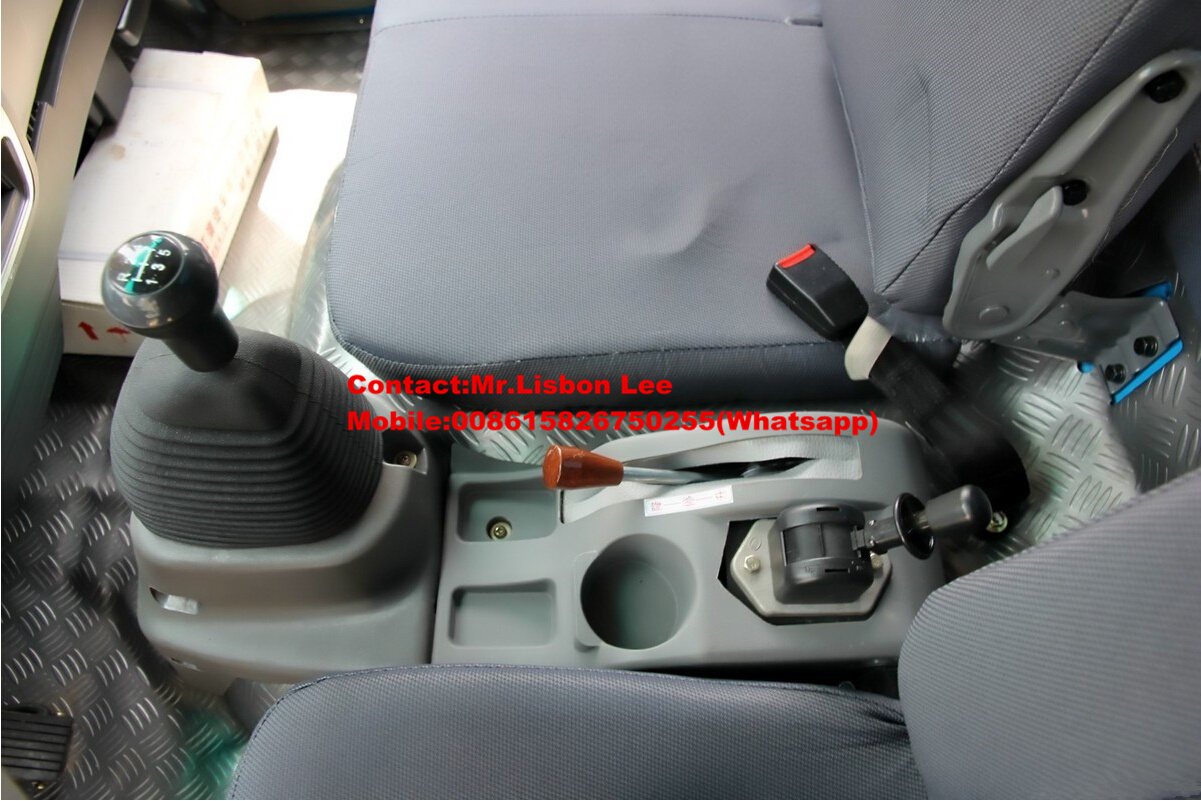

LC5T88,manual,5 forward gears,1 reverse gear

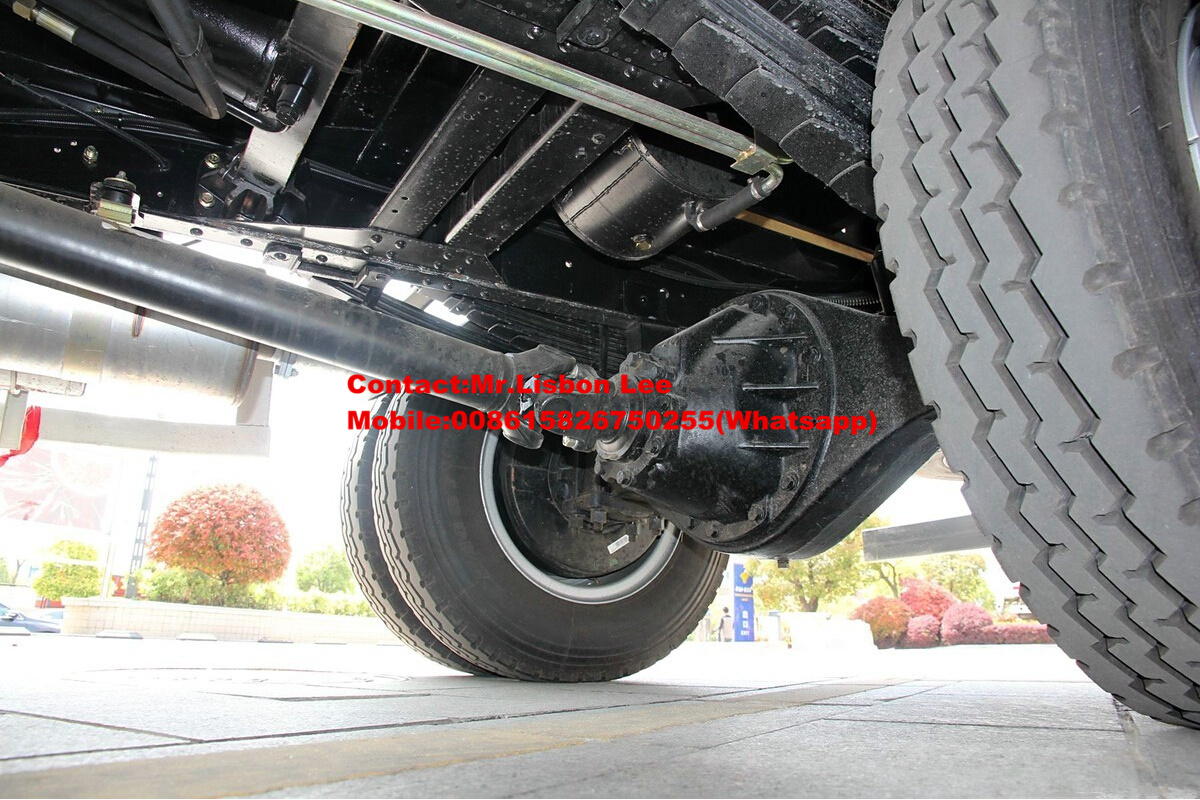

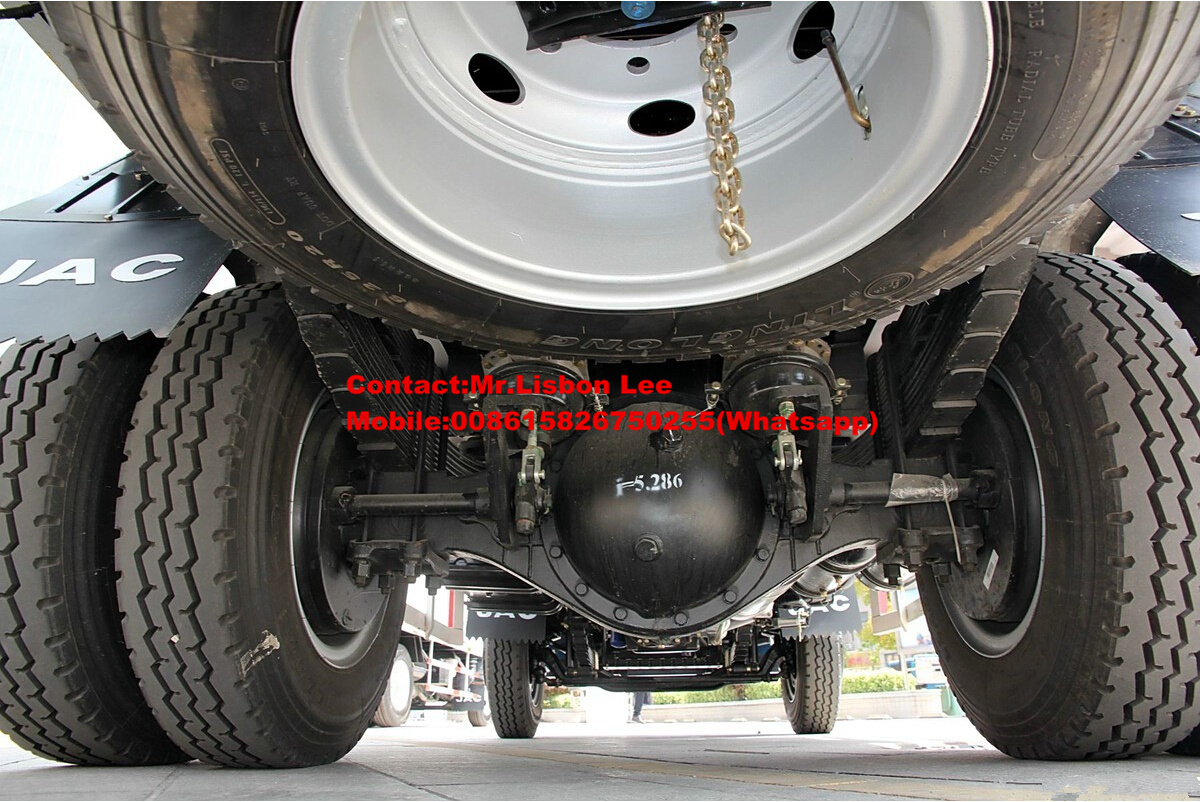

Front / Rear axle

Front axle load (Kg)

3000

Rear axle load(Kg)

5280

Final ratio

5.83

Drive type

4X2

Type of tire

7.50-16LT 14PR

Quantity of tires

6+1

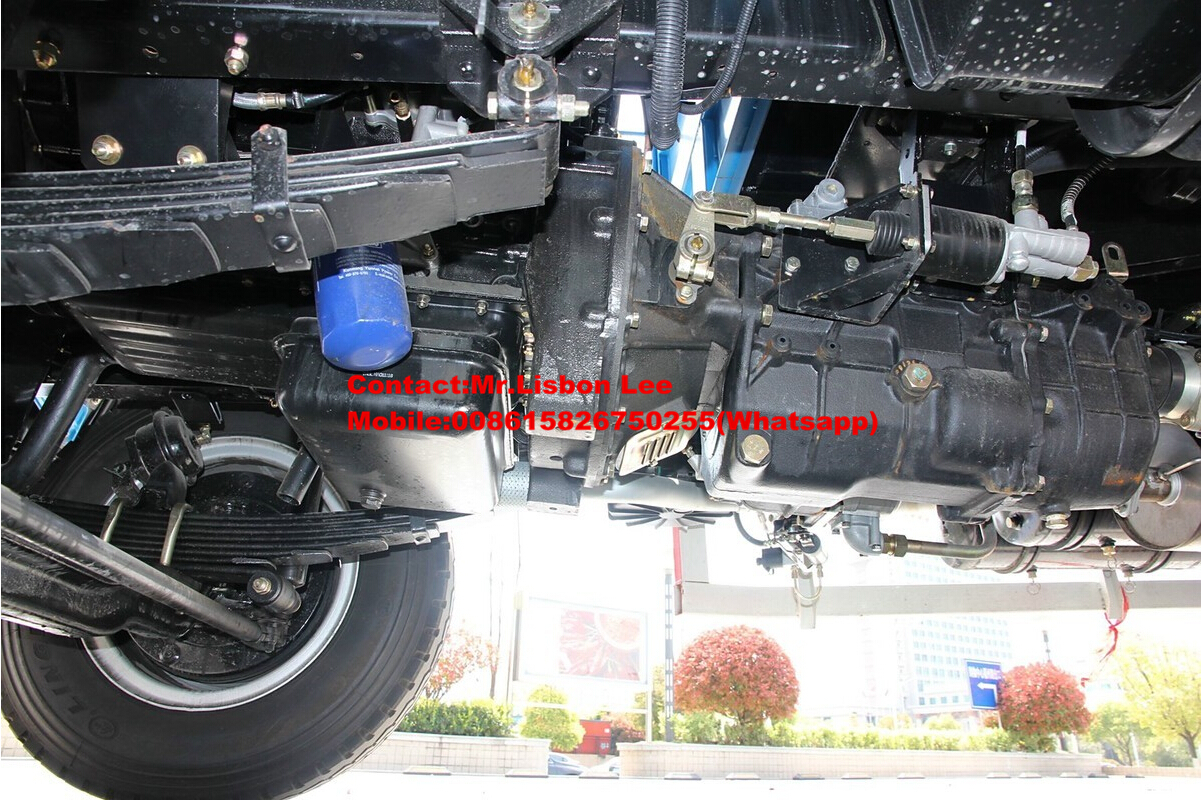

F/R leaf spring

Non-independent suspension, with auxiliary leaf spring 9/10+8

Brake system

Service brake type

Drum type, pneumatic pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

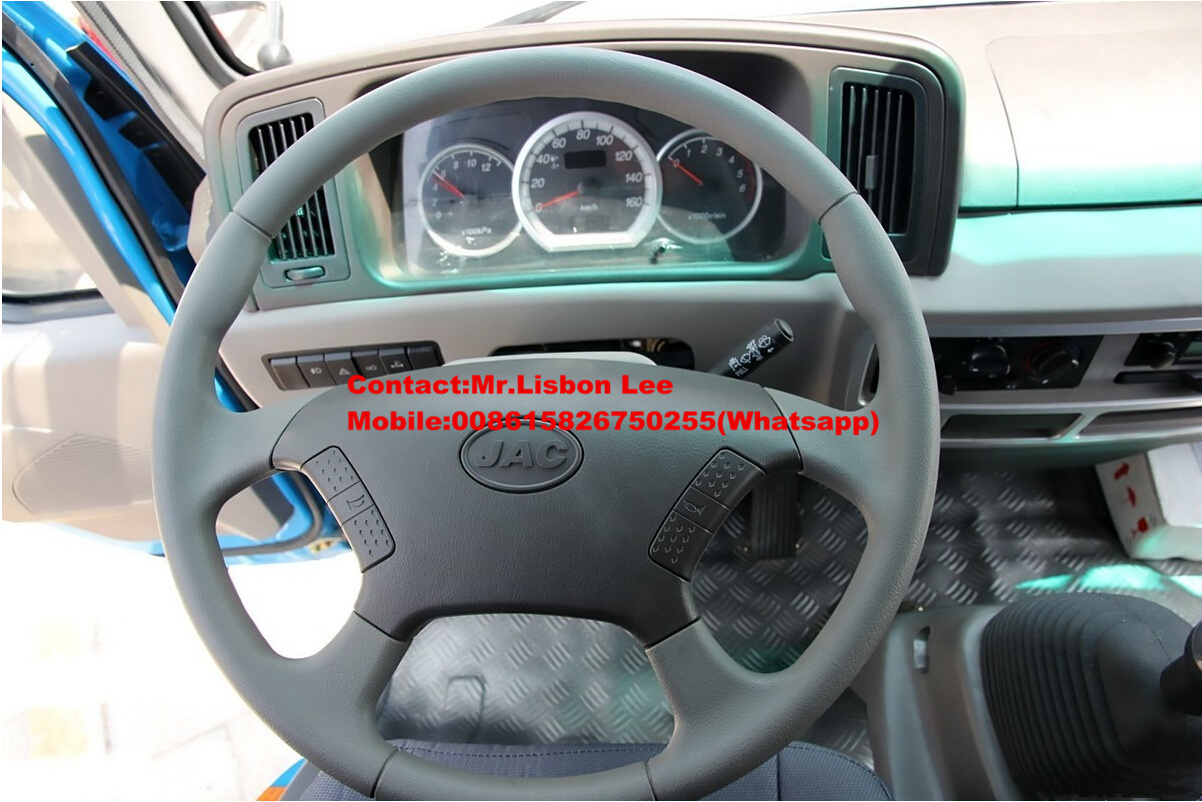

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

4380

Load weight(Kg)

8000

Performance parameter

Maximum speed (km/h)

100

Maximum grade ability (%)

≥22%

General fuel consumption(L/100km)

13.2

Dimension parameters

Overall dimensions (LxWxH)mm

5700×2130×2400

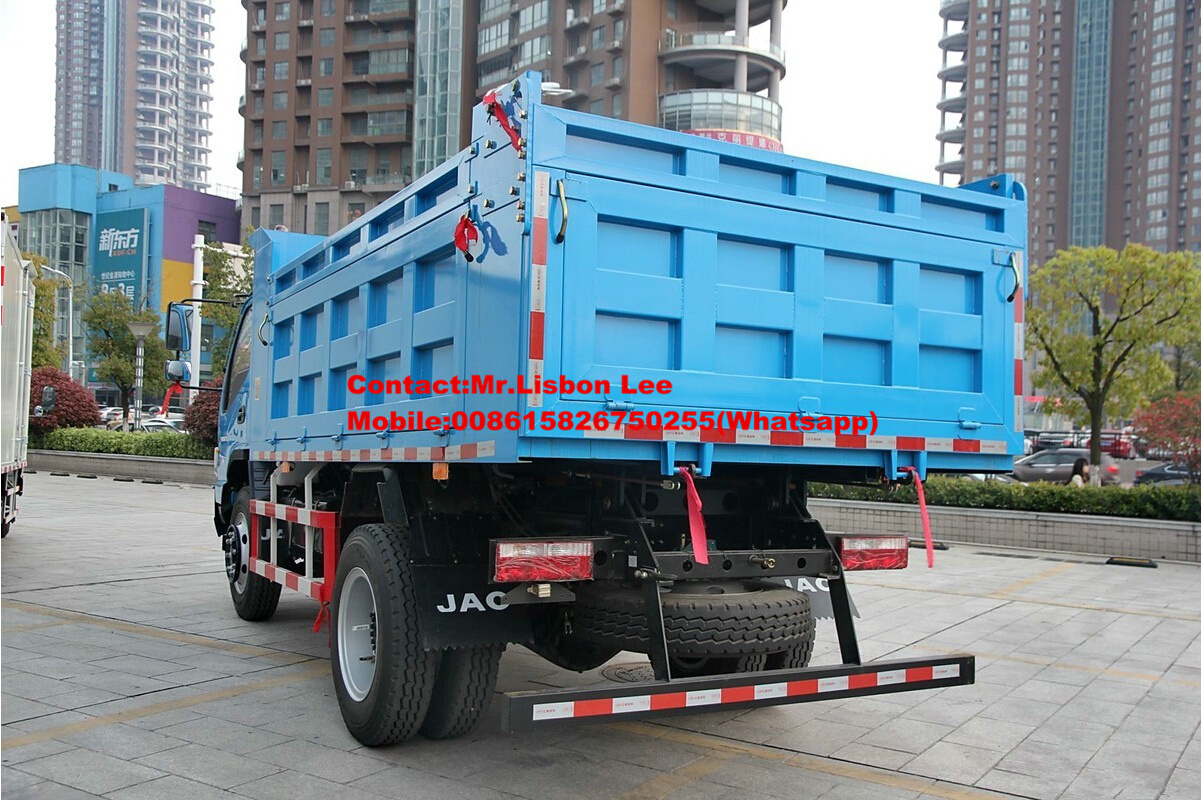

Internal van dimensions (LxWxH)mm

3600×2010×600

Wheelbase (mm)

3300

Front/rear wheel track (mm)

1080/1320

Front/rear suspension (mm)

1080/1420

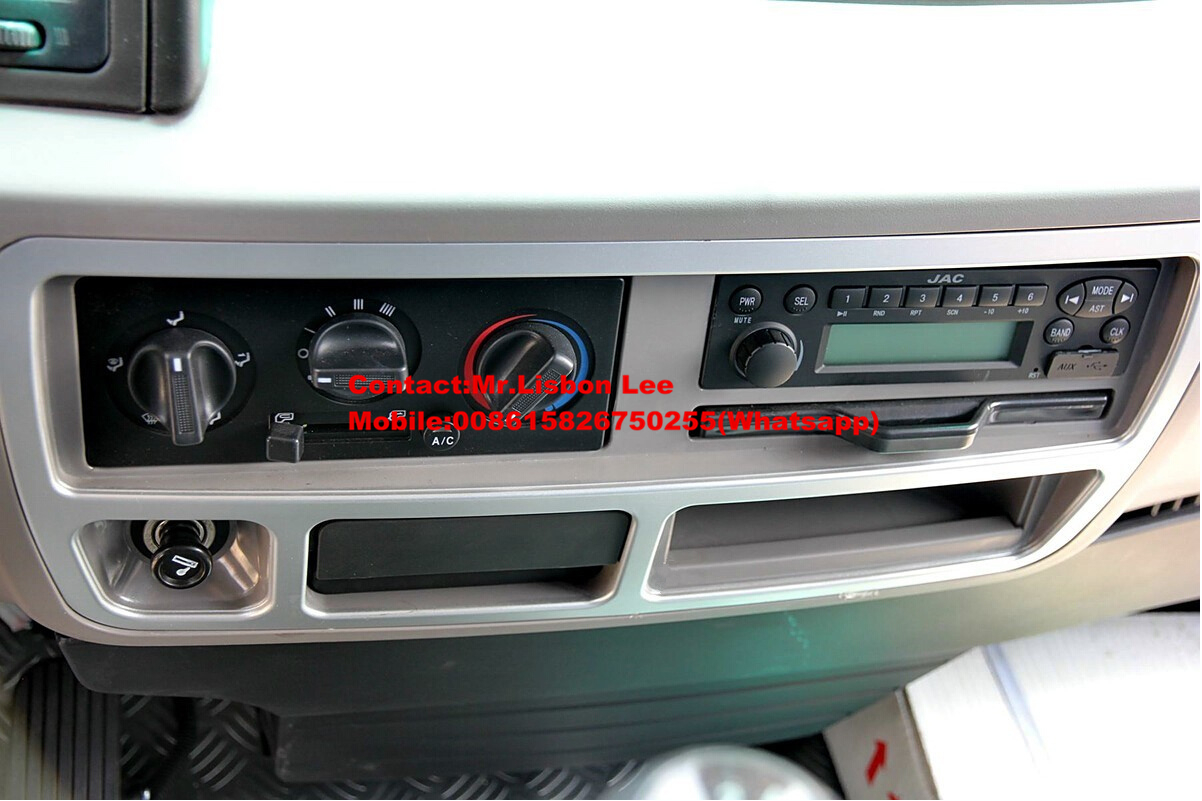

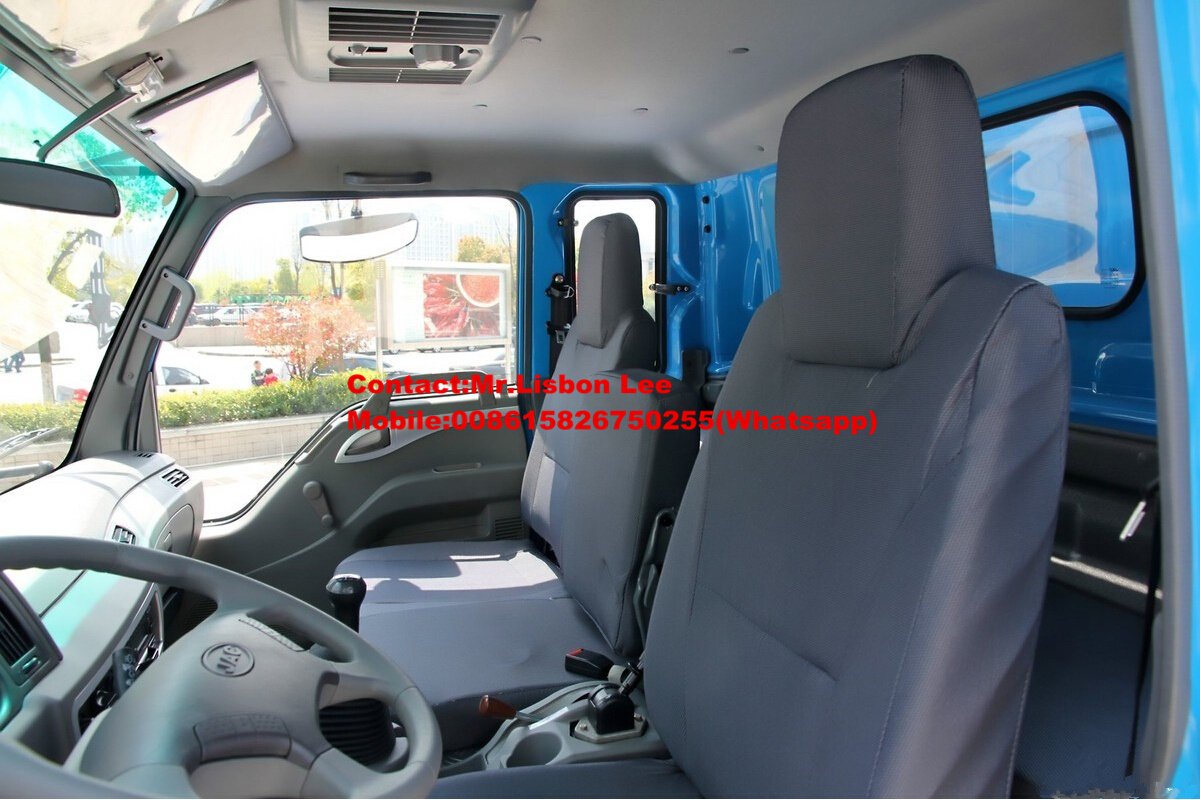

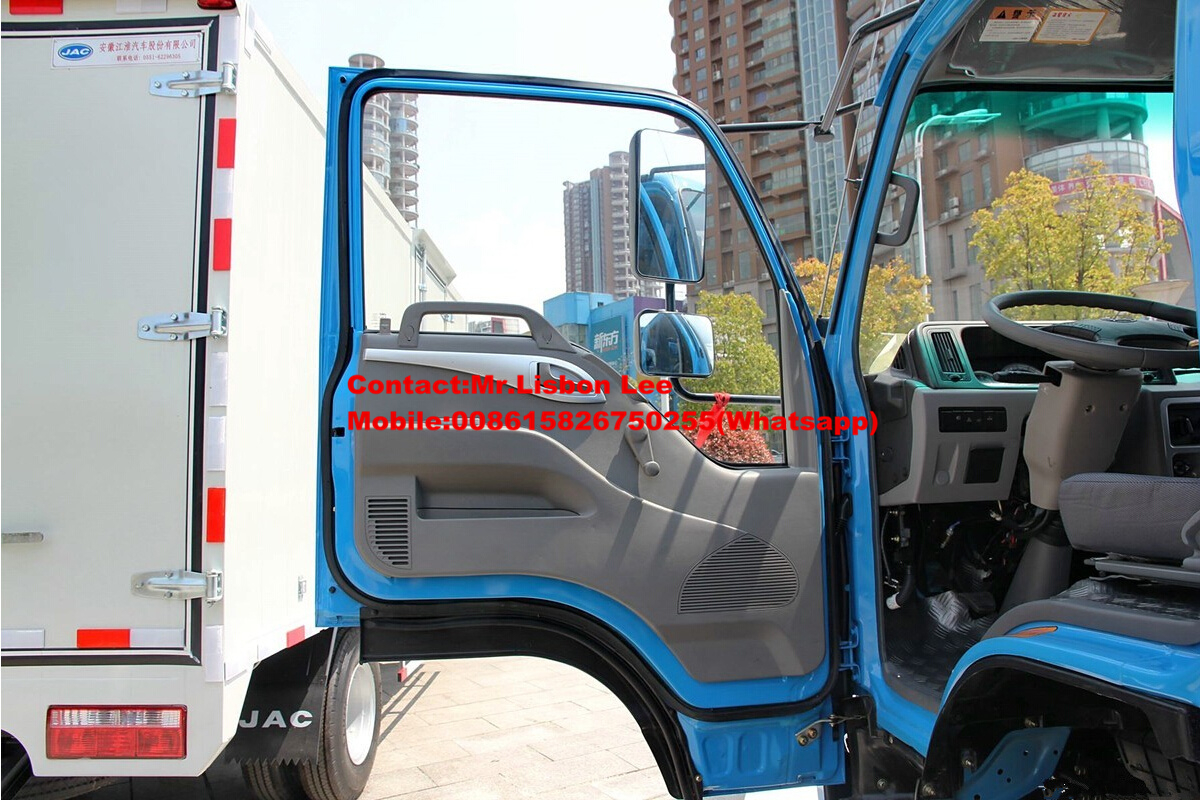

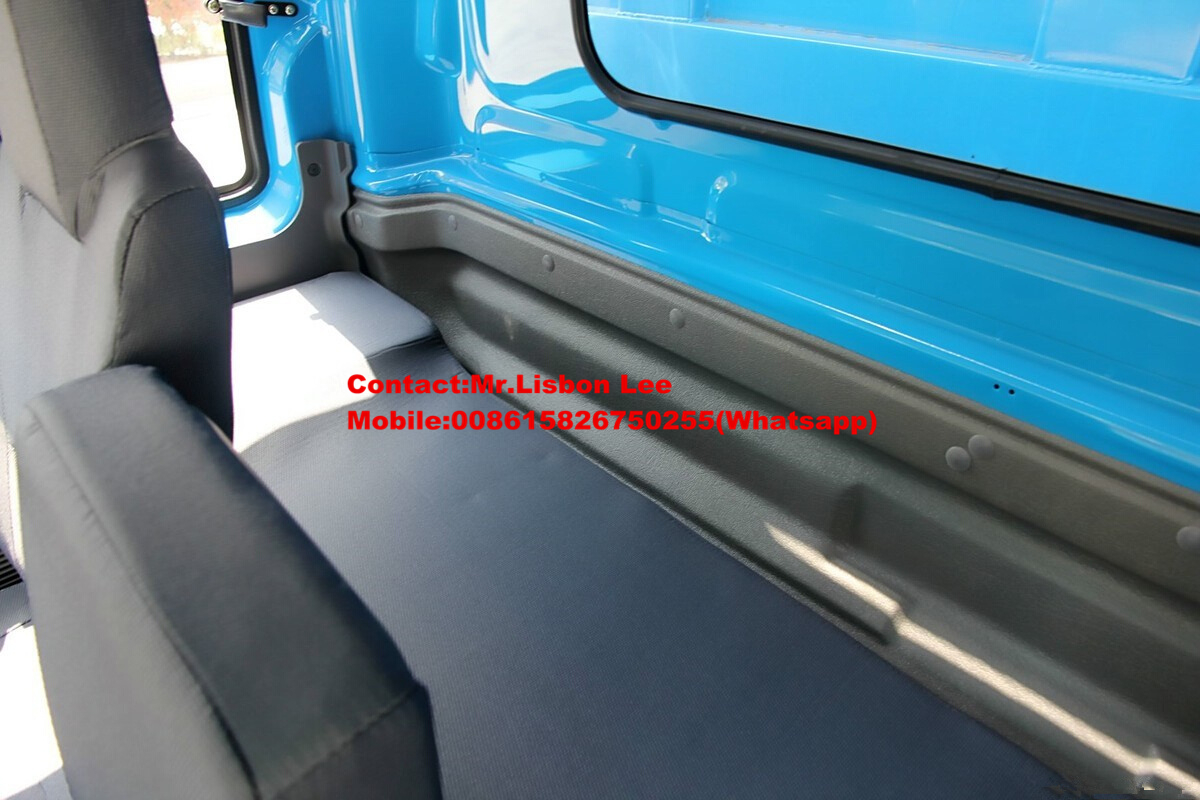

Cabin

One and half rows, with sleeper,metallic painting,standard dashboard,electronic controlled flame-out,2 passengers allowable,electronic preheating,adjustable steering wheel,power-assisted clutch,,MP3,A/C optional(+300USD)
