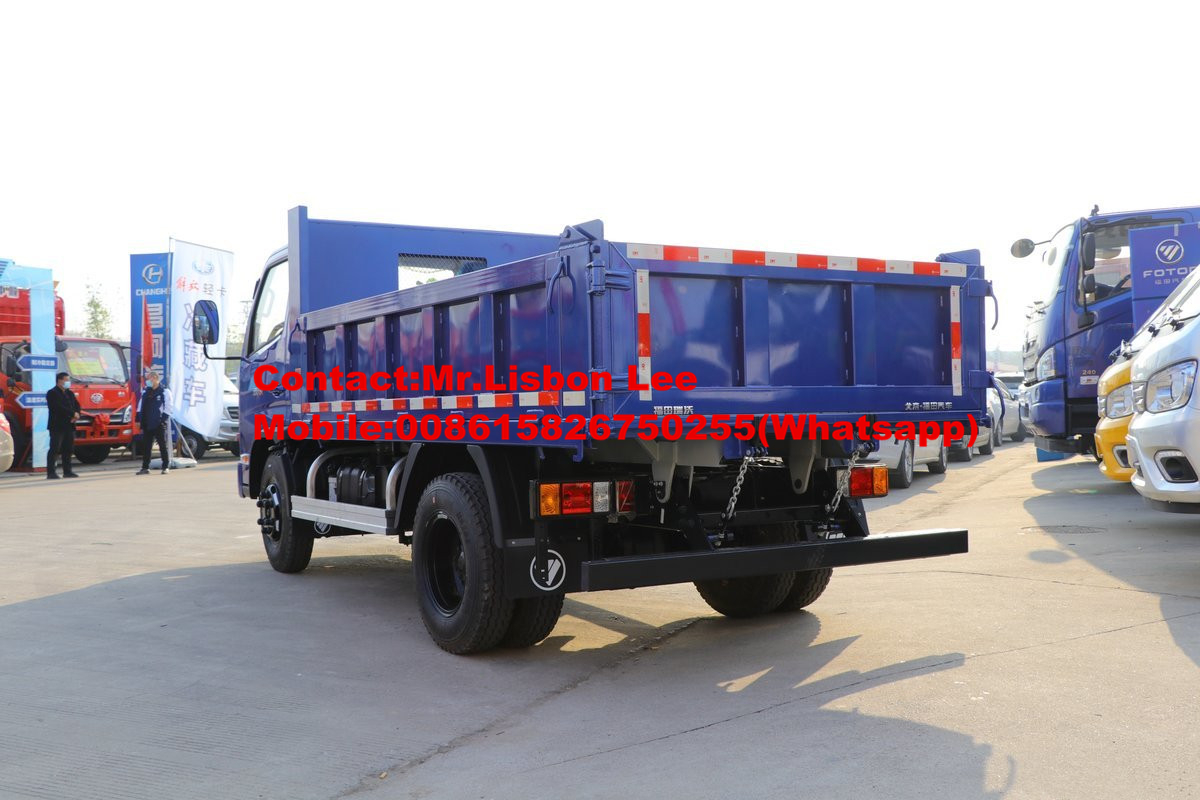

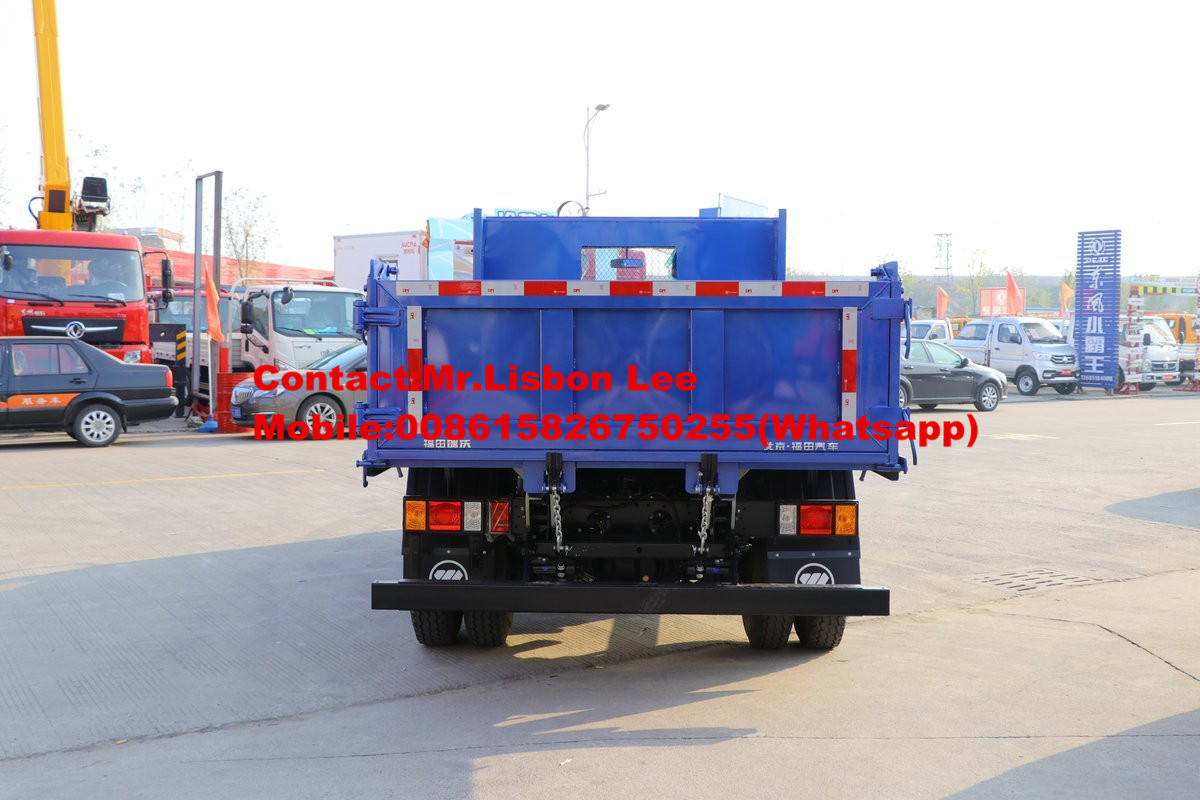

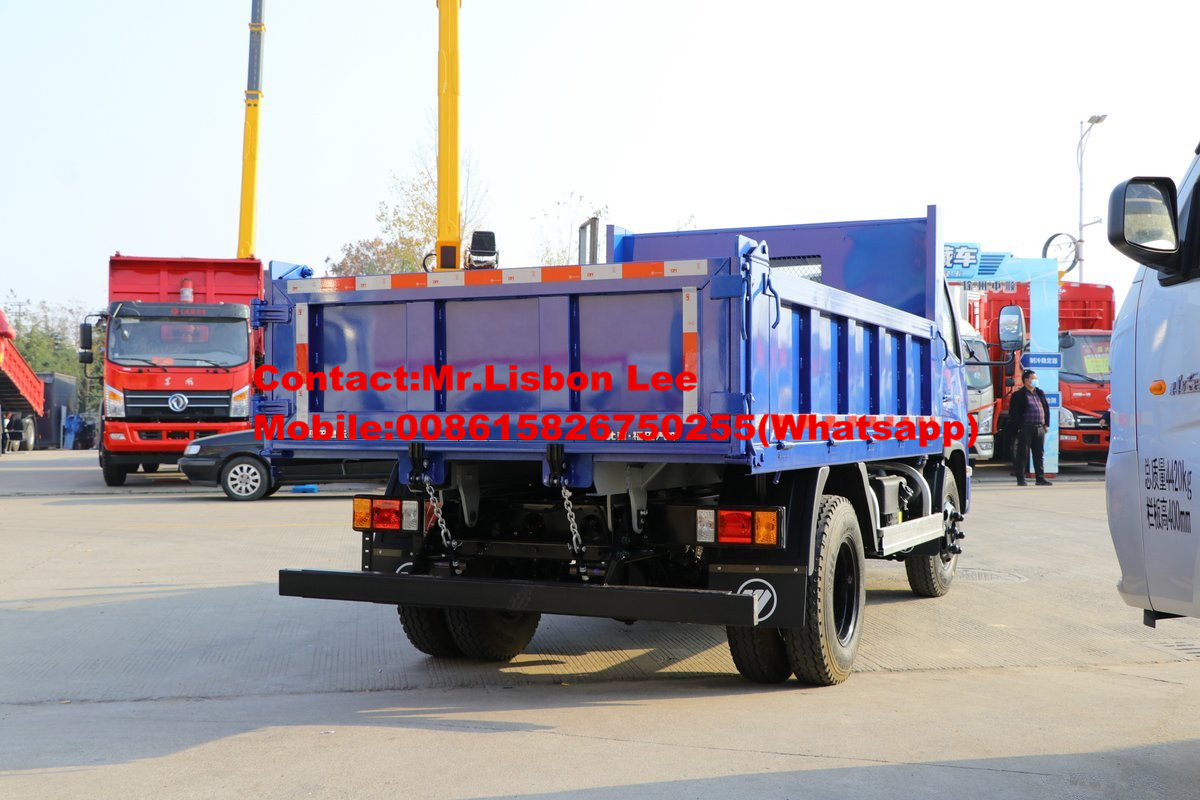

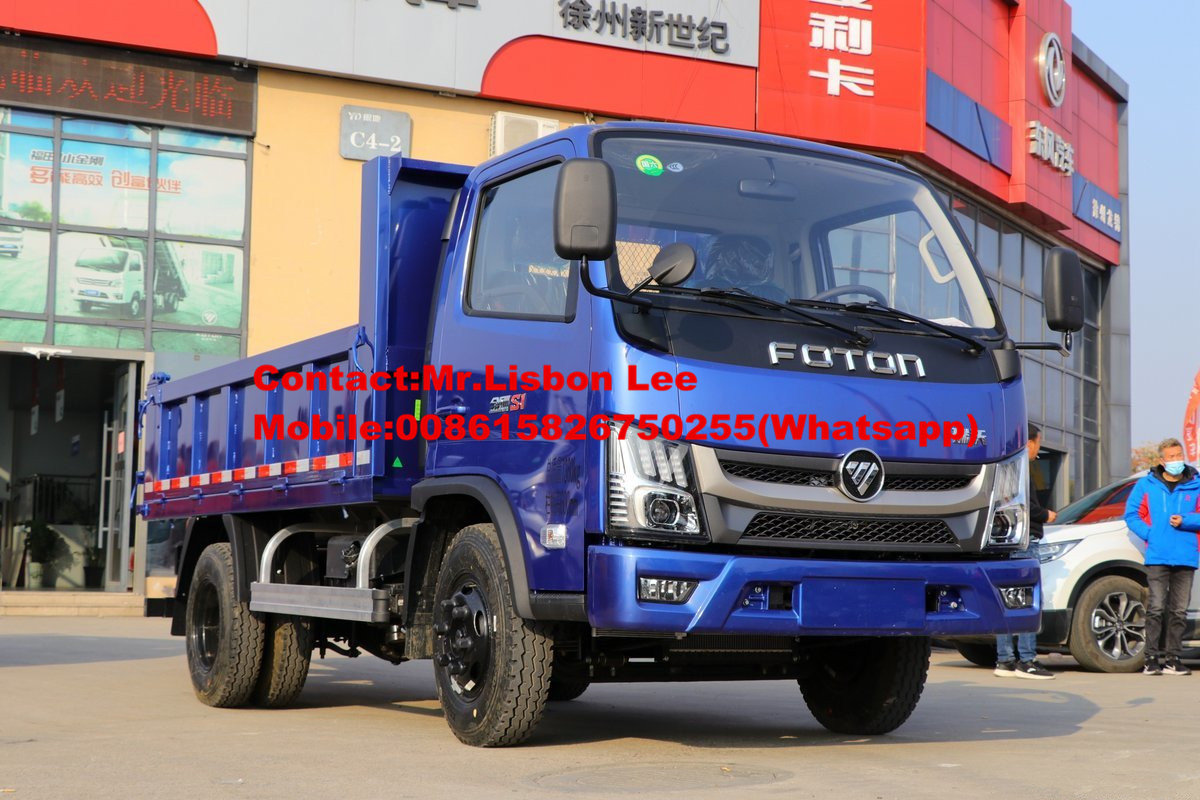

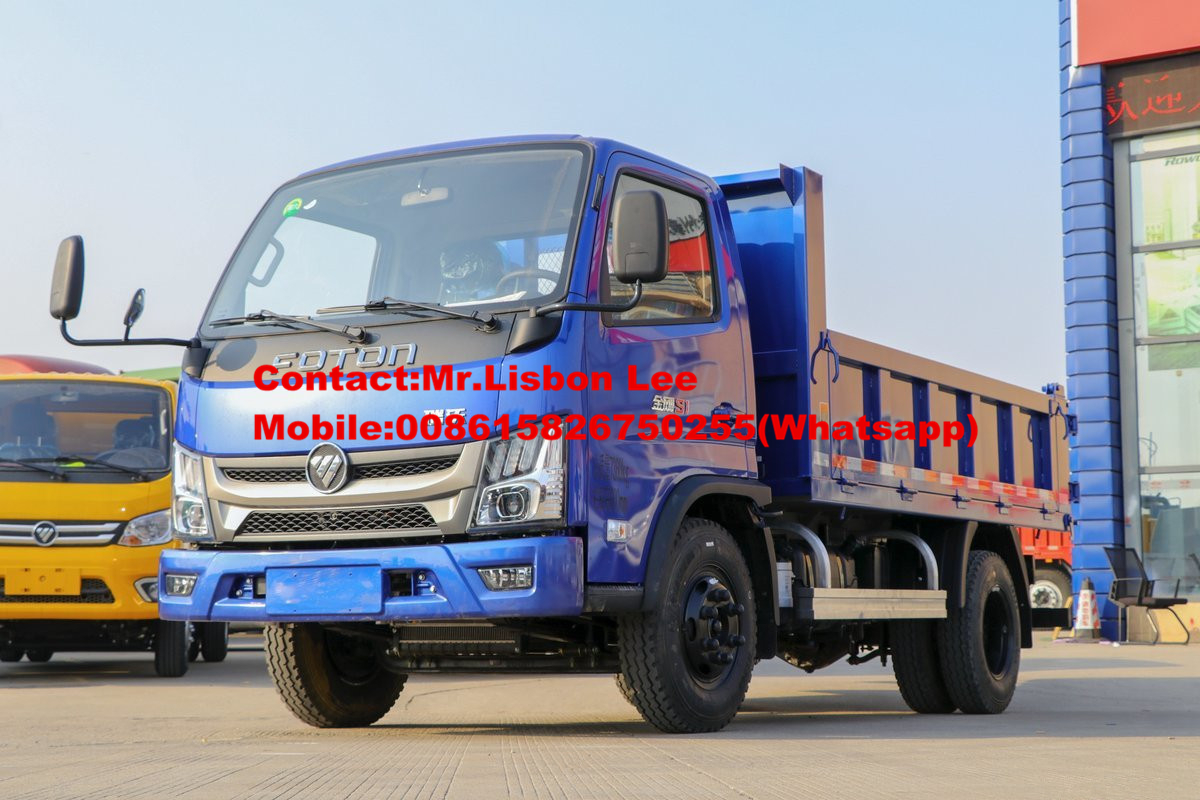

FOTON mini dump truck 3Tons

Chassis model

BJ3045D9JBA-30

Main dimension

Overall dimension(mm)

5130×1960×2090

Dimension of dump box(mm)

3300×1800×600

Drive Type

4X2 Left hand drive

Wheel base (mm)

2800

Wheel track(front/rear)(mm)

1535/1510

Weight data

Curb weight(Kg)

2720

Load capacity(Kg)

3000

Engine

Model

H20-120E60

Description

In-line,4 cylinders,water cooling & turbo charged,inter-cooling diesel engine

Displacement(L)

2.0

Power(kw/HP)

90/122

Maximum Torque(N·m)

325

Emission level

Euro 6

Gearbox

Brand

WLY

Model

Manual, 5 forward ＆ 1 reverse gears

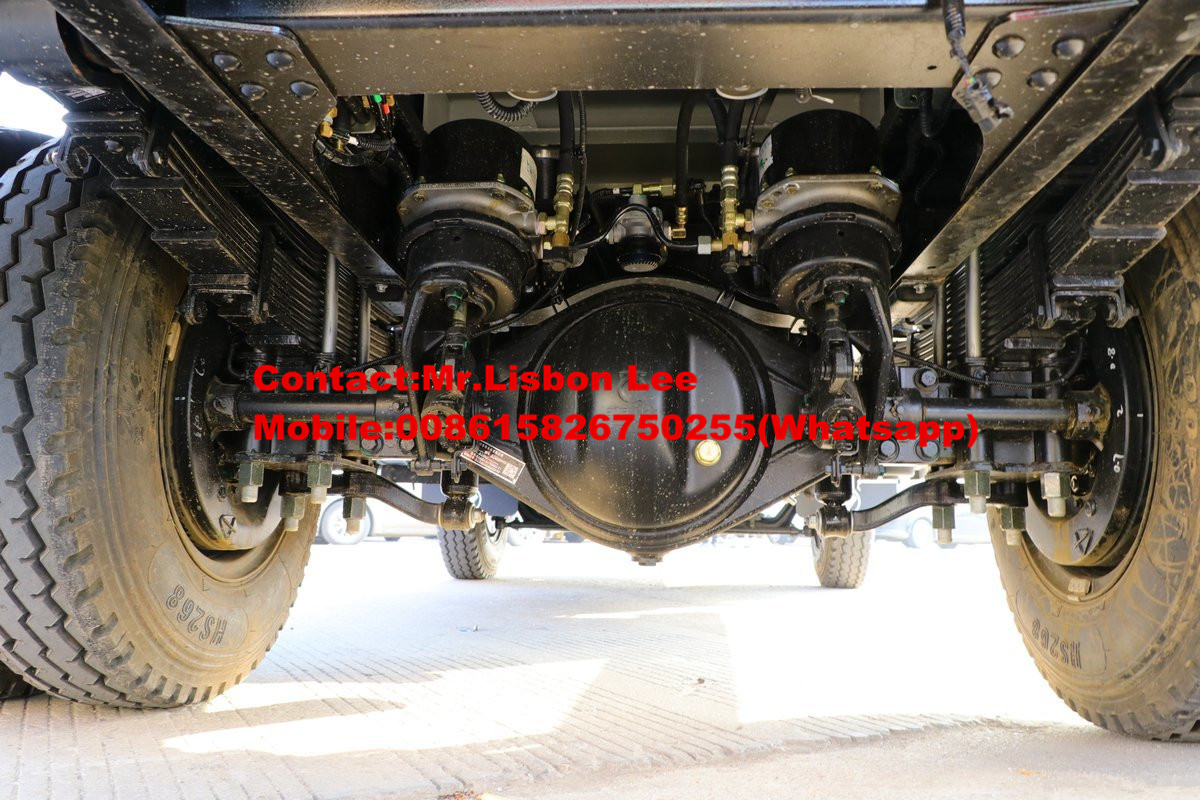

Axles

Front axle load capacity

2Tons

Rear axle load capacity

2.6Tons

The others

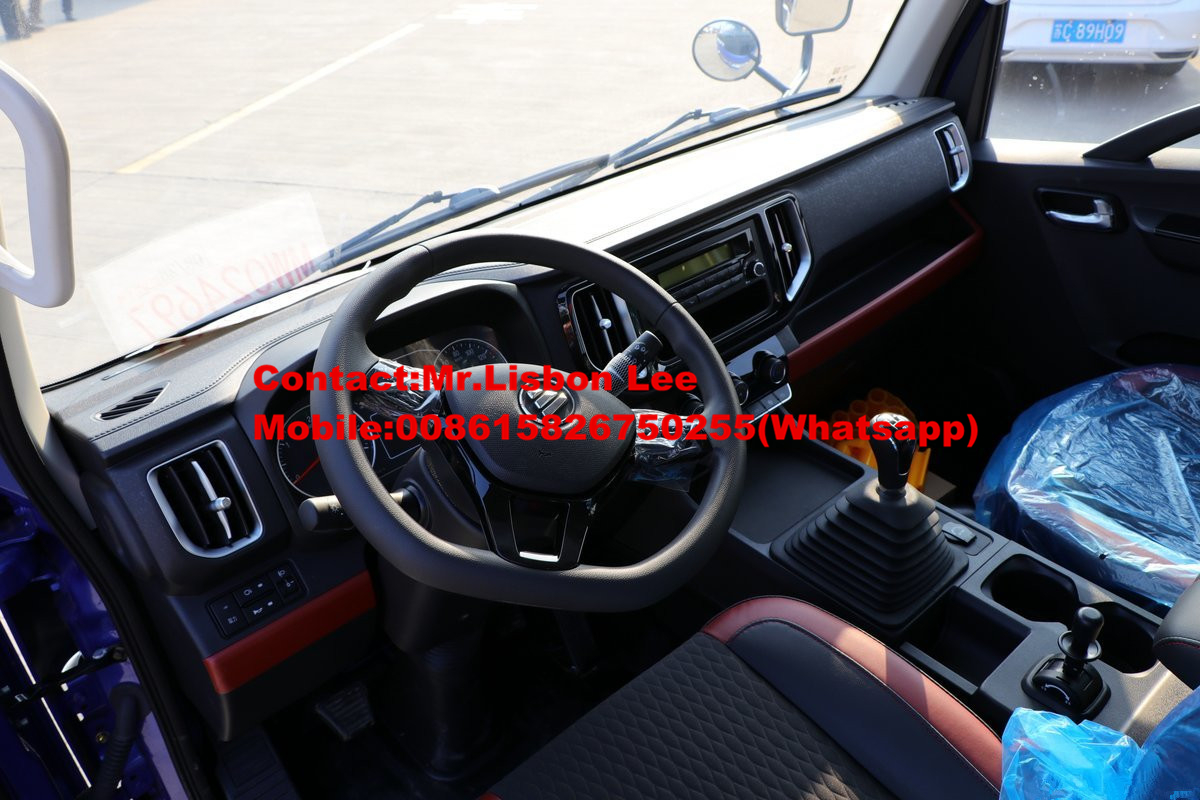

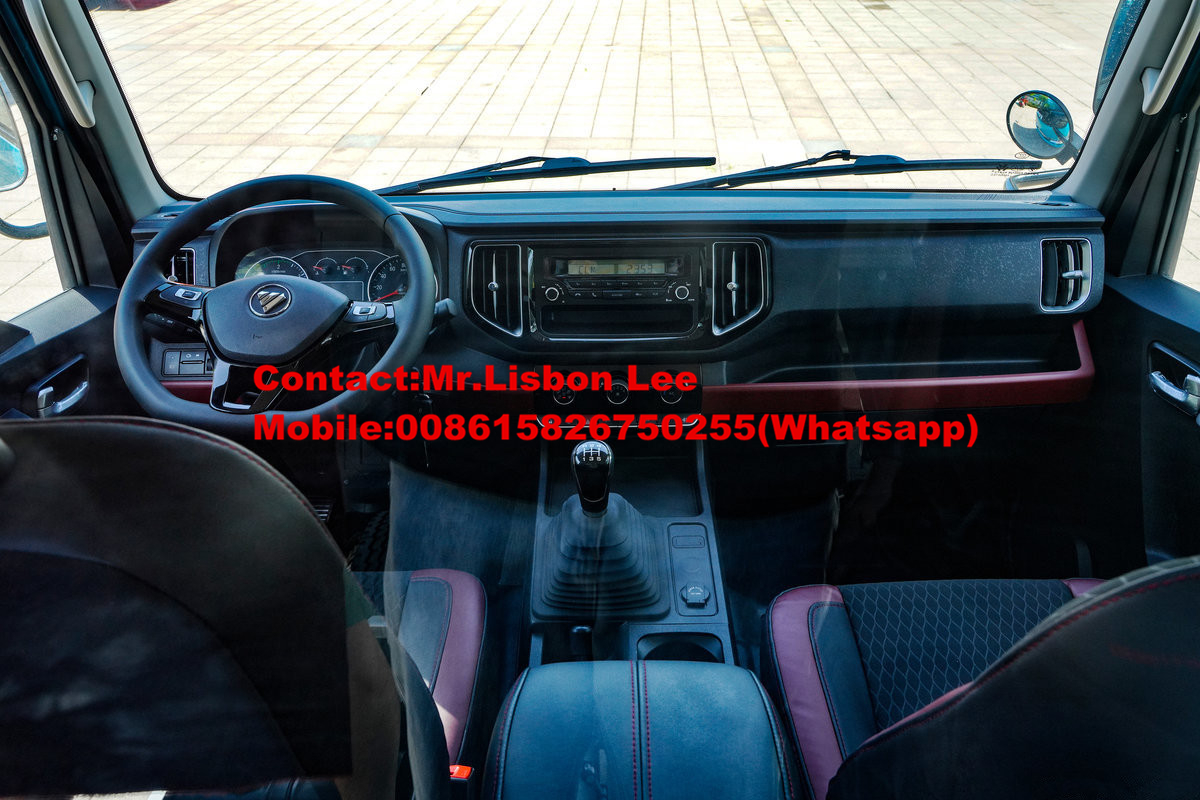

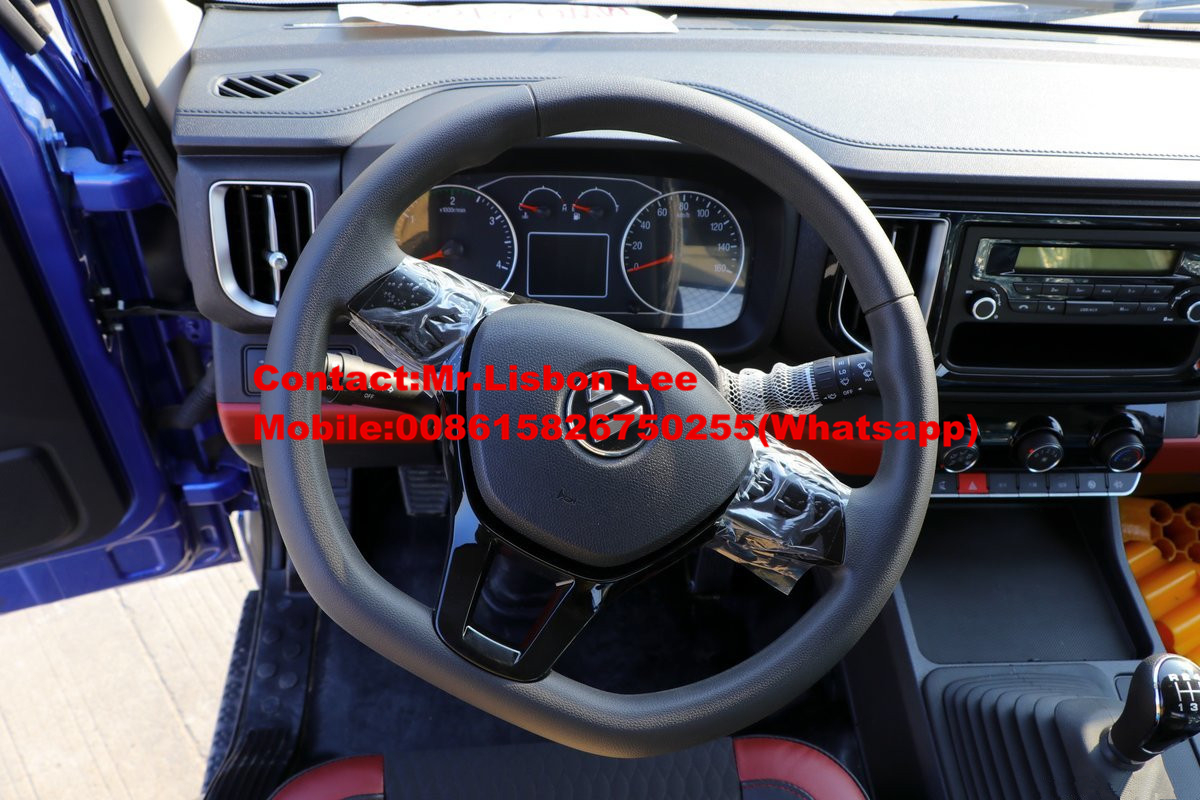

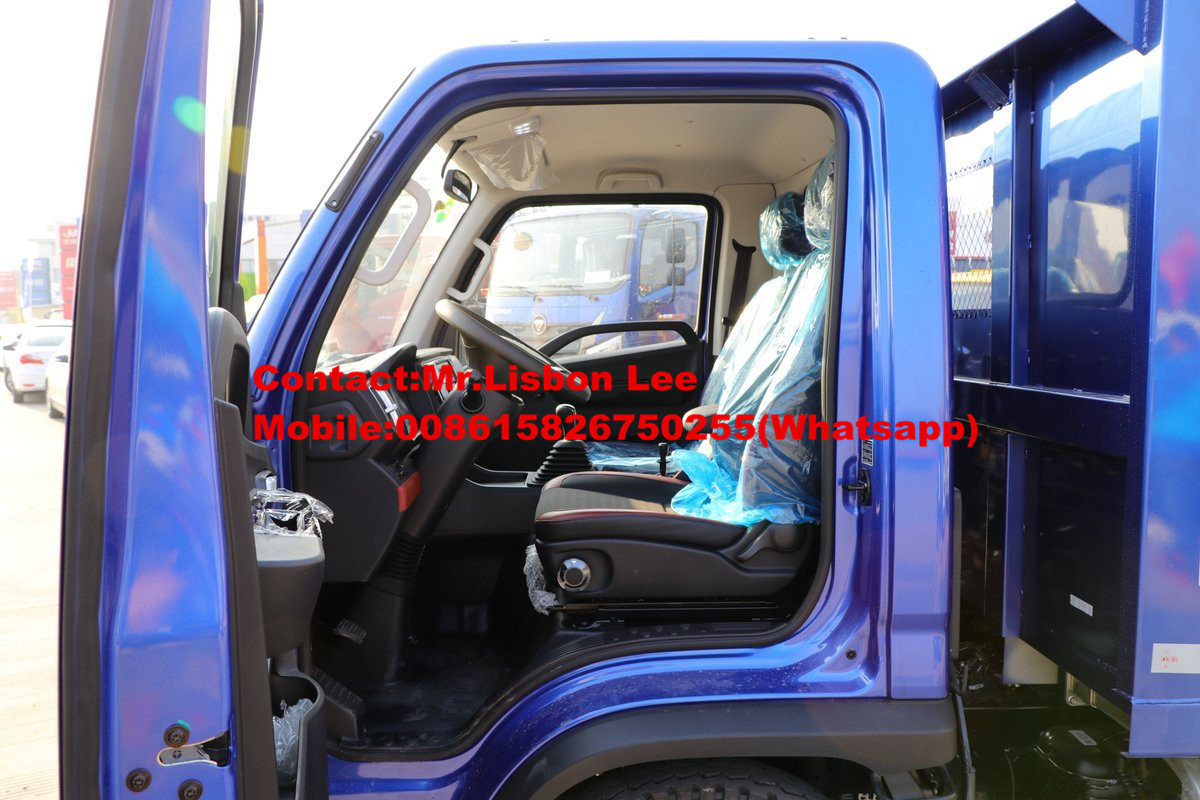

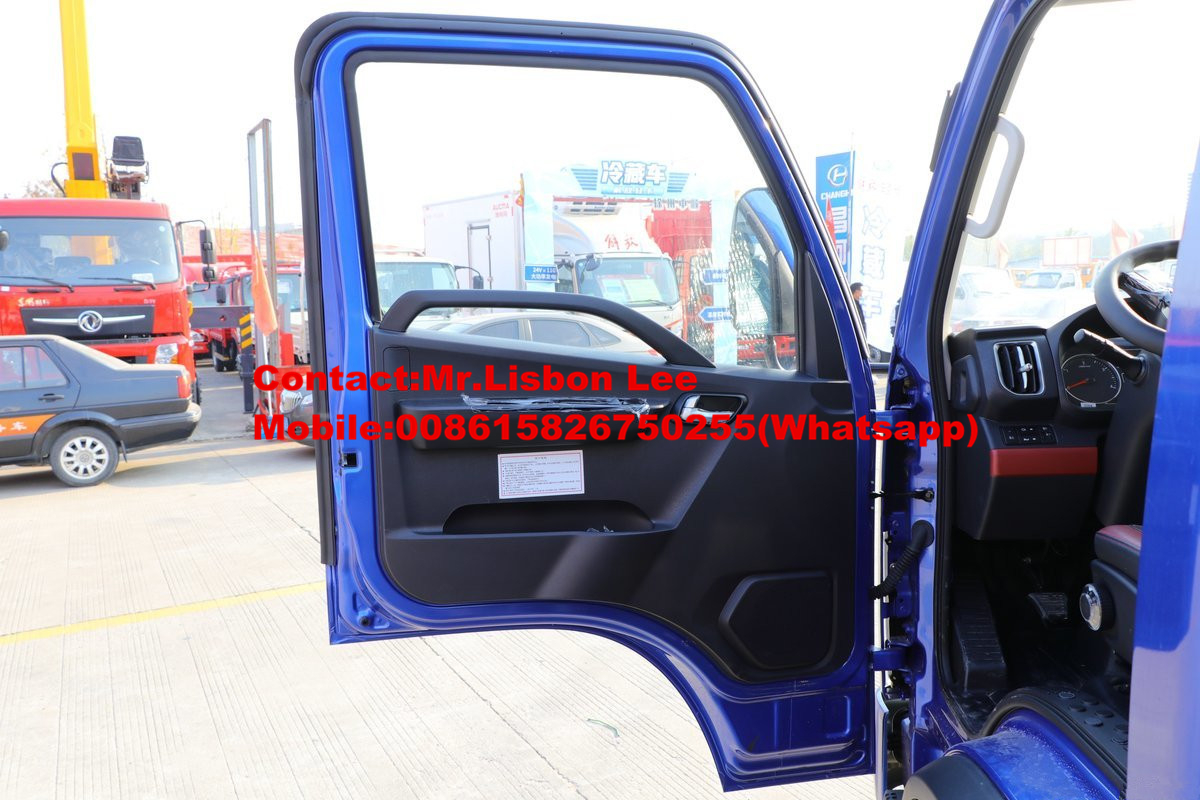

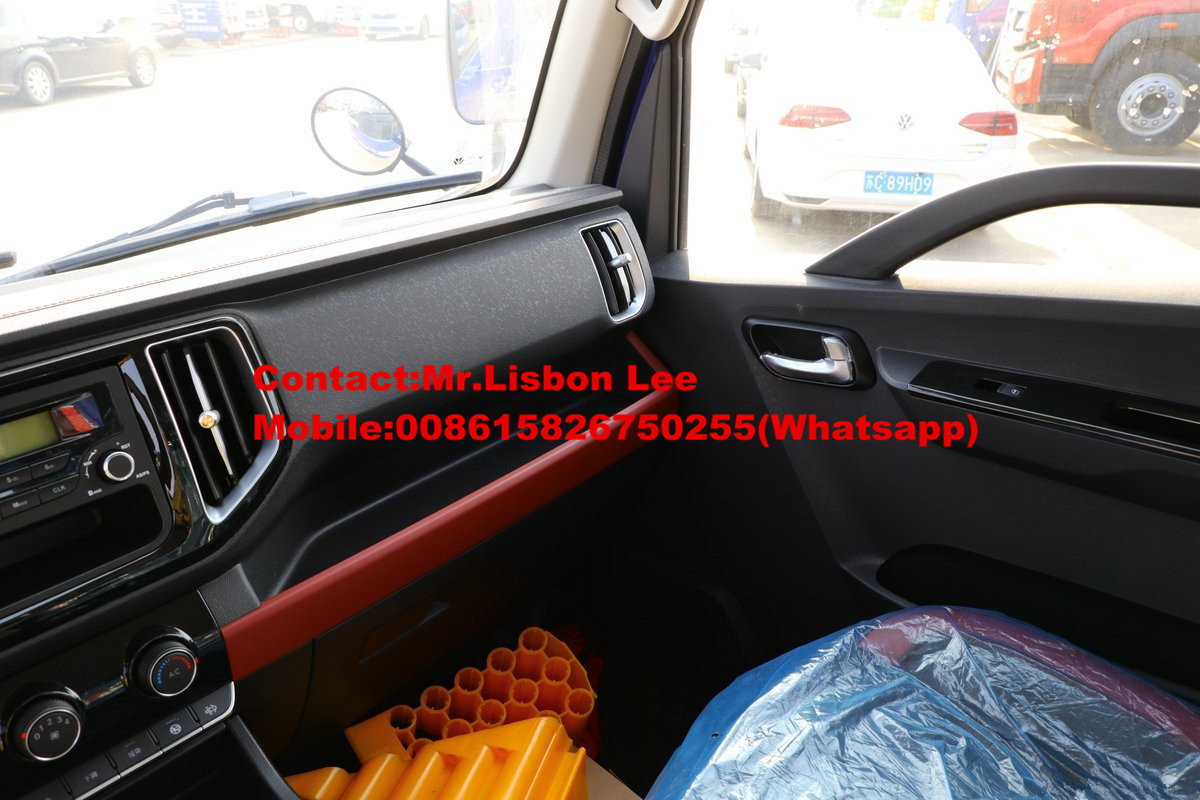

Cabin

Single row,two doors,luxury type,with power steering,air conditioner,central lock,electric window,radio,USB interface

Brake

Pneumatic brake system,with ABS

Tire type

6.50R16LT 10PR

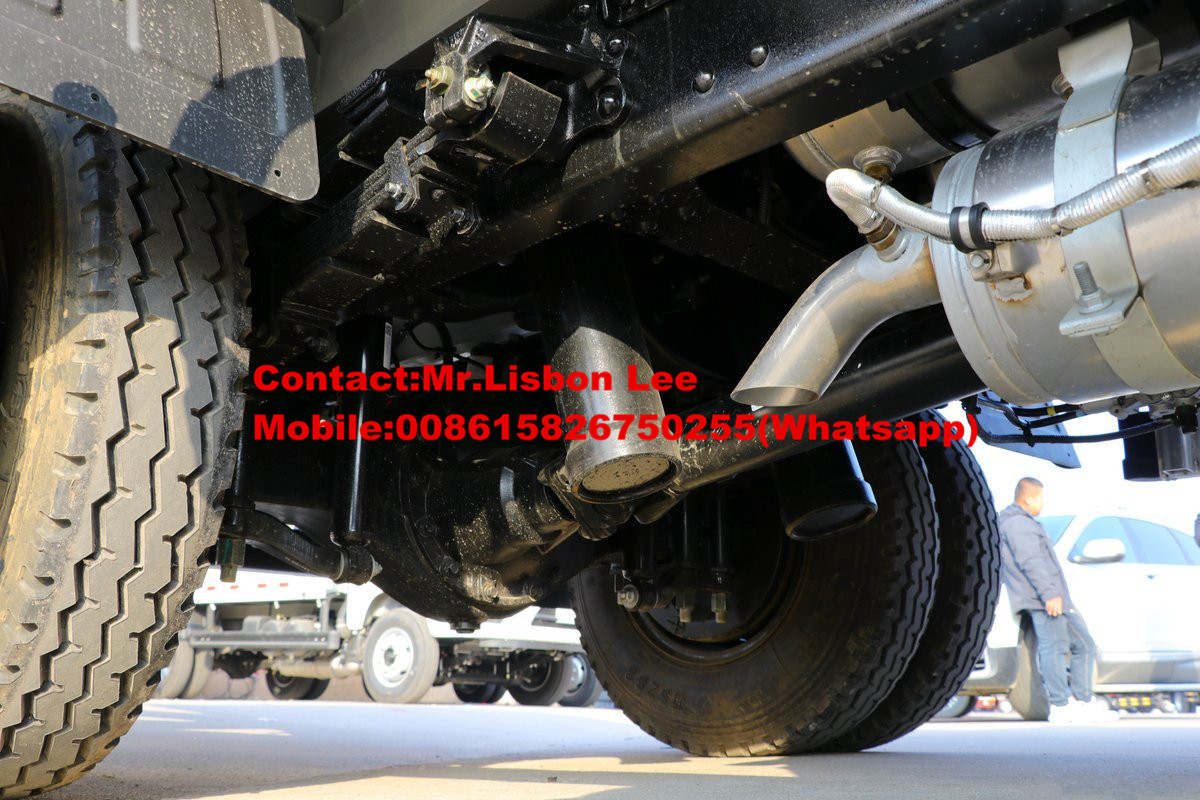

Number of spring plate

8/8+5

Front /rear overhang(mm)

1135/1195

Approach/departure angle(°)

19/23

Max.speed(km/h)

100

Lift system

Hydraulic middle lift

Thickness of box

Side 3mm,bottom 4mm

Material of box

WISCO Carbon Steel Q235
