Sinotruk HOWO 4x2 cargo truck 116HP

Chassis model

ZZ1107D3815C1

Engine

Model

YN4102QBZL

Description

In-line/4 cylinders/turbo charged/inter cooled/water cooled/diesel engine

Rated power of engine (kw/HP)

85/116

Maximum torque (N.m@rpm)

236@2000~2400

Displacement (ml)

3760

Emission standard

Euro 2

Gearbox

Description

WLY6T46,manual,6 forward gears & 1 reverse gear

Front / Rear axle

Front axle load (Kg)

2700

Rear axle load(Kg)

7200

Drive type

4X2

Type of tire

8.25R16

Quantity of tires

6+1

F/R leaf spring

Non-independent suspension,with auxiliary leaf spring 9/12+9B

Brake system

Service brake type

Drum type,air pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Fuel tanker capacity

120Liter

Weight parameter

Curb weight (Kg)

4725

Load capacity(Kg)

9000

Performance parameter

Maximum speed (km/h)

95

Maximum grade ability (%)

25%

Dimension parameters

Overall dimensions (LxWxH)mm

6995×2400×2650

Internal van dimensions (LxWxH)mm

4850×2300×550

Wheelbase (mm)

3800

Front/rear wheel track (mm)

1798/1764

Front/rear suspension (mm)

1240/1955

Rated voltage (V)

24

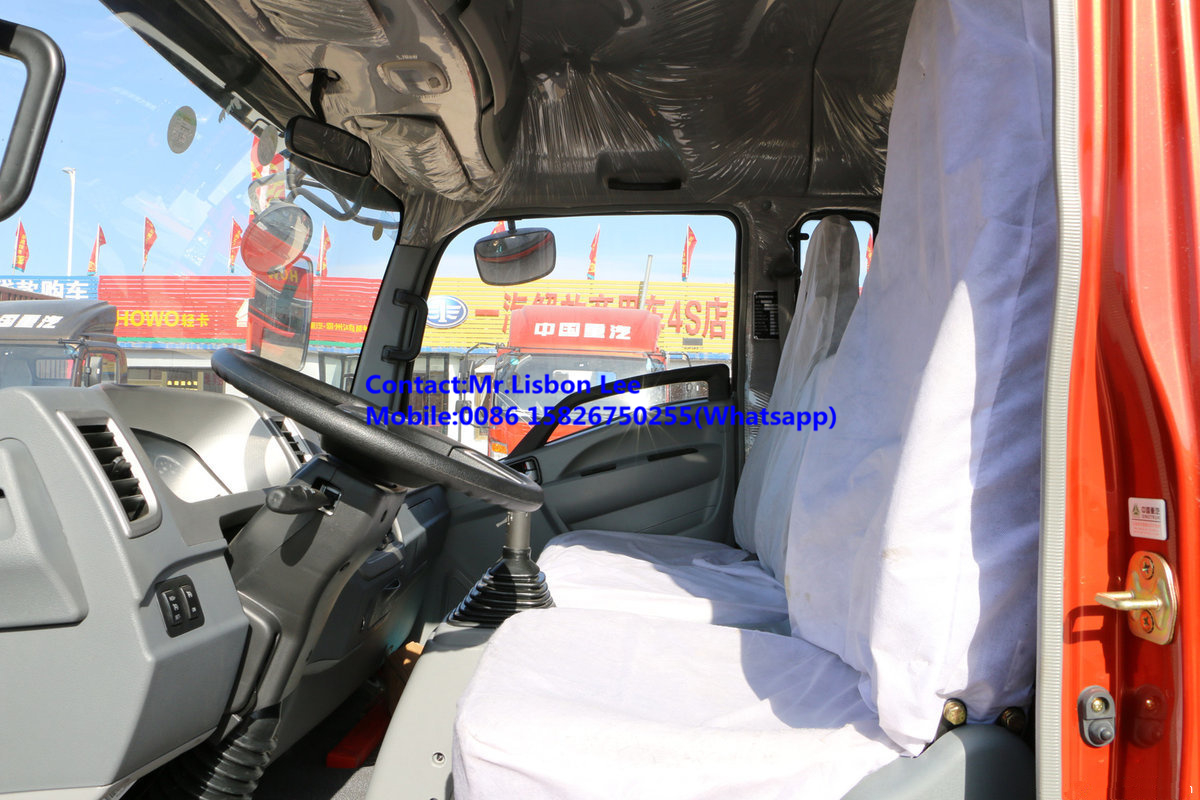

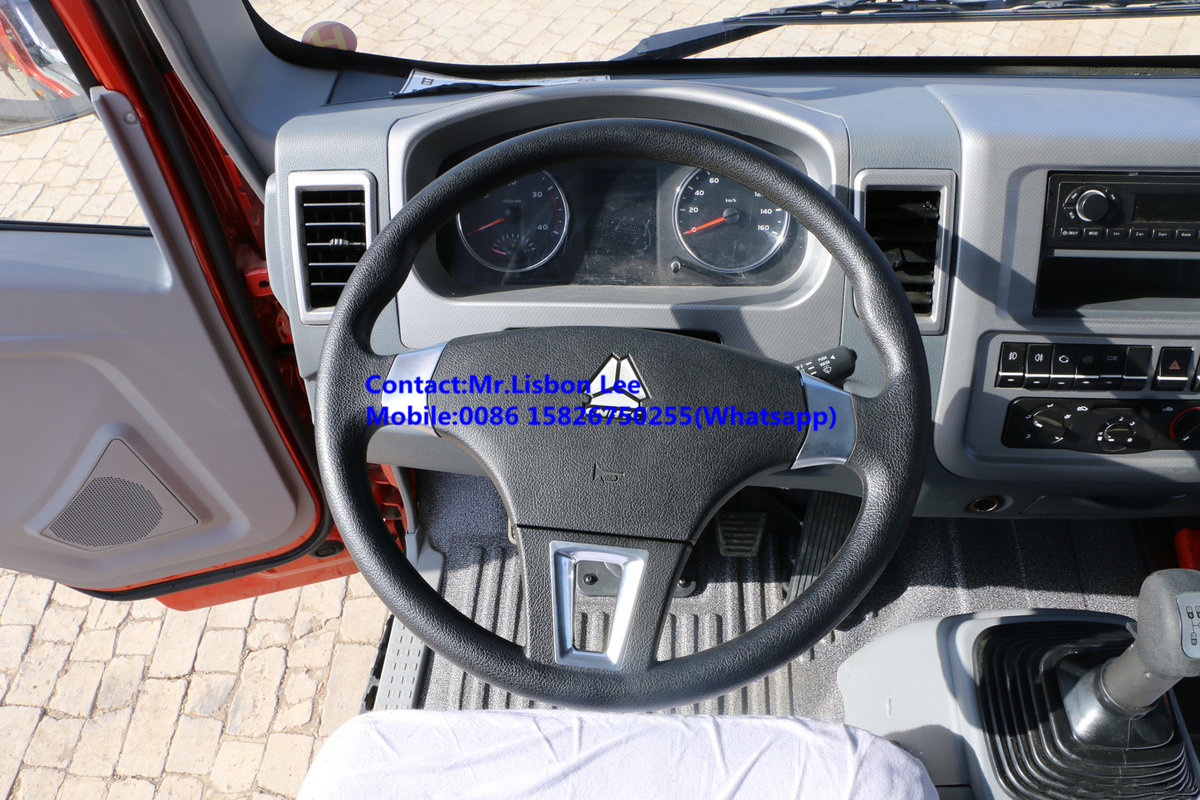

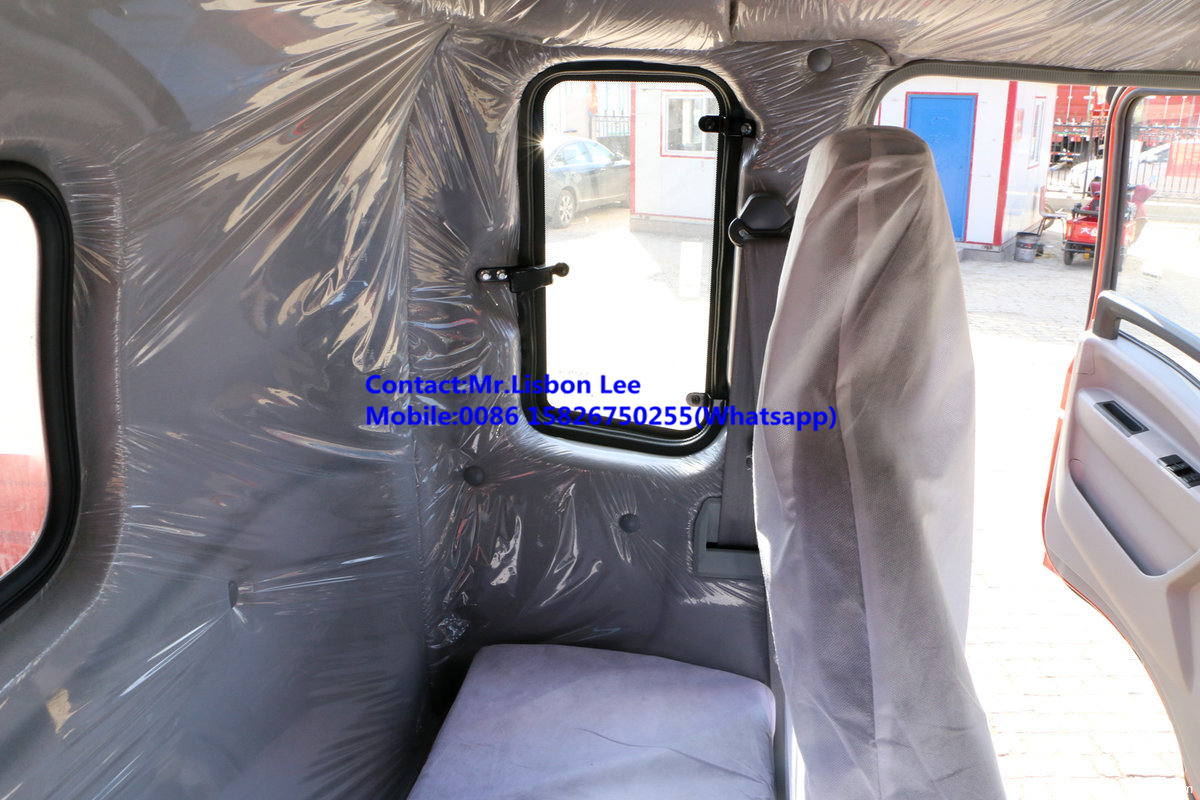

Cabin

One and half rows,metallic painting,power-assisted clutch,luxury interior,3 passengers allowable,electronic preheating,adjustable steering wheel,MP3,A/C optional(+200USD)
