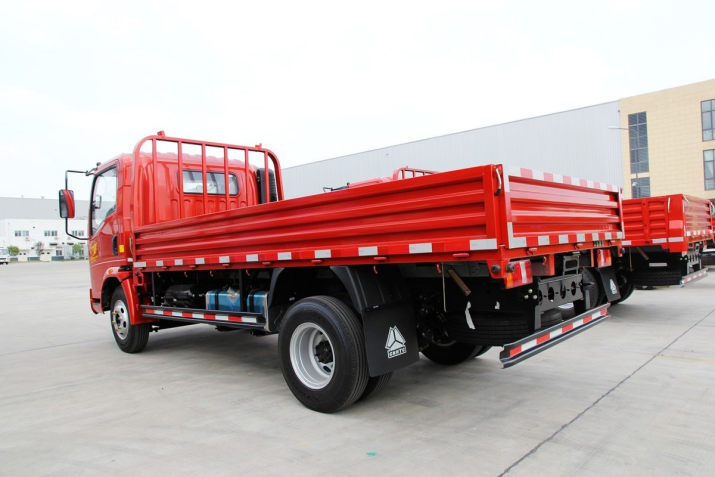

HOWO Cargo Truck 5Ton

Chassis model

ZZ1107G3815C1

Engine

Model

YC4E140-33

Description

In-line/4 cylinders/turbo charged/inter cooled/water cooled/diesel engine

Rated power of engine

(kw/HP)

105/140

Maximum torque (N.m@rpm)

500@1600

Displacement (ml)

4257

Emission standard

Euro 3

Gearbox

Description

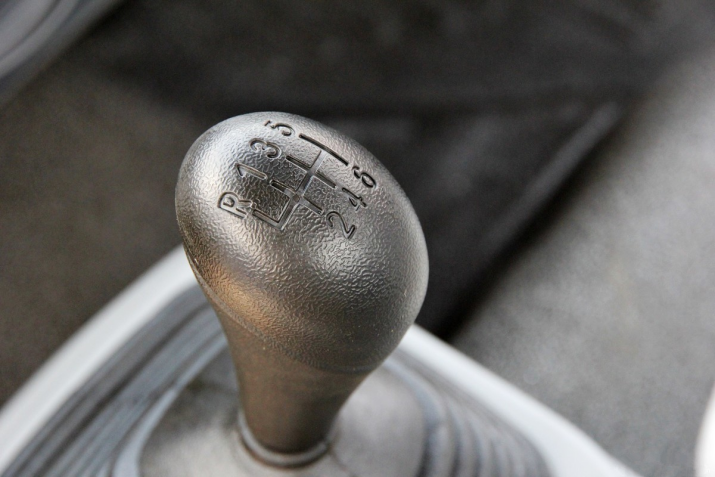

WLY6T51,manual,6 forward gears ＆ 1 reverse gear

Front / Rear axle

Front axle load (Kg)

3065

Rear axle load(Kg)

6825

Drive type

4X2

Type of tire

8.25R20

Quantity of tires

6+1

F/R leaf spring

Non-independent suspension, with auxiliary leaf spring 9/12+9

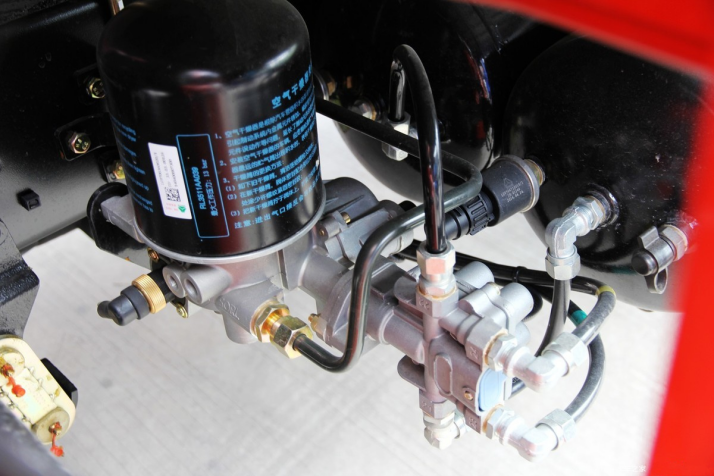

Brake system

Service brake

type

Drum type, air pressure double loop braking

Parking brake

type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Fuel tanker capacity

200Liter

Weight parameter

Curb weight (Kg)

4725

Rated load(Kg)

5000

Performance parameter

Maximum speed (km/h)

95

Maximum grade ability (%)

25%

Dimension parameters

Overall dimensions(LxWxH)

mm

6995×2330×2650

Internal van dimensions (LxWxH)mm

4850×2150×550

Wheelbase (mm)

3800

Front/rear wheel track (mm)

1798/1764

Front/rear suspension (mm)

1240/1955

Rated voltage (V)

24

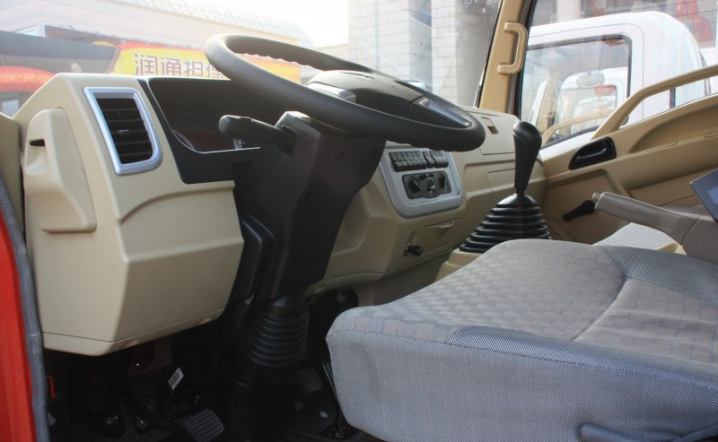

Cabin

Single row,metallic painting,standard dashboard,luxury interior,3 passengers allowable,electronic preheating,

adjustable steering wheel,MP3,A/C optional(+200USD)
