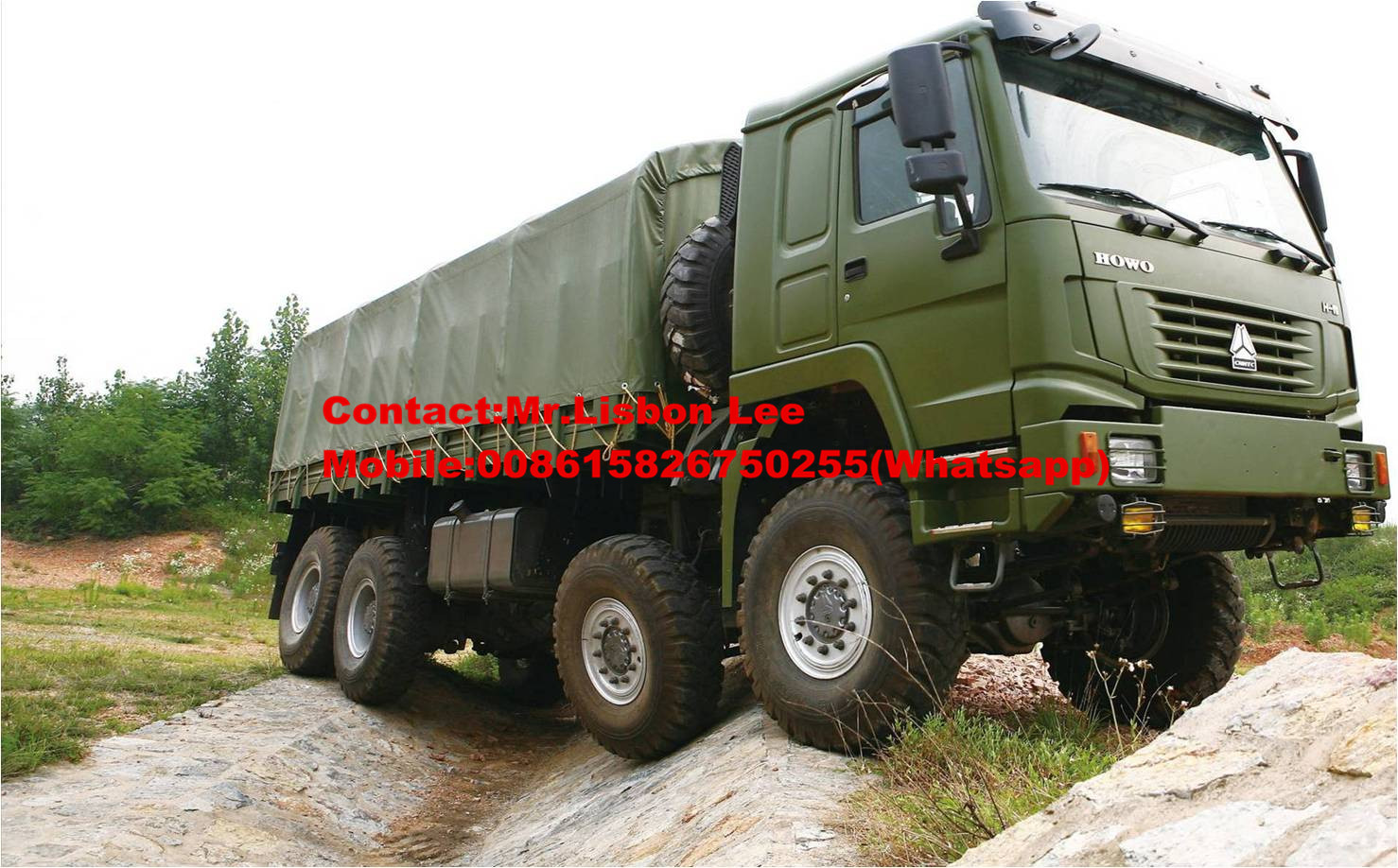

HOWO 8x8 off road truck

Model

ZZ2307S4677A/S0W

Engine

Make: STEYR

Engine model: WD615.47, Euro II emission standard

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum output: 371 hp(247Kw) at 2200 rpm according to DIN

Maximum torque: 1300Nm at 1300~1600 rpm

Bore: 126mm;  Stroke: 130mm;

Displacement: 9.726L;  Compression ratio: 17:1

Specific fuel consumption: 198g/kWh;  Engine oil filling quantity: 20L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 71^oC

Rigid fan

Clutch

Single- plate dry coil-spring clutch, diameter 420mm, mechanically operating with air assistance

Transmission

Transmission model: 12JS160T, synchromesh, 9 forward and 1 reverse

Ratio: 13.04 8.48 6.04 4.39 3.43 2.47 1.76 1.28 1.00 11.77®

Option:Fuller 9 gearbox

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

Steering with double T-cross section

Rear Axles

Pressed axle housing, central single reduction gear with planetary wheel reduction and differential locks between wheels and axles Ratio: 5.73

Chassis

Frame: U-profile parallel ladder type with section of 300×80×8 mm, all cold riveted cross members

Front suspension: left 14 and right 13 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: 12 semi-elliptic leaf springs with bogie spring

Spare wheel carrier: with one spare wheel

Fuel tank: with 300 L fuel tank with locking fuel cap

Steering

ZF8098(RHD), hydraulic steering with power assistance Ratio: 26.2:1

Brakes

Service brake: dual circuit compressed air brake

Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Wheel & Types

Rims: 8.5-20, 10 hole-steel Types 12.00-20 tube Option: 12R20 tube

Driver’s cab

Standard cab, all steel forward control, 55^o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, and shock absorber.

Electrics

Operating voltage:24V, negative grounded;  Starter: 24V, 5.4KW

Alternator: 28V, 1500W;  Batteries: 2×12, 165Ah

Cigar-lighter, horn, headlamp, fog light, reverse lamp

Dimensions in mm

Wheel base

Front wheel track

Rear wheel track

Front overhang

Rear overhang

Approach angle(^o)

Departure angle(^o)

Overall Dimension

Cargo body size

1800+3000+1350

2022

1830

1500

2080

19

22

9730×2496×3453 (mm)

7000×2300×1300(mm)

Weight in kg

Permissible loading capacity on chassis

Dead weight

Gross vehicle weight

Front axle loading capacity

Rear axle loading capacity

22500

15430

38000

6500x2

13000×2

Performance

Maximum driving speed(km/h)

Maximum grade ablility (%)

Minimum ground clearance(mm)

Minimum turning circle(m)

Fuel consumption(L/100km)

75

42

314

21.2

30
