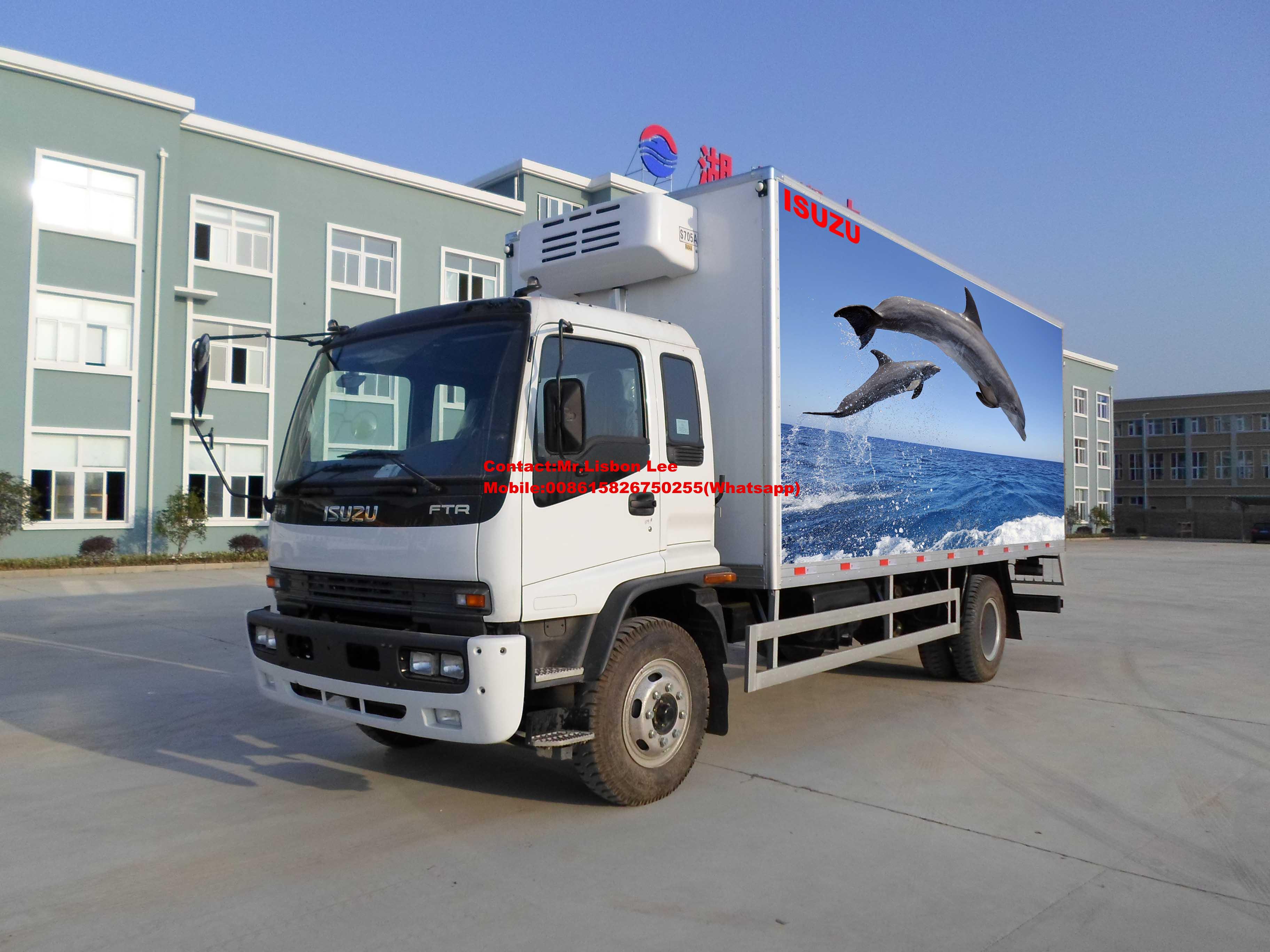

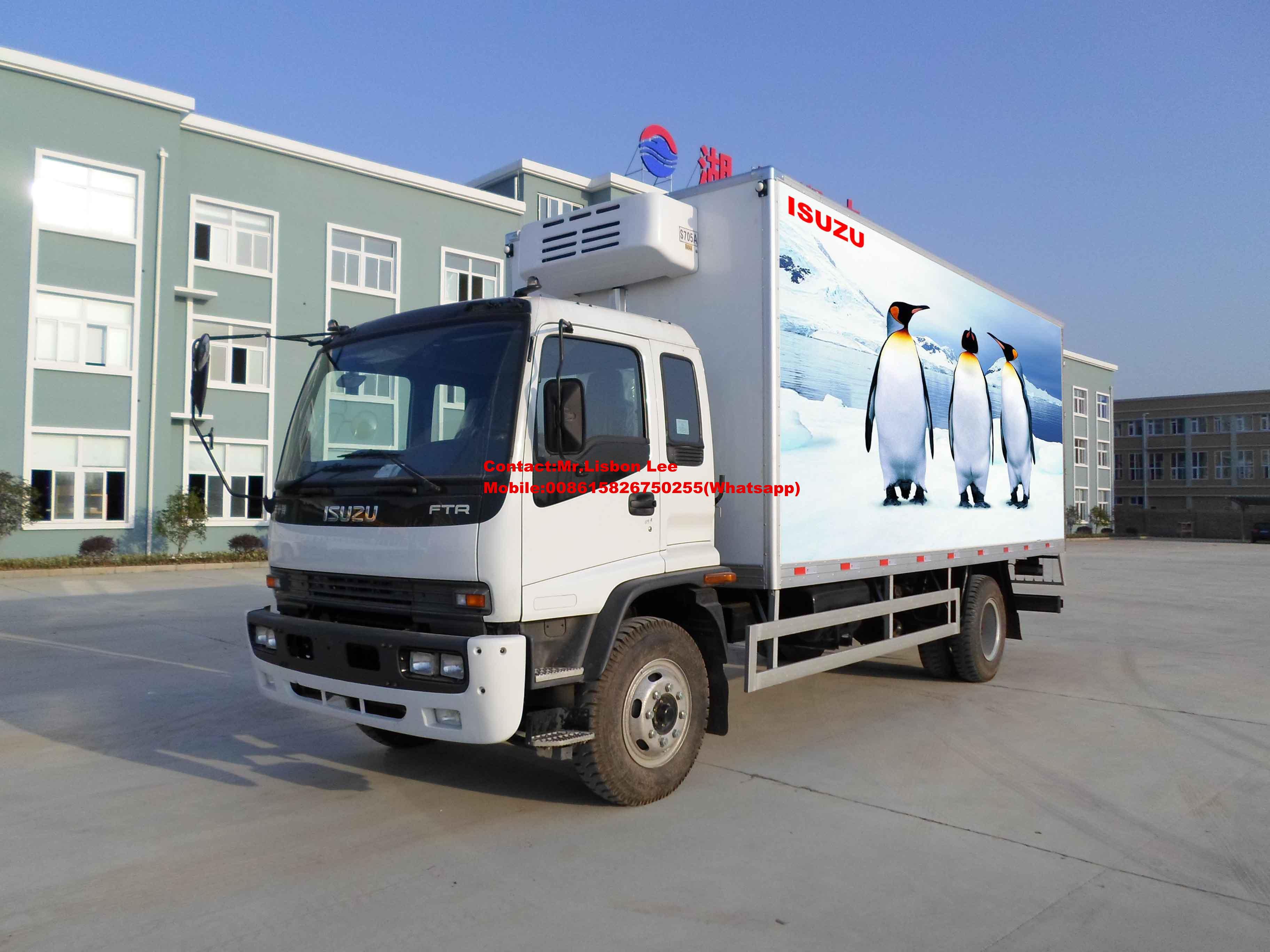

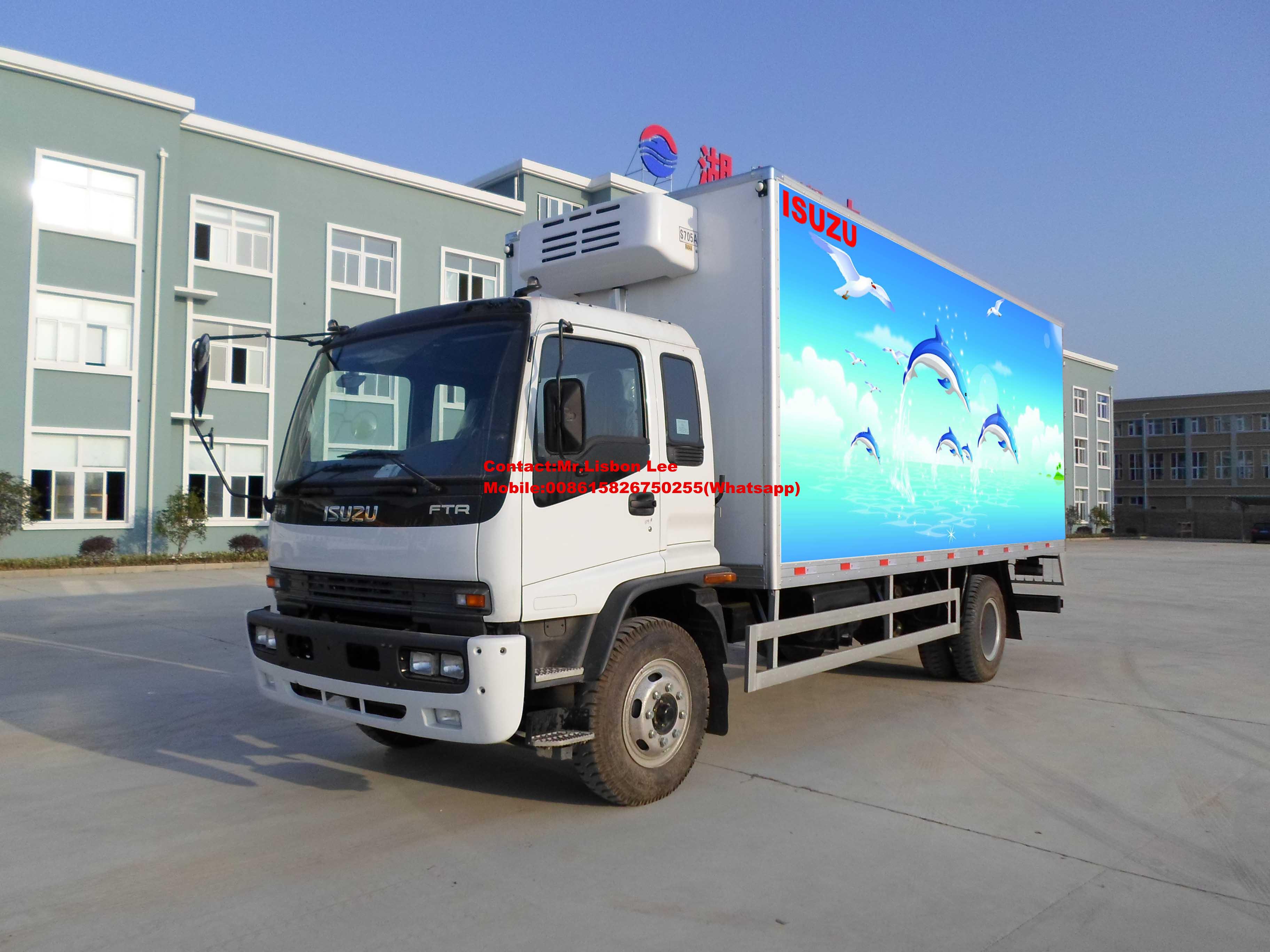

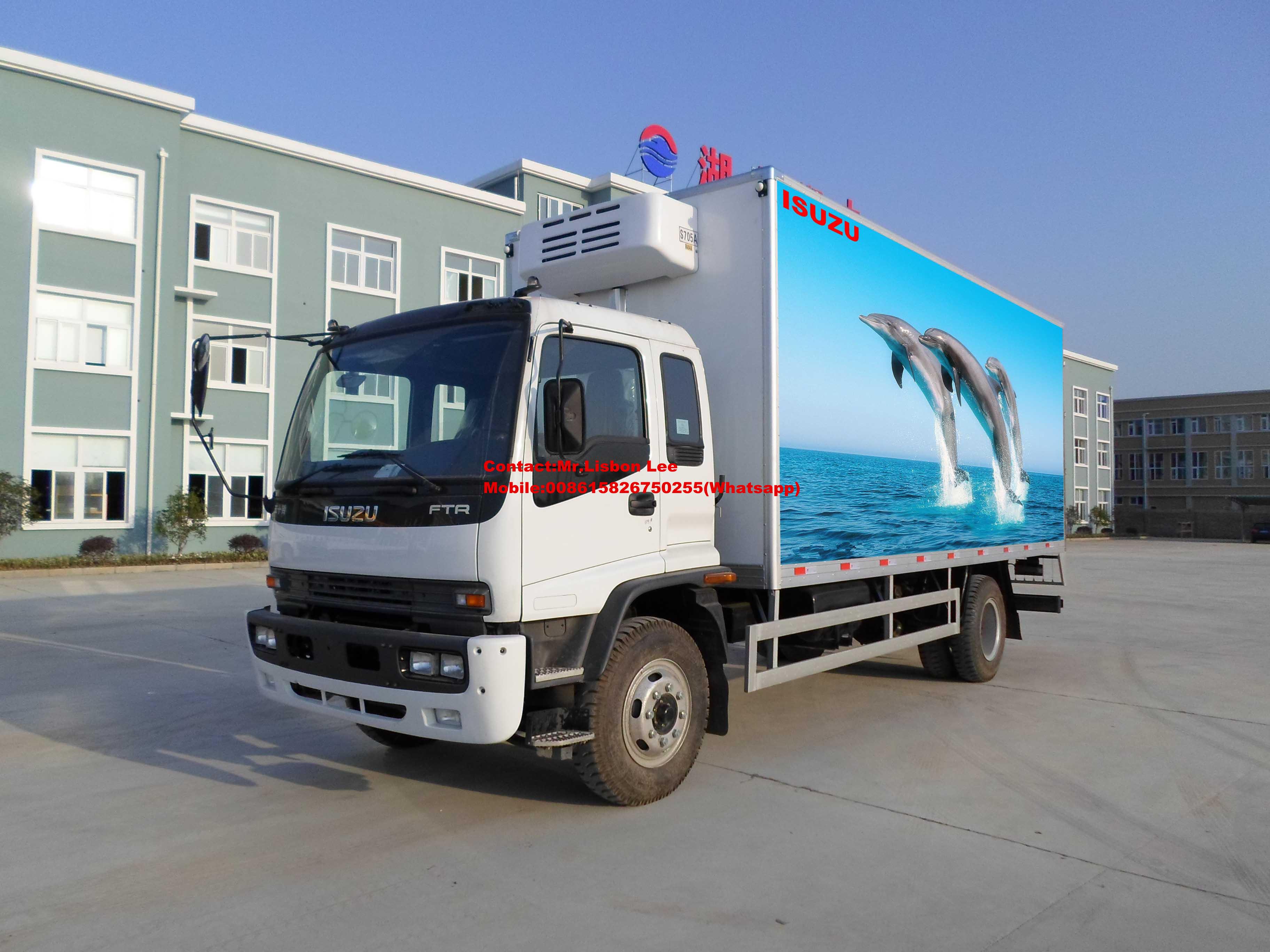

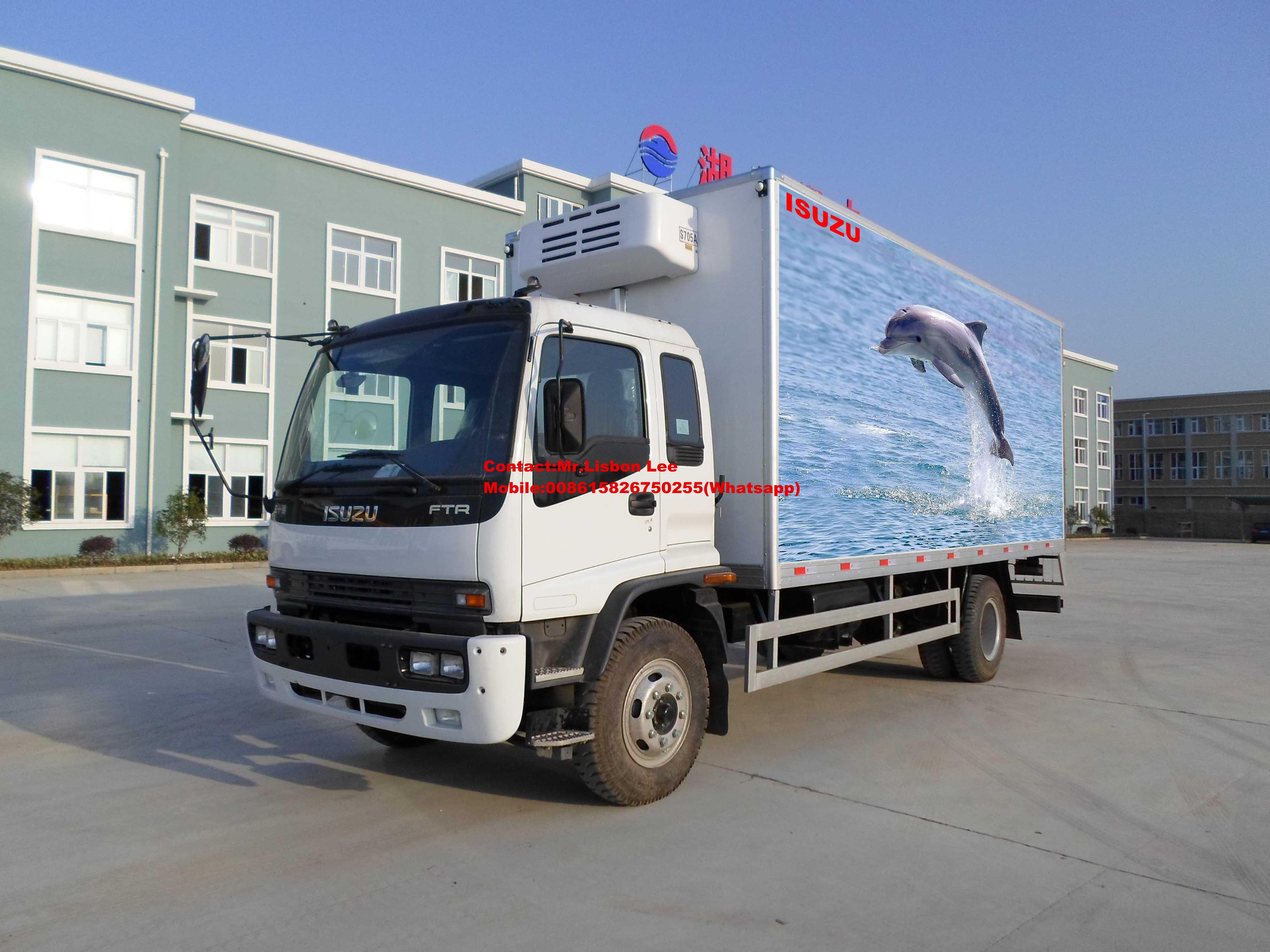

ISUZU refrigeration van truck 10Ton

Weight

Load capacity

kg

10000

Curb weight

kg

7055

Chassis

Model

/

QL1160VNFRY

Wheel base

/

mm

5000

Dimension

Length

mm

9000

Width

mm

2470

Height

mm

3935

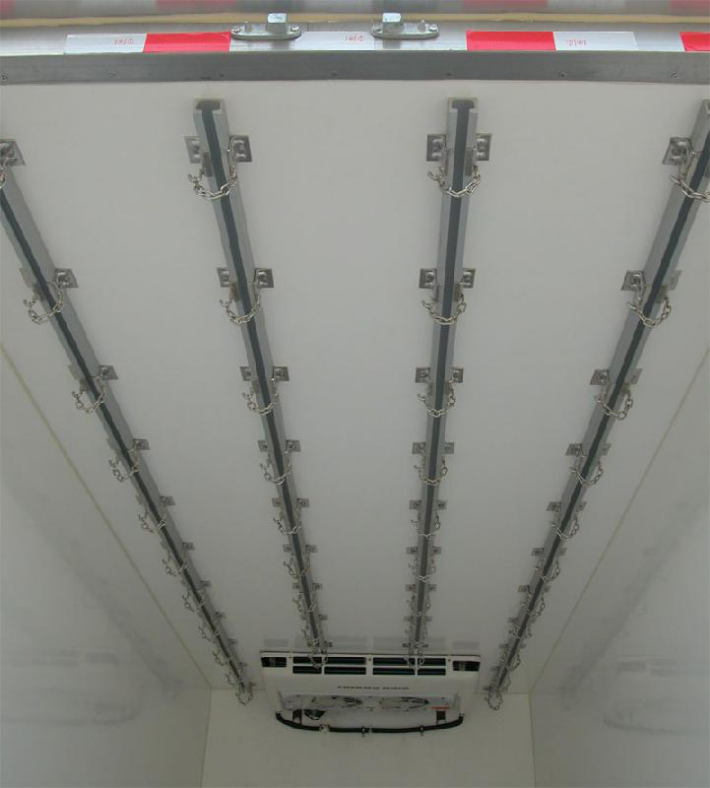

Box size (inner)

Length

mm

6415

Width

mm

2250

Height

mm

2400

Engine

Model

/

4HK1-TC50

Description

/

In line, 4 cylinders,

high pressure common rail,

diesel engine

Power

kw/hp

141/205

Displacement

ml

5193

Torque

N.m

500

Emission standard

/

Euro V

Max drive speed

Km/h

95

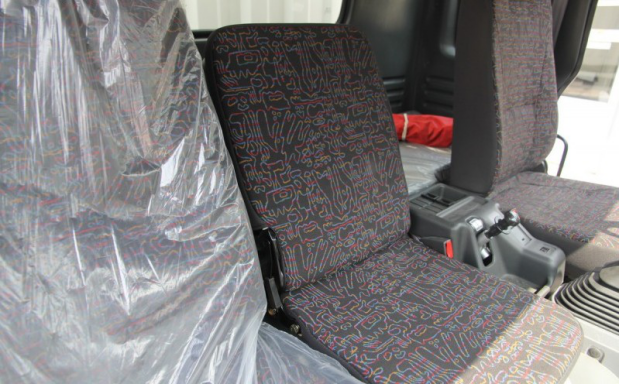

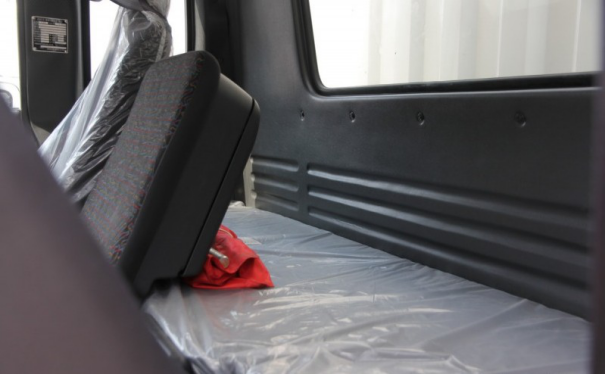

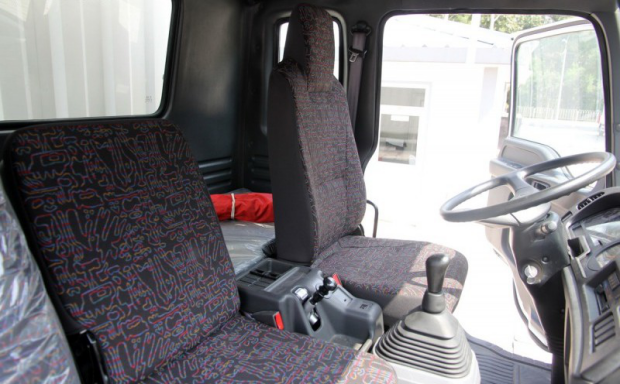

Seats

Quantity

3

Tyre

Type

10.00-20 16PR

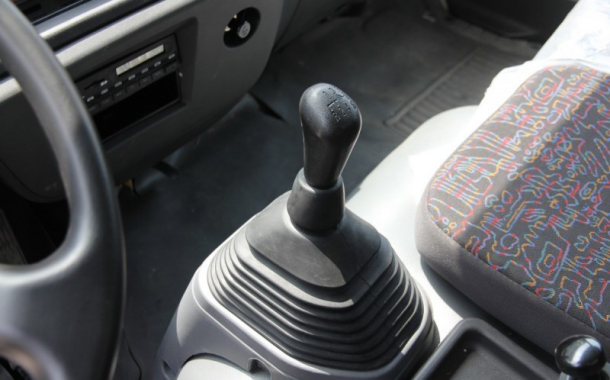

Gearbox

MLD-6Q ,6 forward gears,1 reverse gear

Other

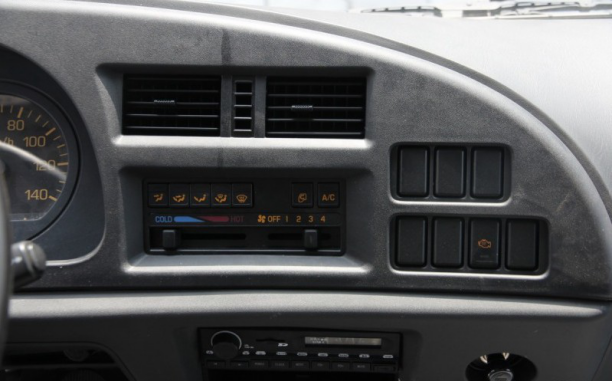

With air conditioner,front axle 6.3T,

rear axle 13T,radio,

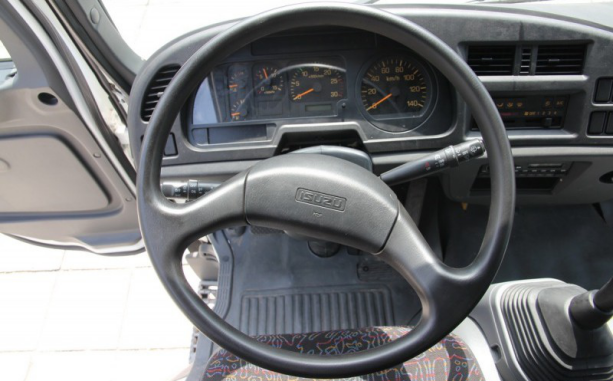

power steering,
section of frame:258*85*10+4mm,
air brake system, electric window,

central locking,USB acoustics,

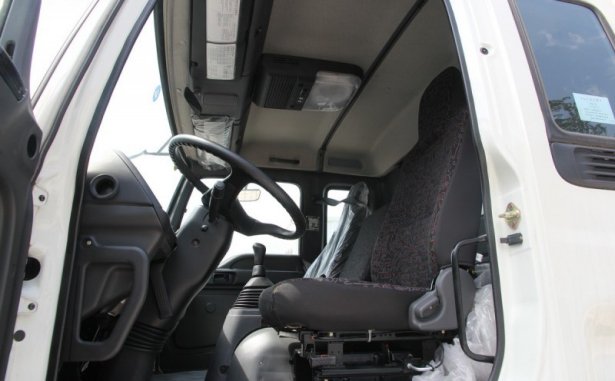

wide turnable cabin

Refrigerator machine

Songhan S705A

Manufacturer

Shanghai Songhan Co., Ltd.

Working temperature

-18℃～-15℃

Refrigerator type

Non-independent unit

Van material

FRP(fiber reinforced plastic) in the surface, polyurethane (80mm) sheathing board in the middle, color plate inside

Door opening way

Rear Door. There is also left side door or right side door for option. Or according to customers’ requirements
