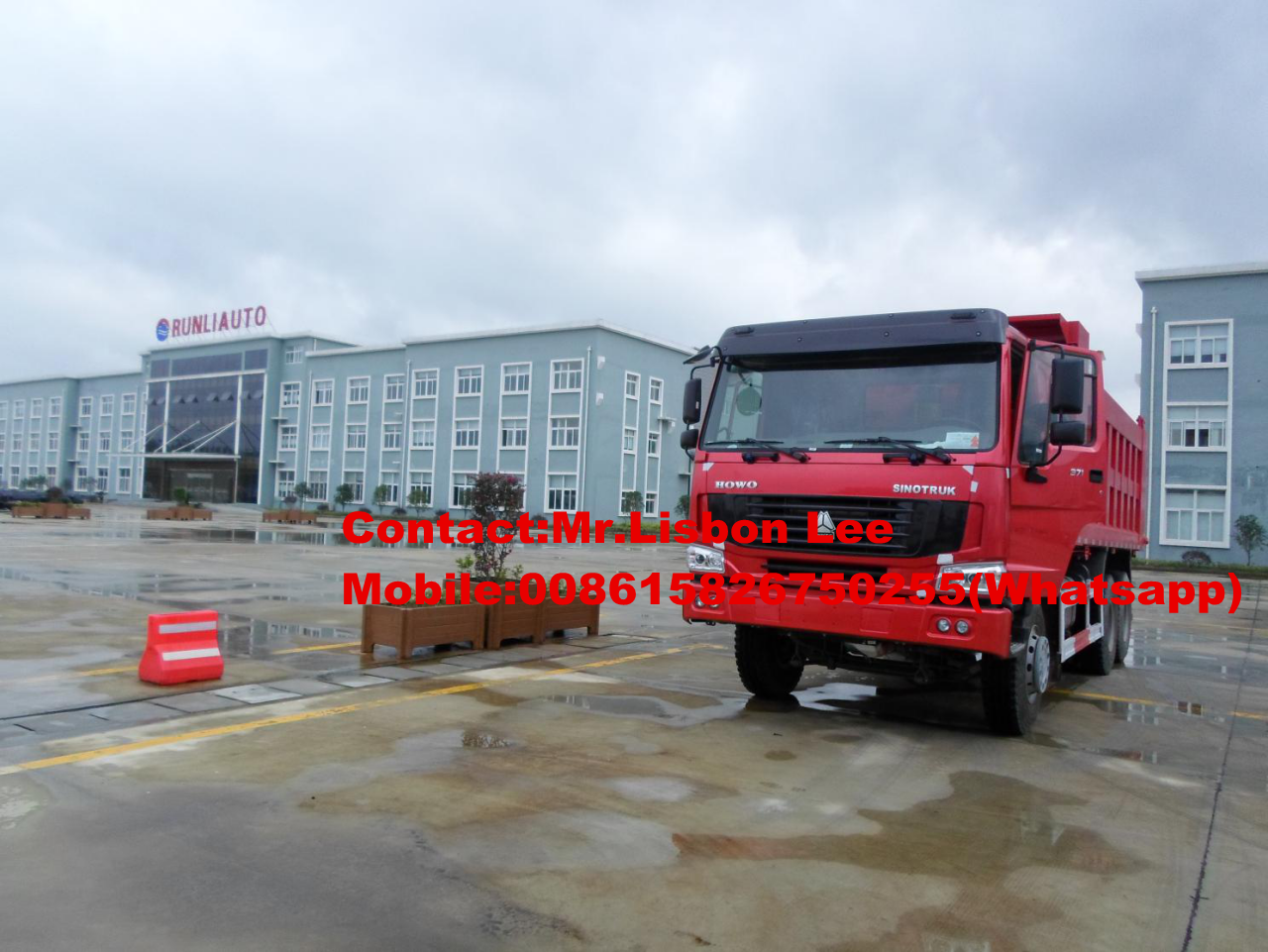

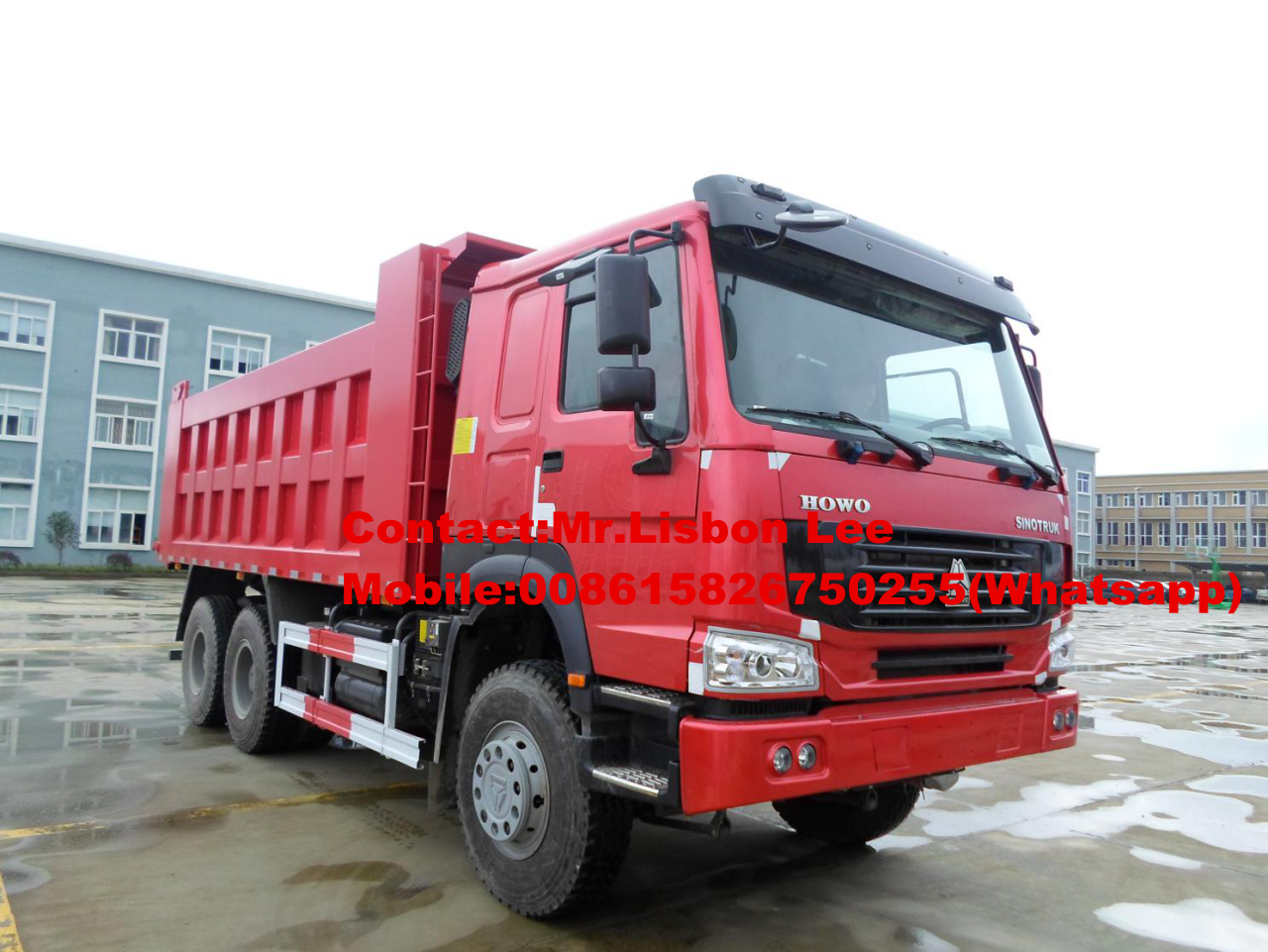

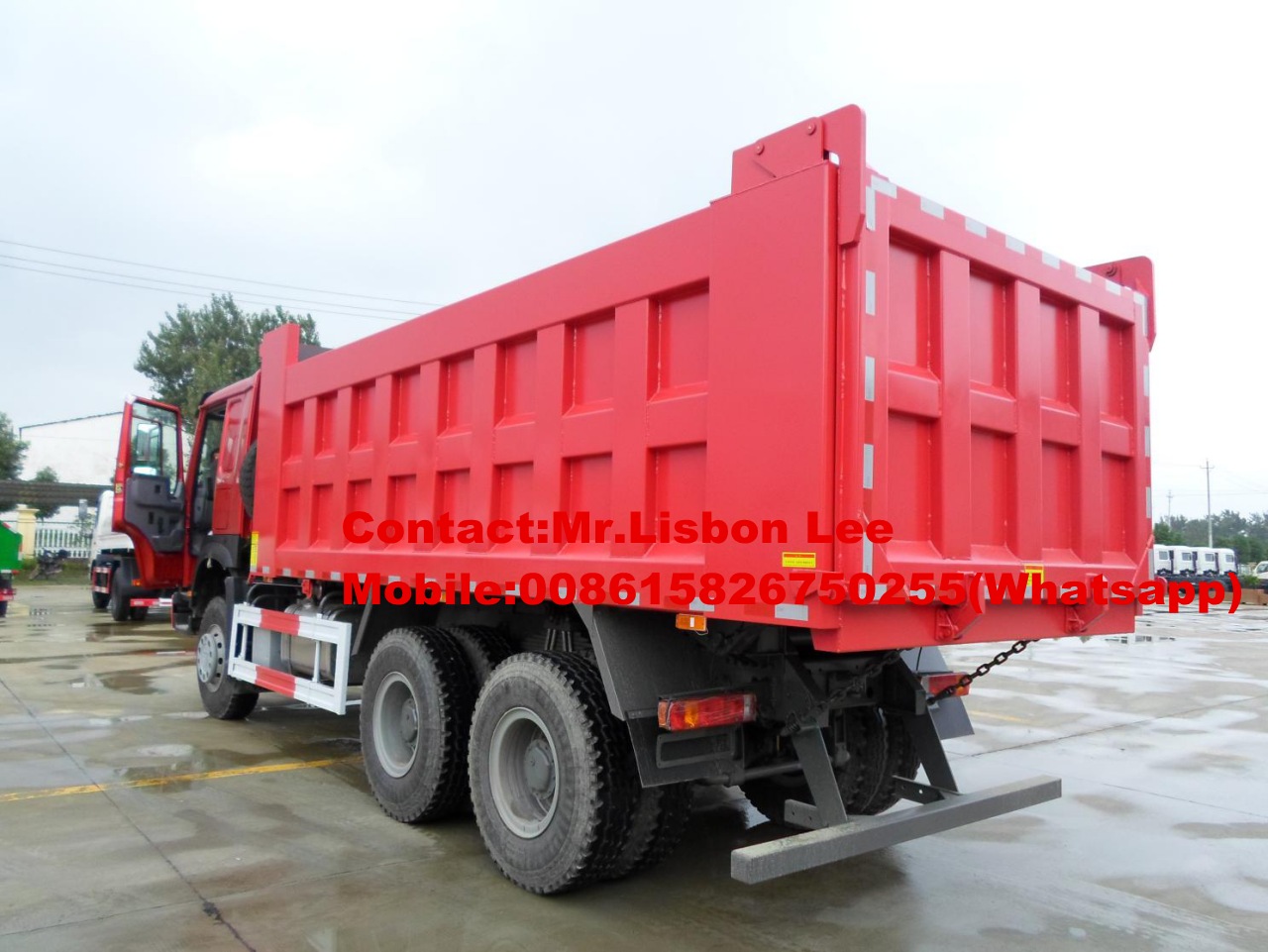

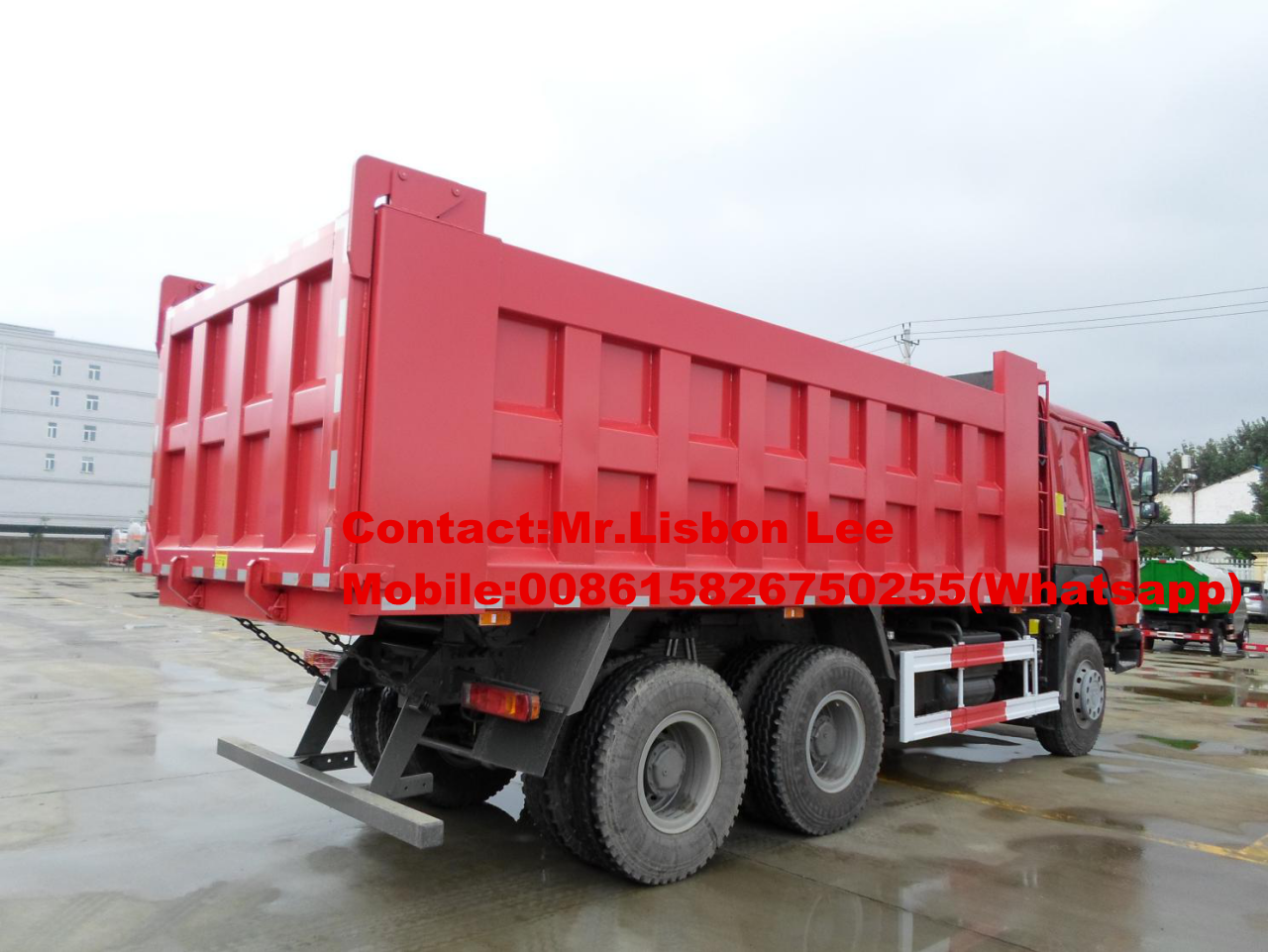

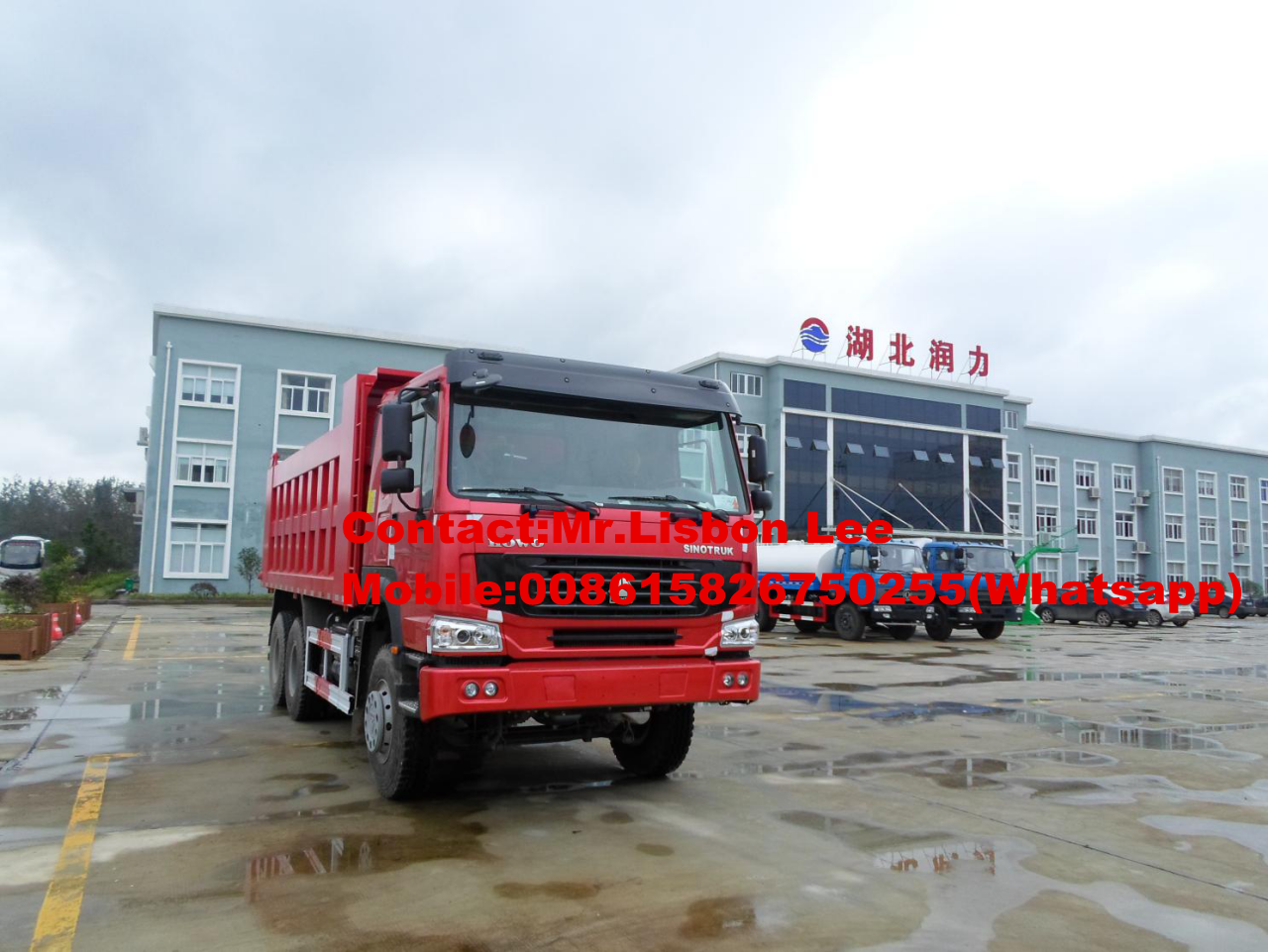

HOWO 6X4 Dump Truck 371HP

Complete vehicle

Chassis Model

ZZ3257N3447A1

Drive type

6X4

Wheel base(mm)

3425+1350

Overall dimension(mm)

7835x2496×3170

Box dimension(mm)

5200×2300×1200

Curb weight(Kg)

12220

Max.vehicle speed(km/h)

75

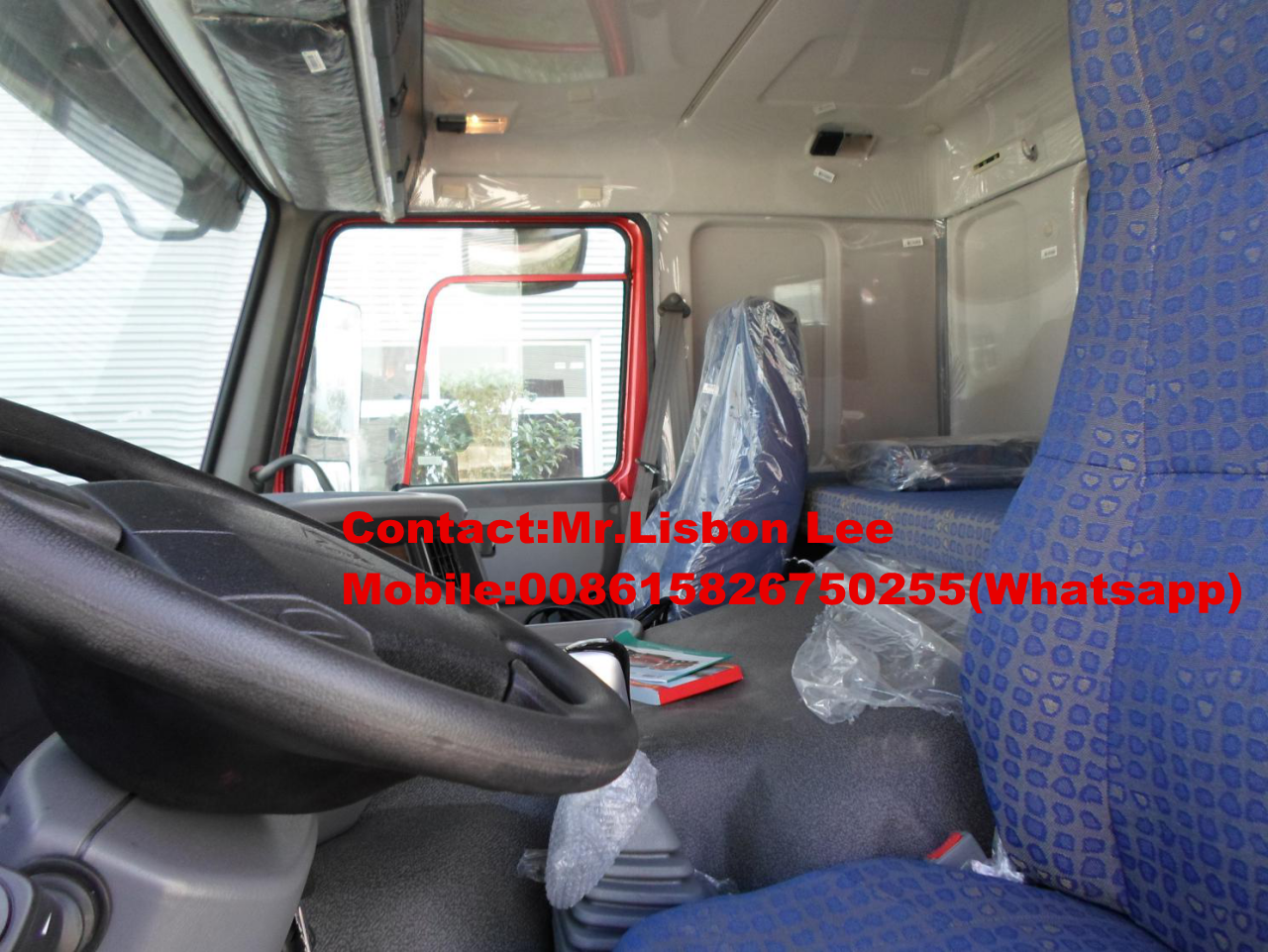

Cab

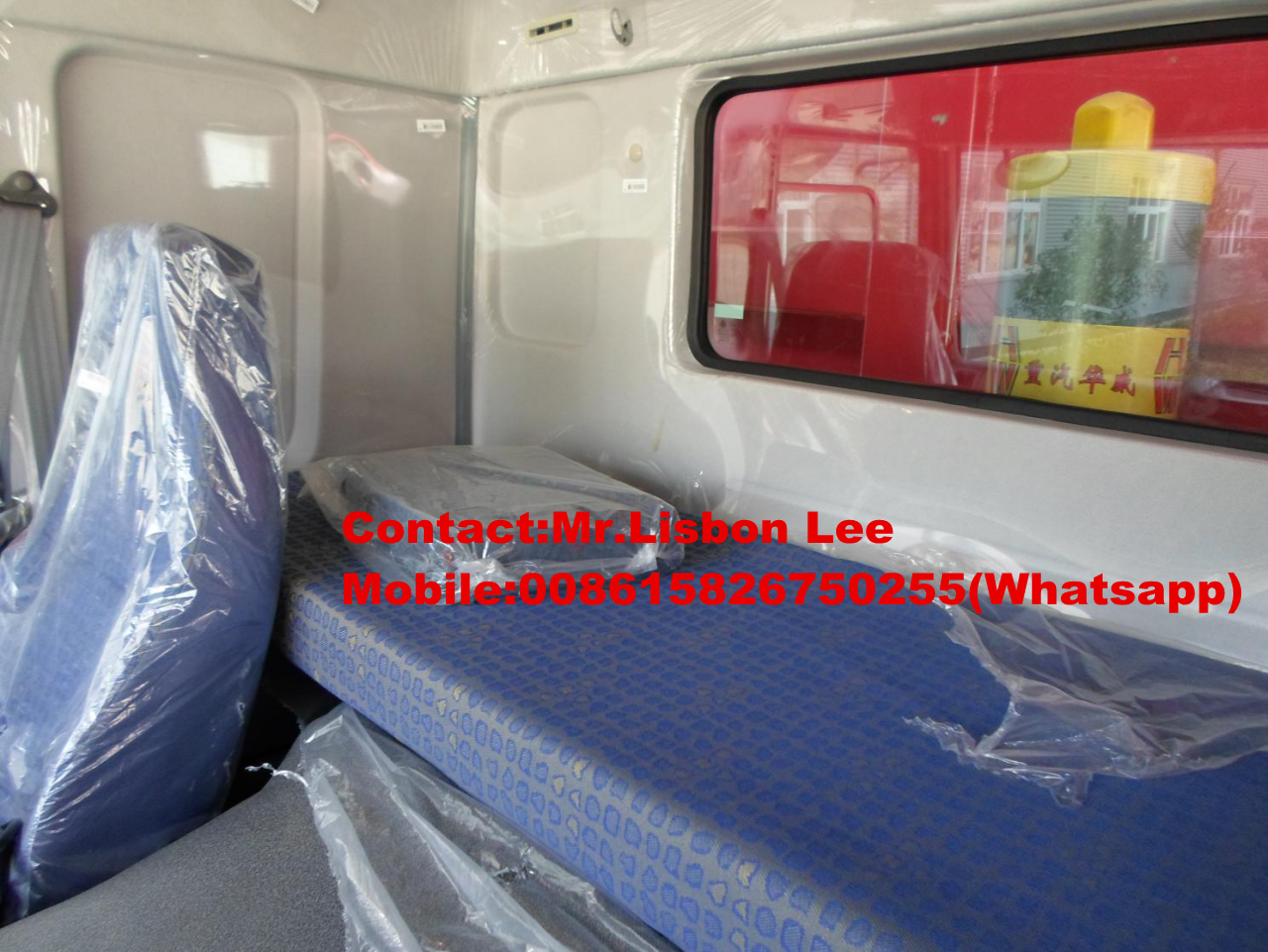

HW76(Flat roof standard ,one and half rows cabin,A/C provided)

Engine

Model

WD615.47

Max.output (kw/HP)

273/371

Max.torque (N•m)

1500 @1100～1600 rpm

Displacement (ml)

9726

Emission standard

Euro 2

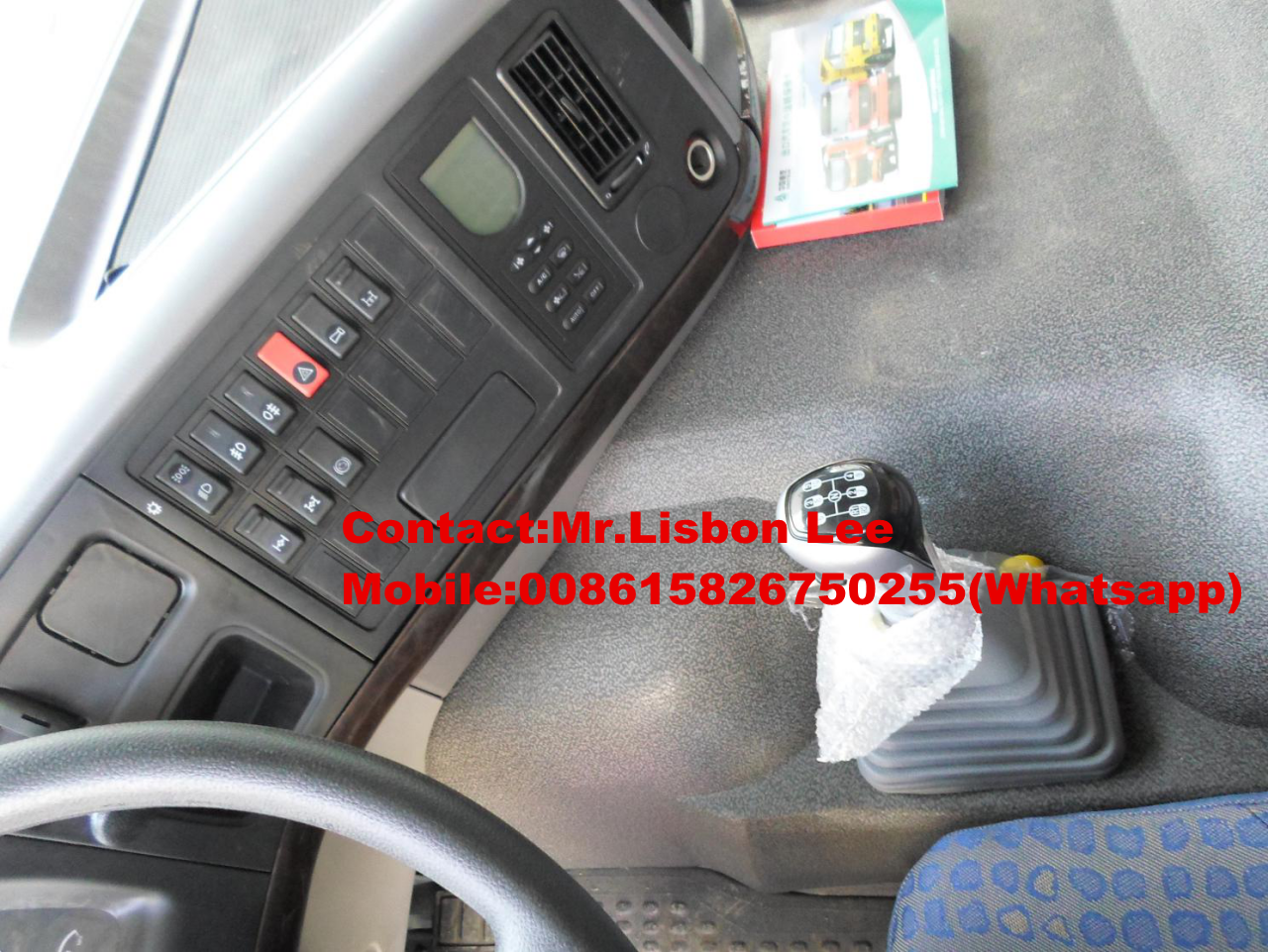

Gear box

HW 19710, 10 forward gears ＆2 reverse gears

Driving axle

AC16(Tandem)

Front axle

HR9

Steering gear

Germany ZF8118

Chassis suspension

NS-07 new stabilizing suspension

Air intake system

Double pipe cyclone air duct+Oil air filter+Common air filter

Inner trimming

Standard configuration

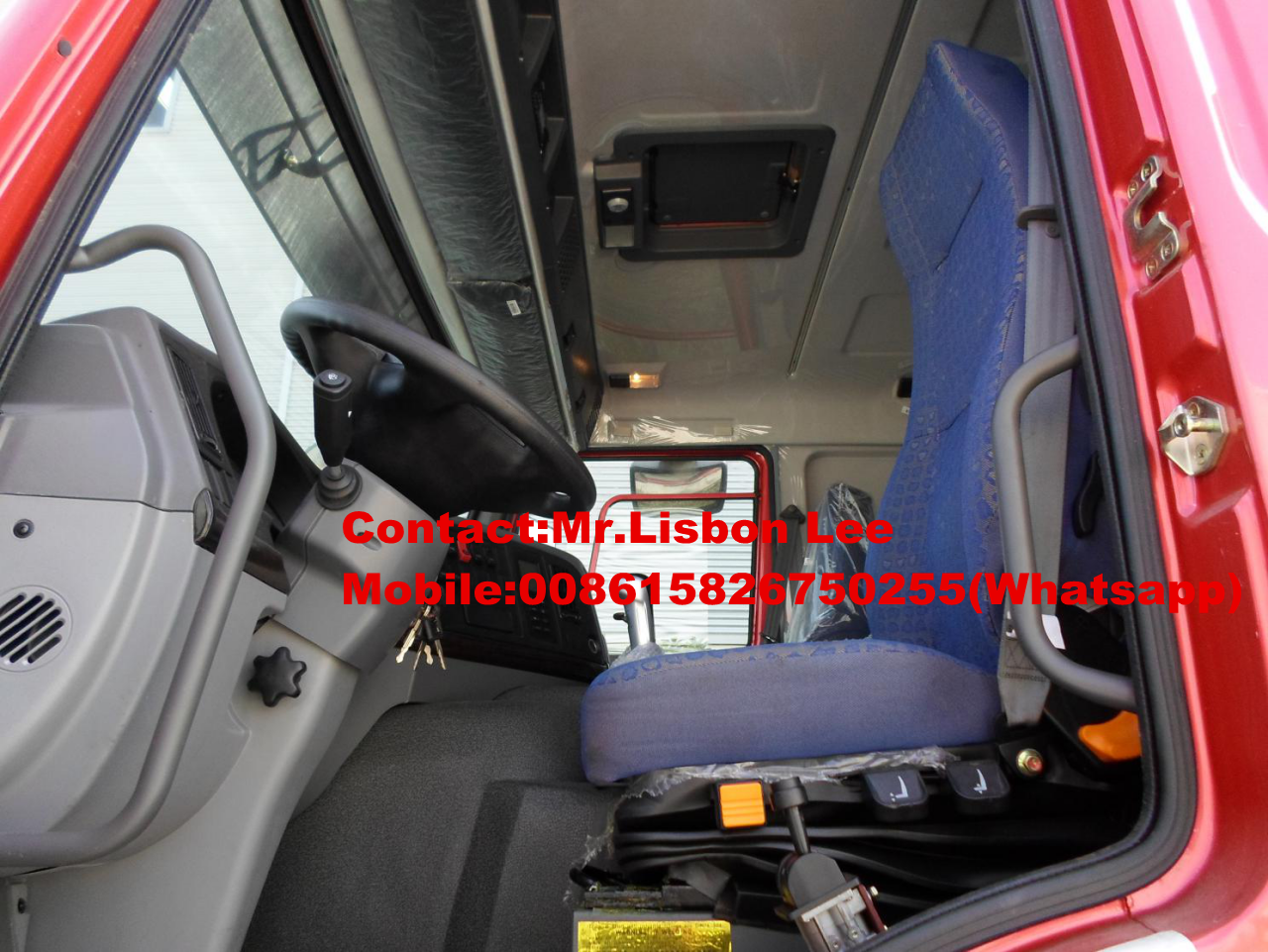

Air suspension seat

Seat heater

Lumbar support to the driver

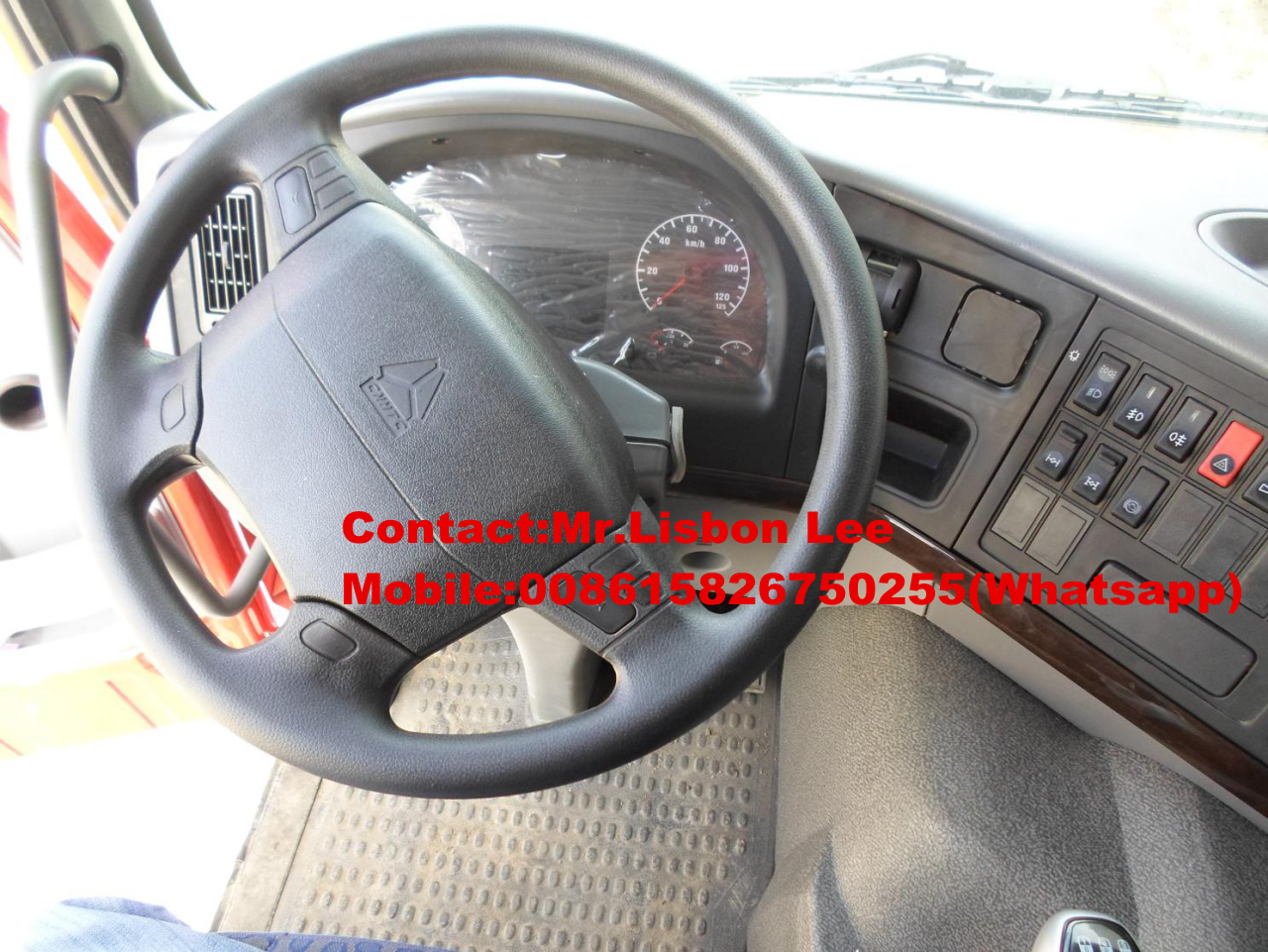

Adjustable steering wheel

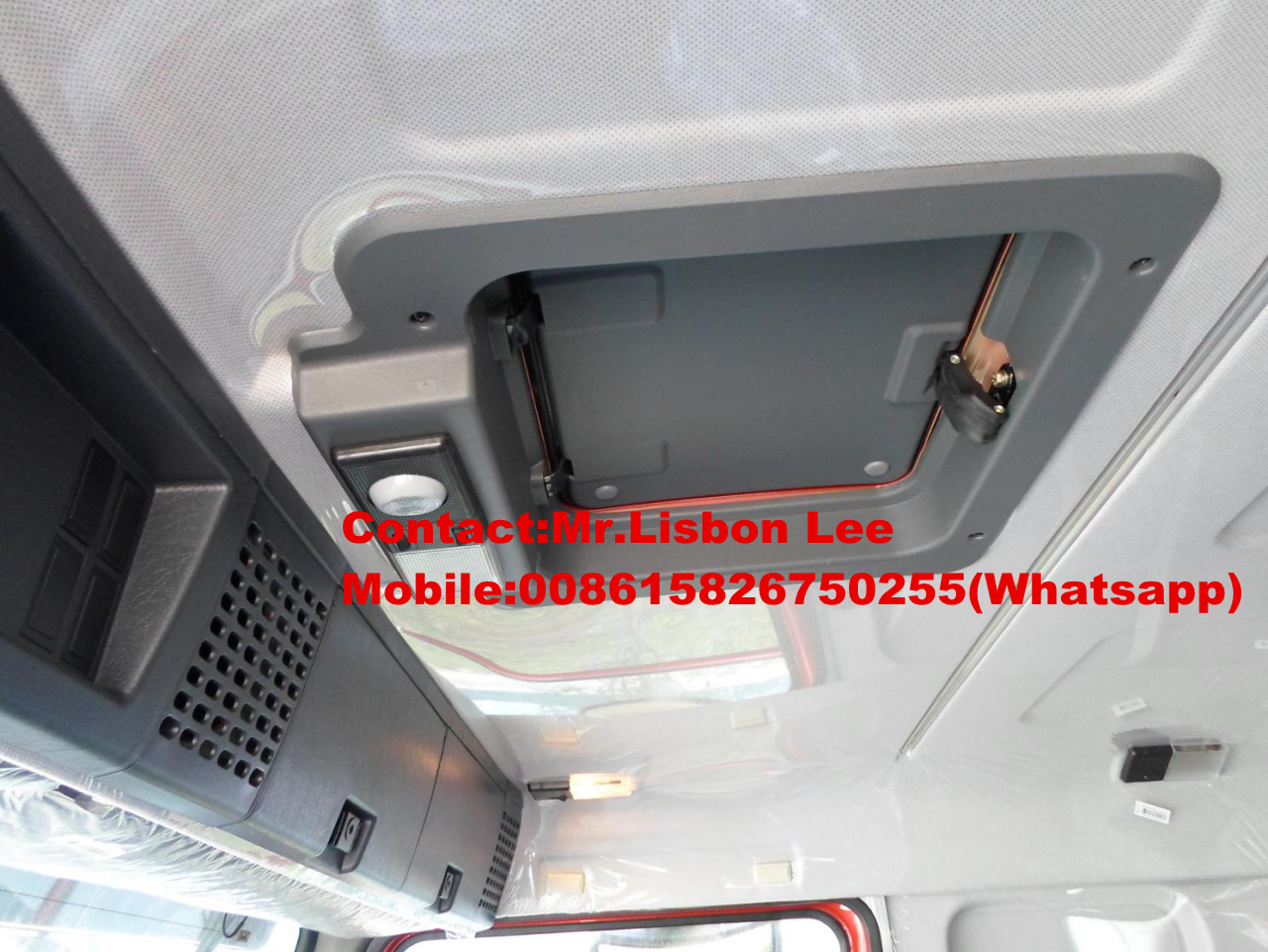

Sun roof

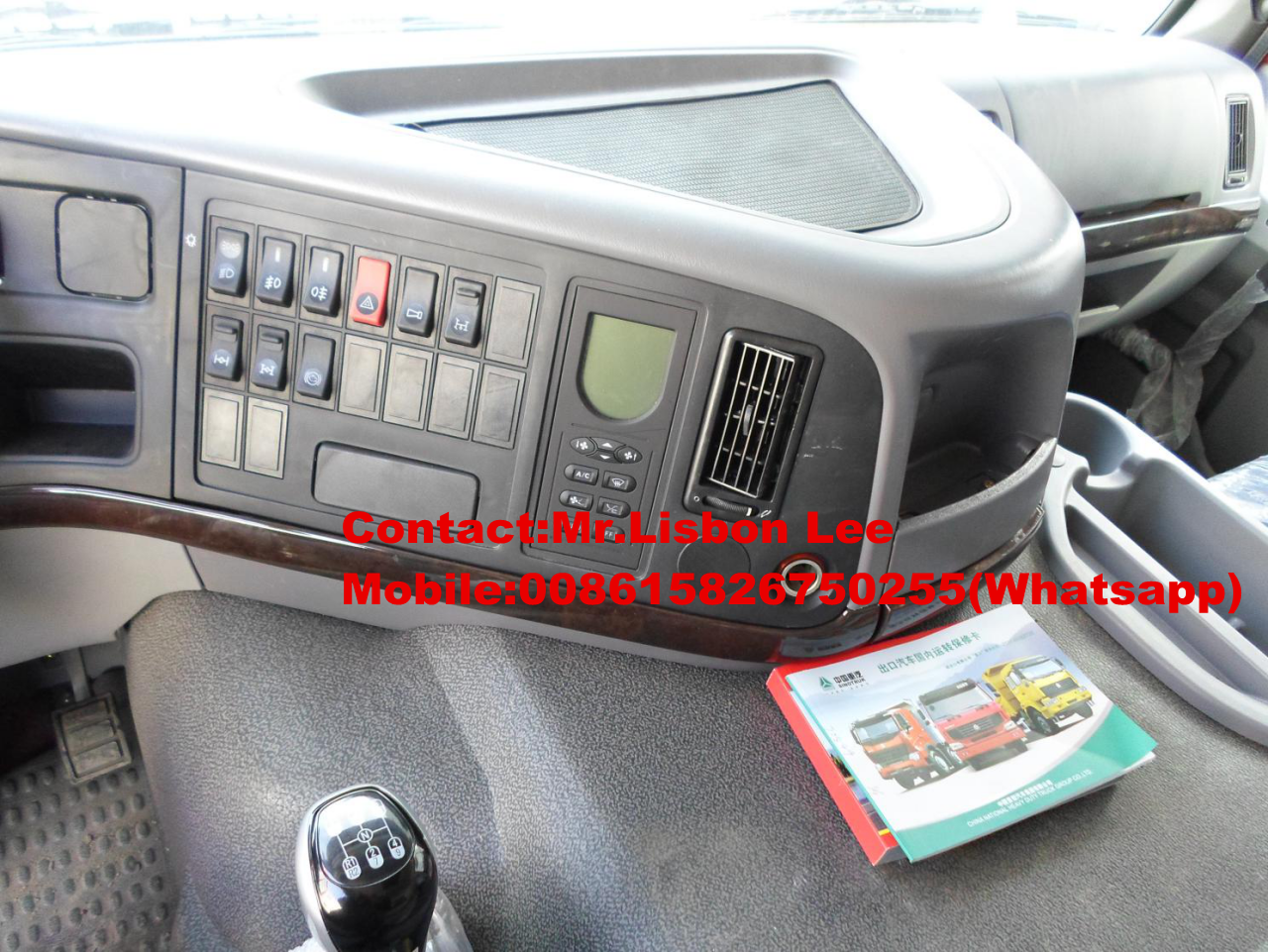

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,Tachometer

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Adjustable steering wheel

Others

Aluminum alloy fuel tank

Square-300L

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (ignition switch, door and fuel tank)

Type specification

12.00R20

Number of tires

10+1

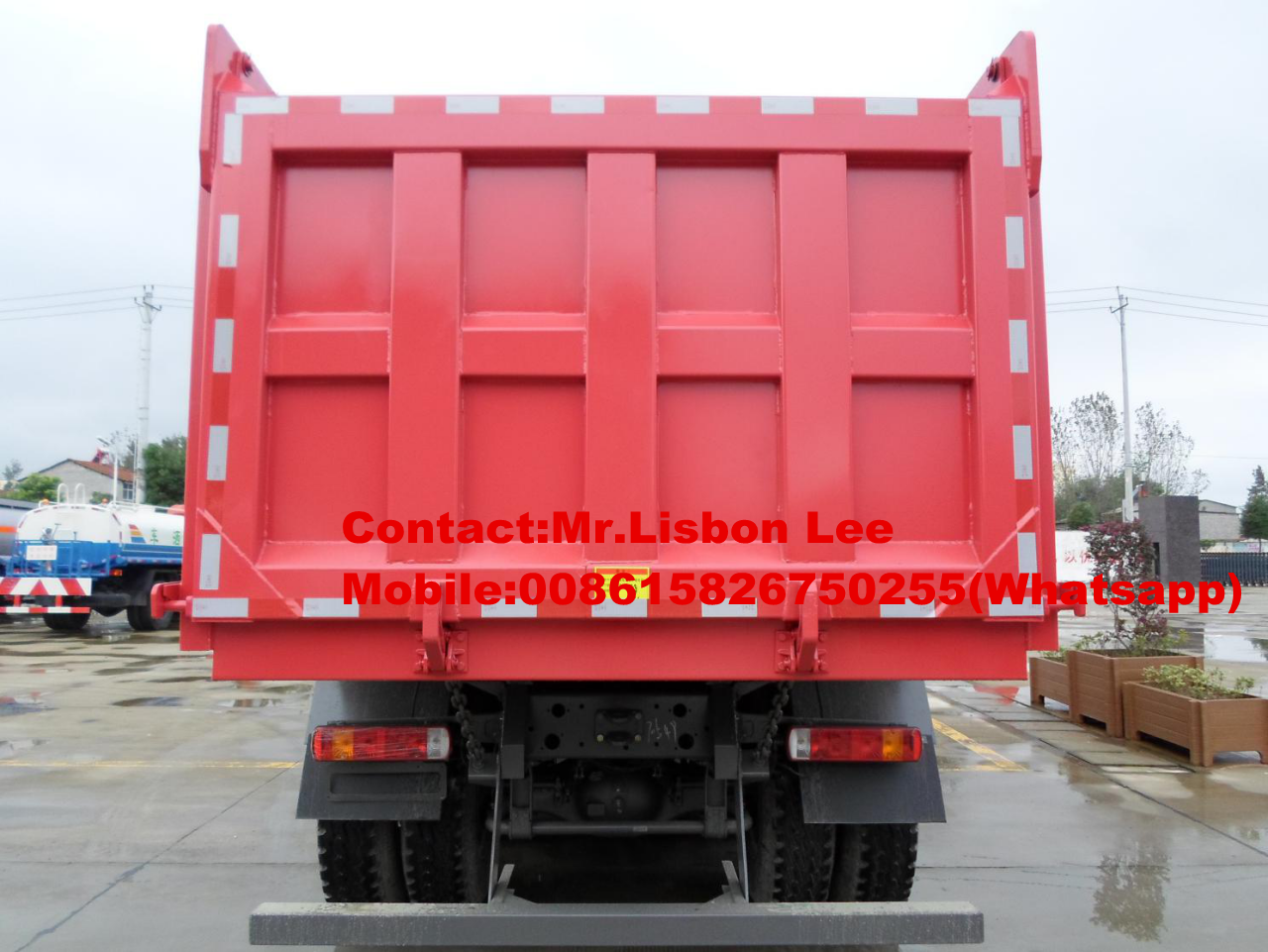

Thickness of box

Side 6mm, bottom 8 mm

Lifting system

Middle hydraulic lifting
