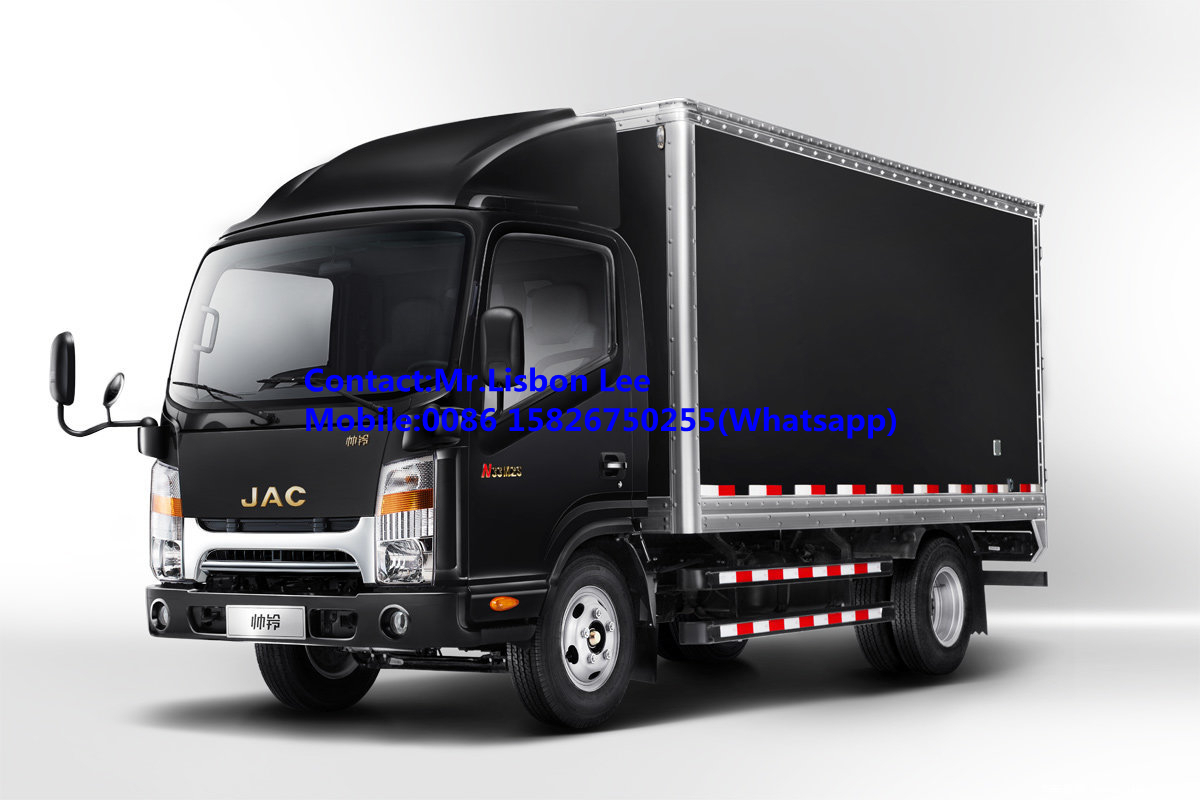

Product model |
HFC1042L3KT |
|
|

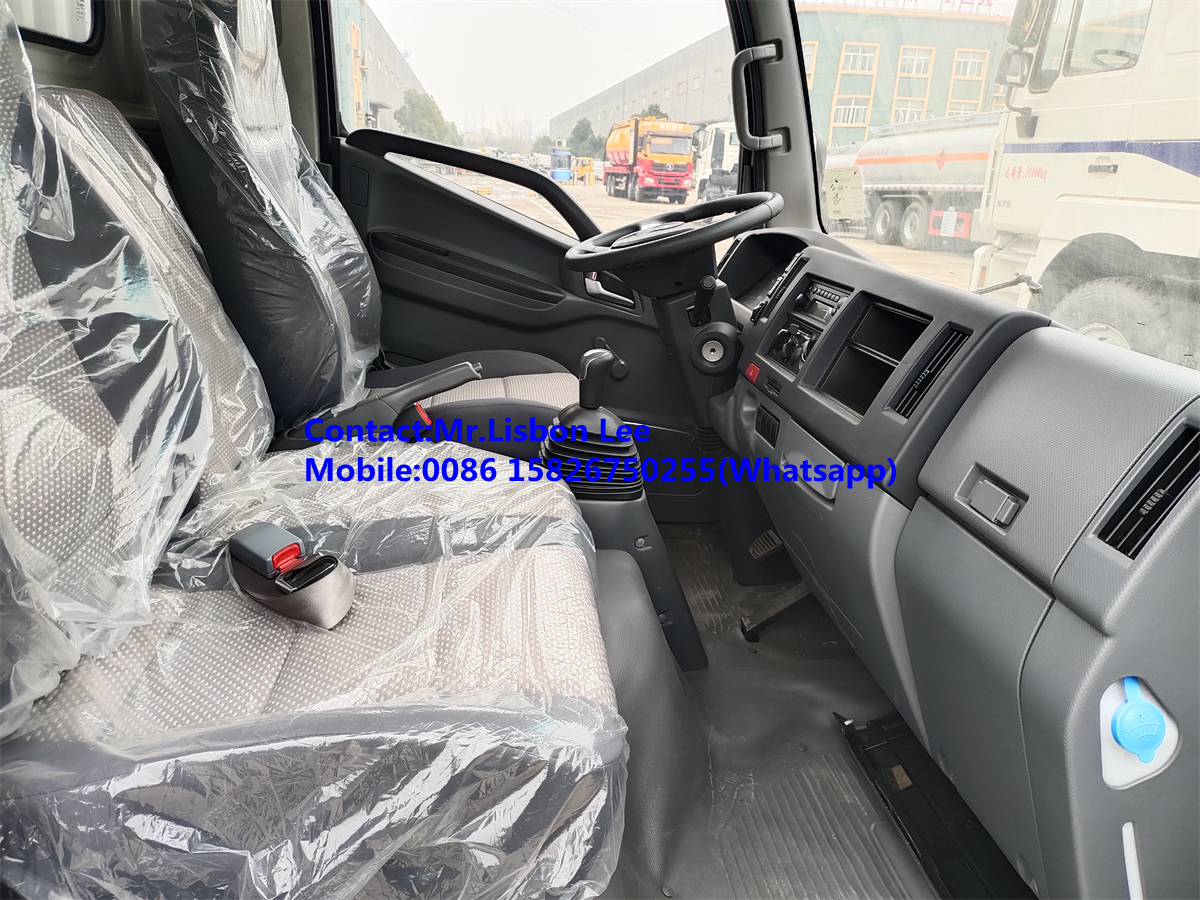

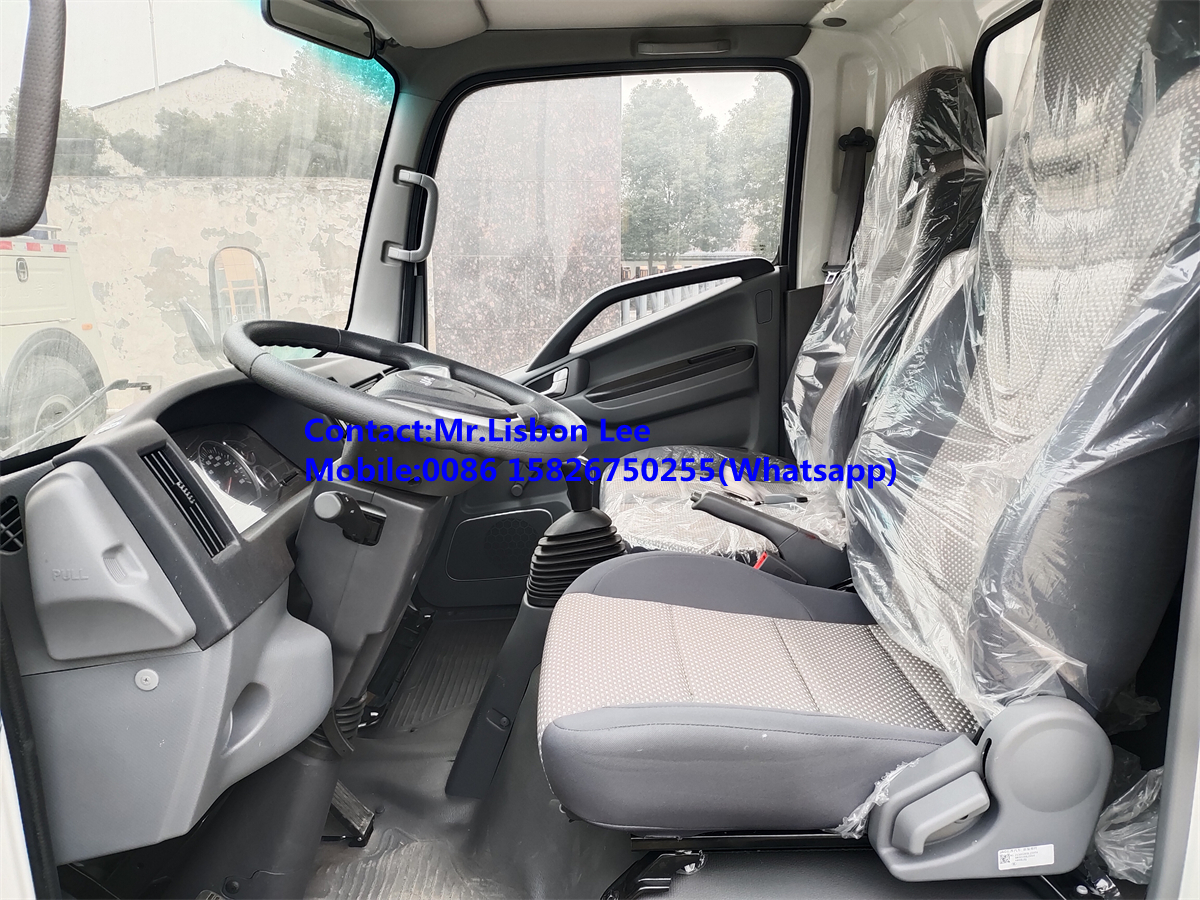

Cabin / Passenger capacity |

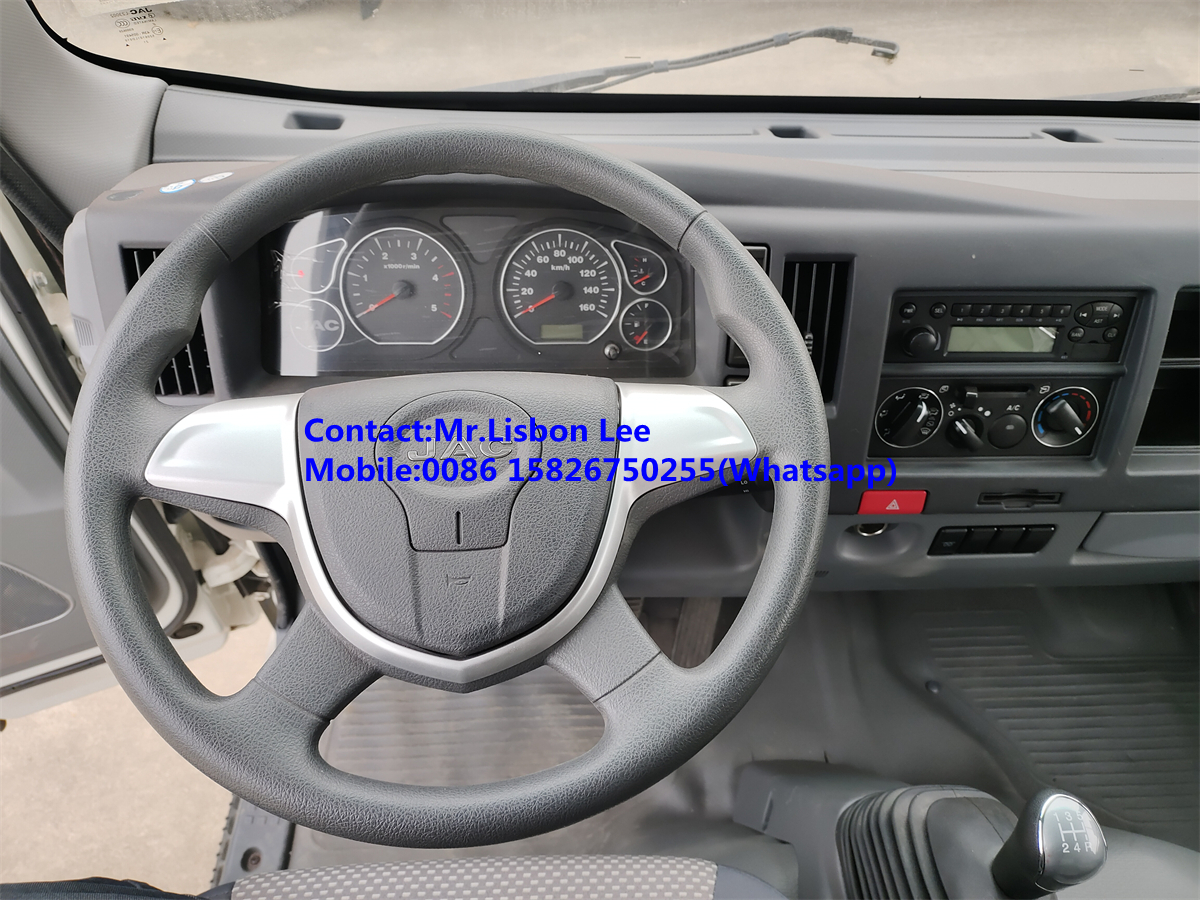

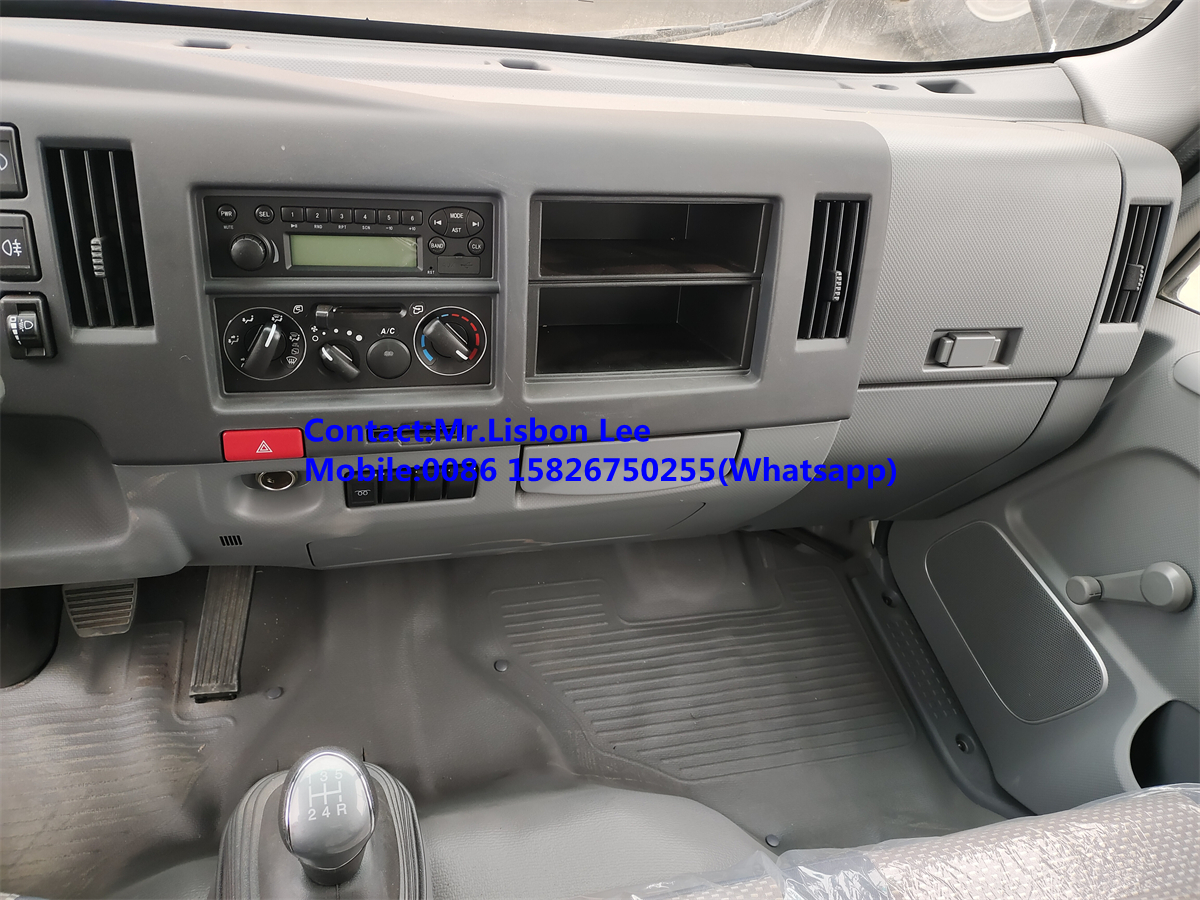

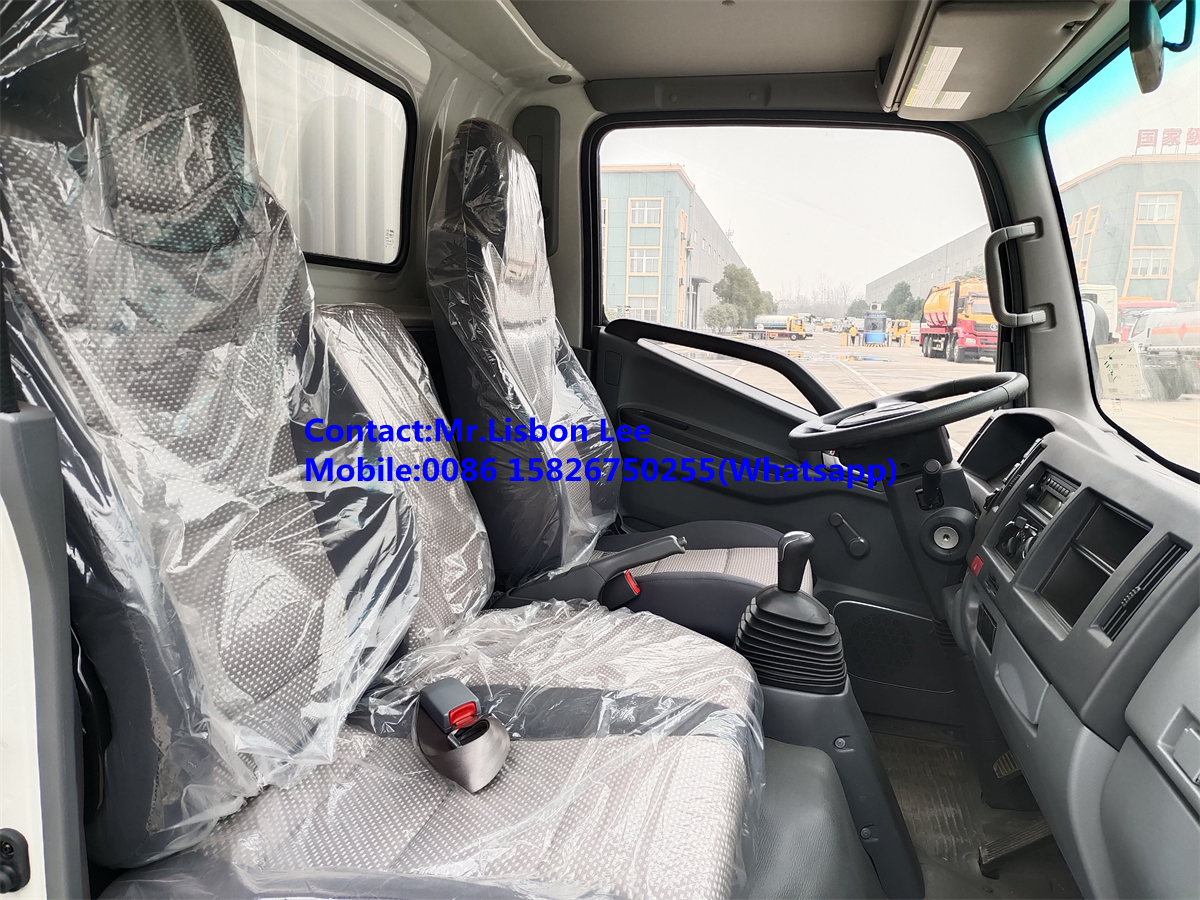

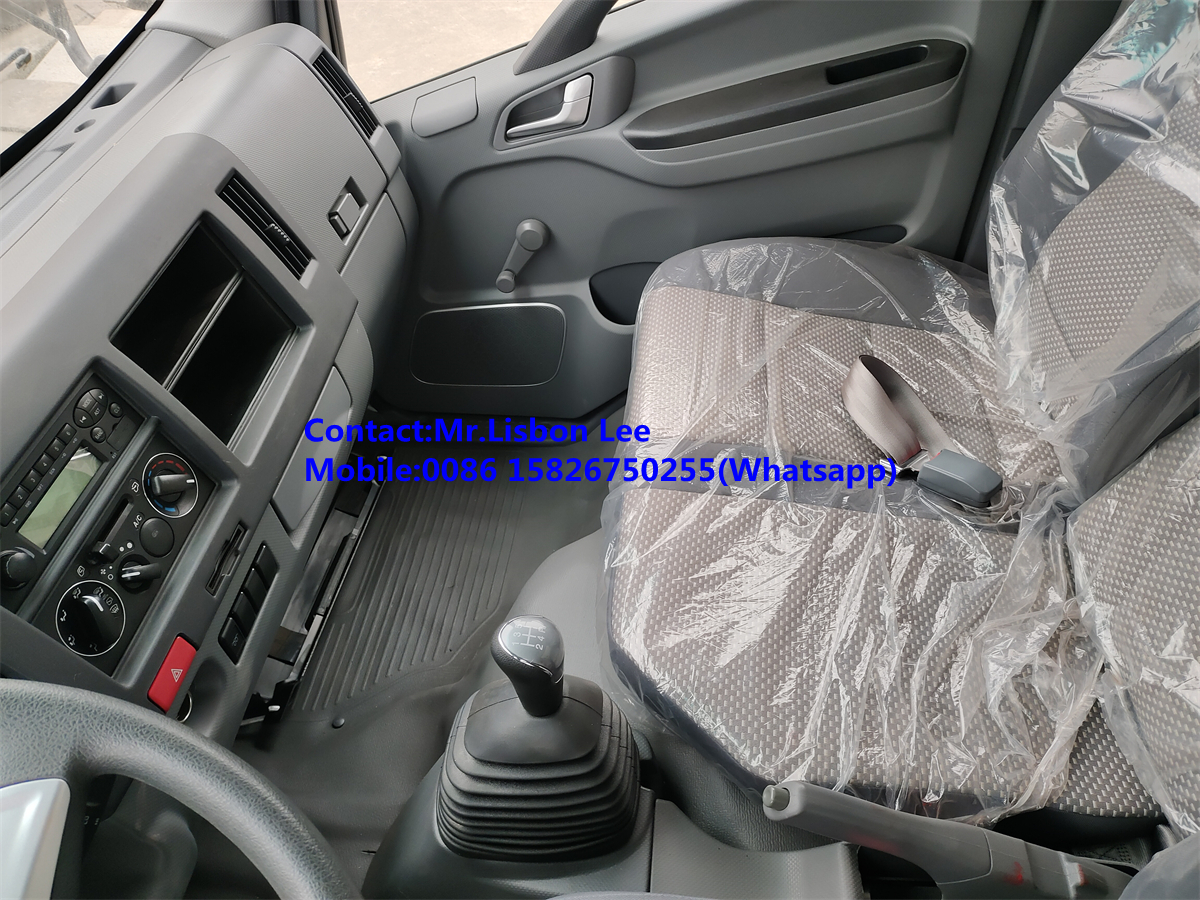

New model N721,single row,luxury configuration,power clutch,1 passenger + 1 driver,tilting system,MP3,A/C |
|
|
Chassis |
Overall dimension |
5900x1910x2835 mm (L*W*H) |
|
Curb weight |
2805 kgs |
|
|
Design load |
5000 kgs |
|
|
Drive type |
4x2 |
|
|

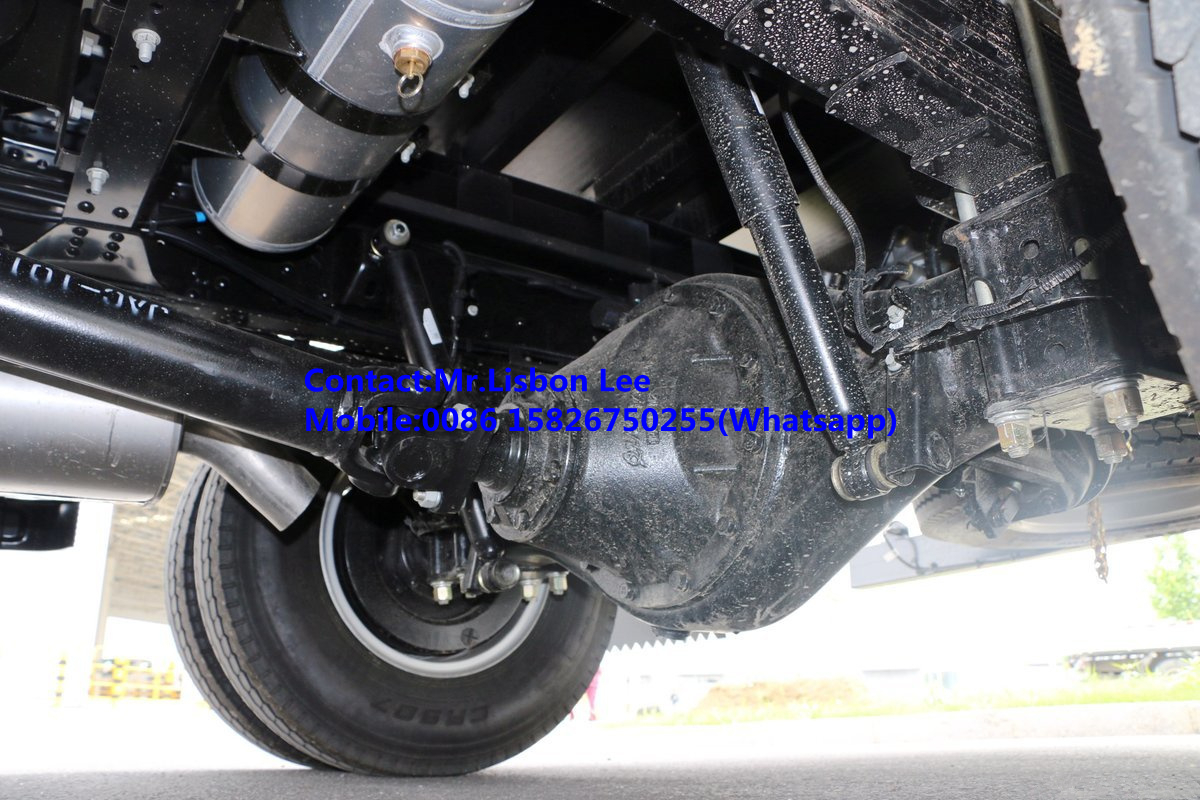

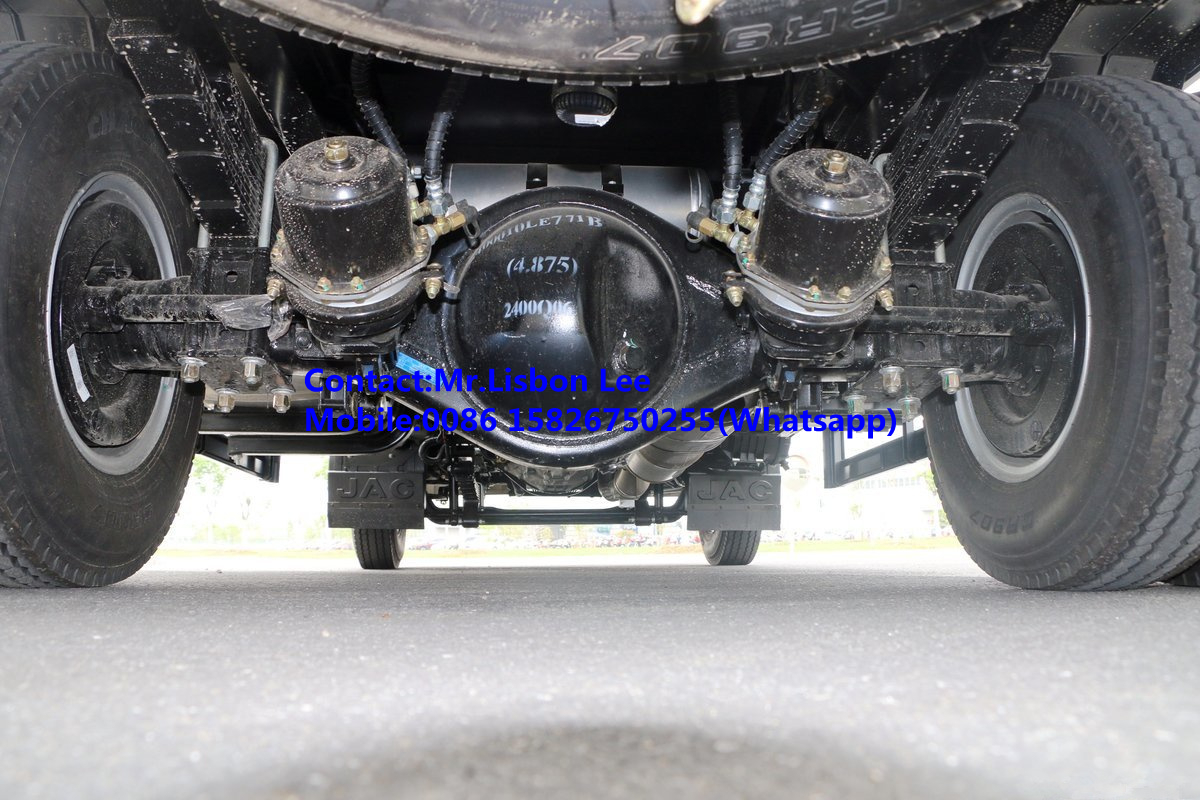

F/R suspension |
1105/1530 mm |
|
|
Wheelbase |
3360 mm |
|
|
Number of axles |
2 |
|
|
Axle-load |
2000/4000 kgs |
|
|
Approach/Departure angle |
24/15° |
|
|
Number of leaf spring |
8/4+5 |
|
|
F/R track |
1440/1425 mm |
|
|
Tire ( No. & specification) |
6.50R16 10PR, 6+1pcs |
|
|
Max speed |
98 km/h |
|
|
Brake system |
Hydraulic braking |
|
|
Steering |
Left hand drive with power steering |
|
|
Transmission |
LC5T255M3,mechanical,5 forward + 1 reverse gears |
|
|
Engine |
Engine model |
HFC4DA1-2B1 |
|
Max.power |
80KW(109HP) |
|
|
Description |
In line,water cooled,four strokes,turbo charged,inter cooled, direct injection,diesel engine |
|
|
Rated revolution |
3600rpm |
|
|
Max torque |
240N.m@2000~2200 rpm |
|
|

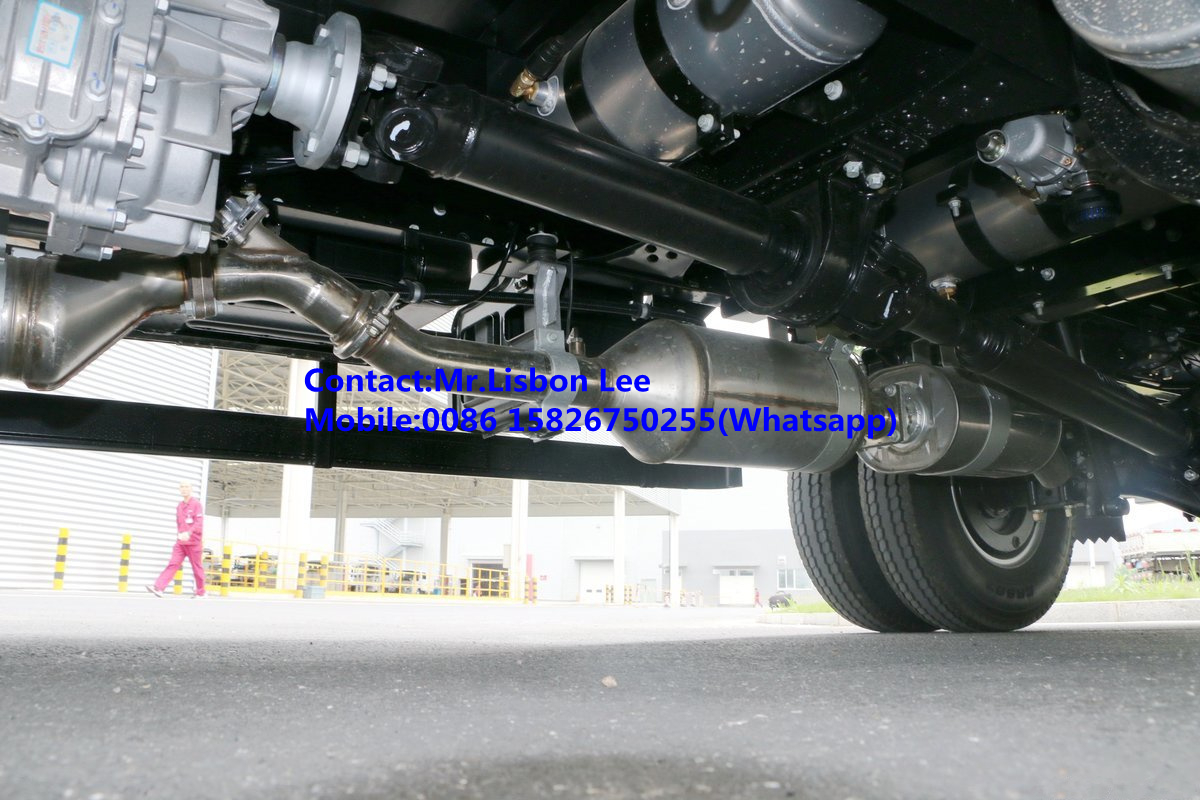

Exhaust |
2771 ml |
|
|
Emission standard |
Euro 3 |
|
|

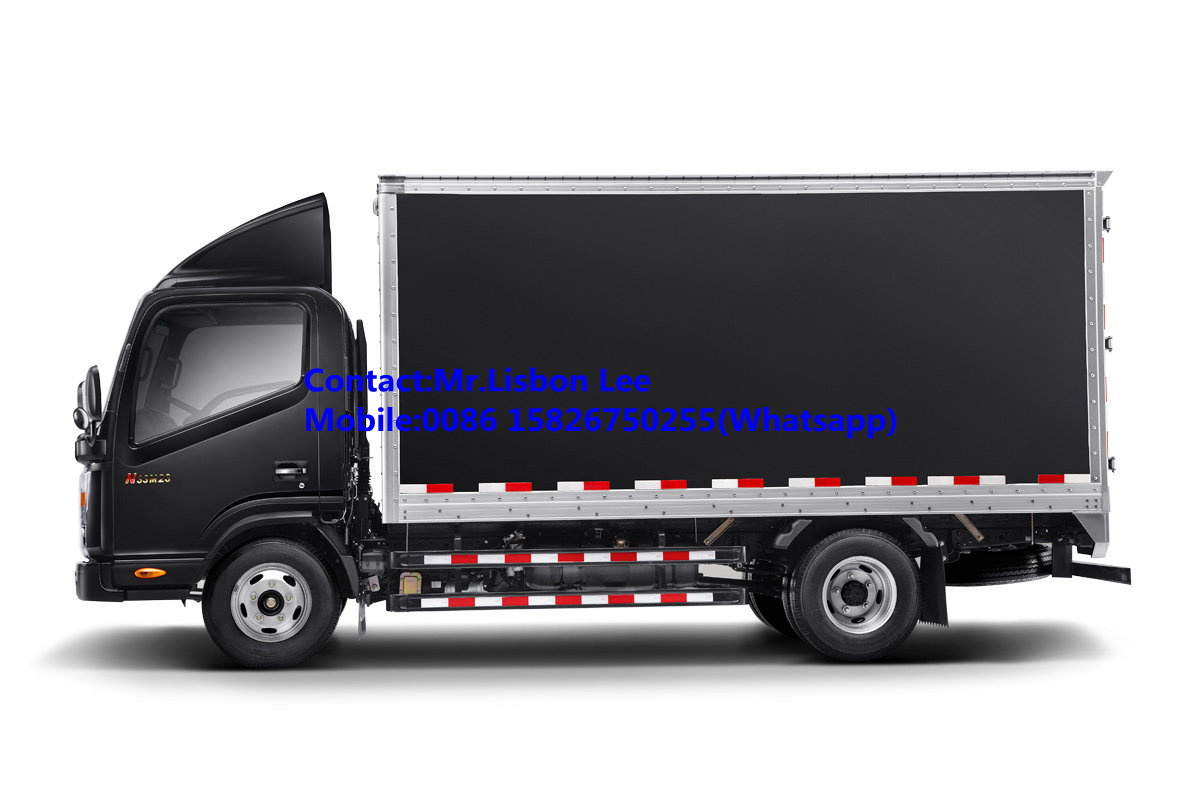

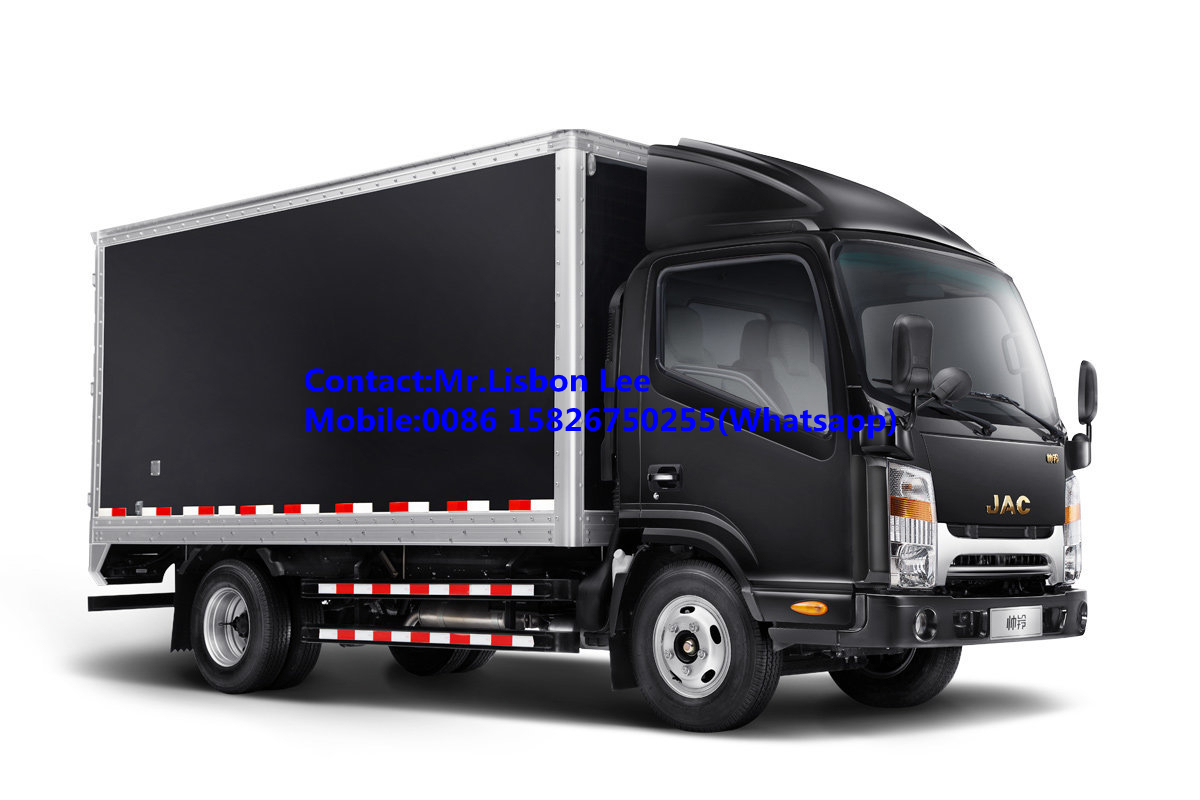

Van box |
Dimension |
4000x1810x1800mm (L*W*H) |
|
Material |
Sandwich smooth panel |
|
|
Opening type |
Rear 2 doors |
|
|
Painting |
Description |
With sand blasting,painted with epoxy paint,finished color |
|
Warranty |
Year |
1 |
