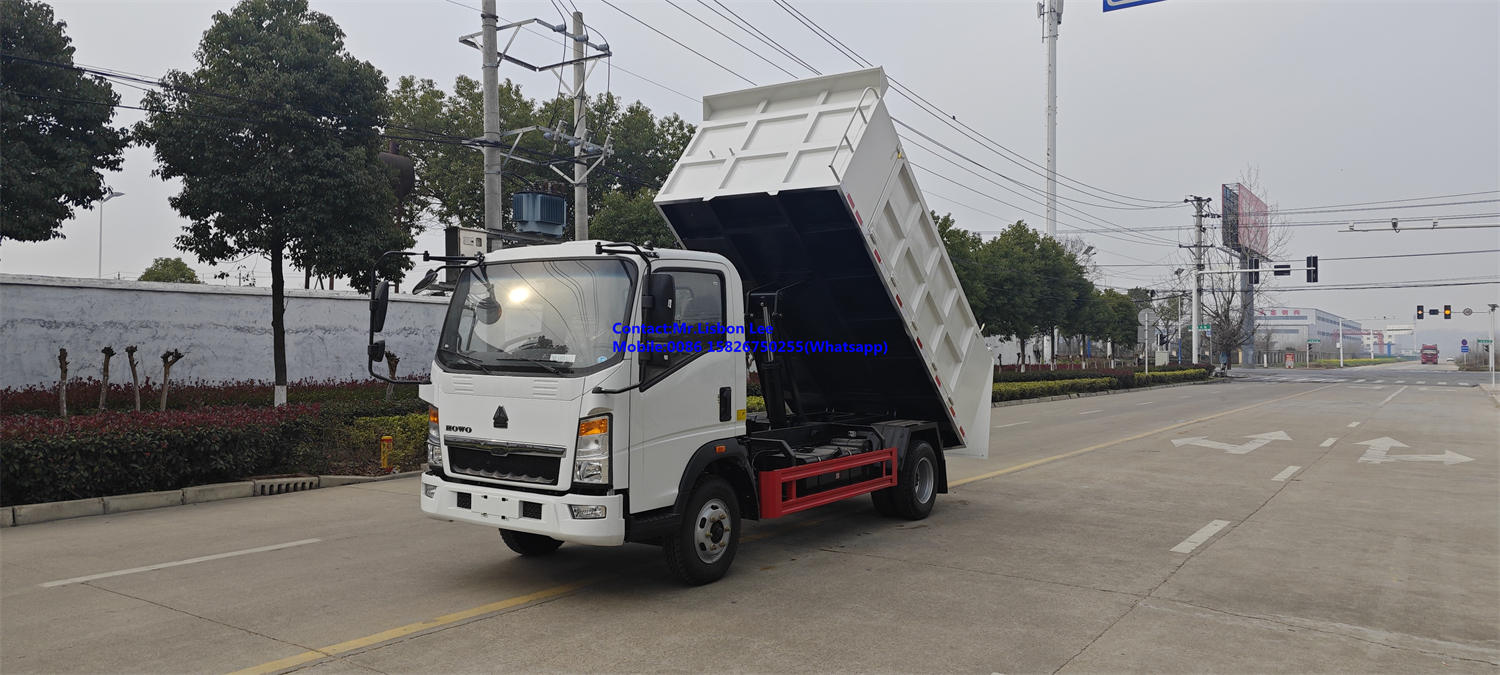

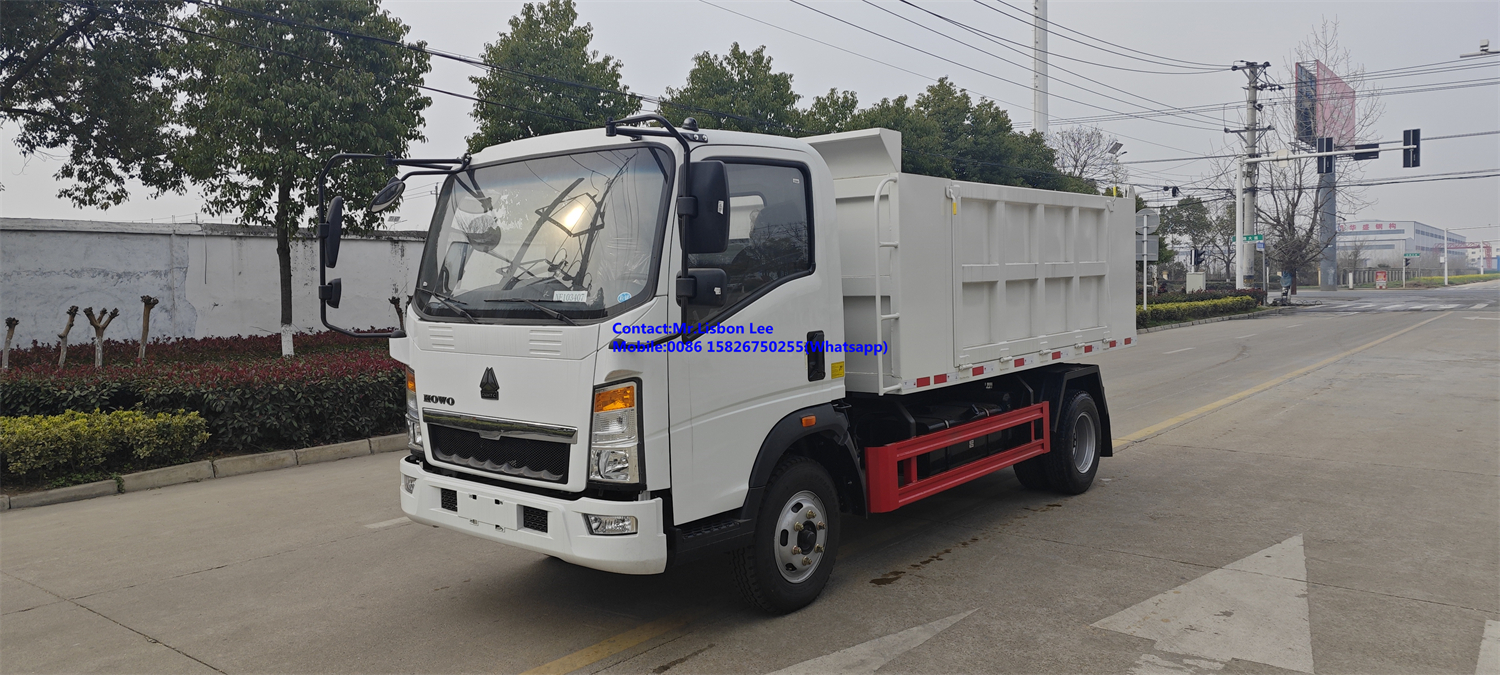

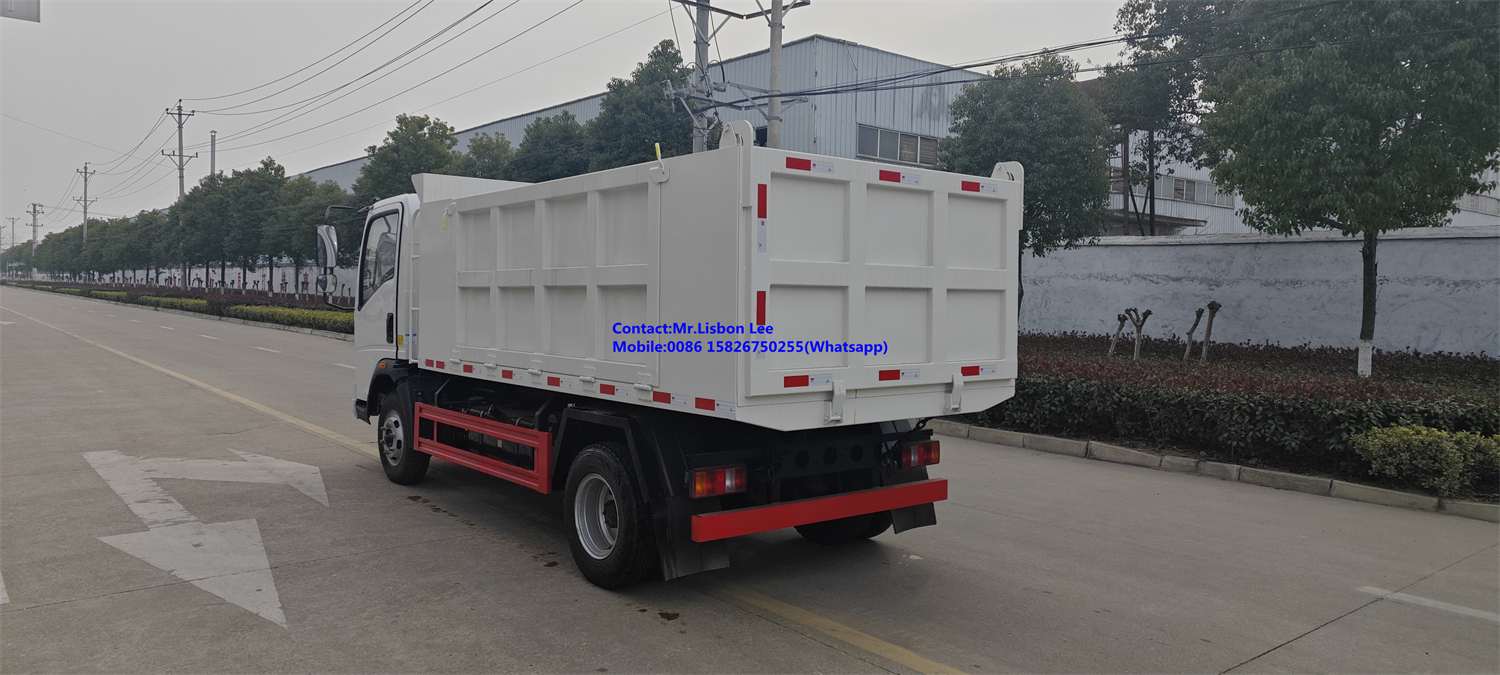

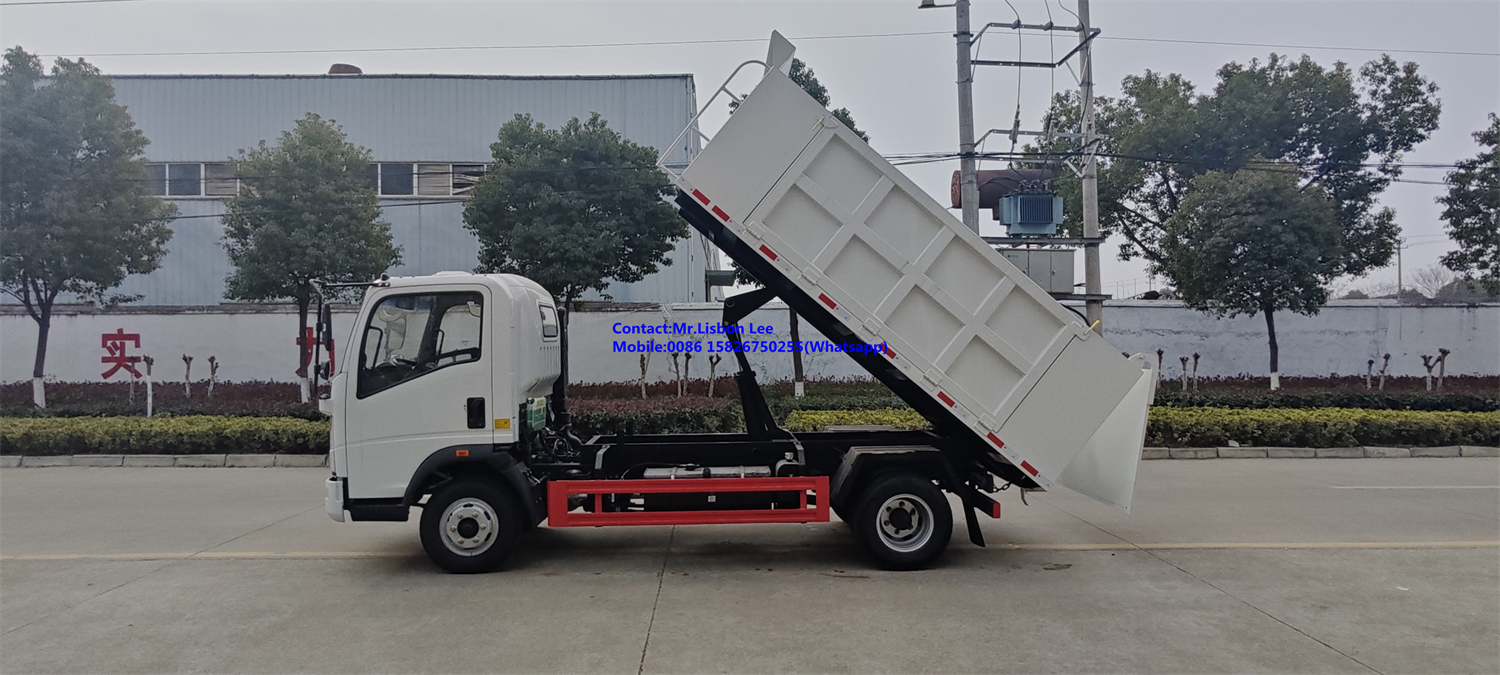

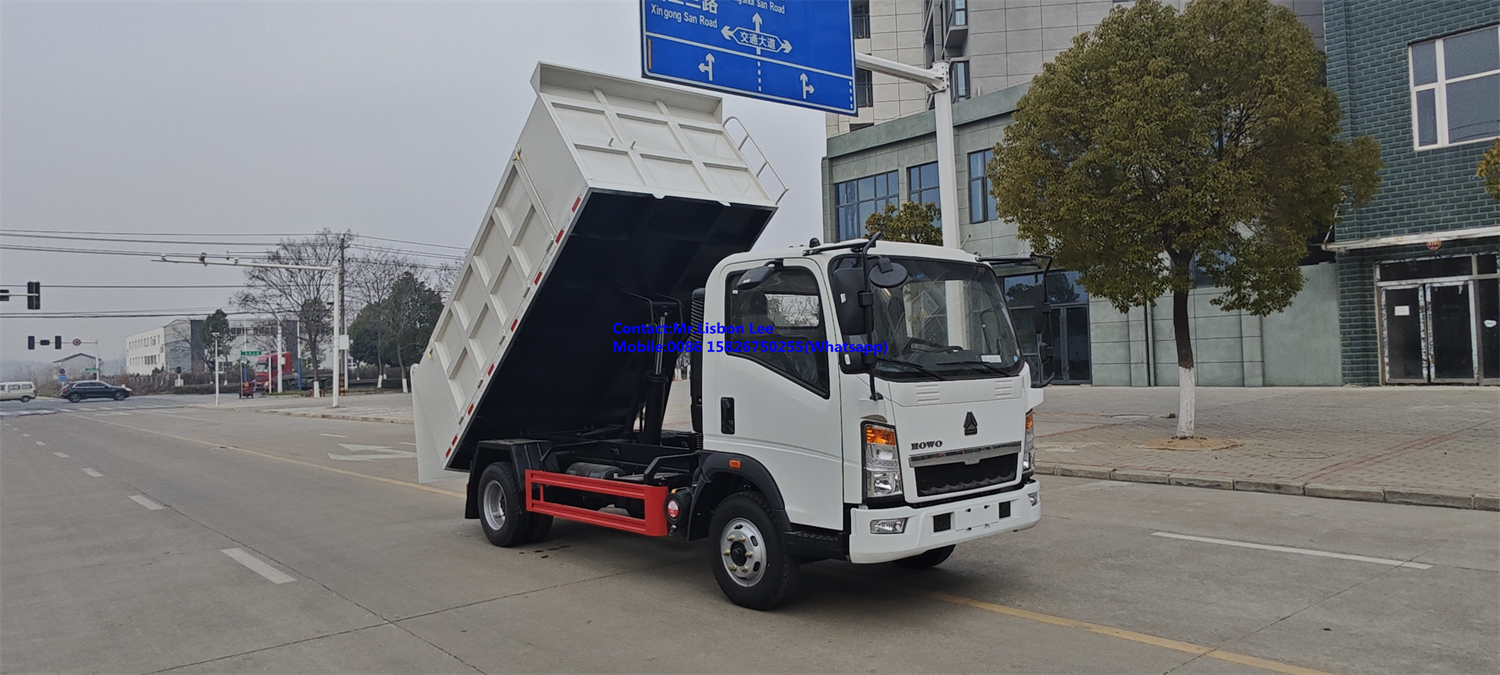

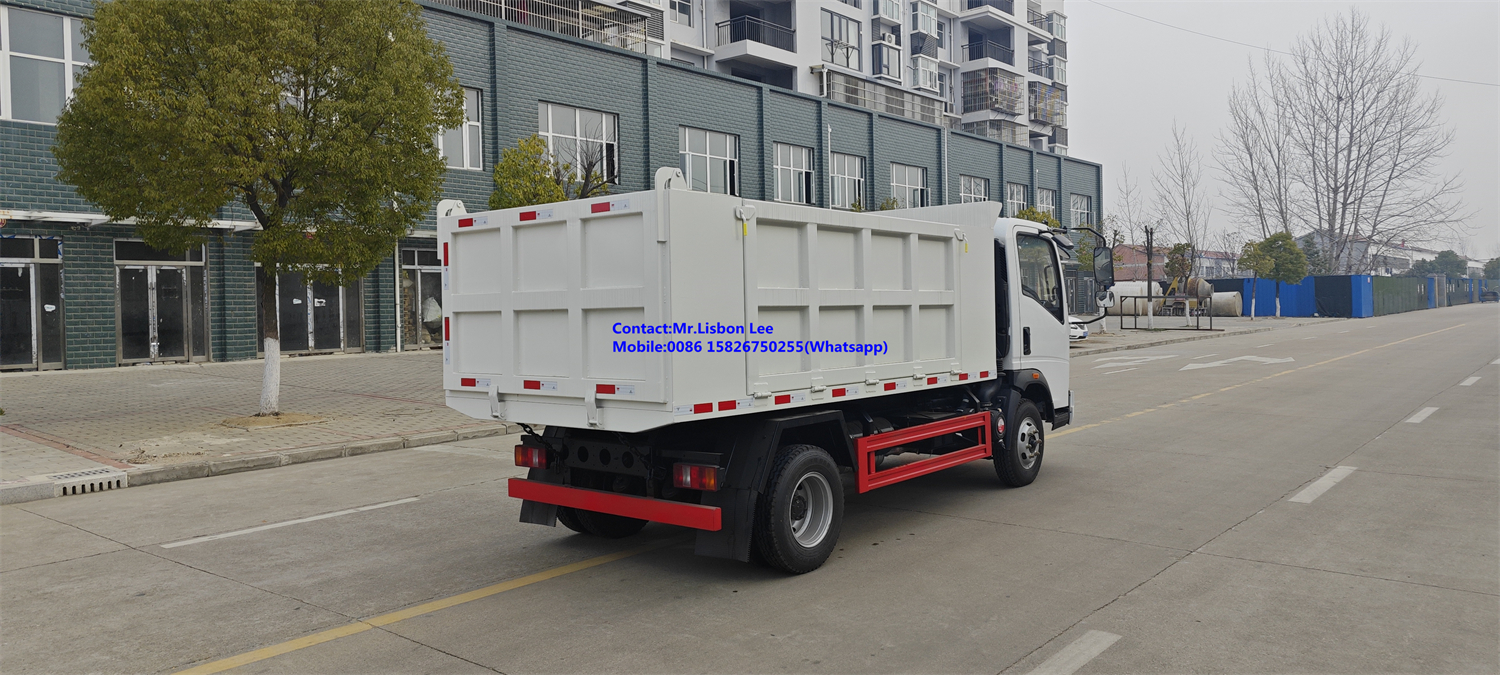

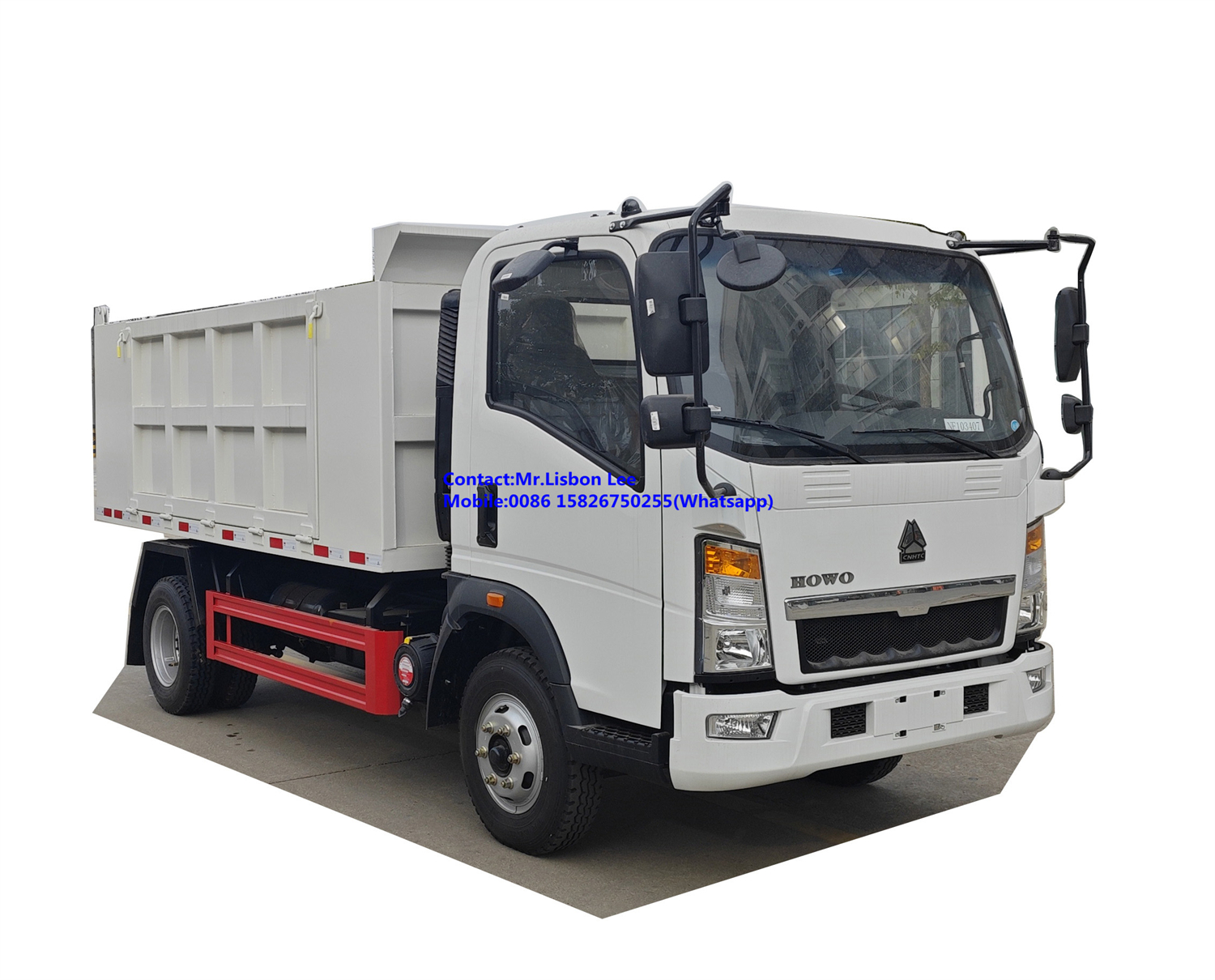

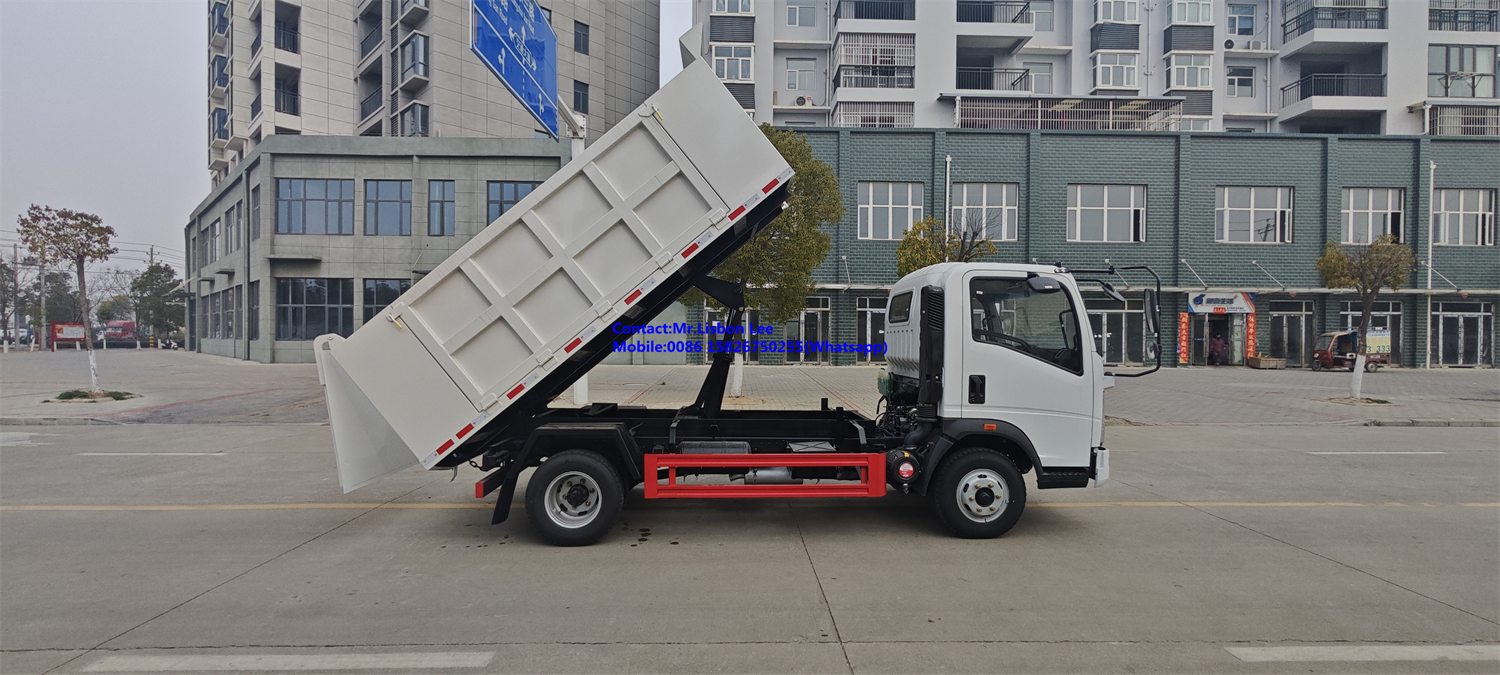

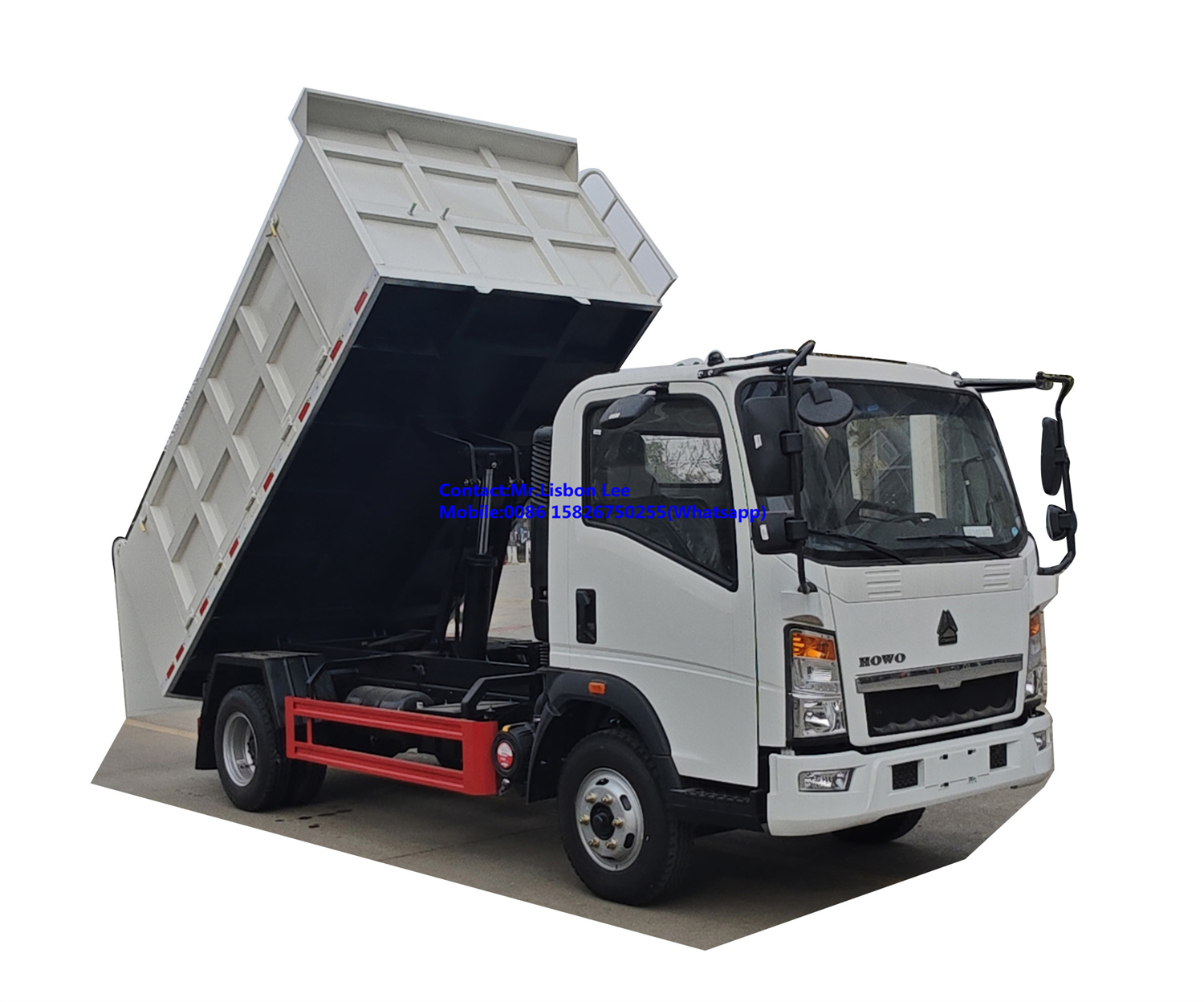

HOWO 4x2 mini dump truck 3Tons

Chassis parameters

Chassis model

ZZ1047D3815C1R45

Chassis brand

SINOTRUK

Overall dimensions

5560X2220X2330mm

Wheel base

3360mm

Front/rear wheel track

1580/1530mm

Front/rear suspension

1080/1180mm

Approach/departure angle

21/22°

Maximum speed

90km/h

Chassis Manufacturer

China National Heavy Duty Truck Group Co.,Ltd

Cab

Configuration

Cab width: 1880mm , Single cab， power-assisted steering，Air brake system

Color

White, other color is optional

Engine

Model

YN4102QBZL

Emission

Euro 2

Type

4 cylinders, in-line, Diesel engine

Rated power

88kW /116hp, rated power speed 2800 rpm

Displacement

3856ml

Max.torque

392N.m

Bore x stroke

102X118mm

Manufacturer

Kunming Yunnei Power Co.,Ltd

Tire

Size

7.00R16 steel wire tire

Number

6+1 nos

Fuel tank

70L iron oil tank

Front axle

2.4 tons

Rear axle

4.2 tons

Drive form

4X2

Suspension

Multi leaf springs

Rated voltage

24V, DC

Transmissions

6 speed forward 1 reverse.（WLY646）

Steering device

Power assisted steering

Steering wheel

Left hand drive

If there is a slight change in the chassis parameters above, please take the actual product as the standard
