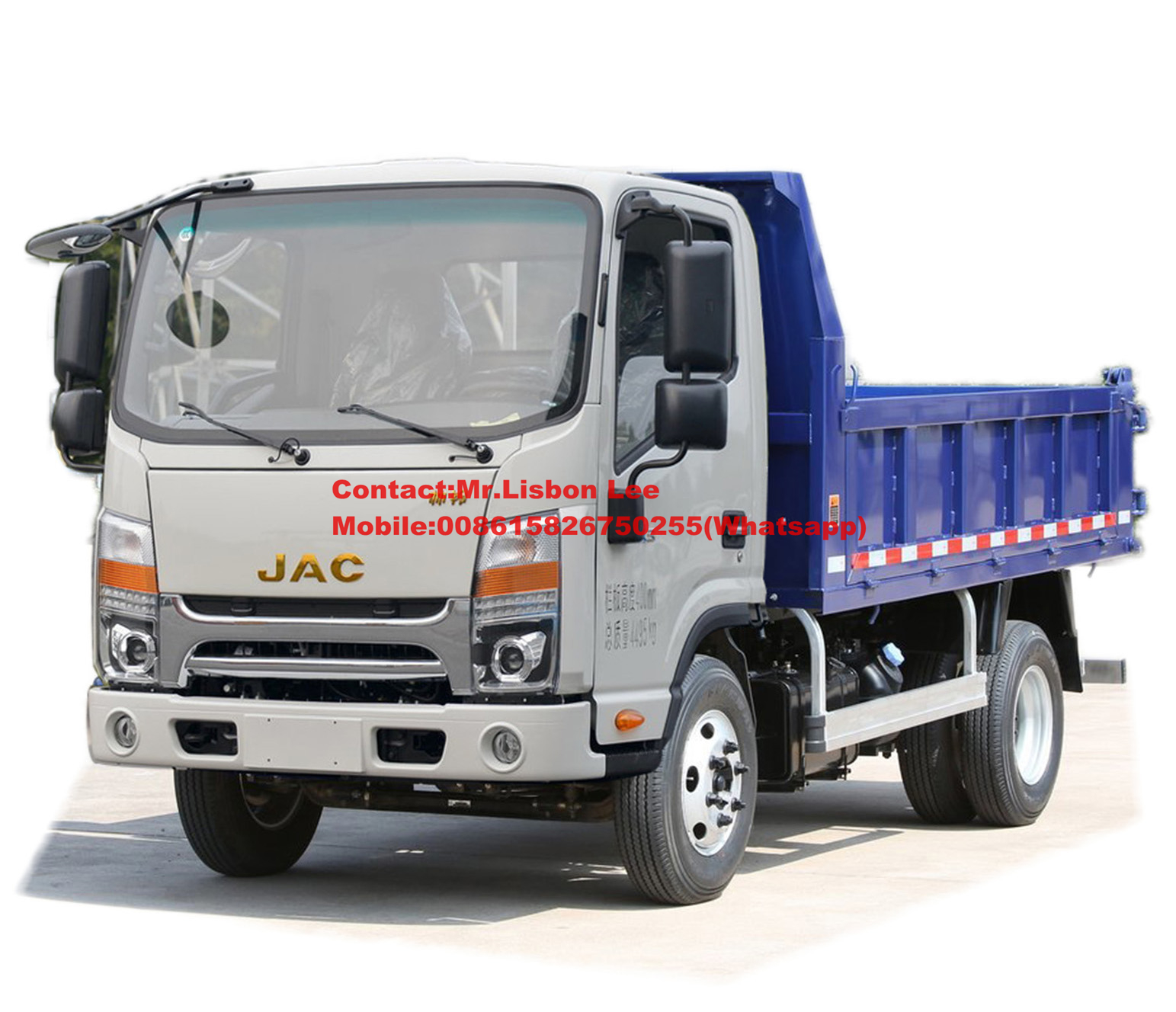

JAC superior quality 4x2 dumper truck 2.5Ton

Product brand

JAC

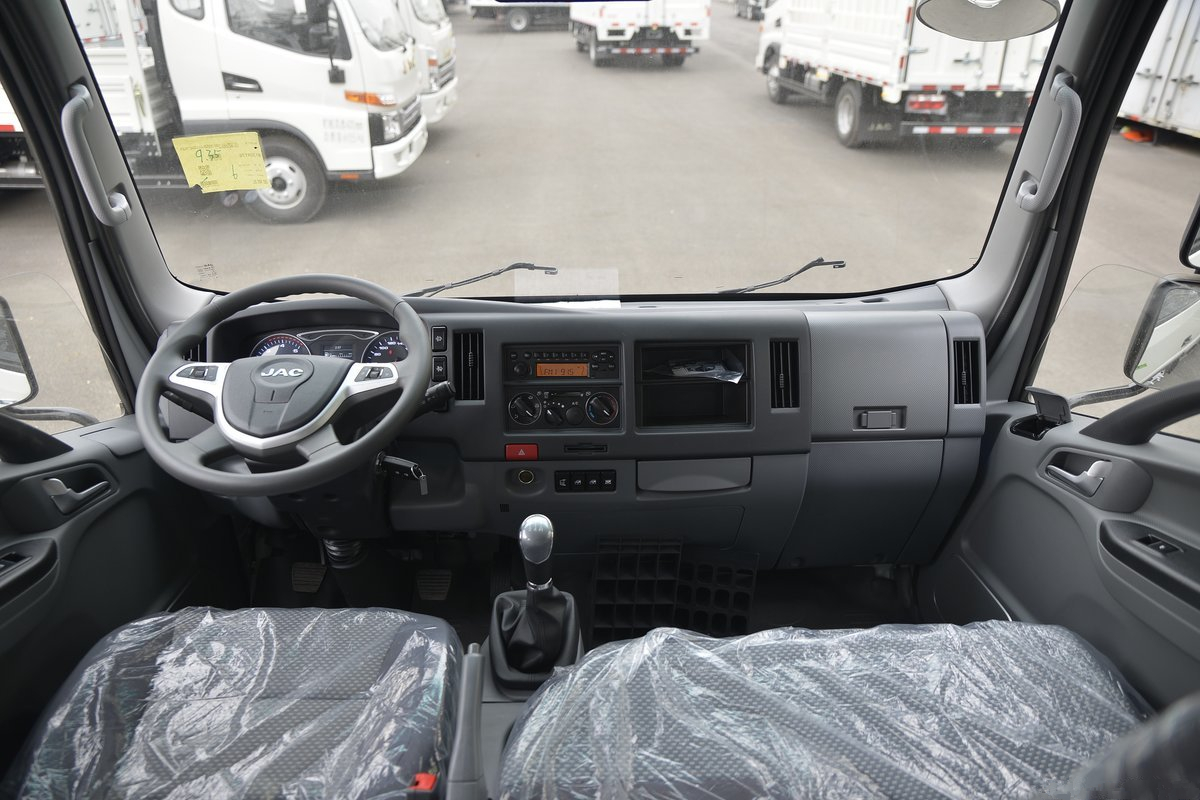

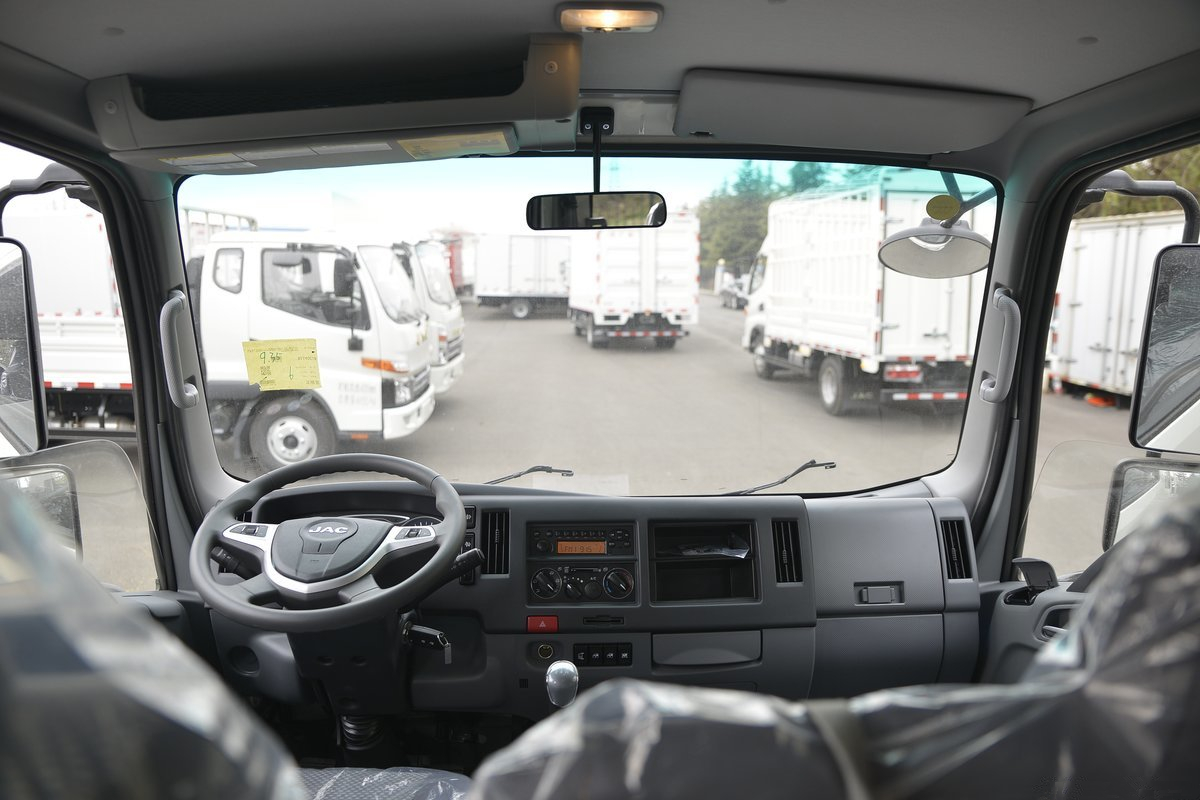

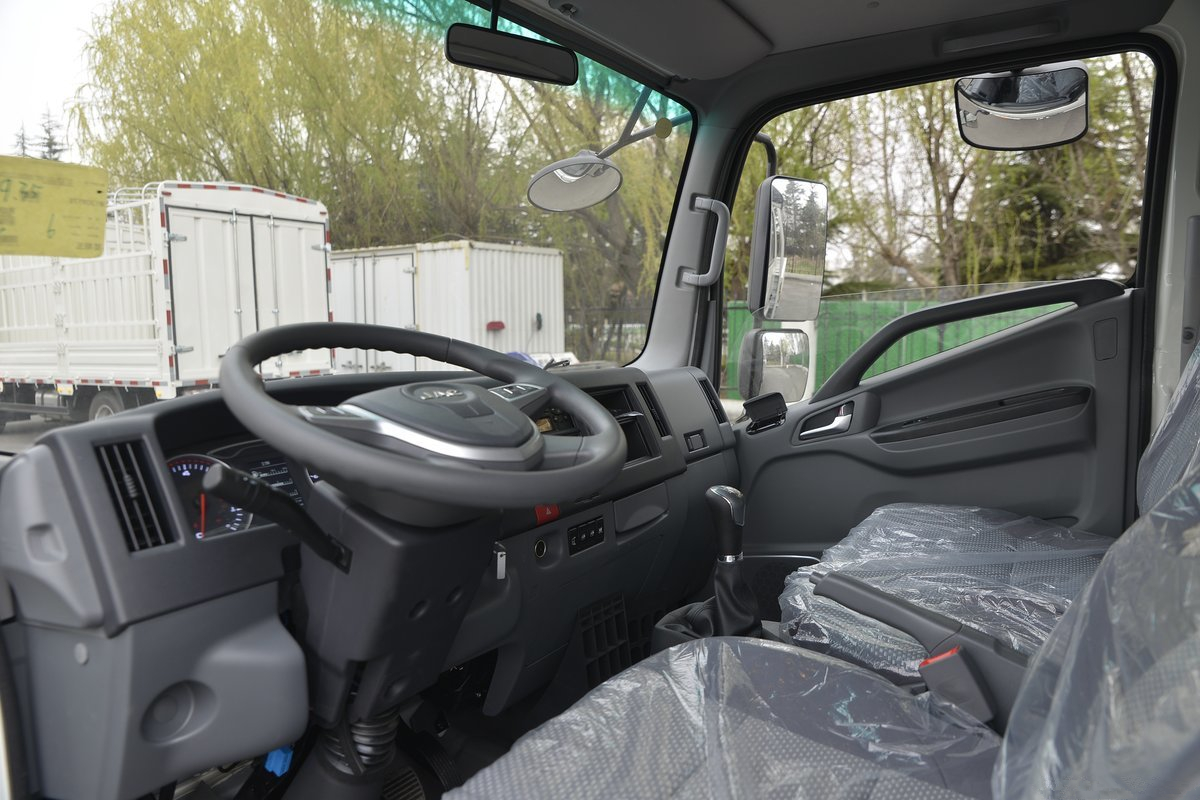

Cabin / Passenger capacity

New model N721,single row,luxury configuration,power clutch,1 passenger + 1 driver,tilting system,

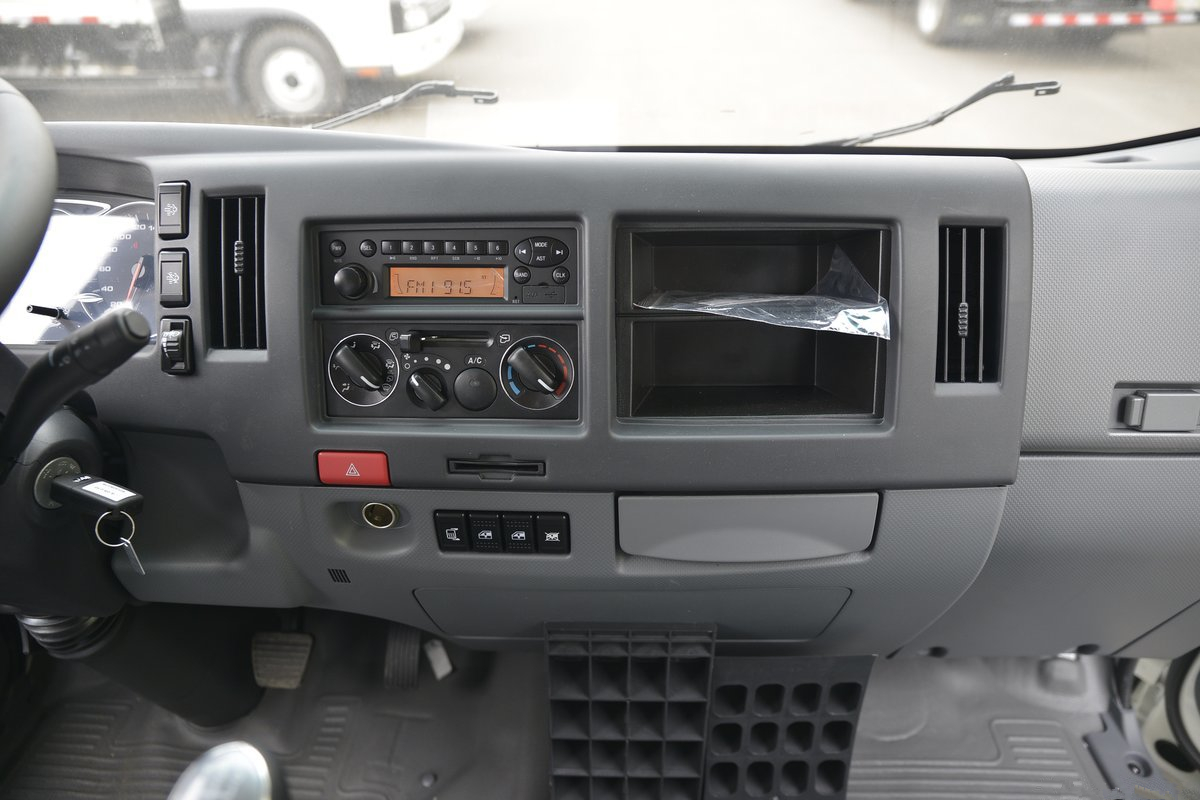

MP3,A/C,electric glass lifting

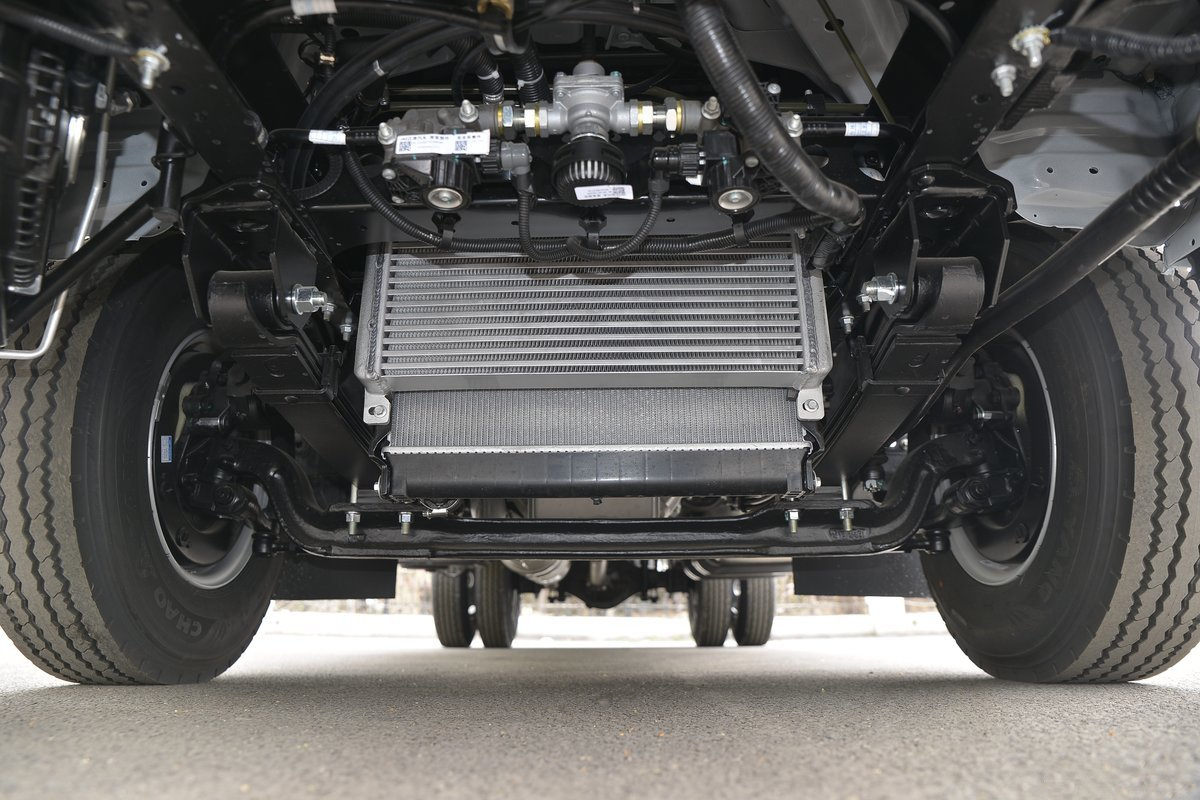

Chassis

Overall dimension

4995x1900x2320mm (L*W*H)

Dump box dimension

3100x1800x550mm (L*W*H)

Curb weight

2750 kgs

Design load

2500 kgs

Drive type

4x2

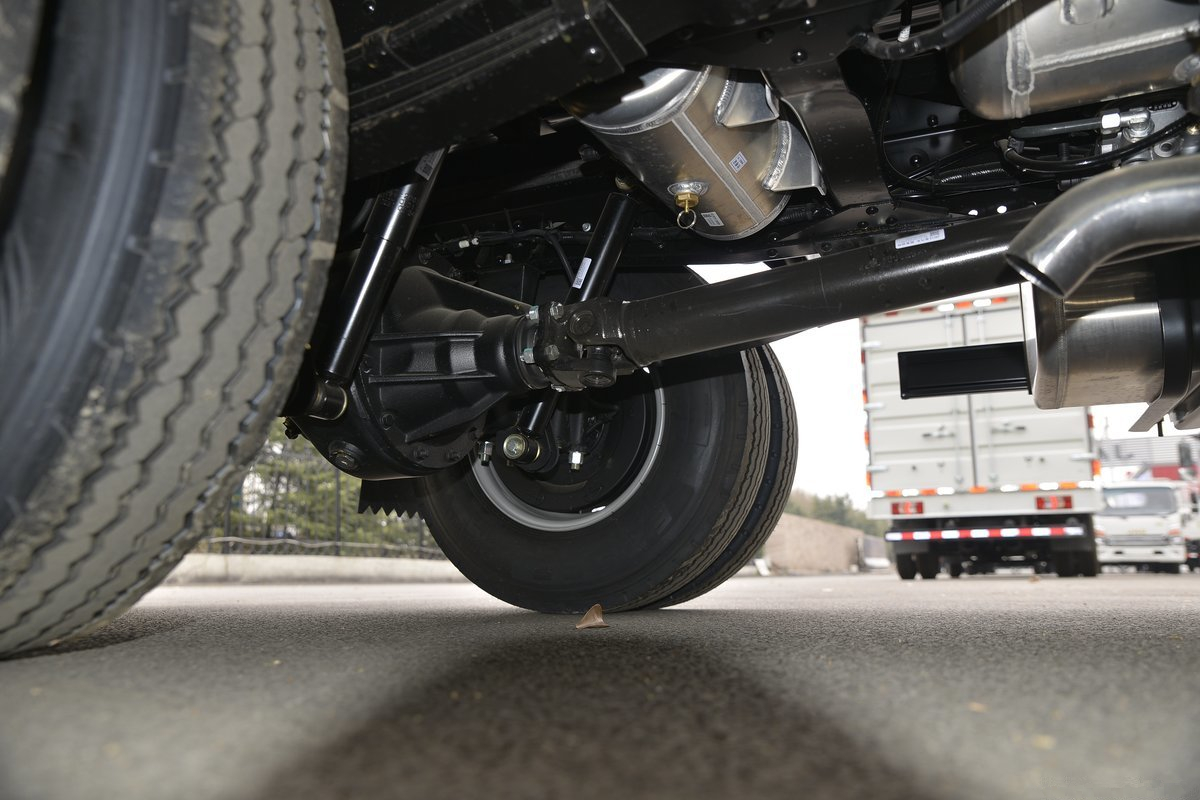

F/R suspension

1110/1045 mm

Wheelbase

2800 mm

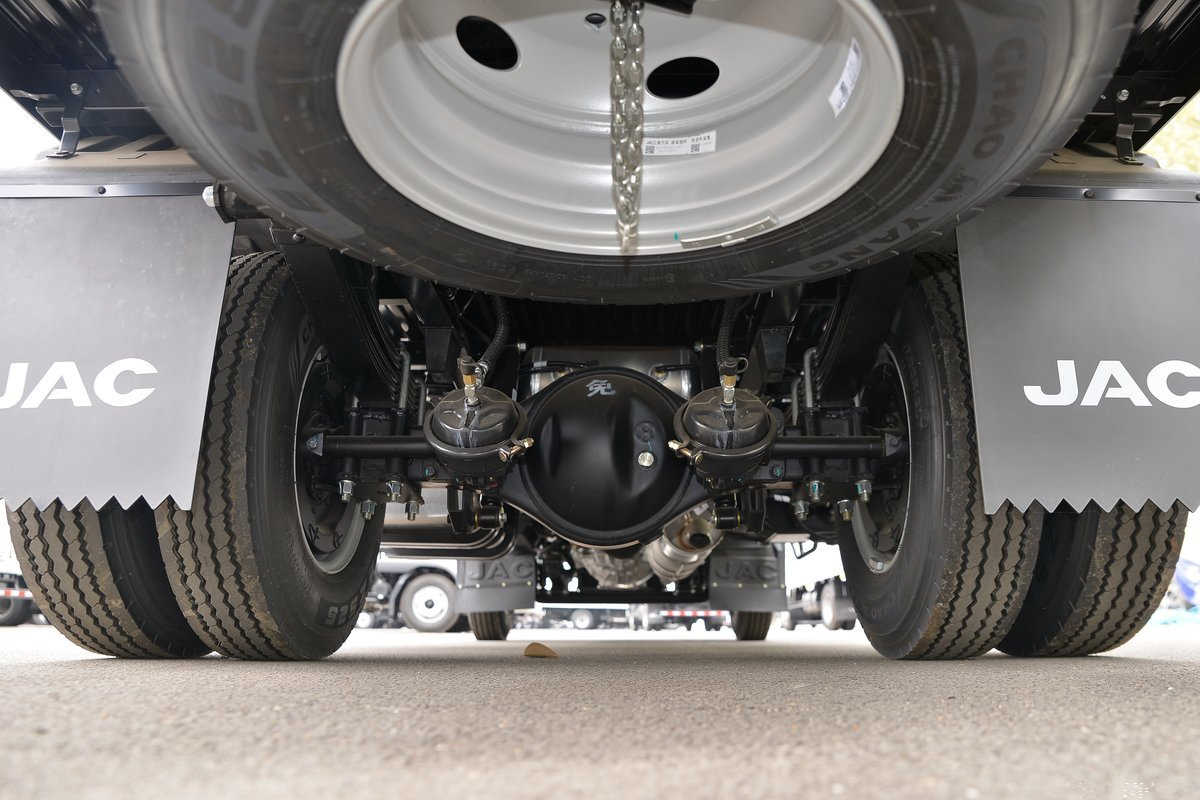

Number of axles

2

Axle-load

1610/2865 kgs

Approach/Departure

angle

20/17°

Number of leaf spring

8/4+6

F/R track

1440/1425 mm

Tire

( No. & specification)

7.00R16 12PR, 6+1pcs

Max speed

90 km/h

Brake system

Hydraulic braking

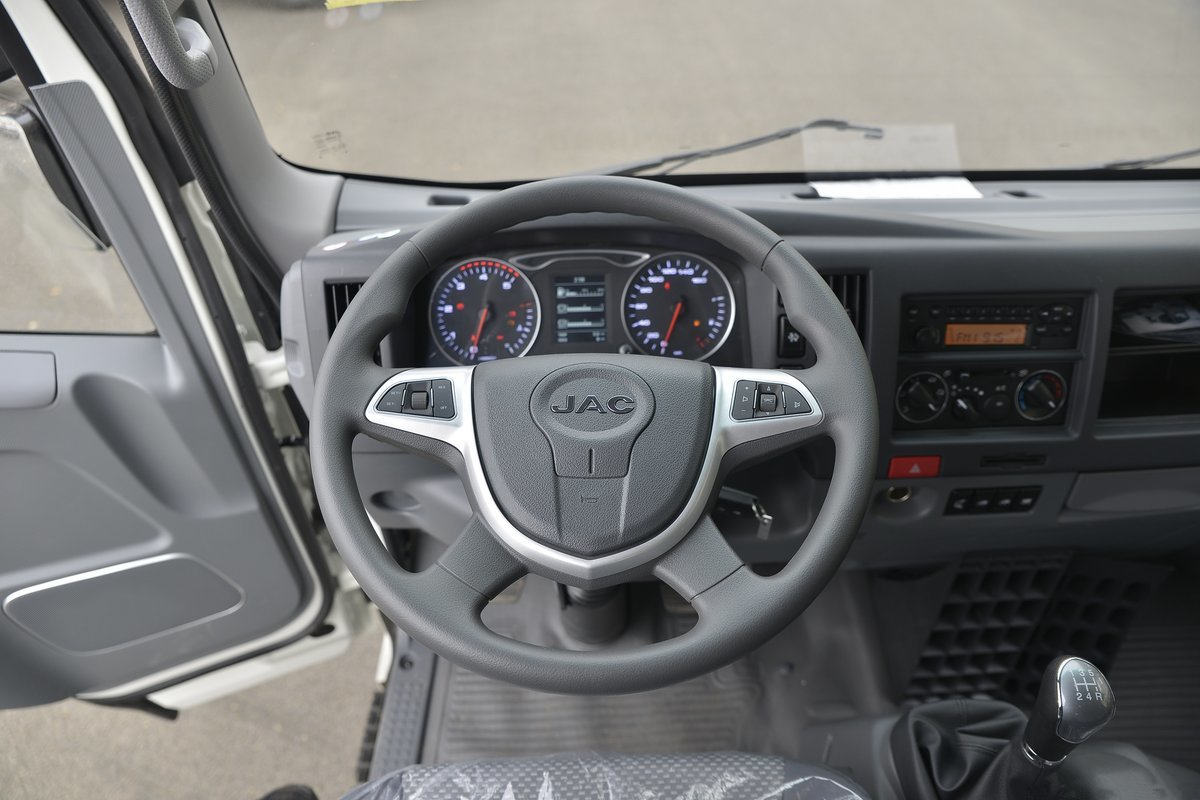

Steering

Left hand drive with power steering

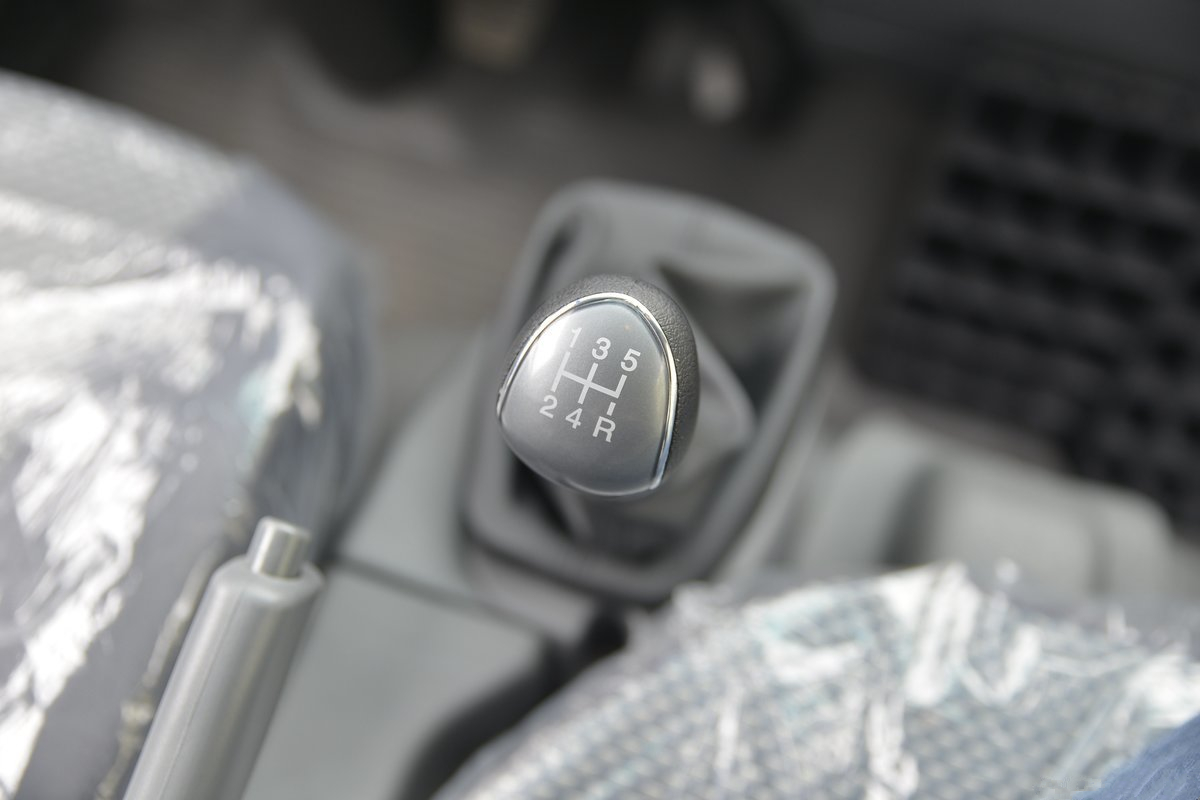

Transmission

LC5T255M3,mechanical,5 forward + 1 reverse gears

Engine

Engine model

HFC4DA1-1

Max.power

68KW(92HP)

Description

In line,water cooled,four strokes,turbo charged,inter cooled,

direct injection,diesel engine

Rated revolution

3600rpm

Max torque

225N.m@1800~2200 rpm

Exhaust

2771 ml

Emission standard

Euro 2

Dump box

Material

Carbon steel

Thickness

and rear plate

Side 3mm,bottom 4mm

Lifting system

plate

Hydraulic middle lifting

Painting

Description

With sand blasting,painted with epoxy paint,finished color

Warranty

Year

1
