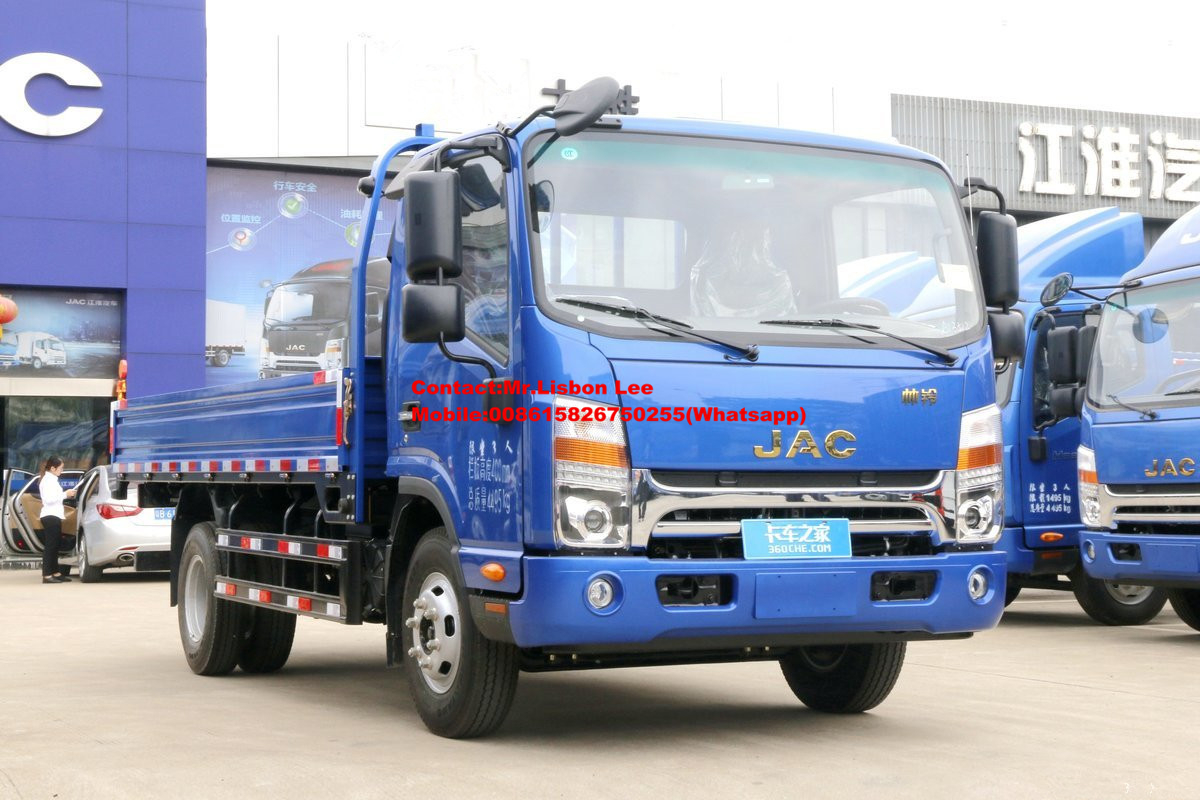

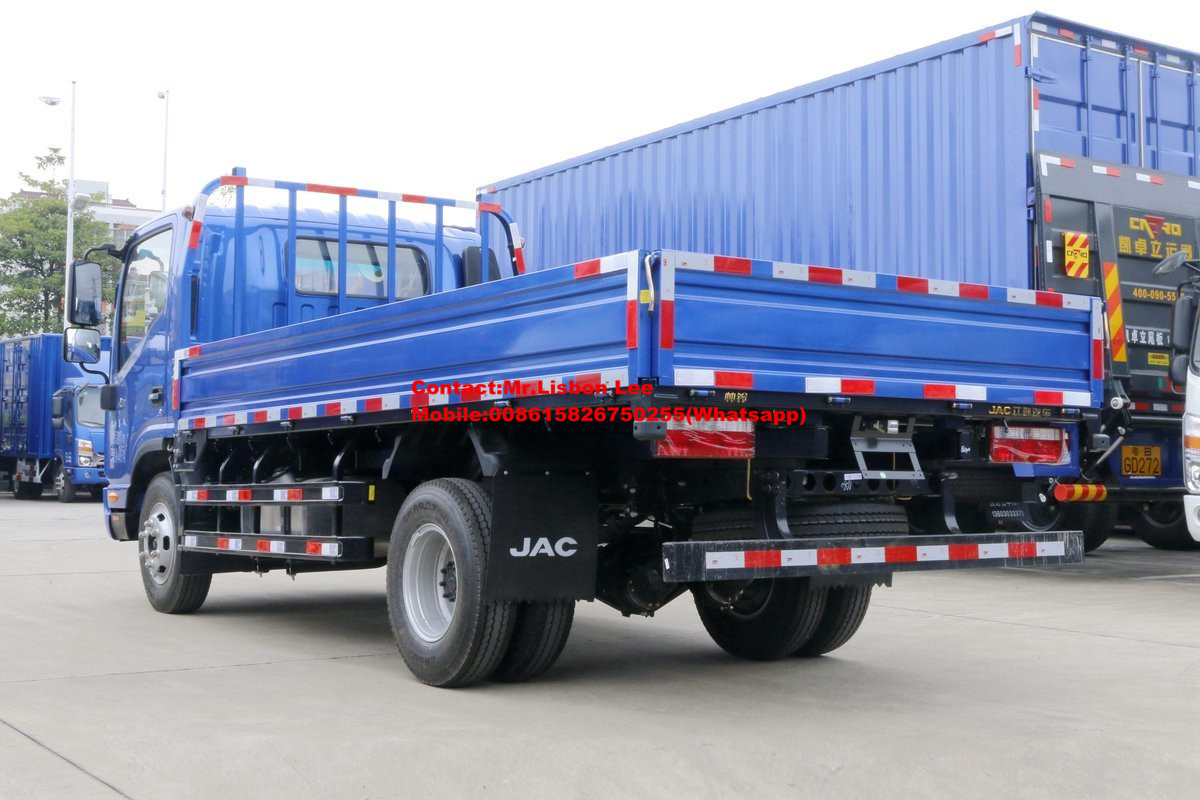

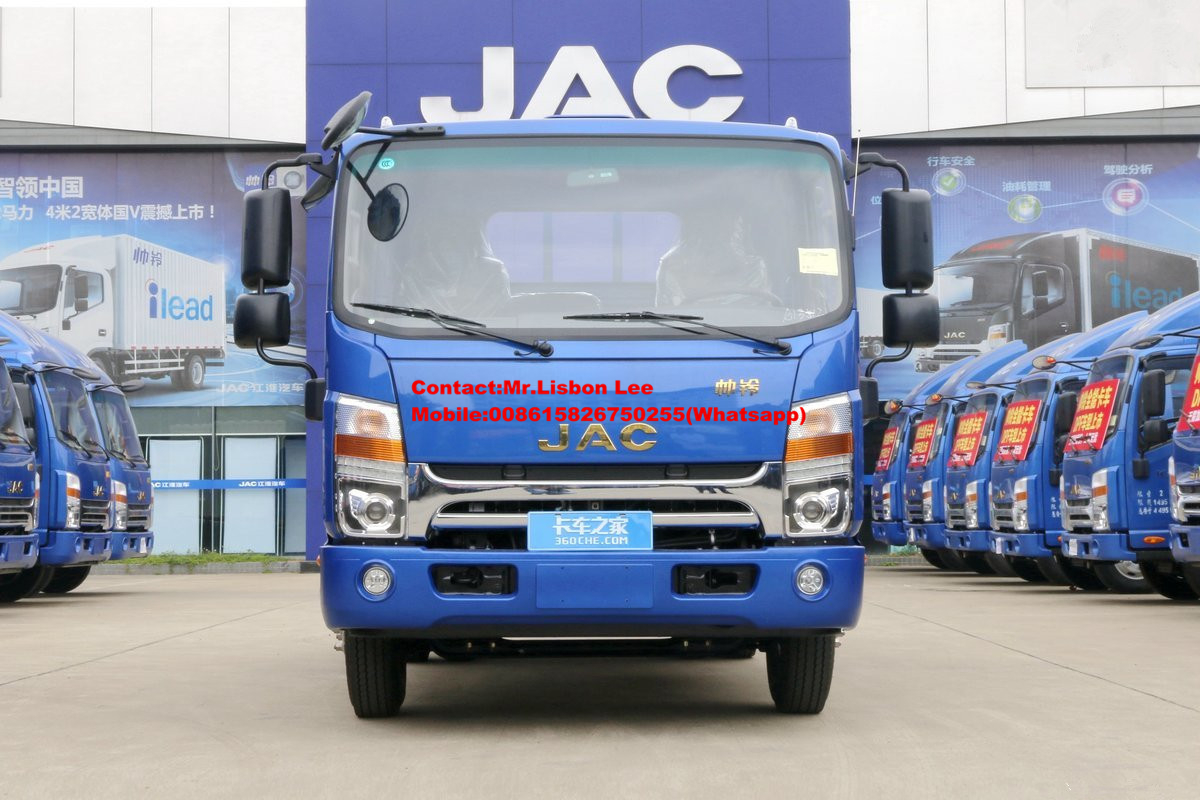

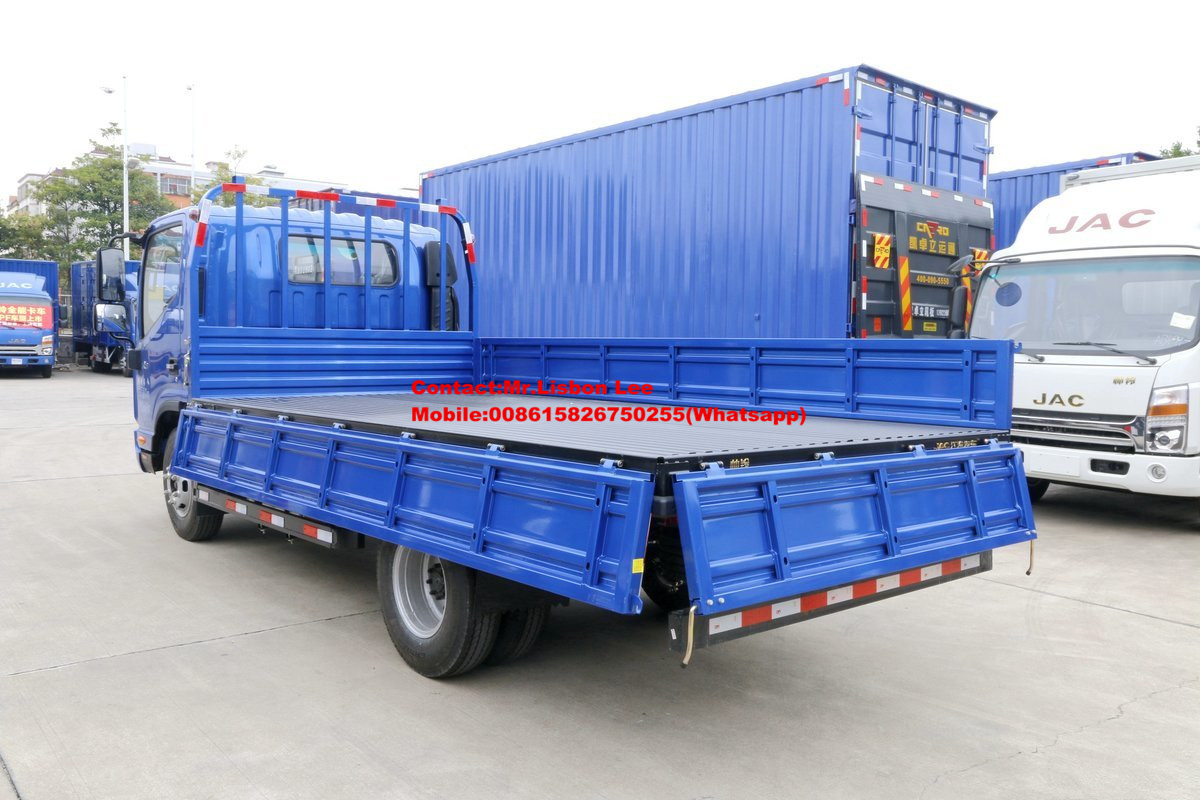

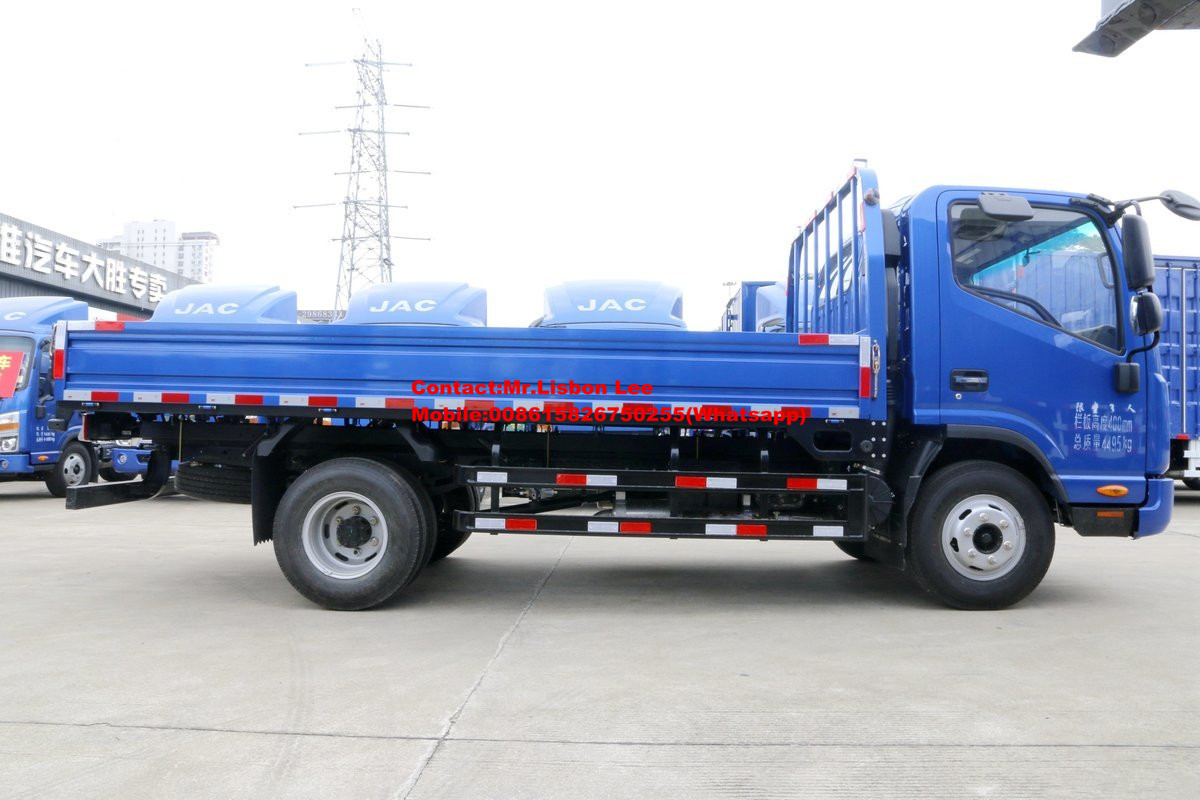

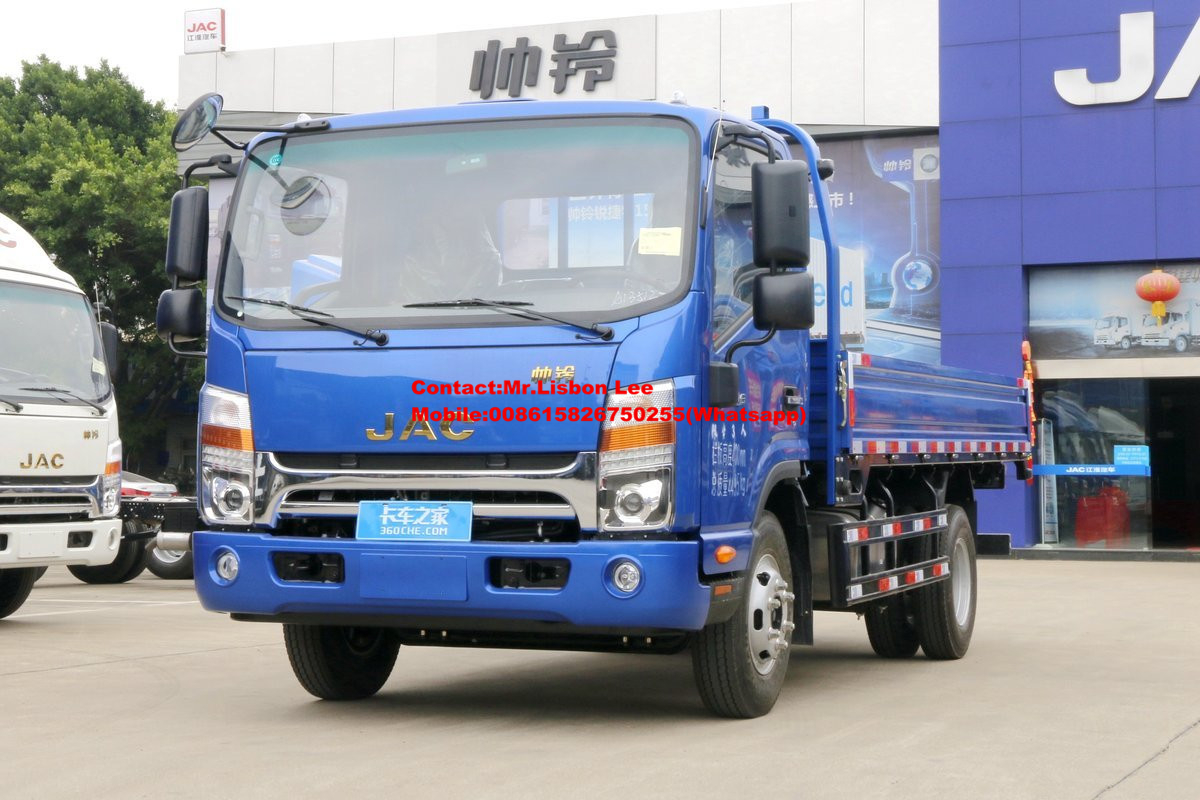

JAC Cargo Truck With 3.8L Diesel Engine

Chassis model

HFC1043P71K1C2V-1

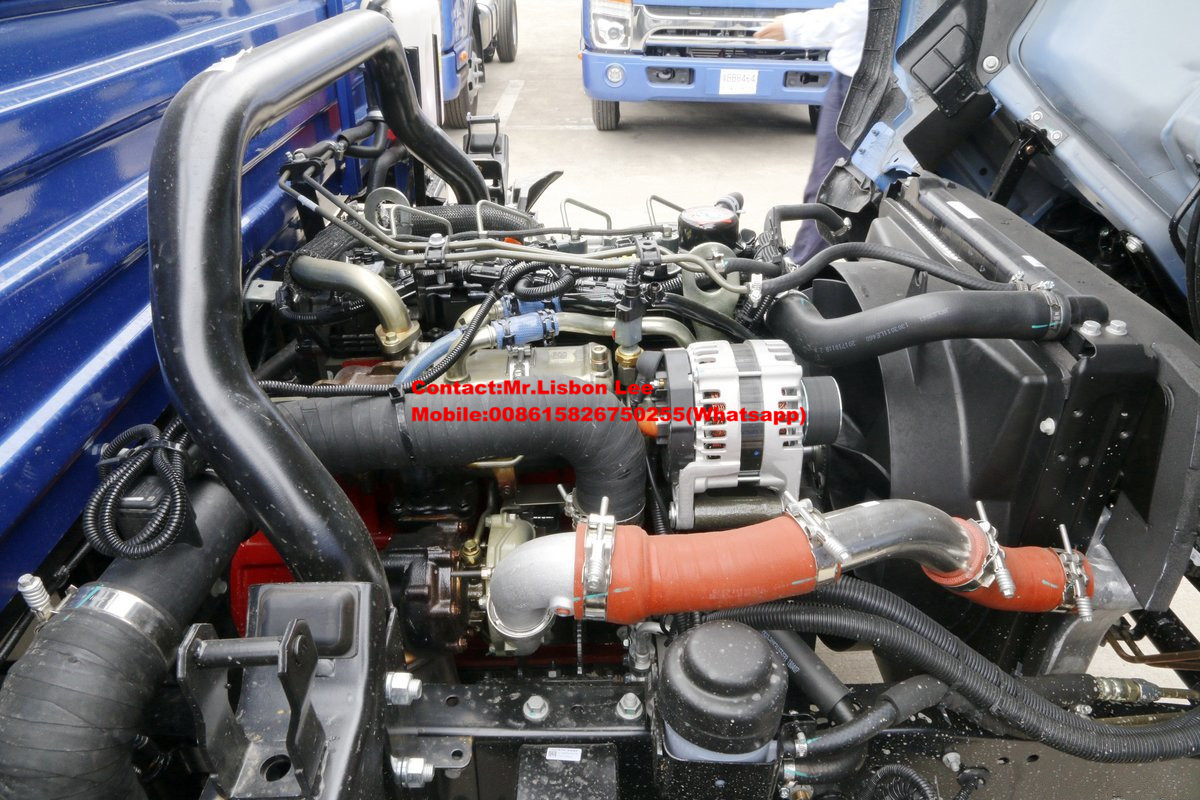

Engine

Model

ISF3.8s5141 (FOTON CUMMINS)

Description

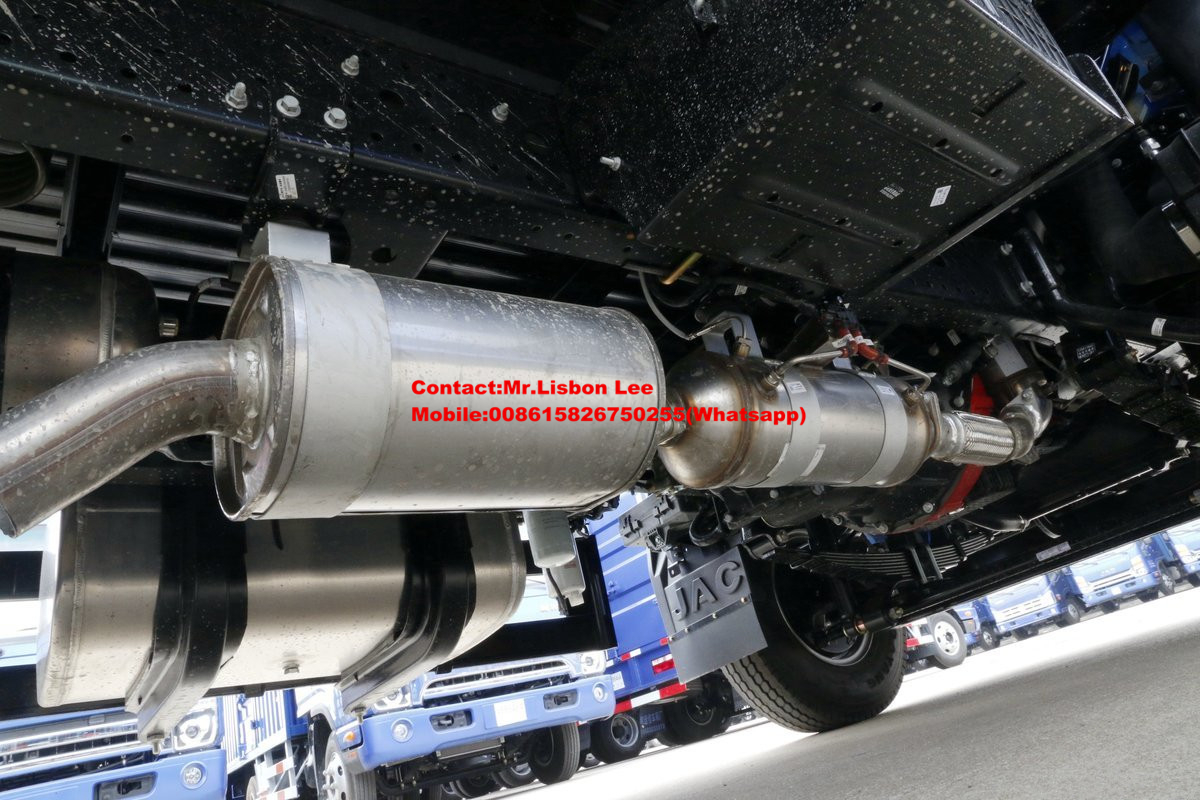

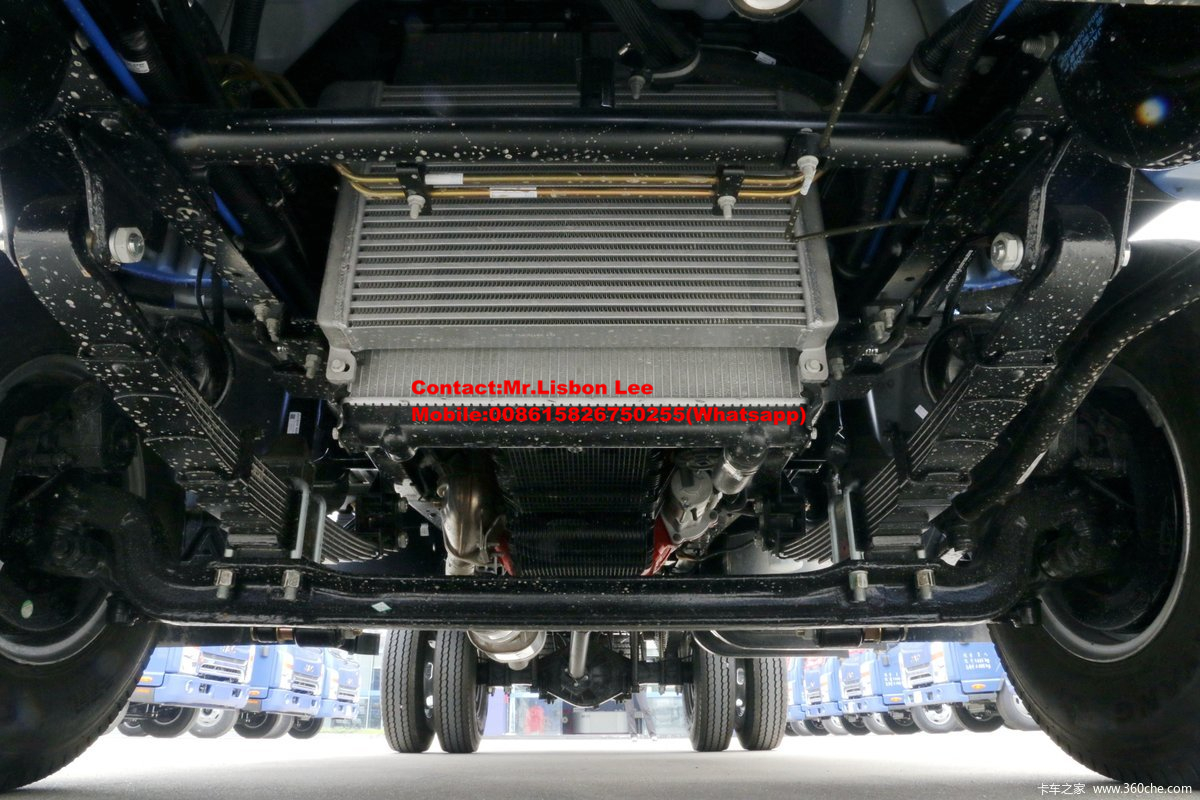

In-line/4 cylinders/turbo charged/inter cooled/BOSCH high pressure common-rail/direct injection/SCR/diesel engine

Rated power of engine (kw/HP)

105/141

Maximum torque (N.m@rpm)

440@1200~2200

Displacement (ml)

3760

Emission standard

Euro V

Gearbox

Description

LC6T450,manual,6 forward ＆ 1 reverse gears

Front / Rear axle

Front axle load (Kg)

1420

Rear axle load(Kg)

5500

Drive type

4X2

Type of tire

7.00R16

Quantity of tires

6+1

F/R leaf spring

Non-independent suspension,with auxiliary leaf spring 13/8+6

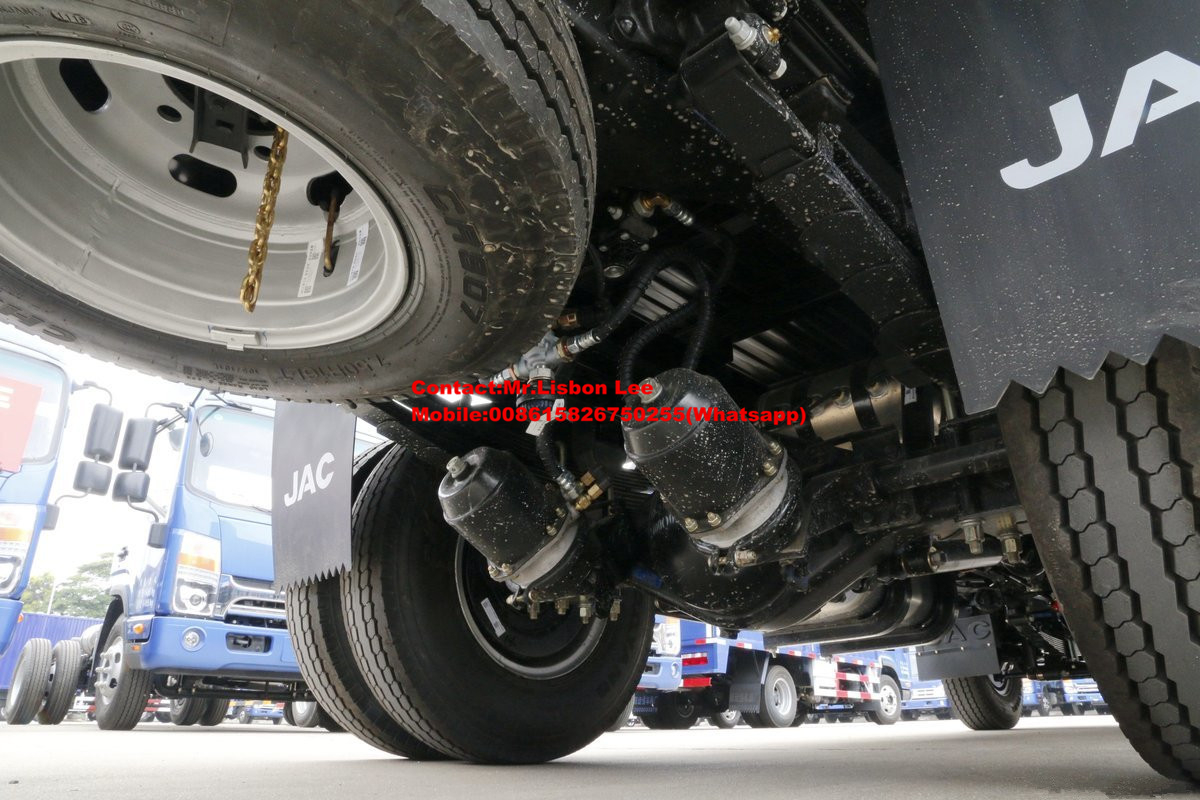

Brake system

Service brake type

Disc type,pneumatic pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

ABS

Provided

Exhaust auxiliary brake

Provided

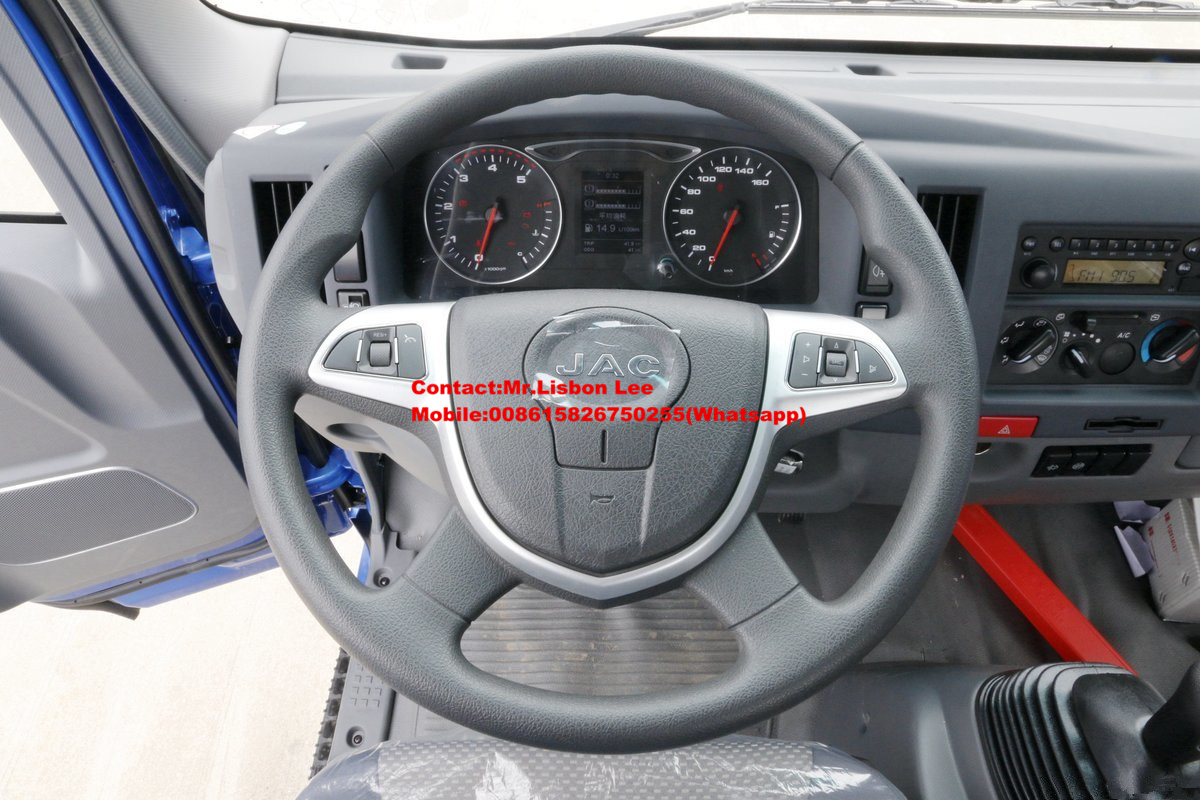

Steering device

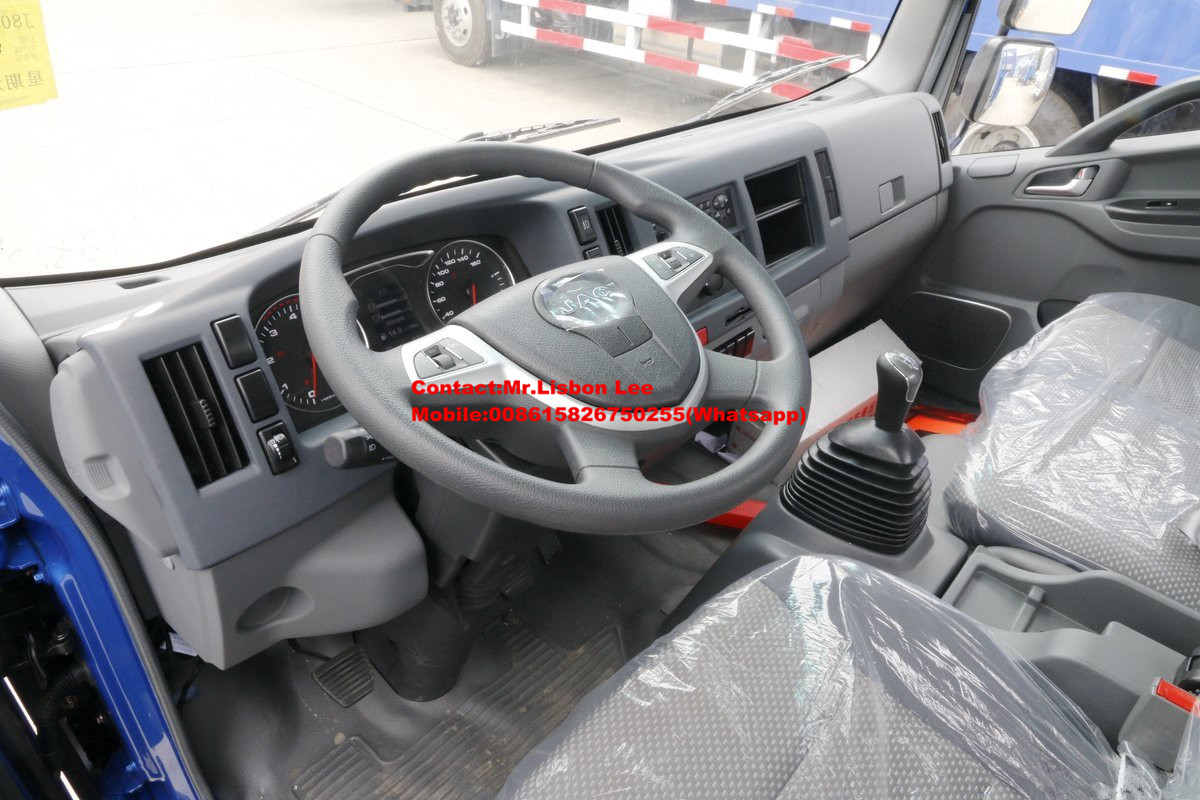

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

2250

Load capacity(Kg)

5000

Performance parameter

Maximum speed (km/h)

95

Maximum grade
