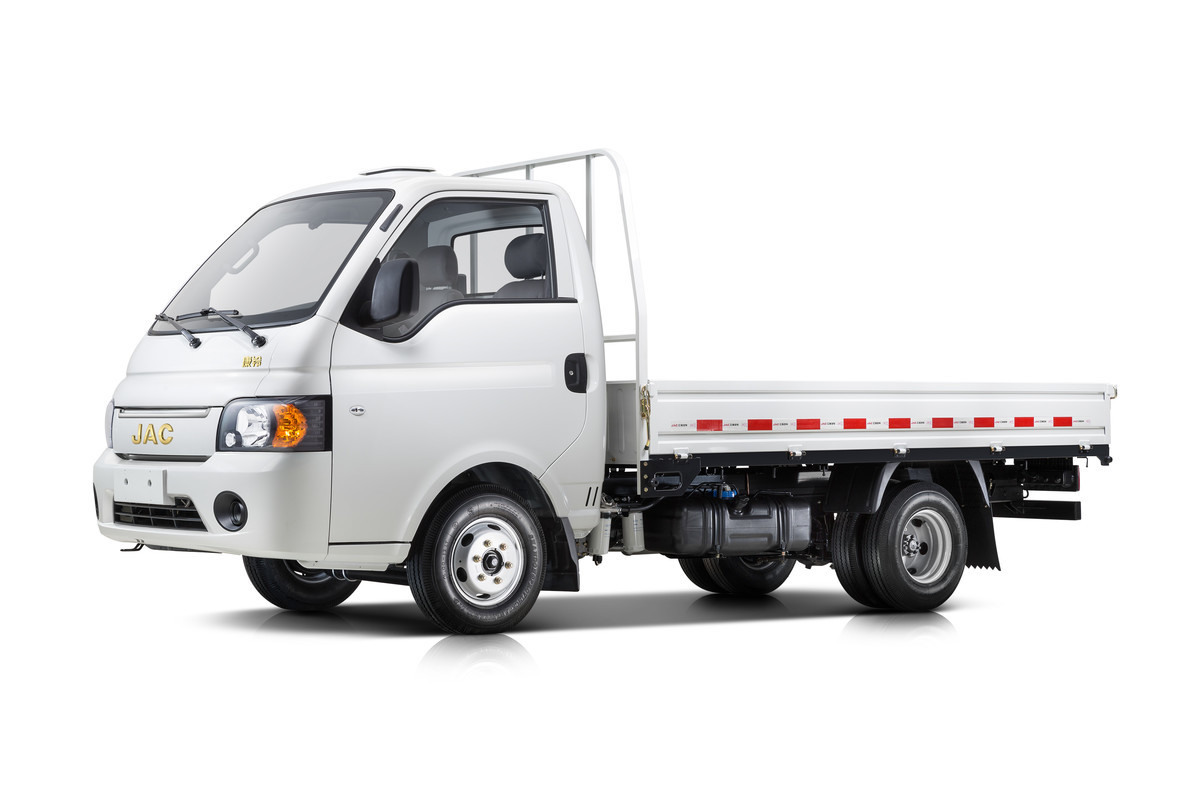

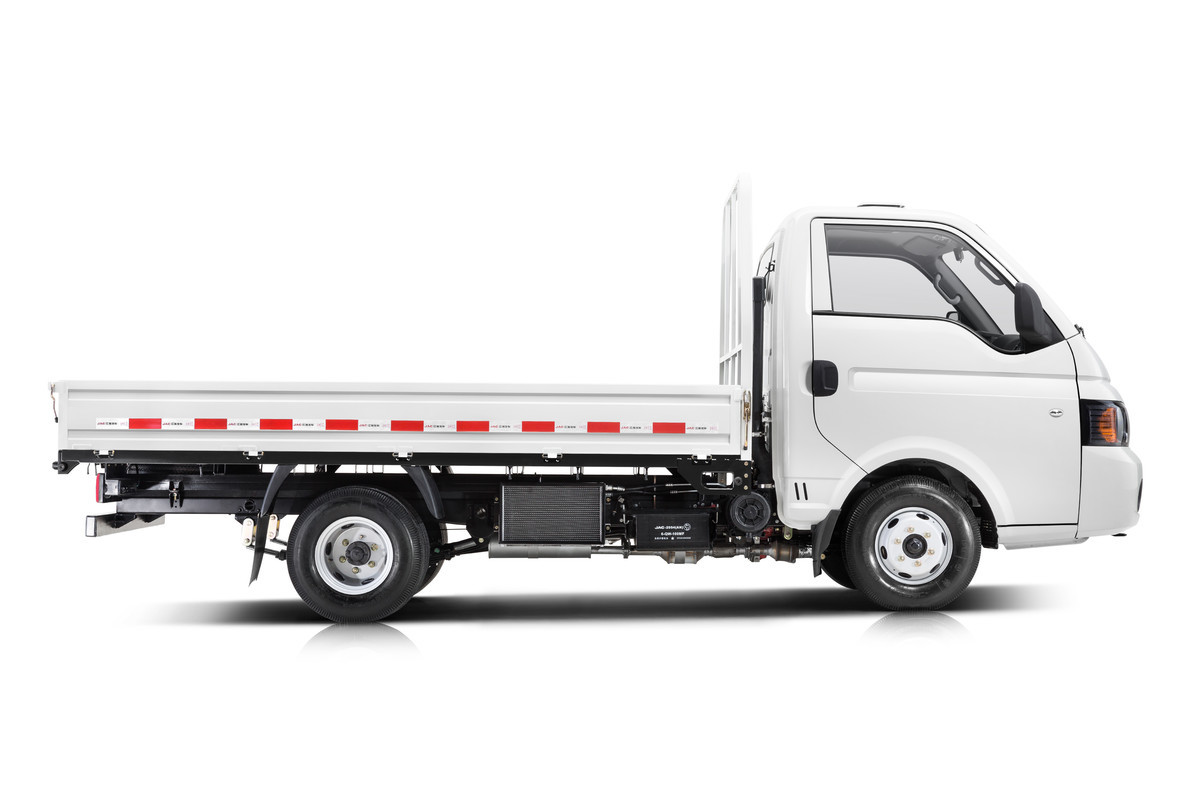

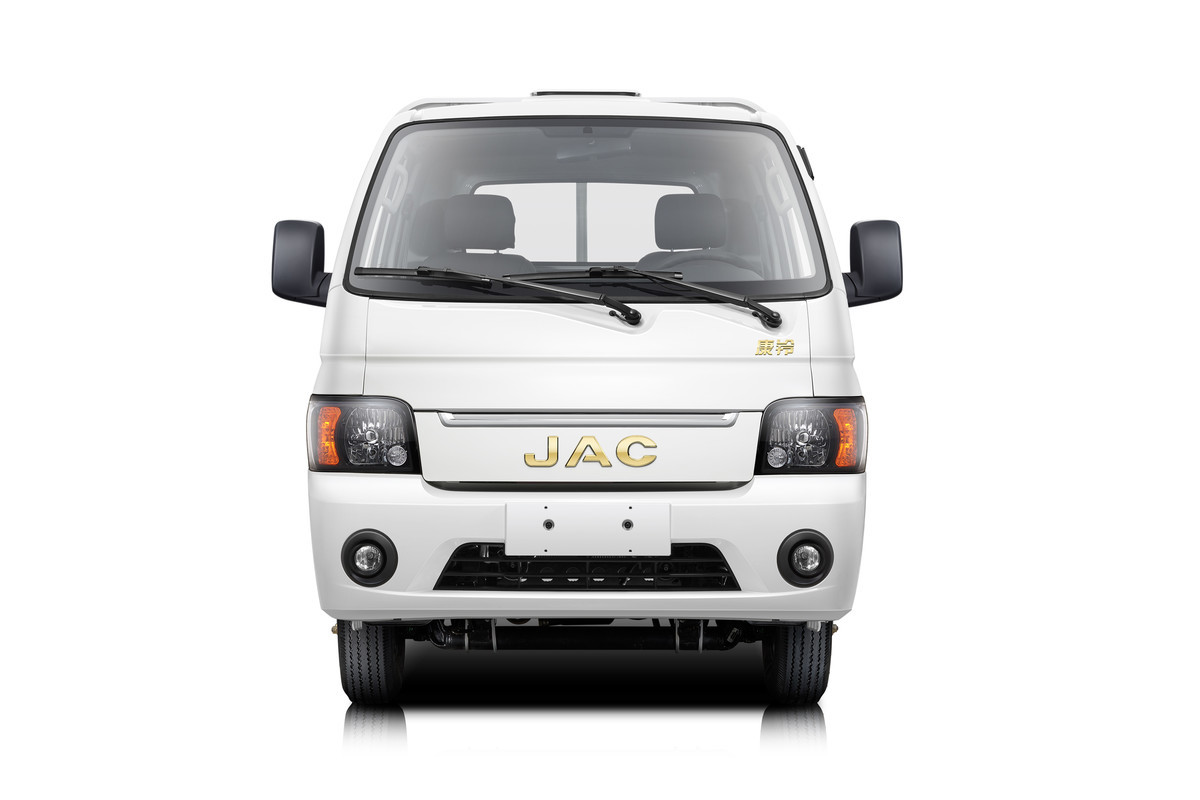

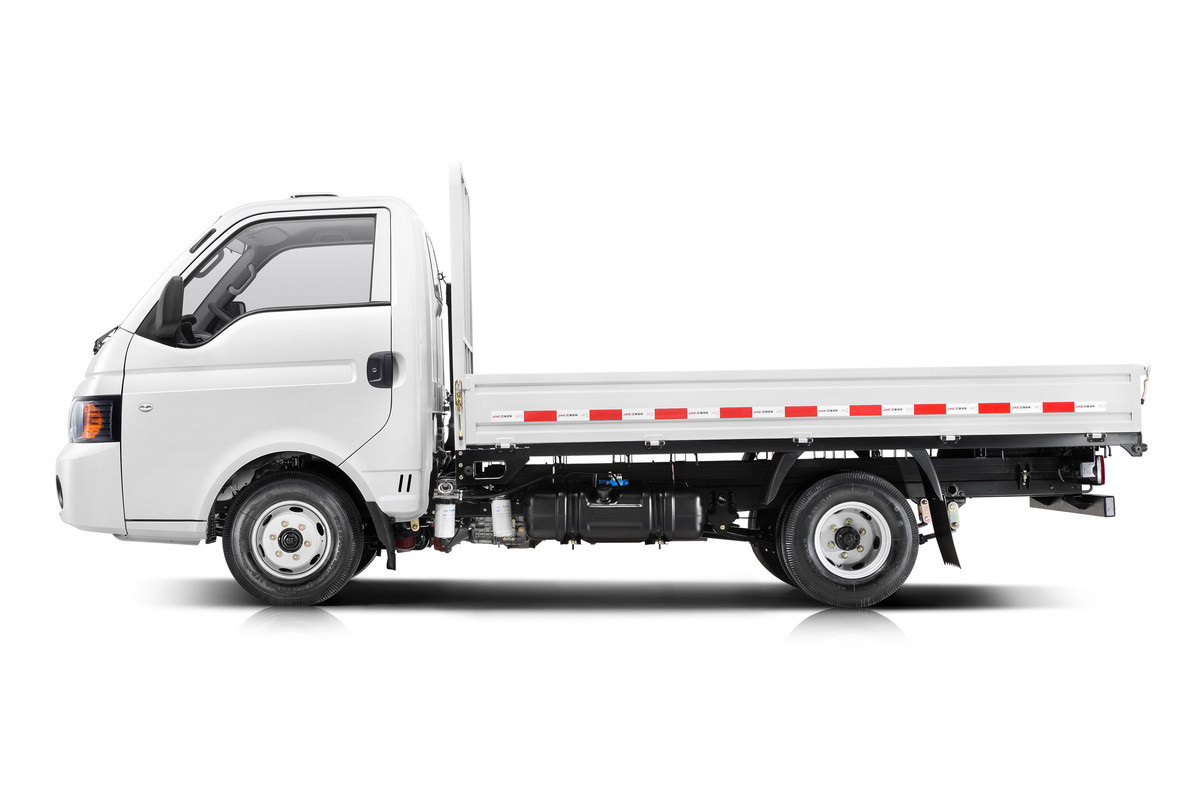

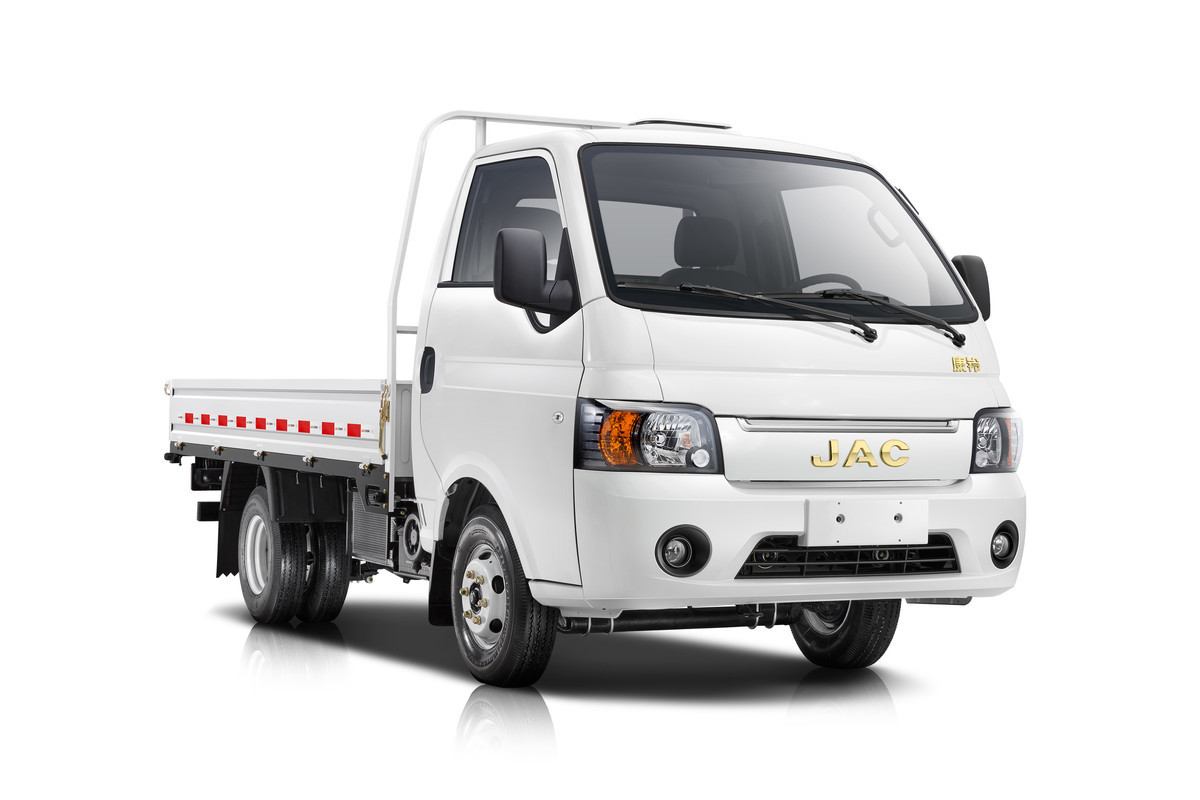

JAC mini cargo truck 3Ton FOB Qingdao port 8500$/Unit

Chassis model

HFC1030PV4E6B4S

Engine

Model

HFC4GB3-3E

Description

In-line/4 cylinders/normally aspirated /water cooled/

electric control/VVT/gasoline engine

Rated power of engine (kw/HP)

88/120

Maximum torque (N.m@rpm)

155@3500~4500RPM

Displacement (ml)

1590

Emission standard

Euro VI

Gearbox

Description

MG70,manual,5 forward gears ＆ 1 reverse gear

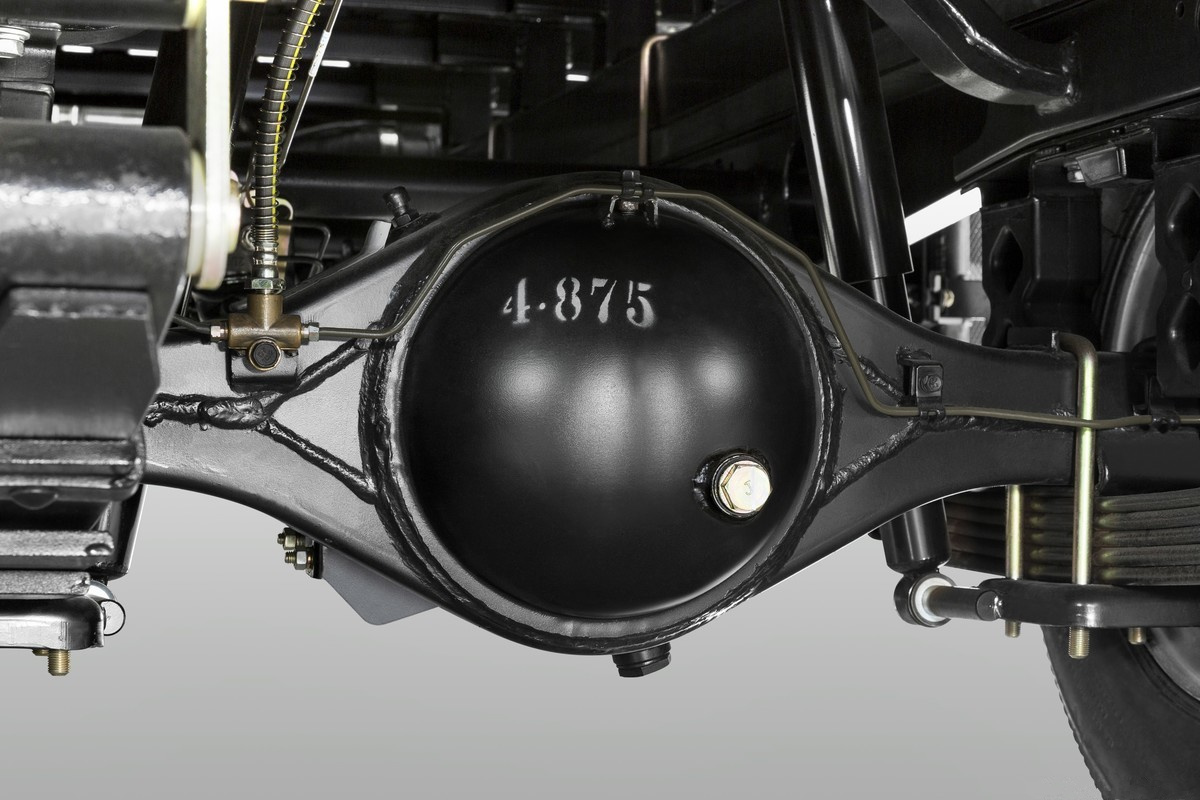

Front / Rear axle

Front axle load (Kg)

1255

Rear axle load(Kg)

2240

Drive type

4X2

Type of tire

175/75R16LT 8PR

Quantity of tires

6+1

F/R leaf spring

Non-independent suspension, with auxiliary leaf spring 3/3+2

Brake system

Service brake type

Drum type,hydraulic pressure double loop braking

ABS

Provided

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

1570

Rated load capacity(Kg)

1795

Max. load capacity(Kg)

3000

Performance parameter

Maximum speed (km/h)

100

Maximum grade ability (%)

≥22%

Dimension parameters

Overall dimensions (LxWxH)mm

5180×1850×2070

Internal van dimensions (LxWxH)mm

3110×1750×355

Wheelbase (mm)

2600

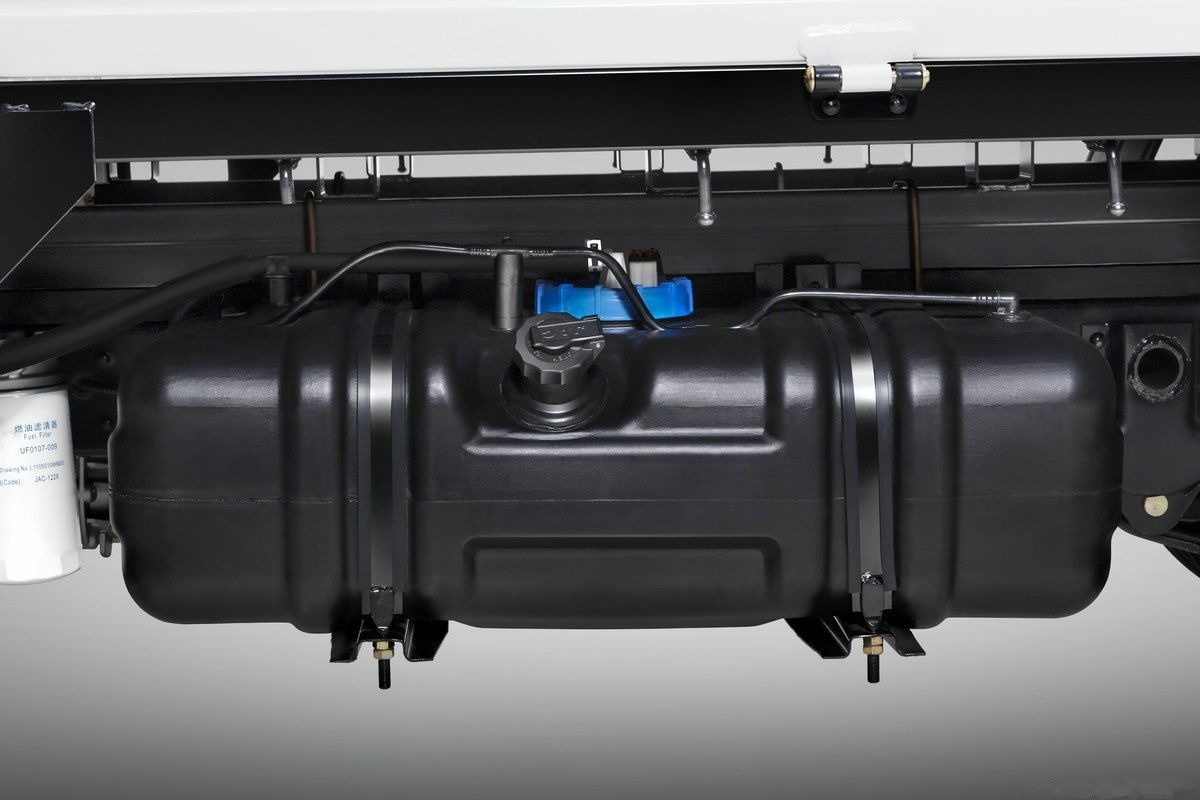

Fuel tanker capacity

75L

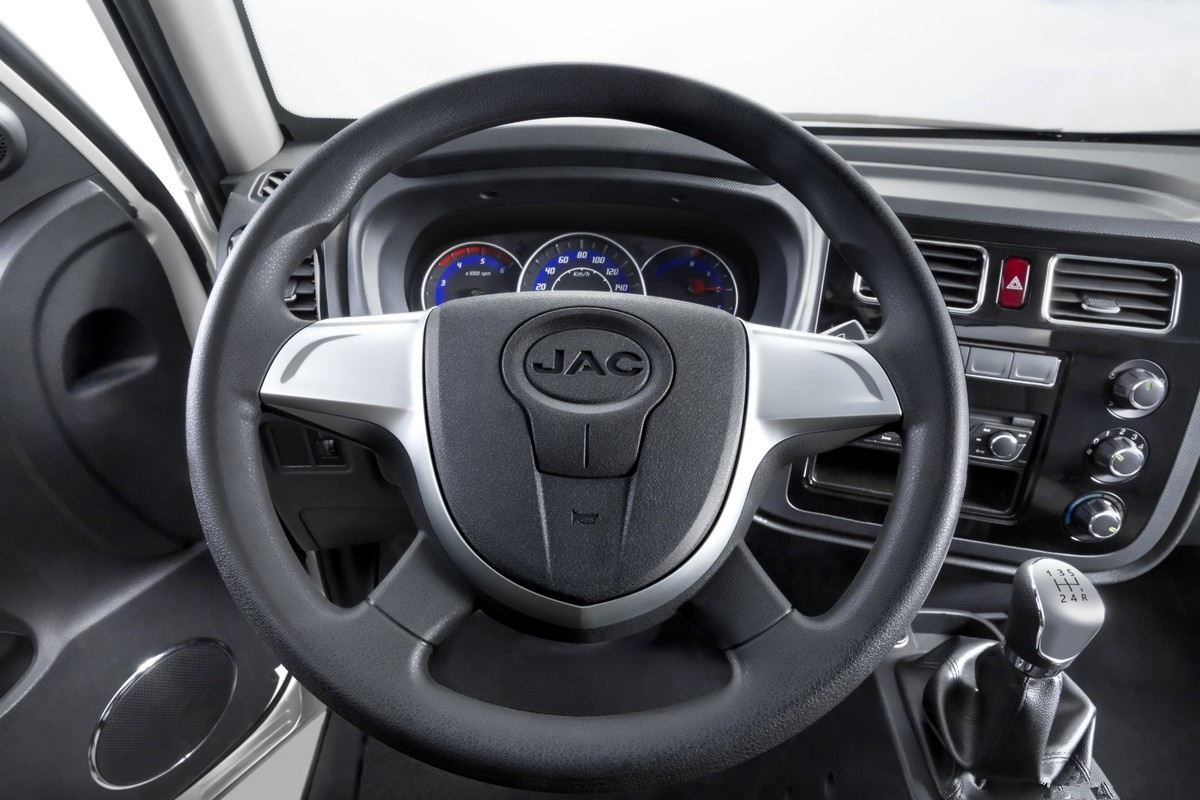

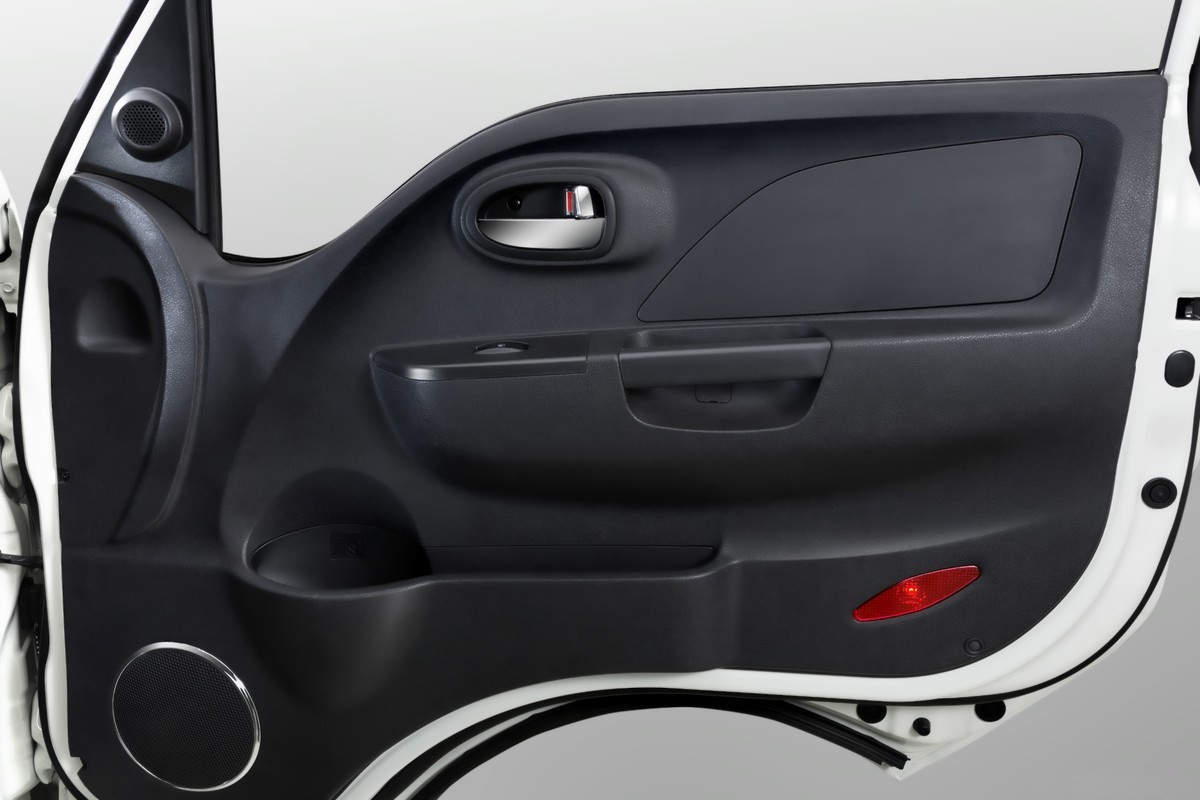

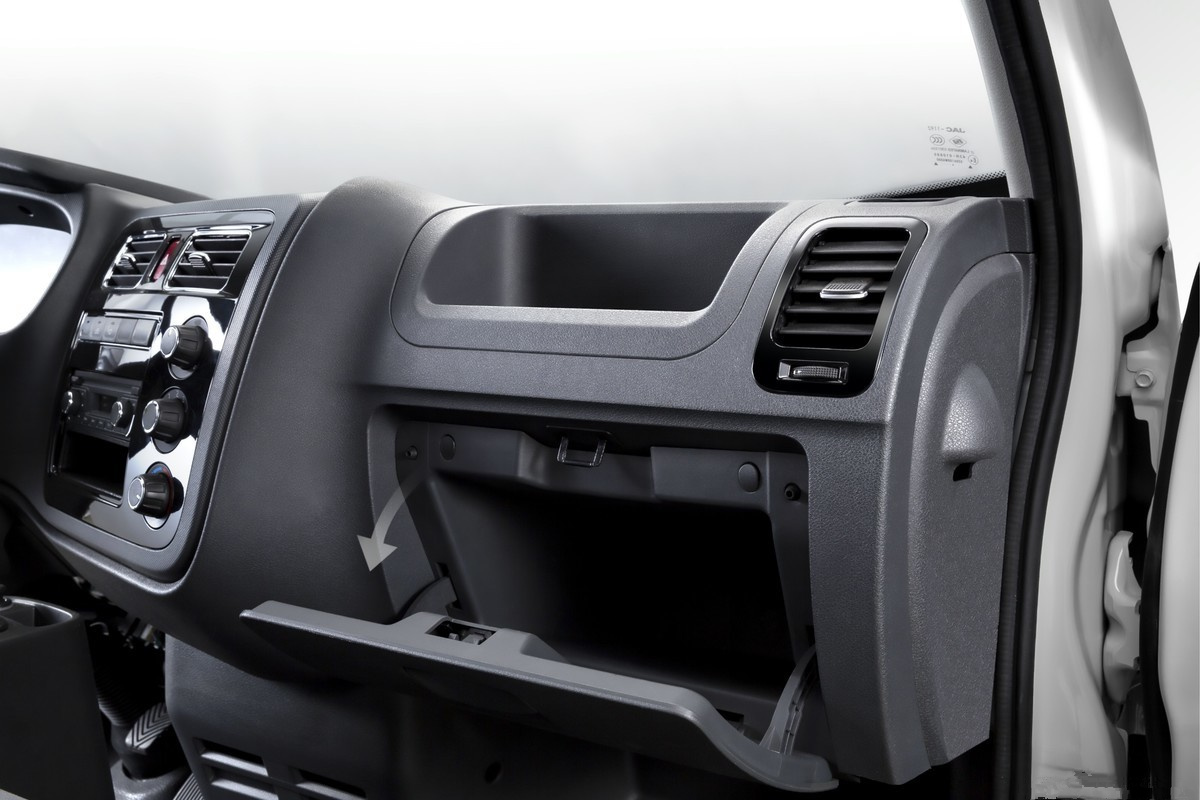

Cabin

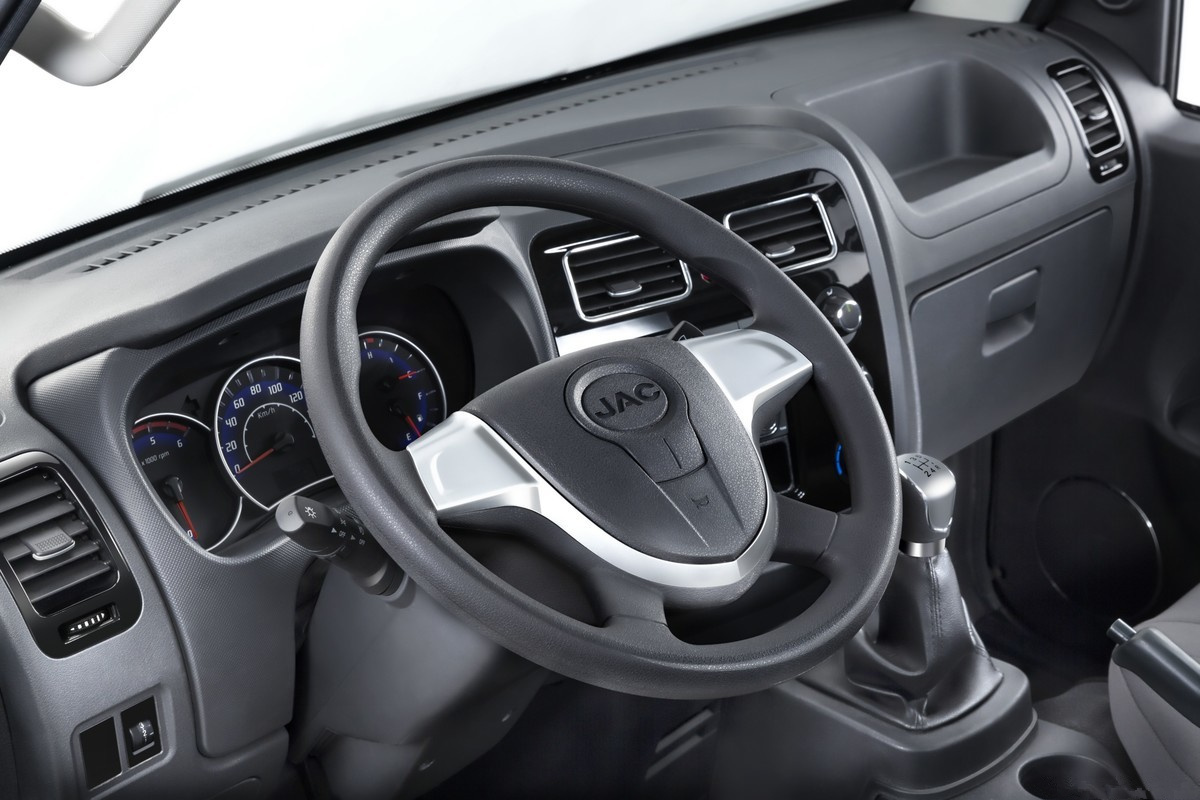

Single row,metallic painting,sedan configuration,2 passengers allowable,adjustable steering wheel,power-assisted clutch,radio,

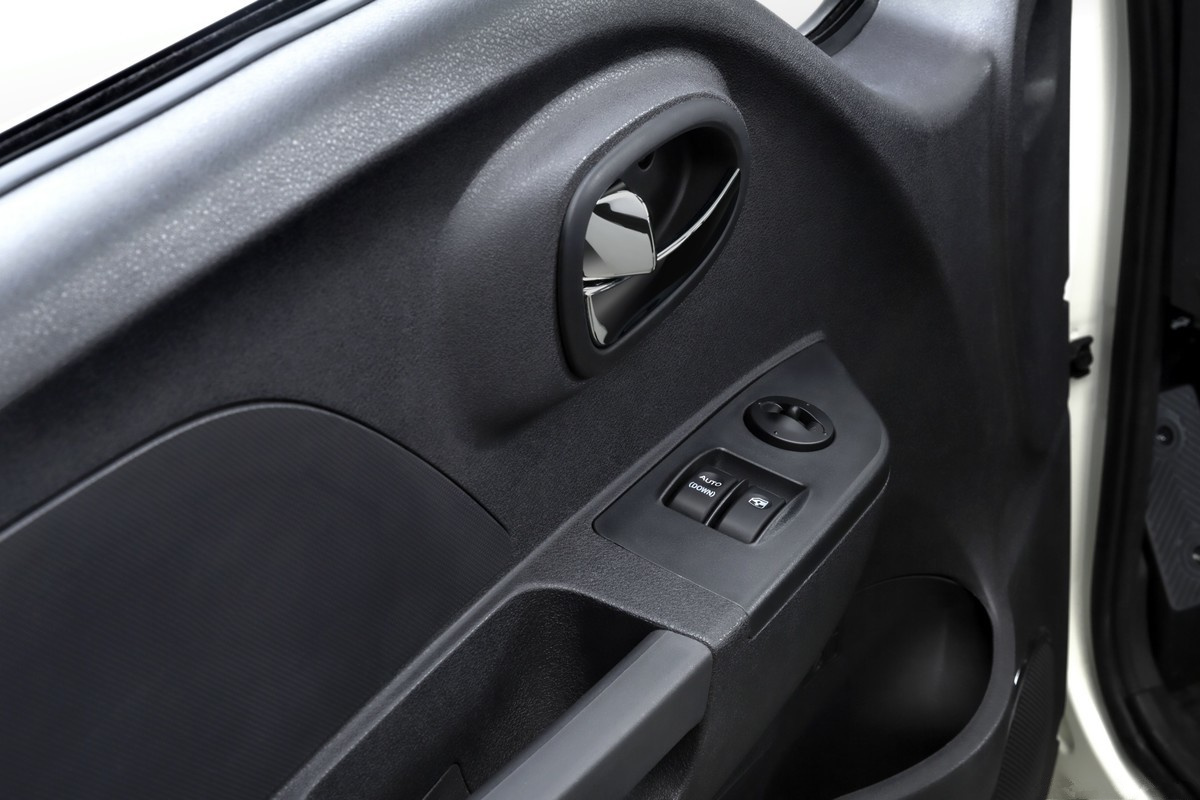

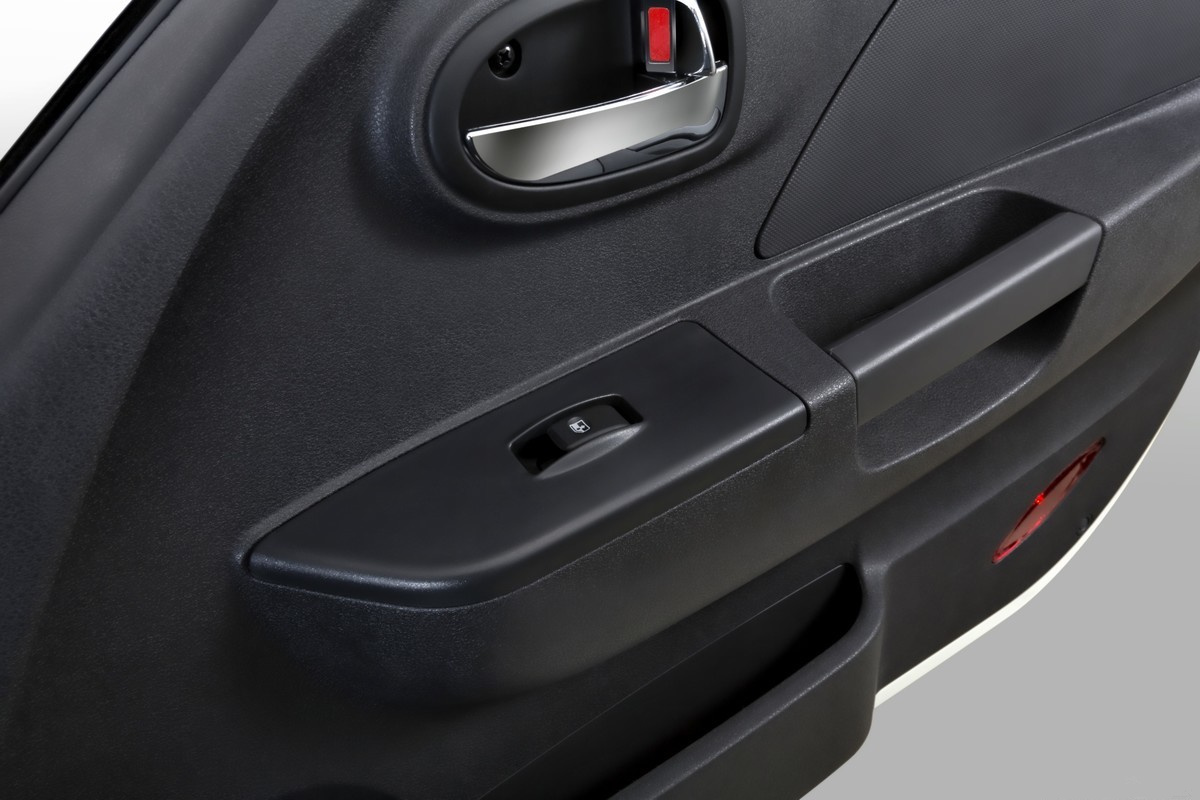

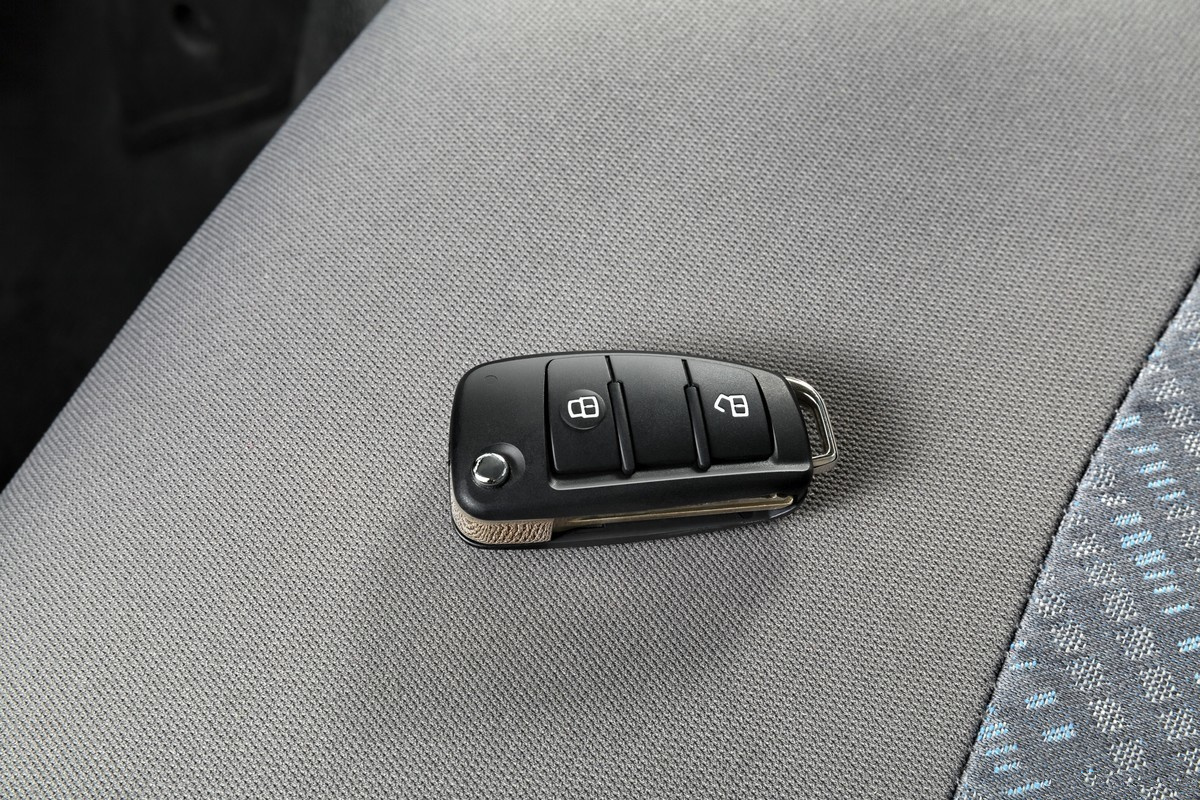

USB+AUX,A/C,central lock,electric window,safety belt provided
