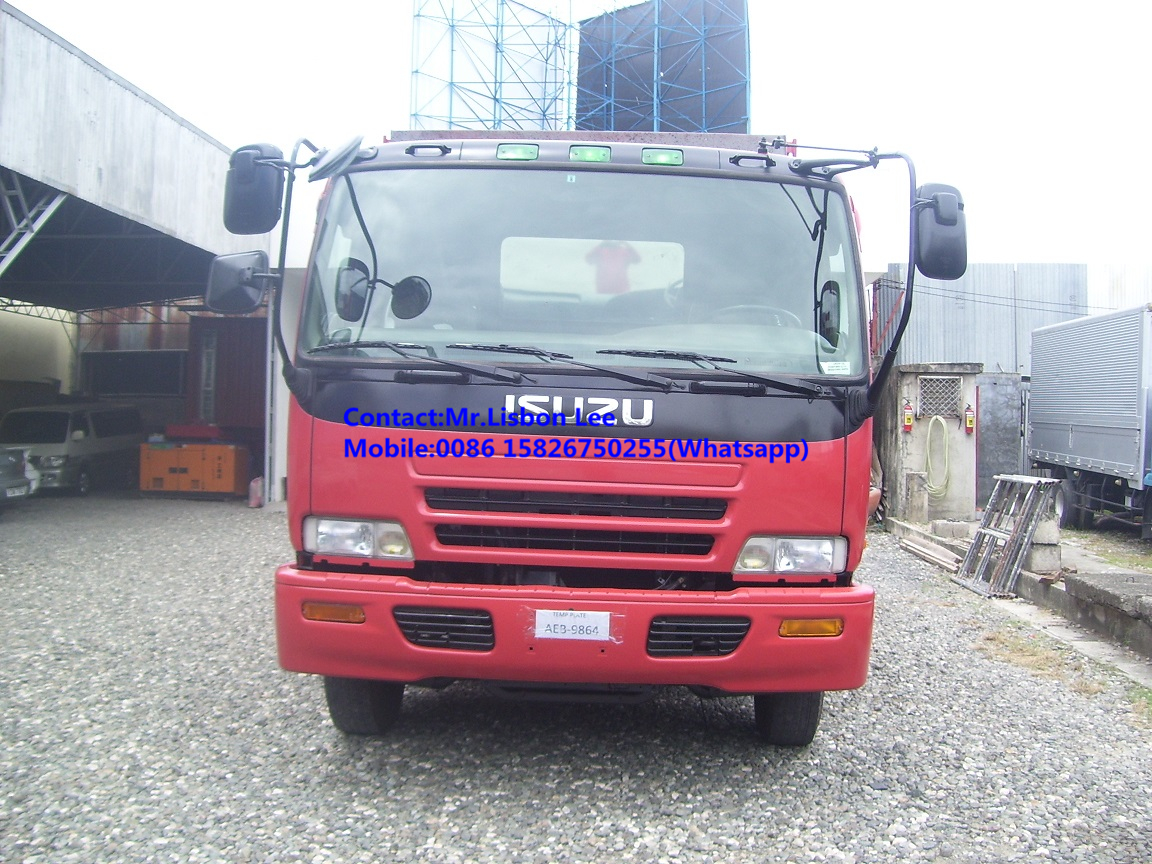

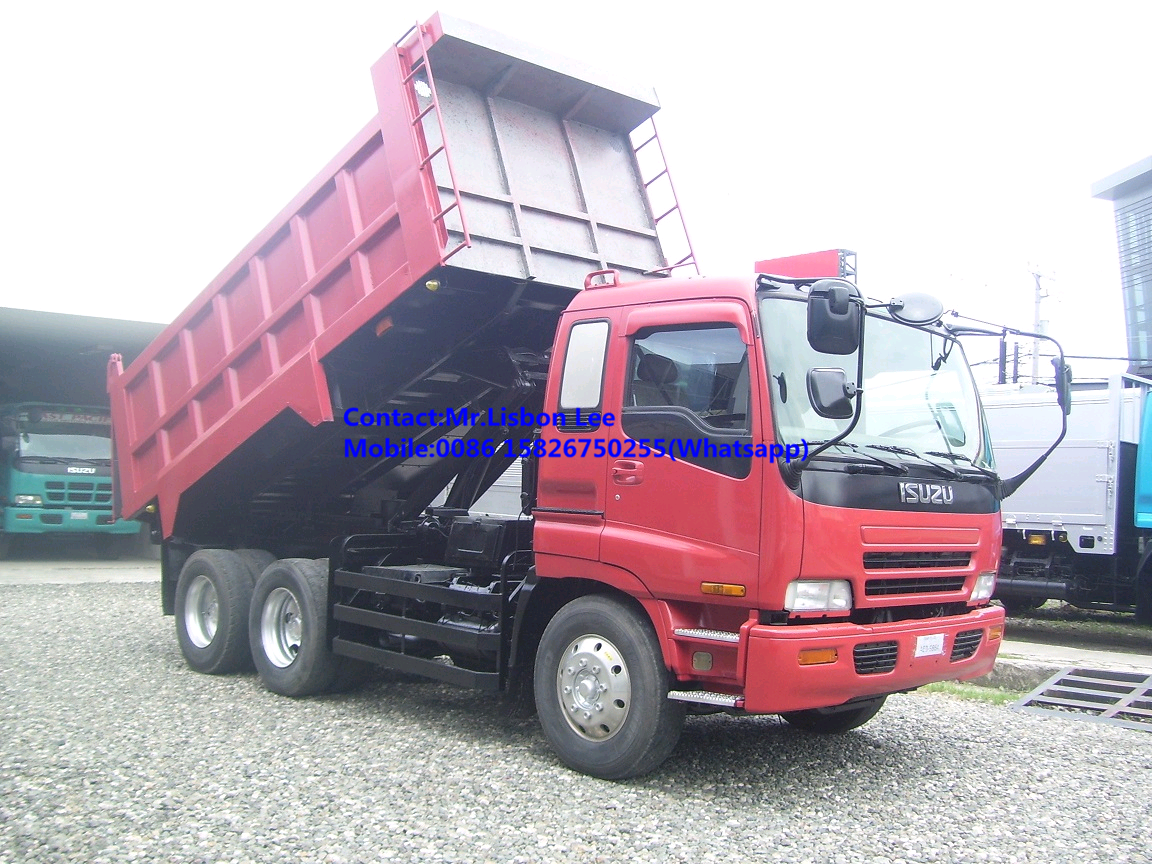

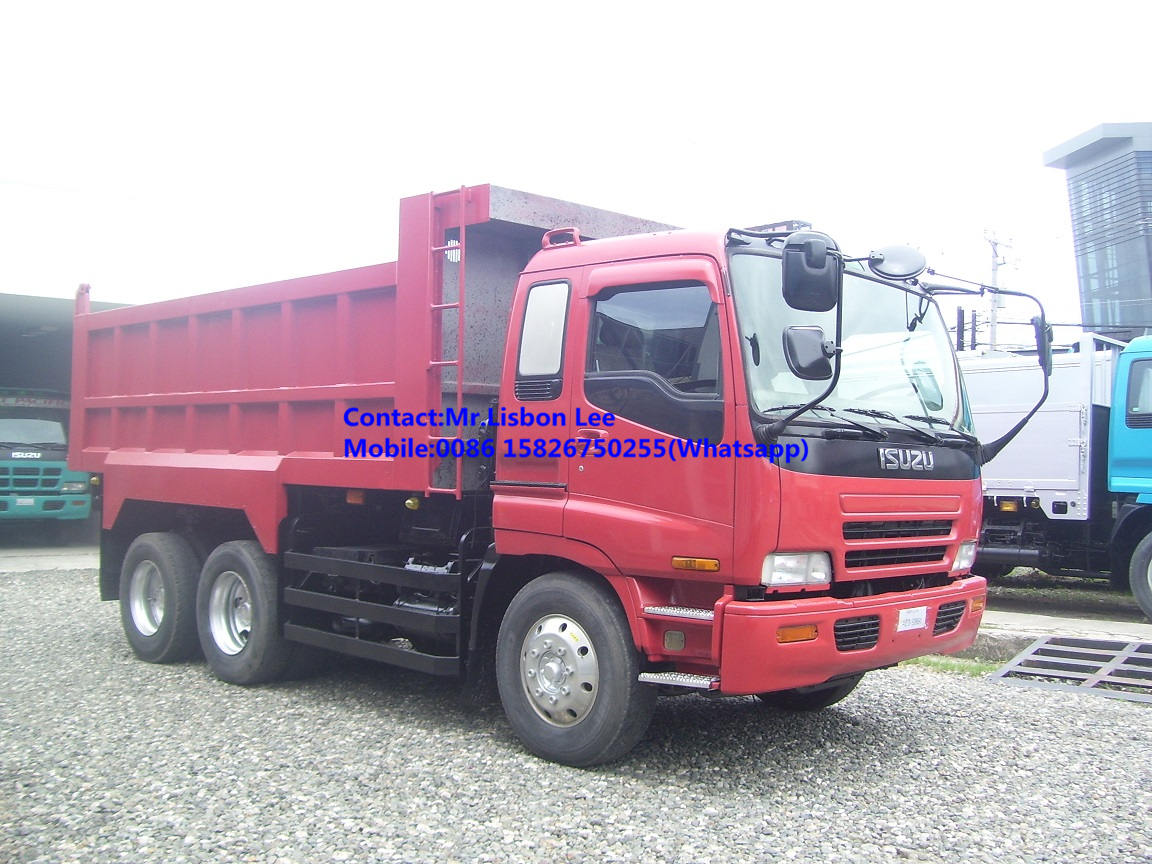

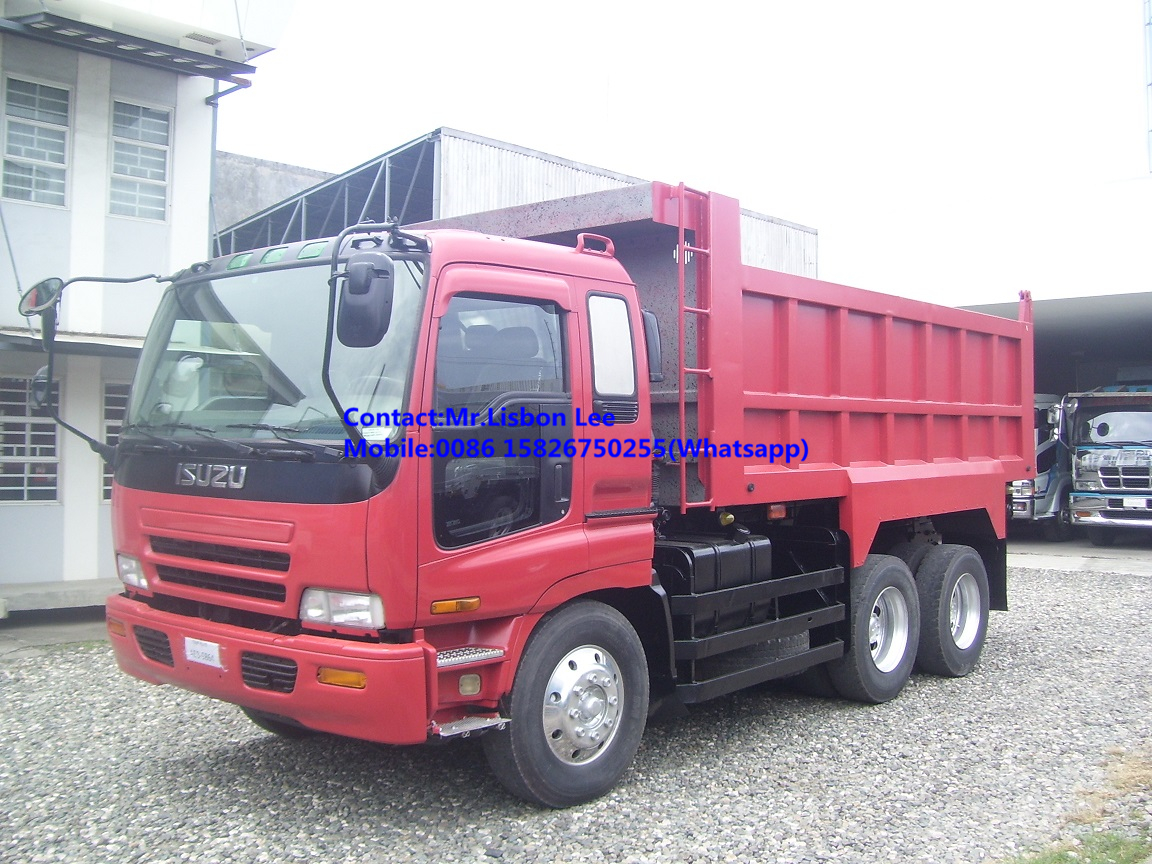

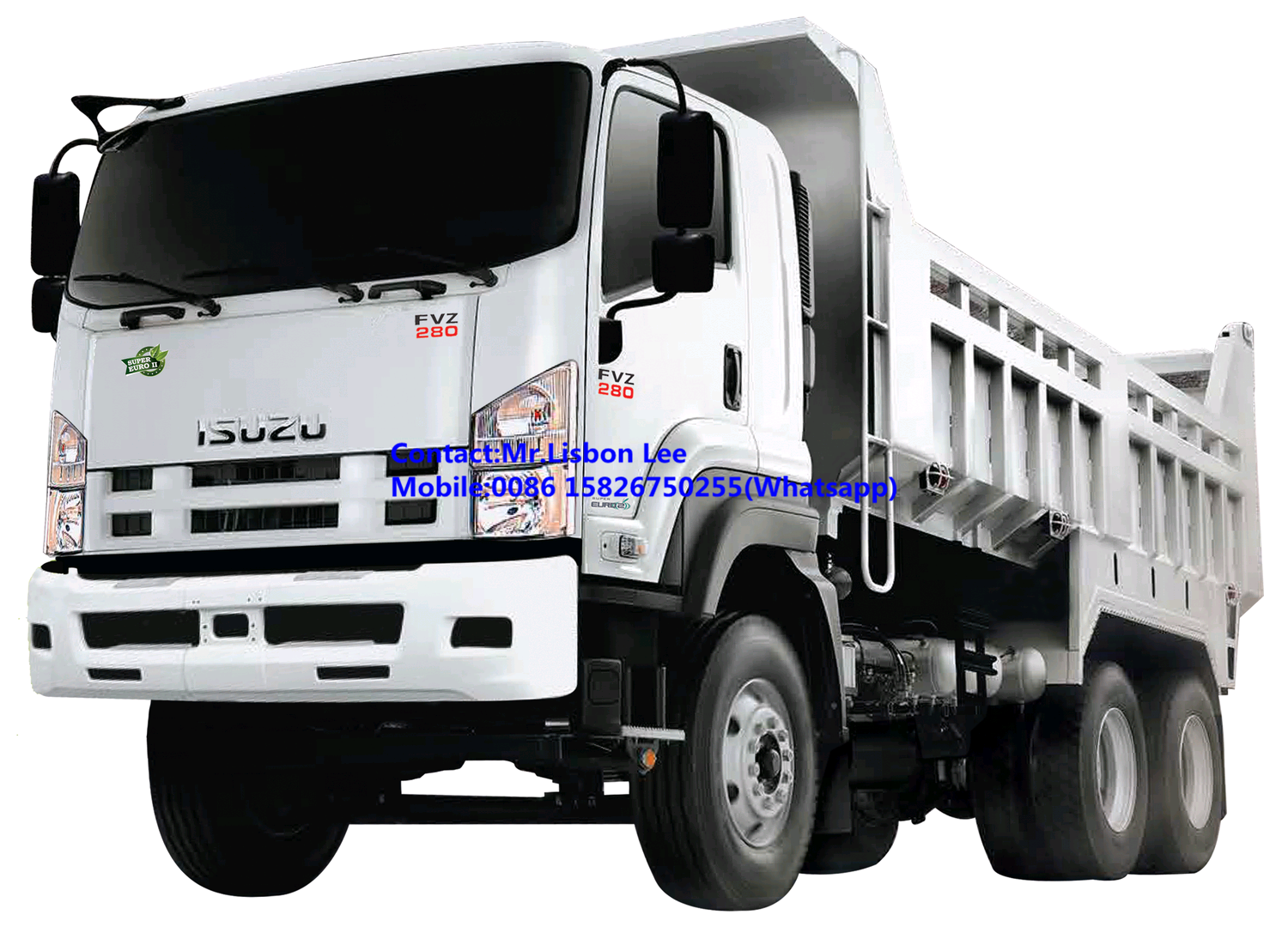

ISUZU 10wheeler dump truck

Complete vehicle

Chassis Model

QL1250WPFZY

Drive type

6X4

Wheel base(mm)

4350+1300

Overall dimension(mm)

8950×2500×3450

Box dimension(mm)

6200×2300×800

Curb weight(Kg)

10500

Payload(Kg)

30000

Cabin

ISUZU FVZ(Flat roof,one and half rows cabin,

single sleeper,luxury configuration, A/C provided)

Engine

Model

6HK1-TCH

Max.output (kw/HP)

221/300

Max.torque (N•m)

980

Displacement (ml)

7790

Emission standard

Euro 5

Gear box

9JS119TA,manual,9 forward ＆ 1 reverse gears

Driving axle

Load capacity 18Tons,final ratio 5.571

Front axle

Load capacity 7Tons

Chassis suspension

New stabilizing suspension

Air intake system

Double pipe cyclone air duct+Oil air filter+Common air filter

Inner trimming

Standard configuration

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Sun roof

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Pneumatic brake,ABS provided

Automatic clearance adjustment arm,tachometer

Comfortable accessories

Cab four points

full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Others

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (ignition switch, door and fuel tank)

Type specification

11.00R20

Number of tires

10+1

Thickness of box

Side 6mm, bottom 8mm

Lifting system

Front hydraulic lifting
