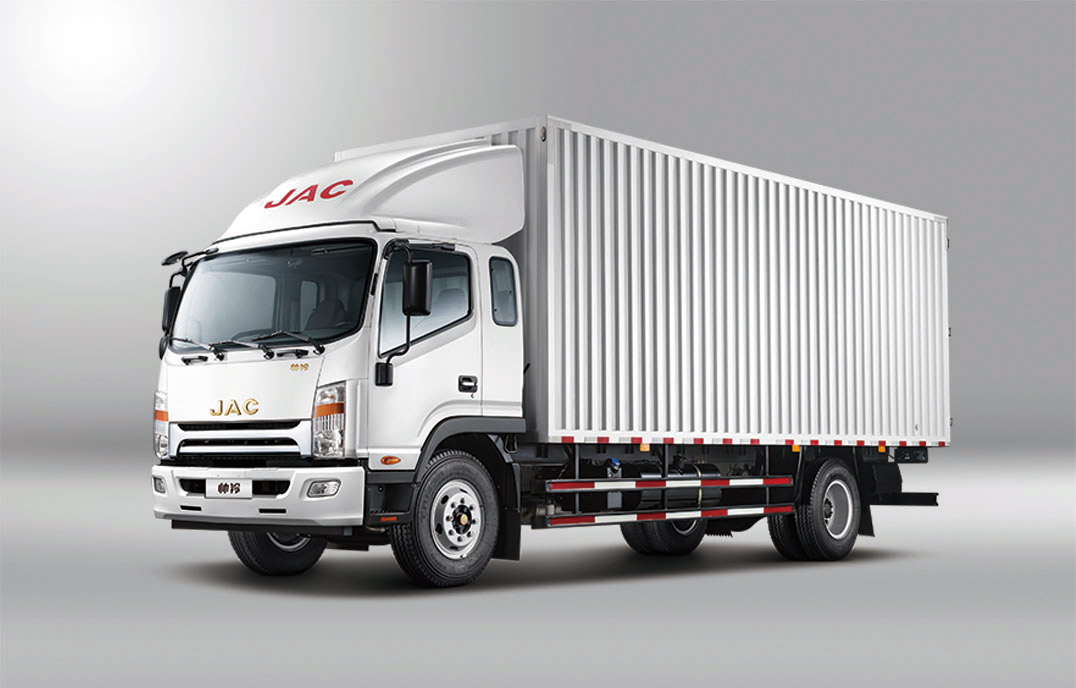

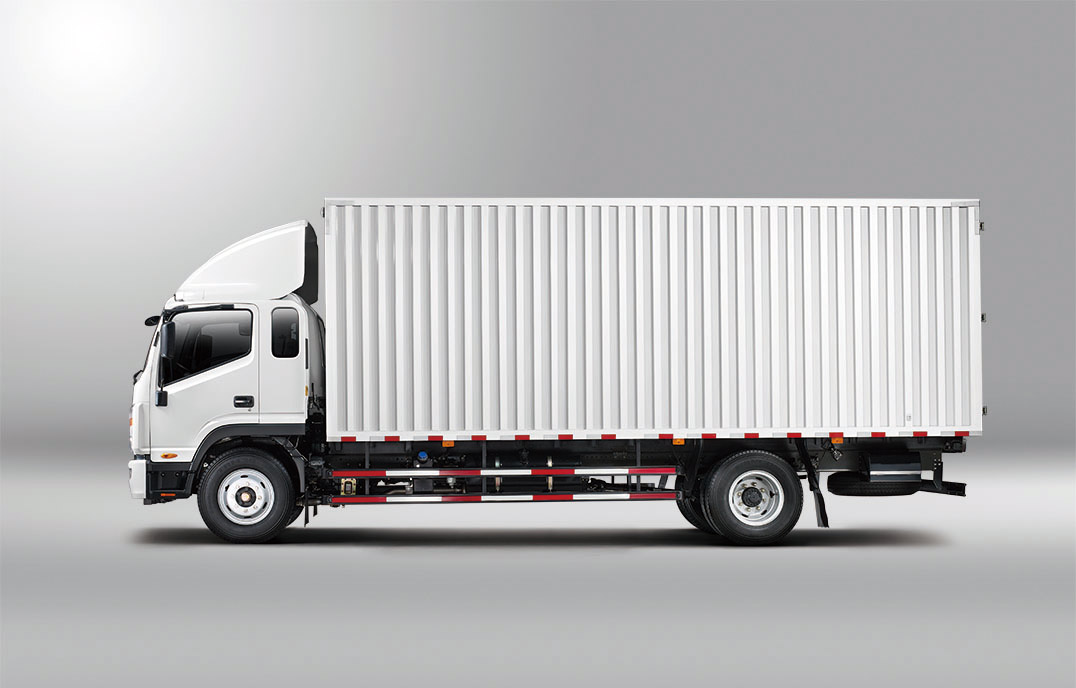

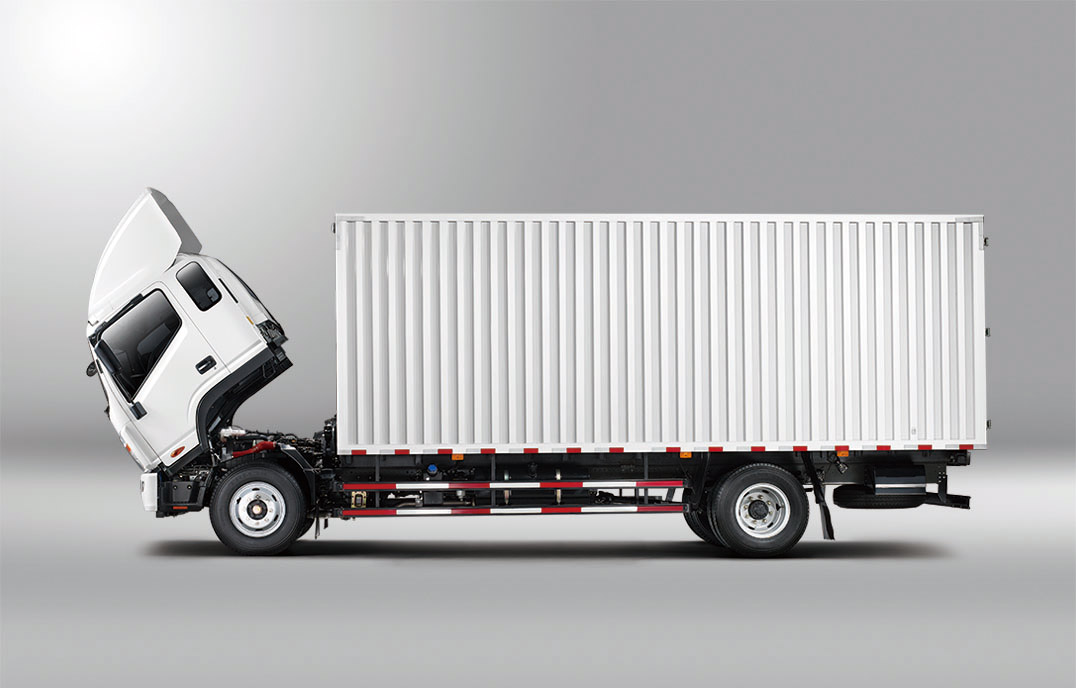

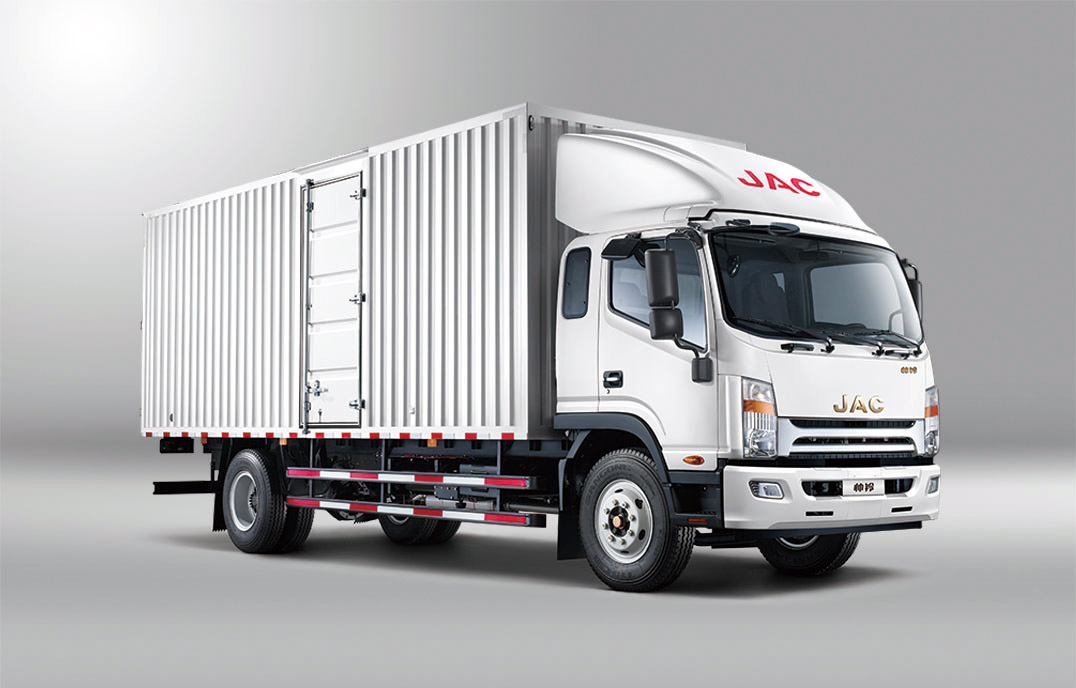

JAC van truck 8Ton

Chassis model

HFC1081P71K1C6

Engine

Model

WP3Q130E50

Description

In-line/4 cylinders/turbo charged/inter cooled/water cooled/diesel engine

Rated power of engine (kw/HP)

96/130

Displacement (ml)

2970

Emission standard

Euro V

Gearbox

Description

LC6T450,manual,6 forward gears,1 reverse gear

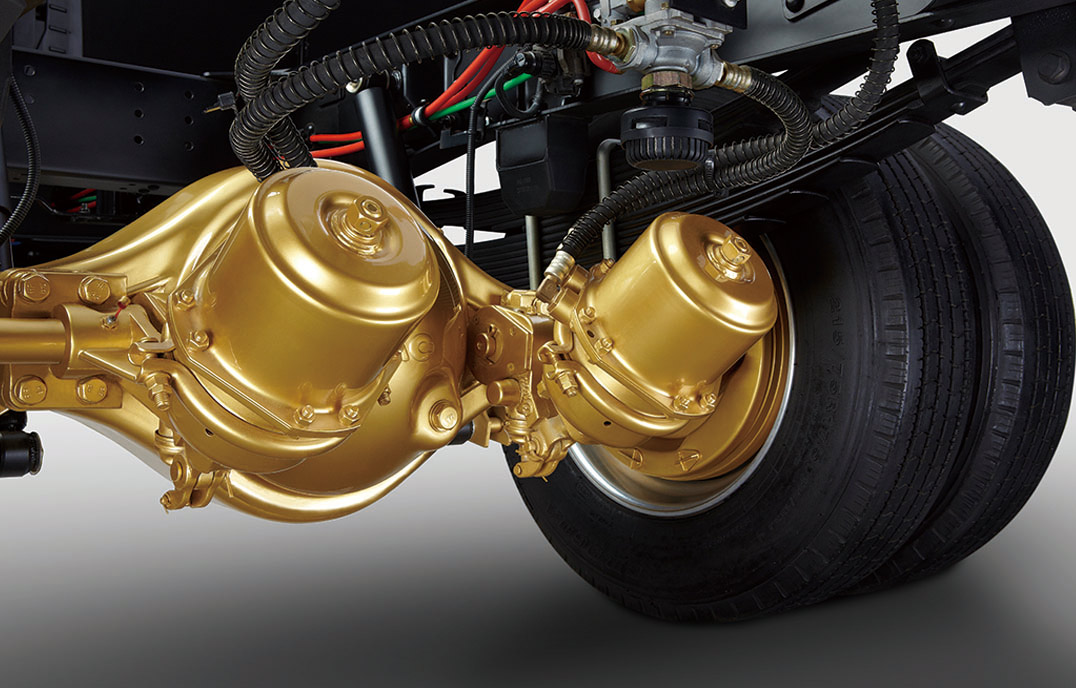

Front / Rear axle

Front axle load (Kg)

2980

Rear axle load(Kg)

5295

Drive type

4X2

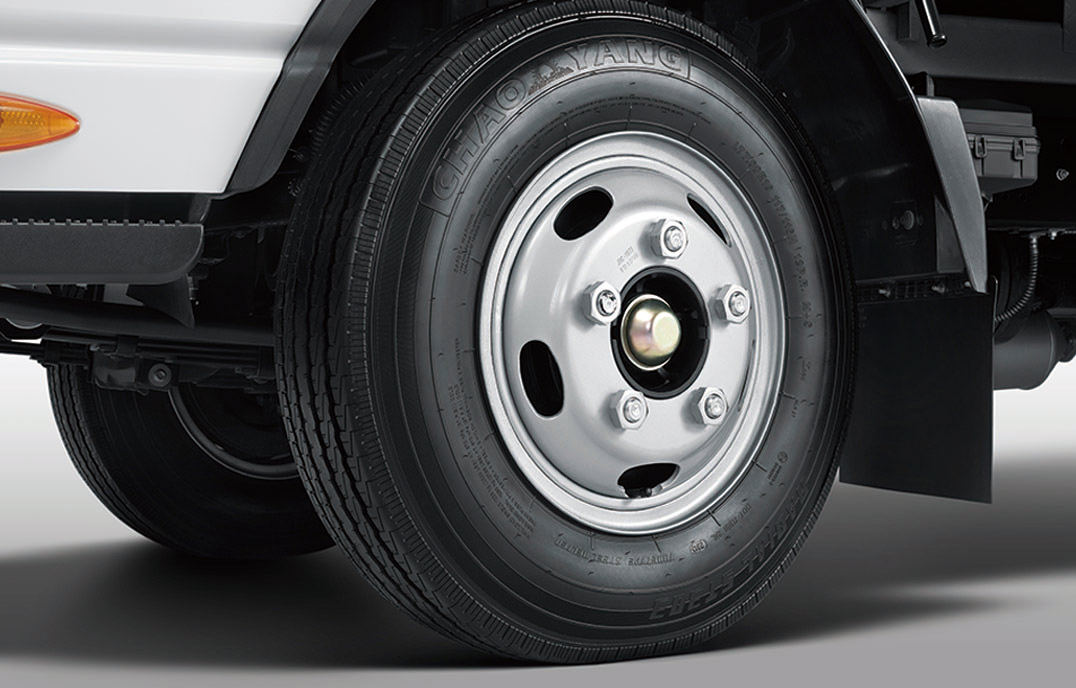

Type of tire

7.00R16

Quantity of tires

6+1

F/R leaf spring

Non-independent suspension, with auxiliary leaf spring 9/9+7

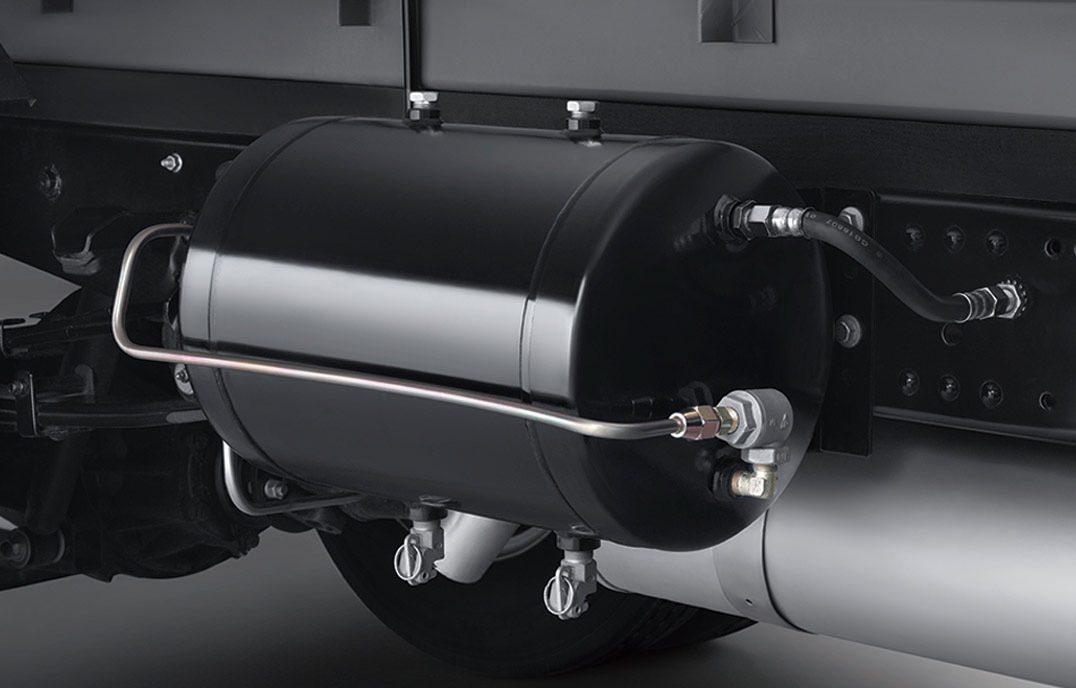

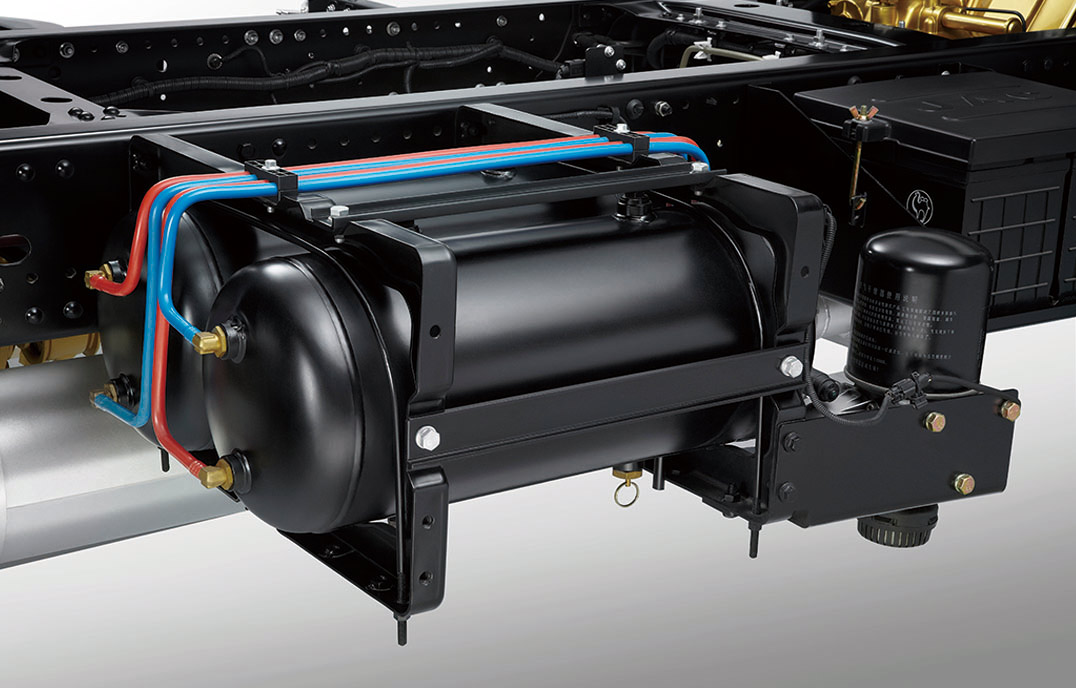

Brake system

Service brake type

Drum type, air pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

3800

Load capacity(Kg)

8000

Performance parameter

Maximum speed (km/h)

90

Maximum grade ability (%)

≥22%

Dimension parameters

Overall dimensions (LxWxH)mm

7100×2240×3145

Internal van dimensions (LxWxH)mm

4805×2110×2000

Wheelbase (mm)

3845

Front/rear wheel track (mm)

1665/1525

Front/rear suspension (mm)

1110/2145

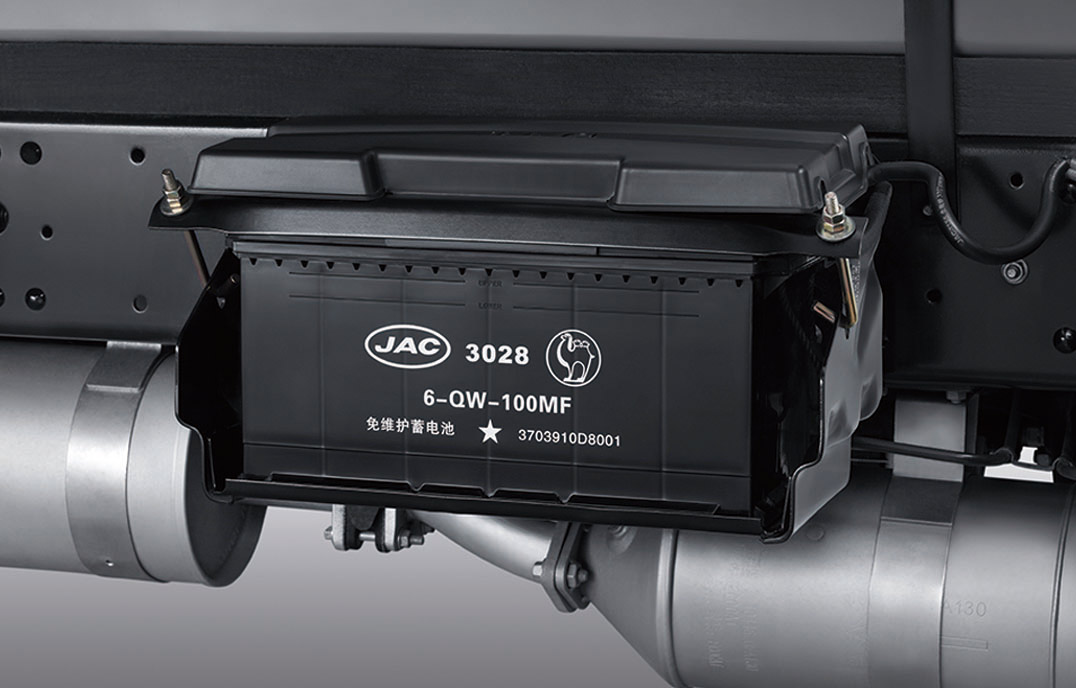

Rated voltage (V)

24

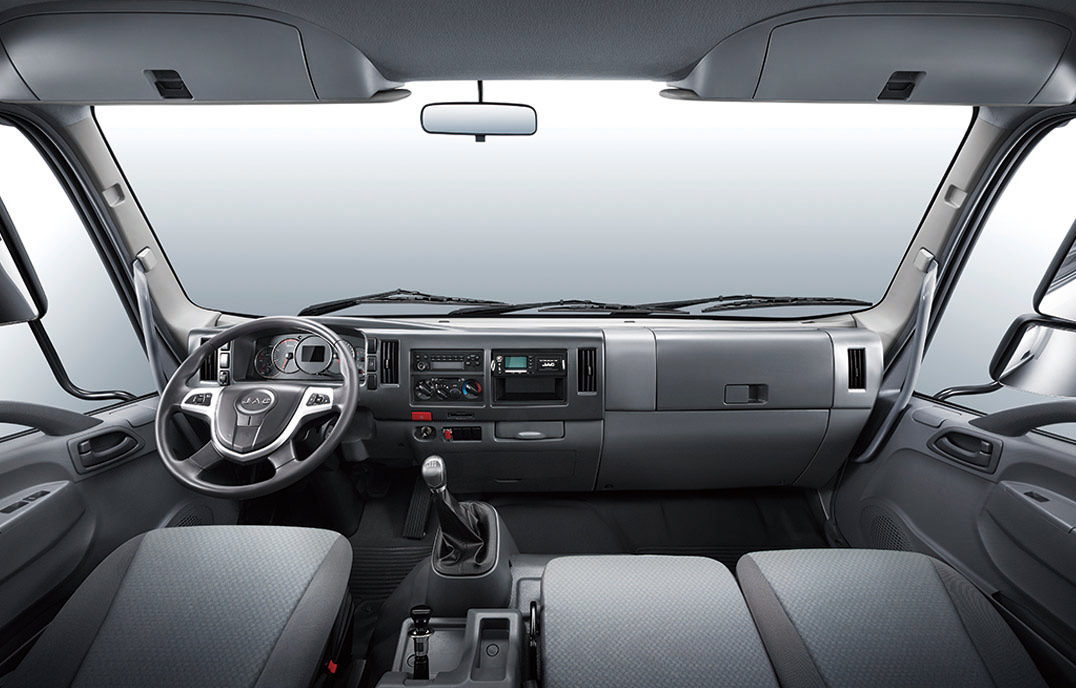

Cabin

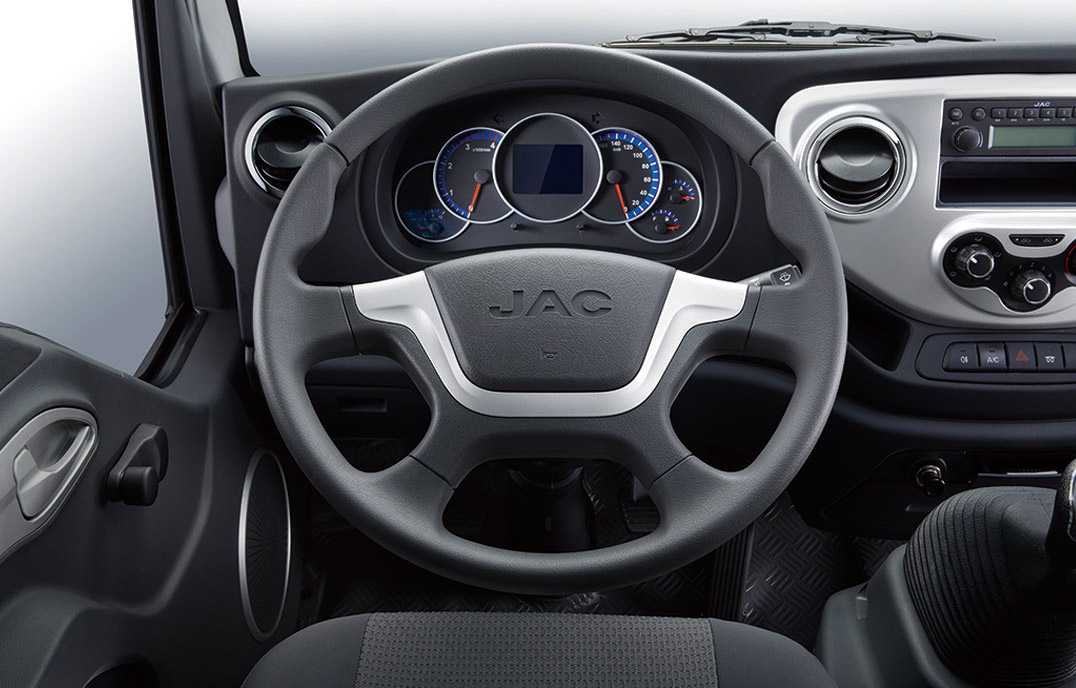

One and half rows,metallic painting,standard dashboard,electronic controlled flame-out,3 passengers allowable,electronic preheating, adjustable steering wheel,power-assisted clutch,power steering,MP3,

A/C
