JAC van truck 16Ton Visda

Basic information>>

Chassis model:

HFC1160P70K1D6ZV

Drive type:

4X2

Wheel base(mm)

4500

Overall dimension(mm)

7640×2540×3700

Load weight(kg)

10000~16000

Box dimension(mm):

6830×2400×2400

Curb weight(kg):

6200

Max.vehicle speed

(km/h)

110

F/R suspension

(mm) :

1290/1850

Approach/departure

Angle(°):

24/14

Engine>>

Engine model:

ISD190 50

Emission standard:

Euro 5

Displacement:

6700mL

Rated revolution:

2500rpm

Max.Power:

144KW/190HP

Max.torque:

750N.m@1300-1500rpm

Description

In-line,vertical,four cylinders,water-cooled,four strokes,turbo charged,electric control,direct injection,diesel engine

Gearbox>>>>

Description:

DF6S900,manual,6 forward gears ＆1 reverse gear

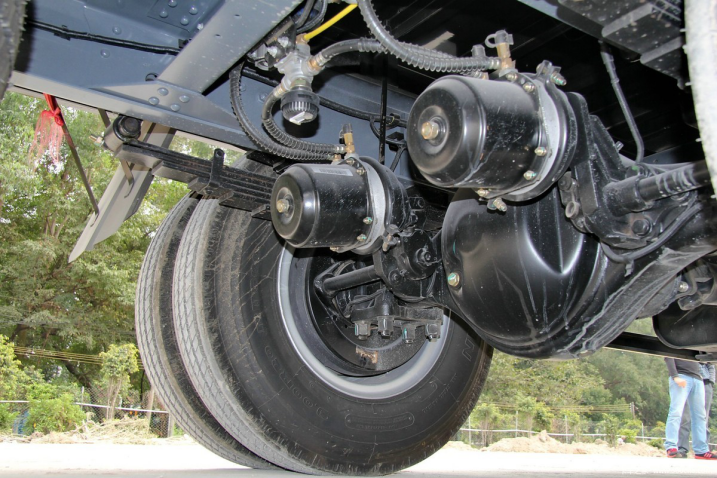

Chassis>>>>

Number of leaf

springs:

10/9+7

Type of tire:

10.00R20

Steering system:

LHD,power assisted

Brake system:

Pneumatic brake,ABS

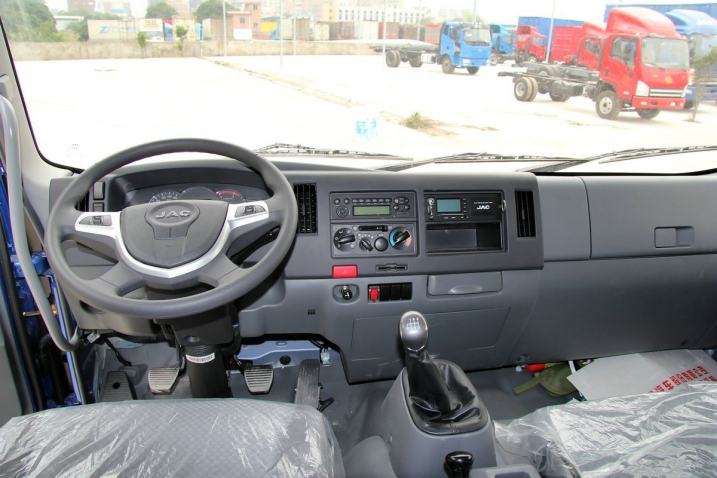

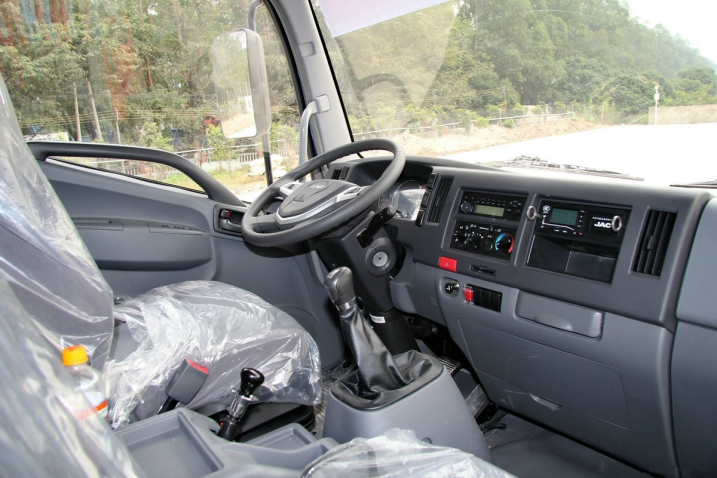

Cab

One and half rows, two doors,3 passengers allowable,luxury configuration,

turnable,with single sleeper,A/C provided,color white,blue,yellow for option

Van box

Material corrugated steel panel,with dear door and side door
