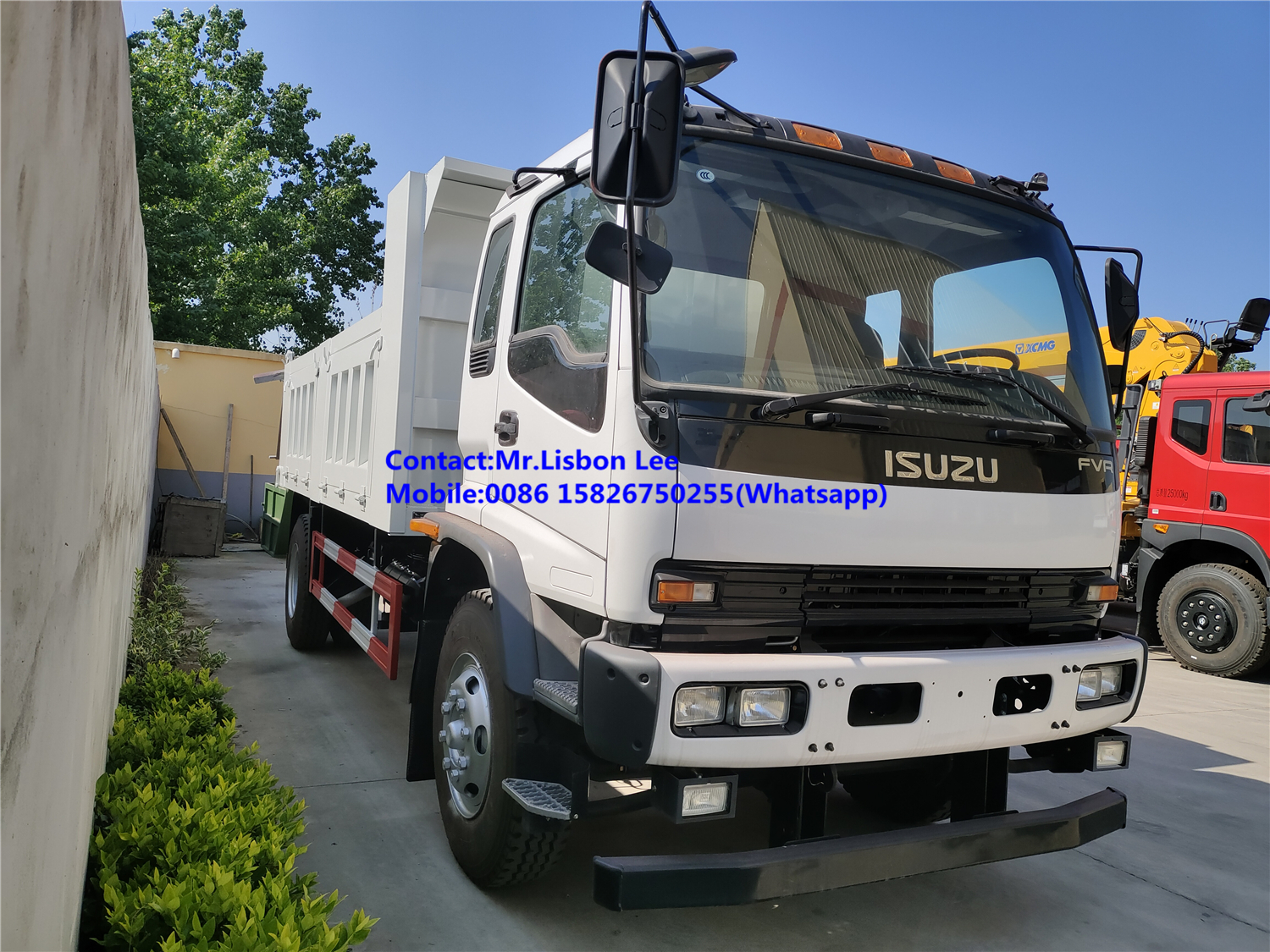

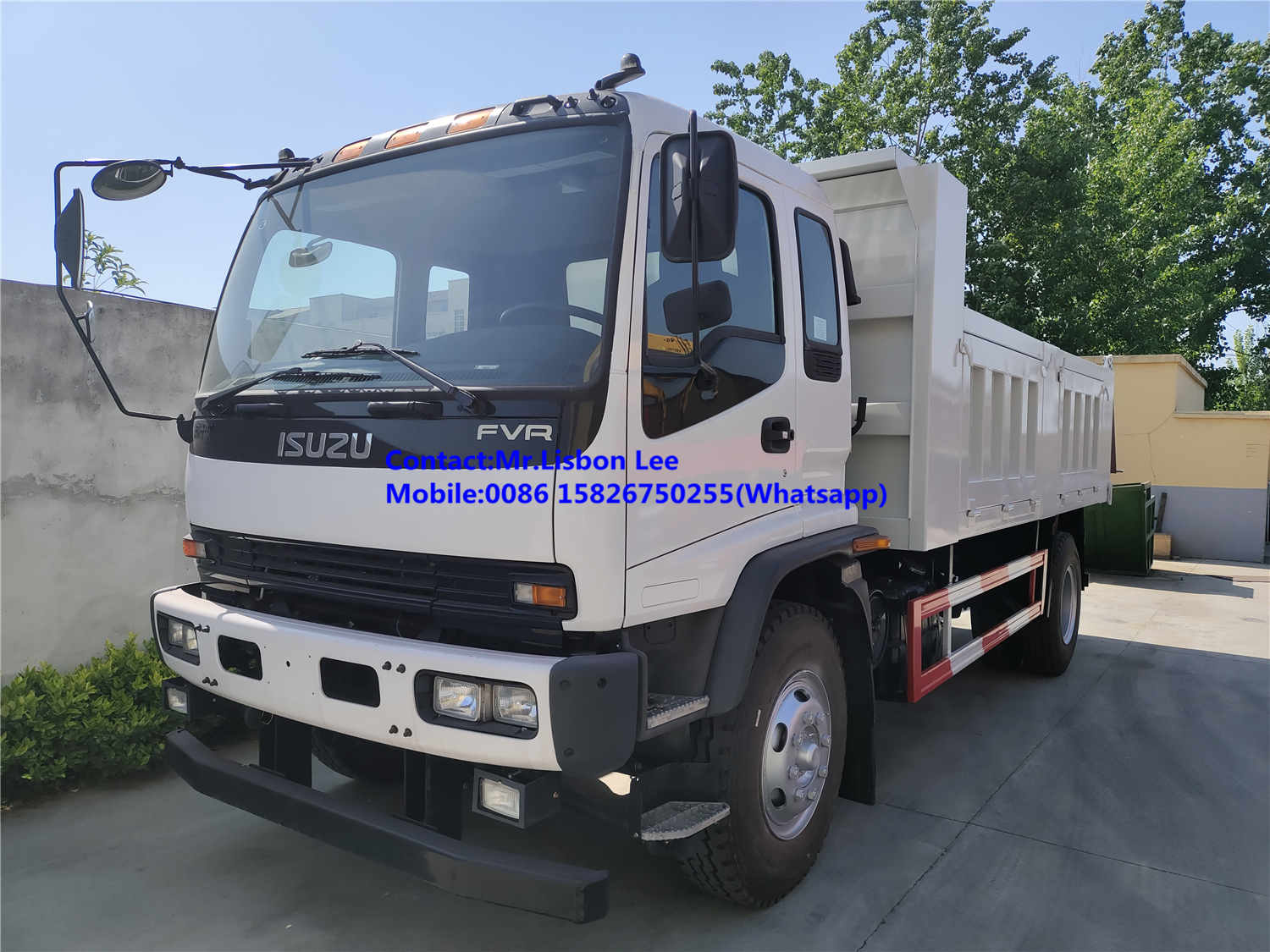

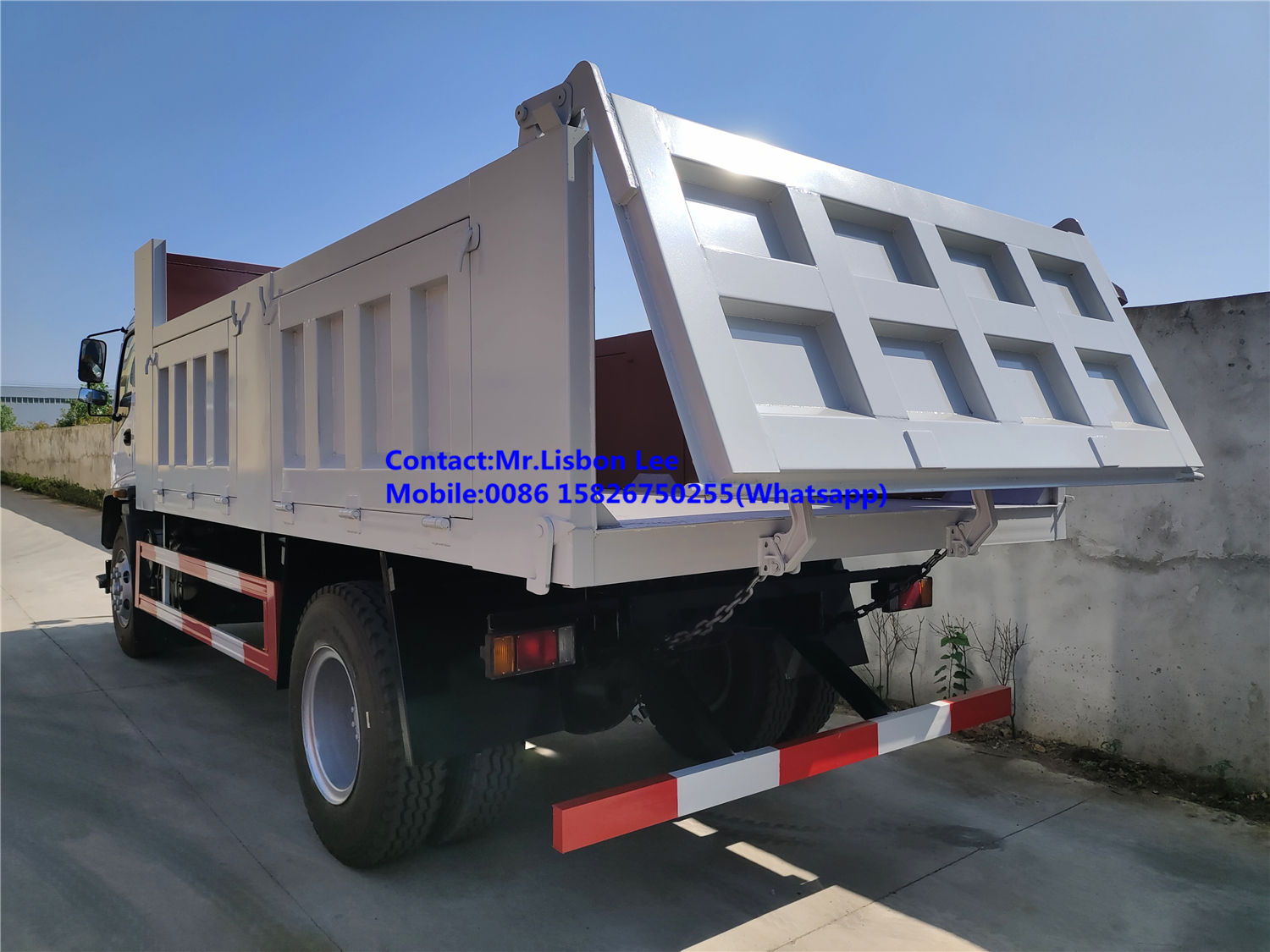

ISUZU FVR 4X2 dump truck 240HP

Chassis model

QL1180XMFRY

Main dimension

Overall dimension(mm)

7600×2500×2900

Dimension of dump box(mm)

5000×2300×800

Drive Type

4X2 Left hand drive

Wheel base (mm)

4500

Wheel track(front/rear)(mm)

1960/1855

Weight data

Curb weight(Kg)

8400

Load capacity(Kg)

20000

Engine

Model

6HK1-TCL

Description

In-line,6 cylinders,water cooling & turbo charged,inter-cooling diesel engine

Displacement(L)

7.79

Power(kw/HP)

177/240

Maximum Torque(N·m)

760

Emission level

Euro 5

Gearbox

Brand

ISUZU

Model

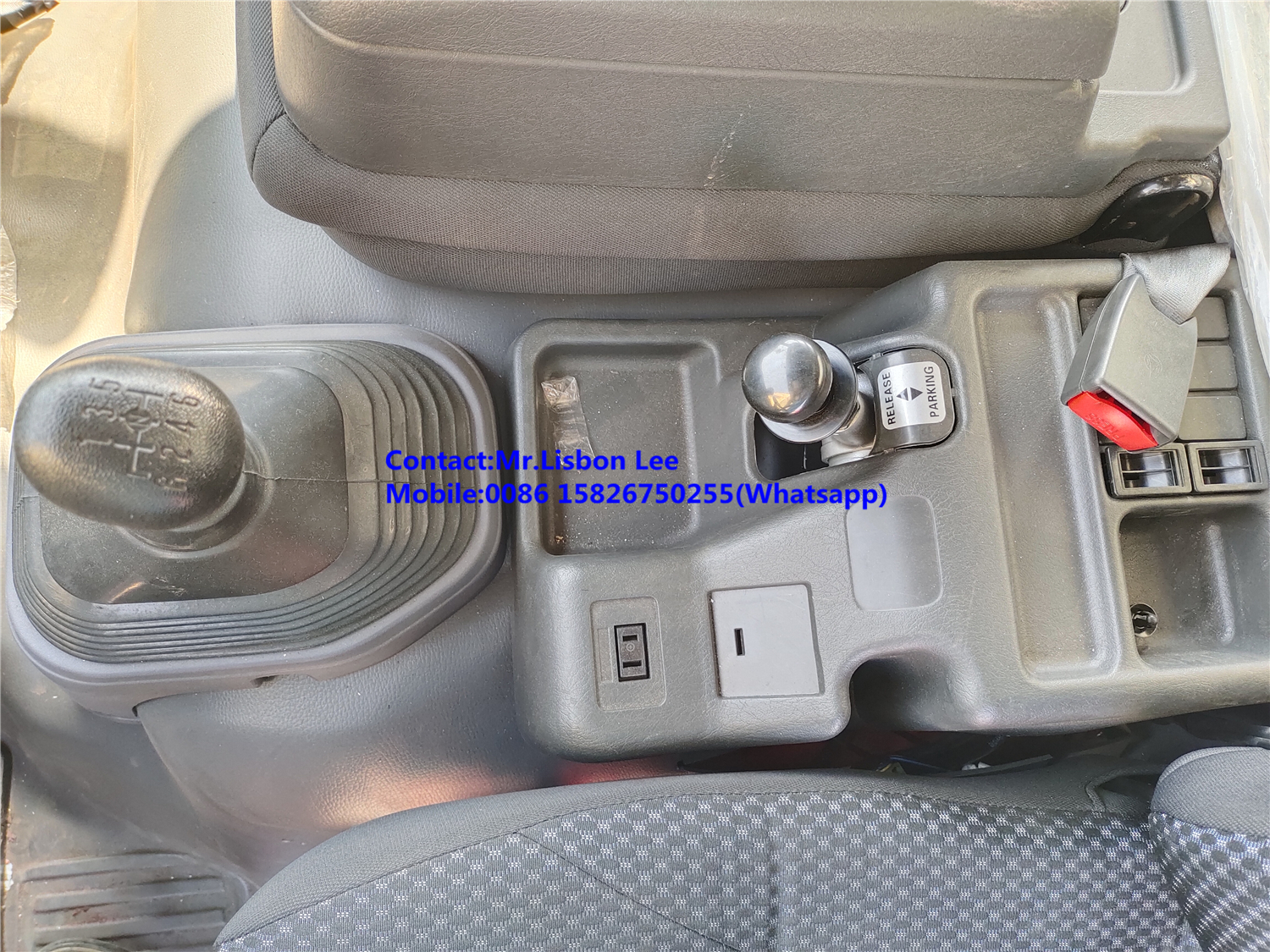

MLD-6Q,manual, 6 forward ＆ 1 reverse gears

Axles

Front axle load capacity

6.3Tons

Rear axle load capacity

13Tons

The others

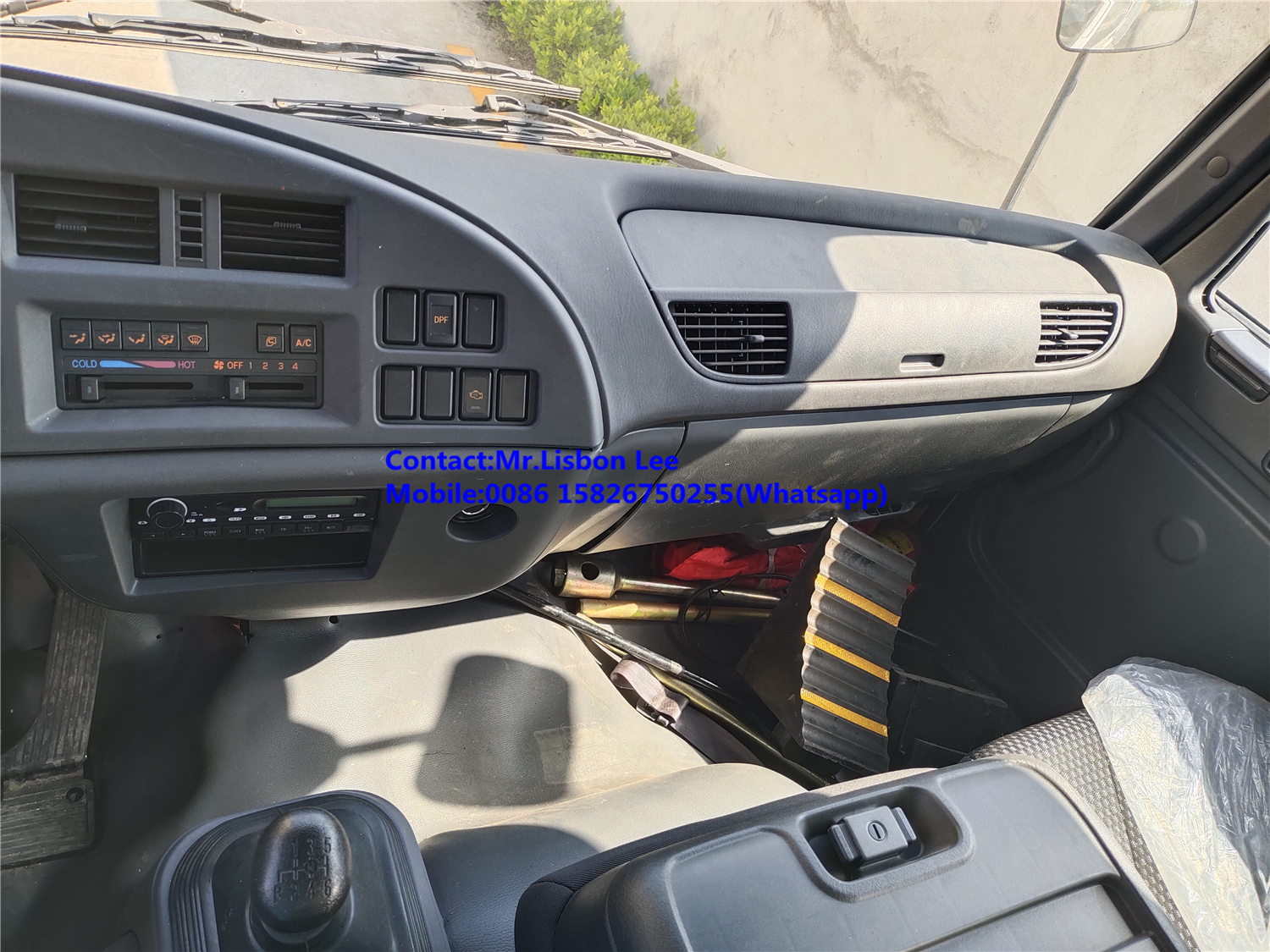

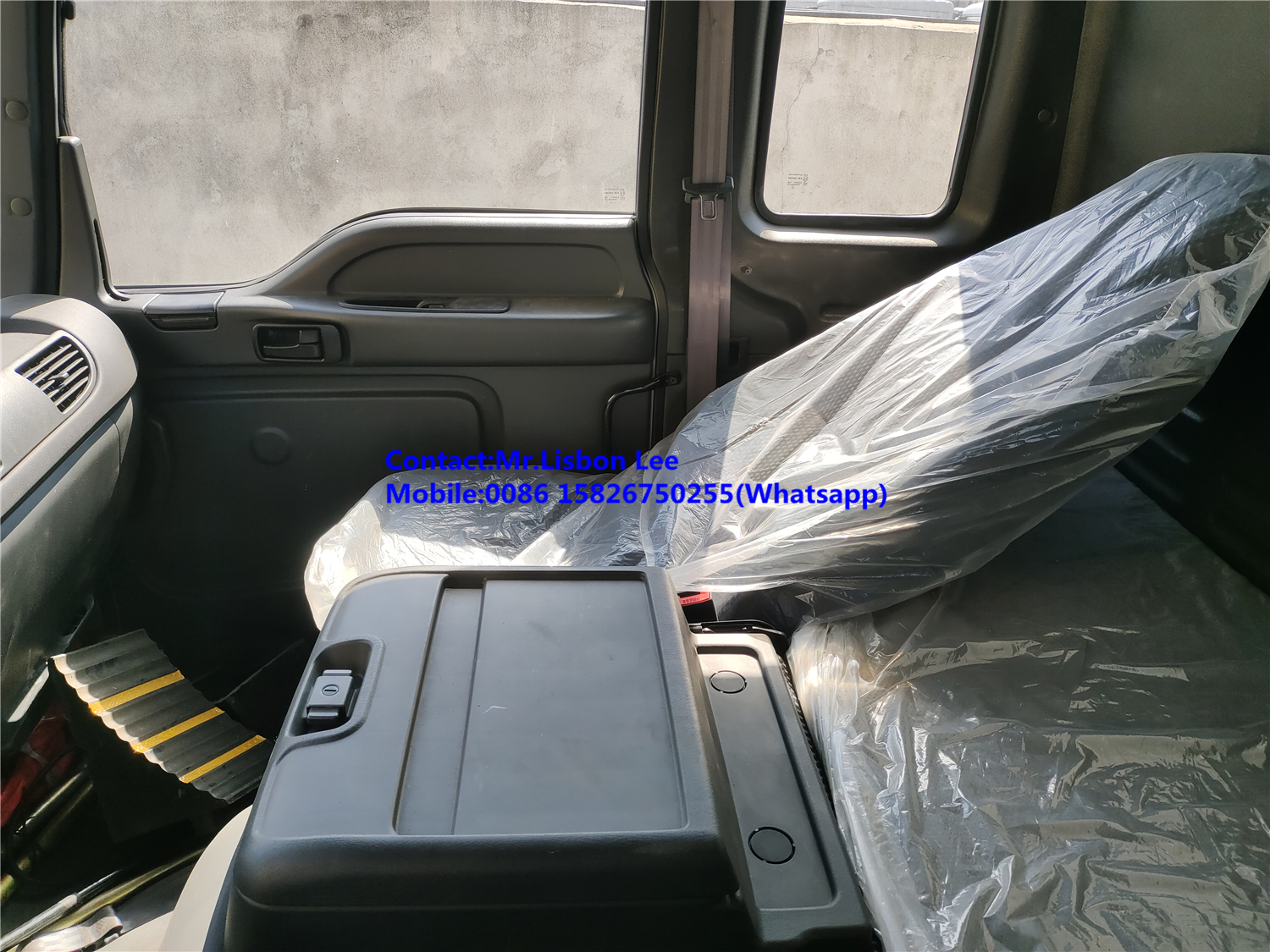

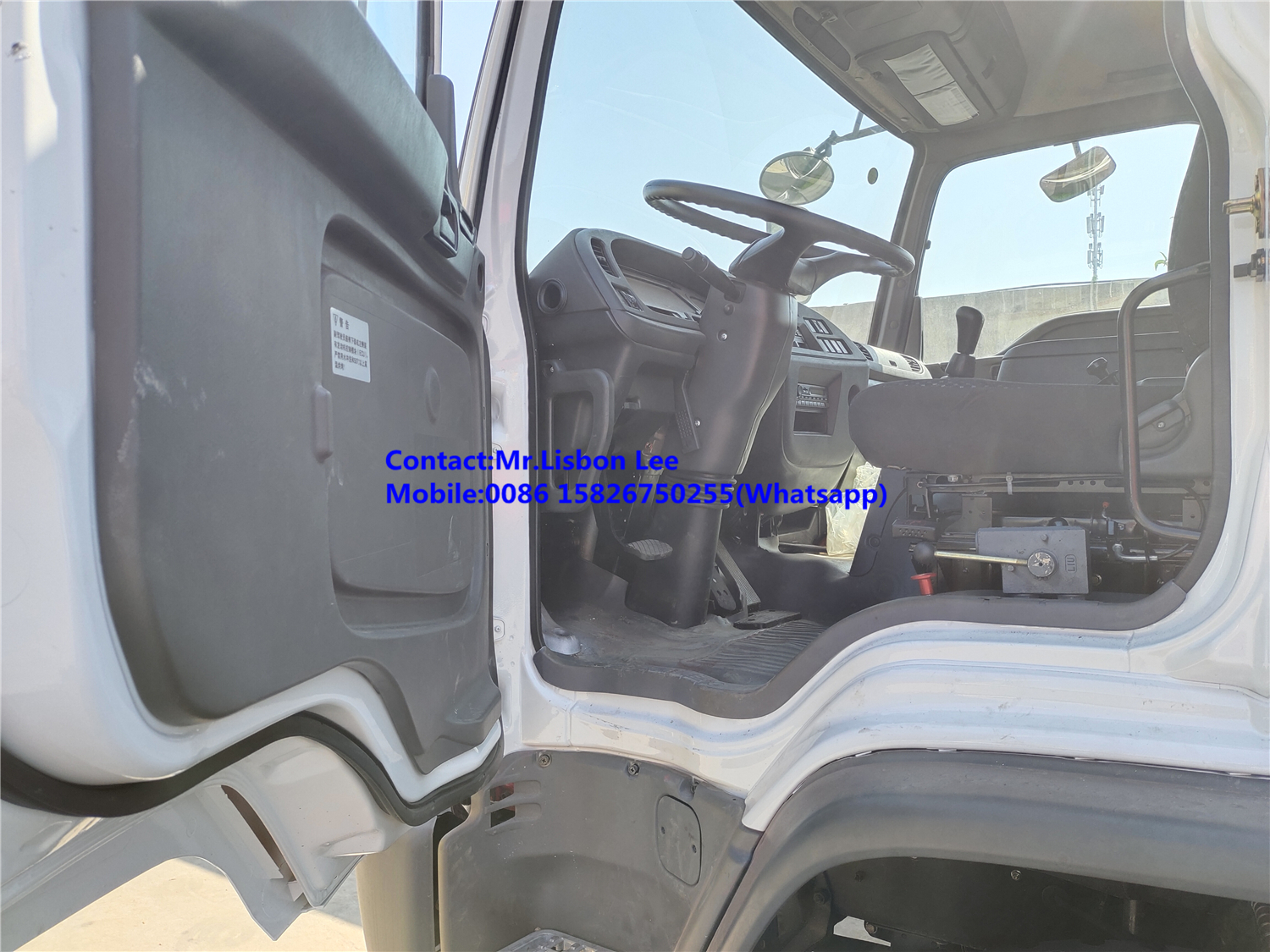

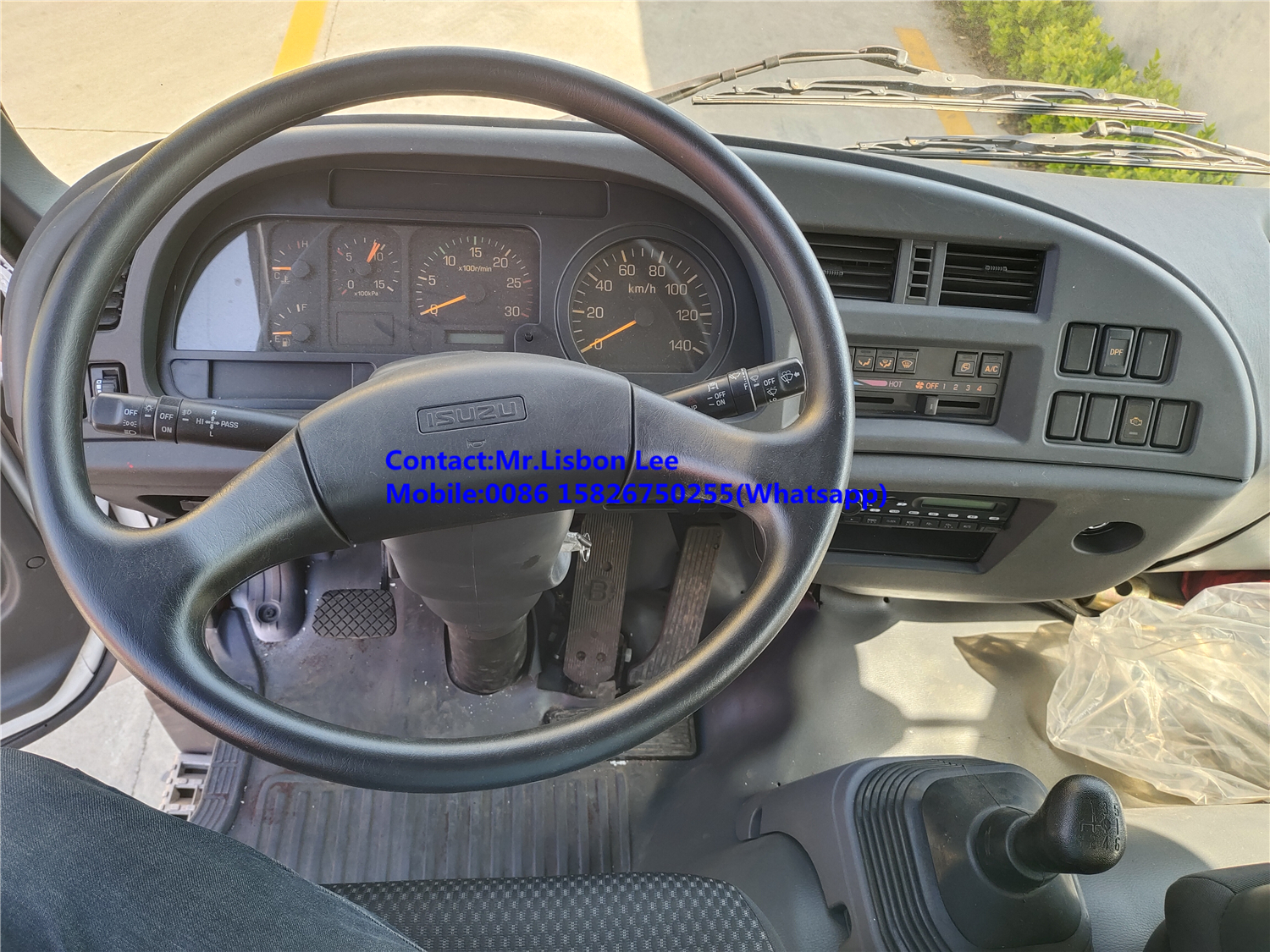

Cabin

Single row,two doors,luxury type,with power steering,air conditioner,,central lock,electric window,radio,USB interface

Brake

Pneumatic brake system,with ABS

Tire type

295/80R22.5

Number of spring plate

9/9+7

Front /rear overhang(mm)

1335/1735

Approach/departure angle(°)

15/17

Max.speed(km/h)

105

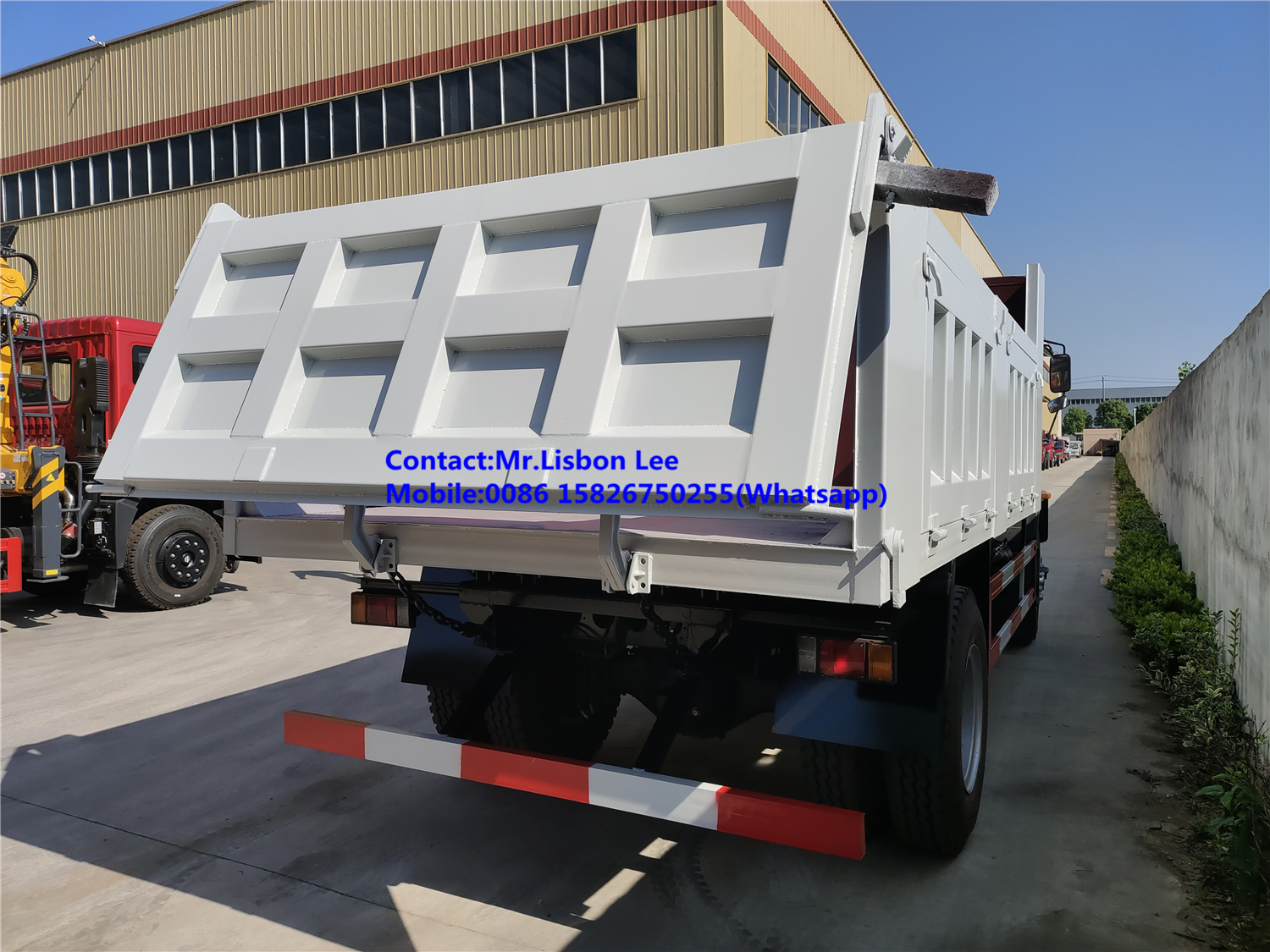

Lift system

Hydraulic front lift

Thickness of box

Side 6mm,bottom 8mm

Material of box

WISCO Carbon Steel Q235
